Headphone amplifier with DAC

FiiO R7 Black

no reviews

AED 2,899

Product code: 129594

CHAT WITH US

10:00-22:00

Available in stores

    Delivery from the supplier's remote warehouse.
    We will contact you within 48 hours to clarify the delivery time.

    Description

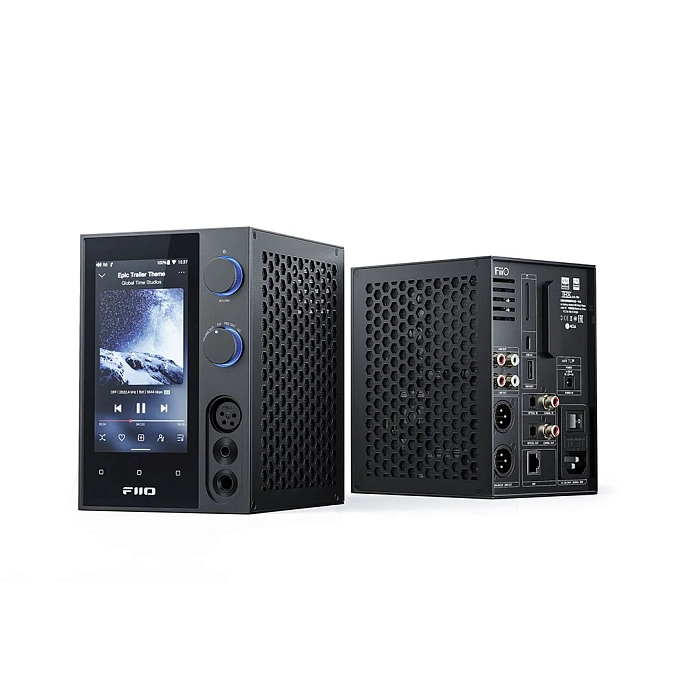

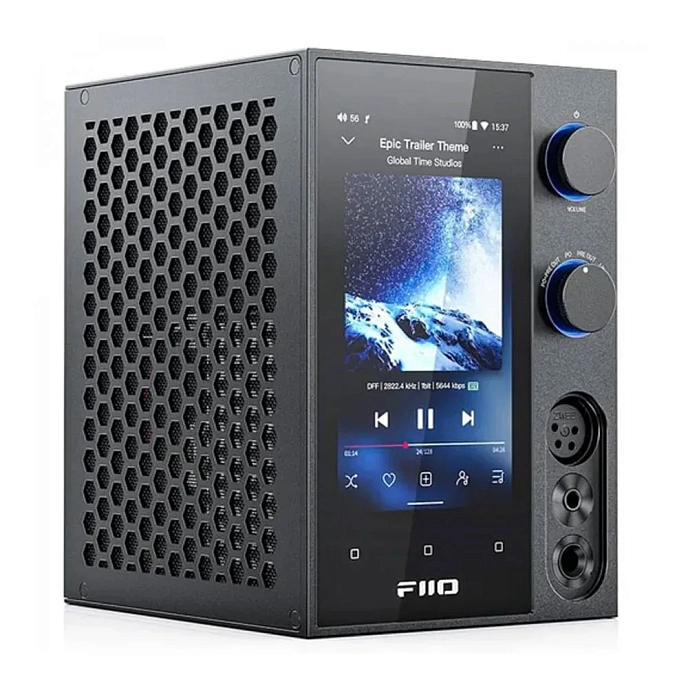

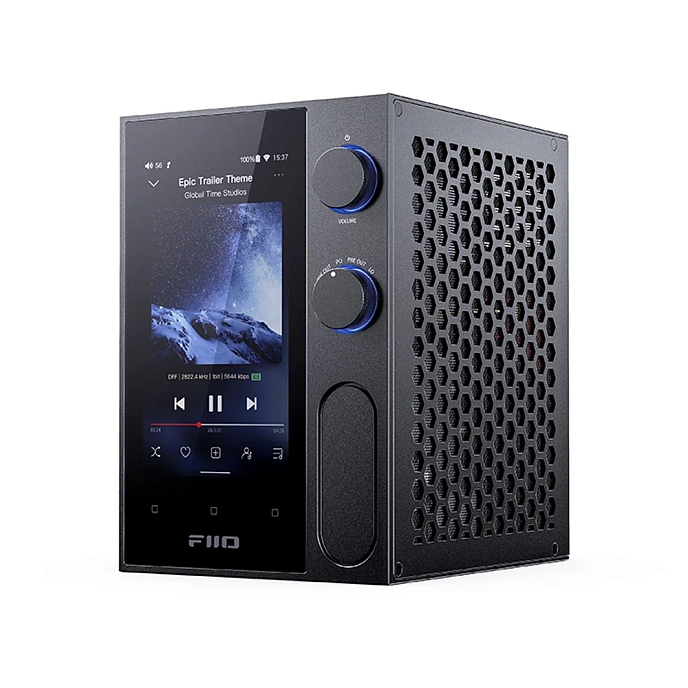

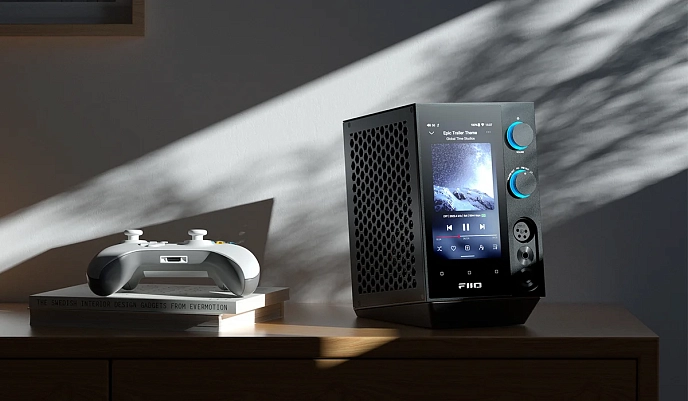

    FiiO R7 is a stationary network player. It has the same features as the high-resolution player M11Plus, plus two THX-AAA 788+ headphone circuits, a 4.4mm balanced headphone output, and FiiO's first XLR linear output. The product is designed for easy desktop use.

    Features:

    • ESS ES9068AS DAC;
    • THX AAA-788+ headphone amplifier;
    • Supports PCM 32-bit/768kHz, DSD512 formats;
    • 5 gain modes;
    • 8 operation modes;
    • XLR linear output;
    • Qualcomm Snapdragon 660 8-core SoC and Android 10;
    • microSD card slot up to 2TB;
    • Customized RGB lighting;
    • Network standards: LAN RJ45, Wi-Fi, Bluetooth 5.0 with LDAC, aptX-HD, LHDC codecs;
    • Personalized screen display;
    • Roon Ready certification and MQA x16 support;
    • Headphone outputs: unbalanced 6.3mm, balanced 4.4mm (Pentacon), and XLR;
    • Power mode from AC or DC.

    R7 offers premium sound thanks to the presence of premium components in its audio circuitry. It features the ESS ES9068AS digital-to-analog converter, supporting playback of PCM 768kHz/32-bit and DSD512. The THX AAA-788+ headphone amplifier, developed jointly by FiiO and THX, provides impressive power of 3,000mW (at 32 Ohms/balanced output) and low noise level with a Signal-Noise ratio of 122dB. It has up to five gain settings, a 4.4mm/4-pin XLR balanced headphone output, FiiO's first XLR linear output, and a LAN port.

    The left and right channels are processed by independent amplifiers, improving channel separation. Quality components like Panasonic film capacitors, high-capacitance tantalum capacitors, and more are used in the circuitry.

    It is equipped with an 8-core Qualcomm Snapdragon 660 SoC, 4GB of RAM, and runs on Android 10 with FiiO's custom operating system. The device supports various bit-perfect applications and has a microSD card slot up to 2TB.

    Dual Power Supply

    The dual power supply system in the R7 enhances the dynamics of your music. It includes AC input filtration with high-capacity chokes and specific high-voltage capacitors, as well as a ±12 V DC input scheme. Both power supplies contribute to system reliability and cleanliness.

    Wireless Bluetooth Features

    The Bluetooth 5.0 wireless connection supports high-quality codecs AAC, SBC, LDAC for both receiving and transmitting audio. It also supports aptX, aptX HD, and LHDC codecs, with Hi-Res certification for wired and wireless connections.

    8 Operation Modes

    The stationary device offers a choice of eight operation modes:

    • Android: install any apps;
    • Pure Music: exclusive FiiO mode;
    • USB DAC: external DAC mode;
    • Bluetooth Receiving: supports LDAC, SBC, AAC;
    • AirPlay: compatible with iPhones, iPads, and iOS devices;
    • COAX and OPT: connects via SPDIF;
    • Roon Ready: Roon player certification.

    4 Scenarios

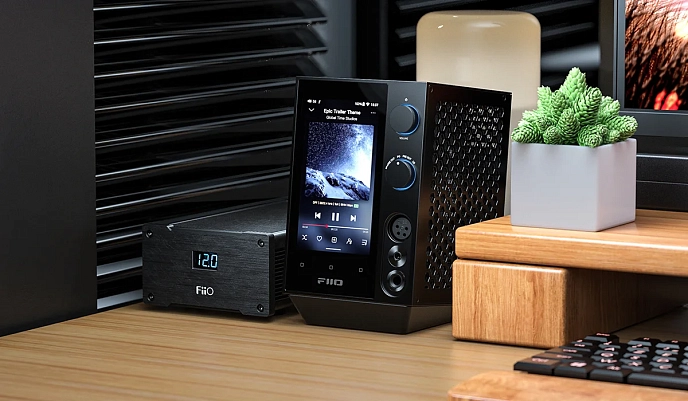

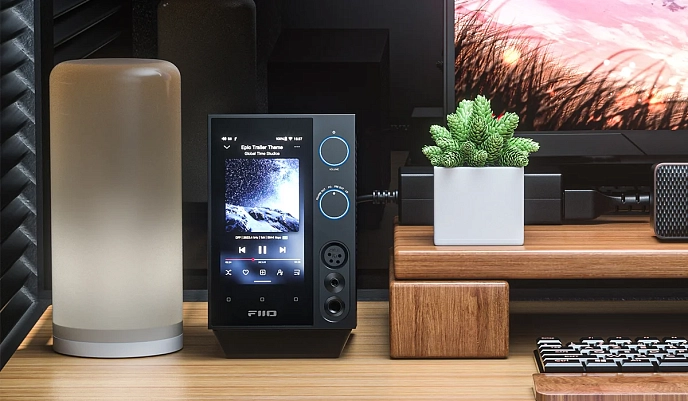

    The device offers 4 scenarios where the FiiO R7 can be the central hub of a multifunctional desktop audio system. A switch on the front panel displays the 4 device scenario modes.

    • PO + Pre Out: active front and rear headphone outs (default);
    • PO: only active front headphone outs;
    • Pre Out: only active rear outs with volume control;
    • LO: only active rear line outs with fixed volume.

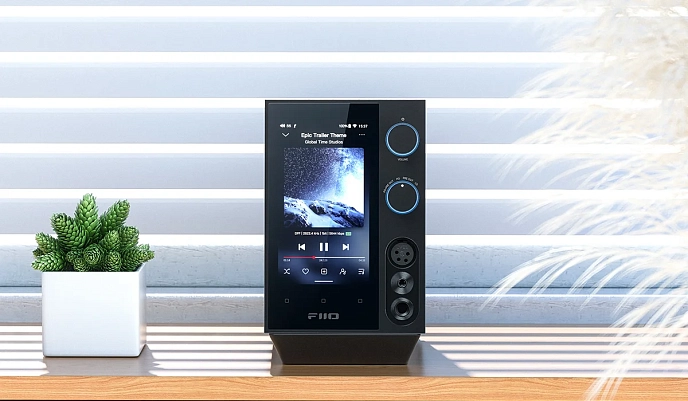

    Vertical Display for Streaming

    The bright 5-inch screen operates in vertical mode when streaming with services.

    Additional Screen

    The unique DP mode feature allows you to connect an external portable screen or tablet for visual control.

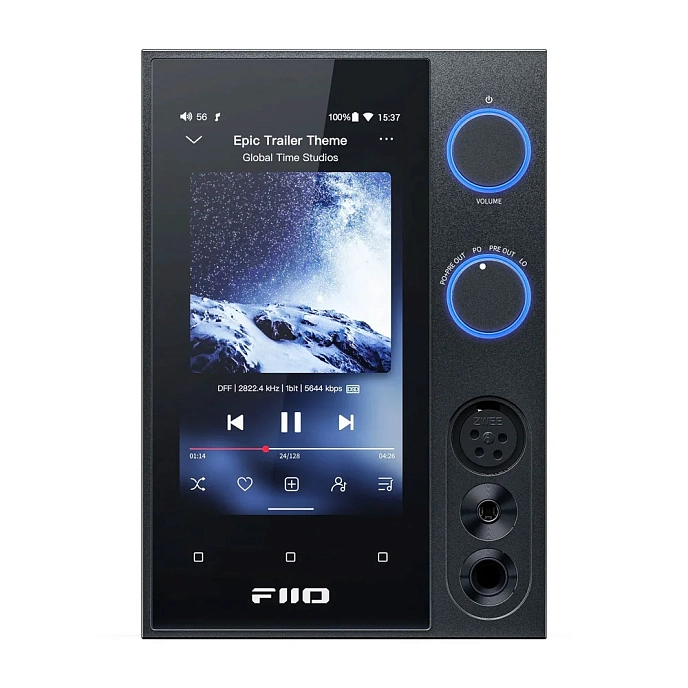

    The main control element is a quality touch screen on the front panel. It also supports the Fiio Music app for device control from a phone, remote control, and a PC app for convenience.

    Package includes:

    • Stationary player;
    • Power cable;
    • Stand;
    • Rubber feet;
    • 6.3mm adapter;
    • Spare fuse;
    • USB cable;
    • Memory card adapter;
    • Documentation.

    Characteristics

    • Brand
    • The lowest frequency, Hz
      20
    • The highest frequency, kHz

      The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

      Glossary of terms
      50
    • Sampling rate, kHz

      The sampling frequency of a time-continuous signal during its sampling

      Glossary of terms
      768
    • Signal-to-noise ratio, dB

      The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

      Glossary of terms
      122
    • DSD support

      Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

      Glossary of terms
      yes
    • Network standards
      DLNA, UPnP

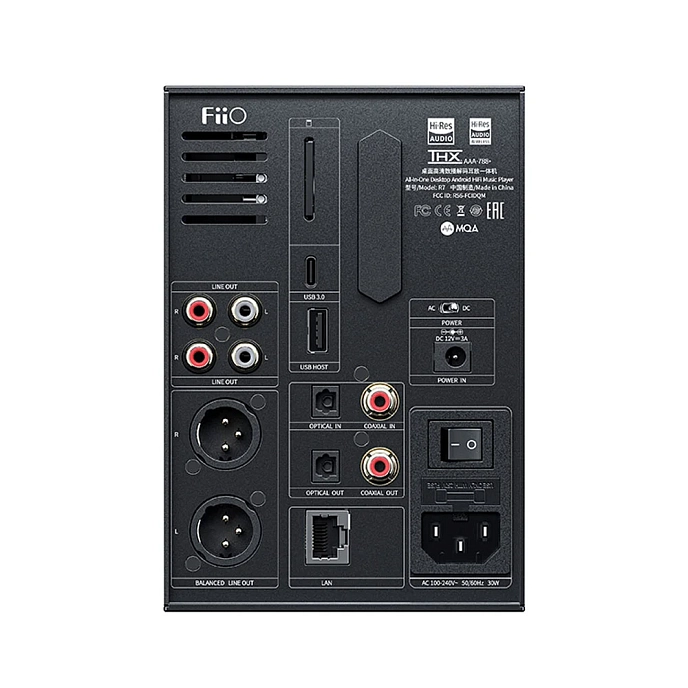

    • Output connectors
      XLR, RCA, Optical, Coaxial, USB-A, USB-C
    • Circuit design
      discrete

      The circuit with transistors used.

      Словарь терминов
    • Preamplifier

      A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

      Glossary of terms
      yes
    • Wi-Fi

      Support Wi-Fi technology

      Glossary of terms
      yes

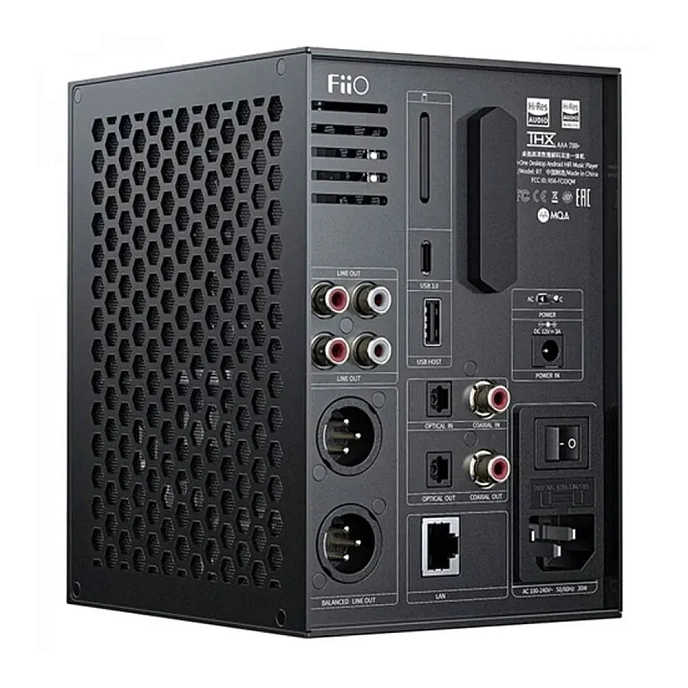

    • Input connectors
      RJ45, Optical, Coaxial, USB-A, USB-C
    • DAC chip

      The chip used for digital-to-analog conversion

      Glossary of terms
      ES9068AS
    • DAC bit depth, bits
      32
    • Internal DAC
      yes
    • Bluetooth version

      Bluetooth is a short-range wireless technology that allows you to connect headphones or portable speakers, a stereo system or a soundbar to your smartphone or laptop. For a certain version to work, both devices must support it. The versions differ in data transfer speed, power consumption, securing data transfer, anti-interference ability and range of connection.

      Glossary of terms
      5.0
    • Color
    • Connecting to a computer via USB
      yes
    • Form factor
      stationary

      For use on a table or in a rack.

      Словарь терминов
    • Material
      metal
    • Playback via USB
      yes

      Playing music files via USB

    • Headphone output
      6.35mm jack, XLR, 4.4mm jack
    • Depth, mm
      134
    • Height, mm
      160
    • Width, mm
      110
    • Weight, g
      1282
    • Service life, months
      24
    • Warranty, months
      12
    • Show all characteristicsShow fewer characteristics
