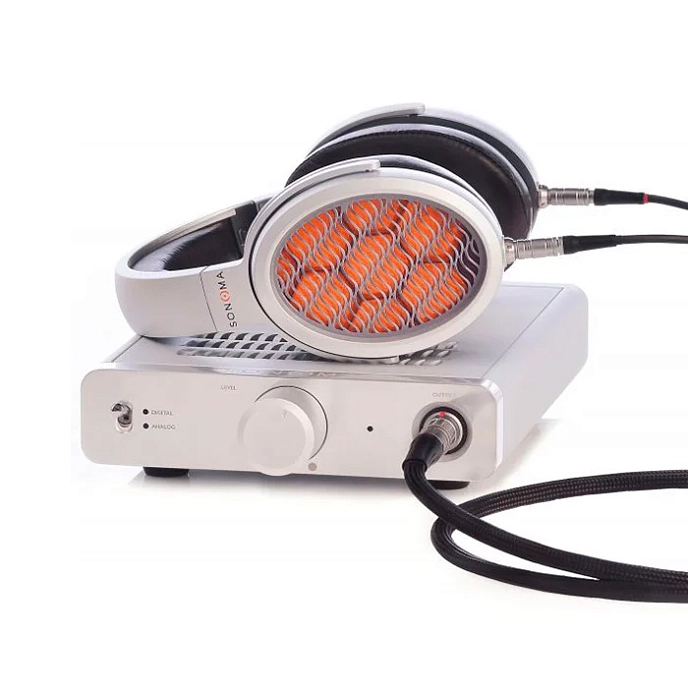

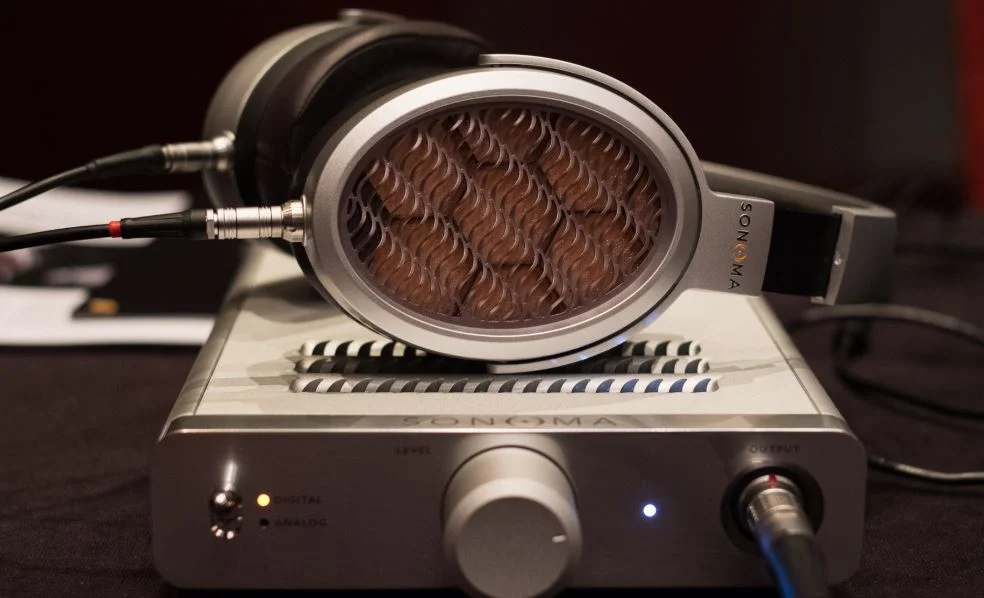

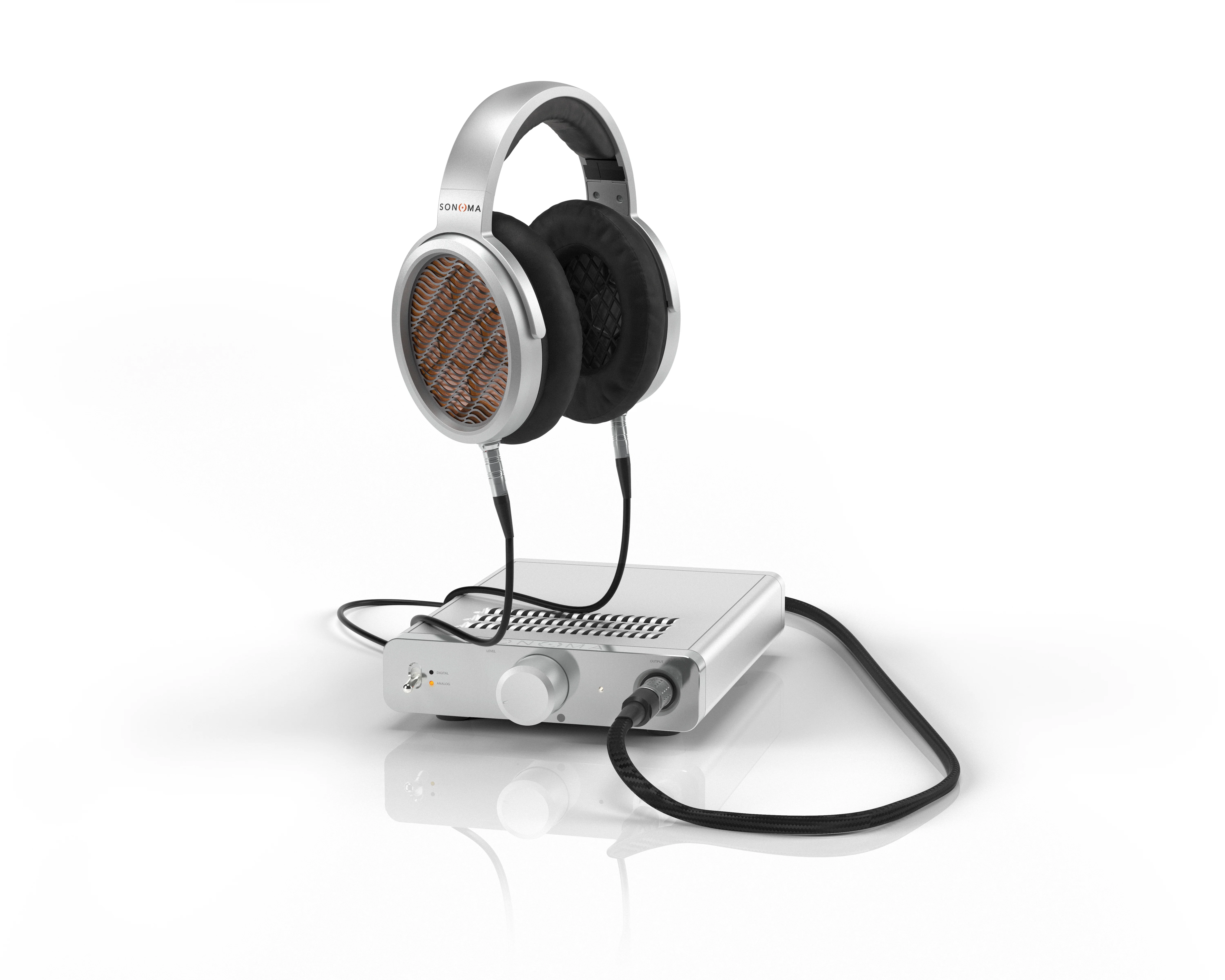

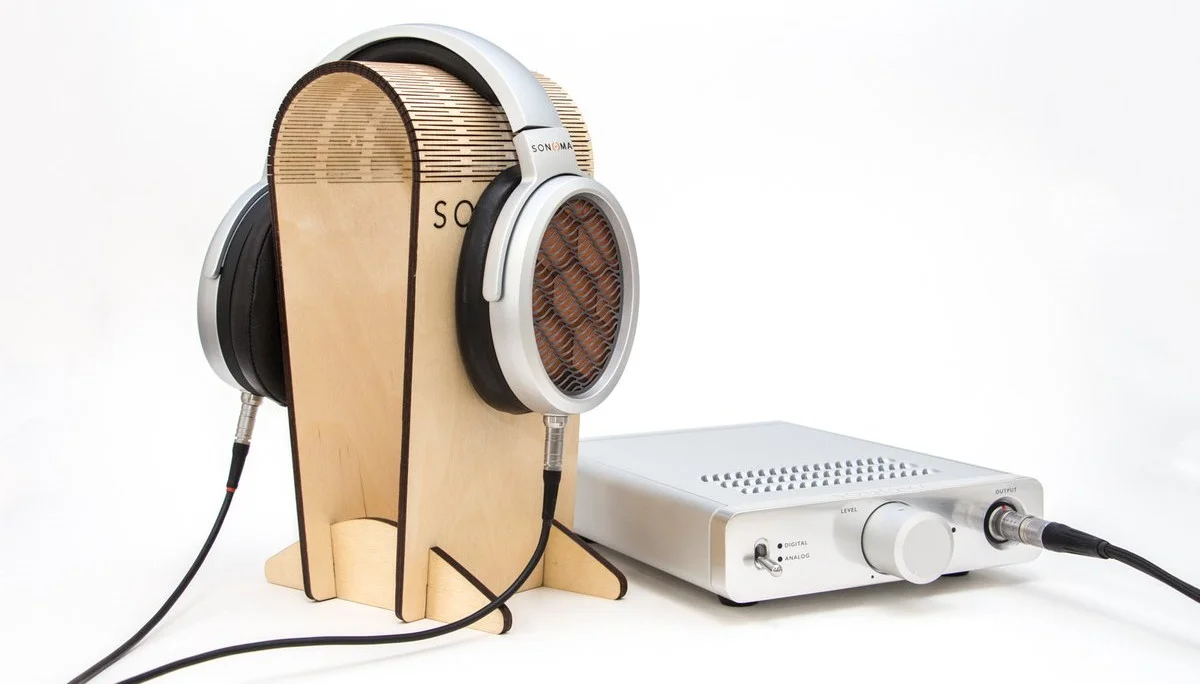

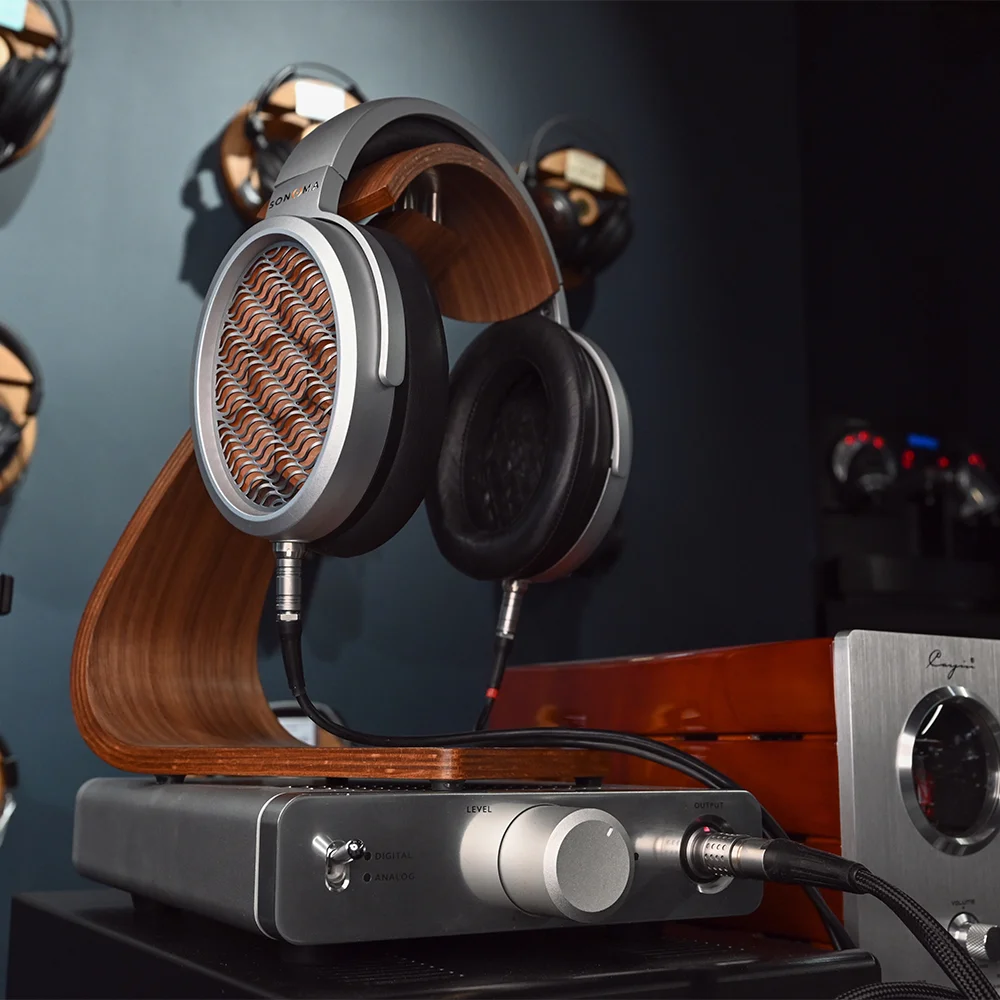

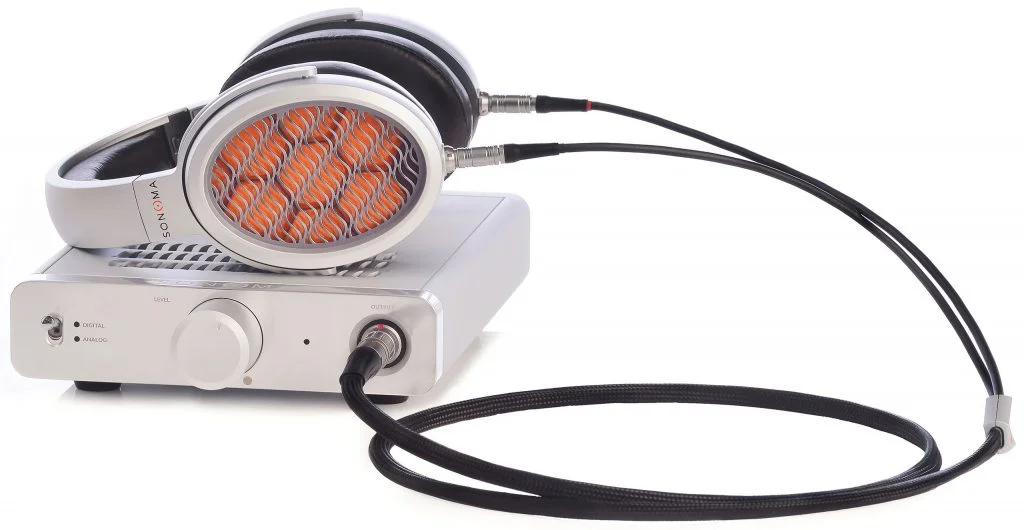

The revolutionary Sonoma Model One headphone system has been optimized for modern high-resolution audio formats. Every element of the system has been designed to provide an unprecedented level of playback and sound quality.
High-Precision Electrostatic Thin-Film Radiator (HPEL)
The Sonoma Model One's acoustic system is the world's first to use high-precision electrostatic HPEL radiators developed by Warwick Acoustics Ltd. Engineers at Warwick Acoustics have reimagined the electrostatic radiator, creating a multi-layered ultra-thin film with a conductive layer instead of the traditional "mesh-membrane-mesh" design. The absence of a front mesh allows sound to emanate from the headphones without any mechanical barriers, resulting in distortion-free sound.

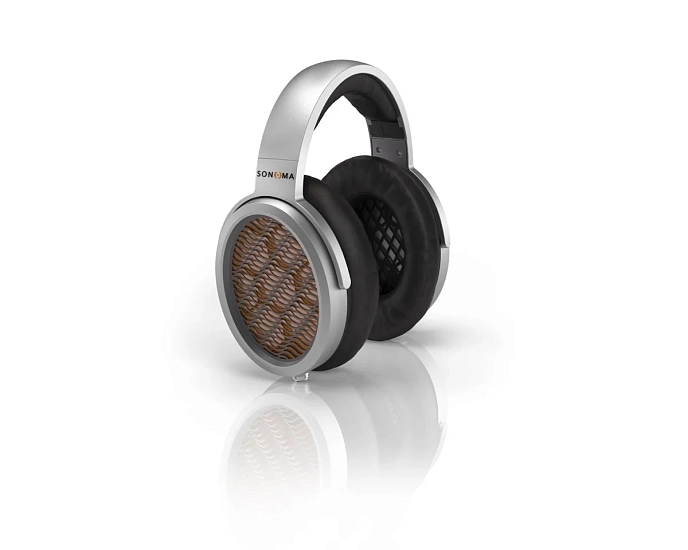

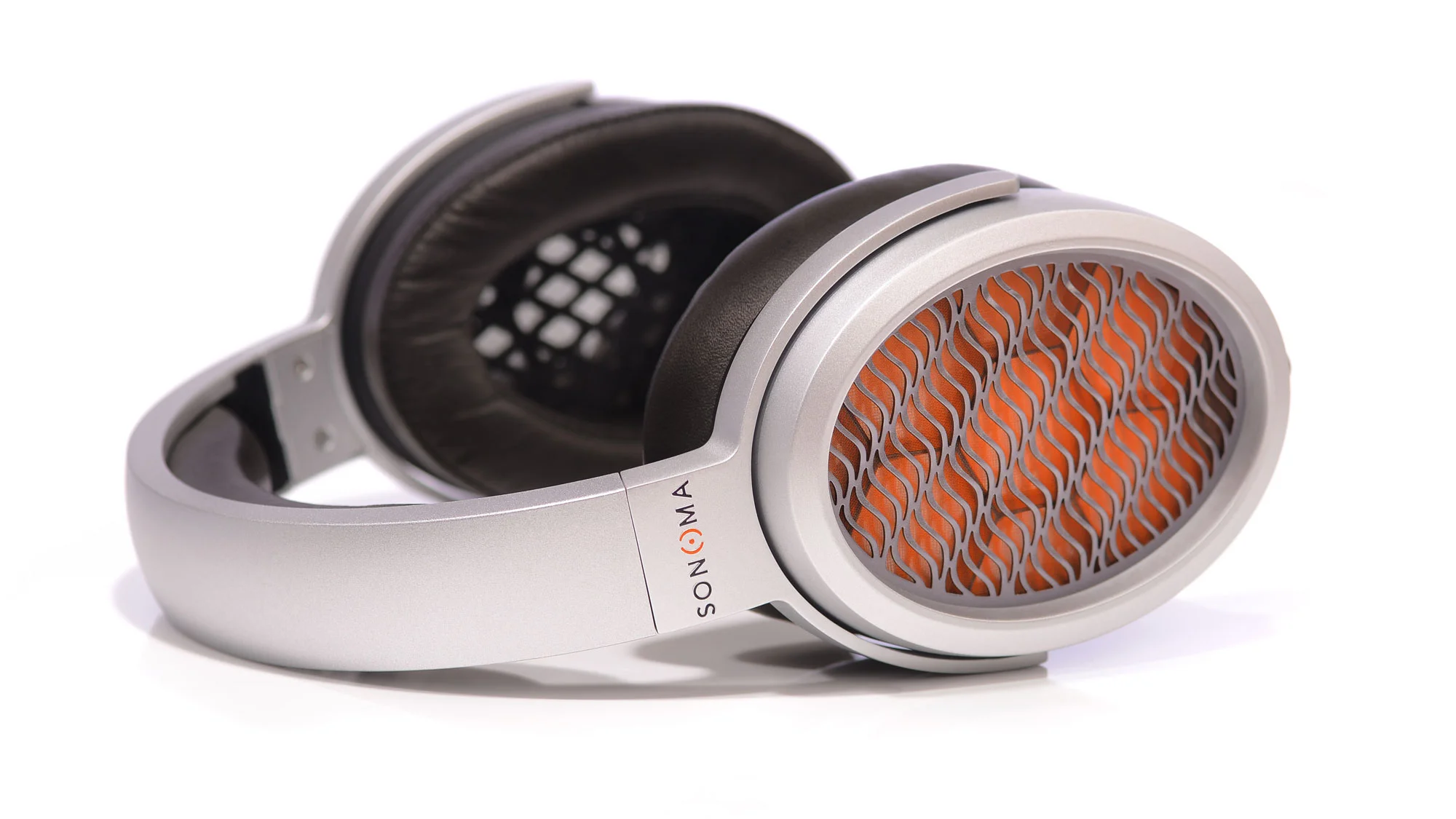

Comfort and Flawlessness

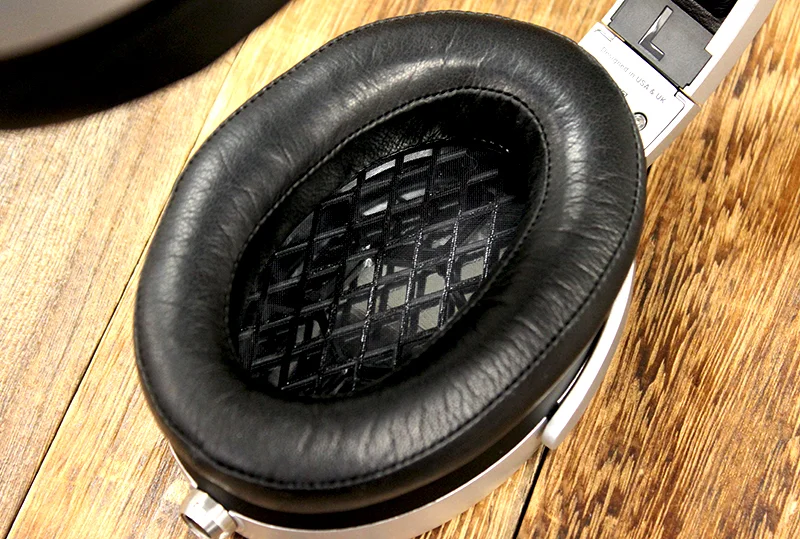

For comfort during extended listening sessions, the headphones and headband are handmade from premium sheepskin. The magnesium cups were chosen as the material for the headphones due to their excellent balance of strength and weight, as well as their ability to effectively dampen vibrations. The lightweight nature of magnesium ensures a comfortable fit for the headphones.
Low-Resistance Cable

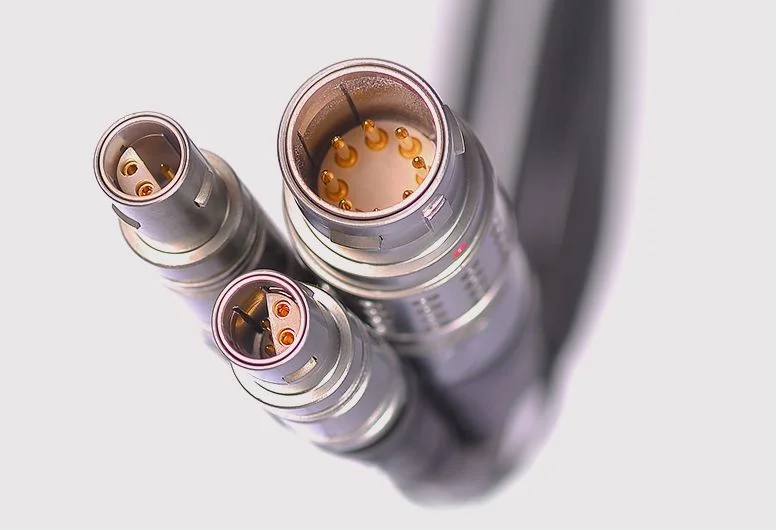

In collaboration with Straight Wire Inc., a special super-low-resistance cable with high-precision self-locking connectors has been developed for the Sonoma Model One headphones to ensure ideal signal transmission between the amplifier and the headphones.

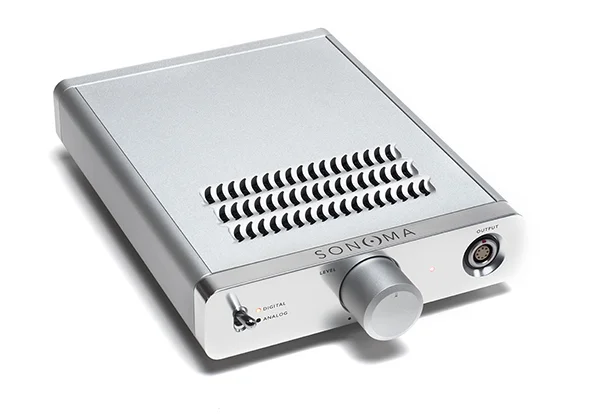

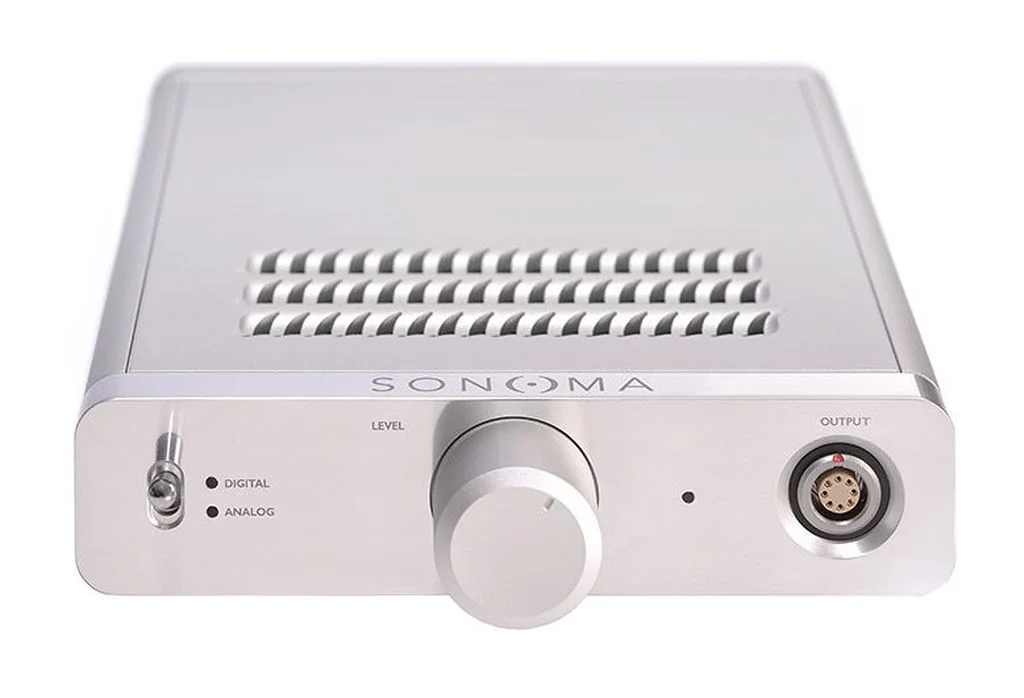

Class A Amplifier

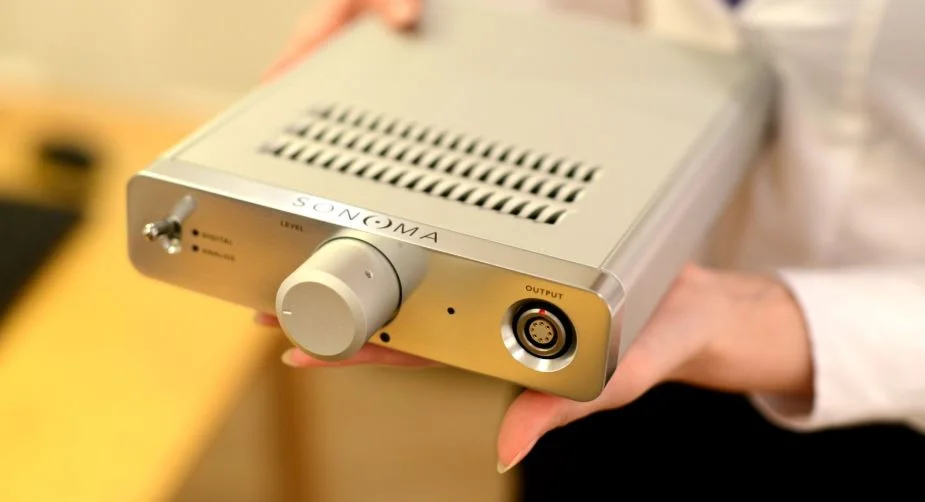

The discrete, non-symmetrical Class A amplifier using field-effect transistors ensures an extremely low level of distortion in the final signal, while the amplifier is fully shielded from all interference by an aluminum enclosure.
Features:
- Weight: 303g without cable
- Configuration: Open-back, full-size headphones
- Radiator: High-precision electrostatic laminate, non-symmetrical
- Diaphragm working area: 3570 mm2
- Frequency response: 10 Hz - 60 kHz
- Output signal level: Comparable to EN 60065/A12:2011 (EN50332) when using M1 Energizer/DAC (for all inputs)

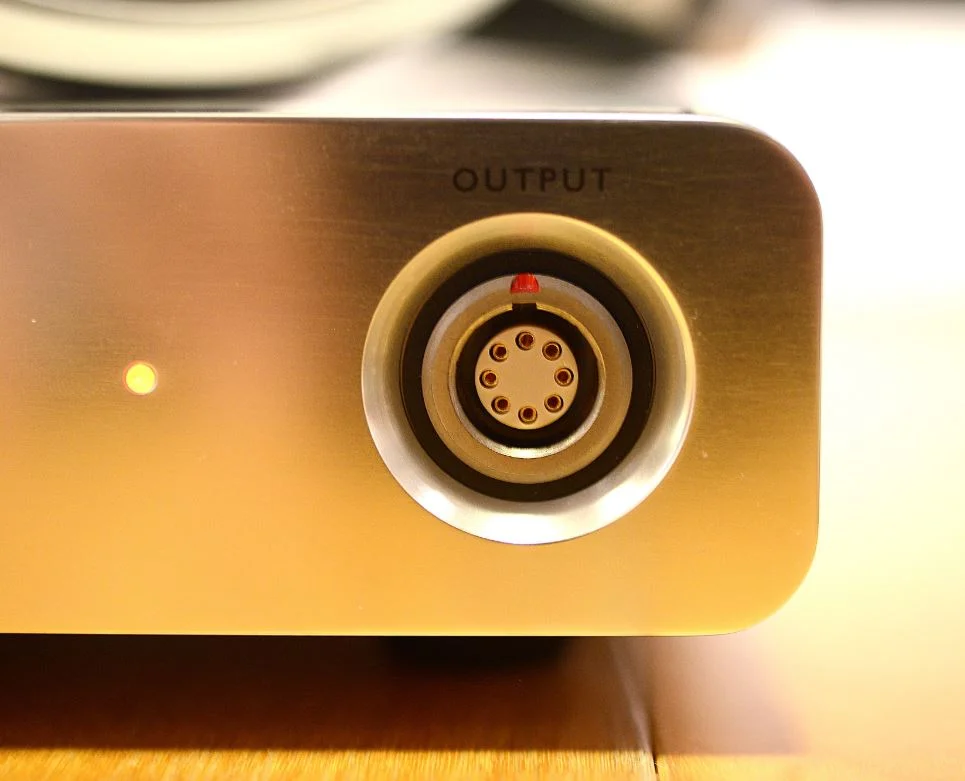

- Input: Polarized 4-pin self-locking connector for left and right channels
- Ear cushion and headband material: Fine sheepskin, chevron
- Cable: Super-low resistance; polyethylene foam insulation; reinforced with Kevlar

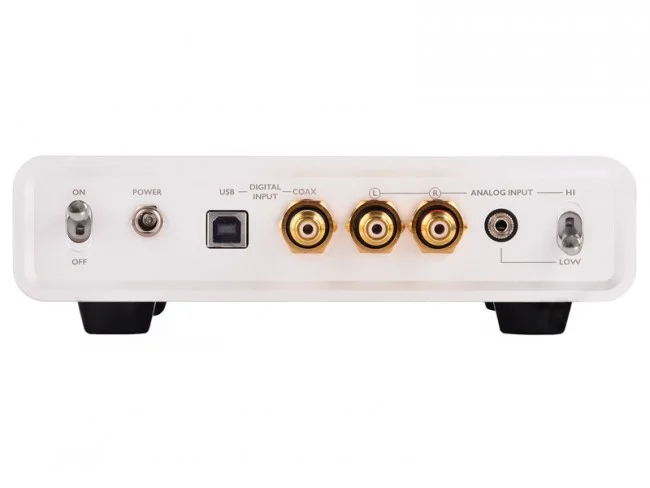

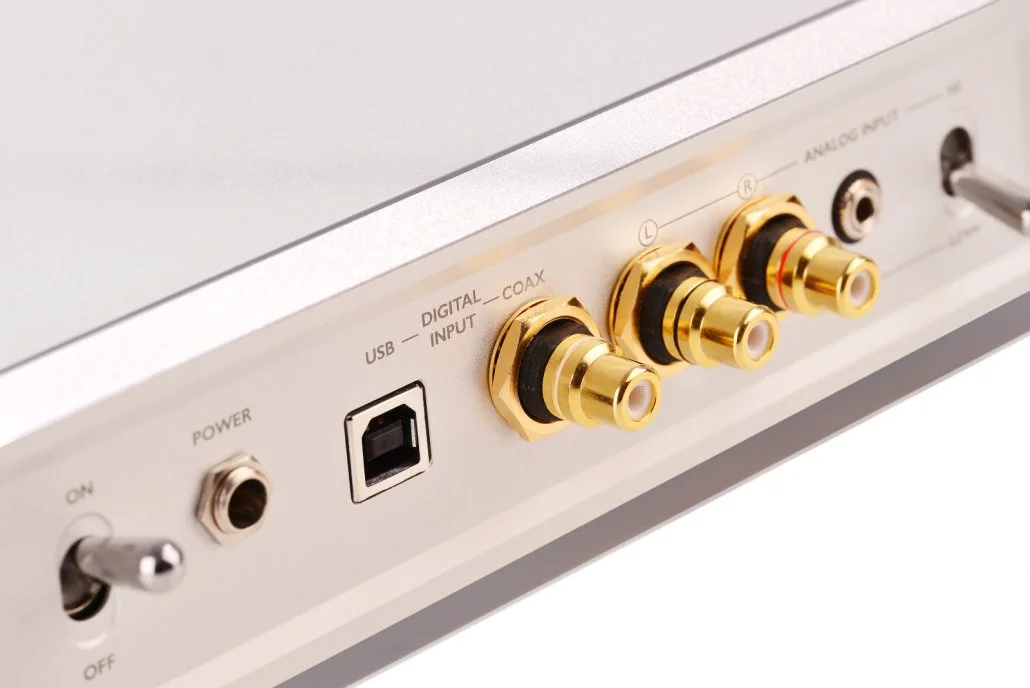

- USB input: USB 2.0, Type B. Supports digital formats up to 32-bit / 384 kHz PCM and DSD (DSD64/DSD128)
- Coaxial digital input: S/PDIF. Supports digital formats up to 24-bit / 192 kHz PCM
- Analog input (high level): RCA, 2.1V
- Analog input (low level): 3.5mm, 850 mV
- DAC: 2 mono DACs 32-bit / 384 kHz with balanced outputs
- ADC: 32-bit / 384 kHz multi-channel ADC with balanced input buffers
- ACO (DSP): 64-bit double-precision base processing
- Distortion and noise: <0.05%
- Frequency range: >65 kHz
- Enclosure: Polished aluminum 6063

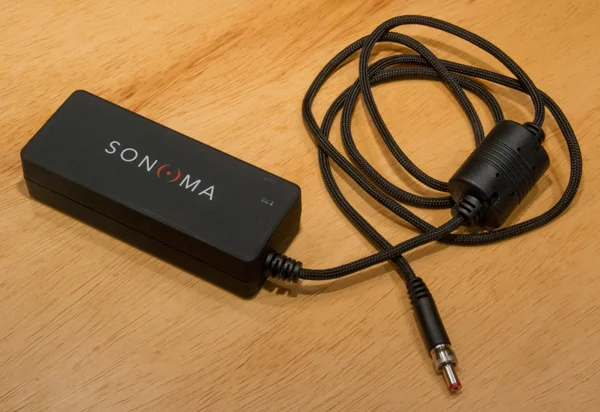

- Power: External - 24V DC, 60VA, Class B power mode with fixed frequency. Internal - fully isolated linear regulation with ultra-low noise.
- AC power: Equivalent to 90-264V AC, 50-60Hz; IEC-60320 C14, grounded power cord 1.5m long.
- Dimensions: 57mm x 190mm x 290mm

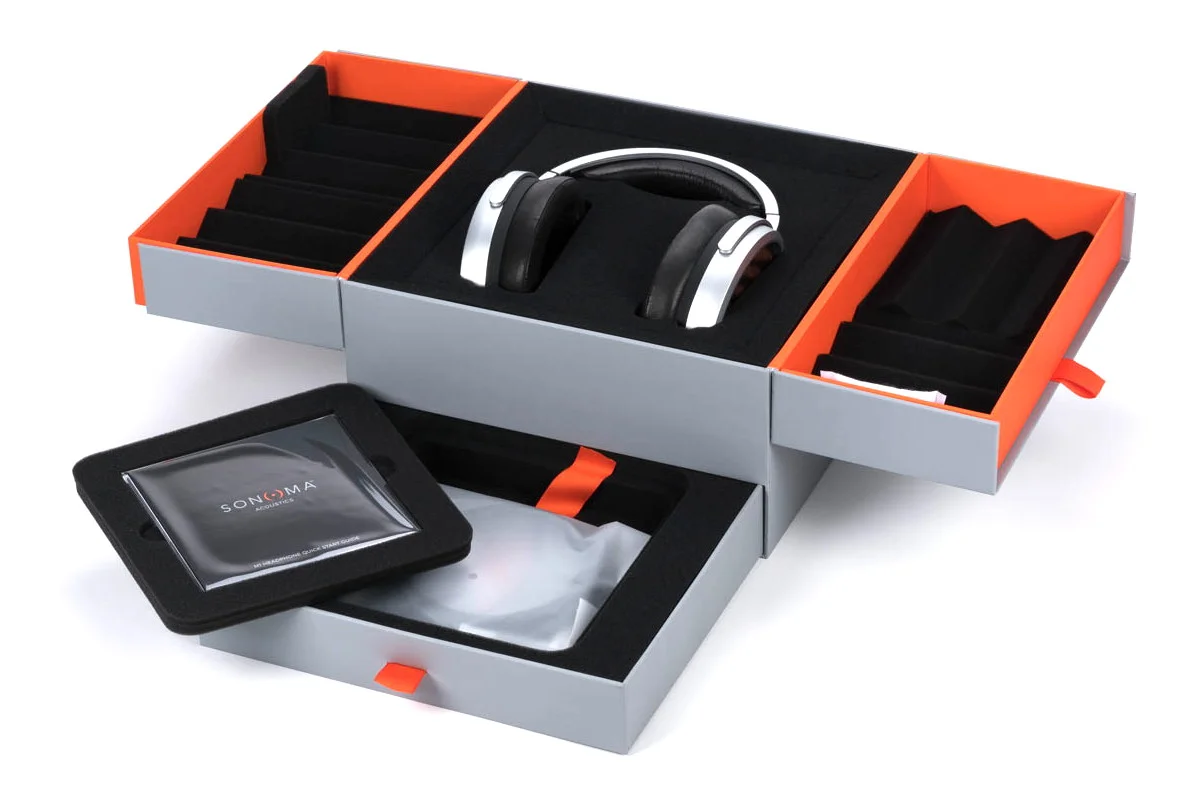

Package Includes:
- Headphones
- Amplifier
- Headphone cable
- USB cable
- Power cable
- Documentation
