RME Madiface XT II is a powerful MADI/USB3 audio interface, capable of handling up to 394 channels at a frequency of 192 kHz. It offers high-quality sound conversion and flexible connectivity options, making it the perfect solution for large recording studios, broadcast companies, and complex live sound systems.
With the built-in DSP mixer TotalMix FX, DIGICheck analyzer, and SteadyClock FS technology, Madiface XT II delivers impeccable performance, precise control, and reliable synchronization, providing engineers with all the necessary tools to work at a professional level.
New Analog Recordings
The successor to MADIface XT II supports this successful formula and exceeds the signal performance of its predecessor in many areas. Among other things, MADIface XT II features a higher signal-to-noise ratio and lower THD value in AD conversion.
In addition, the maximum level of balanced XLR linear outputs has been increased from +15 dBu to +24 dBu. The stereo headphone output of MADIface XT II also provides a significantly higher output level of +19 dBu and, with an output impedance of 1 Ohm, significantly more power than its predecessor. All outputs also have multiple level adjustment options.
New Digital Circuit Board

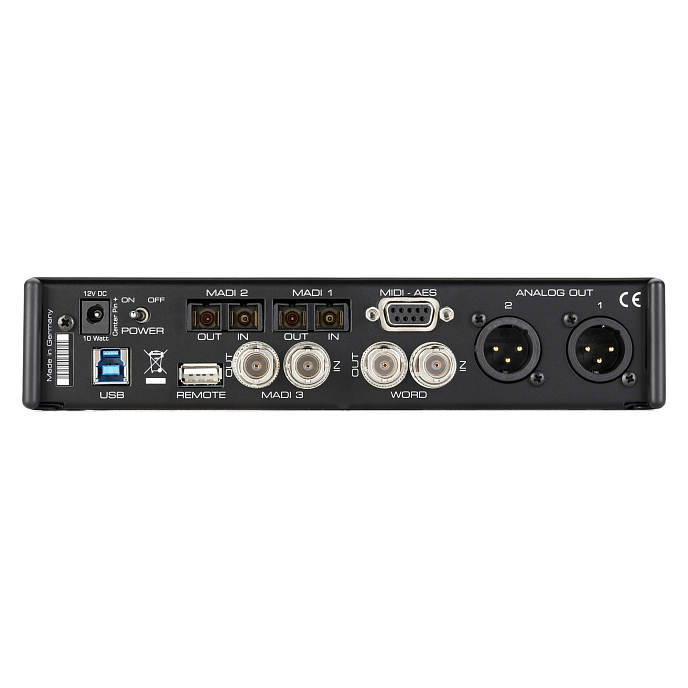

On the new digital board, the previous analog mini-DIN connector for remote control of individual functions has been replaced by a remote ARC USB port, which allows comprehensive control of MADIface XT II through an additional ARC USB port.
Powerful Mixing, Monitoring, and Measurement Applications
MADIface XT II comes with the TotalMix FX DSP mixer, offering extensive routing and monitoring capabilities, as well as the DIGICheck analyzer, allowing for precise measurement and analysis of digital data in both directions with maximum accuracy. TotalMix FX can completely replace an external mixer, allowing for creating multiple monitor mixes without delays with equalization, dynamics, reverberation, and delay for any outputs, including mixes for main monitors and headphone mixes for musicians.
Package includes:
- Audio interface
- USB 3.0 cable
- AES/Midi cable
- Power adapter
- Manual.
