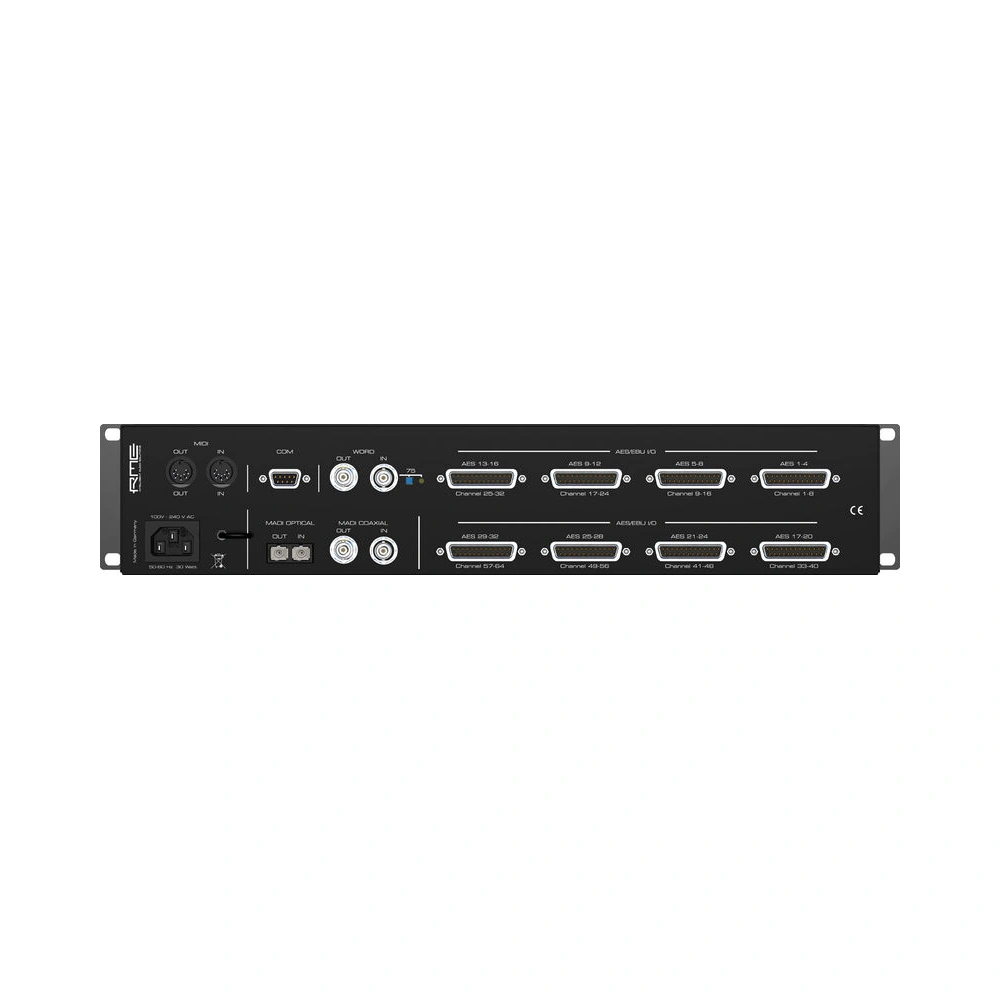

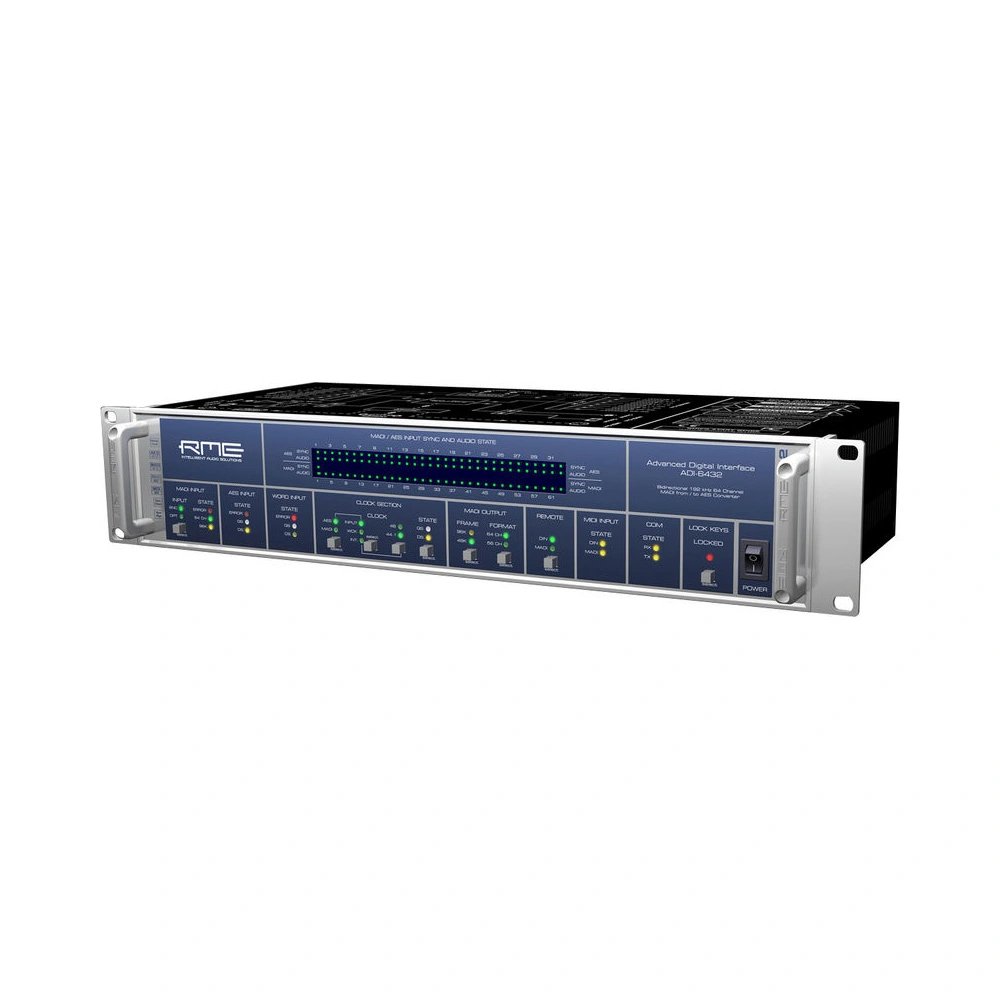

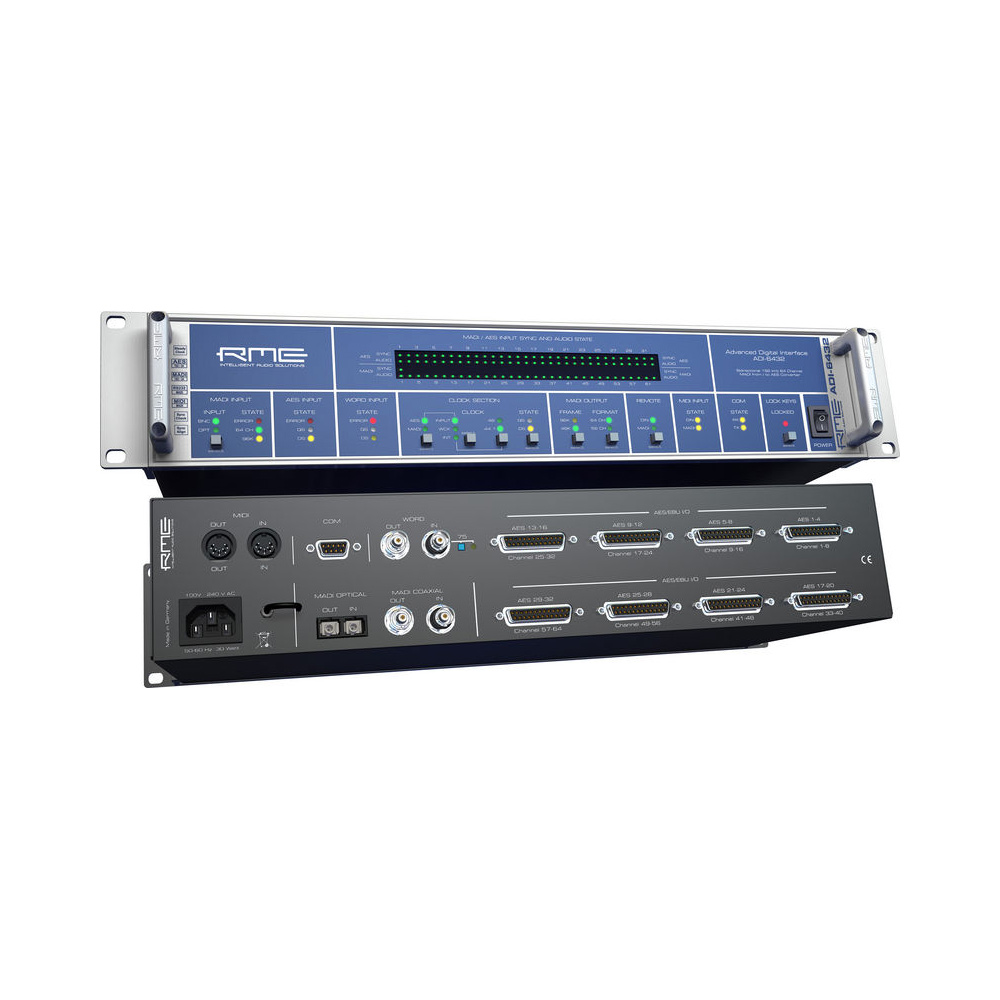

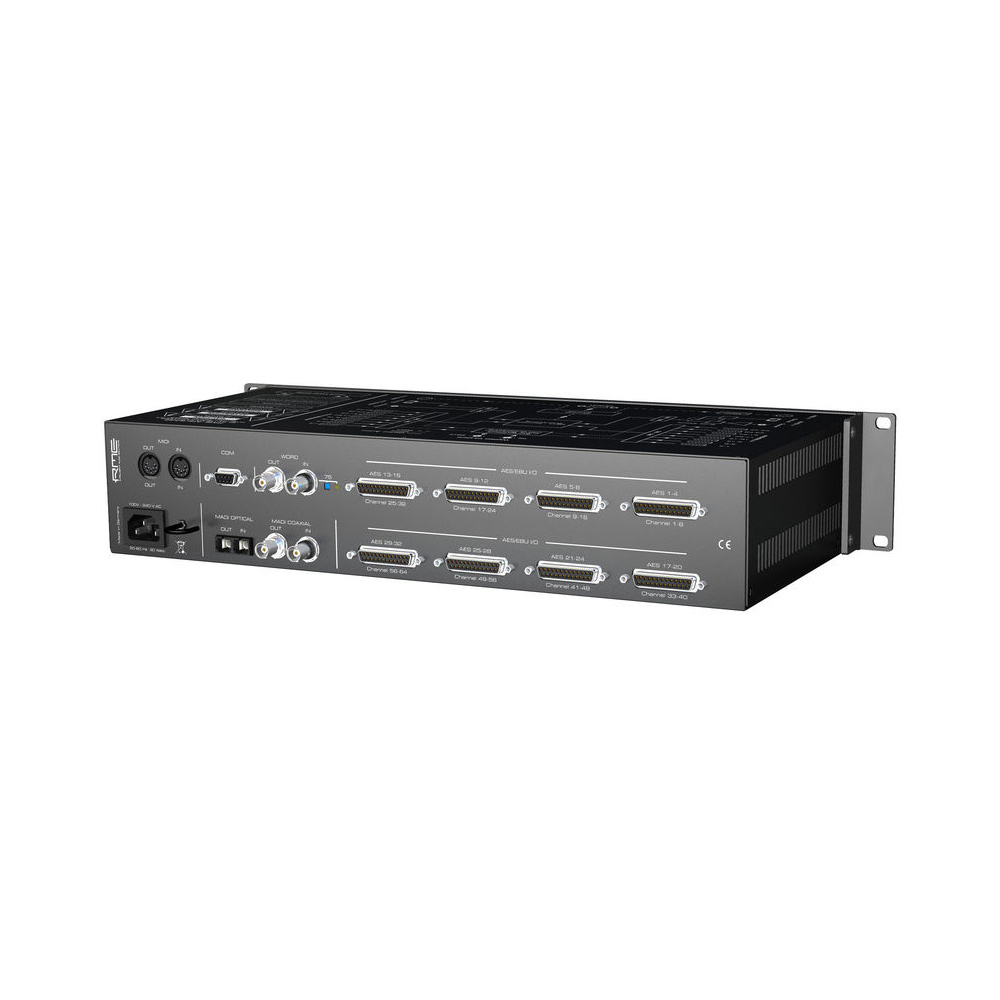

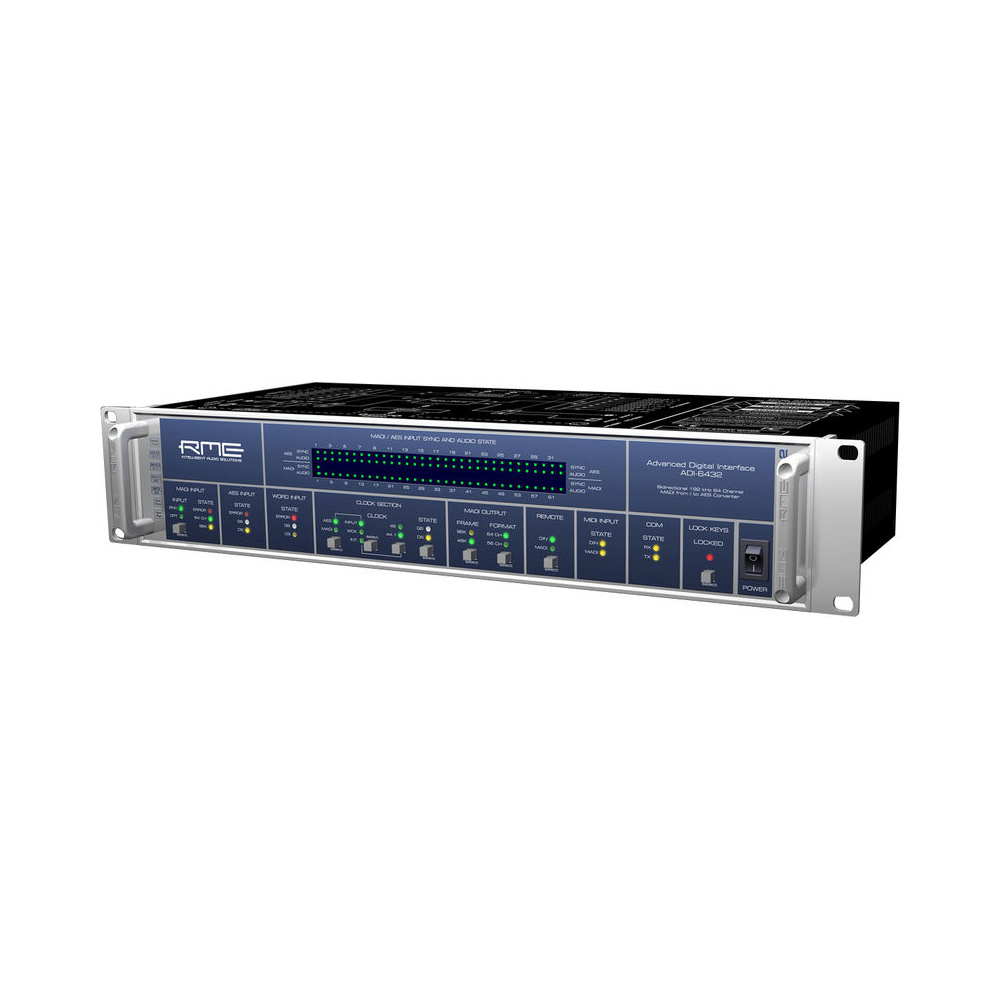

The ADI-6432R BNC offers 64 channels of bidirectional conversion between MADI and AES-3id formats. Based on the well-known ADI-6432 converter, this device provides easy integration and operation using standard BNC connectors. It features a status display, SteadyClock technology for jitter suppression and re-clocking, remote control via MIDI, MIDI and RS232 data transfer via MADI, and Redundant power supply system. It supports both coaxial and optical connections, with an option for single-mode connectors.
Features:
- Effective jitter reduction allows any signal to be improved and used as a reference

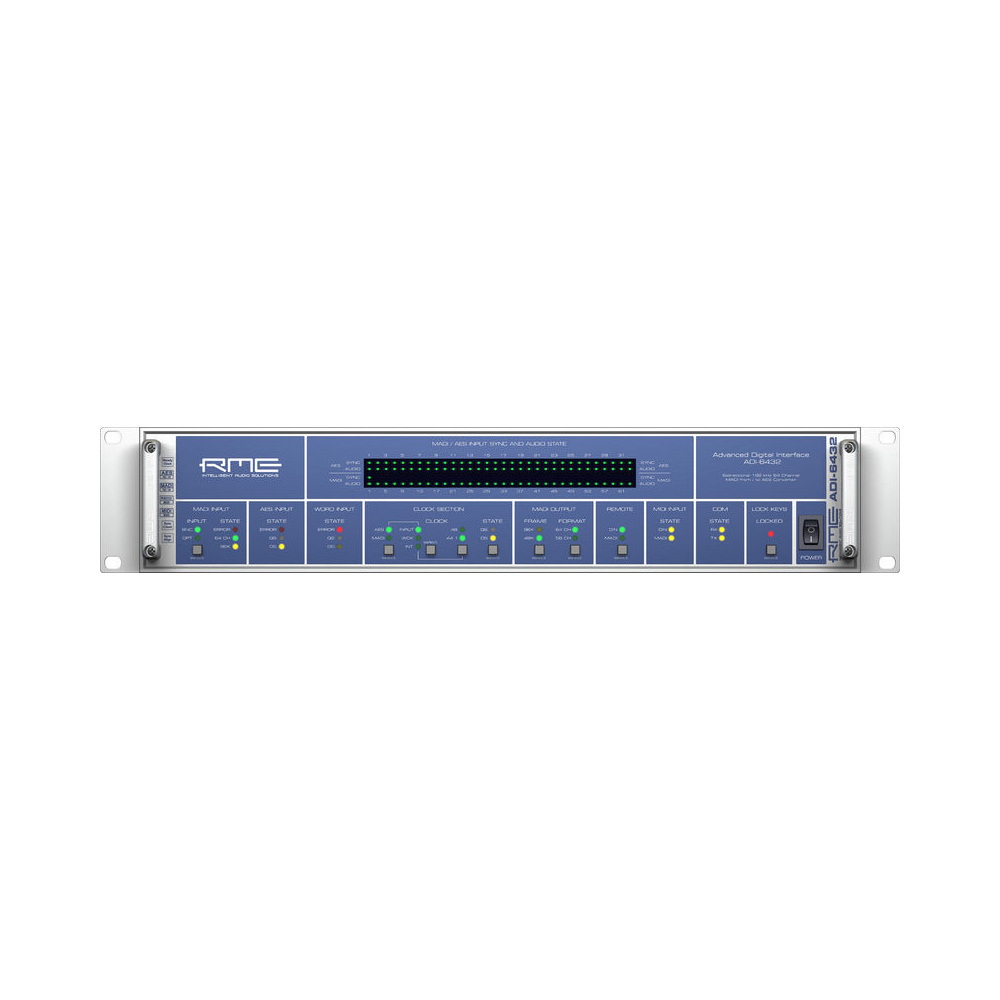

- 97 LEDs on the front panel display the audio synchronization status
- Control buttons can be locked to prevent accidental changes in settings
- Wide selection in the menu
- Automatic selection between optical and coaxial inputs offers a useful backup mode
- Provides full synchronization
- All settings are preserved even when the device is turned off
- Includes an additional power source
- Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Package includes:
- Sound card
- Power cable
- Manual
