Designed to work seamlessly with PreSonus StudioLive Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios, as well as 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software.
All eight outputs employ locking XLR jacks, while the built-in 2-port AVB switch lets you daisy-chain multiple units. The rugged steel chassis with sturdy handles is designed with a stage box form factor and allows the NSB 16.8 to sit well on the stage and survive the rigors of on-the-road wear and tear. The unit can be rackmounted with an optional rack-ear kit.
Analog Input/Output

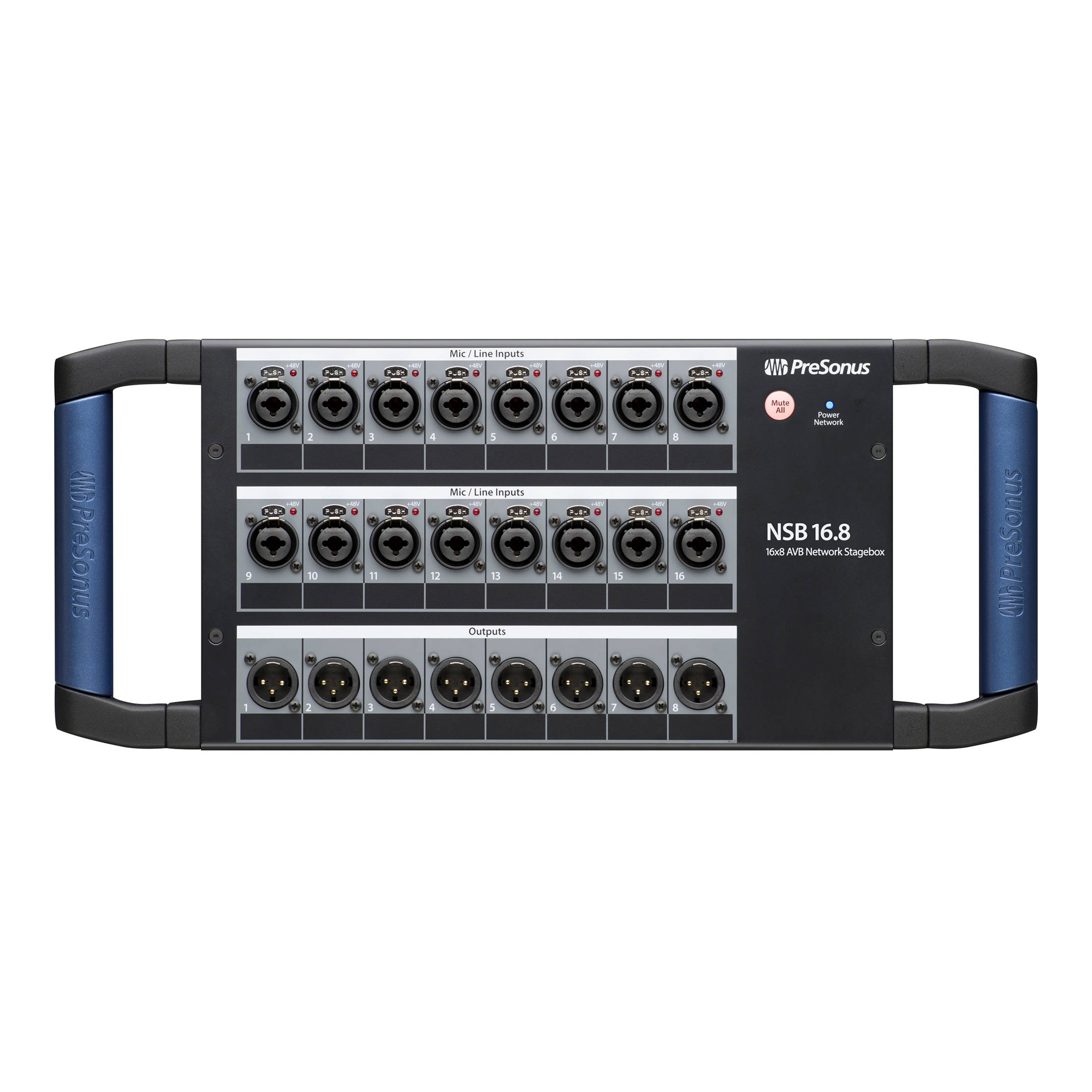

Locking, remote controllable combo mic/line inputs. 16 remote-controllable XMAX preamps. Gain compensation for shared inputs. 8 locking XLR line outputs.
Meters, Controls, and Processing
Mute All button. +48V indicators. Easy setup and control from StudioLive Series III consoles and UC Surface.
Digital

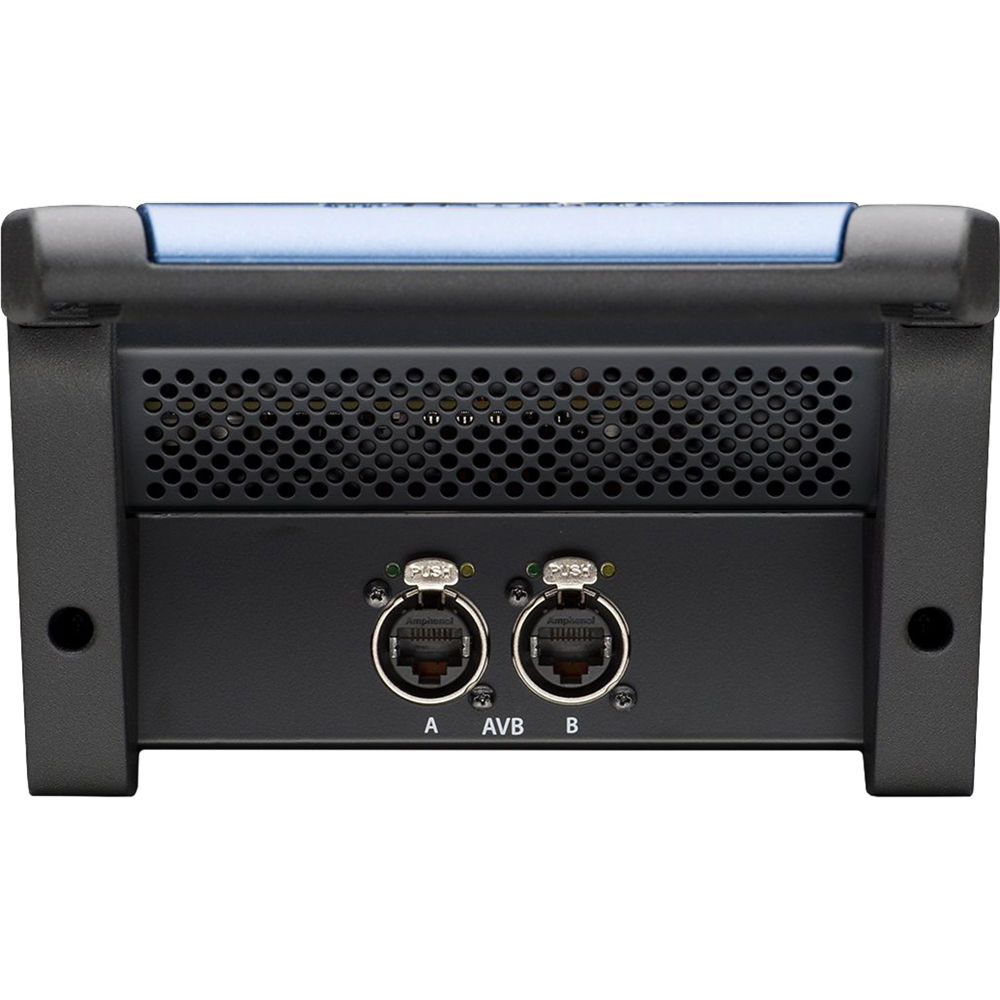

32x8 AVB (16 direct input channels + 16 gain-compensated input channels). 2 AVB ports with locking XLR Ethernet jacks.
Actively Integrated Software
Easy setup and control from PreSonus UC Surface touch control software for Mac, Windows, iPad, and Android, available free from Apple App Store and Google Play.
In the Box:
- PreSonus NSB 16.8 - 16 x 8 AVB-Networked Stage Box;

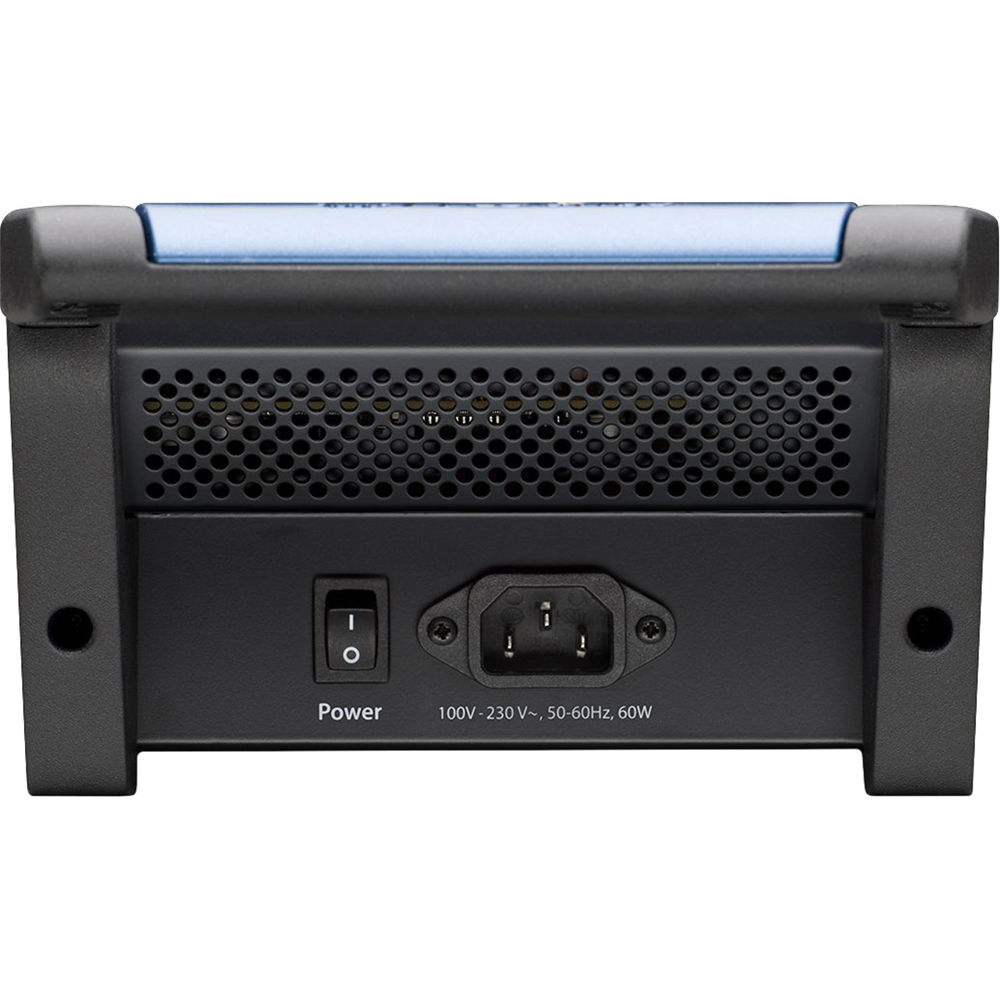

- Power Cord;
- Manual.
