Studio microphone
Neumann TLM 103 Nickel

Product code: 91565
no reviews
AED 4,337.55
Delivery
Pickup in Dubai:
Calculating...
Delivery by courier:
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

The Neumann TLM 103 is a studio condenser microphone that belongs to the TLM microphone range. These microphones are designed with a transformerless circuit to minimize noise levels and provide excellent response to transients. They also have a high output signal level, eliminating the need for a preamplifier, and offer exceptional linearity in frequency response even at low signal levels.

The TLM technology used in these microphones removes the reliance on magnetization of the core. Additionally, the TLM 103 features a large diaphragm, which is a common characteristic of most Neumann studio microphones. This large diaphragm allows for distortion-free recording of high sound pressure levels.

All TLM microphones are compatible with standard 48-volt phantom power, which is typical for condenser microphones. The TLM 103 specifically is a condenser microphone with a large diaphragm and a cardioid polar pattern. Its capsule design is based on the U 47 microphone. Despite its affordable price, the TLM 103 is the top-selling large-diaphragm microphone due to its sound quality that rivals more expensive options.

This microphone is ideal for recording vocals and broadcasting, but it can also be successfully used for capturing various instruments including strings, brass, percussion, guitar amplifiers, and even entire drum kits.

Features:

  • Transformerless circuit design for minimal noise levels
  • Exceptional response to transients
  • High output signal levels without the need for a preamplifier
  • Superb linearity in frequency response at low signal levels
  • Large diaphragm for distortion-free recording of high sound pressure levels

Specifications:

  • Frequency response range: 20 - 20000 Hz
  • Polar pattern: Cardioid
  • Type: Condenser
  • Sensitivity: 23 dB/Pa
  • Nominal impedance: 50 Ohms
  • Minimum load impedance: 1000 Ohms
  • Maximum SPL: 138 dB
  • Input/output type: XLR 3F
  • Dimensions: 60 mm in diameter, 132 mm in length
  • Weight: 450 g

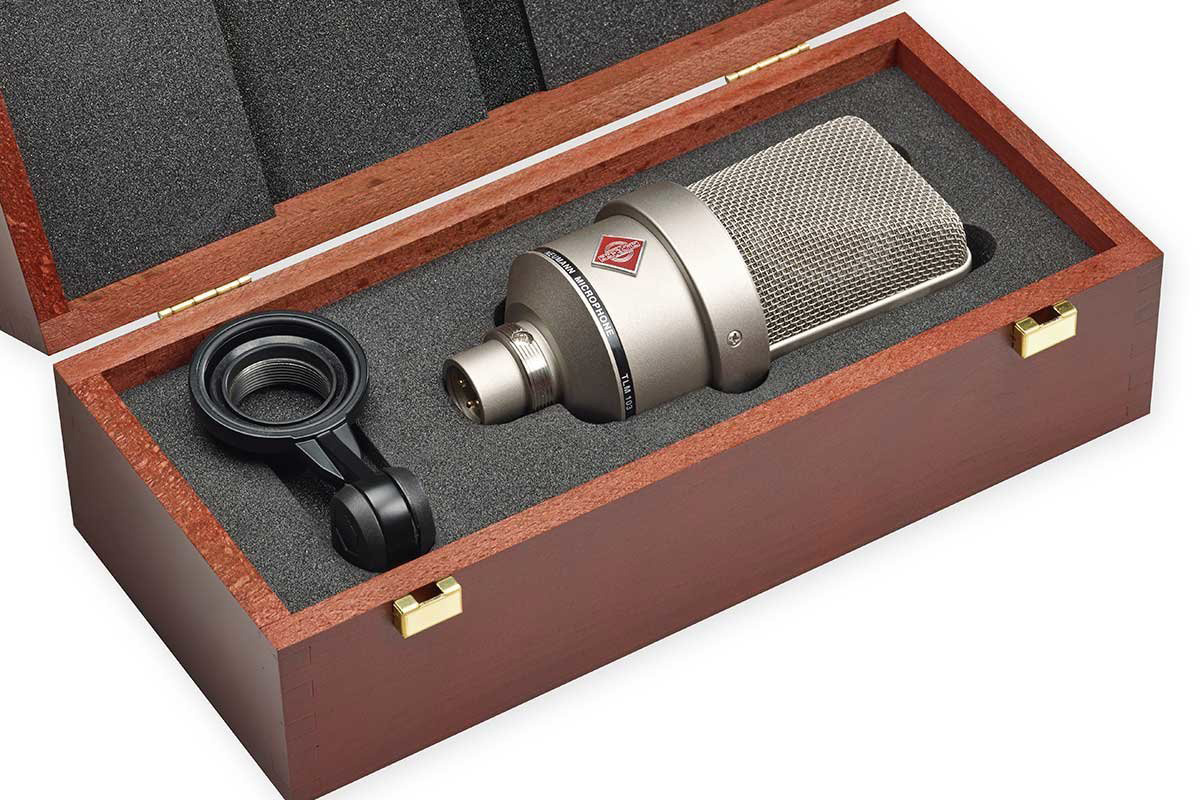

Included in the package:

  • TLM 103 cardioid studio microphone
  • SG 1 microphone holder
  • Wooden box
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Audio signal format
mono
Connectors
XLR
Diaphragm size
large diaphragm

These microphones are very sensitive. They require an external power supply and are hung up to ceiling

Словарь терминов
Free-field sensitivity without load (1 kHz), mV/Pa
21
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
50
Max SPL, dB
138
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
Minimum load resistance, Ohms
1000
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
77
The highest microphone frequency, kHz
20
The lowest microphone frequency, Hz
20
Depth, mm
60
Height, mm
132
Width, mm
60
Weight, g
450
