The Mackie MX2500 is a professional power amplifier, which is the entry-level model in the MX series. The device is fully compatible with the range of passive Mackie DRM loudspeaker systems and can also be effectively used with any other suitable systems, providing high-quality and neutral sound and silent and stable operation.

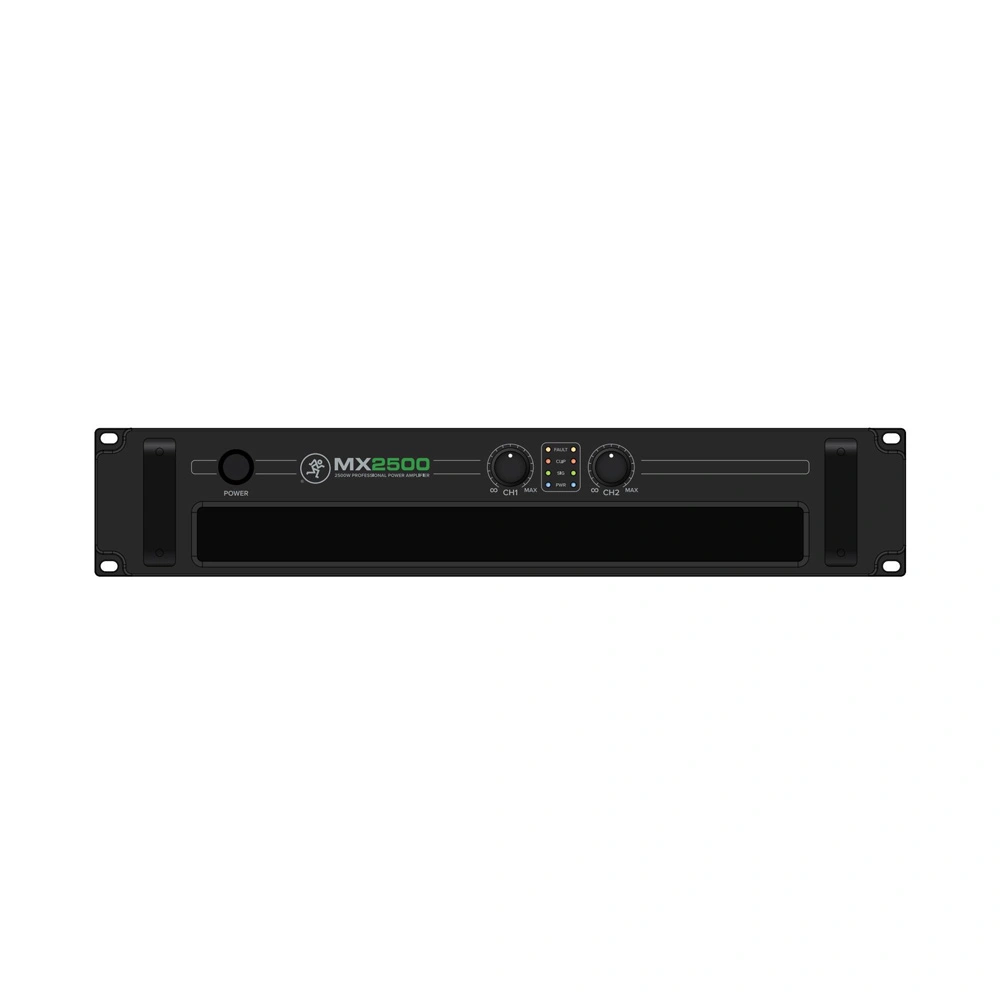

The amplifier belongs to the H class and offers the following output power values: 500 watts per channel at 8 ohms, 750 watts per channel at 4 ohms, and 1500 watts in bridged mode at 8 ohms. These values are sufficient for small and medium-sized concert halls, rehearsal spaces, home installations, and recording studios. The device offers three operating modes: bridged, parallel, and stereo. The input sensitivity can be set to 0 or +4 dBu, and the reproduced frequency range extends from 20 Hz to 20 kHz. The input signal can be amplified up to +33 dB individually for each channel. The front panel features gain controls and a 4-segment indication of operational status, clipping, and power source.

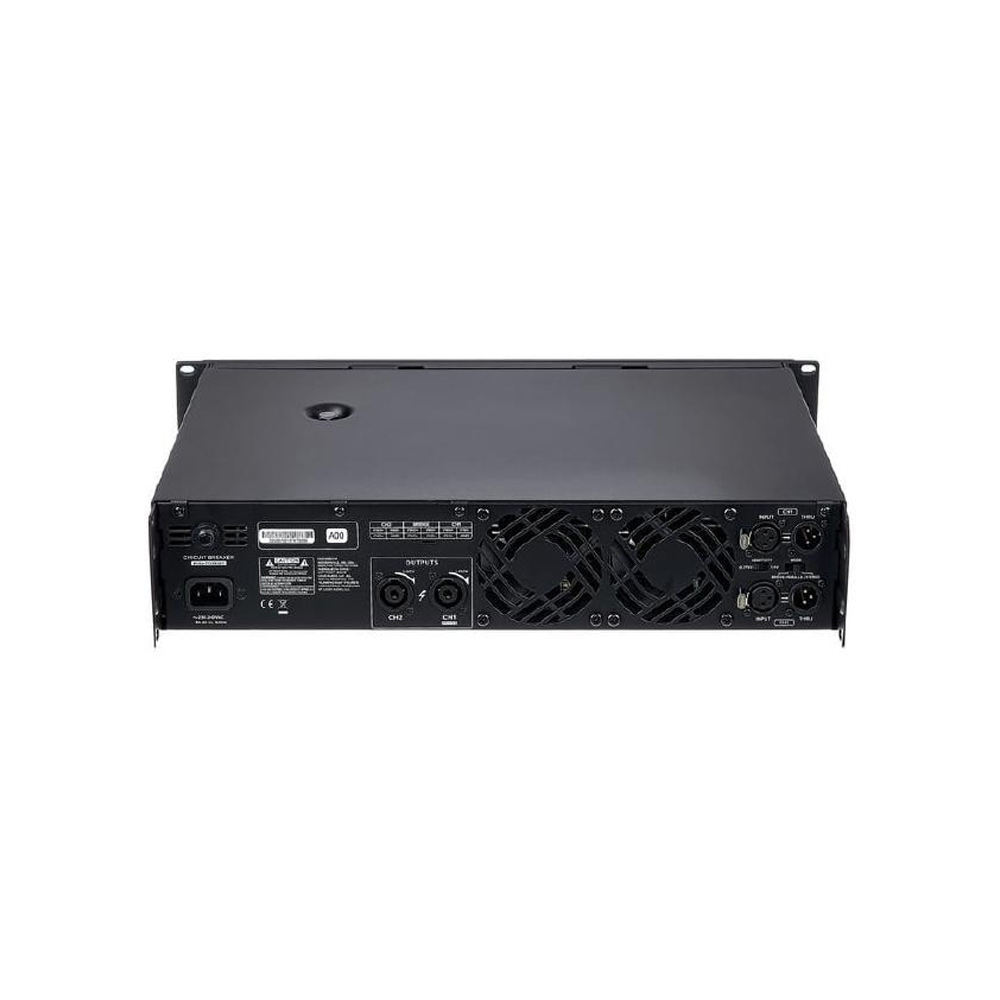

There are two balanced XLR inputs available for connecting a sound source. The same connectors are also used for the through outputs, which are used to send the signal to a second amplifier or other device. Balanced outputs for speaker connection are provided in the form of two Neutrik speakON connectors. The device's functionality includes input limiters, protection against overheating, and a ventilation system. The device is housed in a sturdy all-metal 2U standard chassis, making it easy to install in a rack module. It is powered from the mains.
Features:
- Two-channel H class power amplifier
- Output power: 500 watts per channel (8 ohms), 750 watts per channel (4 ohms), 2500 watts (8 ohms, bridged)
- 3 operating modes: bridged, parallel, and stereo
- Ability to amplify each channel by +33 dB
- Built-in limiter, overheating protection, and ventilation system
- 2 balanced inputs and 2 through outputs
- Outputs with Neutrik speakON connectors
- Fully steel 2U rack chassis
Package includes:
- Power amplifier
- Power cable
- Documentation.
