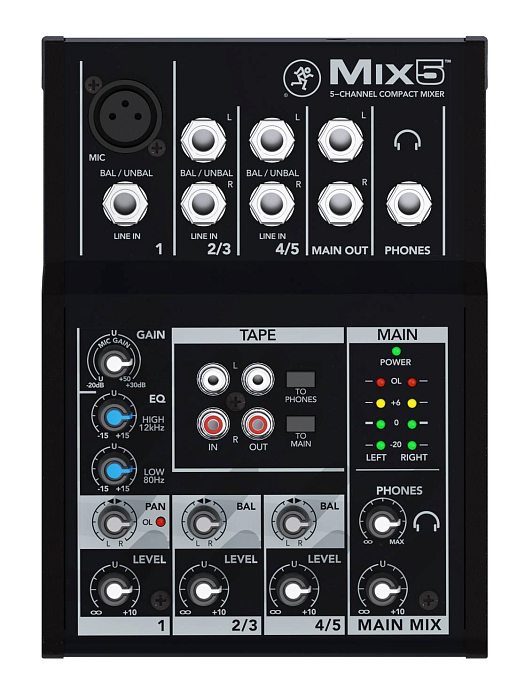

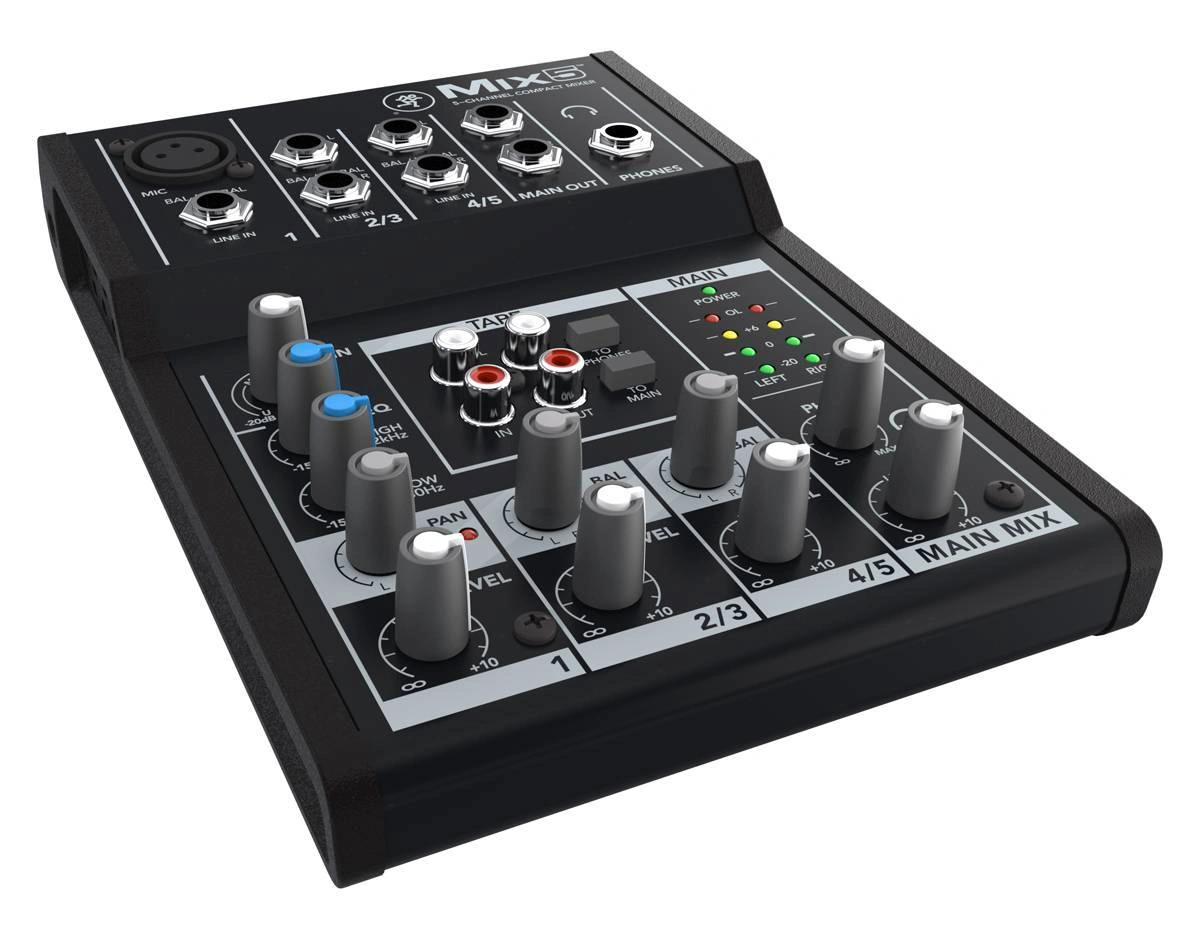

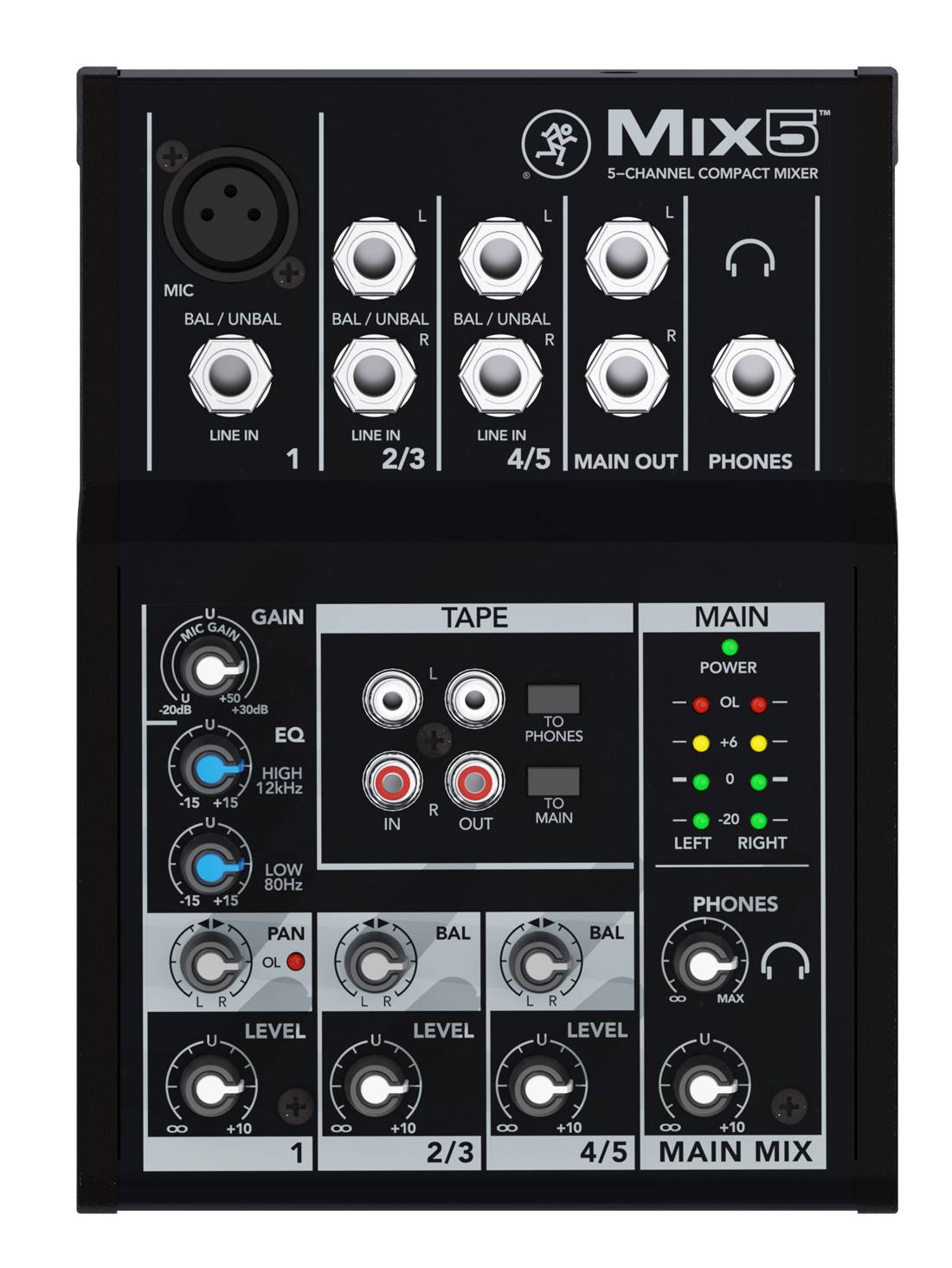

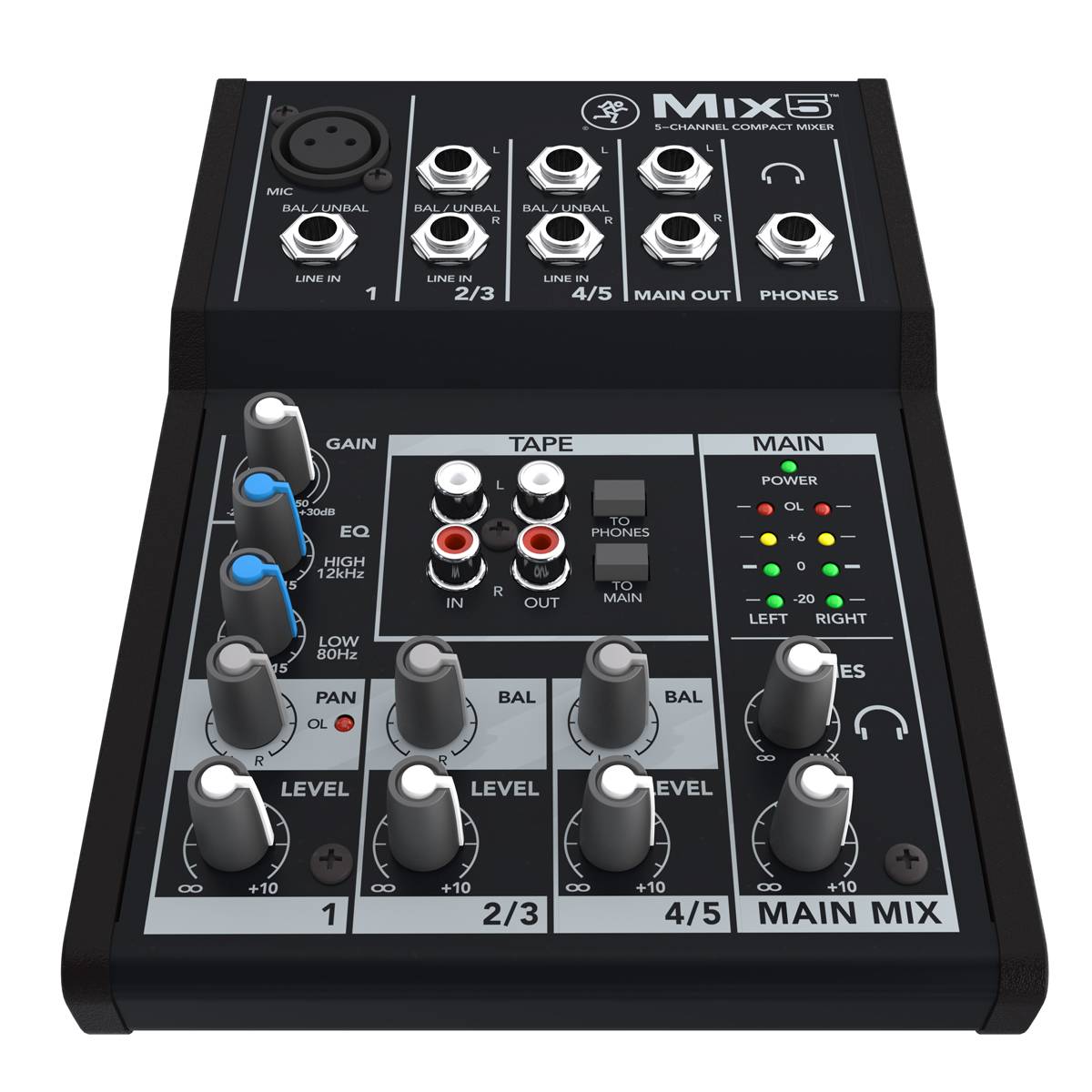

Mix5 is a 5-channel compact mixer equipped with high-quality components, housed in a durable metal casing, and specially designed for various applications in the field of sound reinforcement. The mixer features 1 mic/line input with 48V phantom power and 2 stereo 1/4" line inputs, capable of accepting dynamic and condenser microphones, keyboards, DJ devices, portable players, and much more. The mic/line input has XLR and 1/4" connectors, a 2-band equalizer, level, pan, and overload indicator. Each of the two stereo 1/4" line inputs also has a 2-band equalizer, level and balance controls, and an overload indicator.
Features:
- 5-channel compact mixer with low noise level
- 1 mic/line input with studio-grade audio quality
- 2-band equalizer with clean and precise tone adjustment
- Pan, level, and overload indicators
- Phantom power for studio condenser microphones
- 2 stereo 1/4" line inputs
- Level, balance, and overload indicators
- Stereo RCA input/output for recording and playback
- Main L/R outputs
- Headphone output with separate volume control
- Durable and long-lasting design
Technical specifications:
- Frequency range: 20Hz - 30kHz
- TND+N: <0.25% @+4 dBu
- Equivalent input noise level: -125 dBu
- CMRR: more than -70 dB
- Impedance: microphone input 2 kΩ
- Impedance: other inputs 10 kΩ
- Impedance: tape output 1 kΩ
- Impedance: Phone output 22 Ω
- Impedance: outputs 120 Ω unbalanced, 240 Ω balanced
- Power supply: 230 VAC, 50/60 Hz
- Dimensions: 43 x 140 x 196 mm
- Weight: 0.6 kg
