The Mix series of compact mixers offers the same excellent quality that you can expect from the world leader in compact mixer production, Mackie. This professional and affordable series is made entirely of high-quality components, housed in a sturdy metal casing and designed for various sound reinforcement applications. With Mackie preamps, ample power reserves, and low noise levels, the Mix series will provide you with superior sound from any source.

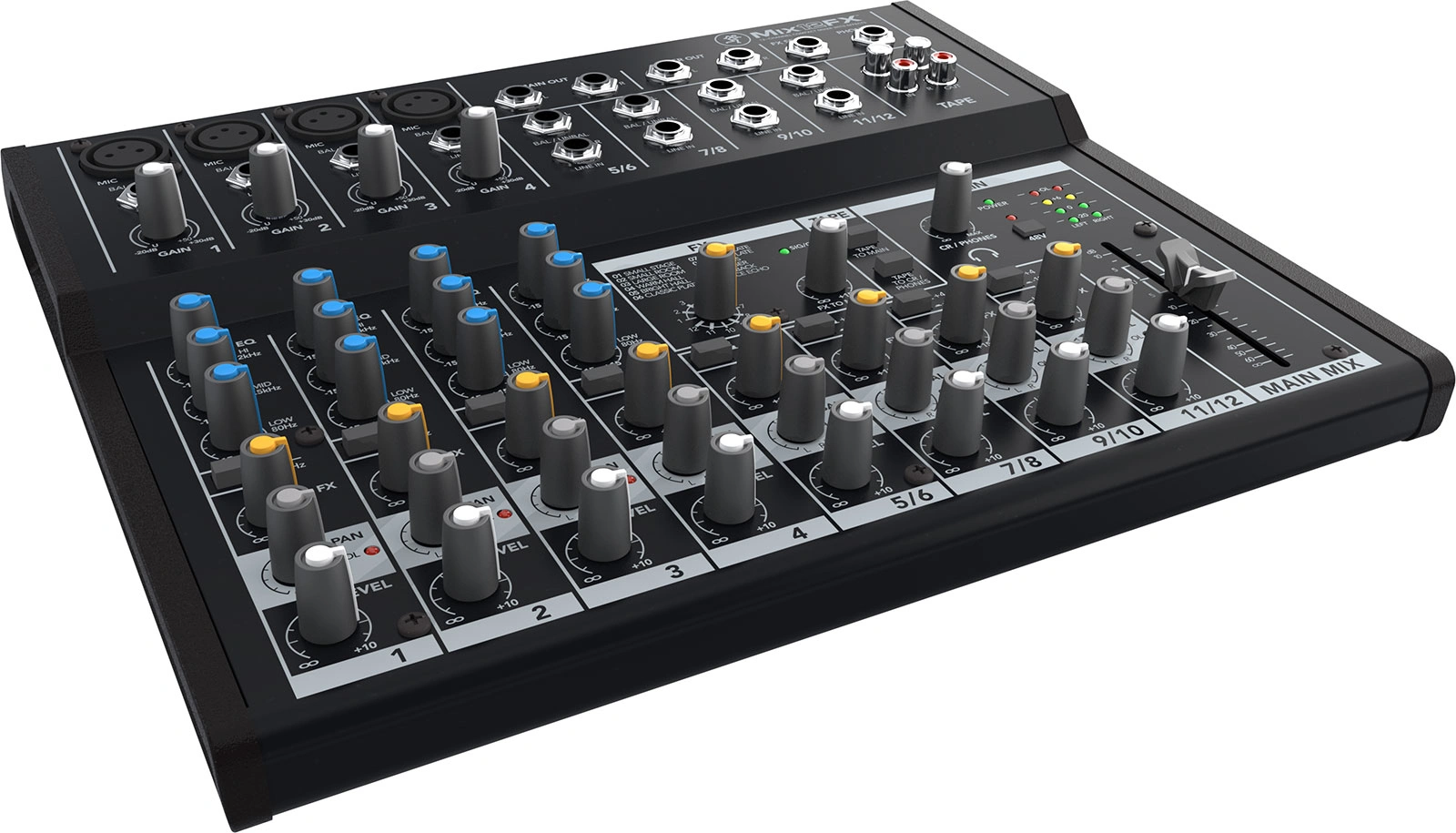

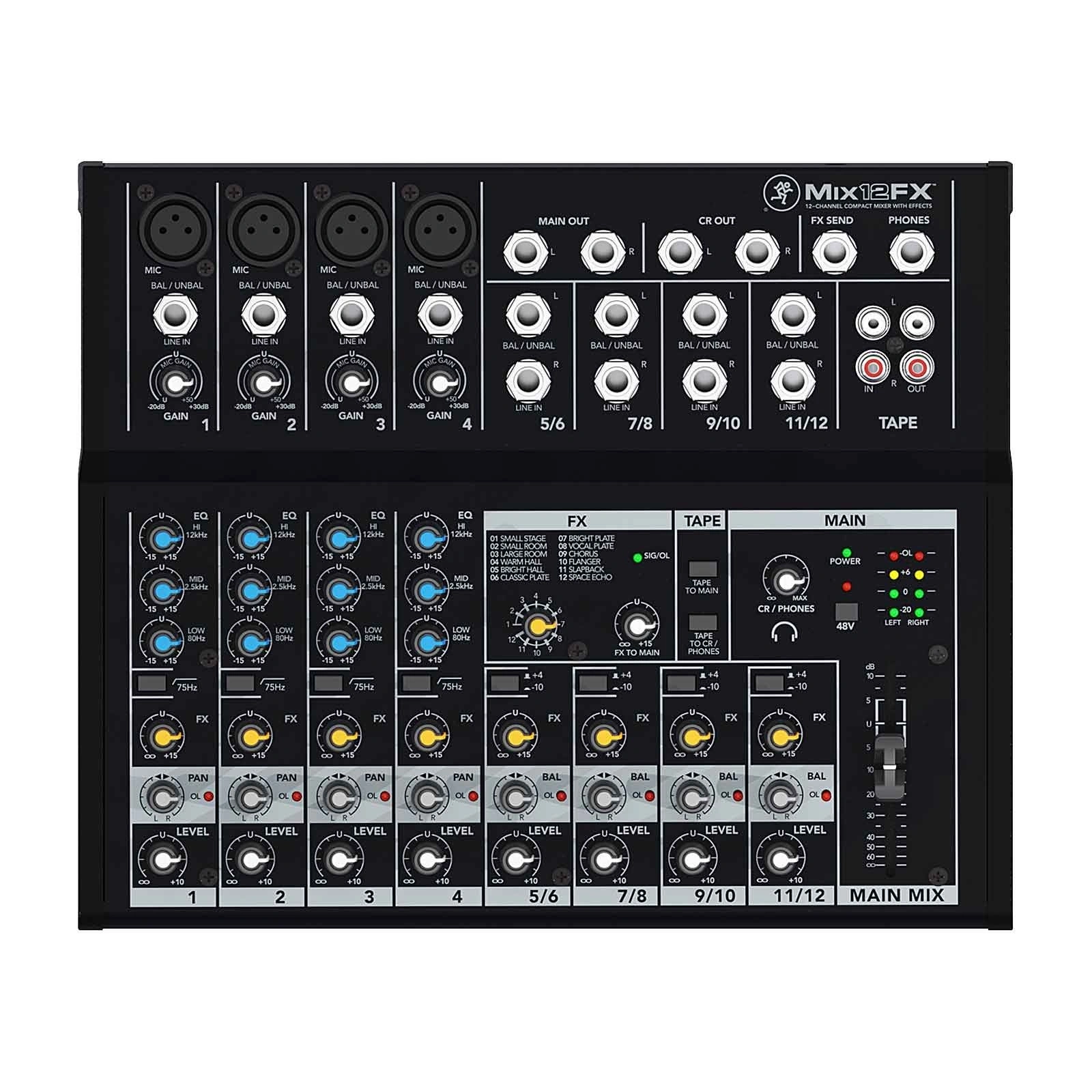

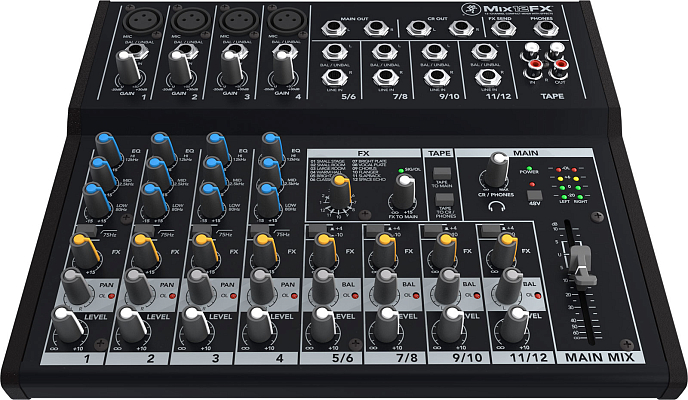

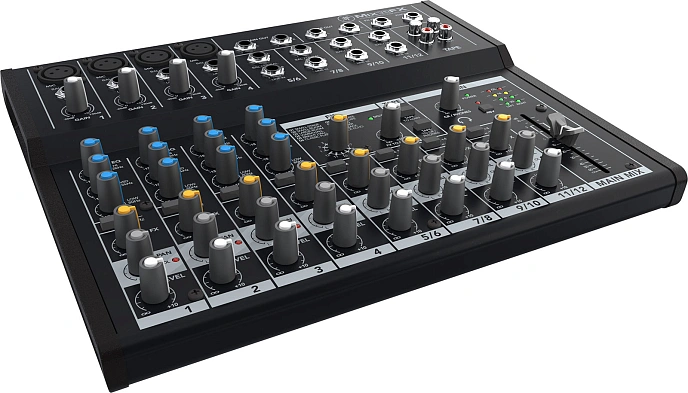

The Mix12FX is a 12-channel compact mixer with built-in effects, equipped with high-quality components, housed in a sturdy metal casing, and specially designed for various sound reinforcement applications. The mixer features 4 mic/line inputs with 48V phantom power and 4 stereo 1/4" line inputs, capable of accepting dynamic and condenser microphones, keyboards, DJ devices, portable players, and much more. Each of the 4 mic/line inputs has XLR and 1/4" connectors, a 3-band equalizer, a high-pass filter (75Hz), a level control, panning, and an overload LED indicator. All 4 stereo 1/4" line inputs feature +4/-10dB and have level and balance controls, as well as overload LED indicators. Additionally, the Mix12FX has 12 built-in effects, including reverb, chorus, and delay, allowing you to easily polish your mix.
Specifications:
- 12-channel compact mixer with effects processor and low noise level
- 4 mic/line inputs with studio-grade audio quality
- 3-band equalizer with clean and precise tone adjustment
- High-pass filter (75Hz)
- pan, level, and overload indicators
- Phantom power for studio condenser microphones
- 4 stereo 1/4" line inputs +4/-10dB
- Level, balance, and overload indicators
- 12 excellent-sounding effects, including reverb, chorus, and delay
- Stereo RCA input/output for recording and playback
- 60mm fader for Main L/R outputs
- Headphone output and stereo control room output
- Sturdy and durable design
Technical specifications:
- Frequency range: 20Hz - 30kHz
- TND+N: <0.25% @+4 dBu
- Equivalent input noise level: -122 dBu
- CMRR: more than -70 dB
- Resistance:
- Microphone input 3.8 kOhm
- All other inputs 10 kOhm
- Tape output 1 kOhm
- Phone output 22 Ohm
- All outputs 120 Ohm unbalanced, 240 Ohm balanced
- Equalizer:
- High +/-15 dB @ 12 kHz
- Mid +/-15 dB @ 2.5 kHz
- Low +/-15 dB @ 80 Hz
- Filter 18 dB/octave, -3 dB @ 80Hz
- Power: 230 VAC, 50/60 Hz
- Dimensions: 53 x 297 x 244 mm
- Weight: 1.7 kg
Package includes:
- Mixer
- External power supply
- Documentation
