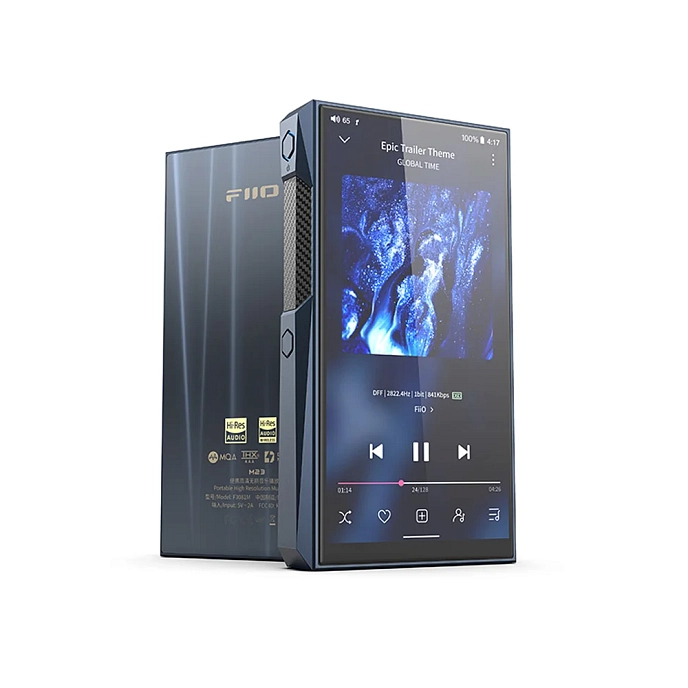

FiiO M23 Deep Blue

no reviews

AED 2,799

Product code: 144802

CHAT WITH US

10:00-22:00

Available in stores

    Delivery from the supplier's remote warehouse.
    We will contact you within 48 hours to clarify the delivery time.

    Description

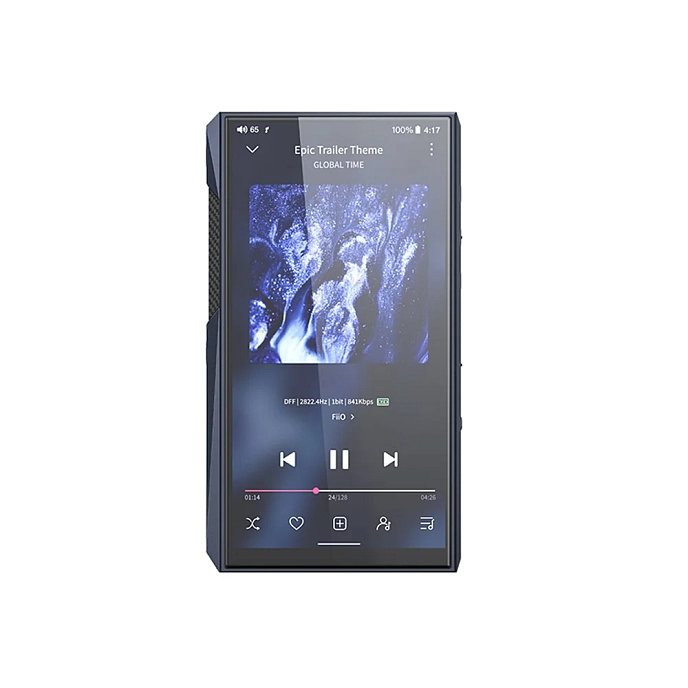

    FiiO M23 - a portable hi-fi player. The FiiO M23 portable audio player is built on the Qualcomm Snapdragon platform using the Qualcomm 660 SoC. This chipset not only provides the necessary performance but also supports a range of key features. These include a graphics processor that manages the large 5.5-inch touchscreen display of the device with a resolution of 720 x 1440 pixels and an aspect ratio of 18:9. It also powers the Google Android 10 operating system, manages 4GB of system RAM, and works with a significant internal storage capacity of 64GB. Additionally, memory expansion is supported through microSD cards up to 2TB. The FiiO M23 also offers various connectivity options, including USB, Bluetooth, and WiFi.

    Features:

    • DAC AKM AK4191EQ + AKM AK4499EX;
    • supports PCM up to 384 kHz / 24-bit, Native DSD256, and MQA;
    • Qualcomm 660 processor;
    • Android 10.0 operating system;
    • 4GB RAM;
    • 64GB internal memory;
    • THX AAA-78+ amplifier (x2);
    • 5.5" display, 720 x 1440;
    • output power of 475mW at 32 ohms in "high gain" mode;
    • max output power of 1000mW at 32 ohms and 240mW at 300 ohms;
    • Bluetooth 5.0, Wi-Fi wireless connectivity;
    • Bluetooth codecs SBC, AAC, aptX, aptX HD, LDAC, LHDC;
    • "desktop" mode;

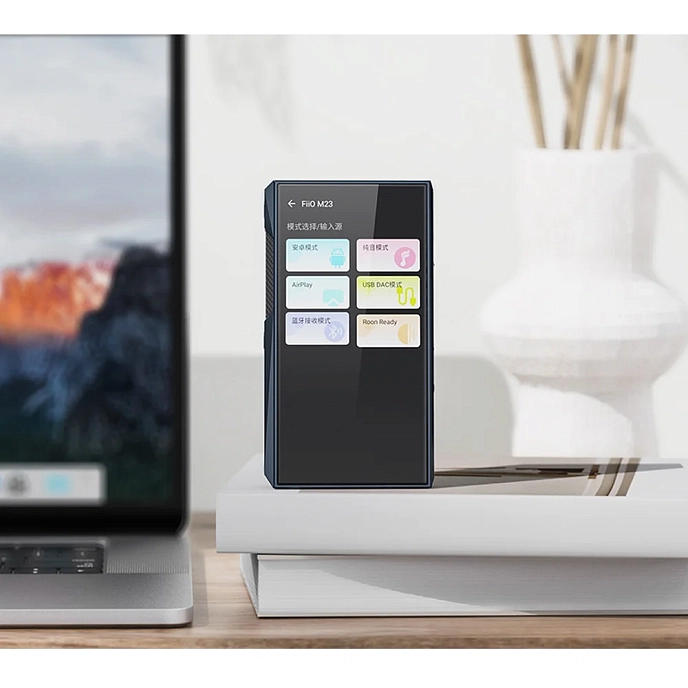

    • 6 operating modes: Android, Pure music, AirPlay, USB DAC, Bluetooth, Roon;
    • 2 USB-C ports;
    • ultra-fast charging;
    • 10.5 hours of battery life.

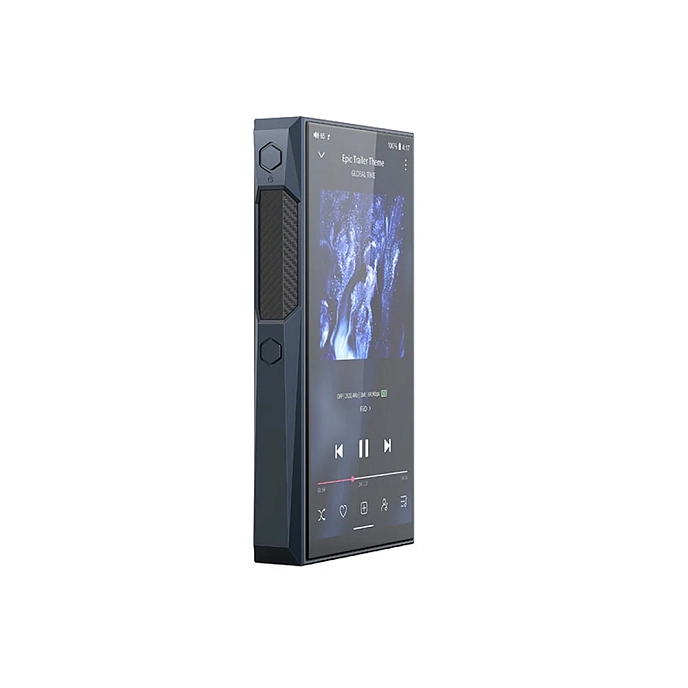

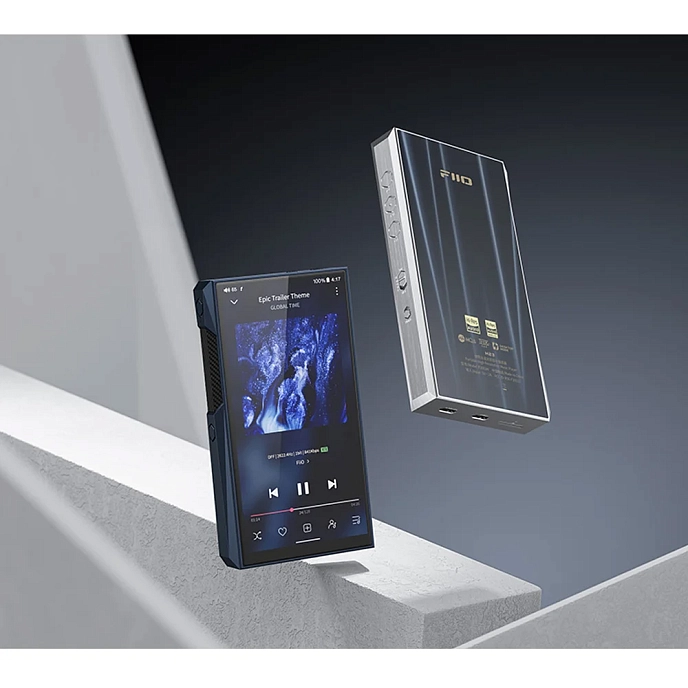

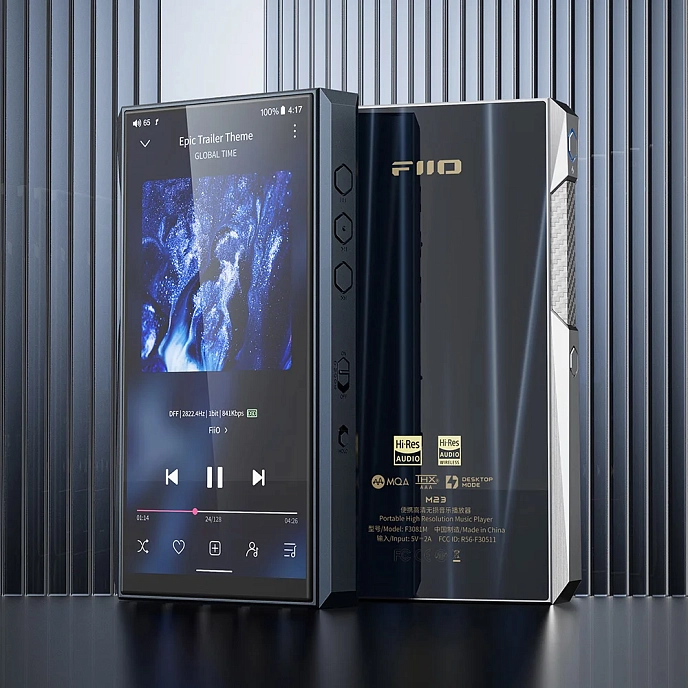

    Being the next model after the popular M11 Plus series, the M23 not only continues the classic hexagonal design structure and 18:9 aspect ratio, ensuring perfect visual perception and easy grip, but also delights you with significant improvements in configuration, performance, and user experience. FiiO's goal in developing the M23 was to create a portable mid-high class Android Hi-Fi player that combines excellent performance and maximum listening convenience.

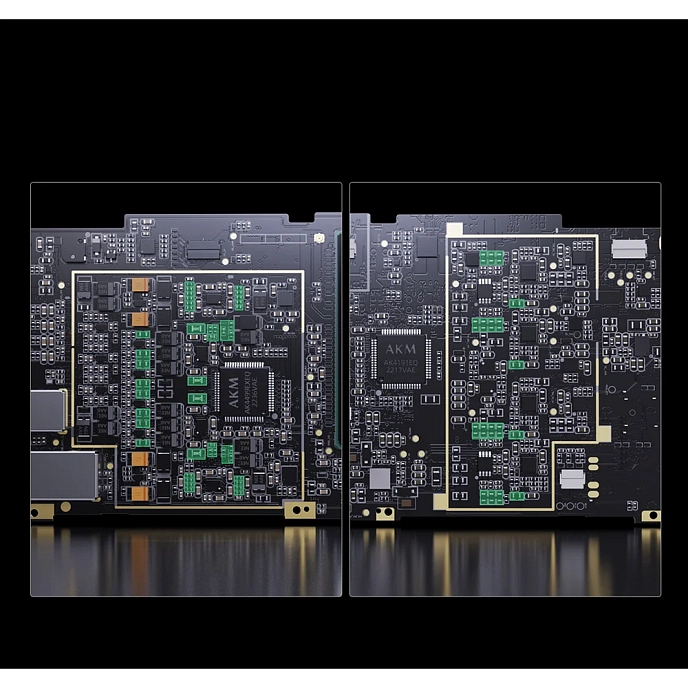

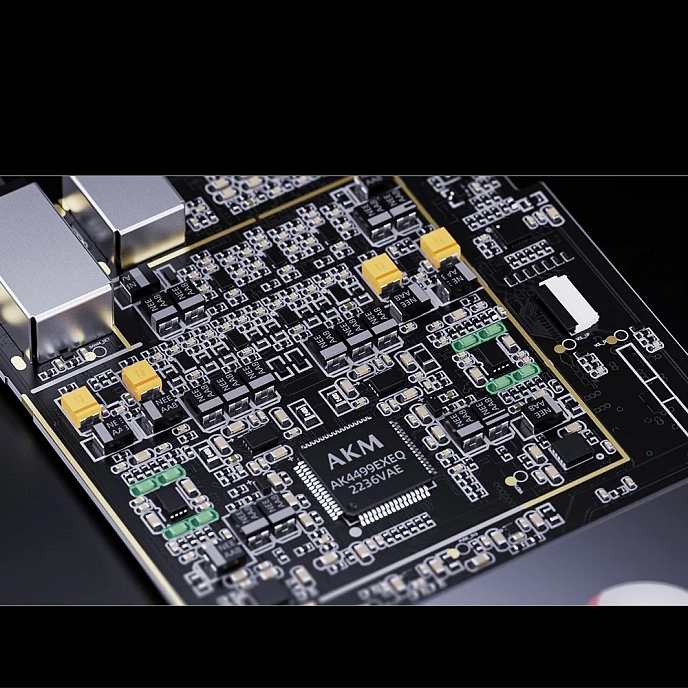

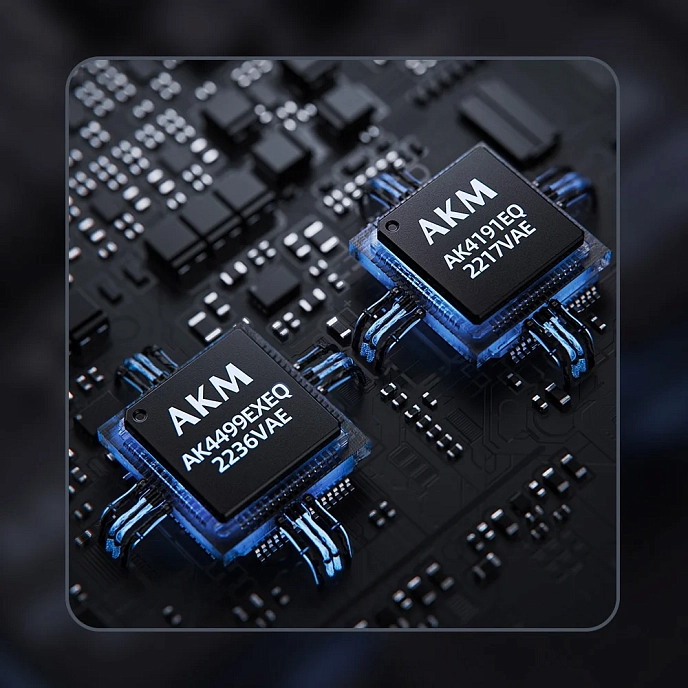

    AK4191EQ+AK4499EX DACs

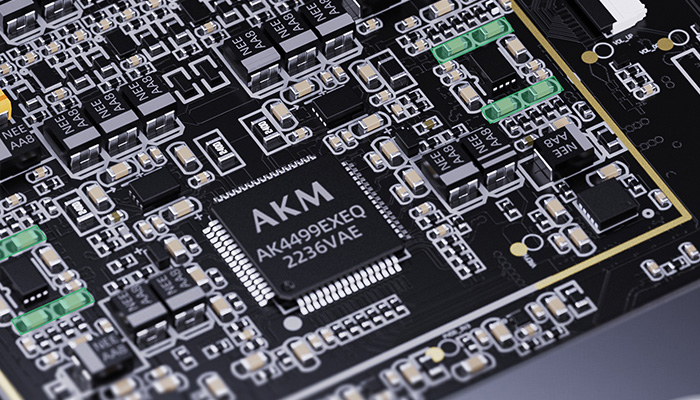

    AK4191EQ+AK4499EX DACs

    Similar to Q15 and K9 AKM models, the M23 uses the flagship DAC combination AKM - AK4191EQ+AK4499EX. This new design completely separates the digital and analog sections, and is equipped with "DWA ROUTING technology" to further improve the signal-to-noise ratio. These technologies provide a cleaner audio background and higher resolution sound, leading to an improved listening experience.

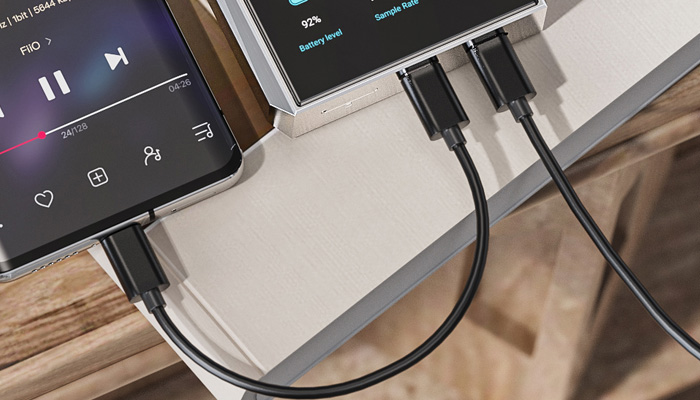

    Dual USB-C Ports for Ultra-fast Charging and Super Amplification

    Dual USB-C Ports for Ultra-fast Charging and Super Amplification

    The M23 is the first FiiO portable player with two Type-C ports, one of which is dedicated to power input (POWER IN). When this Type-C port is used with fast charging, it can activate a super high amplification mode for increased output power. In this mode, the output power can reach 1000mW + 1000mW per channel, making the M23 ideal for high-impedance headphones. The other Type-C port does not consume any energy in this mode, allowing you to connect the M23 to a phone for use as a USB DAC.

    Desktop Mode with External Power

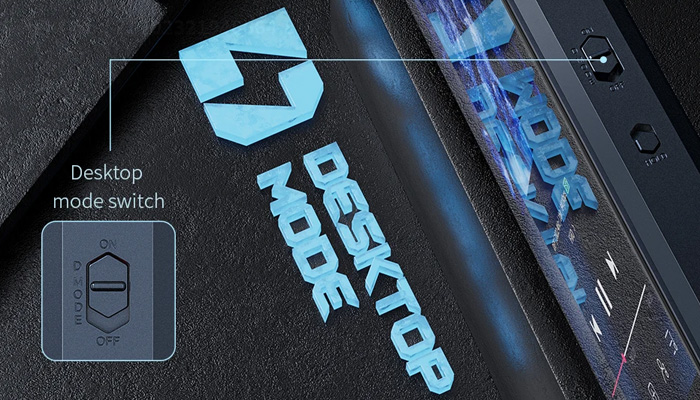

    Desktop Mode with External Power

    Furthermore, the M23 features FiiO's latest patented technology - Desktop mode (D.MODE) with a special switch for quick mode switching. When D.MODE is activated, the M23 is fully powered by an external power source. The built-in battery does not charge or discharge, allowing you to use the M23 as desktop equipment without concerns about battery damage.

    FiiO, as a leading audio equipment manufacturer, has been perfecting the THX headphone amplifier architecture for years. The THX AAA 78 headphone amplifiers used in the M11 Plus and M11 Pro have received wide acclaim from audiophiles worldwide. After several years of design refinement, FiiO introduces the THX AAA 78+ architecture in the M23. It provides high output power with precise reproduction accuracy, resulting in powerful sound with extreme precision.

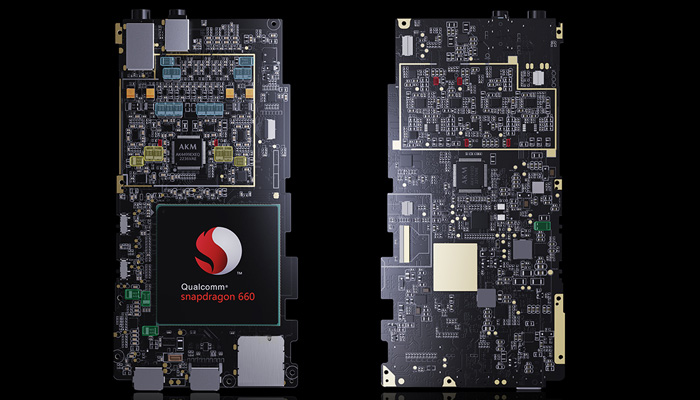

    FiiO m23

    The M23 also features a dual-mode fast charging system, combining extremely fast charging with standard fast charging. This allows for safe charging speeds up to 30W when the battery level is low. As the battery approaches full charge, the M23 switches to slightly slower regular fast charging, significantly reducing charging time while maintaining battery health. Specifically selected low-resistance fast charging batteries (5500mAh), made of heat-resistant materials, combined with technologies like low-resistance MOS protective plate, ensure long battery life.

    The device offers even more interesting features, including a unified Hi-Fi audio architecture, 4 levels of amplification, a 4-stage power source, separate digital and analog power sources, a new DAPS digital system, six operating modes including Roon Ready, Global PEQ, Global ALL TO DSD.

    Digital Audio Purification System for Bit-Perfect Transmission

    Digital Audio Purification System for Bit-Perfect Transmission

    The Digital Audio Purification System (DAPS) in the M23 consists of a HiFi audio core developed by FiiO superior to the original Android version, along with a low-jitter clock frequency coprocessor. Together, the system not only provides a high-precision low-jitter clock source but also ensures the preservation of the original audio stream sampling frequency (both PCM and DSD) regardless of whether you use FIIO music, third-party apps, USB DAC mode, etc. By avoiding sound re-sampling, you can be confident that the sound is much closer to the original intent.

    Package includes:

    • Player
    • USB-C cable
    • Case
    • Documentation

    Characteristics

    • Brand
    • Bluetooth version

      Bluetooth is a short-range wireless technology that allows you to connect headphones or portable speakers, a stereo system or a soundbar to your smartphone or laptop. For a certain version to work, both devices must support it. The versions differ in data transfer speed, power consumption, securing data transfer, anti-interference ability and range of connection.

      Glossary of terms
      5.0
    • Case included
      yes
    • Charging connector
      USB-C
    • Codec support

      To take advantage of a particular codec it must be supported by both devices

      Glossary of terms
      AAC, SBC, AptX-HD, LDAC, AptX
    • Color
    • DAC chip

      The chip used for digital-to-analog conversion

      Glossary of terms
      AK4499EX, AK4191
    • Diagonal, inches

      The distance between opposite corners of the screen in inches

      Glossary of terms
      5.5
    • Material
      aluminum
    • Maximum capacity of SD cards, GB
      2048
    • Memory capacity, GB

      The amount of data that can be stored on the device (internal memory).

      Glossary of terms
      64
    • Model
      Fiio M23
    • Number of SD card slots
      1
    • Operating system
      Android
    • Output connectors
      4.4mm jack, 3.5mm jack
    • Playback time

      The operating time of the device on a single charge.

      Glossary of terms
      10.5
    • Supported audio file formats
      AAC, AIFF, MP3, MQA, FLAC, WV
    • Supported memory cards
      microSDXC
    • Touch control

      Control by touches

      Glossary of terms
      yes
    • Wi-Fi

      Support Wi-Fi technology

      Glossary of terms
      yes
    • Depth, mm
      18
    • Height, mm
      136
    • Width, mm
      75
    • Weight, g
      299
    • Country of origin

      The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

      China
    • Service life, months
      24
    • Warranty, months
      12
    • Show all characteristicsShow fewer characteristics
