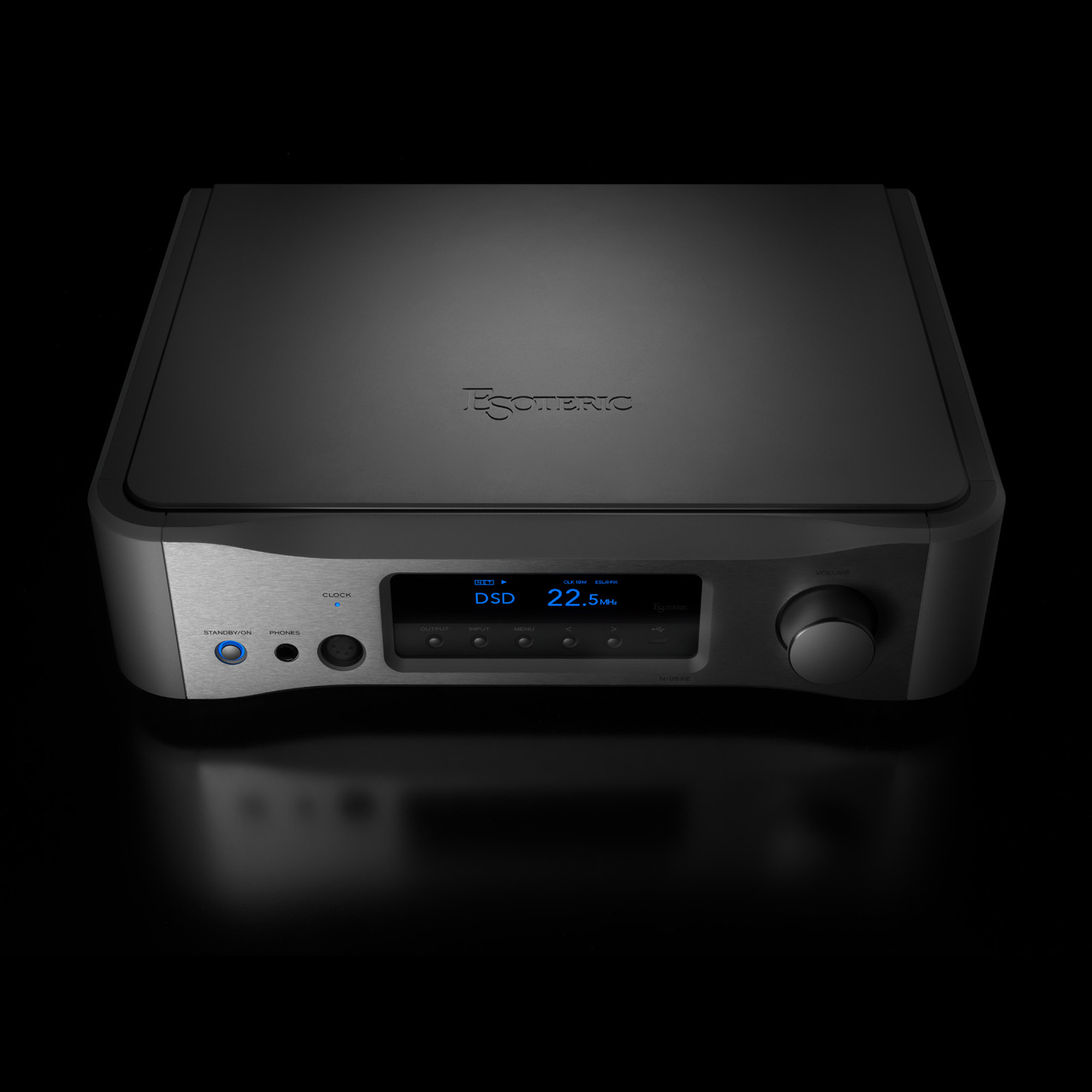

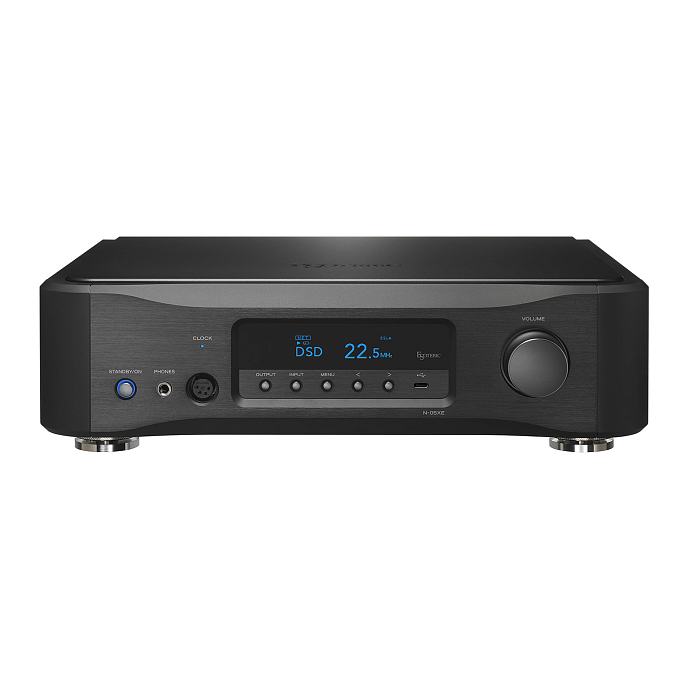

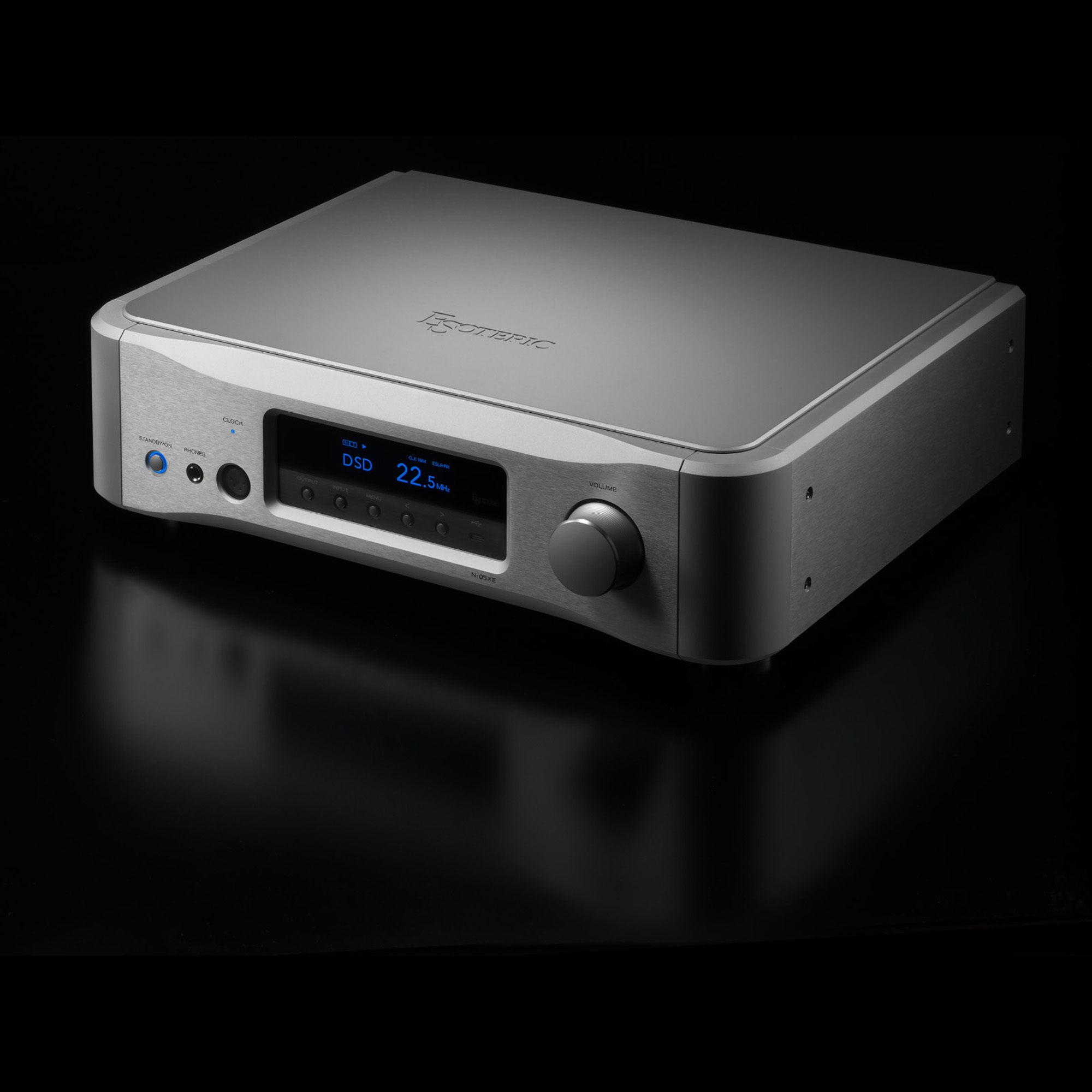

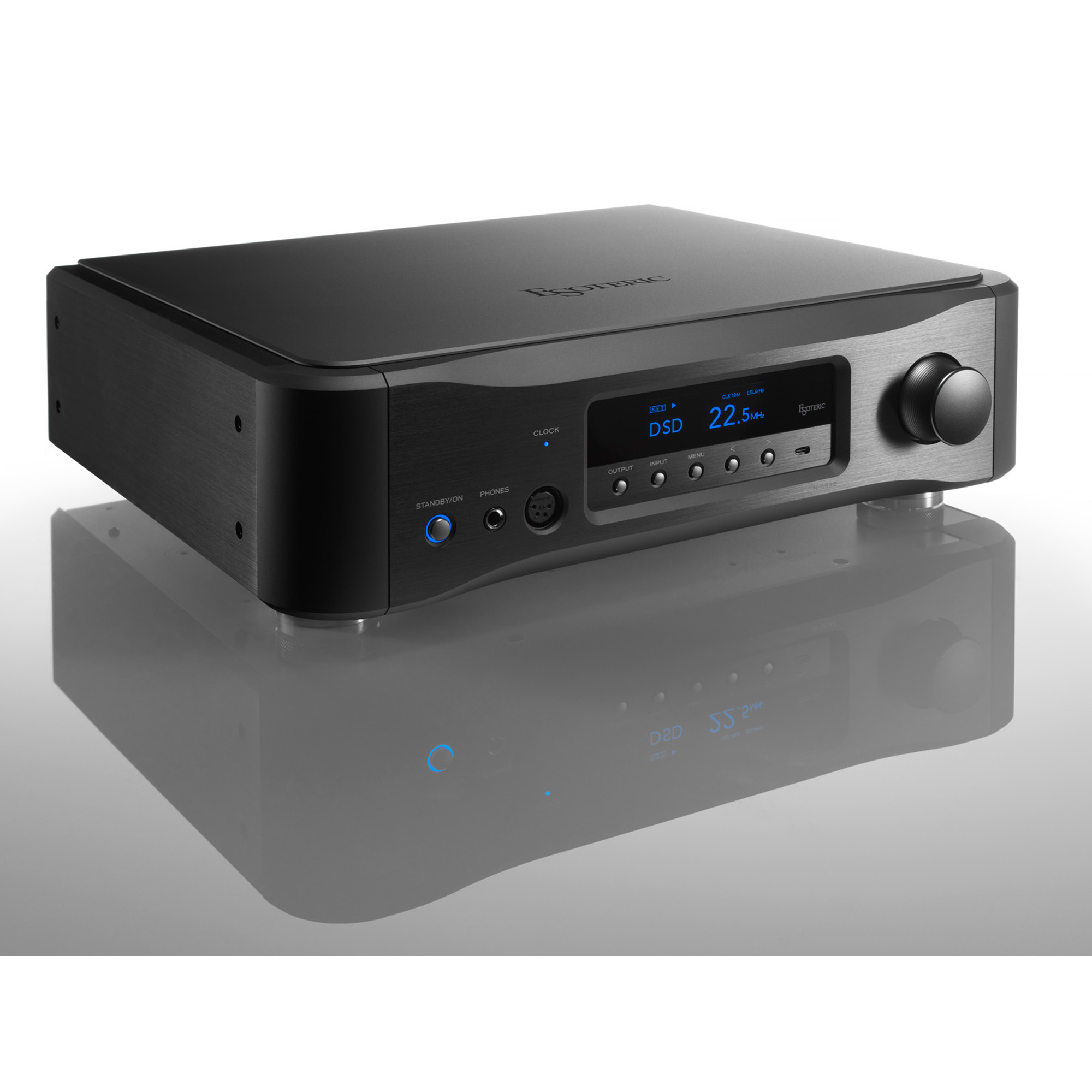

The Esoteric N-05XE is a network pre-amplifier DAC that embodies the essence of Esoteric.
Embodying the allure of a super high-class system, this minimalist and versatile, highly sought-after esoteric system has evolved into the "XE" model, offering even richer musicality. With the network pre-amplifier DAC N-05XE and class A power amplifier S-05XE, all that's left to do is choose the perfect speakers for your system.
Developed to deliver the highest sound quality with minimal configuration, the N-05XE is equipped with the G4 network module compatible with optical networks and the new generation G2 discrete DAC. It also features a dual balanced pre-amplifier borrowed directly from the Grandioso models, and a high-quality built-in headphone amplifier. The "XE" model retains its renowned functionality, with every element of the circuit meticulously refined thanks to the new optimized design. Enjoy the exquisite esoteric signature sound to your heart's content.
Esoteric Master Sound 2nd Generation

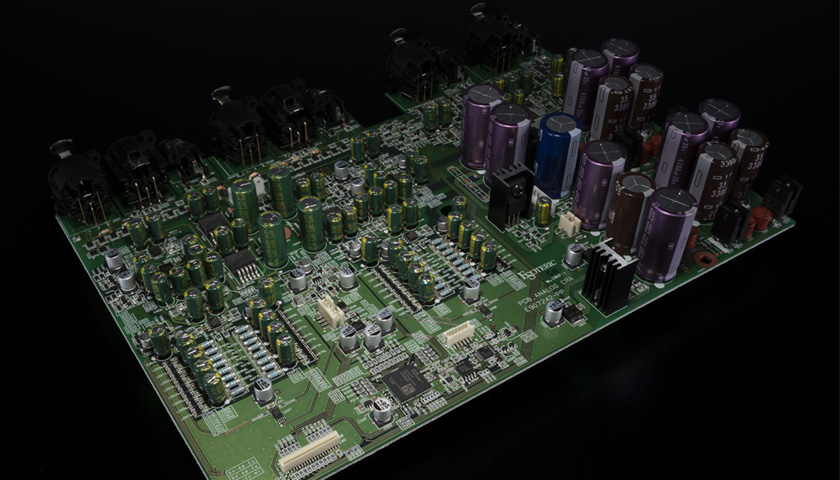

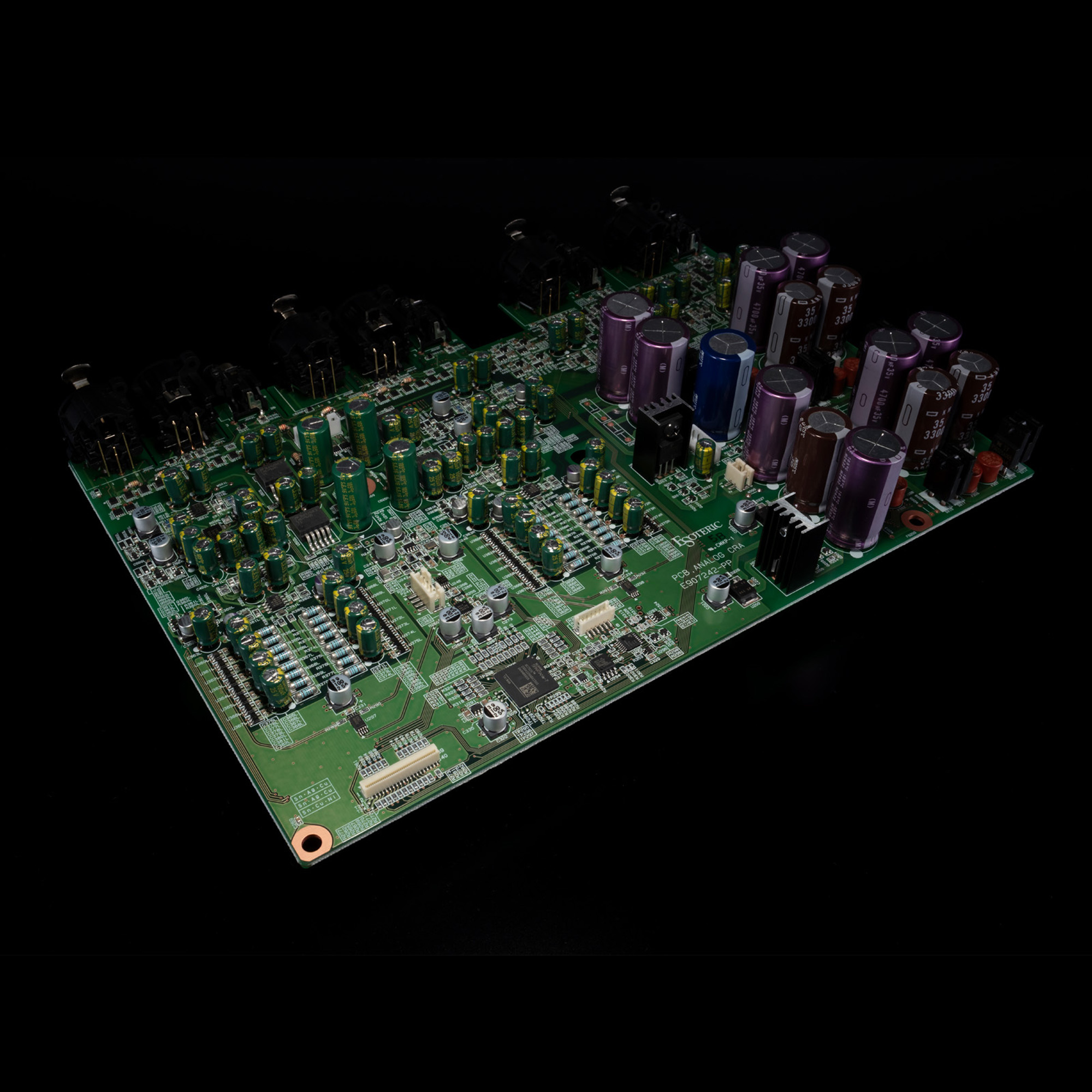

The Esoteric Master Sound G2 Discrete DAC is a fully self-developed multilevel ΔΣ digital-to-analog converter based on FPGA technology, built from carefully selected discrete components. The ultimate goal of this unique architecture is to effortlessly reproduce the true dynamics and power of music, surpassing the limitations inherent in conventional DAC chips. Its expansive circuit consists of 16 elements per channel, with all key components finely tuned completely independently. In the XE model, the new G2 DAC features a fully revamped resistor scheme - the first stage of analog processing, providing even higher quality signal processing. This incredibly powerful, dynamic, and musical architecture ensures uncompromising, pure sound perception.
New Low-Noise Resistor Network
In the DAC, the resistor network is a crucial scheme that converts the digital signal generated by the FPGA into an analog signal using precision resistor elements. In the new G2 model, Esoteric has implemented advancements from the flagship Grandioso N1 network player developers. This approach streamlined and optimized the scheme responsible for turning on and off the resistor elements. Additionally, capacitors located in close proximity to the resistor network enhance current stability, allowing for the generation of cleaner analog signals with significantly reduced noise levels.
High-Precision MELF Resistors

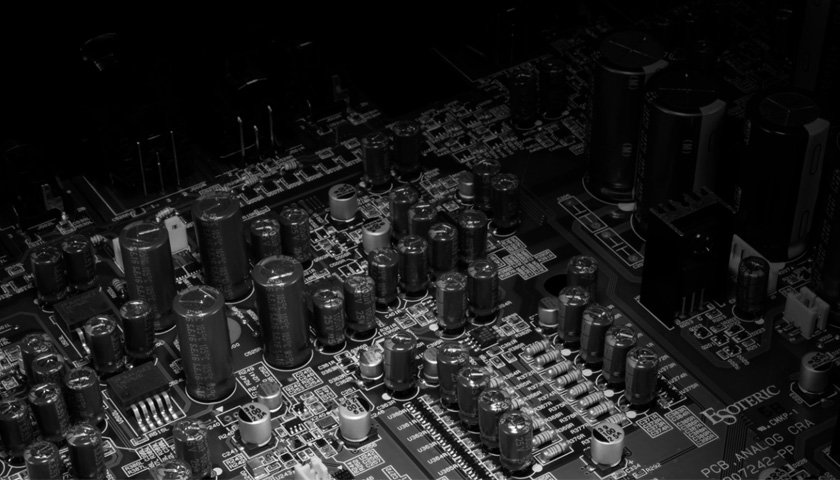

High-precision MELF resistors are used in critical resistor elements of the DAC scheme to enhance calculation accuracy. Moreover, carefully selected discrete components contribute to sound reproduction characterized by lively sound, superior dynamics, and organic, natural texture.
Master Sound Discrete Clock Generator
The clock scheme, crucial for high-quality digital playback, now features Esoteric's proprietary discrete clock generators "Master Sound" for the digital player. With a unique circuit design and carefully selected discrete components, the clock scheme provides high-quality sound, reflecting the Esoteric philosophy down to the smallest details - an approach impossible to achieve with ordinary clock modules.

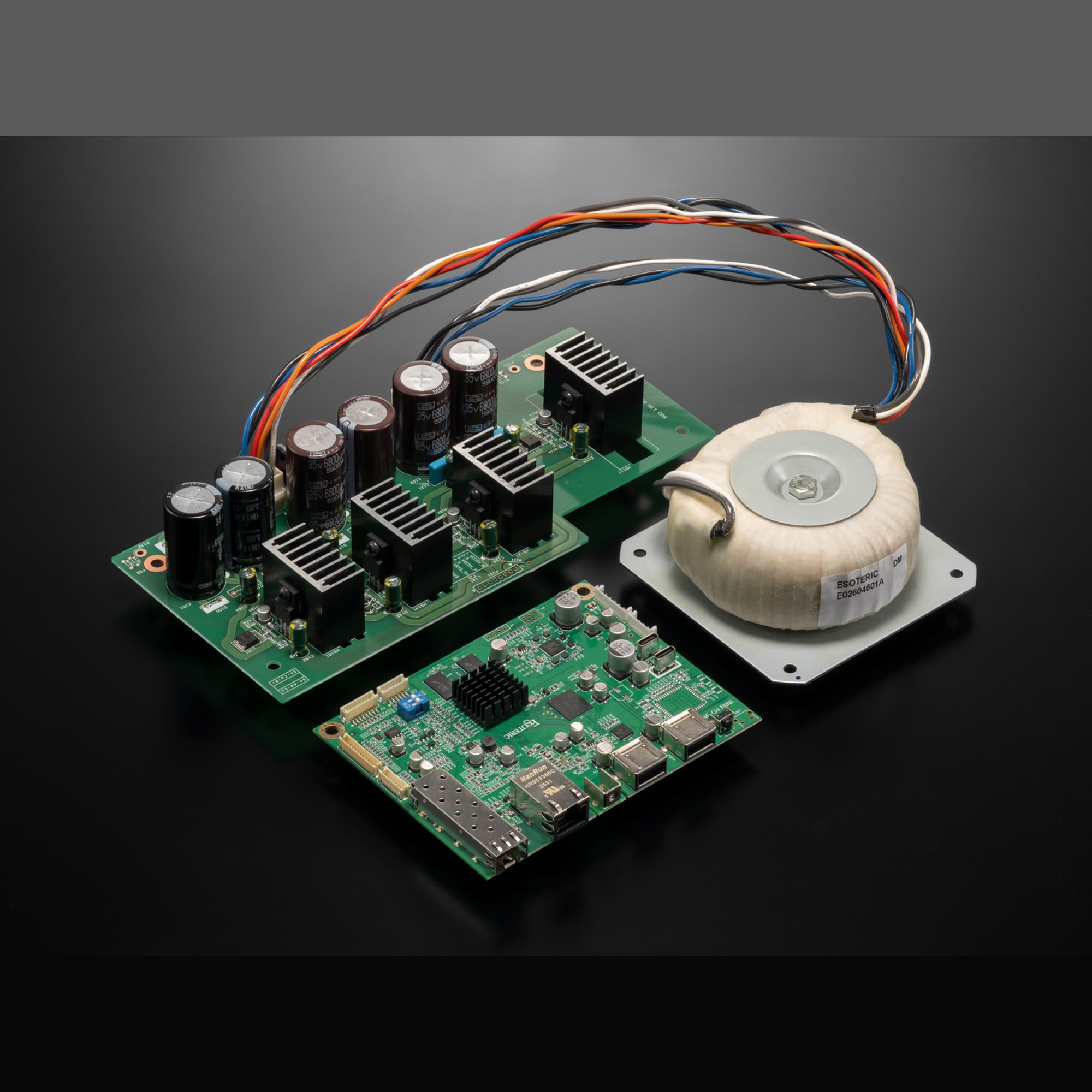

4th Generation "G4" Network Engine

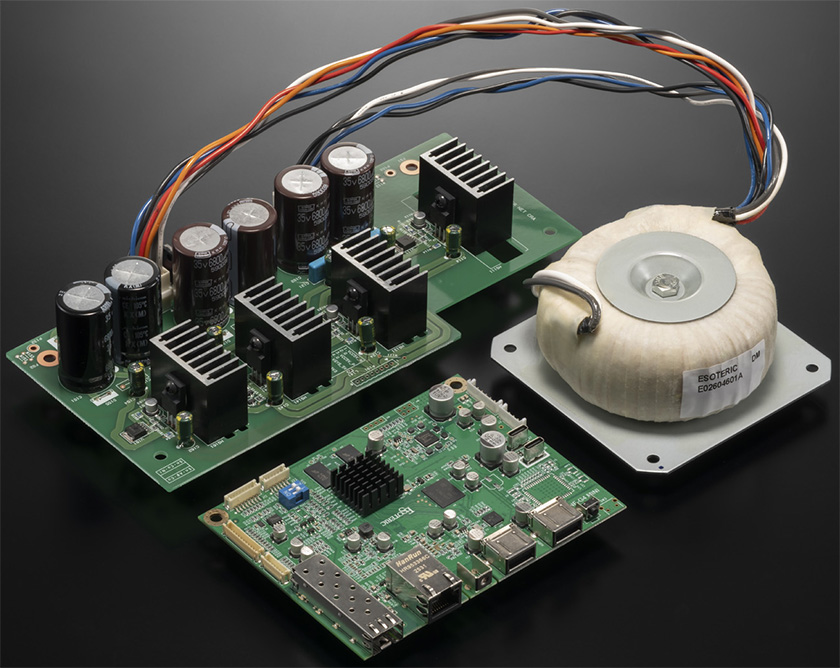

The N-05XE is equipped with the 4th generation "Esoteric Network Engine G4", including an SFP port for connection to an optical network. With a large memory and powerful processor, it ensures high data processing performance. The network power section uses a large linear power supply completely separated from the audio signal source. Each network component is powered directly through its own independent power line, separated from transformer windings. By eliminating noise-suppressing switching elements, the N-05XE provides smooth, vinyl-like sound with rich detail and natural musical flow.
SFP Optical Port

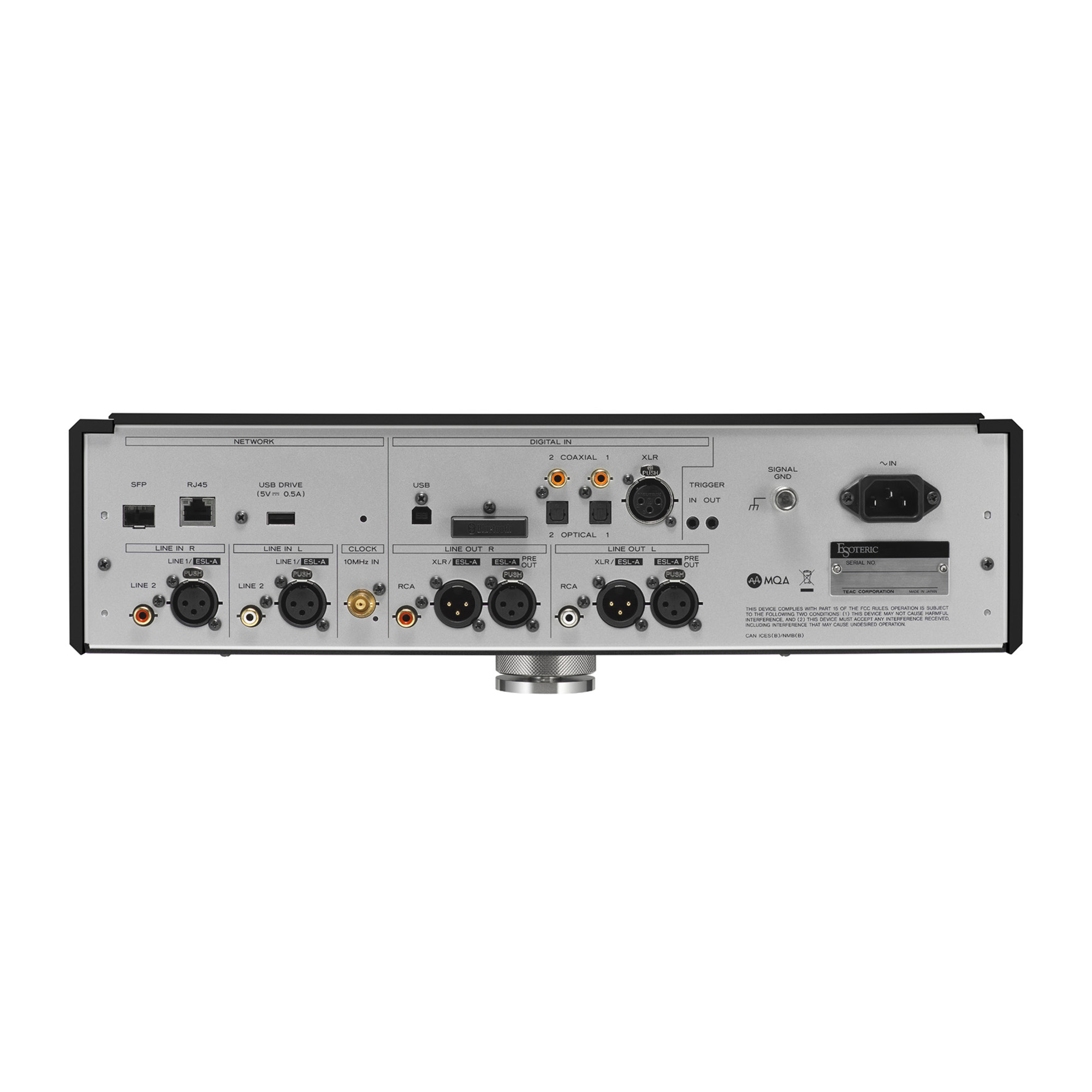

The Esoteric Network Engine G4 module features a built-in network switch function and has two network interfaces: an RJ45 Ethernet connector and an SFP port. By connecting the N-05XE to an external network switch using an SFP module and fiber-optic cable, you can isolate the signal from network interference, ensuring unparalleled playback clarity. For maximum flexibility, both RJ45 and SFP ports can be used simultaneously, adapting the setup to your preferences and requirements.
Music Server Function
The N-05XE features USB ports (USB-A ×1, USB-C ×1) and can function as a music server / NAS by connecting up to two USB storage devices, such as flash drives or hard drives/SSDs.
Esoteric Sound Stream - Intuitive Control and High-Quality Sound

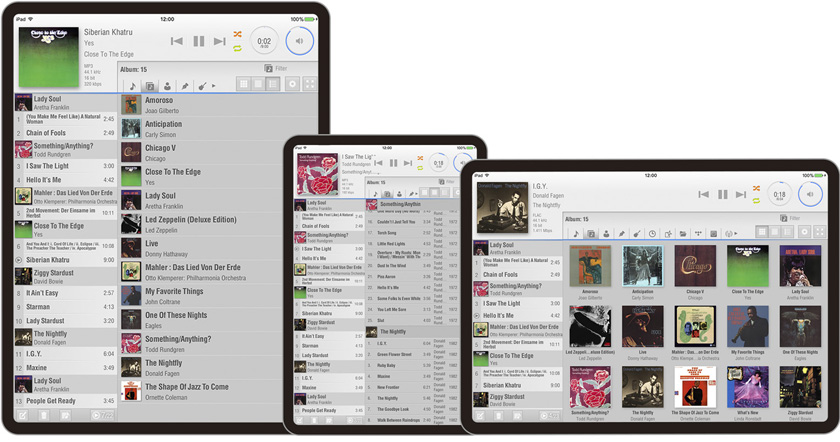

The Esoteric Sound Stream app, available for Apple iOS and Android devices, combines exceptional sound quality with user-friendly simplicity. This innovative app, designed specifically for smartphones and tablets, allows users to easily browse, control, and customize music playback with just a few taps. The intuitive interface makes it easy to create and manage playlists. All screens are thoughtfully designed for easy navigation, providing quick access to music libraries and playlists for users of all levels while offering advanced features to satisfy even the most discerning audiophiles.
Dual Balanced Monophonic Preamplifier
The preamplifier forms the core of the system and defines its sound essence. The high playback accuracy and musical expressiveness of Grandioso embody Esoteric's philosophy and technologies. These qualities have been passed down to the N-05XE, which inherits its lineage. The famous dual mono and dual balanced configuration provides dynamic and delicate sound, conveying the sensitivity of the performer.
8 Attenuator Circuits
The N-05XE uses a high-precision double mono and double balance attenuator circuit configuration. This configuration includes eight independent channels that separately process the left and right channels, as well as positive and negative signal paths. This configuration ensures clean sound quality with excellent channel separation and phase accuracy. In the XE model, the attenuator power supply block is completely independent of other power circuits, further enhancing playback purity.

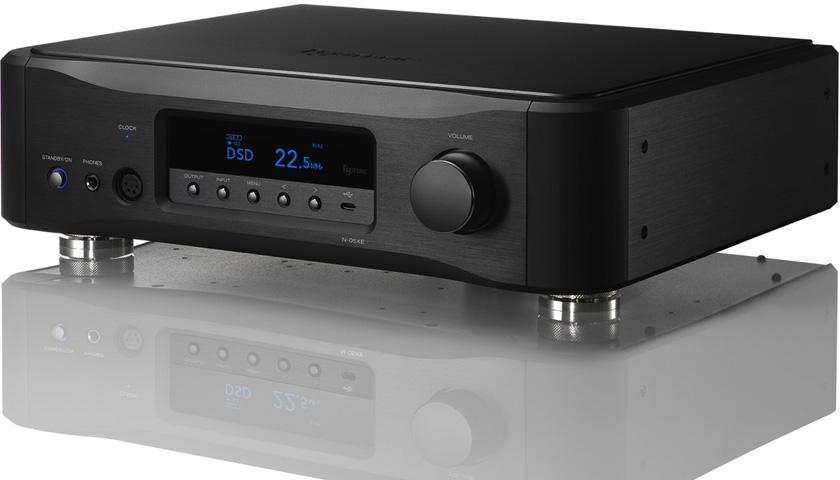

High-Precision Volume Control Knob on Ball Bearings
The volume control of the N-05XE, providing super durable analog control, features the same ball bearing support mechanism used in the flagship Esoteric Grandioso lineup. The volume control knob itself is precision-machined from solid aluminum, providing exceptional tactile feedback and mechanical precision.
Unique Esoteric-HCLD Output Buffer Scheme
The Esoteric-HCLD (High Current Line Driver) scheme on the N-05XE was developed to ensure maximum bandwidth and current transmission speed - two factors crucial for achieving uncompromising analog output characteristics. The high-speed buffer element has an exceptional rise time, or response time, of 2000 V/μs, allowing for reproduction of musical dynamics with breathtakingly realistic realism.

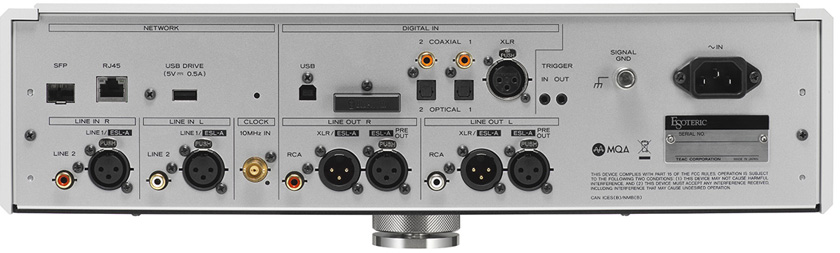

ES-Link Analog - Esoteric's Patented Current Signal Transmission Technology
The N-05XE implements Esoteric's analog method of input/output signal transmission - "ES-Link Analog". This method utilizes the high-performance HCLD buffer scheme, known for its powerful current delivery capabilities. ES-Link Analog minimizes the influence of the signal transmission path impedance, ensuring clean and powerful signal transmission and realistic reproduction, as if you were monitoring directly from an analog console in a recording studio. In the XE model, the newly added ES-Link analog input allows direct connection to compatible Esoteric components, such as the K-05XD SACD player with DAC function and the E-02 specialized high-performance phono preamplifier.
Dual Mono Headphone Amplifier
Enjoy listening to high-quality headphones in your own space. The N-05XE features a newly developed Dual Mono headphone amplifier. Esoteric's experience in analog amplifier design is unified in this scheme, providing exceptional sound quality for serious headphone listening.

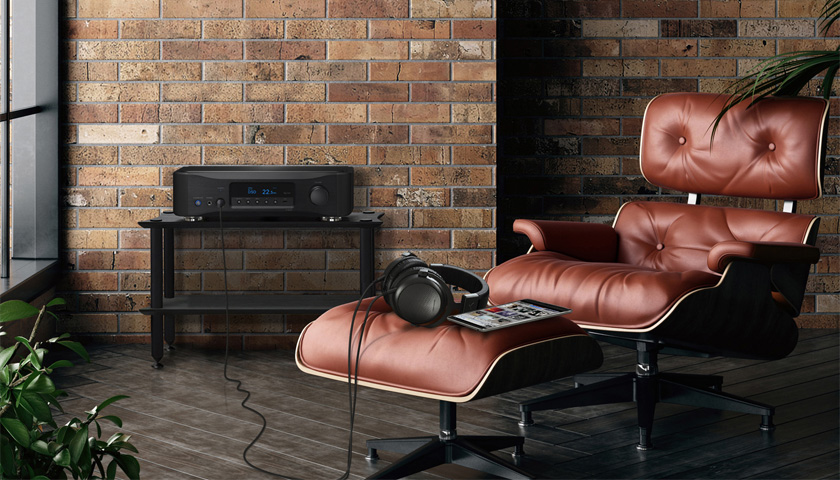

Designed for Even More Open Sound
The scheme is designed to eliminate differences in sound quality when using speakers or headphones. This is achieved by using the HCLD linear preamplifier, known for its high current output power, as the headphone amplifier. The dual-mono architecture includes independent left and right power circuits. When using headphones, the two amplifier schemes switch to parallel operation with single-ended connection, providing even greater openness in sound than previous models. The amplifier features two output connectors: a 4-pin XLR connector and a 6.3mm stereo headphone output. With a high output power of 1200mW per channel (load 32 Ohms), it provides sufficient power, control, and musical vitality to high-class headphones, ensuring uncompromising performance and enhanced musical expressiveness.
Versatility for a Wide Range of Applications
The N-05XE is a versatile high-quality component that has been carefully crafted without any compromises, providing the highest sound quality for a wide range of applications. When switched to fixed line level output, the N-05XE can be connected to an external preamplifier to operate as a standalone digital source or DAC. It also features a convenient pass-through output for use as a front channel preamplifier for an AV receiver. The XE model can additionally function as a DAC input, allowing direct connection of smartphones and DAP devices.

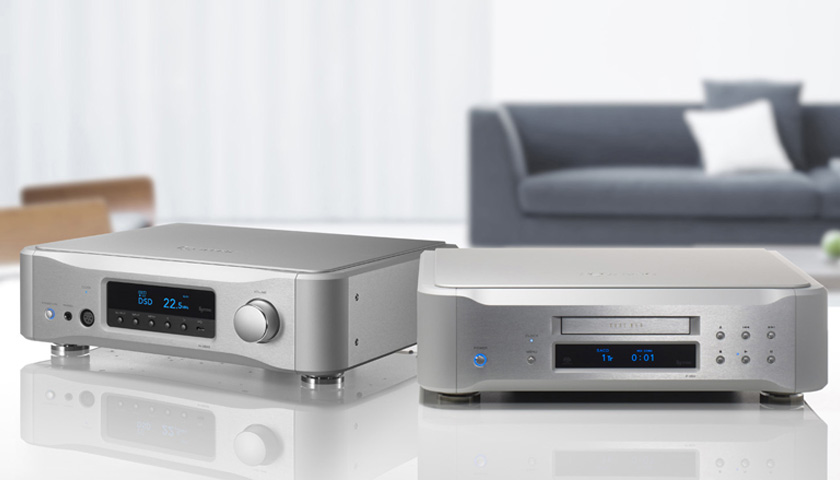

SACD Transport Connection
The N-05XE features the Esoteric ES-Link digital input, allowing direct connection to Esoteric Super Audio CD models for data transmission via a single XLR cable.
Built-In Bluetooth Receiver
The N-05XE is equipped with a built-in Bluetooth receiver supporting high-quality audio codecs, including LDAC, LHDC, Qualcomm aptX-HD, aptX, AAC, and SBC. This provides high-quality wireless playback from smartphones and other compatible devices. The N-05XE also supports multi-point connection, enabling simultaneous connection to multiple devices for seamless switching.
Clock Synchronization Function

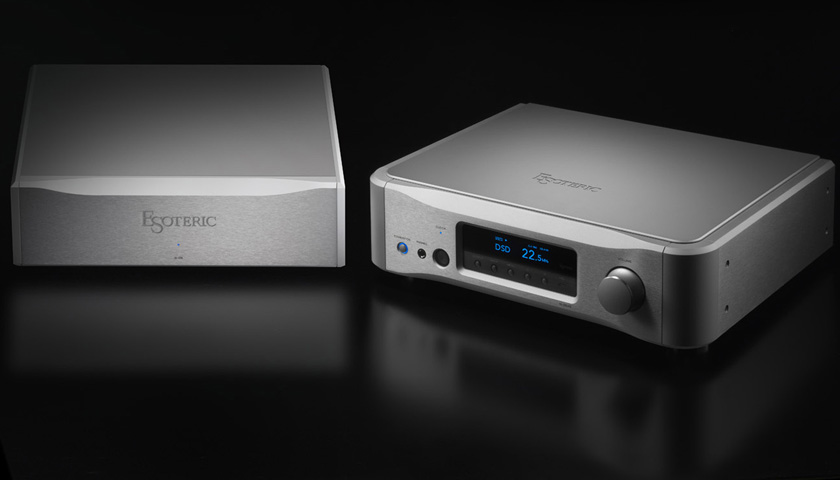

The N-05XE features a high-precision 10MHz master clock input. When used in conjunction with an external G-05 master clock generator, it further enhances overall sound quality.
Chassis Design for Resonance Control

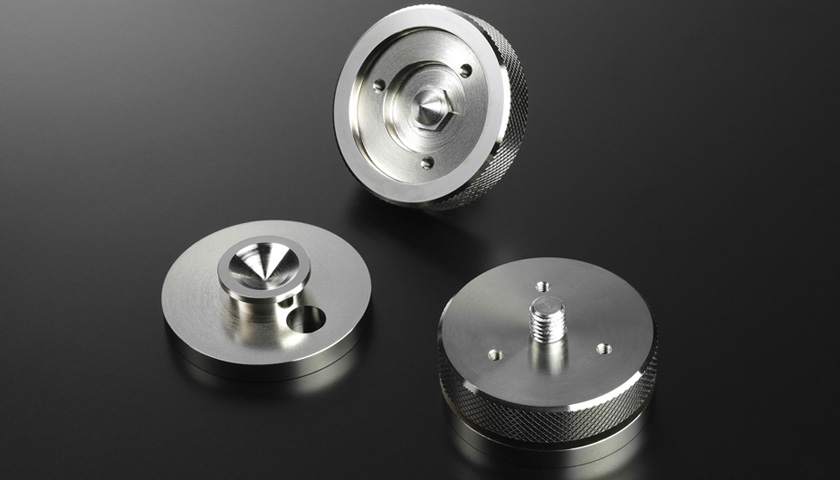

The N-05XE features a semi-floating top panel that provides open and spacious sound. In the lower part of the chassis, laser-cut slits are placed around the power transformer mount for effective resonance management. Undesirable vibrations are effectively dispersed outward thanks to Esoteric's patented point isolating feet (patent numbers: JP 4075477, JP 3778108, and JP 7413773).

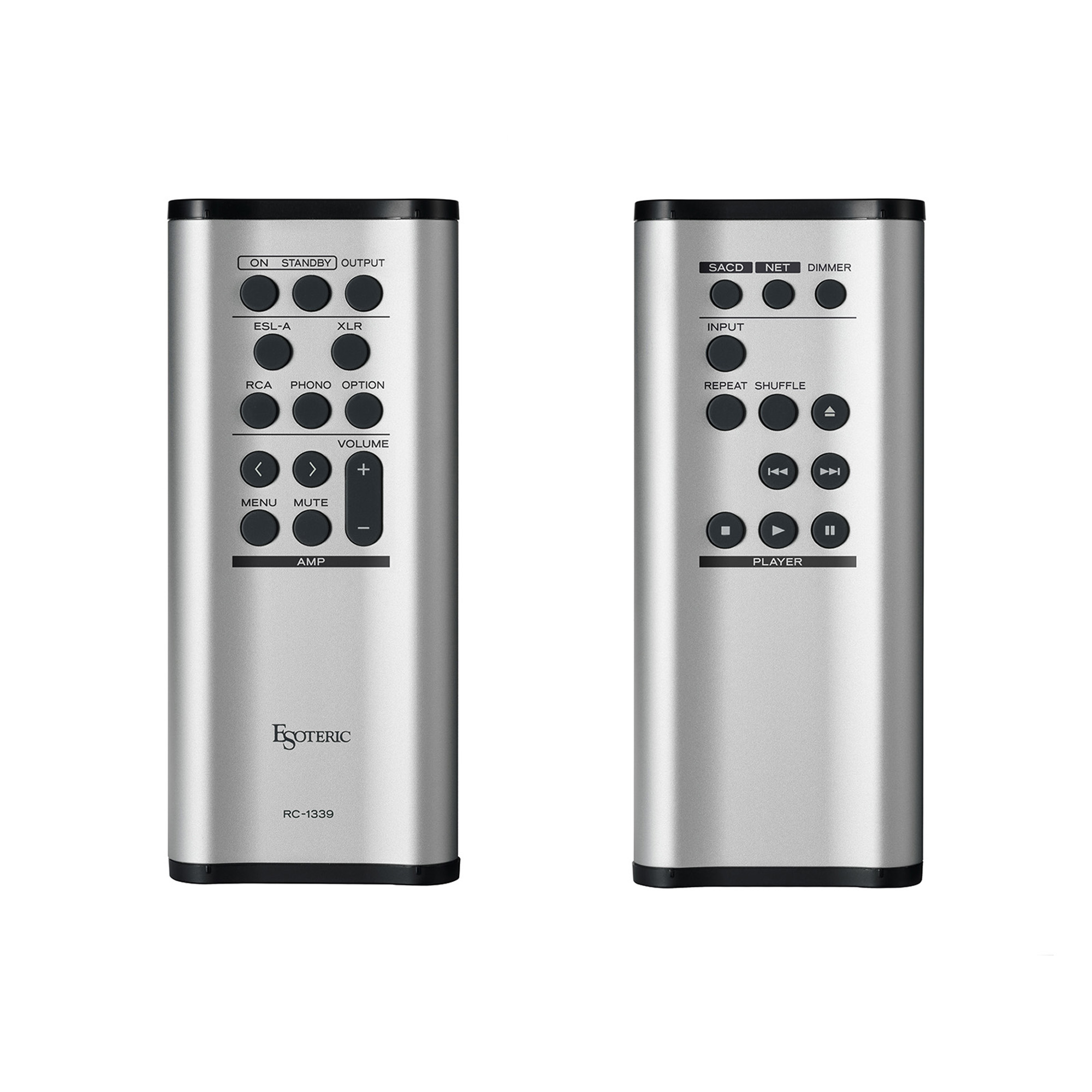

Remote Control with Convenient Dual-Side Control Buttons
The RC-1339 remote control has an ergonomic aluminum body that fits comfortably in the hand, with buttons located on both sides of the device for intuitive and easy control without leaving the listening position. In addition to simple control of preamplifier and network playback functions, this remote control can also be used to control compatible Esoteric Super Audio CD players and transport devices.
Package includes:
- Network Player
- Remote Control
- Power Cable
- Manual
