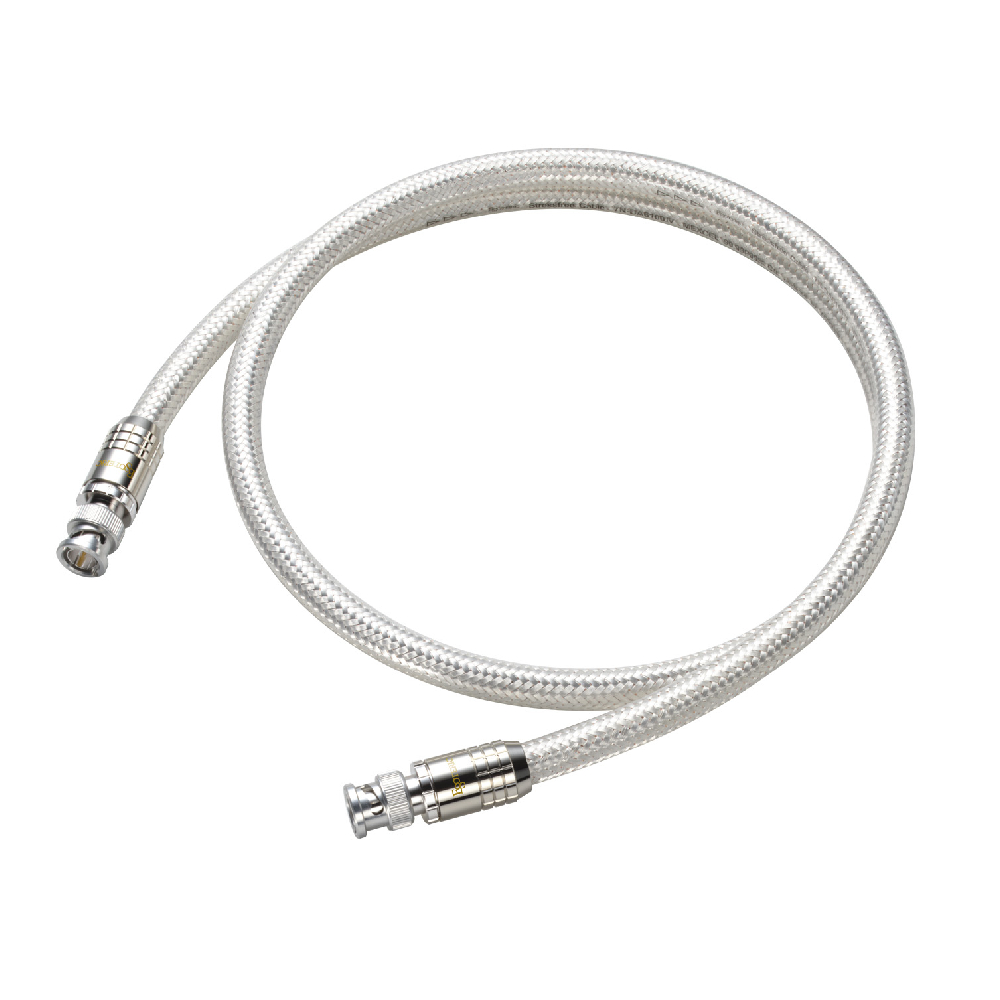

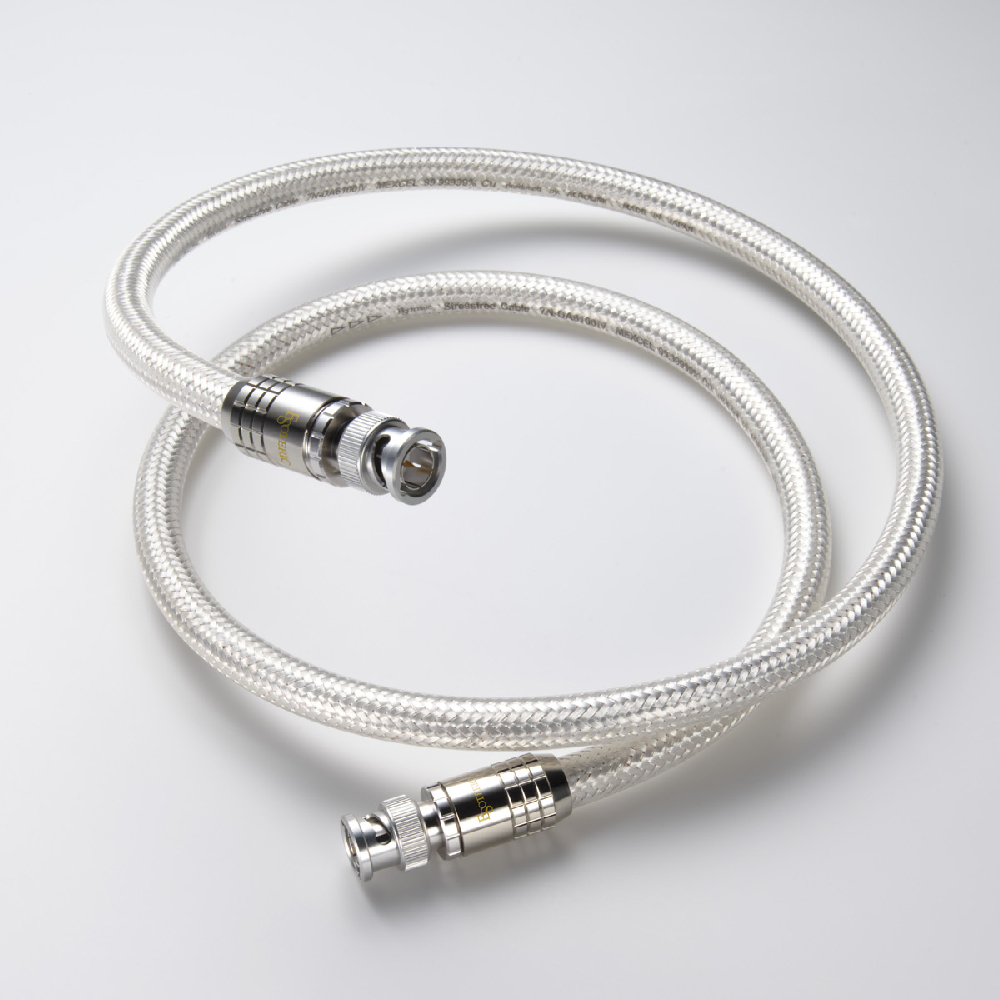

The Esoteric “Mastering Edition” 7N-DA6100ES MEXCEL is a reference-grade coaxial digital BNC cable developed for ultra-precise 10 MHz master clock transmission. Designed in collaboration with the Esoteric Mastering Center, it reflects the same engineering philosophy used in professional remastering studios where classical and jazz recordings are refined to their highest fidelity. Every aspect of this cable is tuned not only for electrical accuracy, but also for preserving the emotional depth and spatial realism of the original master signal.
Unlike conventional digital interconnects, this model is engineered as an extension of studio-grade mastering equipment. It delivers extremely stable impedance behavior, exceptionally low signal degradation, and a level of temporal precision that allows high-end audio systems to operate at their full potential.
Engineering Philosophy and Design Intent
Built on Esoteric’s long-standing MEXCEL development platform, this cable represents a convergence of aerospace-derived conductor technology and high-end audio mastering expertise. The goal is not merely signal transmission, but the preservation of waveform integrity across an extremely wide bandwidth, extending into the gigahertz domain. This ensures that both timing accuracy and micro-dynamic information remain intact from source to destination.
The cable is supervised by senior mastering engineers, ensuring that every material choice and structural element is evaluated through critical listening as well as laboratory measurement.
Signal Integrity and Transmission Architecture
At the core of the 7N-DA6100ES lies a 7N-class ultra-pure copper conductor (99.99999%), produced under stringent semiconductor-grade refinement processes. The conductor structure is optimized to minimize crystalline boundaries and reduce long-term signal distortion. A thick 2.0 mm solid center core enhances stability in the low-frequency energy range while preserving transient speed.
The MEXCEL structure enables “Gigahertz Flat” transmission characteristics, maintaining consistent impedance behavior up to extremely high frequencies. This minimizes waveform deformation, ensuring digital clock signals remain stable, precise, and free from jitter-related degradation.
Shielding and Noise Suppression System

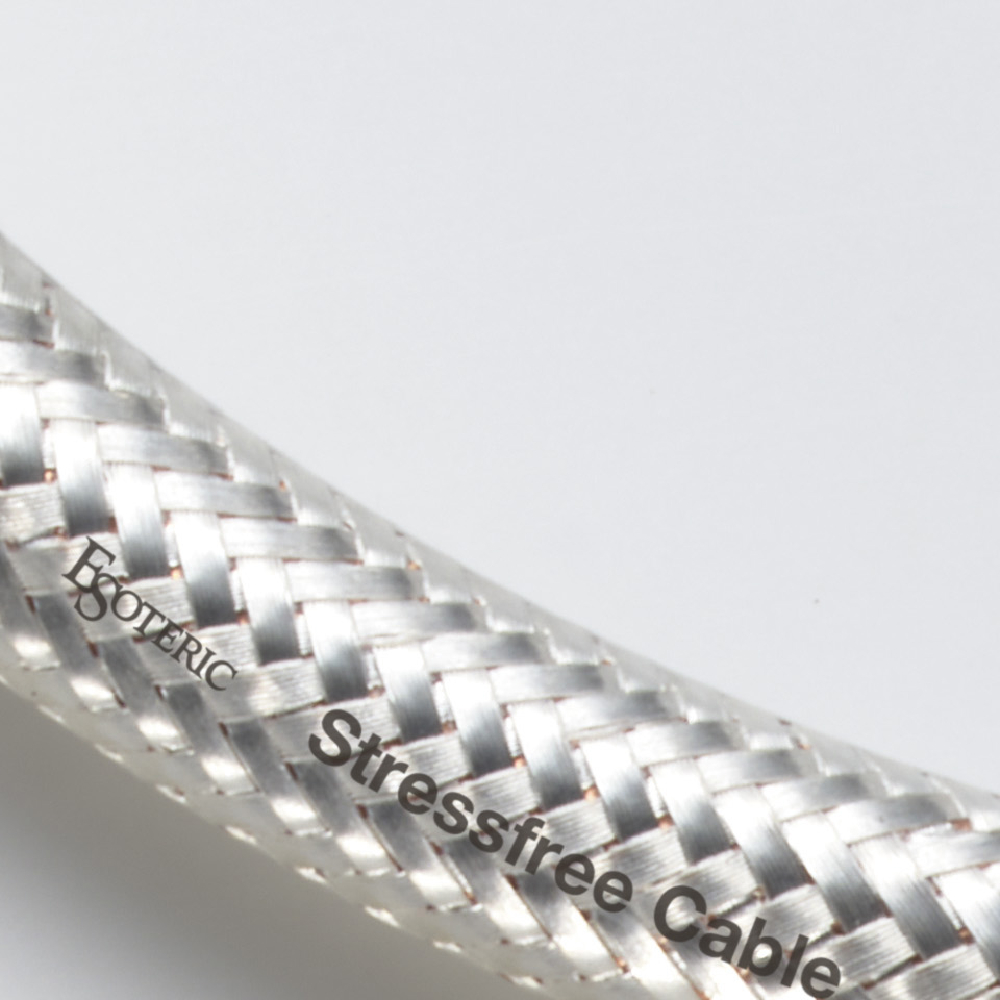

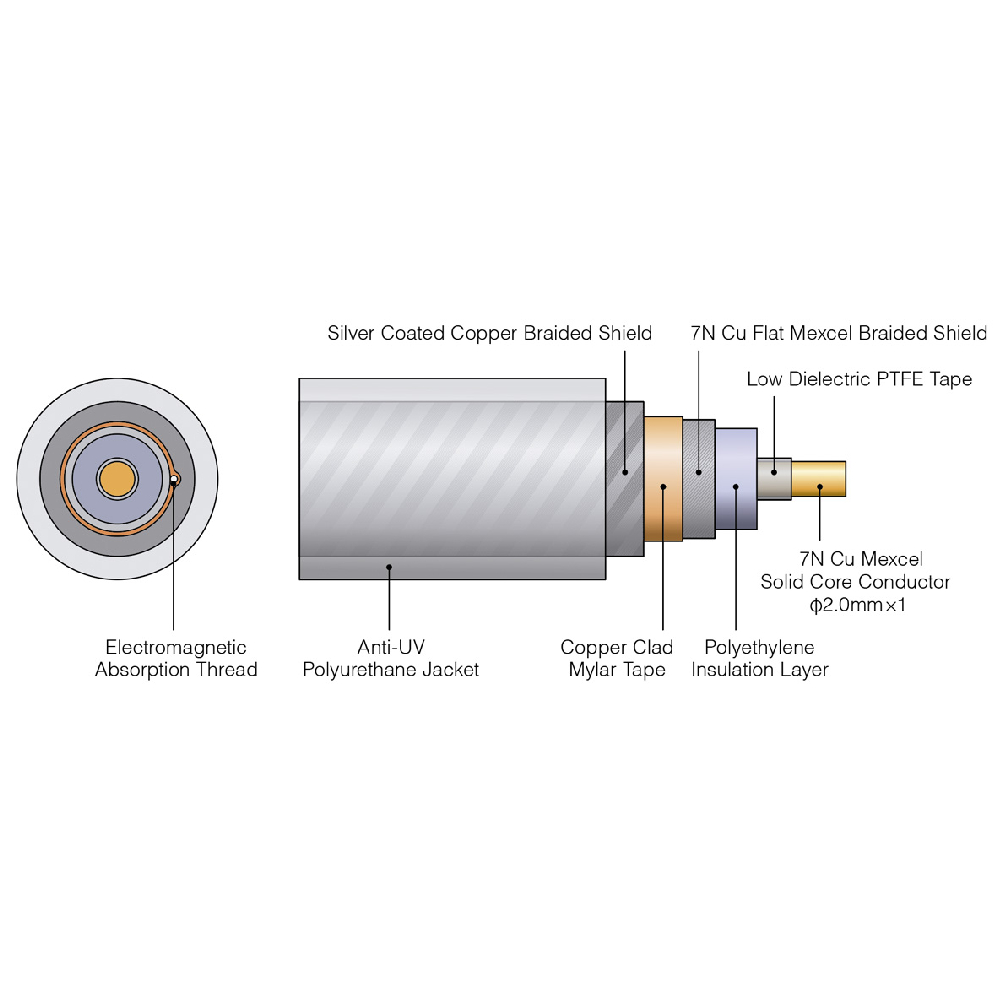

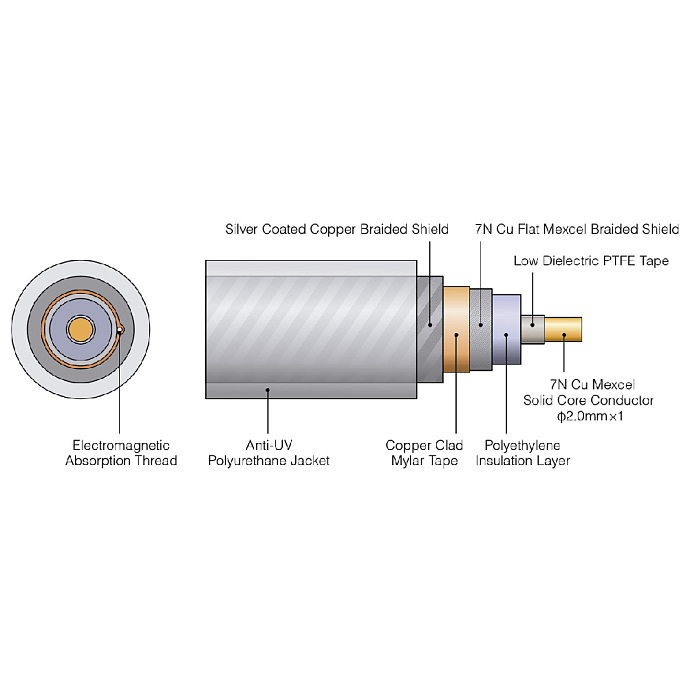

To achieve exceptional immunity against external interference, the cable employs a triple-layer shielding structure combining ultra-fine rectangular MEXCEL braid, copper-based Mylar shielding tape, and a dense silver-plated copper outer braid. This layered architecture significantly improves signal-to-noise performance and preserves micro-detail retrieval even in electrically complex environments.
Connector and Mechanical Optimization

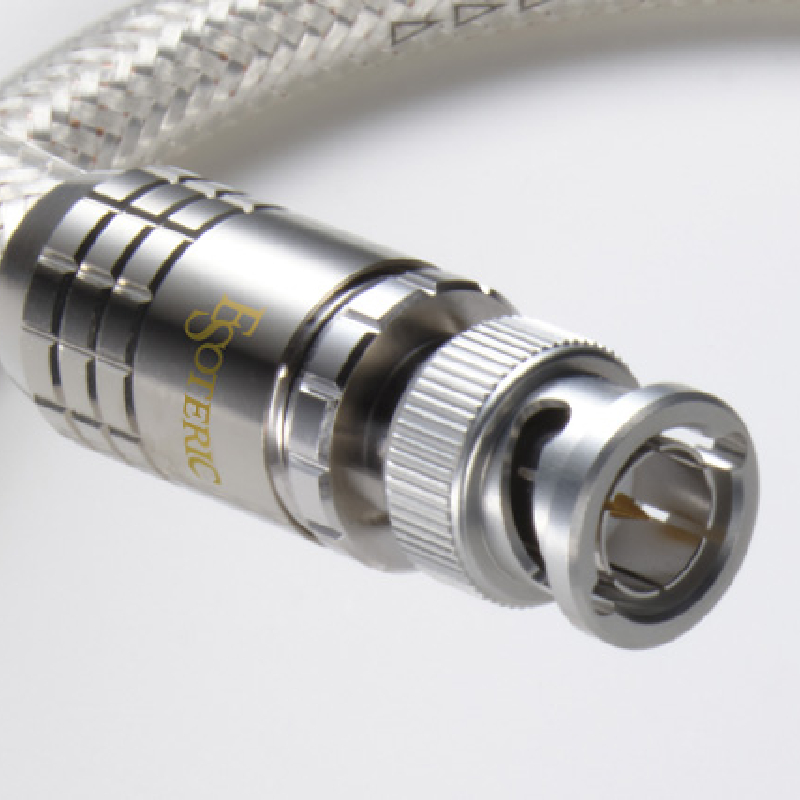

Specially developed 50Ω BNC connectors are engineered specifically for high-precision clock signal transfer. The central contact pin is machined from phosphor bronze and directly plated with 24K gold to ensure smooth tonal balance and long-term conductivity stability. The return path shell is finished with a silver and rhodium plating combination, improving clarity and reducing signal haze.
Mechanical stability is reinforced through a duralumin locking structure that suppresses vibration at the connection point, preventing micro-movement artifacts that can affect timing precision. This results in a more stable and focused soundstage presentation.
Sonic Characteristics
In high-resolution audio systems, the 7N-DA6100ES MEXCEL delivers a remarkably transparent and controlled presentation. It enhances spatial layering, tightens low-frequency response, and allows high-frequency detail to emerge without harshness. The result is a natural, three-dimensional sound field where instrument placement and harmonic decay are rendered with exceptional realism.
Technical Specifications:
- Model: 7N-DA6100ES MEXCEL “Esoteric Mastering Edition”
- Cable type: Coaxial digital BNC cable
- Connector type: BNC to BNC (50Ω)
- Length: 1.0 m
- Conductor material: 7N ultra-pure copper (99.99999%)
- Center conductor: 2.0 mm solid-core MEXCEL structure
- Shielding: 3-layer (MEXCEL braid + copper Mylar + silver-plated copper braid)
- Application: 10 MHz master clock / high-precision digital transmission
In the box:
- Esoteric 7N-DA6100ES MEXCEL BNC Digital Cable (1.0 m),
- Factory packaging with protective high-density foam insert,
- Manufacturer documentation and specifications sheet.
