4-pole loudspeaker connection with a robust metal housing male. Max. Current of 40 amps
Key Features:
- Connector Type: Speaker Connector 4 pin
- Cable Diameter: Min. 8.5 mm; Max. 14 mm
- Cable Connection Size Max: 4 mm
- Material (Housing/Contact): ZZnAI4-0 (Nickel) / Zinc (Silver plated)
- Applications: Video technician, Machine builder, DJ, Lighting technician, Sound engineer

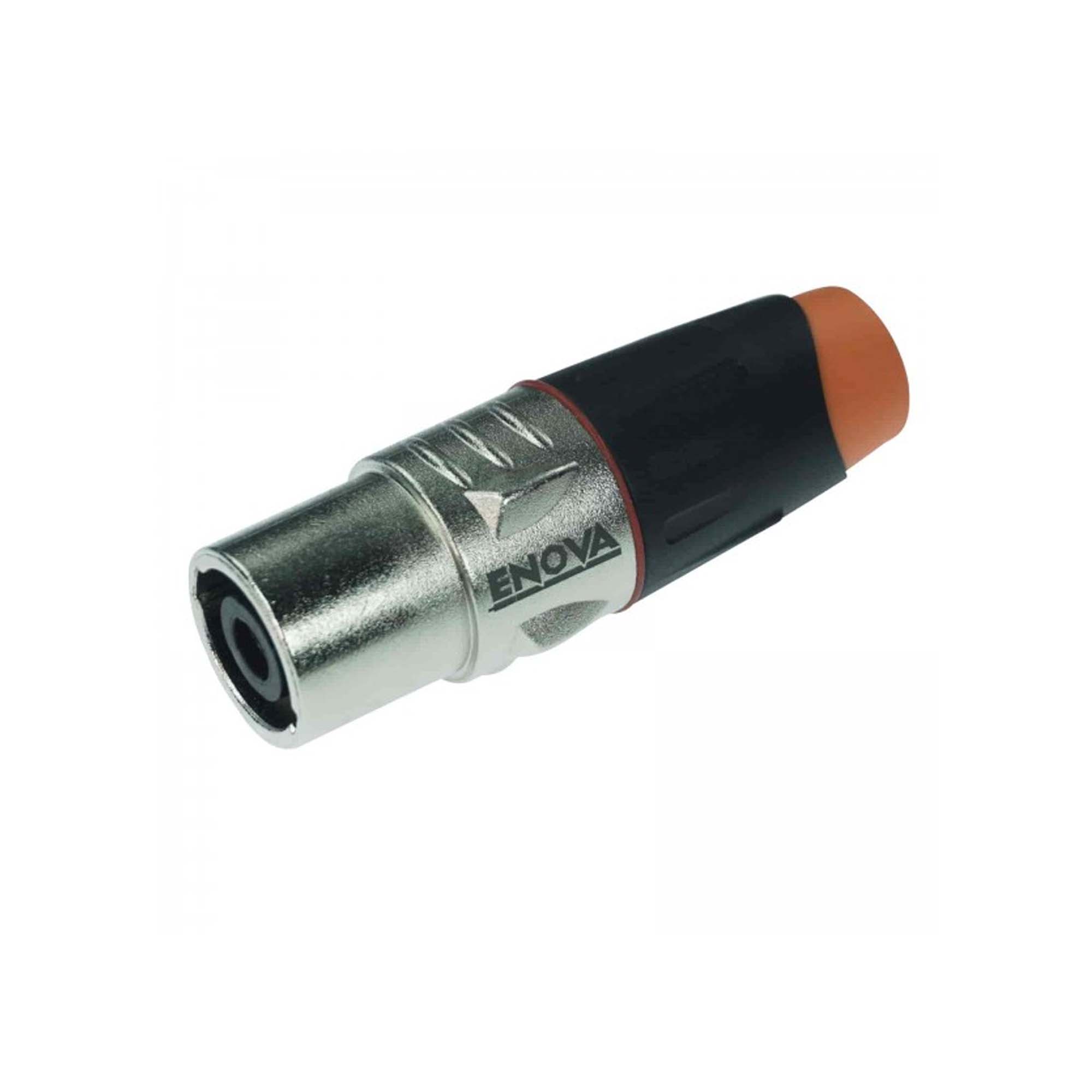

The Enova Solutions “Loudspeaker Connection 4-pin, Metal Housing Male, 40 Amps” is crafted with a strong, nickel-finished metal housing and features silver-plated zinc contacts for improved conductivity and resistance to wear. This male plug connector measures 79.5 mm in length, 26 mm in width, and 26 mm in height, and is equipped to support cable diameters from 8.5 mm to 14 mm.

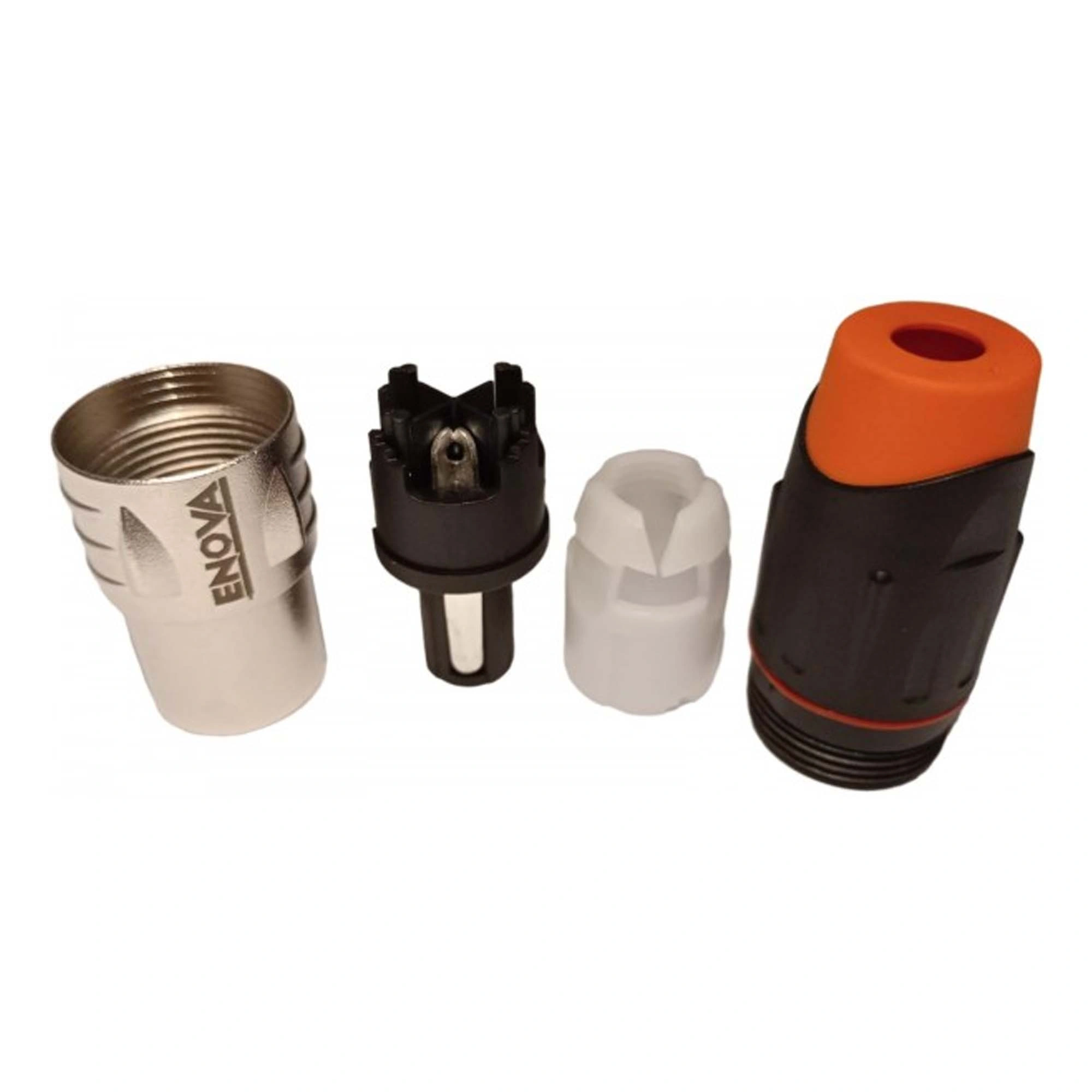

Designed for easy and reliable connections, it includes two types of strain relief—standard black for cables with sheath diameters between 8.5 to 11.5 mm and white for 11.5 to 13 mm—offering flexibility and security for various cable sizes. The solder contact wiring mode ensures a solid and efficient connection, essential for maintaining the quality and reliability of audio signals in demanding settings.
With a maximum operating voltage of 250 VAC.RMS and rated for currents up to 40 A, this connector is tailored for high-power applications where performance and safety are critical. It meets ROHS standards for environmental compliance and is suitable for a range of professional uses, from live concerts to corporate events.
In the Box:
- Speaker connector
