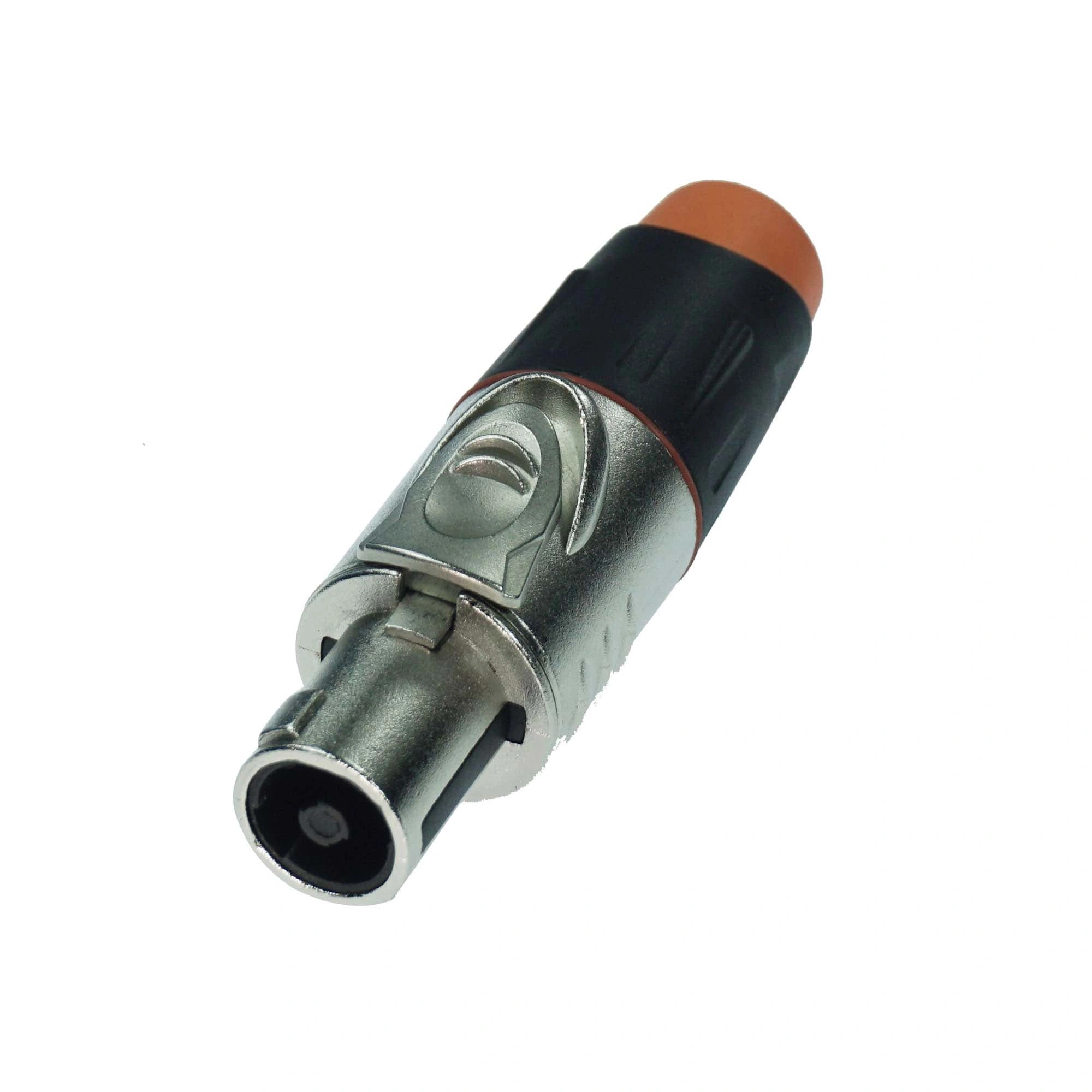

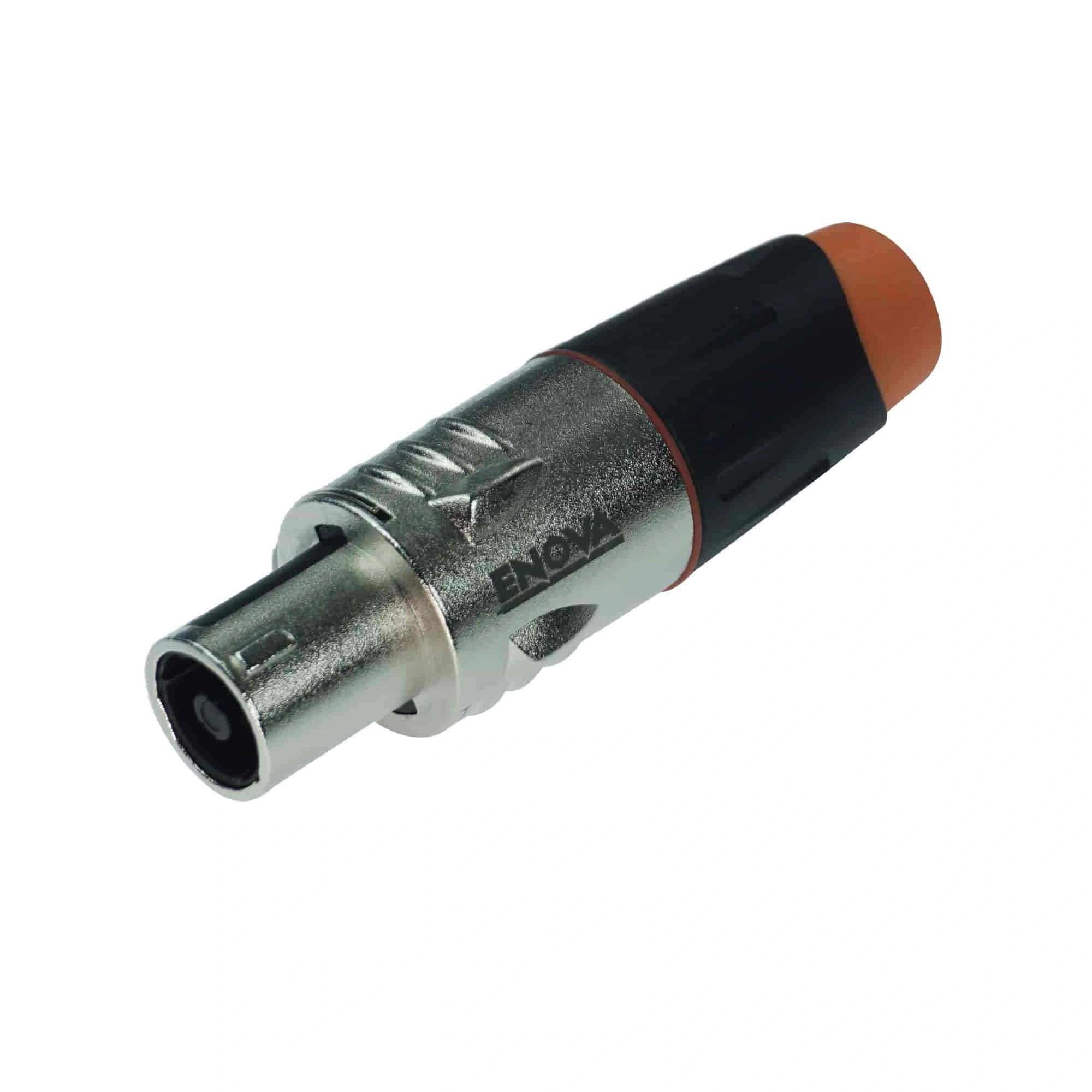

4-pole loudspeaker connection with a robust metal housing female. Max. Current of 40 amps.
Key Features:
- Connector Type: Speaker Connector 4 pin
- Cable Diameter: Min. 8.5 mm; Max. 14 mm
- Cable Connection Size Max: 4 mm
- Material (Housing/Contact): ZZnAI4-0 (Nickel) / Zinc (Silver plated)
- Material (Housing/Contact): ZZnAI4-0 (Nickel) / Zinc (Silver plated)
Designed to withstand rigorous use, the Enova Solutions “Loudspeaker Connection 4-pin, Metal Housing Female, 40 Amps” features a strong nickel-finished ZZnAI4-0 metal housing and silver-plated zinc contacts for optimal conductivity and minimal signal loss. This connector is engineered for reliability and durability, with a length of 91.1 mm, width of 26 mm, and height of 29.48 mm.

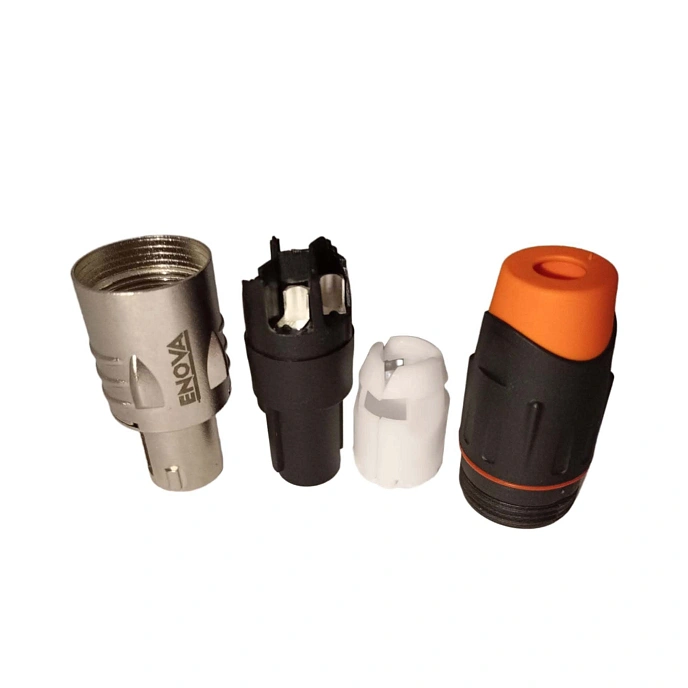

It supports a wide range of cable diameters from 8.5 mm to 14 mm and offers solder contact wiring mode for a secure and stable connection. Two types of strain relief accommodate different cable sheath diameters: standard black for Ø8.511.5mm and white for Ø11.513mm, ensuring compatibility with various cable sizes and additional support against cable stress and wear.
Rated for up to 250 VAC.RMS and with a maximum rated current of 40 A, this connector is designed to meet the needs of high-power applications in professional audio. The product complies with ROHS standards and is suitable for various applications, including use by video technicians, machine builders, DJs, lighting technicians, and sound engineers.
In the Box:
- Speaker connector
