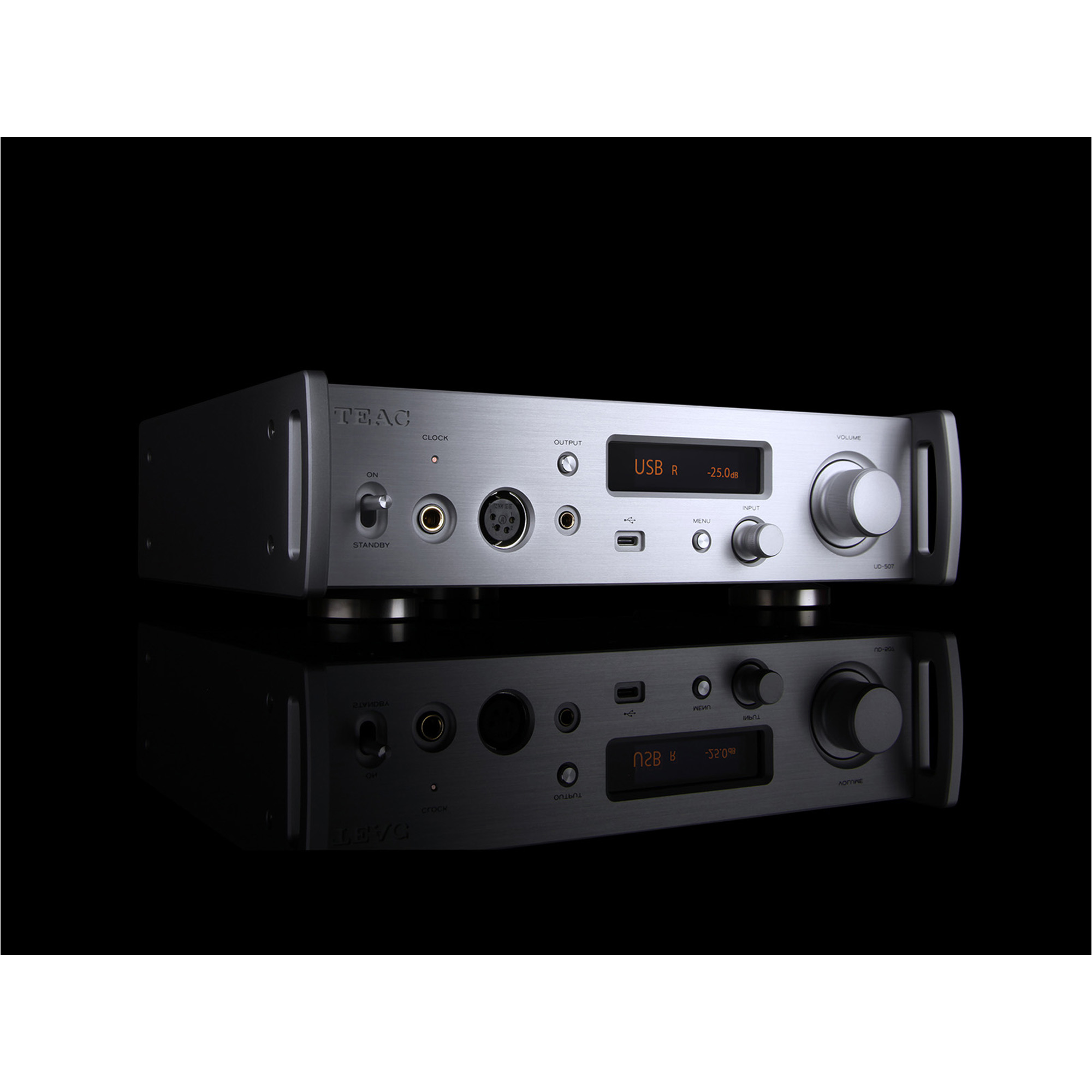

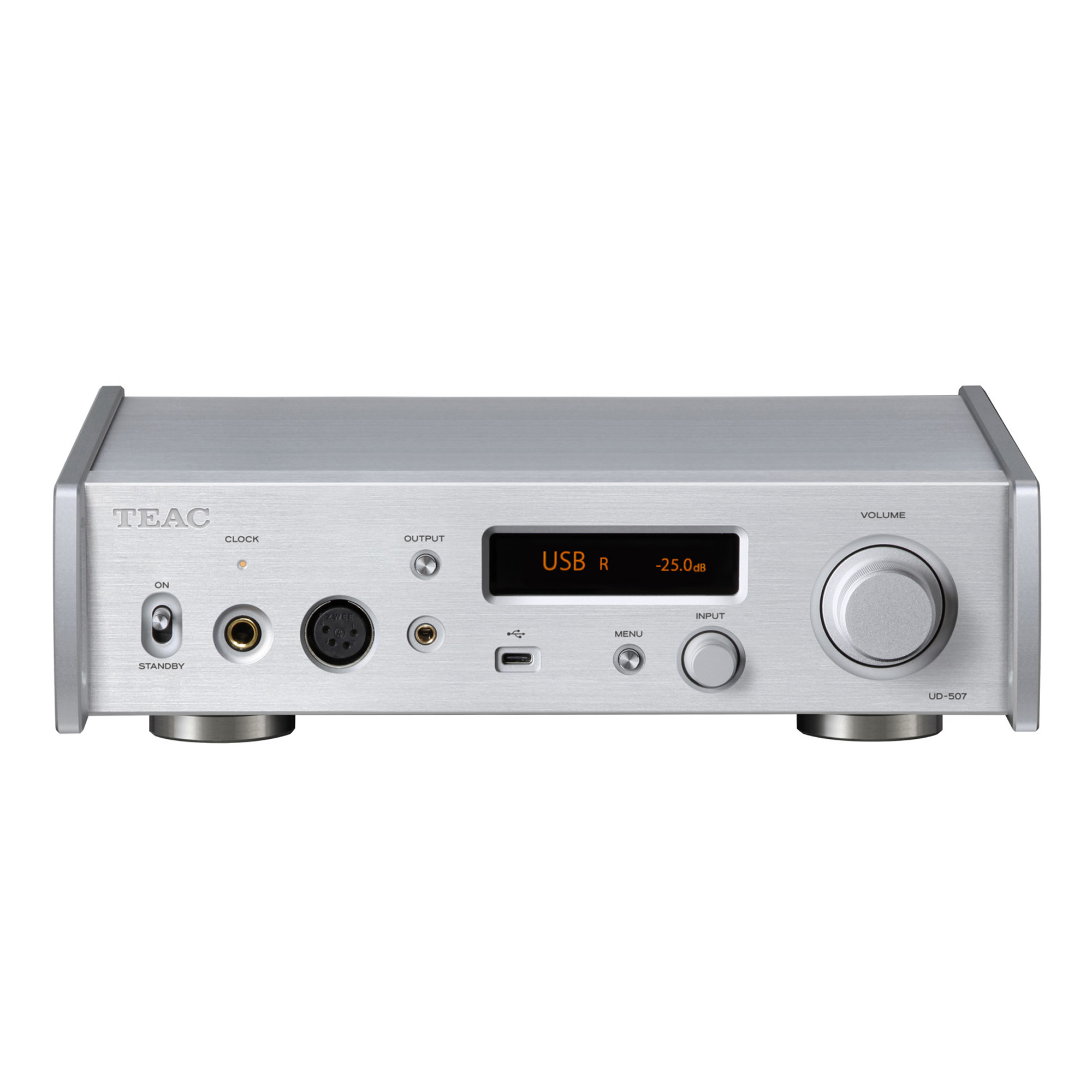

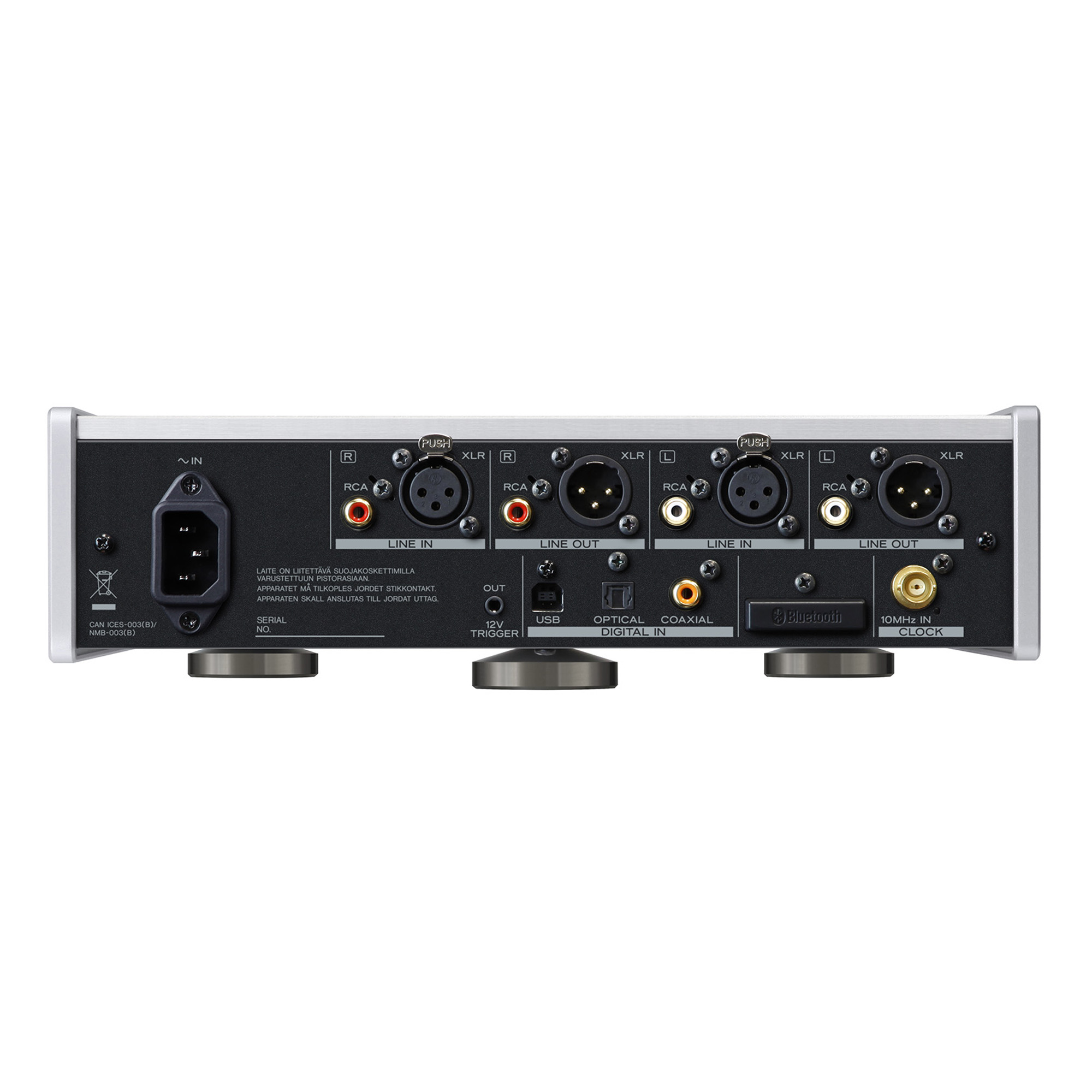

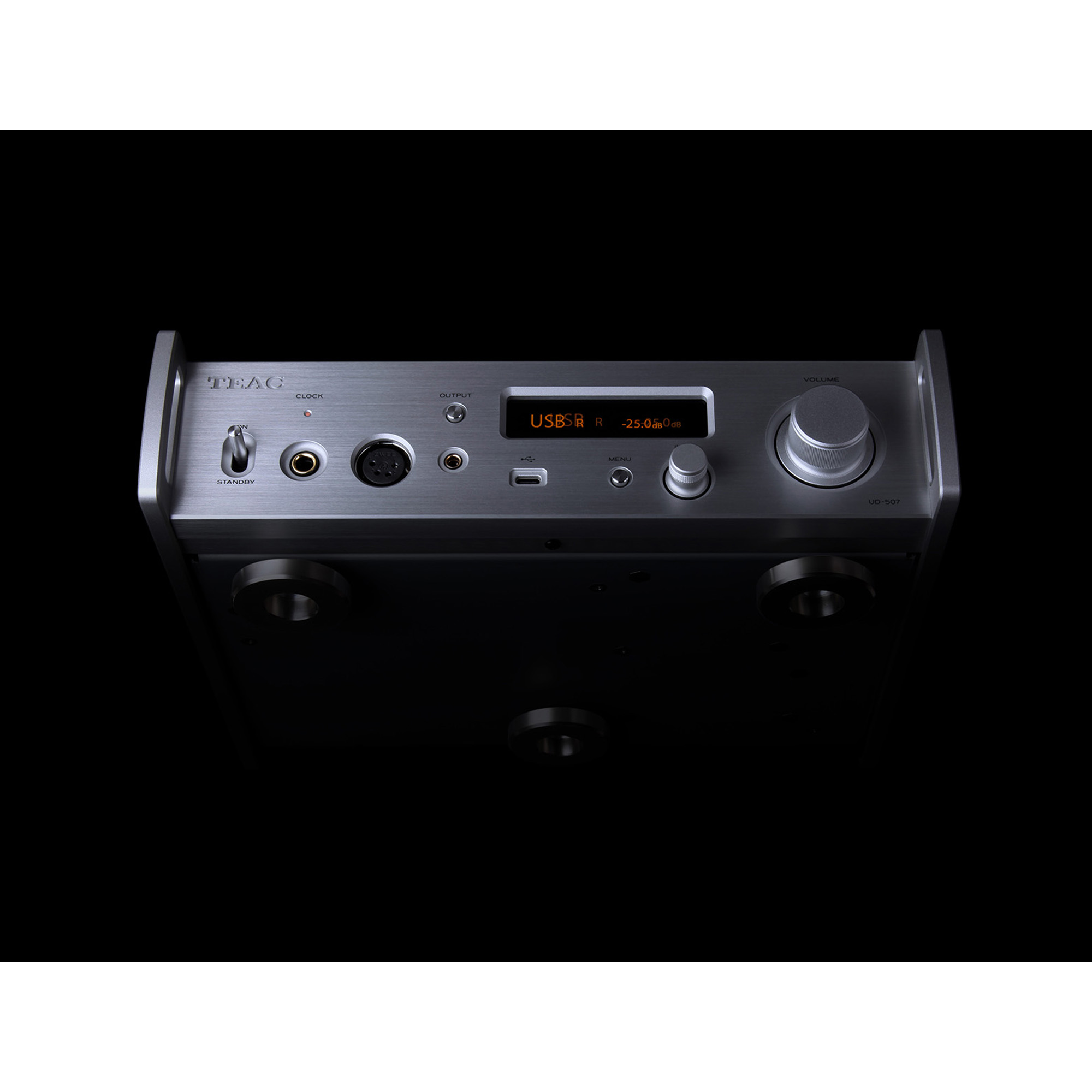

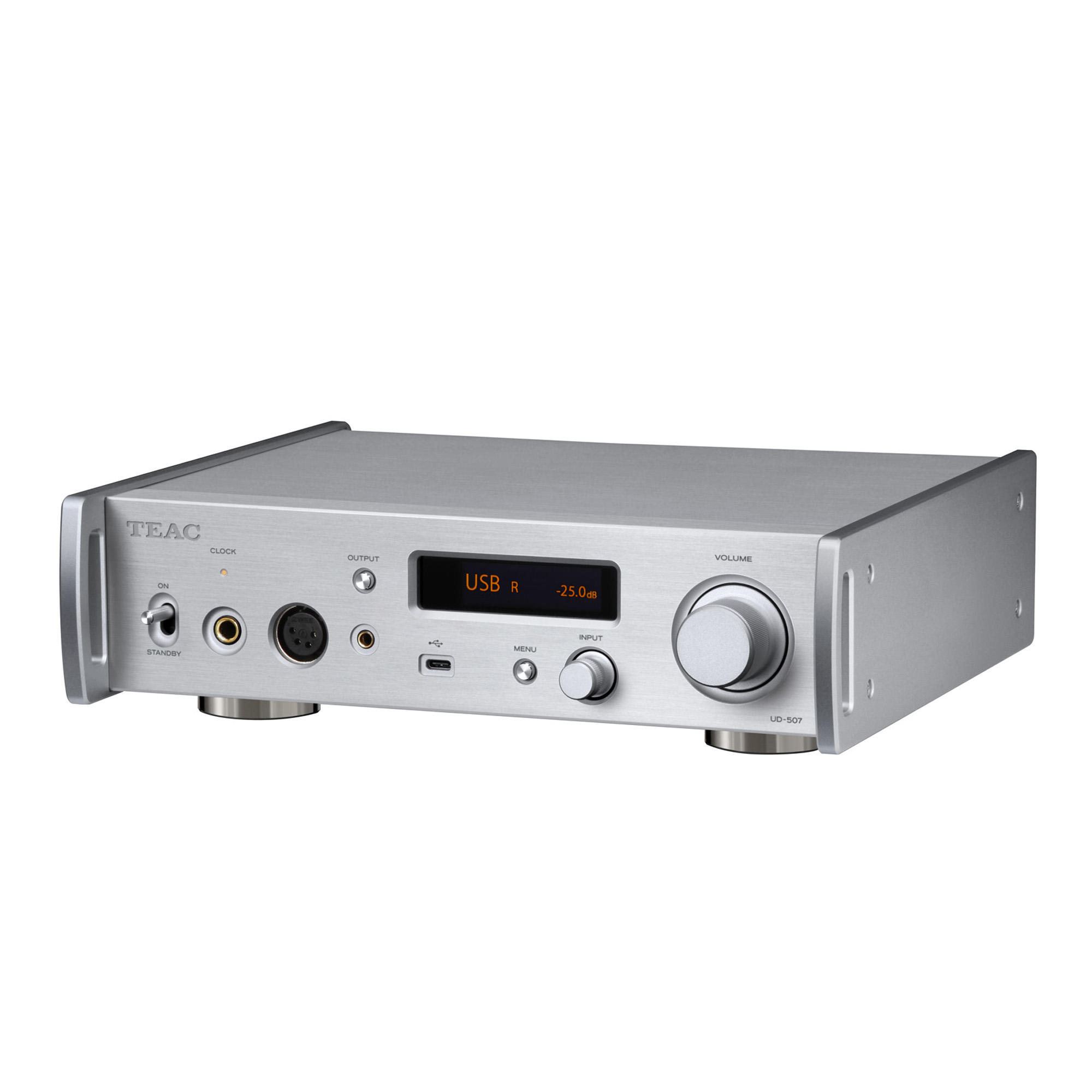

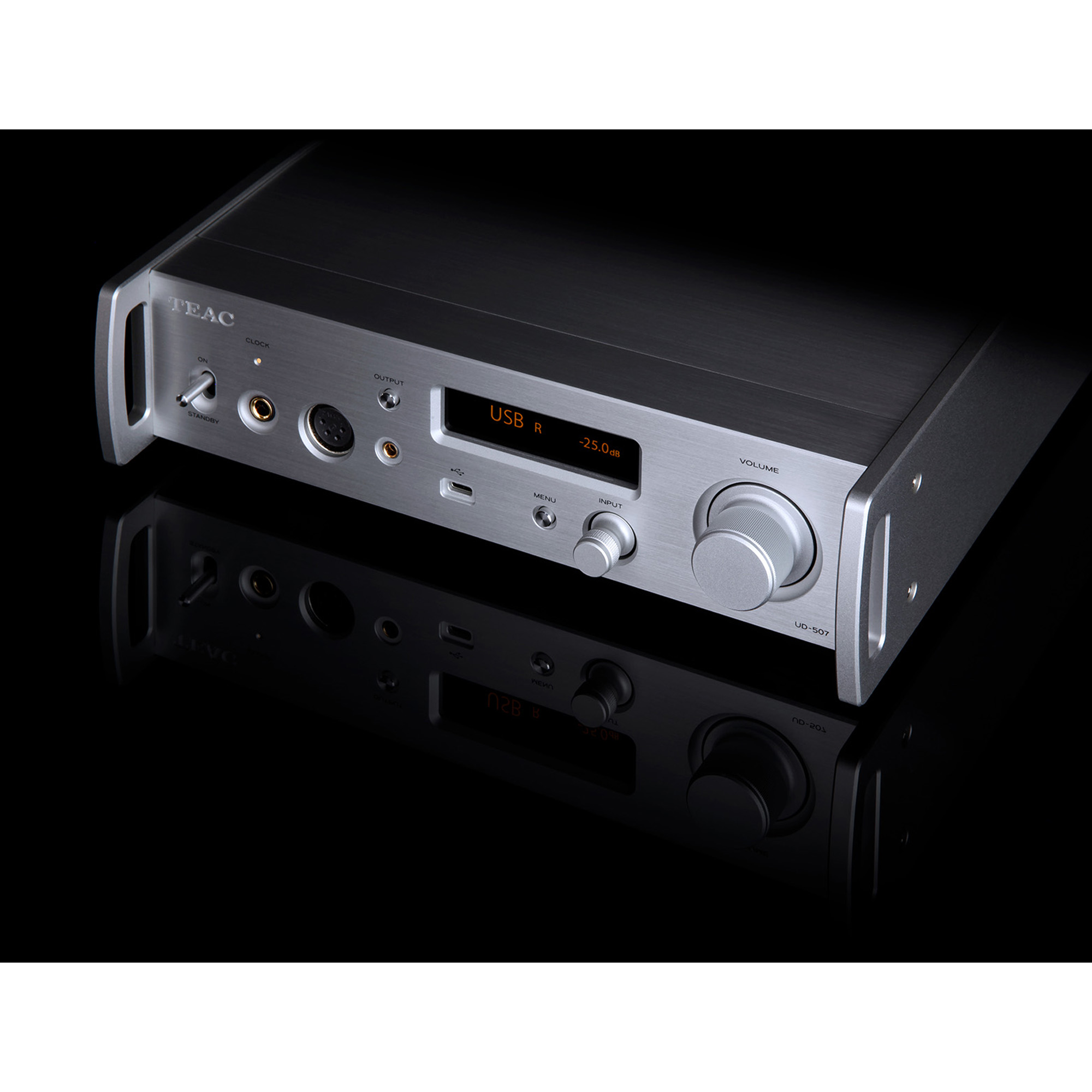

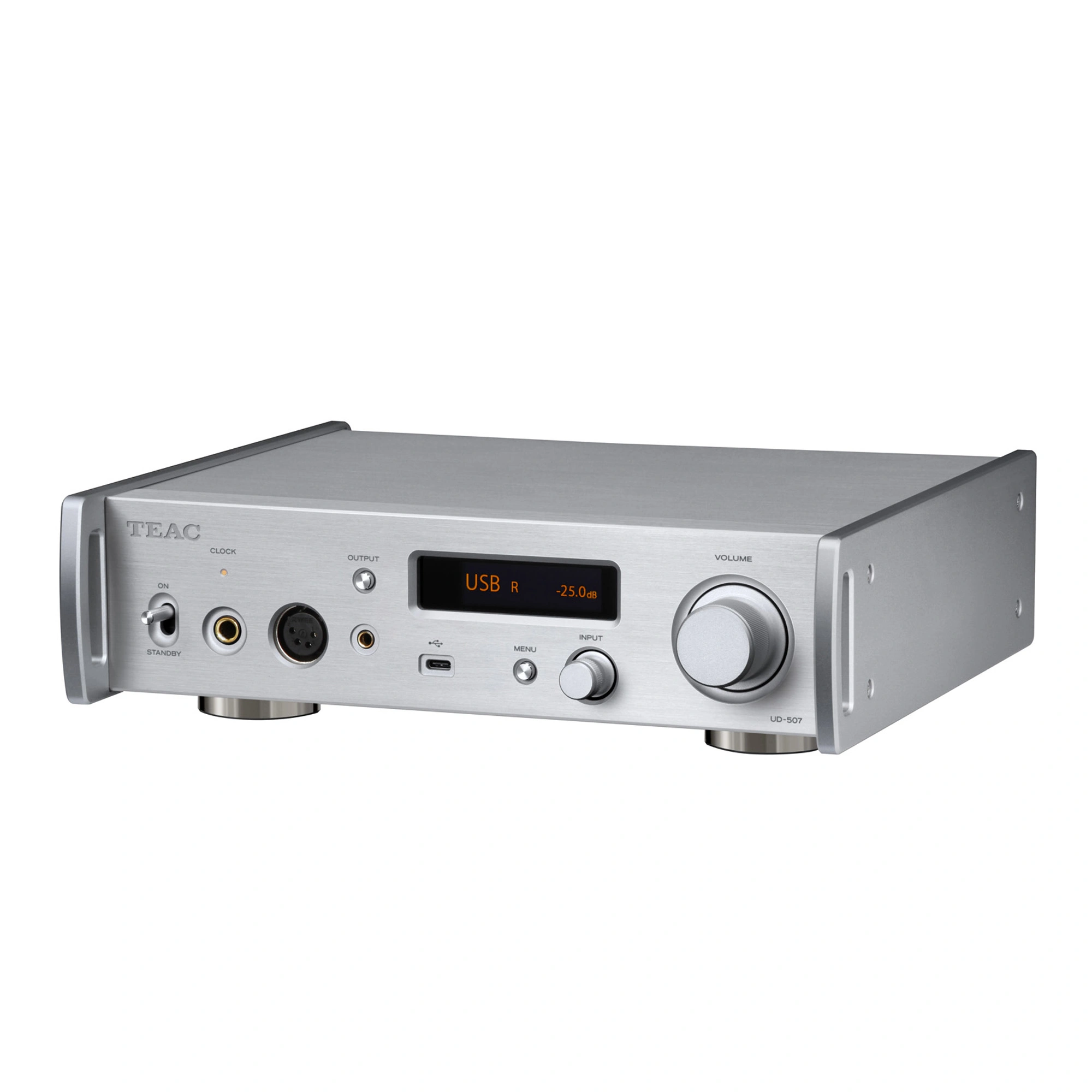

The TEAC UD-507 features dual USB ports (B and C), two optical and two coaxial inputs. It supports PCM playback up to 384 kHz and DSD up to 22.5 MHz. The device also includes Bluetooth with LDAC and LHDC codecs. Analog interfaces include XLR and RCA inputs and outputs, as well as balanced and unbalanced headphone jacks. Additionally, the UD-507 is equipped with advanced clock generator functions, upsampling, and various DAC operation modes.
Features:
- Discrete DAC with TRDD 5 technology
- TEAC-HCLD 2 high-current amplification technology
- Supports PCM 32-bit / 384 kHz, DSD512, MQA
- Switchable upsampling
- Wireless Bluetooth connection with LDAC, LHDC, aptX-HD codecs
- Output power of 1200 mW at 100 Ohms
- 10 MHz input for clock generator
- Headphone outputs: 3.5mm, XLR 4-pin, 4.4mm Pentaconn
The UD-507 is equipped with the proprietary discrete digital-to-analog converter "TRDD 5" designed with a focus on musicality. Following the renowned TEAC 701 series, the new "TRDD 5" DAC offers a clear soundstage and precise visualization, providing listeners with captivating musical experiences. DSD signals are processed directly while PCM signals are converted to a 1-bit signal using a delta-sigma modulator in the FPGA. When connected via USB, the UD-507 supports DSD playback up to 22.5 MHz and PCM up to 32-bit/384 kHz, allowing users to choose between multi-bit delta-sigma and single-bit delta-sigma conversion modes.
The TEAC UD-507 supports asynchronous USB interface, synchronizing PCM and DSD data transmission with the clock frequency generated by the internal high-precision quartz generator. It offers two clock pulse options - 44.1 kHz and 48 kHz, each using a high-quality low-phase-noise quartz generator to minimize jitter and ensure accurate reproduction of the original soundtrack.
Balanced Headphone Amplifier
The UD507 is a headphone amplifier equipped with TEAC-HCLD 2 high-current linear amplification technology, providing high current delivery. Compared to the previous model, the maximum output power has been significantly increased to 1200 mW + 1200 mW (balanced power at 100 Ohms), comparable to a dedicated headphone amplifier without a DAC. The amplifier's gain can be switched between three settings (low/medium/high) for precise adjustment of the output signal to best match the headphone sensitivity and impedance.
High-Quality Preamplifier with Analog and Digital Inputs
The UD-507 features a high-precision analog volume attenuator TEAC-QVCS and a powerful high-precision linear buffer circuit TEAC-HCLD 2. With five digital inputs and two analog inputs (unbalanced and balanced), a variety of devices can be connected.
The TEAC UD-507 also includes a 10 MHz input for connecting an external clock generator, allowing synchronization with high-precision external clocks to enhance sound quality.
The UD-507 can also be connected via Bluetooth, supporting LDAC and LHDC codecs for high-resolution audio (up to 24 bit/96 kHz), as well as Qualcomm aptX-HD for transmitting 24-bit/48 kHz audio from compatible sources. It also supports universal codecs like AAC and Qualcomm aptX, and multi-point connection, enabling simultaneous wireless connection of two devices.
Other key features include full MQA decoding on all digital inputs (except Bluetooth) and the resampling function using RDOT-NEO (Refined Digital Output Technology NEO).
Package includes:
- DAC

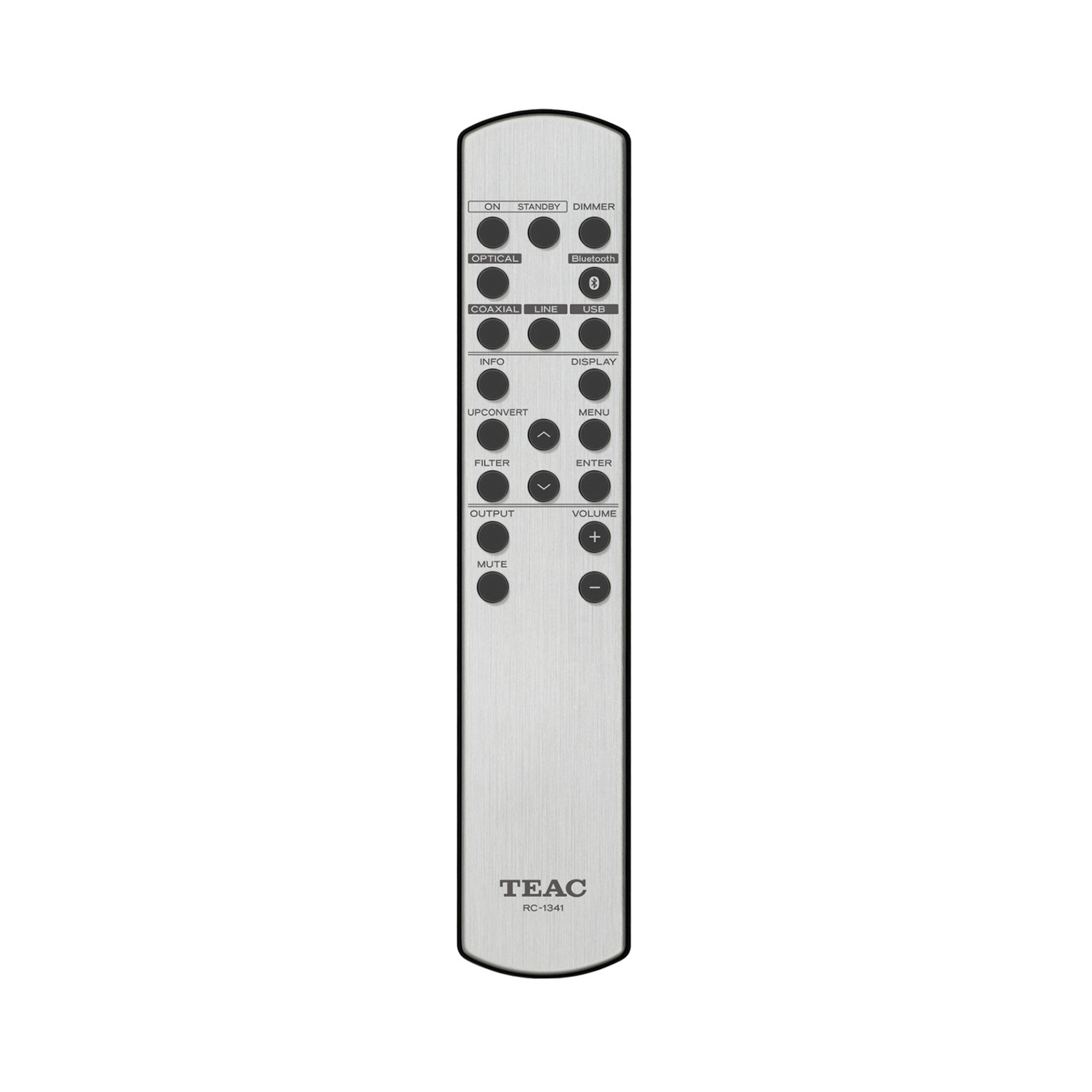

- Remote control
- Power cable
- Manual
