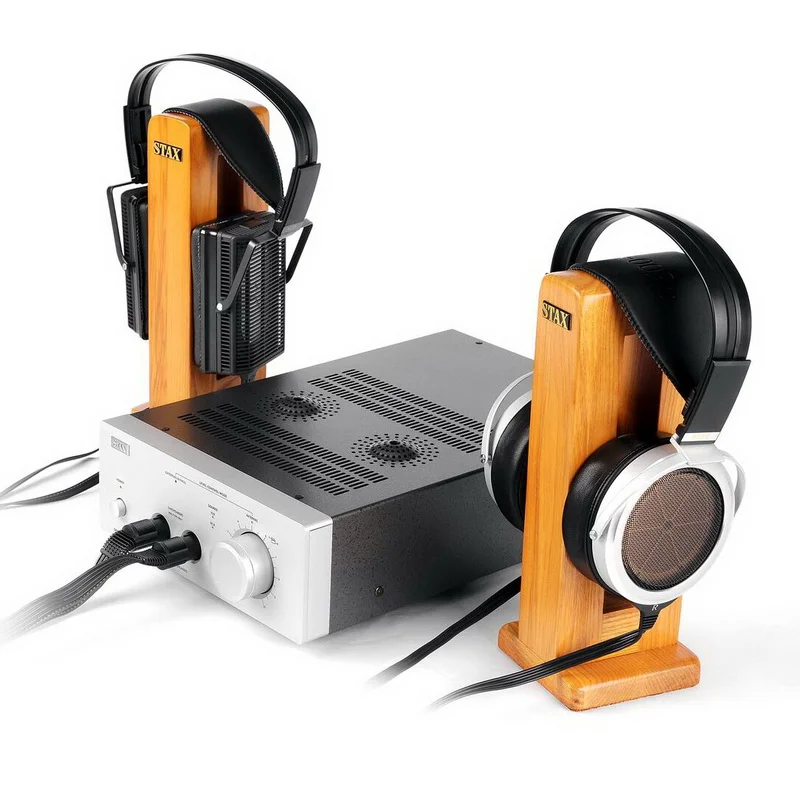

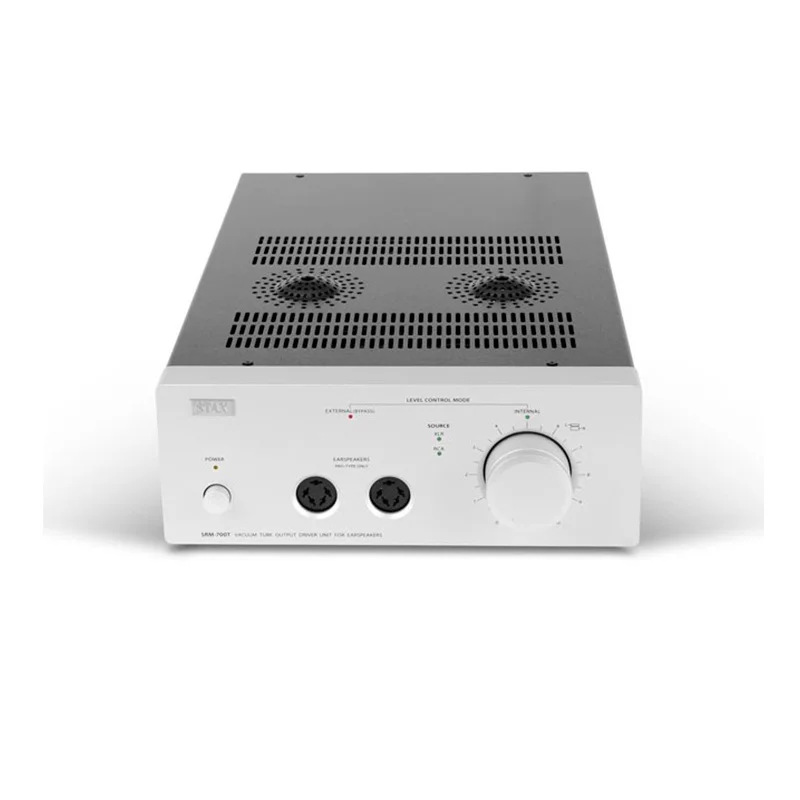

The hybrid driver-amplifier class high-end Stax SRM-700T from the globally renowned manufacturer of electrostatic equipment. The Stax SRM-700T driver-amplifier is a further development of the hybrid T-series amplifier range from the company, with the flagship SRM-T8000 Silver being the first representative.

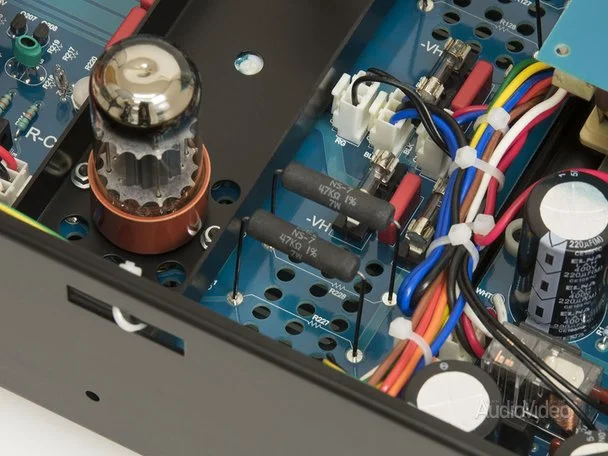

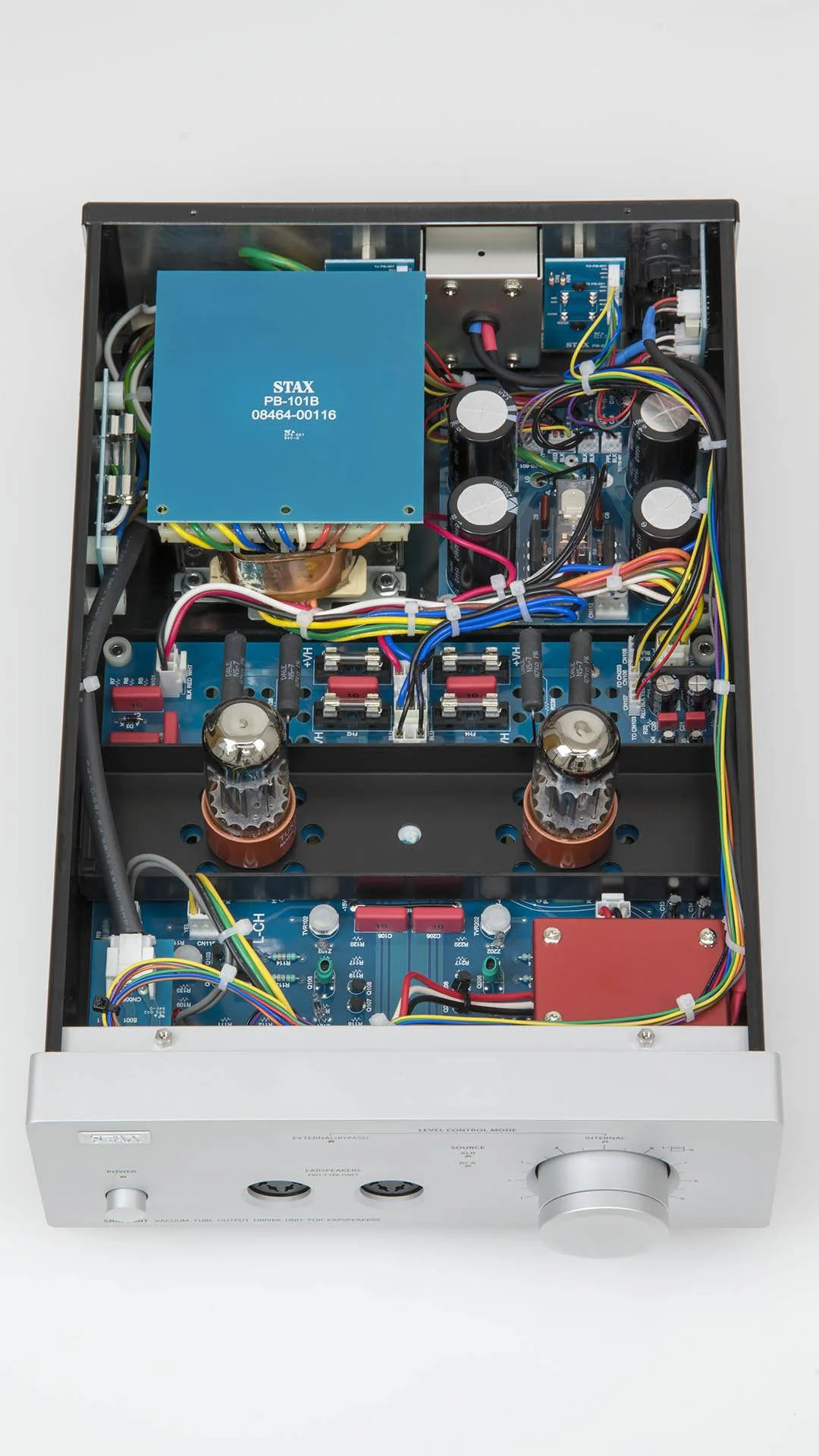

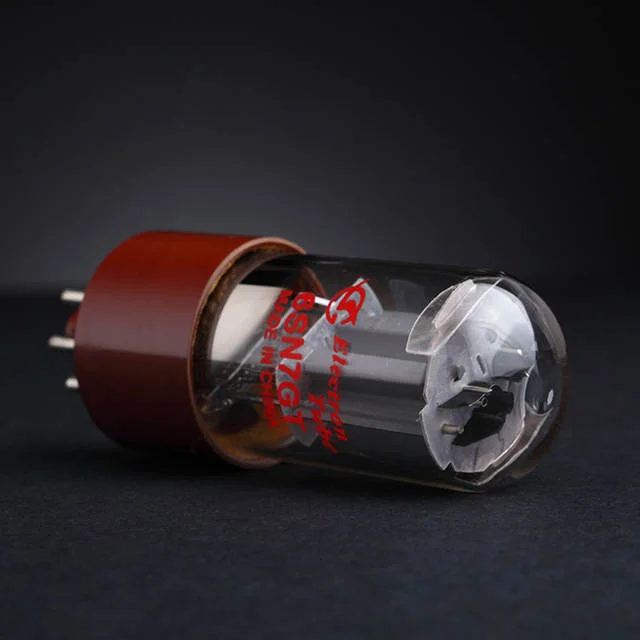

Two GT 6SN7 tubes were used in the output stage of the SRM-700T driver-amplifier, while custom-made dual operational amplifiers with field transistors are used in the input stage, providing an exceptionally low noise level and a high amplification coefficient without any distortion. The 6SN7 electronic tube, which is a further development of the 6FQ7 tube, achieves the simple task of providing a high-power, yet exceptionally balanced and accurate signal at the output.
Thus, the tubes provide a clean sound with high rise speed and give it even more warmth, purity, and spaciousness while preserving absolutely all the details and nuances. The hybrid-type driver-amplifier uses a high-quality non-inductive winding resistor from VISHAY Co as the load resistance.
The support legs of the device are made of aluminum, and the supporting "heel" is made of a special vibration-resistant material with a high coefficient of friction, so the user does not have to hold the driver-amplifier when connecting wires.
Features:
- Model: STAX SRM-700T Silver Driver unit
- Manufacturer: STAX (Japan)
- Power consumption, W: 54
- Dimensions, mm: 240 x 103 x 393
- Weight, kg: 5.7
- Warranty: 12 months
- Number of channels: 2
- Frequency range, Hz-kHz: DC - 100 kHz
- Harmonic distortion, %: 0.01
- Gain, dB: 60
- Input impedance: 50 kOhm
- Sensitivity, dB: 100 mV
- Bias voltage, V: 580
- Maximum output voltage, V: 340
- Tube configuration: 2 x 6SN7

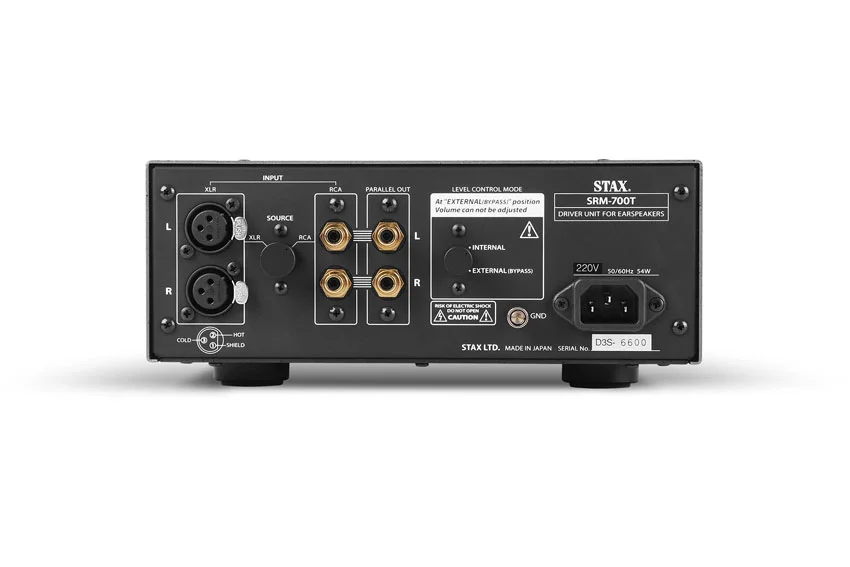

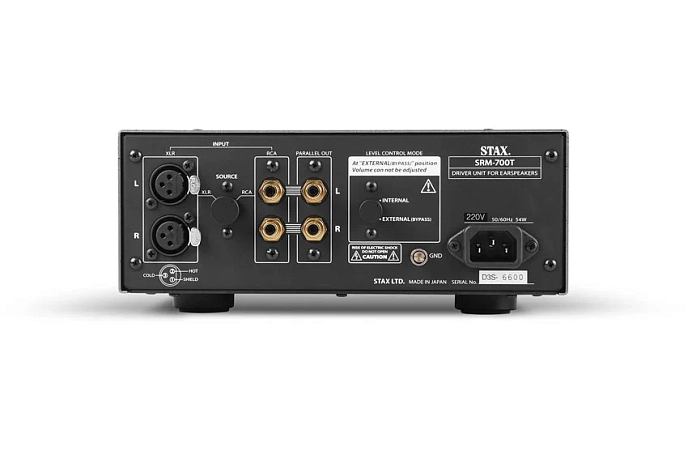

- Analog audio inputs: 1 x RCA, 1 x XLR
- Analog audio outputs: 1 x RCA
- Headphones: 2 x PRO bias (5-pin)
Package Includes:
- Amplifier
- Power cable
- Warranty card
- Documentation
