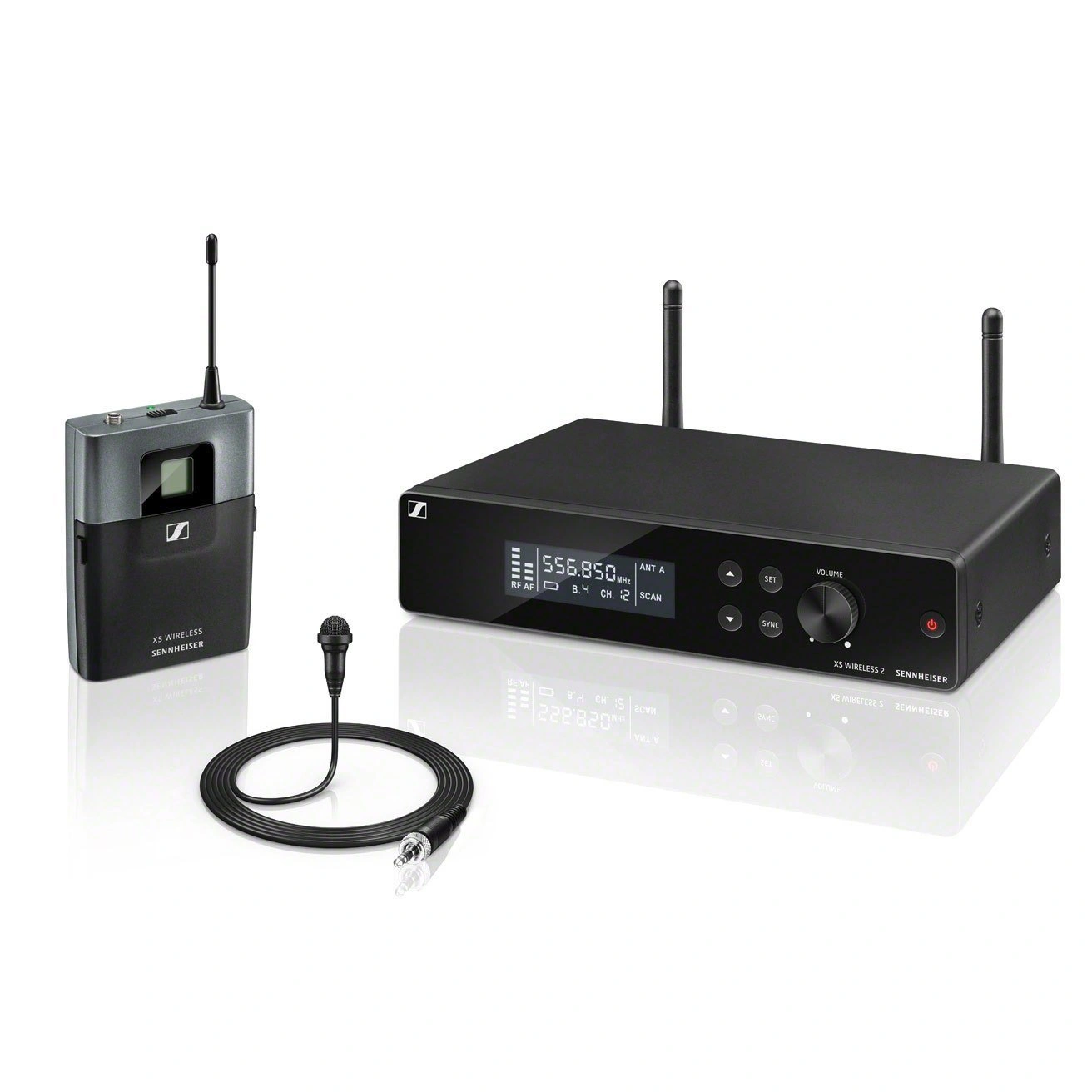

The Sennheiser XSW 2-ME2-A is a wireless radio system that is part of the XS Wireless 2 series. The set includes the EM-XSW 2 receiver, SK-XSW bodypack transmitter, ME 2-2 lavalier microphone, NT 12-5 CW power supply, and two AA batteries. Additionally, the box contains mounting accessories for rack installation and a soft case. The system operates within a frequency range of 548-572 MHz.

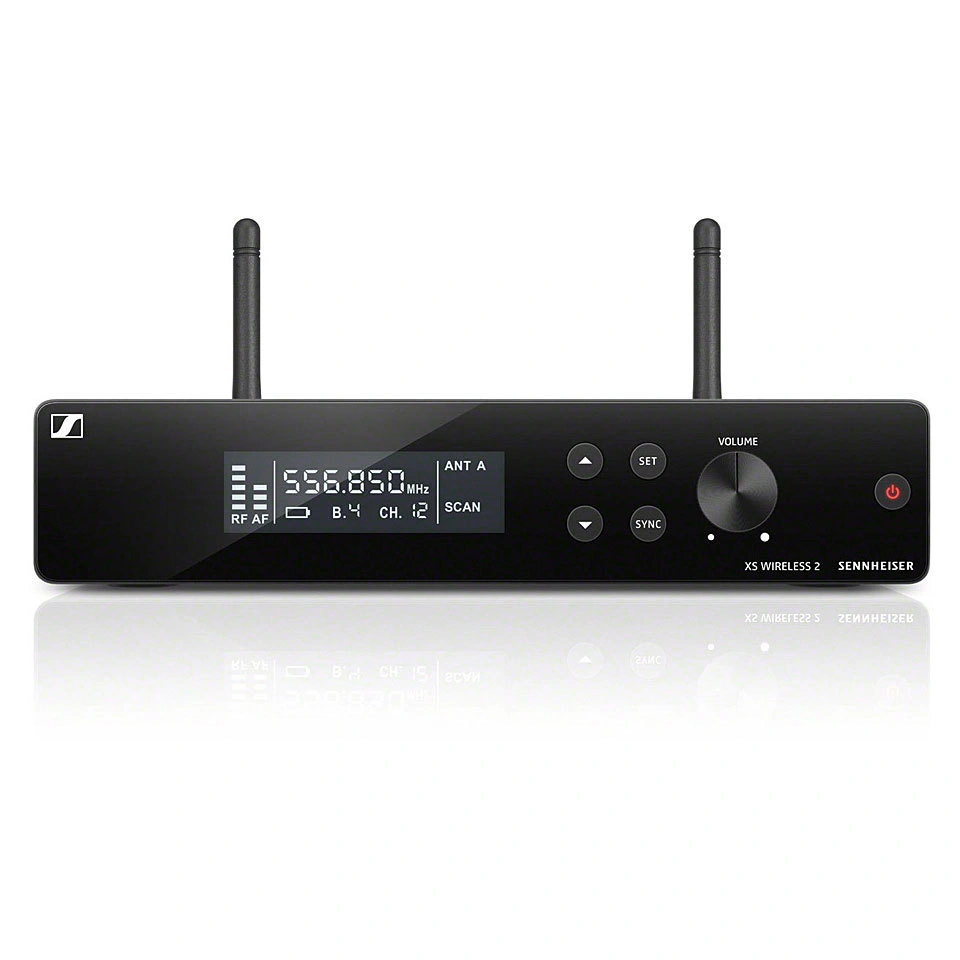

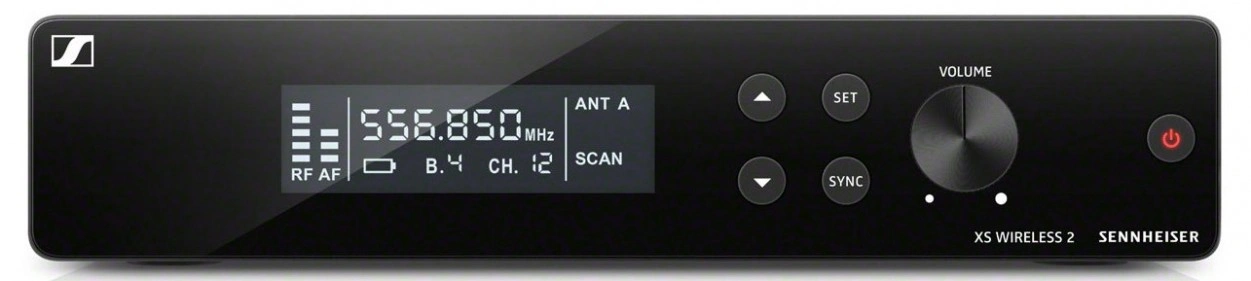

The wireless EM-XSW 2 receiver in the Sennheiser XSW 2-ME2-A set features two spaced external antennas with BNC connectors and a metal housing. Outputs are available on balanced XLR and unbalanced 1/4" TS Jack connectors. It supports 12 channels, with 8 banks per channel. The graphic LCD display on the front panel shows the active channel number, frequency, signal level, battery status, and additional information. The receiver also features additional setting and synchronization buttons, a large volume control knob, and automatic frequency management. The NT 12-5 CW power supply operates within a voltage range of 100-240 Volts.

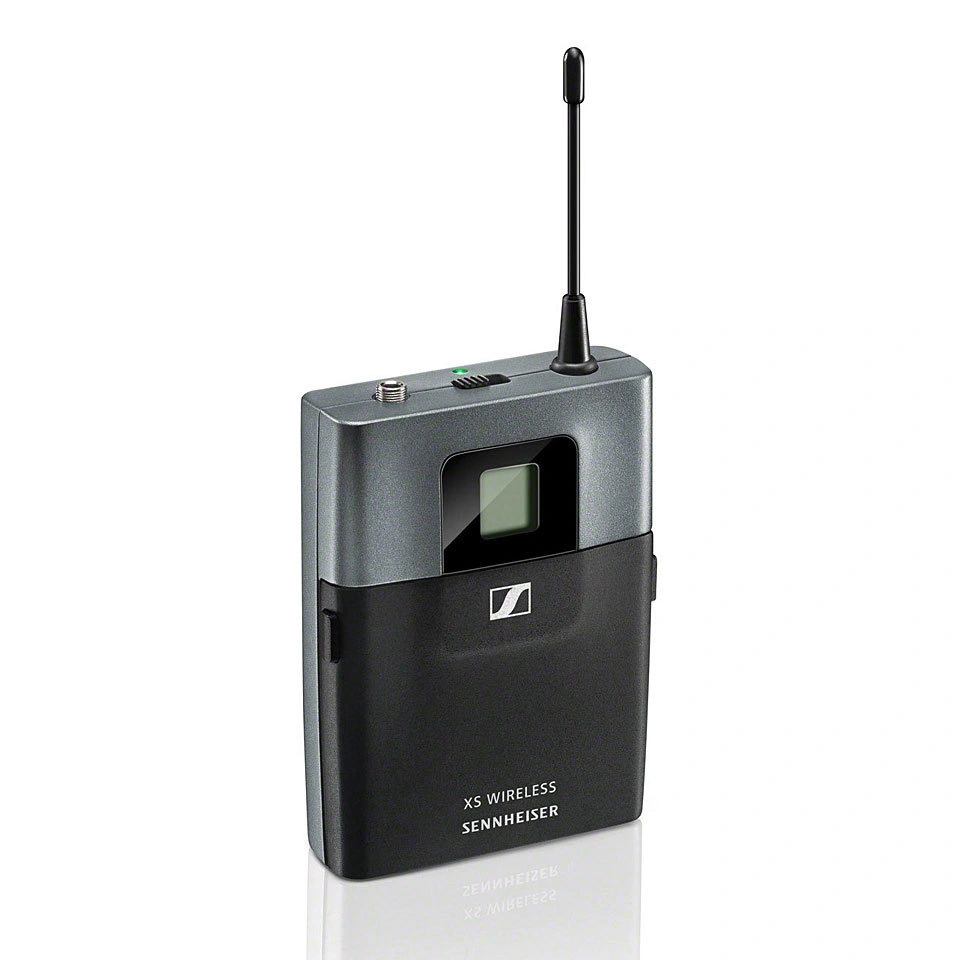

The bodypack transmitter in the Sennheiser XSW 2-ME2-A set is designed for connecting line sources, instruments, and microphones. It can work in conjunction with XSW 1 Wireless and XSW 2 Wireless systems and is suitable for vocalists, musicians, and speakers. There is a 3.5mm mini-Jack connector for microphone connection. The transmitter operates on two AA batteries for approximately 10 hours, with a battery status indicator on the housing. The ABS plastic waterproof housing can withstand harsh operating conditions in challenging environments.

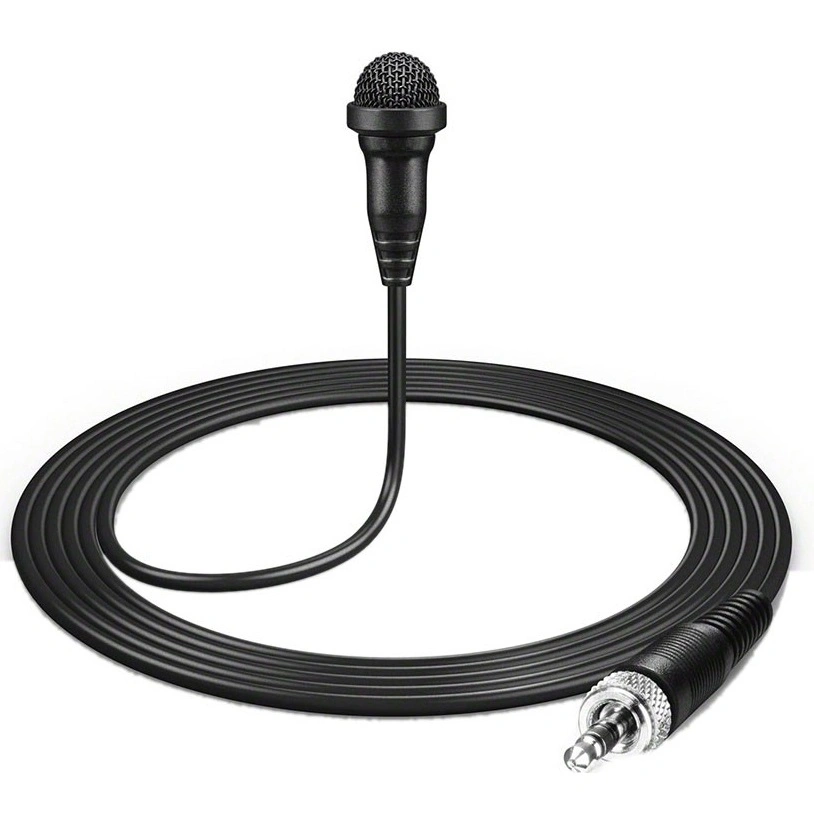

The miniature ME2-2 lavalier microphone in the Sennheiser XSW 1-ME2-A set is intended for vocalists or public speakers. It features an omnidirectional polar pattern with high speech intelligibility and a pre-polarized condenser capsule. Its simple clothing clip attachment makes the microphone discreet. The microphone's 3.5mm mini-Jack connector makes it compatible with Evolution, AVX, SpeechLine Digital Wireless, XS Wireless, and other wireless transmitters. A clothing clip is included for attachment.
Features:
- Set includes EM-XSW 2 receiver, SK-XSW bodypack transmitter, ME 2-2 lavalier microphone, NT 12-5 CW power supply, two AA batteries, mounting accessories for rack installation, and soft case
- 12 channels, 8 banks per channel
- External antennas on the receiver

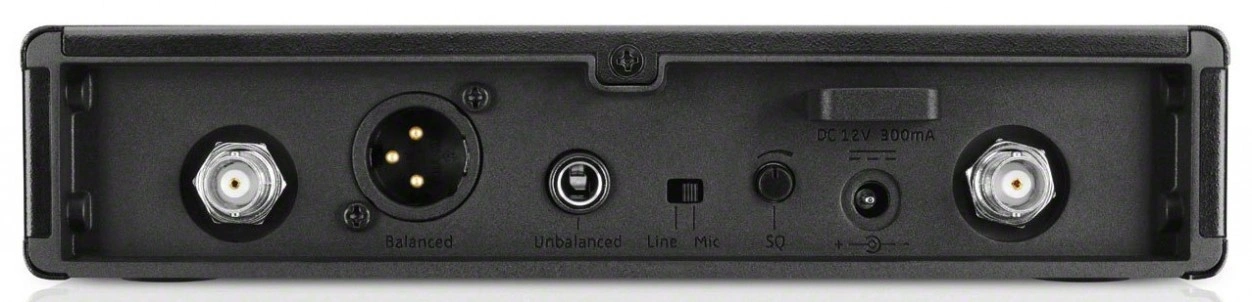

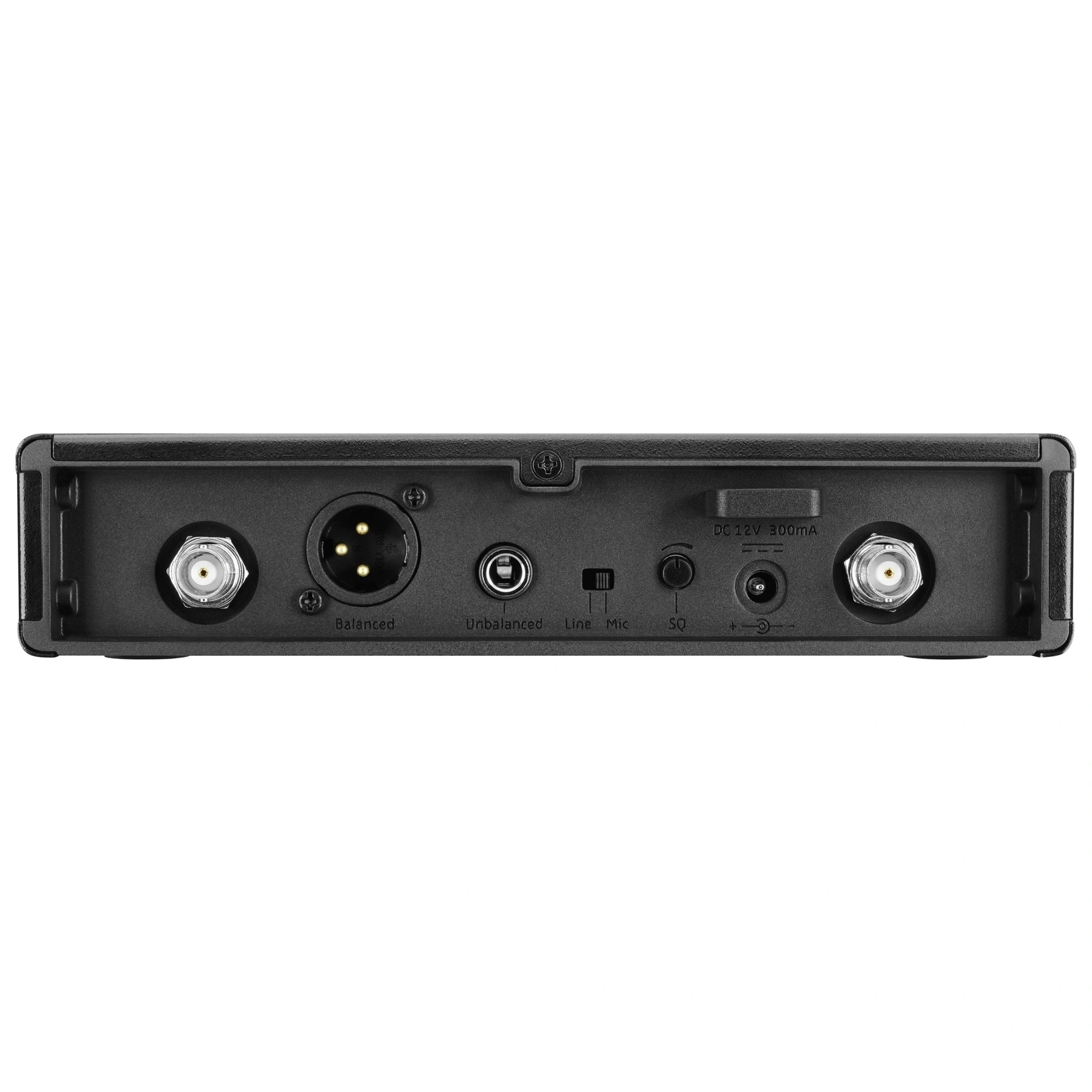

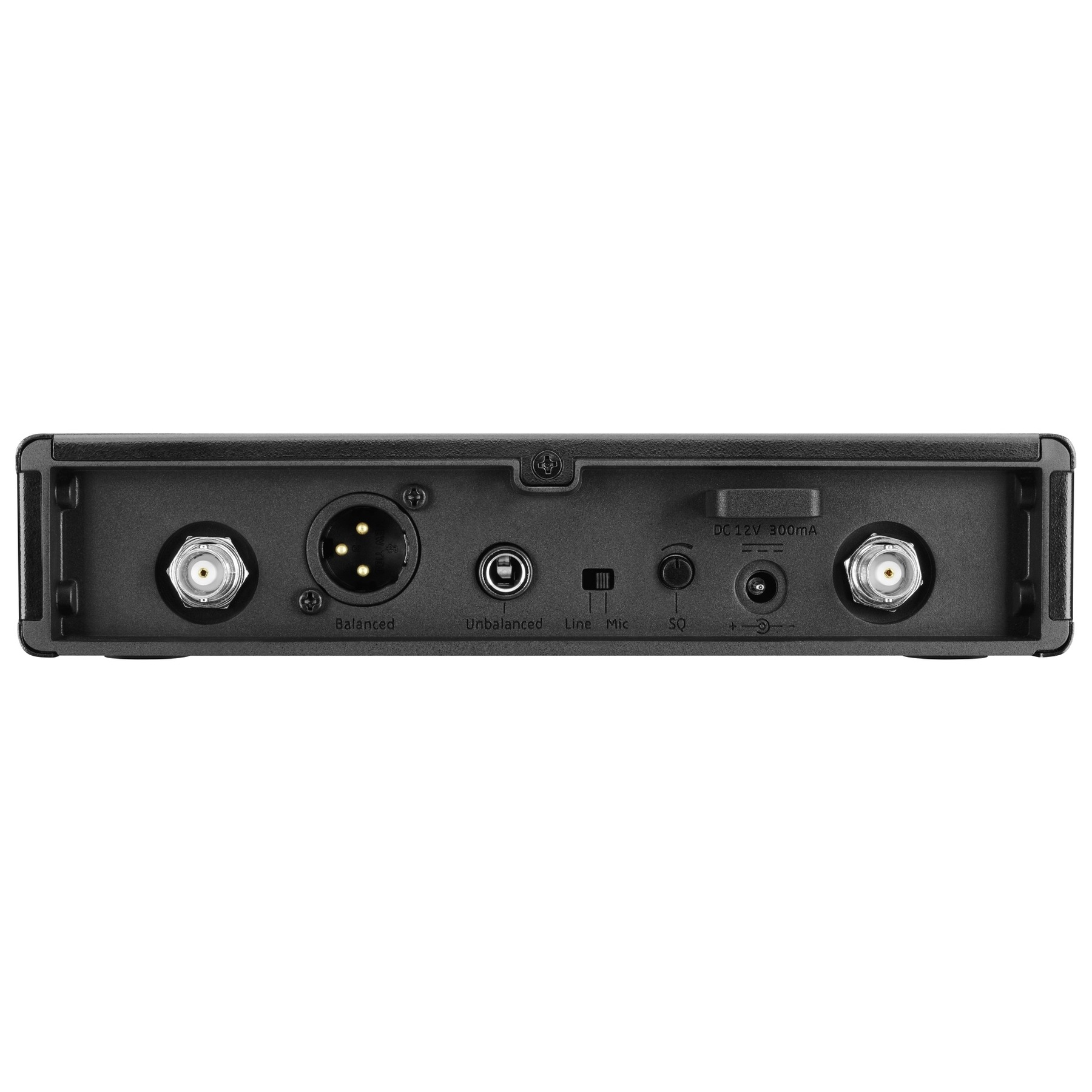

- Receiver outputs: XLR balanced and 1/4" TS unbalanced Jack
- Synchronization frequency: 2.4 GHz
- Bodypack transmitter in ABS plastic housing, receiver in metal housing
- Lavalier microphone with condenser capsule and omnidirectional pattern
- Carrier frequency range: 548-572 MHz
Specifications:
Receiver:
- Dimensions (approx.): 200 x 42 x 127 mm
- Weight: around 680 g
- Power supply: 12V DC / 300mA
- Housing: metal
- Reproduced frequency range: 50-16000 Hz (-3dB)
Transmitter:
- Dimensions (approx.): 71 x 96 x 28 mm
- Weight: around 95 g
- Operating time: around 10 hours
- Power supply: 2 AA batteries, 1.5V
- Housing: durable ABS material
- Reproduced frequency range: 50-16000 Hz
Microphone:
- Reproduced frequency range: 50-16000 Hz (-3 dB)
- Harmonic distortion factor: ≤ 0.9%
- Microphone polar pattern: omnidirectional
- Signal-to-noise ratio: ≥ 103 dBA
Package includes:
- 1 EM-XSW 2 receiver
- 1 SK-XSW bodypack transmitter
- 1 ME 2-2 lavalier microphone
- 1 NT 12-5 CW power supply
- 2 AA batteries
- 1 rack mount
- 1 soft case
- User manual
