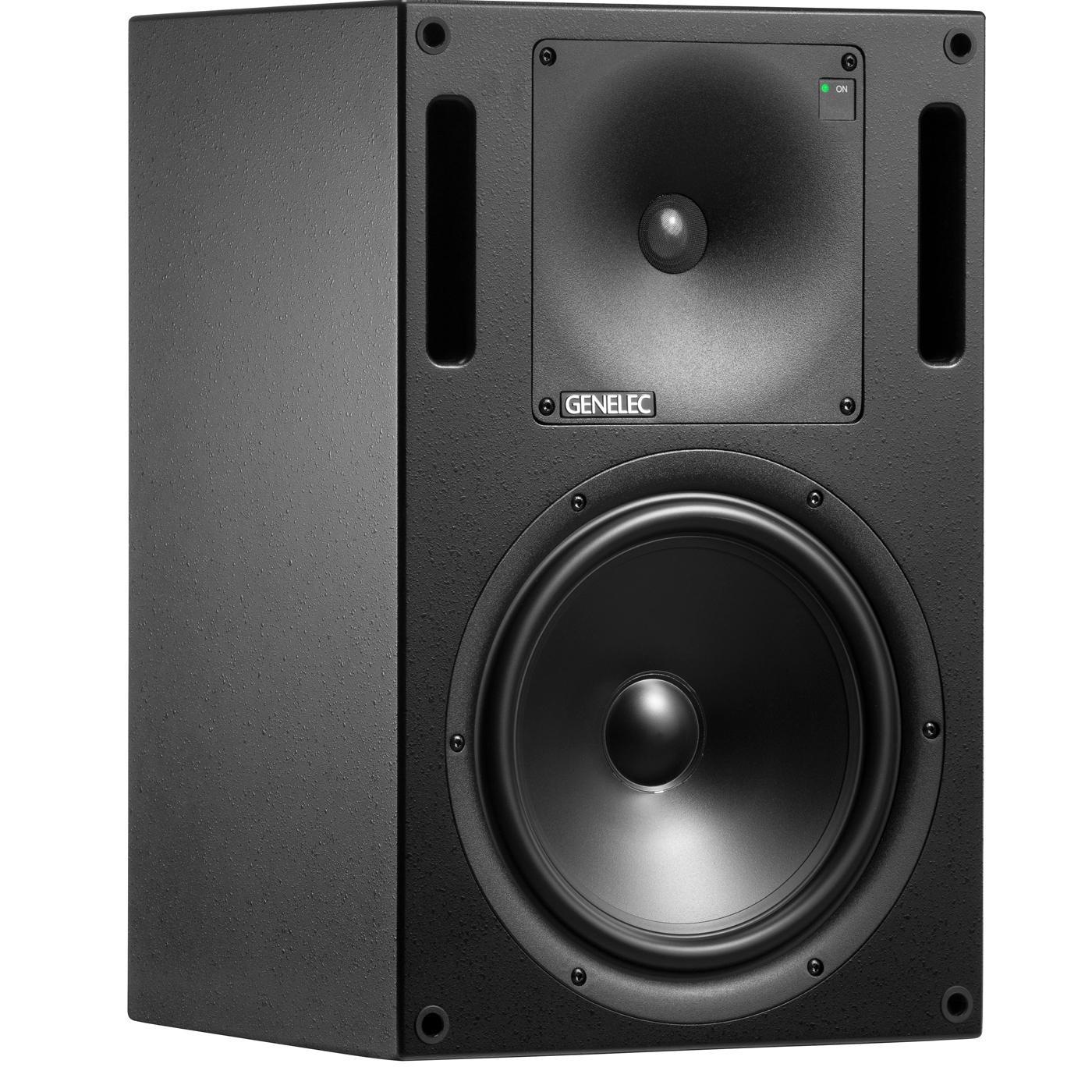

Genelec 1032CPM Rack Smart Active Monitor is a high-performance, large-format near-field/mid-field studio monitor kit engineered for demanding professional audio environments. This specific edition bundles the legendary 1032C monitor with robust, dedicated rack-mount adapters, making it ready for secure installation into standard 19-inch equipment racks, broadcast vans, or custom studio cabinetry.

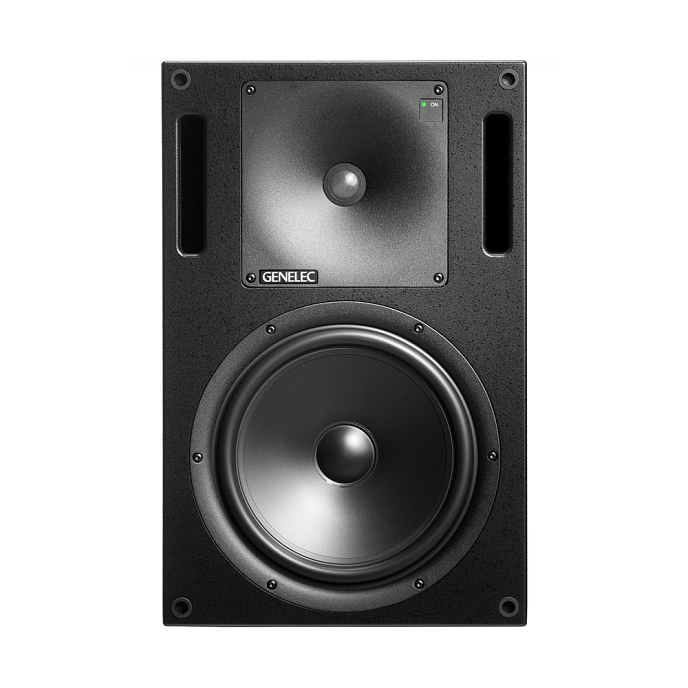

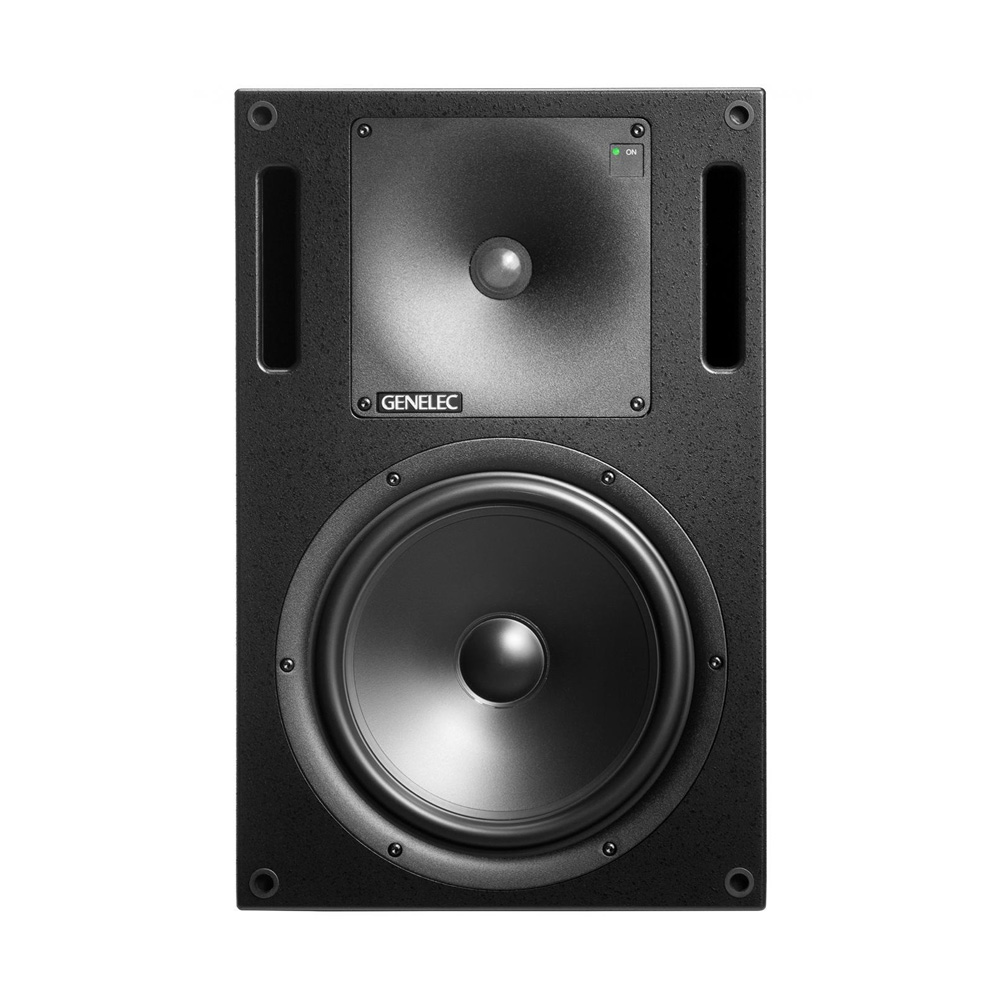

Performance and Transducers
The monitor retains the classic, revered acoustic heritage of its predecessors while introducing cutting-edge internal technology. It features a powerful 10-inch high-efficiency woofer and a 1-inch metal dome tweeter loaded into an advanced Directivity Control Waveguide (DCW). Driven by high-headroom Class-D amplification (250 W for LF, 150 W for HF), the system delivers an impressive maximum SPL of 114 dB and a linear frequency response stretching from 33 Hz to 23 kHz (-6 dB) [3]. This ensures effortless dynamic reproduction, clinical precision, and an exceptionally wide, neutral sweet spot.
Smart Calibration and DSP Integration
As part of Genelec’s SAM (Smart Active Monitor) family, the 1032CPM Rack features advanced onboard DSP . It integrates seamlessly with Genelec Loudspeaker Manager (GLM) software via standard RJ45 control network cables. The GLM system handles automated room calibration, adjusting for acoustic anomalies, boundary reflections, and time-alignment. This allows the monitor to achieve reference-grade frequency balance even when placed in tight, less-than-ideal rack-mount or flush-mount scenarios.

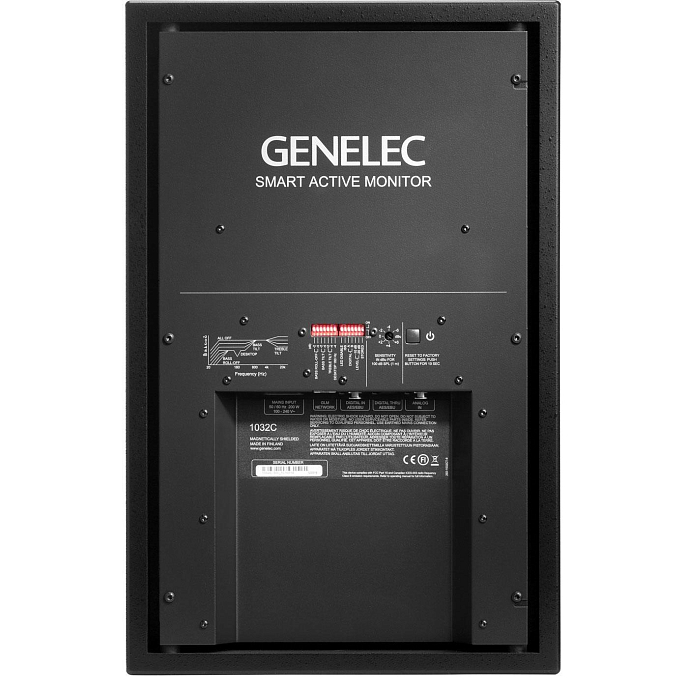

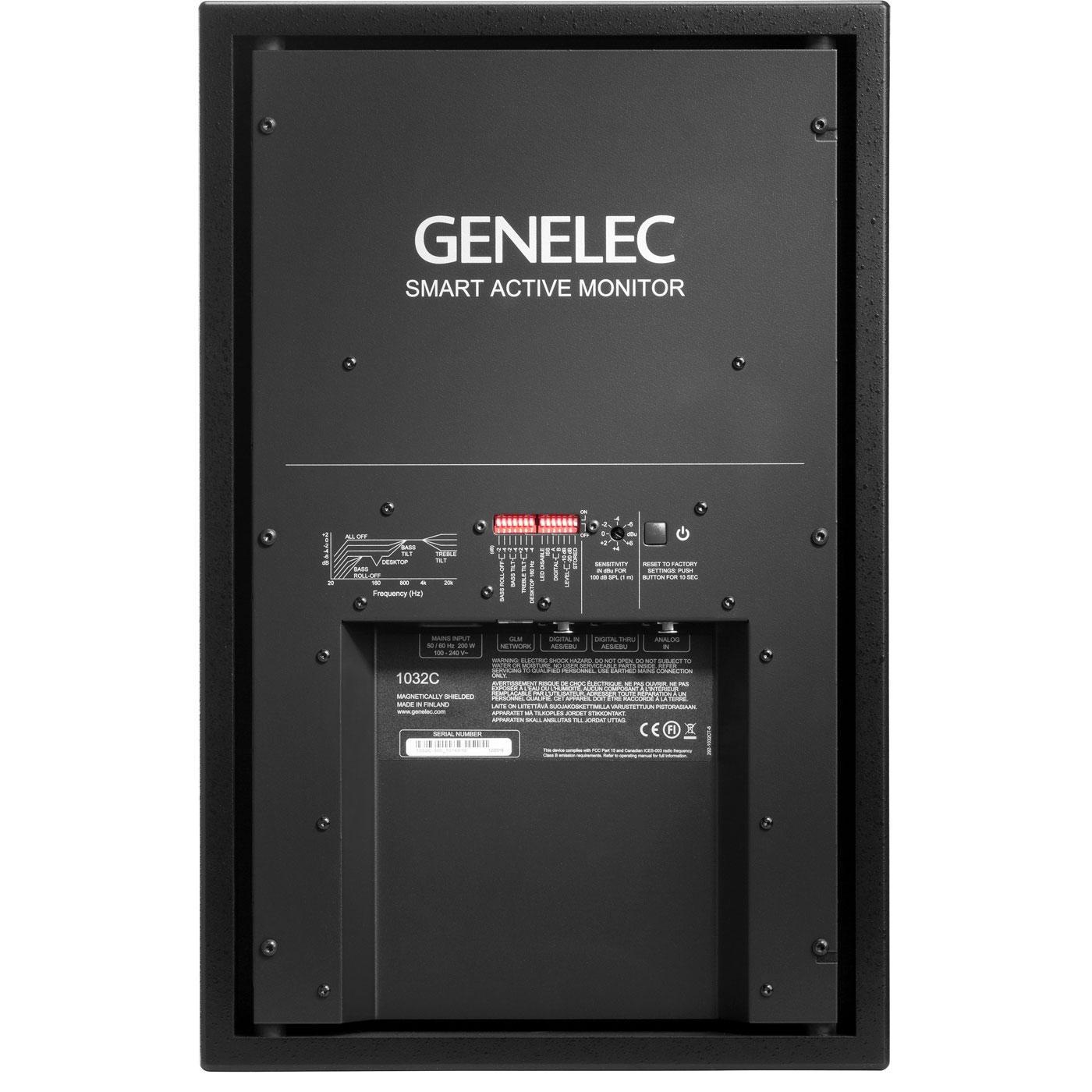

Connectivity and Architecture
Inputs: 1 x Analog XLR input, 1 x Digital AES/EBU XLR input, and 1 x Digital AES/EBU XLR thru-port for seamless daisy-chaining.
Control: Dual RJ45 ports for the GLM network.
Energy Efficiency: Features Genelec’s Intelligent Signal Sensing (ISS) technology, which automatically switches the monitor into an energy-saving standby mode when no audio signal is detected.
The rack ears are precisely designed to handle the heavy-duty enclosure, converting a world-class standalone monitor into an integrated, space-saving broadcast and production workhorse.
In the Box:
- Active Monitor;
- Rack-Mount Adapters;
- GLM Network Cable;
- Power Cable;
- Manual
