Description

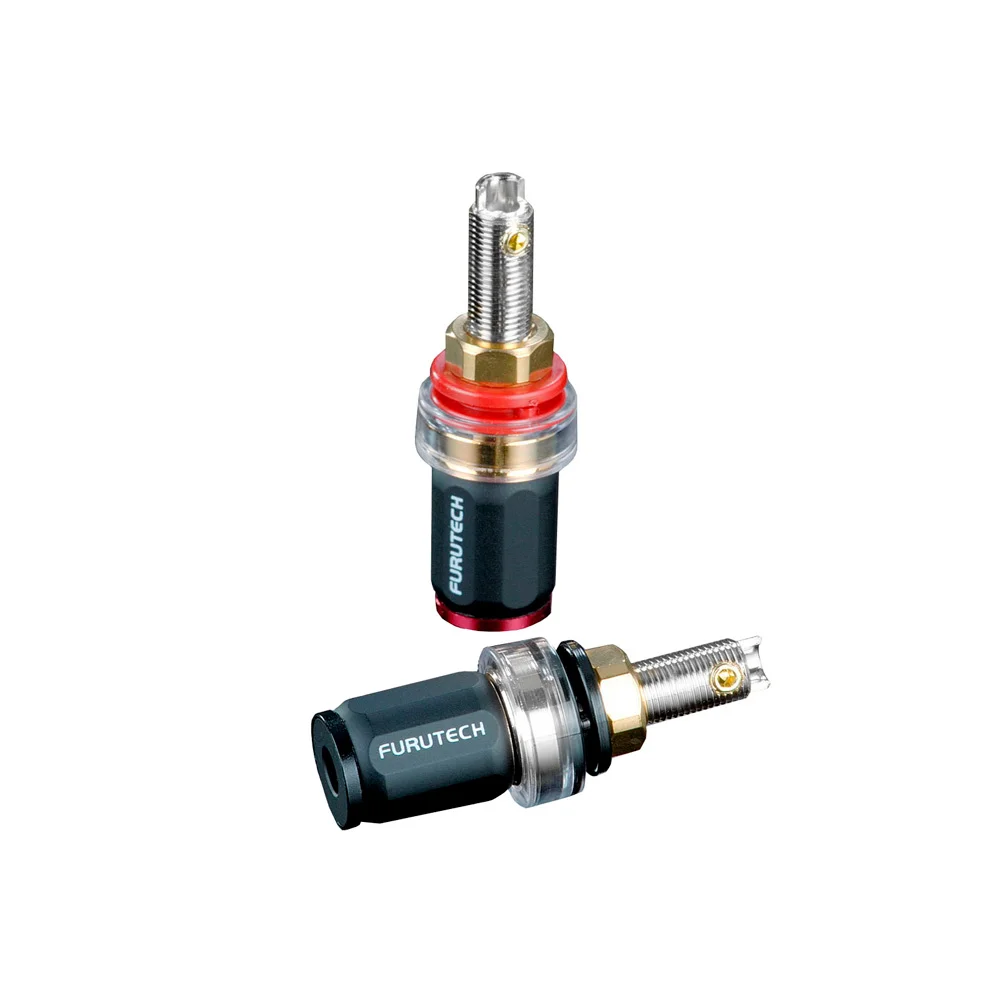

FP-803 - the new generation of connectors for amplifiers, replacing the now mega-popular FP-800. Like the previous generation, FP-803 connectors are available in both gold-plated (G) and rhodium (R) finishes. In the product hierarchy of the Japanese company Furutech, FP-803 belongs to the High Performance series.
Features:
- Type: Speaker terminal
- Material: Alpha Technology phosphor bronze with Gold plating
- Can be connected by screw or solder, for cables up to 4.5mm in diameter
- Housing: 15.6 ± 0.1mm in diameter, 22mm ± 0.1mm
- Insulation: Polycarbonate (Open) 19.3 ± 0.1mm in diameter, 7.3mm ± 0.1mm
- Total length: 55.0mm ± 0.1mm
Package includes:
- Connector
- Documentation
