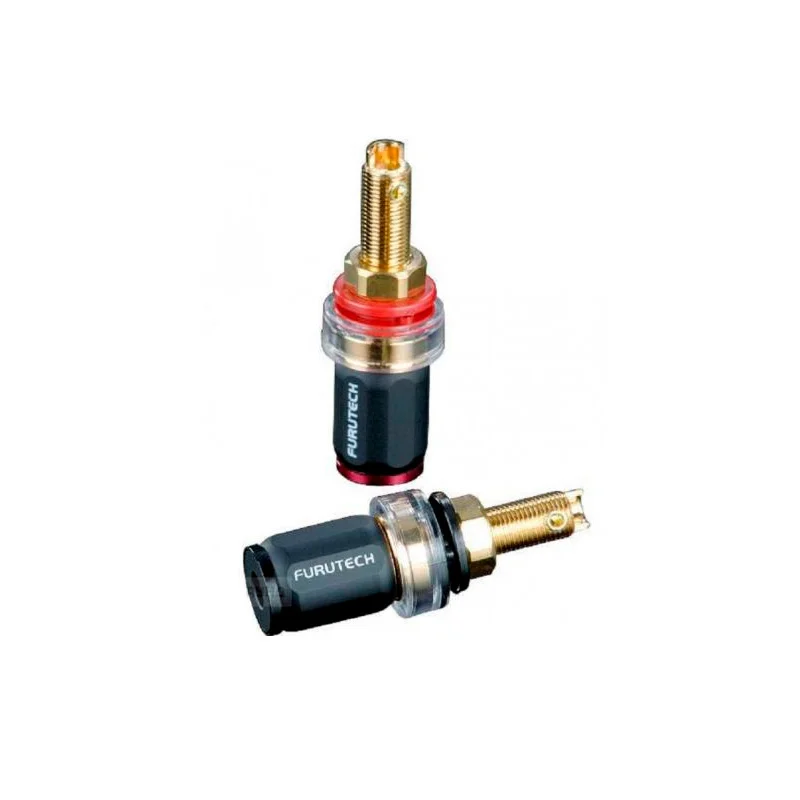

FP-803 - High Performance Amplifier Connectors
The FP-803 is the new generation of connectors for amplifiers, replacing the highly popular FP-800. Like its predecessor, FP-803 connectors are available with either gold (G) or rhodium (R) plating. In the product hierarchy of the Japanese company Furutech, the FP-803 belongs to the High Performance series.
Features:
- Type: Acoustic terminal
- Material: Phosphor bronze treated with Alpha-Technology and coated with Gold
- Connection: Screw or solder, cable diameter up to 4.5mm
- Body dimensions: 15.6 ± 0.1mm, diameter 22mm ± 0.1mm
- Insulation: Polycarbonate (Open) 19.3 ± 0.1mm, diameter 7.3mm ± 0.1mm
- Total length: 55.0mm ± 0.1mm
Package includes:
- Connector
- Documentation
