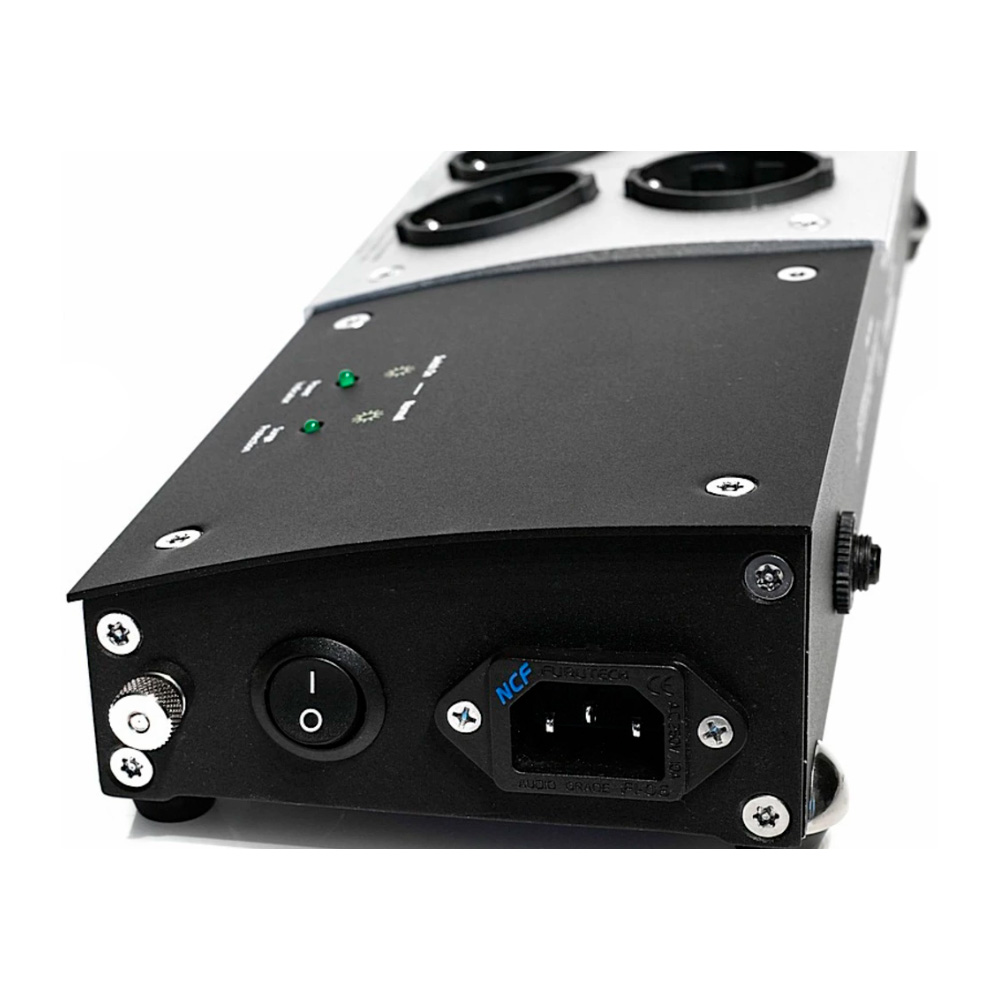

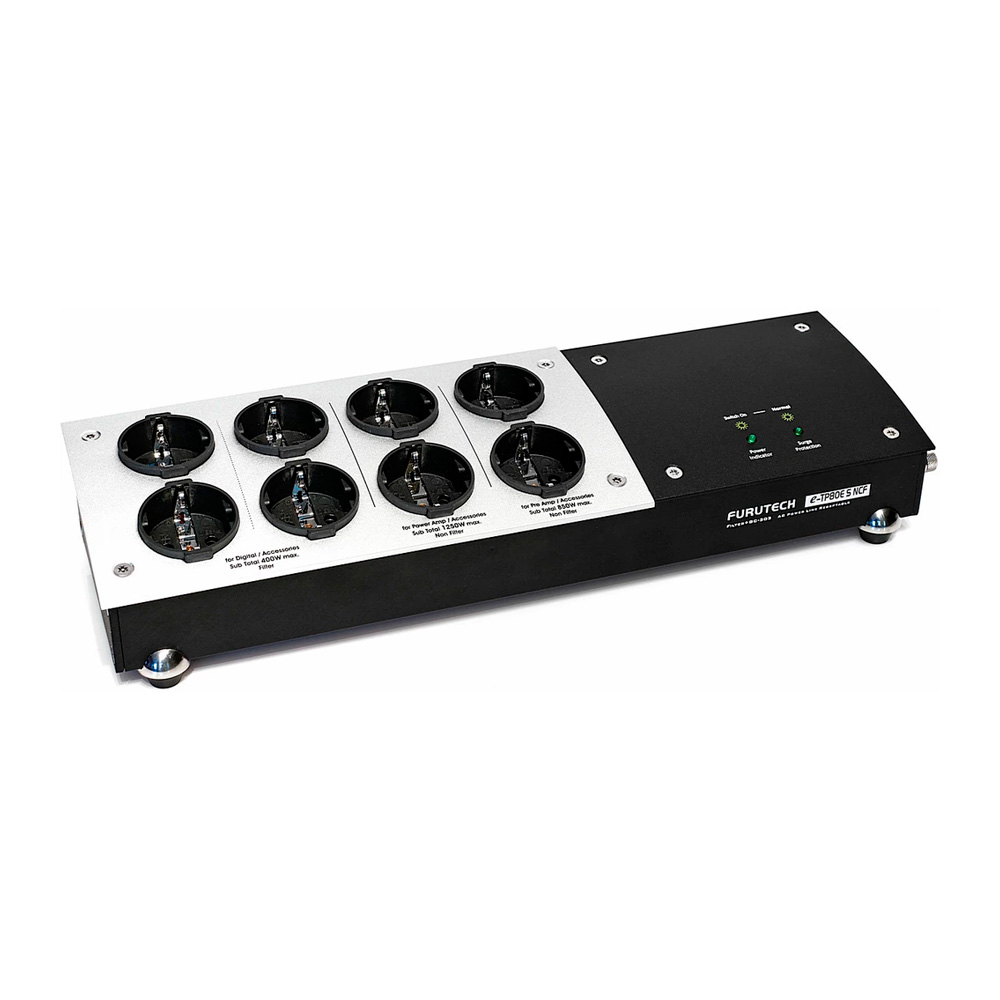

The Furutech e-TP80ES is a sophisticated and extremely well-designed power source that addresses many common issues with audio and video devices caused by low-quality power sources. The shape of the AC waveform is heavily distorted due to ground noise, voltage spikes and drops, high-frequency power supply noise from other devices in your electrical network, and high-frequency digital noise generated by processors and digital connections.
Features:
- AC Voltage Input: 250V, 50/60Hz;
- Fuse Current: 10A;
- Maximum Power: 2500W;
- Automatic voltage surge protection;
- Maximum AC Voltage: 1500V;
- Peak Voltage 6000V;
- Noise Filter: -20dB ~ 92dB (2~100MHz);
- Housing Material: Aluminum;
- Outlets: Furutech FI-E30(G);
- IEC Connector: Furutech FI-06(G).
The new e-TP80ES series from Furutech also features a high-quality filter and MOV circuitry: electromagnetic interference filter and overvoltage protection. Voltage fluctuations and spikes can damage sensitive electronic devices. The overvoltage protection circuitry provides an effective response to protect your system. During a voltage surge, the MOV circuit automatically disconnects the EMI filter line power on the main board to prevent potential short circuiting. This MOV circuit also suppresses any electrical and mechanical resonance caused by electrical resistance, heat, and energy flow. For your convenience, LEDs indicate normal operation of the overvoltage protection and electromagnetic interference filter. When the LEDs are lit, you are protected from noise and voltage spikes.
Package includes:
- Power filter;
- Documentation.
