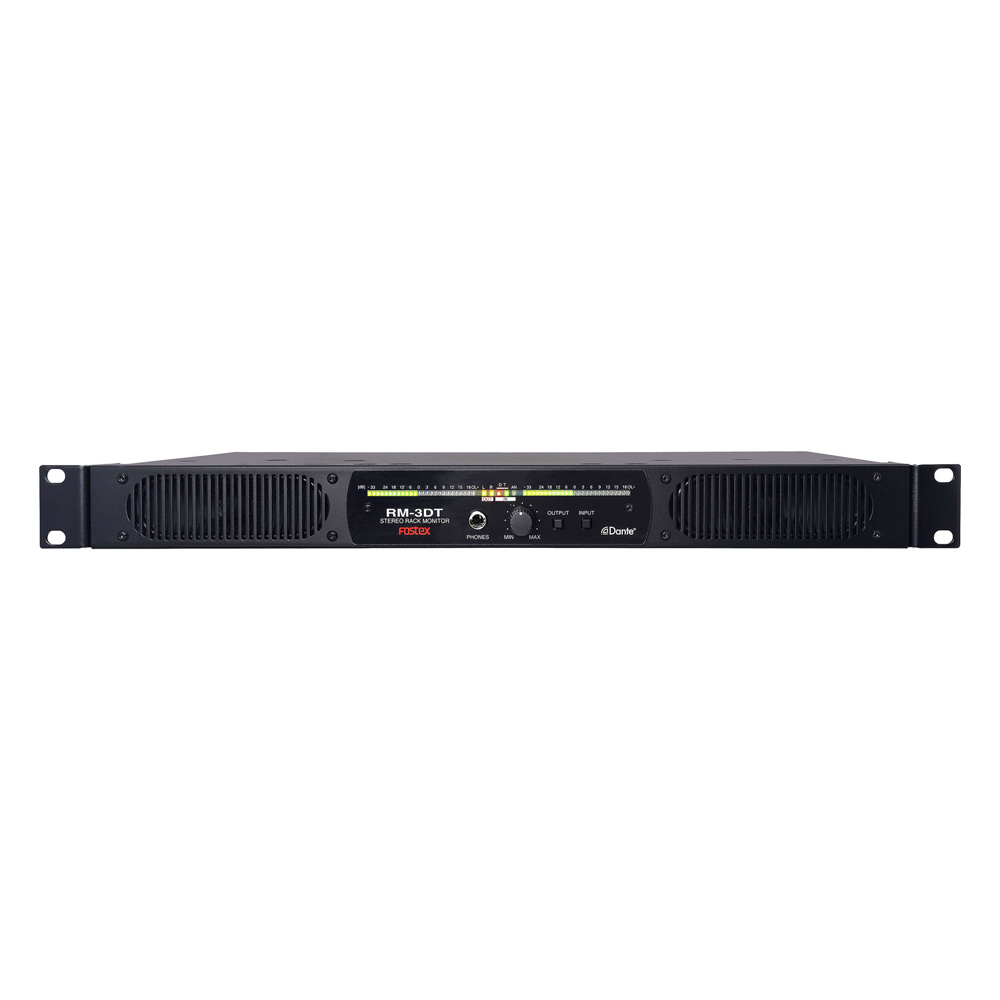

Designed to fit the monitoring needs of space-challenged environments like machine rooms, surveillance operations, and mobile or stationary control rooms, the Fostex RM-3DT is a Dante-equipped active monitor speaker that occupies just 1 RU of rack space. It can accept digital signal over a Dante network or a stereo analog source via balanced XLR inputs, ensuring compatibility with a wide range of systems. Signal can be output in one of four modes to the built-in rectangular stereo speakers, while the balanced XLR output jacks act as a thru-put to send the analog input to another destination. The front-panel 1/4" headphone jack allows for personal monitoring without pushing sound through the speakers.
Left and right 26-dot LED meters give you a visual representation of your levels. The volume control also functions as a mute switch, which can be programmed for total mute, or to provide a 20 dB attenuation based on your preference. The RM-3DT supports sample rates up to 96 kHz and features a power-saving design that keeps its power consumption down to just 10W. Sporting the same dimensions as the non-Dante RM-3, the RM-3DT can be conveniently swapped in its place.
Analog and Digital Inputs
Accepts balanced analog sources via two XLR 3-pin female inputs and Dante signal via an RJ45 female input.
Built-In Speakers
Outputs either or both of any 2-channel digital signals extracted from Dante network signals to built-in rectangular speakers, each powered by 10W of onboard amplification.
Line and Headphone Outputs

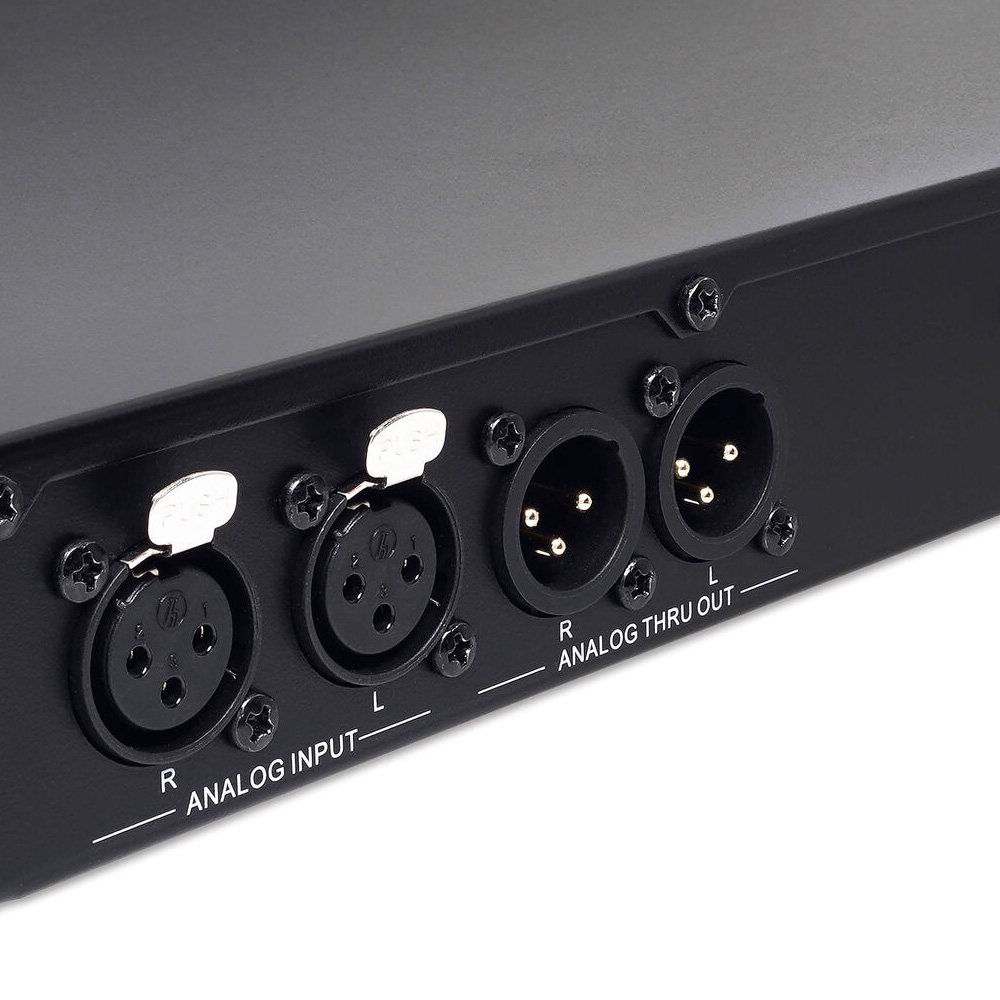

Two XLR balanced analog outputs on the rear panel and one 1/4" stereo headphone jack on the front.
High-Resolution Audio
Supports sample rates up to 96 kHz.

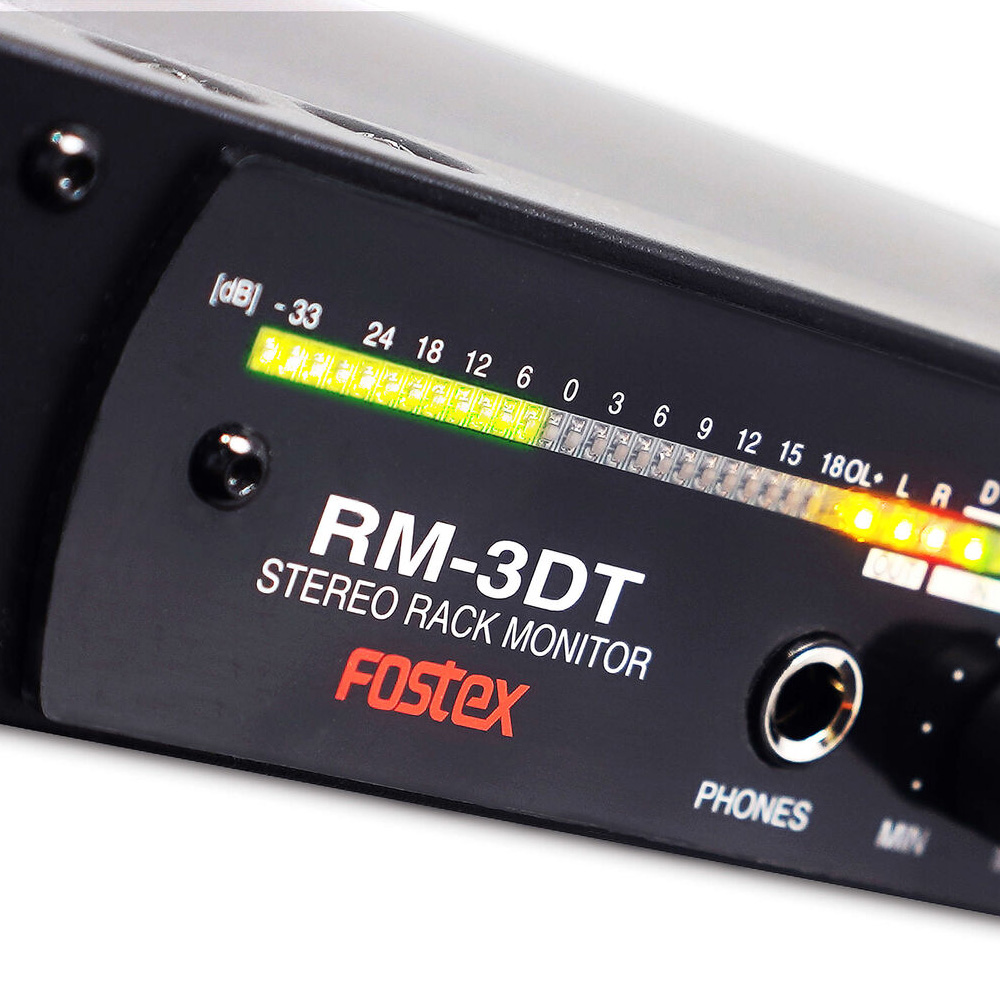

Dual LED Meters
Dual 26-dot LED meters indicate either VU, VU + Peak, VU + Peak Hold, or Peak + Peak Hold.
Adjustable Brightness
Display brightness can be adjusted in four levels.
Low Power Consumption
Digital amplifier and switching power supply yield a power-saving design.
Rackmount Form Factor
Physical dimensions are identical to the conventional RM-3 for easy replacement.
Key Features:
- Built-In Rectangular Stereo Speakers;
- Onboard Amplifier (10W per Channel);
- Dante Digital Input via RJ45;
- Balanced Analog Inputs via XLR;
- Balanced Analog Outputs via XLR;
- 1/4" Stereo Headphone Jack;
- Supports Sample Rates up to 96 kHz;
- 26-Dot LED Meters;
- Power-Saving Design;
- Occupies 1 RU of Rack Space.
In the Box:
- Fostex RM-3DT Rackmount Active Monitor Speaker;
- Power Cable;
- 4 x Rubber Feet;
- Manual.
