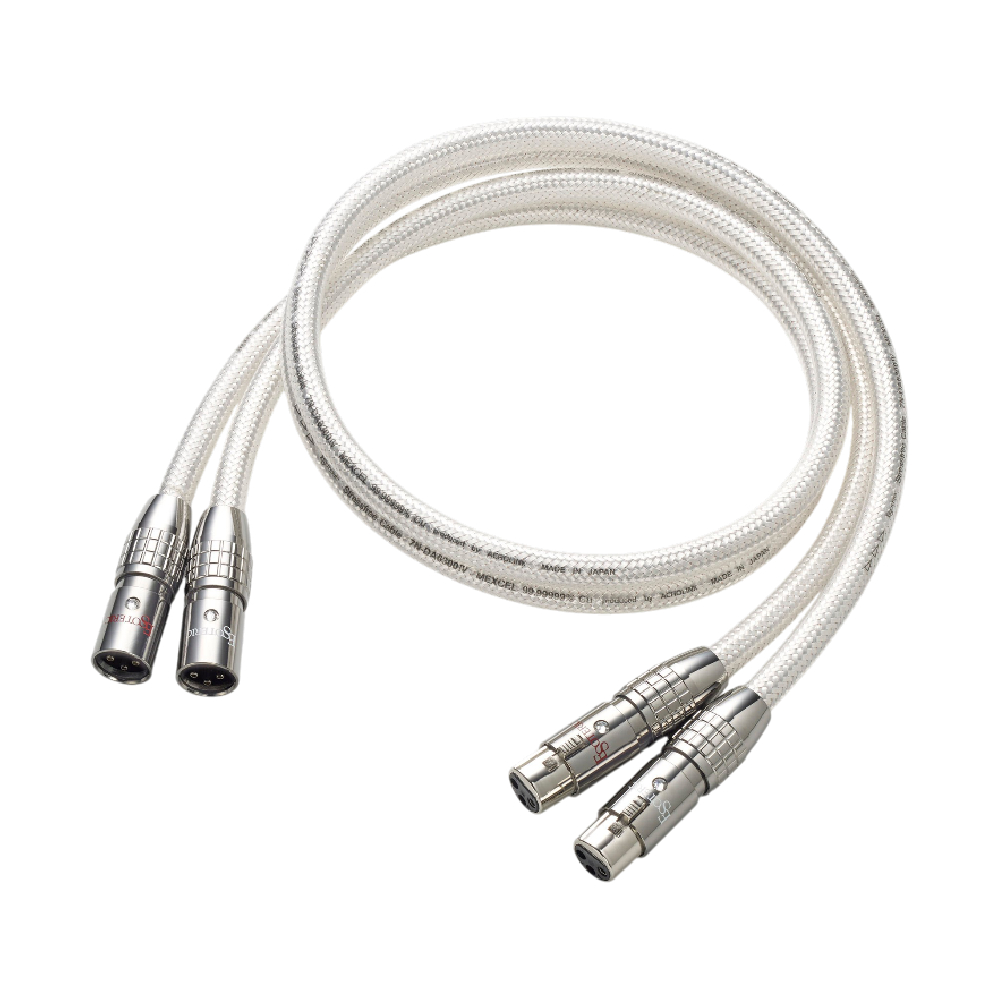

The ESOTERIC 7N-DA6300IV MEXCEL represents the pinnacle of the MEXCEL cable evolution, positioned as the flagship balanced interconnect within the 4th generation lineup. Designed for uncompromising audio systems, it combines advanced materials science with aerospace-grade conductor technology to deliver an exceptionally transparent and stable signal path.
This cable is engineered for listeners who demand absolute fidelity in both analog and digital environments. Its architecture is built around the concept of ultra-wideband transmission stability, enabling consistent performance far beyond conventional audio-frequency limitations.
Advanced Construction and Signal Integrity
At the core of the DA6300IV are twin φ2.0 mm solid MEXCEL center conductors, arranged in a fully balanced configuration. This twin-balanced architecture is reinforced by an advanced triple-layer shielding system designed to suppress external noise and maintain signal purity under demanding conditions.
The shielding structure integrates three distinct layers: a pure silver-plated ultra-thin flat wire braid made from 7N copper, a copper Mylar tape layer, and a dense silver-coated copper braid. Together, these layers form a highly effective electromagnetic barrier, significantly improving the signal-to-noise ratio and preserving micro-level musical detail.
The result is a cable capable of delivering extended high-frequency response, improved spatial imaging, and an exceptionally low distortion signal path that remains stable even in complex audio setups.
ESOTERIC MEXCEL Design Philosophy
The MEXCEL concept was created to push audio transmission into unexplored territory. Originating from a collaboration between Mitsubishi Cable Industries, ACROLINK, and ESOTERIC, the project integrates technologies originally developed for aerospace and defense applications.
Since its introduction in 2004, MEXCEL has aimed to achieve flat transmission characteristics extending into the gigahertz domain. This approach eliminates traditional bandwidth constraints, allowing both analog and digital signals to retain their original waveform integrity across an extremely wide frequency range.
The 4th generation of MEXCEL cables refines this philosophy further, focusing on ultimate transparency, phase accuracy, and musical realism, setting a new benchmark in high-end interconnect design.
Core Technology and Engineering Breakthroughs
The DA6300IV benefits from the proprietary MEDIS electro-deposition insulation process developed by Mitsubishi Cable Industries. This technology enables uniform insulation on even complex conductor geometries, including flat wire structures that are typically difficult to coat evenly.
By optimizing insulation precision, conductor surface area is maximized while minimizing signal degradation caused by skin effect at high frequencies. This contributes directly to improved transient response and overall tonal accuracy.
Additionally, the cable employs D.U.C.C. 7N copper with a purity level of 99.99999%, produced under semiconductor-grade quality control. This ultra-pure material reduces metallic impurities to below 0.1 ppm, ensuring extremely consistent electrical behavior.
To further preserve crystalline integrity, ACROLINK’s Stressfree processing is applied, allowing the copper structure to maintain optimal alignment through self-annealing at room temperature, even under mechanical stress or bending.
Connector Engineering and Contact Optimization

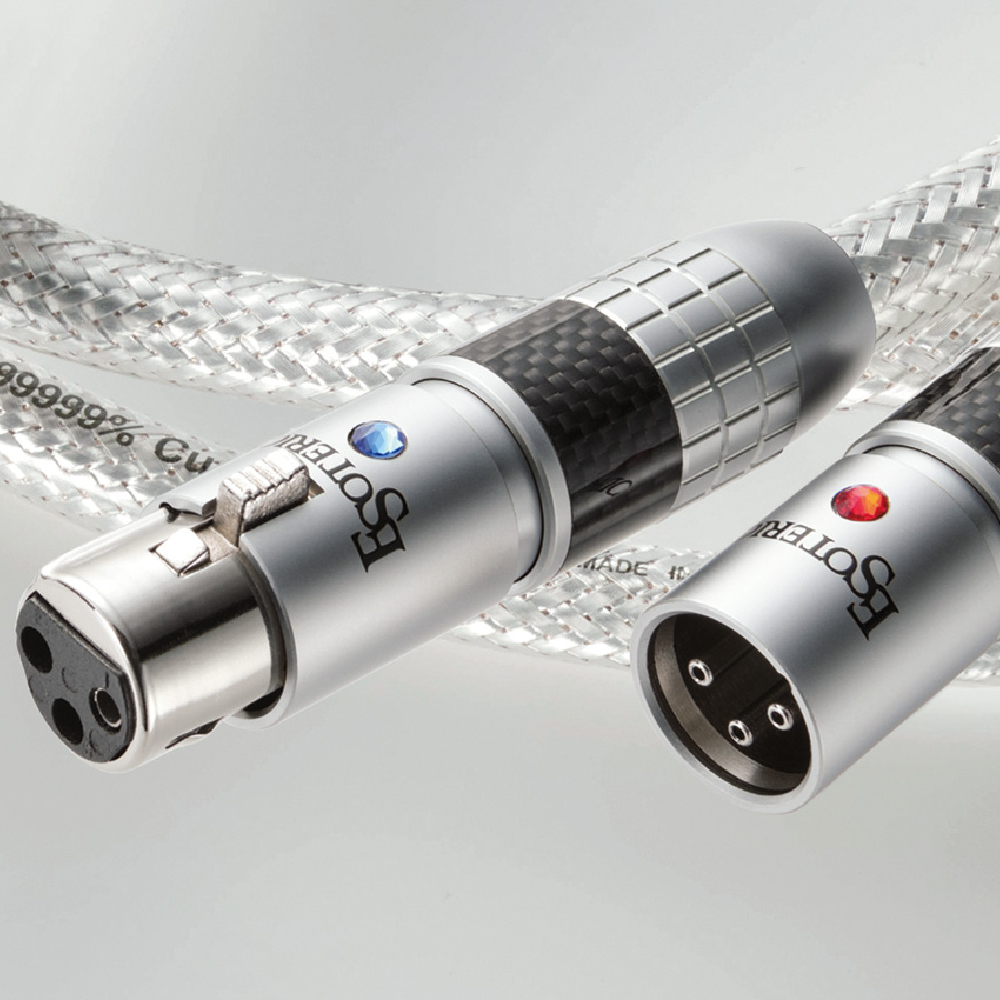

Special attention has been given to the termination system. The XLR connectors feature beryllium copper contact pins with direct rhodium plating, ensuring long-term stability and resistance to oxidation.
A hollow-pin design increases the contact surface area by approximately two times compared to conventional connectors, enhancing conductivity and maintaining signal consistency. This results in improved long-term sonic stability and reduced contact resistance, which is critical for high-resolution audio reproduction.
Specifications:
- Model: 7N-DA6300IV MEXCEL
- Series: 4th Generation Flagship MEXCEL Line
- Conductor Material: D.U.C.C. 7N Cu (99.99999% purity)
- Conductor Structure: Twin φ2.0 mm solid core, balanced configuration
- Shielding: Triple-layer (silver-plated 7N Cu braid / copper Mylar tape / silver-coated Cu braid)
- Insulation: MEDIS electro-deposition process
- Connector Type: XLR (beryllium copper, rhodium plated)
- Processing: ACROLINK Stressfree crystalline stabilization
In the box:
- ESOTERIC 7N-DA6300IV MEXCEL balanced interconnect cable (1 pair),
- Protective storage packaging,
- Factory documentation and specification sheet,
- Original ESOTERIC presentation case.
