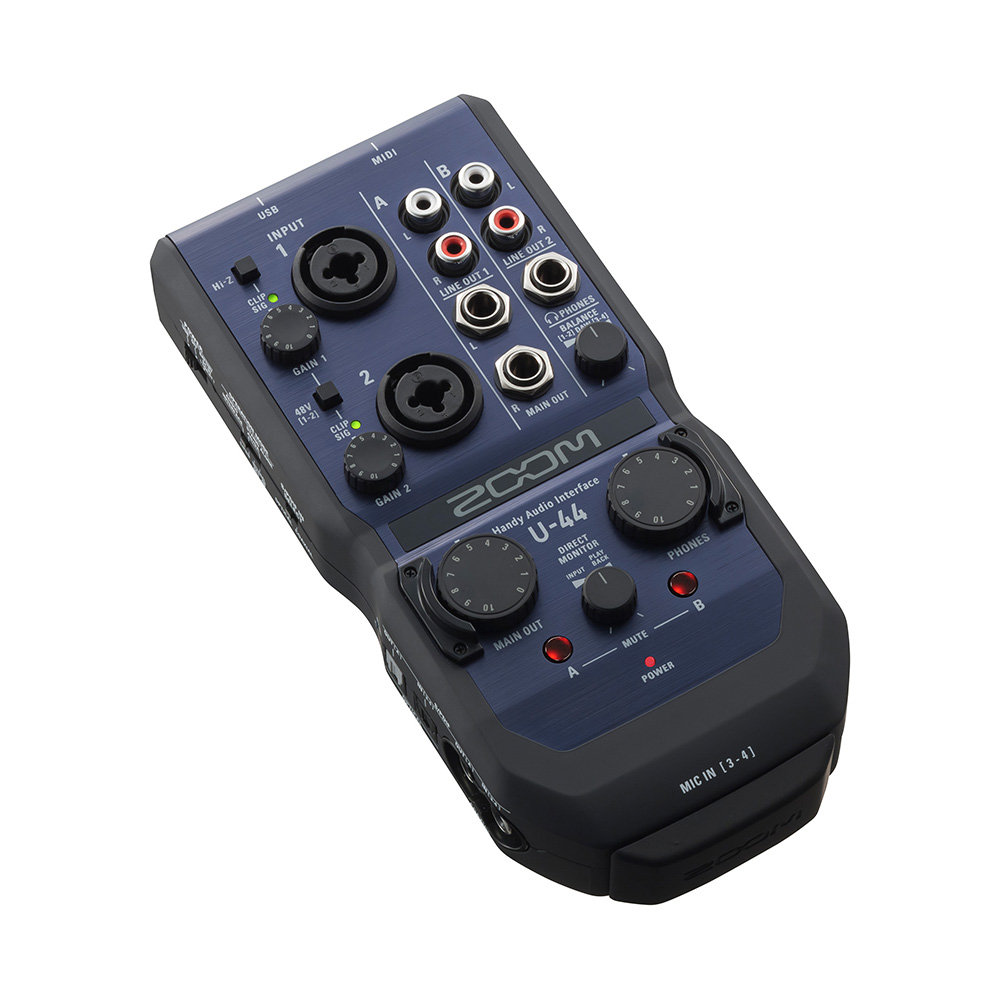

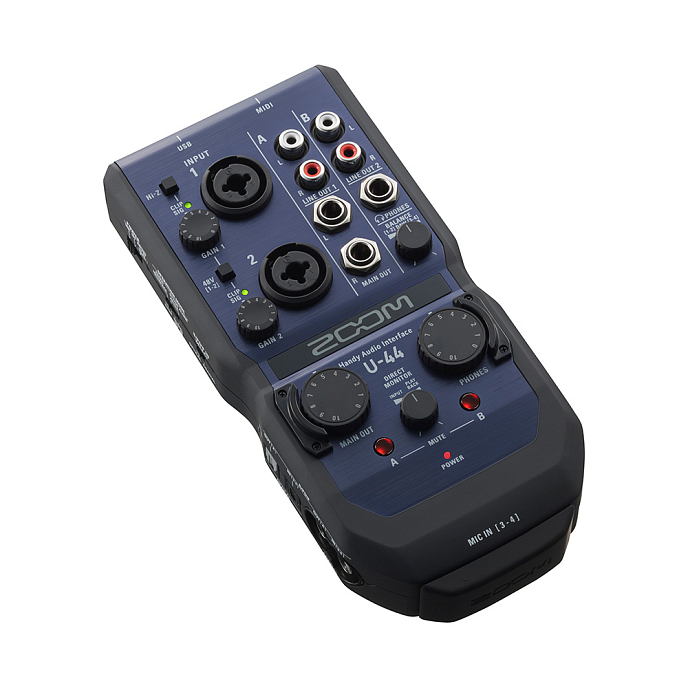

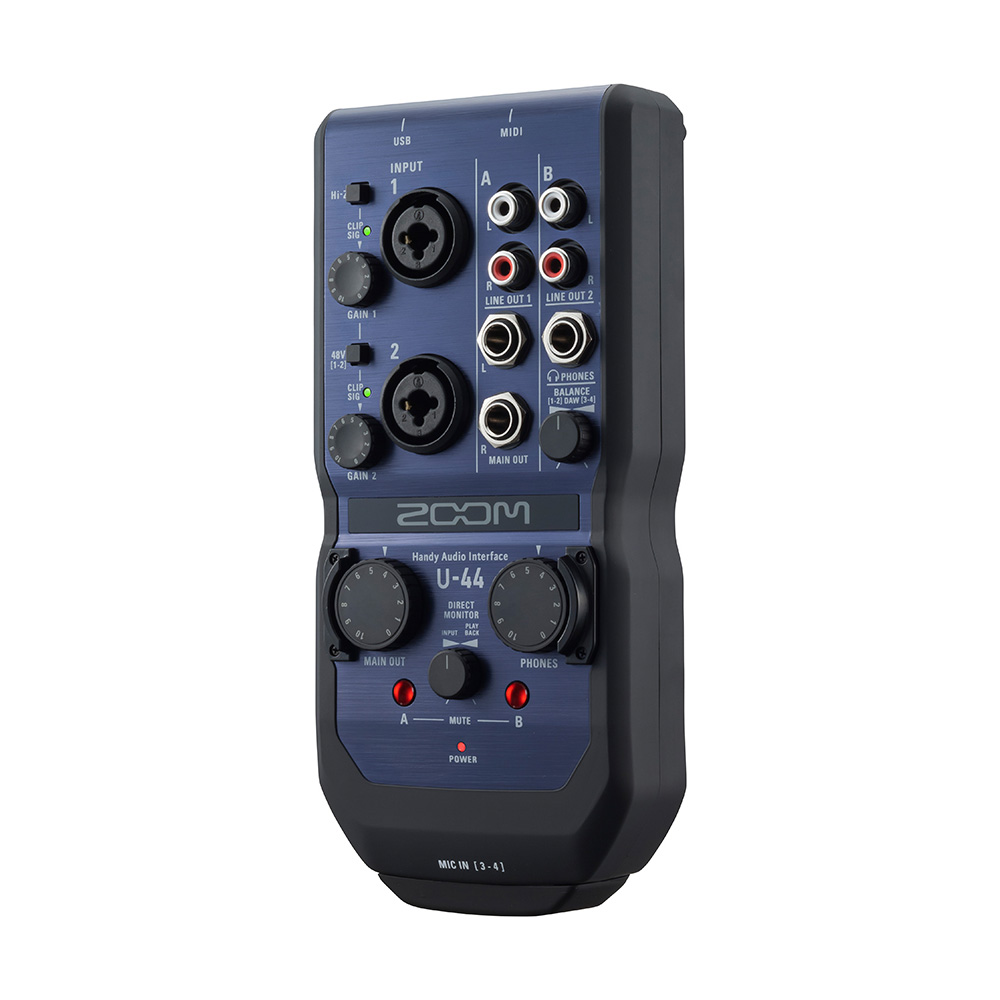

The U-44 is a compact audio interface with four inputs and outputs that allows you to record and perform wherever you are. The U-44 interface is so small it fits in the palm of your hand, but it includes everything you need to record in 24-bit/96 kHz quality no matter where you are.
Equipped with the same high-quality, low-noise microphone preamps as the Zoom H5 and H6 recorders, the U-44 is also compatible with Zoom interchangeable microphone capsules, opening up a world of incredible recording possibilities. Connect your U-44 to a PC, Mac, or iPad via USB and use it as a standalone AD/DA converter and microphone preamp. No other audio interface offers you this level of flexibility at such high quality.

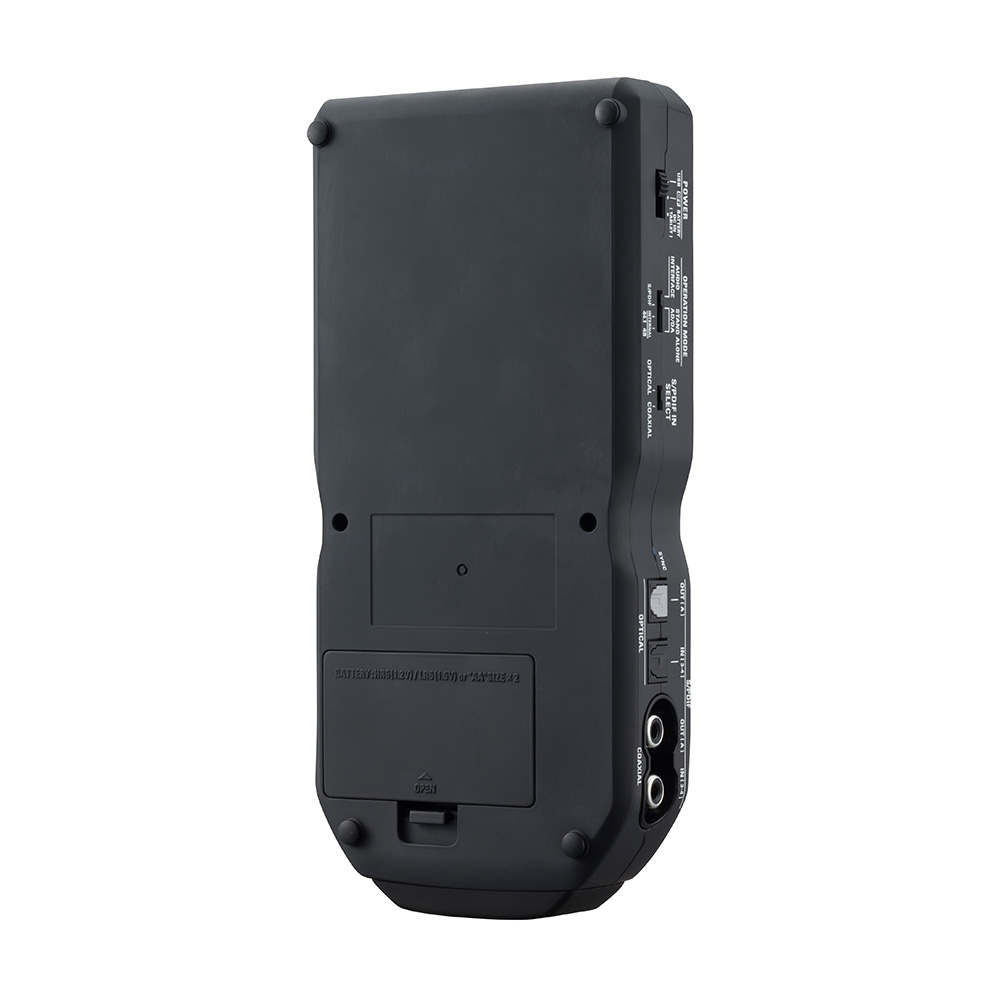

Wherever you are, the Zoom U-44 excels as the central element of your mobile studio. Connect instruments, monitors, and other devices for recording at home or connect it to your iPad for recording on the go. If USB bus power is not possible, the U-44 can operate on just two AA batteries, making it always ready to go with you.
And what can your audio interface do?

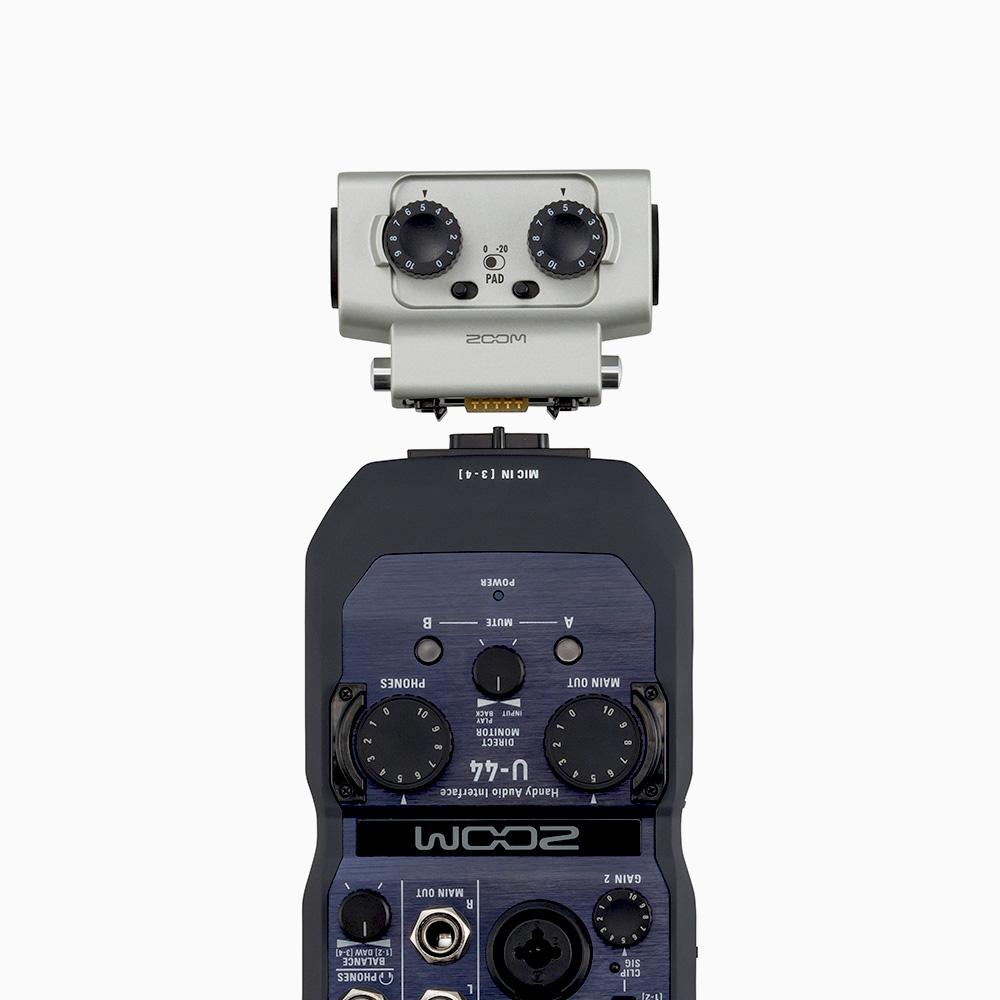

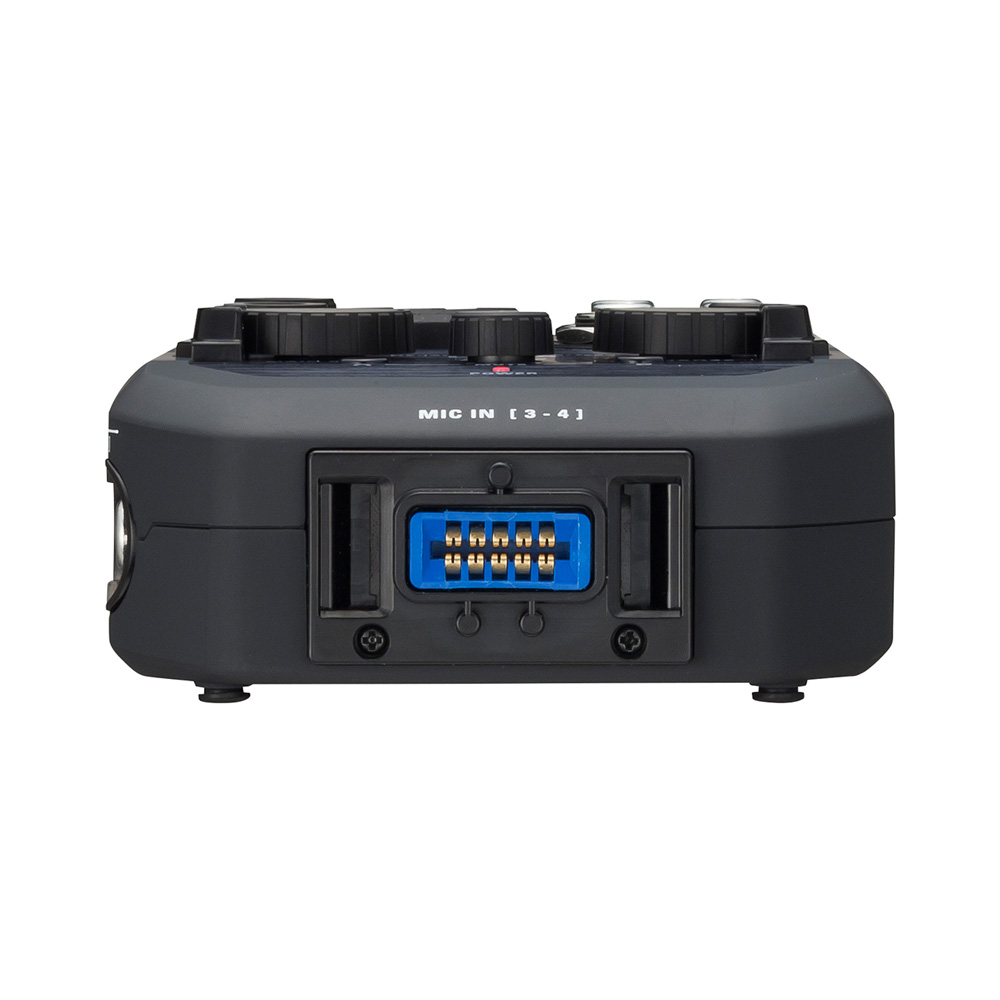

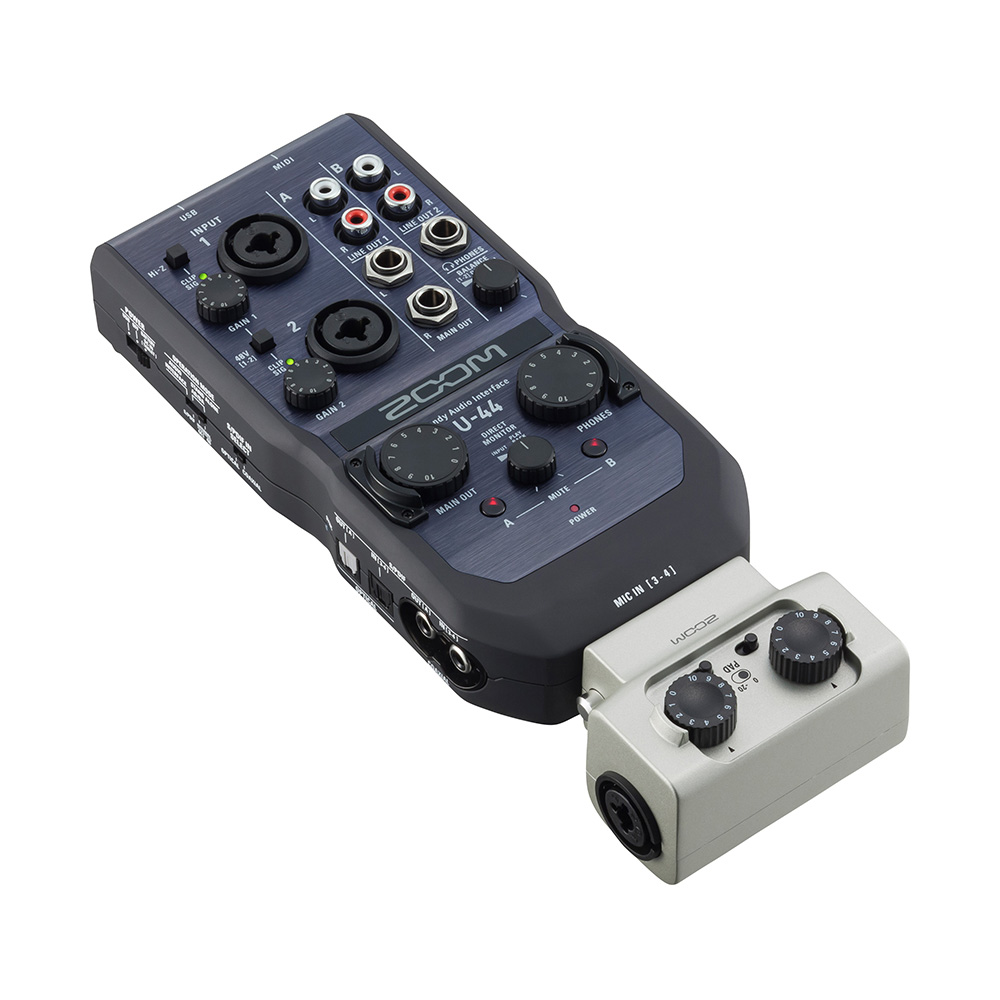

Thanks to the 10-pin Zoom connector, the U-44 is compatible with the Zoom interchangeable microphone capsule lineup (sold separately), turning it into a powerful arsenal of recording tools for field recording. Use any of the six microphone capsules: X/Y, shock-mounted X/Y, Mid-Side, shotgun mic, stereo shotgun - each providing unique capabilities for recording. You can capture your live performances, work on sound design, and record dialogue for your film with the SSH-6 stereo shotgun. Swapping microphone capsules on the U-44 is as easy as changing lenses on modern cameras.
Inputs and Outputs

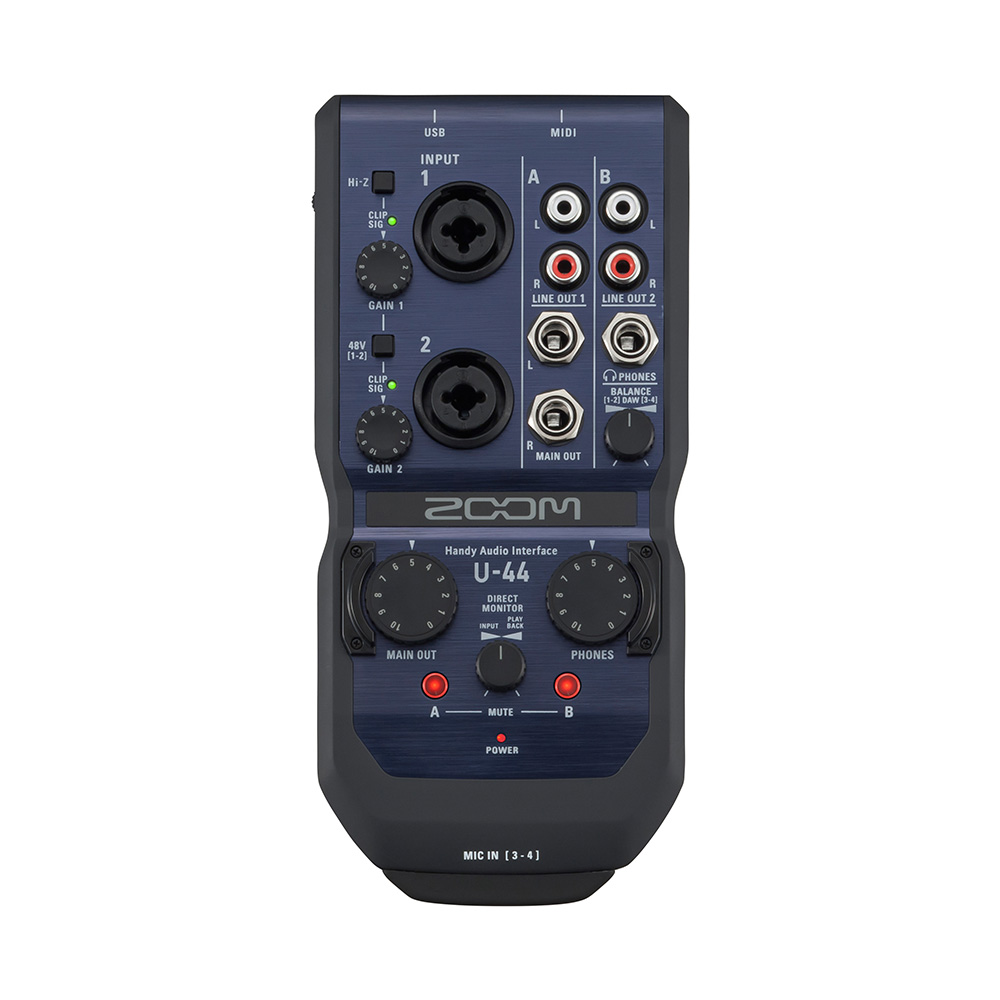

The portable U-44 audio interface features a wide array of inputs and outputs, ensuring you are ready for any type of recording or live performance organization. Two combo inputs with independent gain control knobs and full-color level indicators provide all the flexibility you need for connecting microphones, keyboards, and mixers. Phantom power can be supplied to inputs 1 and 2. Additionally, input 1 is a Hi-Z input allowing connection of electric and bass guitars and other passive musical instruments. The MIDI I/O connector enables synchronization with devices such as electronic keyboards, controllers, synthesizers, or modules/samplers.
As for outputs, you have a variety of options, including a 1/4-inch output, RCA, and S/PDIF, allowing you to connect DJ mixers, speakers, and more. Easily monitor your mixes with a dedicated headphone output with independent volume control. The direct monitoring knob allows you to balance between the input signal and the playback signal when listening through headphones, perfect for live performance of electronic music and DJ sets.
Control Your Mix
With its advanced monitoring capabilities, the U-44 allows you to create your perfect mix. During live performances, you can create a balanced mix in your headphones between cue and main outputs, while DJs can perfectly balance dry and processed signals. Channel A and B outputs can be muted, giving you even more control over the sound. Additionally, direct monitoring allows you to hear what you are recording in real-time without any latency.
AD/DA Conversion in Standalone Mode
High-quality digital-to-analog and analog-to-digital conversion is essential for audio signal transmission. In standalone mode, the U-44 functions as a high-quality microphone preamp and AD/DA converter, providing transparent audio conversion. Choose between sampling frequencies of 44.1 or 48 kHz.
- Connect digital audio instruments to analog amplifiers and mixers;
- Create digital samples for your songs;
- Digitize your analog recordings;
- Transfer your recordings to digital media.
Perfect Ergonomics and Mobility

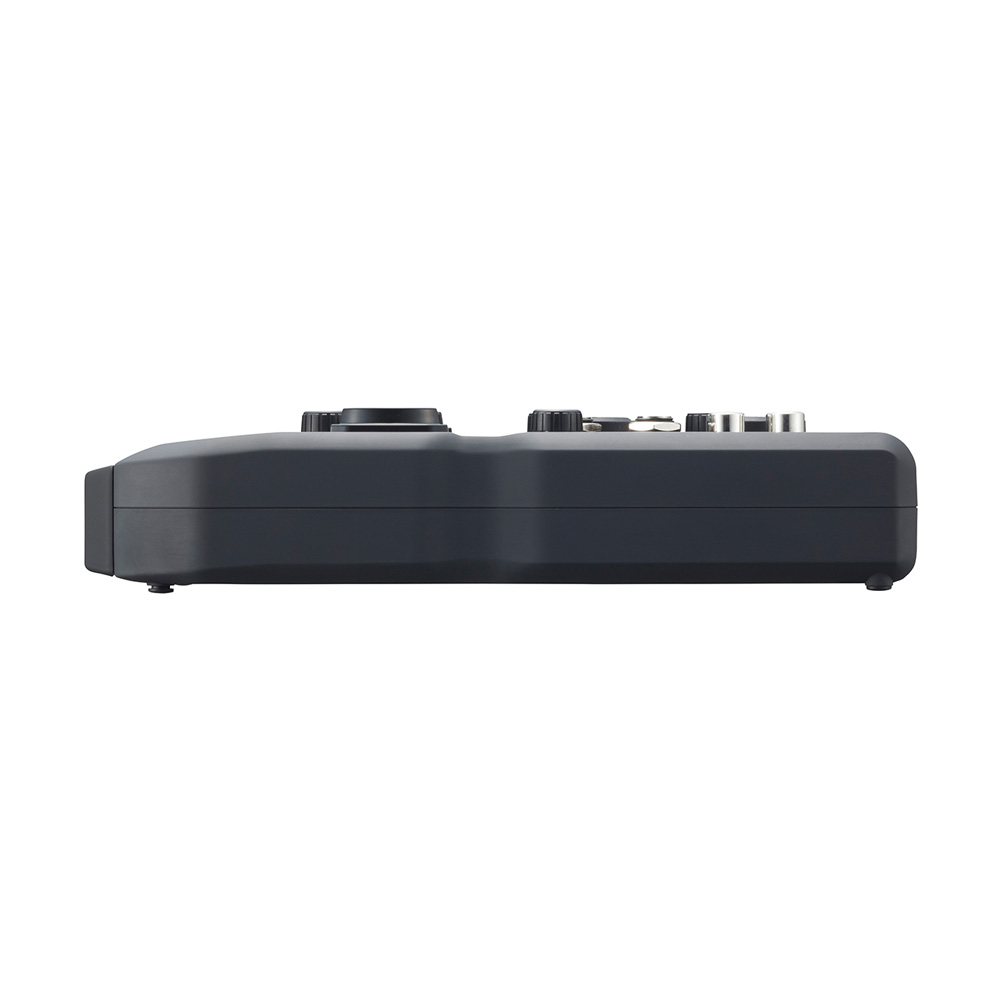

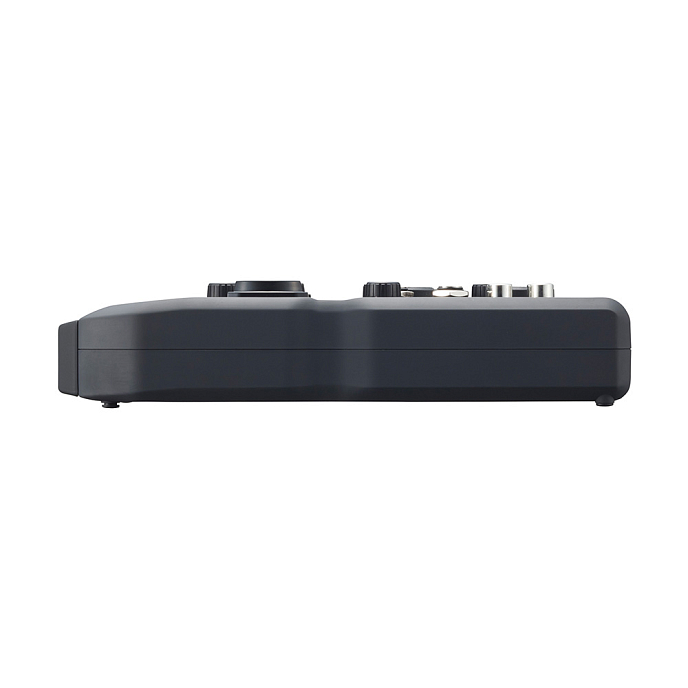

The U-44 audio interface is so small it can fit in your jacket pocket or backpack without sacrificing essential functionality. The connectors and controls are strategically placed for easy and convenient access.
Create More with the U-44
The Zoom U-44 package includes a free license for Ableton Live 9 Lite software. With everything a modern composer needs at your fingertips, the U-44 allows you to quickly and intuitively record, edit, and process studio-quality effects in Ableton Live 9 Lite.
Features:
- Multi-channel stereo USB audio interface for PC/Mac.
- Compatible with iPad using the Apple iPad Camera Connection Kit or Lightning-to-USB adapter, powered by two AA batteries or optional power adapter.
- Two line/mic inputs with high-quality microphone preamps.
- High-quality recording and playback up to 24-bit/96 kHz.
- Compatible with Zoom interchangeable microphone capsules connected to a 10-pin connector.
- Standalone AD/DA conversion mode.
- Two-channel microphone preamplifier with analog and digital outputs.
- Approximately 4 hours operating on two AA alkaline batteries.
- Ableton Live 9 Lite software license.
- Simultaneous 4-channel outputs.
- Hi-Z support (input 1).
- Zero latency direct monitoring.
- Three TRS connectors.
- Dedicated RCA L/R output and headphone output.

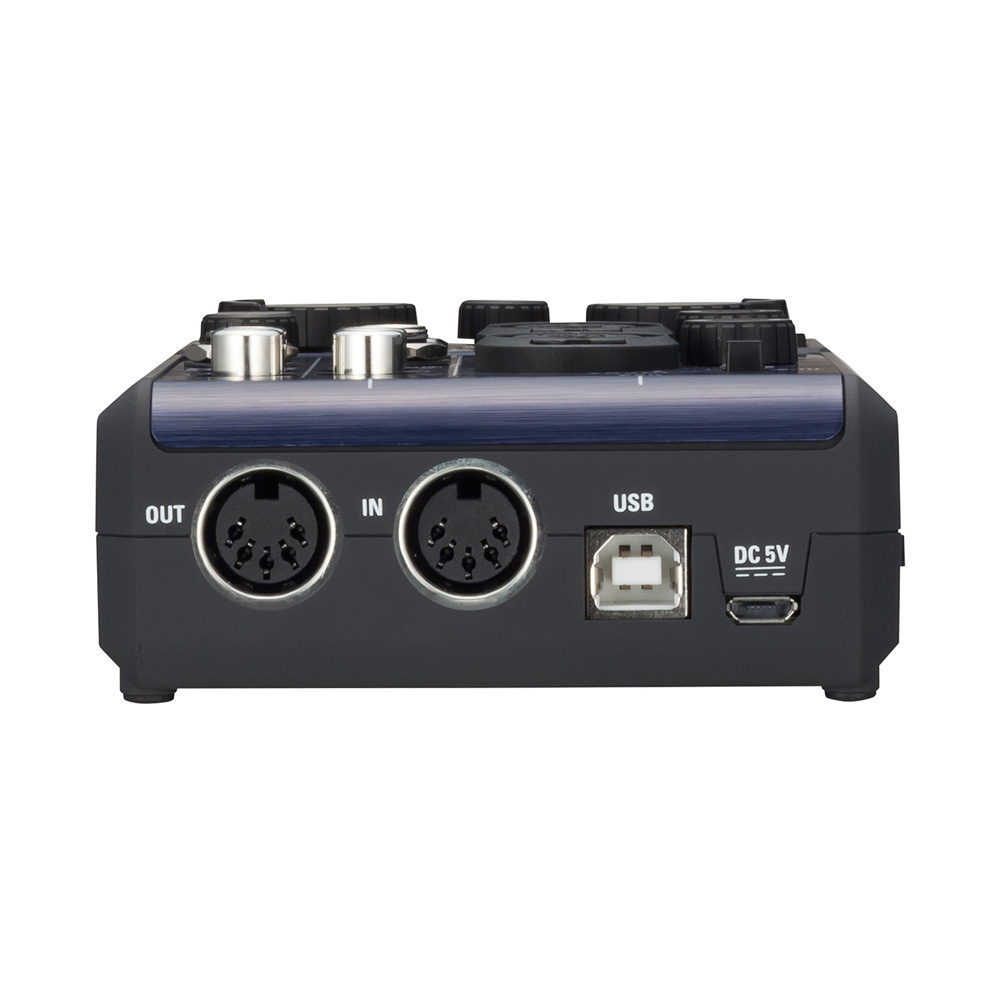

- MIDI I/O.

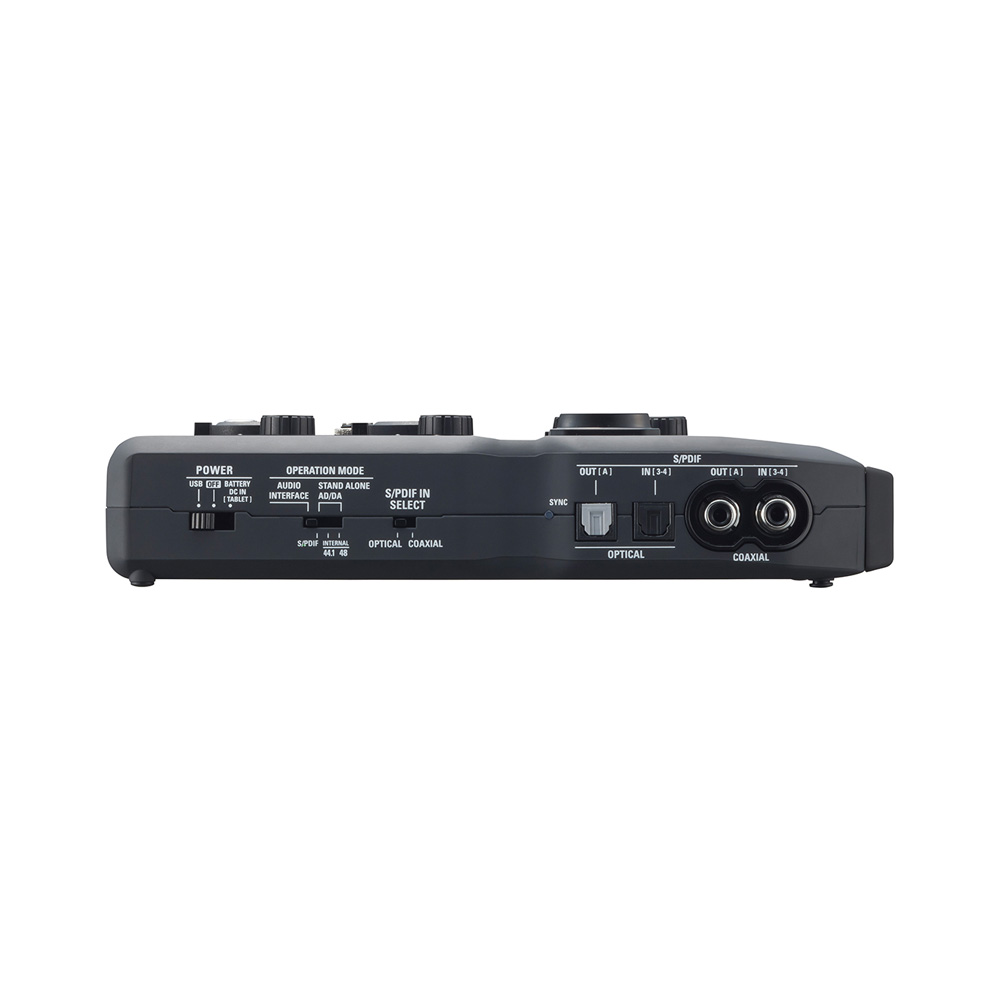

- Optical/coaxial S/PDIF input and output.
- Gain control knob for each input.
- Phantom power on outputs 1 and 2.
- Support for standard alkaline batteries or rechargeable NiMH batteries.
Package includes:
- Portable audio interface.
- USB cable.
- Manual
