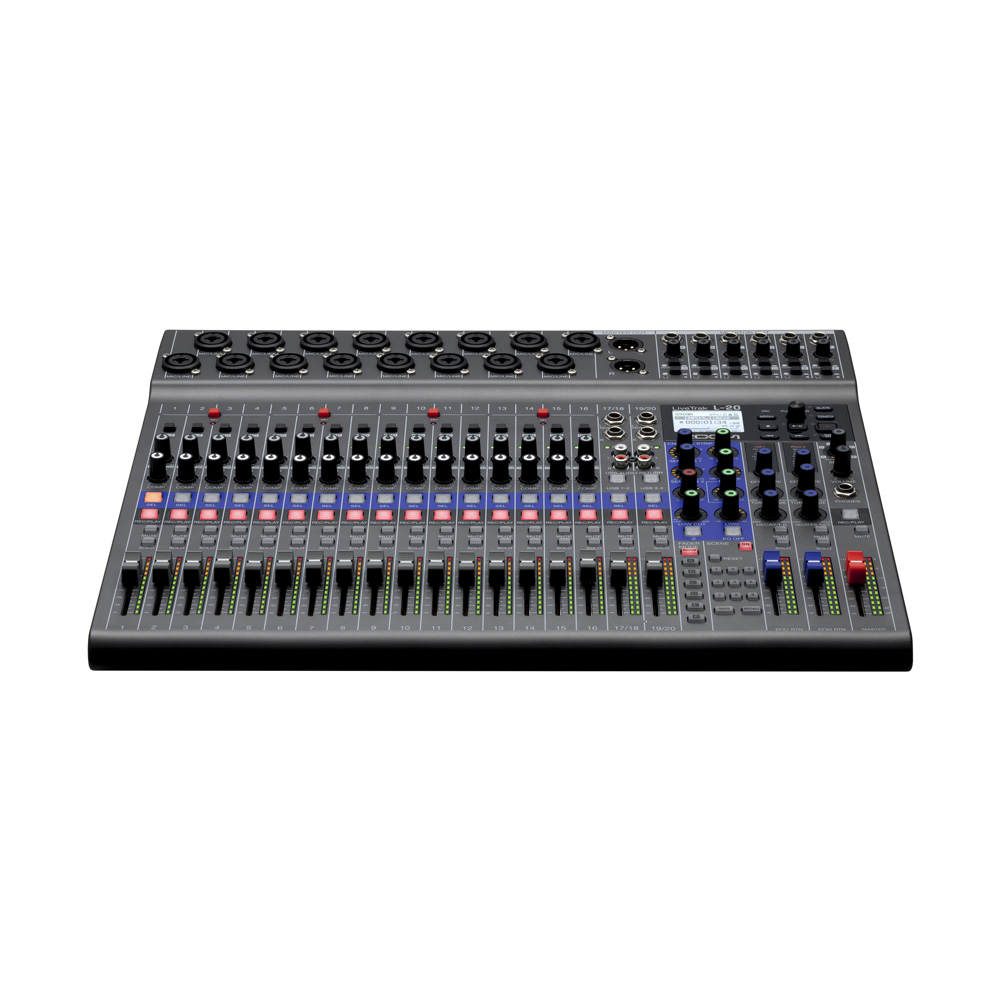

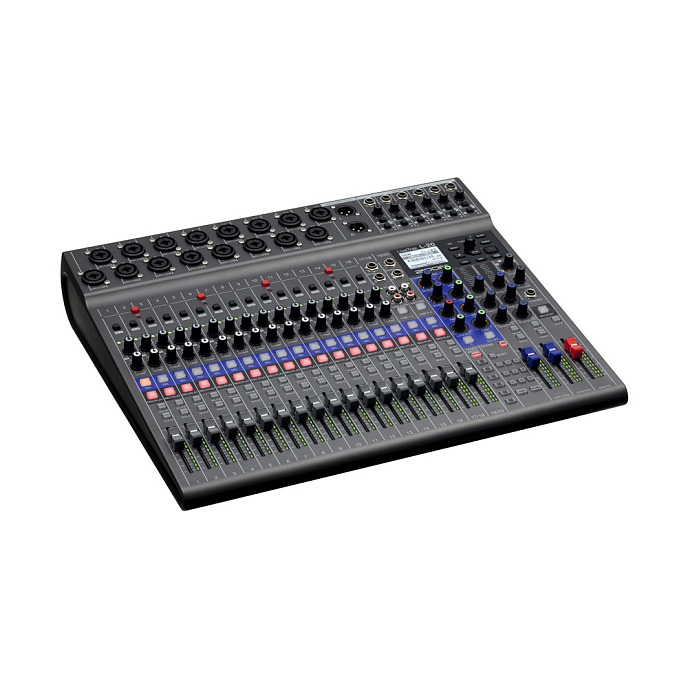

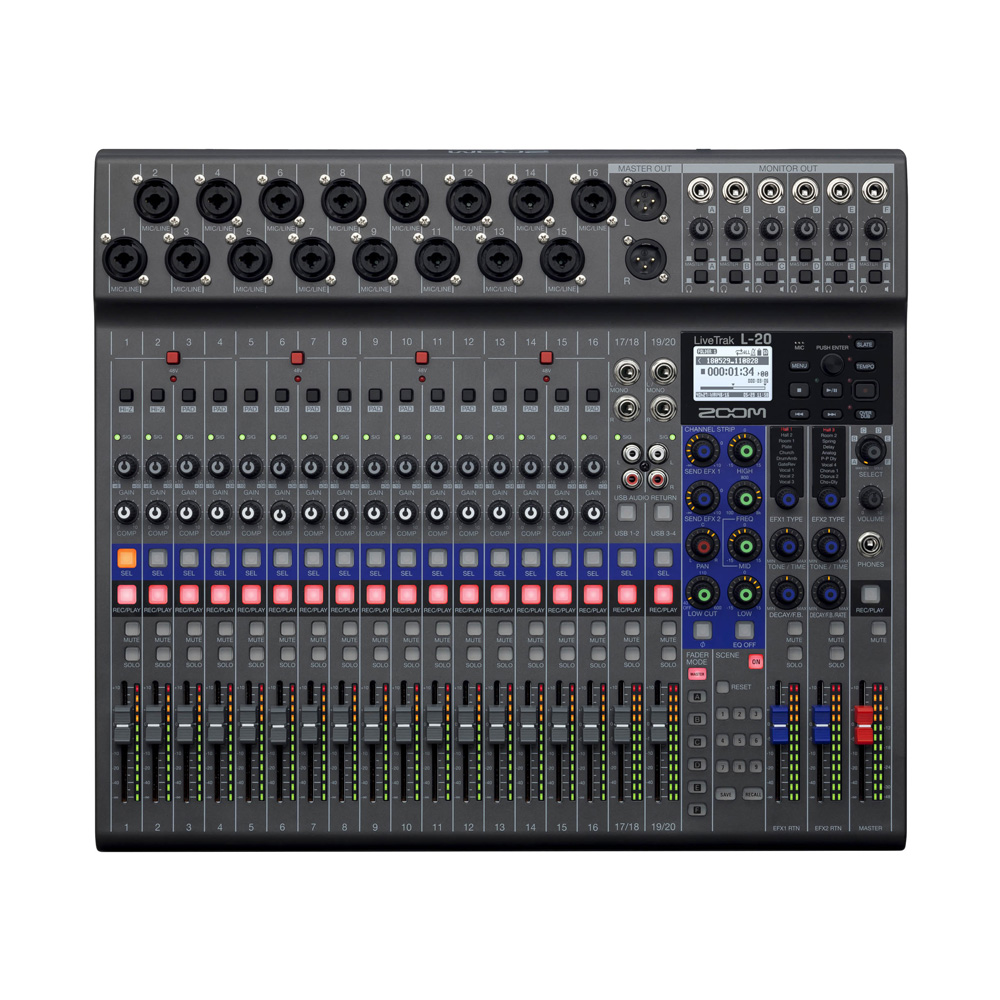

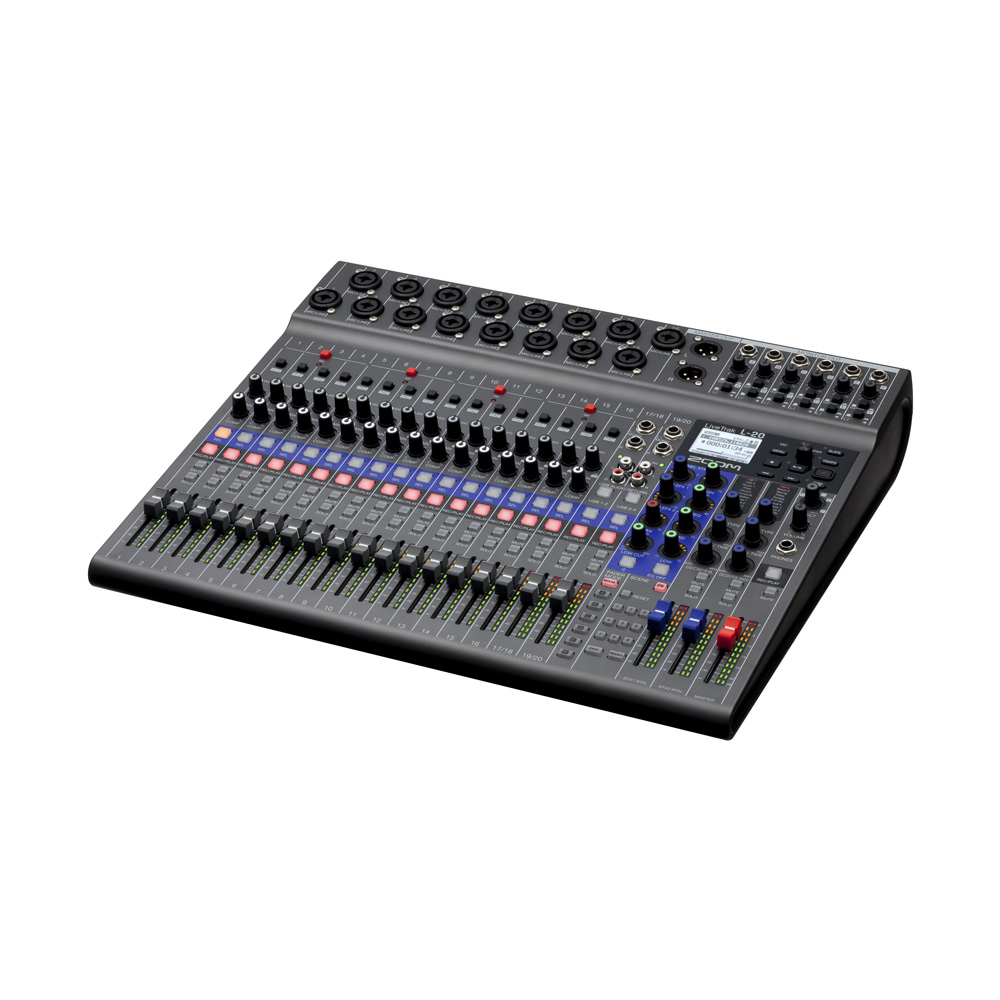

LiveTrak™ L-20 is a new digital console that offers everything you need for mixing, monitoring, and handling complex tasks in sound recording. With 20 discrete audio channels and six custom monitor mixes, it's the perfect choice for big and bold solutions.
20 Inputs for Every Need
LiveTrak L-20 was designed to handle complex mixes. It features 20 inputs (16 mono microphone/line inputs and two stereo inputs) with their own three-band EQ with parametric midrange. The 16 mono inputs also allow for independent compressor control.
22 Recording Tracks
Record 20 discrete channels, plus a stereo mix directly to an SD card. LiveTrak L-20 captures audio at resolutions of up to 24-bit/96 kHz. It features some of the quietest and most technologically advanced preamps with an equivalent input noise of -128 dBu and input gain of +60 dB. Mix your completed songs directly on the L-20 or transfer discrete tracks to your DAW program for further editing.
Create Up to Six Monitor Mixes
With six independent monitoring outputs, each output can receive its own mix with effects that can easily be transferred from the powerful headphone output to a balanced line output for studio in-ear monitoring headphones.
Additional Output
LiveTrak L-20 also features a seventh dedicated output for the front of house (FOH) engineer. The engineer can monitor the main mix and any of the additional mixes, adjusting them to meet the musicians' requirements.
Large, Multi-Functional
Although LiveTrak L-20 was designed for standalone audio recording and use as a mixing console, it can also be used as a USB audio interface with 22 inputs and 4 outputs. In audio interface mode, you can direct signals from inputs to any DAW station or software for streaming audio, simultaneously recording it to an SD card. In addition, you can route audio from your computer to the L-20 and make it part of your live performance. It also supports Class Compliant mode, allowing connection to iOS devices.
Wireless Mixing
LiveTrak L-20 supports wireless control with the free iOS app. It includes most functions, such as fader levels, mode control, scenes, equalizer, EFX send/return commands, parameters, and more. You can even remotely control your effects library and scenes. Two control modes are available: full screen—with minimized recording and playback control buttons or compact—with expanded recording and playback control buttons.
Features:
- 20 discrete channels (16 mono and 2 stereo) with XLR and 1/4" connectors
- Simultaneous recording on 22 tracks, playback from 20 tracks
- Audio interface mode (22 inputs/4 outputs)
- Recording audio quality up to 24-bit/96 kHz on SD card
- 48V phantom power
- High-impedance (Hi-Z) connection (channels 1 and 2)
- 26 dB PAD (channels 3-16)
- Built-in compression control (1-16)
- Solo buttons for each channel
- Adjustable high-pass filter
- Main outputs, plus 6 customizable monitor outputs
- Dedicated headphone output for sound engineer
- Scene saving function (up to 9 scenes)
- 20 built-in Delay and Reverb effects with customizable parameters
- Two dedicated EFX buses
- Built-in talkback microphone
- Compatibility mode with iOS devices
- Compatible with iPad app for remote mixing
- Automatic recording on/off function
- Pre-record function

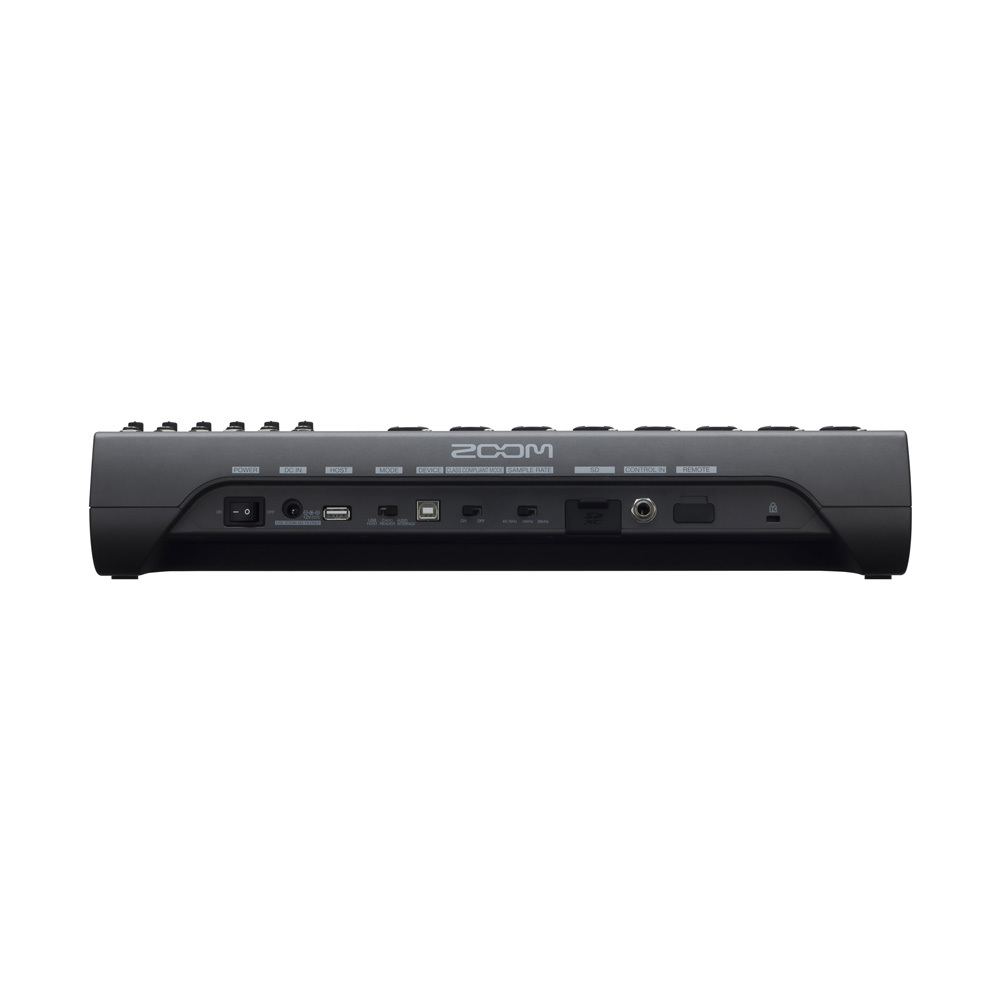

- Import/export projects via USB 2.0 port
- Compatible with Zoom FS01 pedal
- Automatic power-saving function
Package Includes:
- Digital console
- AD-19 power adapter
- USB 2.0 cable
- Manual
