Unique in its kind
The swiplan monitors are created based on innovative acoustic technology of modal-resonant bending wave vibrations, induced in the solid sound-emitting membrane. The fundamental difference of swiplan monitors from traditional ones using classic piston drivers is their quasi-omnidirectional (bipolar) character. Swiplan monitors create a uniform, diffuse sound field across the entire audible frequency range and an expanded sweet spot. This feature of the swiplan technology ensures the fidelity and naturalness of reproducing every detail of the mix, from deep bass to the finest reverberation tail. The result is psychoacoustically organic neutral sound with unique spatial characteristics, significantly approaching natural sound reproduction in the real world.

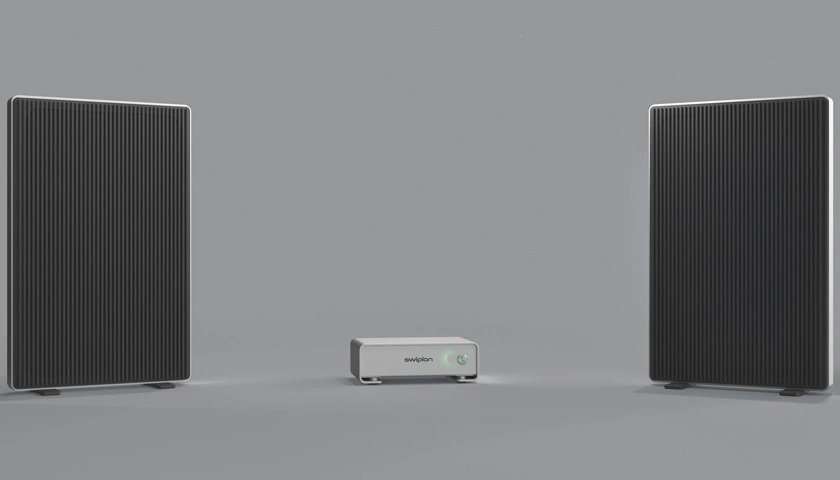

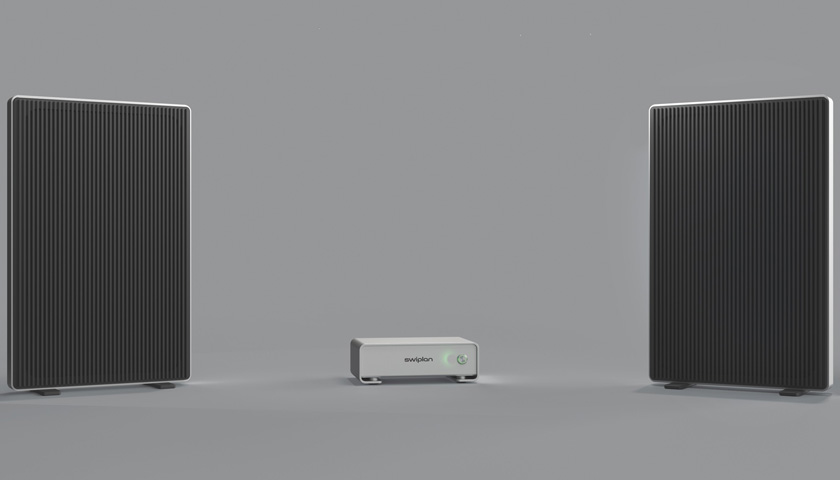

Accurate and "sharp"
Thanks to high linearity and practically inertia-free impulse response characteristics, swiplan monitors are ideal for any professional audio applications - from tracking and mixing to mastering and sound design. Swiplan monitors are particularly effective in identifying tonal conflicts and frequency clashes in the mix, helping users avoid incorrect or unnecessary equalization and excessive effects processing.
Analog result of digital process
The swiplan.1 monitoring system is completely analog and does not contain built-in DSP and ADC/DAC. The wideband physical construction of swiplan membranes does not require the use of digital crossovers and algorithmic solutions for artificial optimization of phase and frequency characteristics. For tasks where real-time room acoustics correction is required or desirable, most modern audio interfaces and monitor controllers provide the necessary hardware and software functions, offering broader and more flexible functionality compared to similar tools integrated into traditional studio monitors.

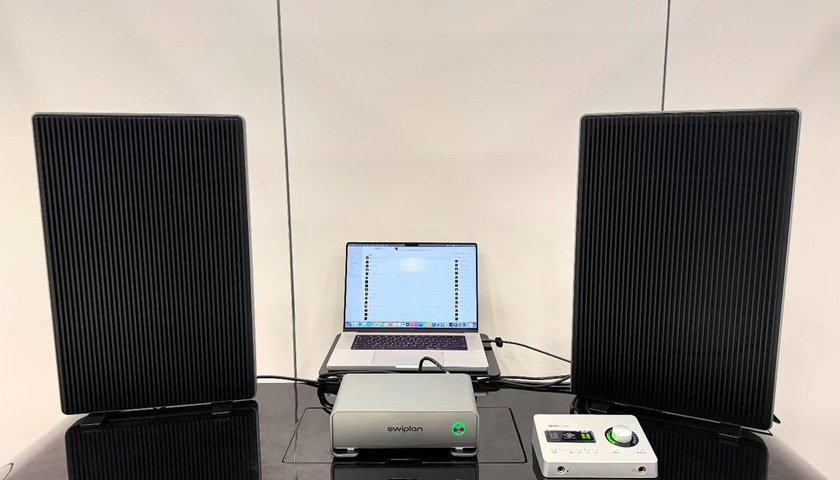

Elegant and practical

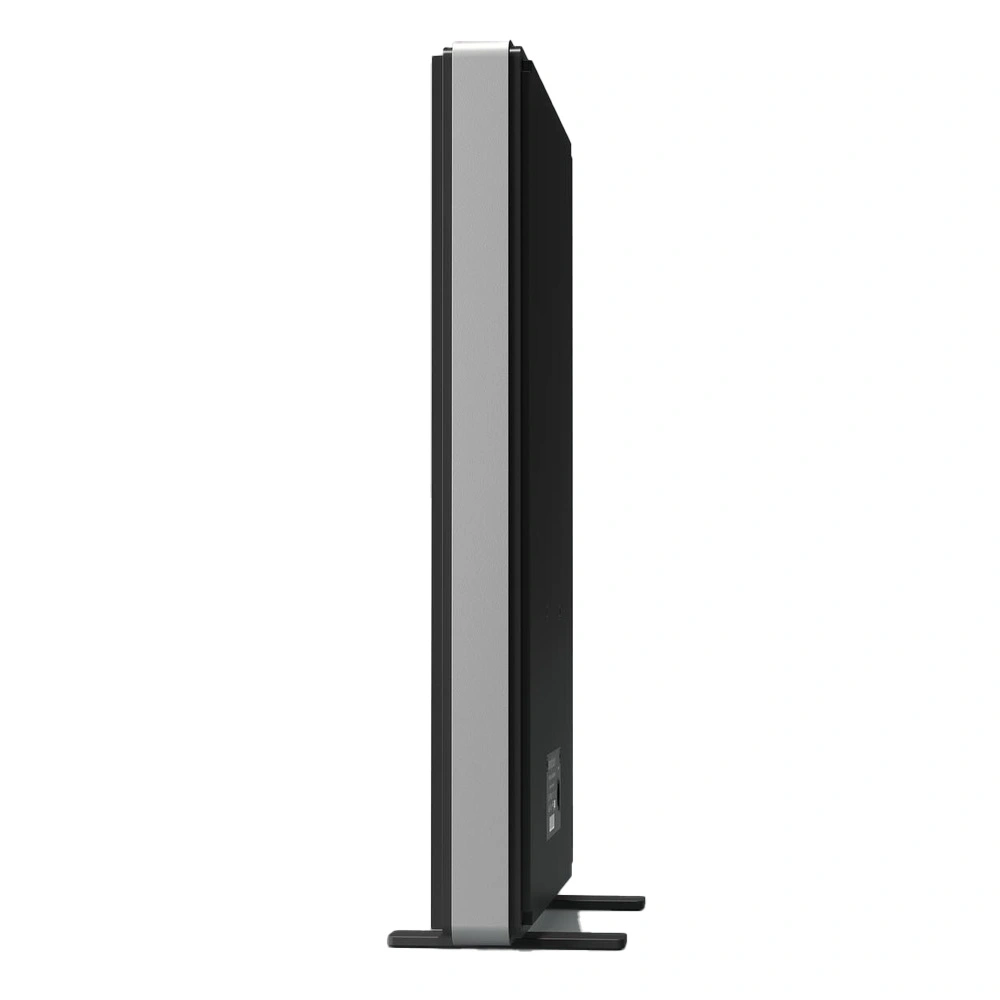

Providing reference-quality sound, swiplan monitors stand out with a stylish minimalist industrial design that perfectly complements the modern studio atmosphere. Flat, compact, and ergonomic, unlike traditional "boxes," swiplan monitors elegantly fit into the interior of any, even the smallest control room, freeing up space for other equipment.
Energy-efficient and environmentally friendly
The swiplan.1 monitoring system incorporates energy-efficient solutions, significantly reducing energy consumption and heat dissipation compared to traditional studio monitors, while still providing impressive quality characteristics.
Technical specifications

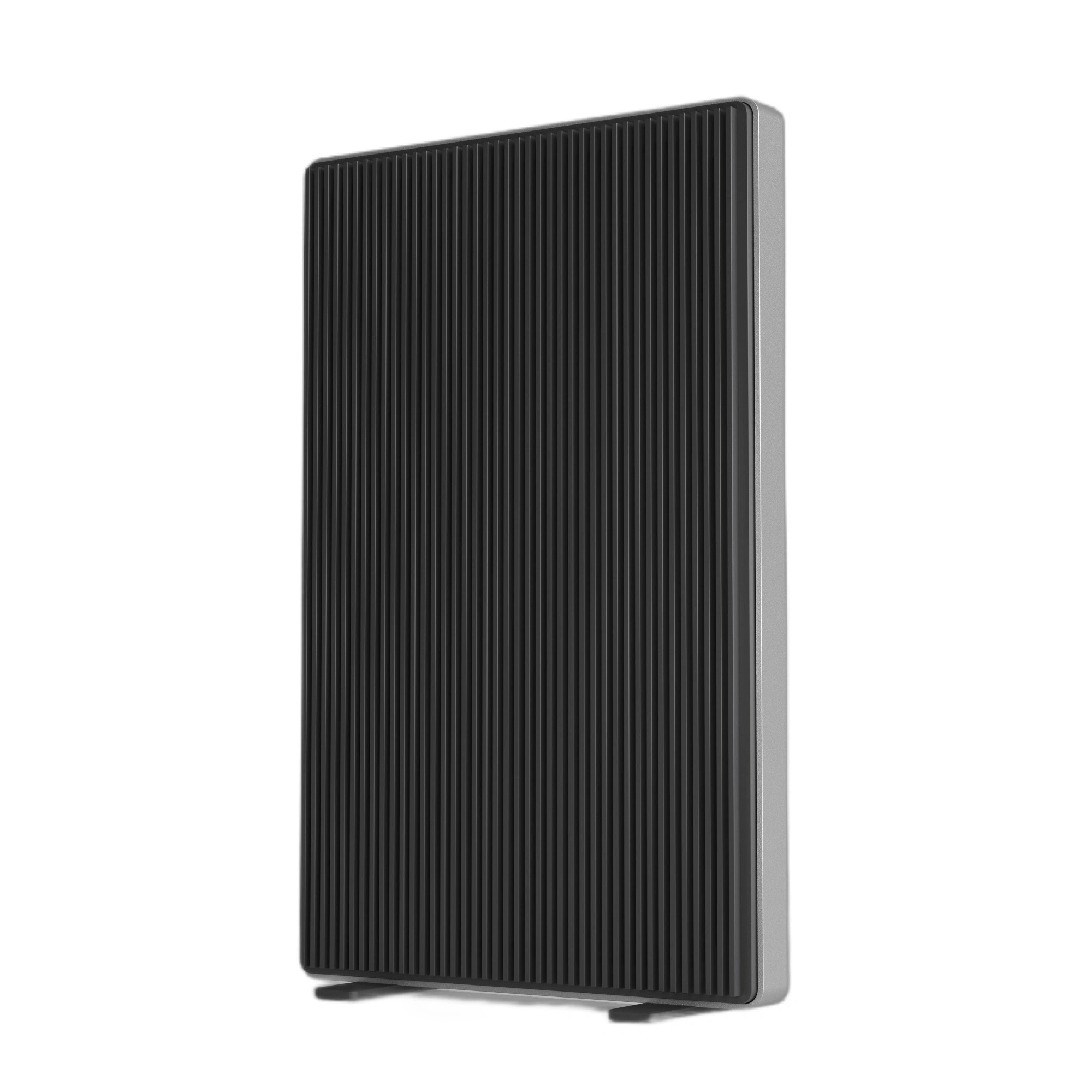

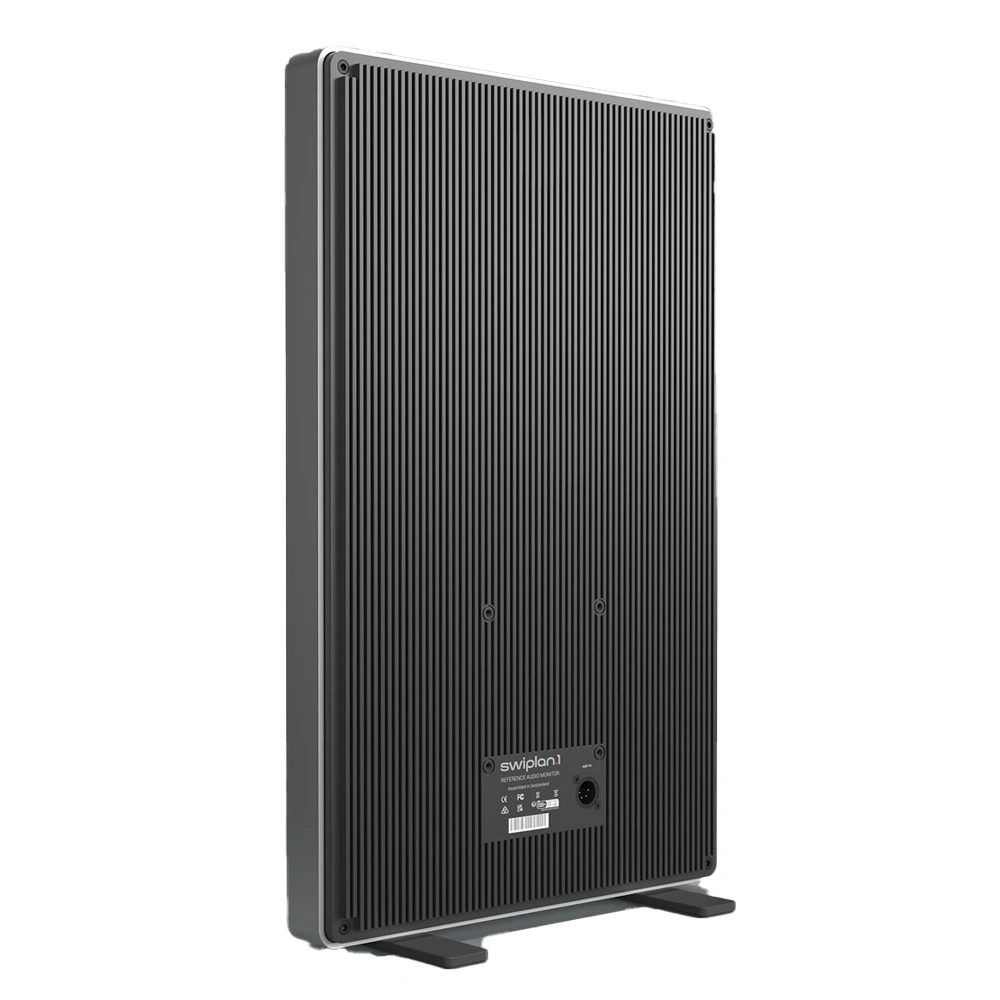

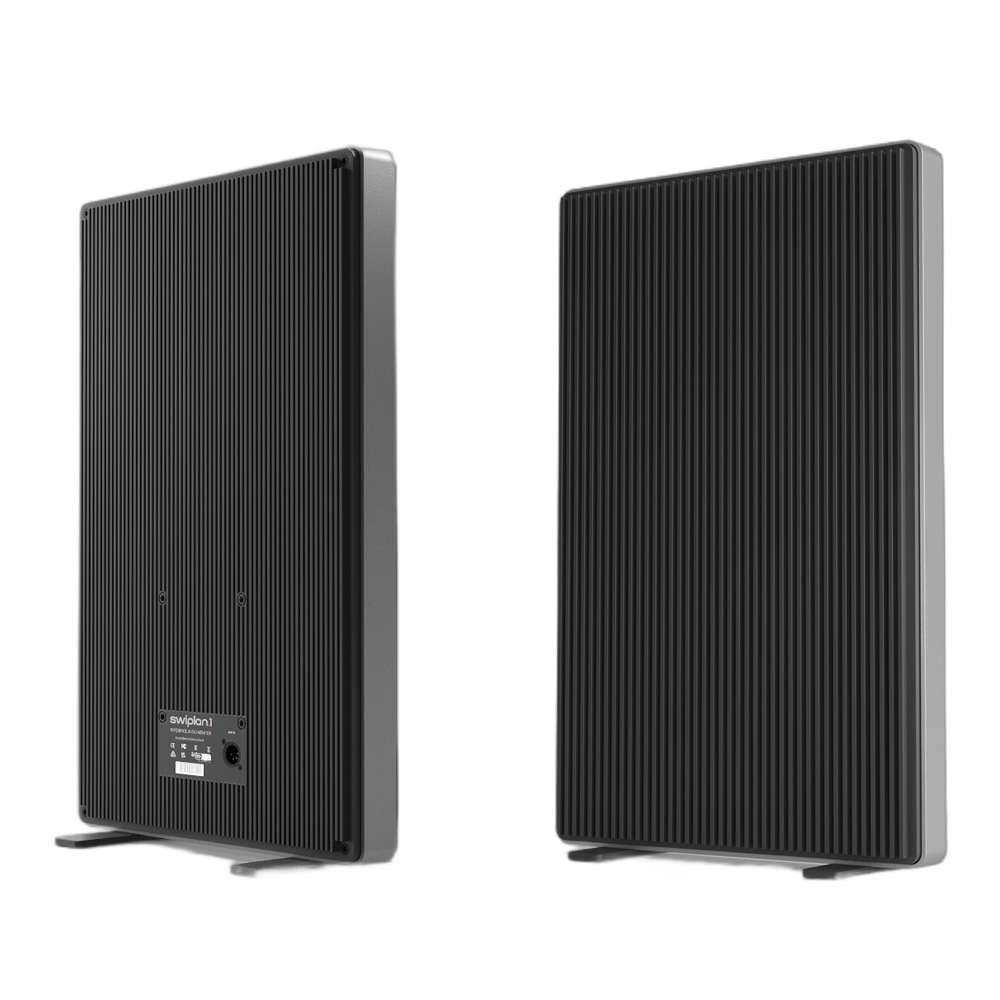

Swiplan.1 Reference Studio Audio Monitor
- Operating principle: wideband planar modal-resonant acoustic radiator
- Frequency response: 40 – 21,000 Hz +/-3.0 dB
- Sensitivity: 88 dB @ 2.83 V/1m
- Input impedance: 8 Ω
- Amplifier module input: 4-pin Neutrik XLR-M connector (specialized connecting cables Neutrik XLR-F/XLR-F, 2m length included)
- Maximum amplifier output power: 75 W @ 8Ω
- Dimensions (height/width/depth): 568 mm x 354 mm x 62 mm
- Weight: 6.1 kg

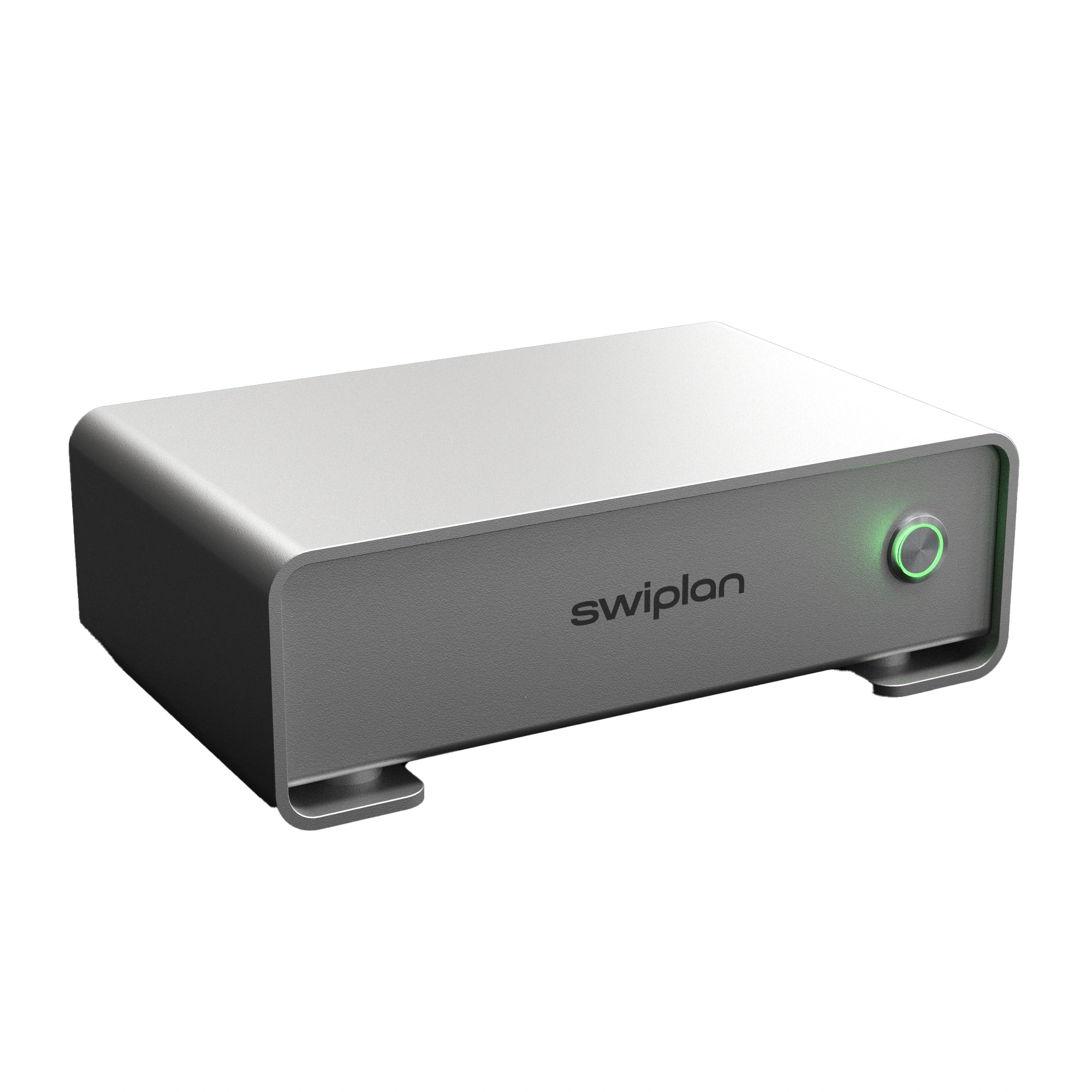

Swiplan.1 Desktop Stereo Amplifier Module
- Operating principle: high-performance class D amplifier
- Maximum output power (1KHz, THD=1%): 2x75 Wrms @ 8Ω
- Dynamic range: 118 dB
- THD+N: <= 0.0010 %
- Frequency response: 10 – 48,000 Hz +0/-3 dB
- Input impedance: 47 kΩ
- Maximum input signal level: +4.4dBu

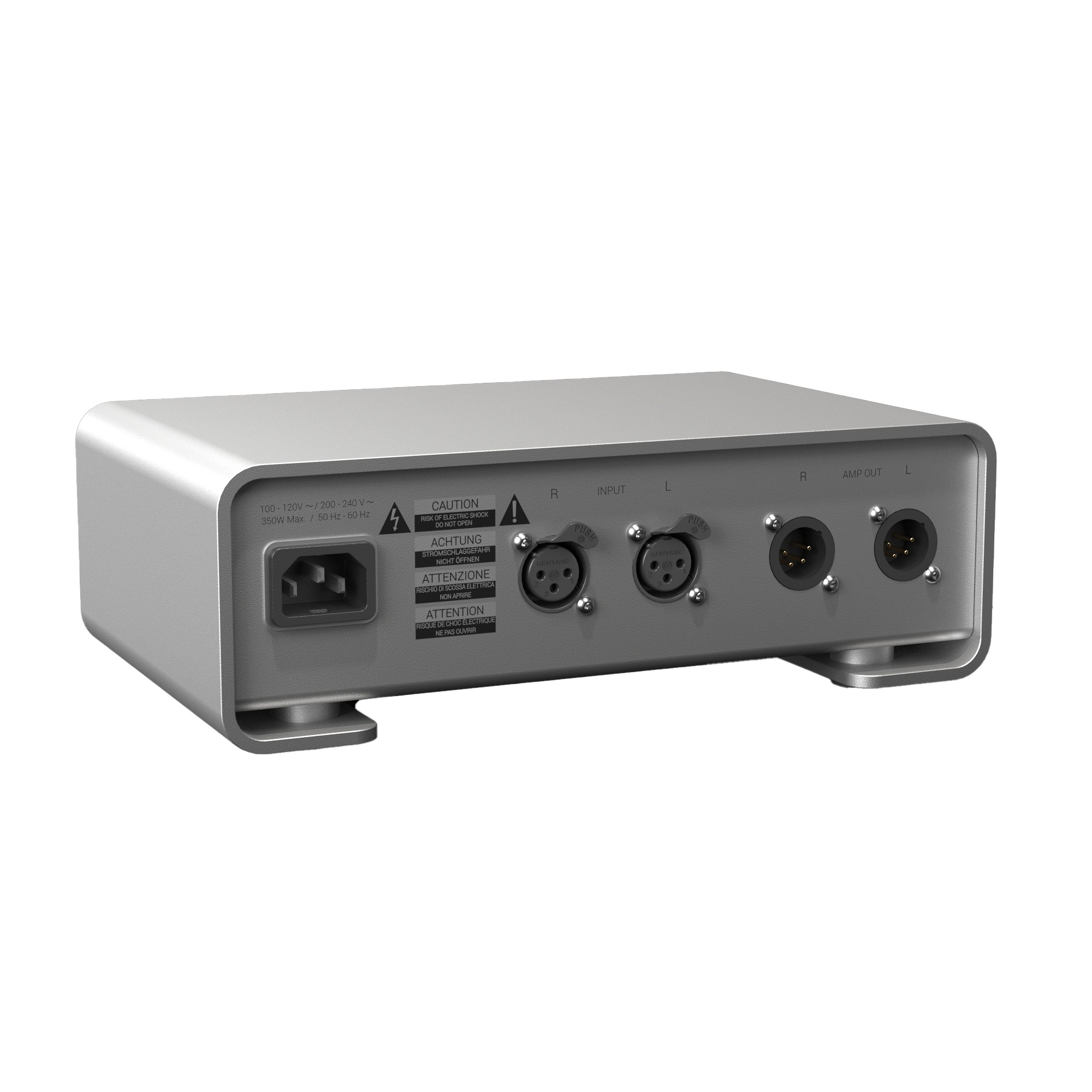

- Analog linear inputs: Electronically balanced, AES48 compliant, @ 2 x Neutrik XLR-F
- Outputs for monitor panels: 2 x Neutrik 4-pin XLR-M (not compatible with regular passive speaker systems)
- Power supply: universal built-in switching power supply, automatic voltage selection (100-240 V, 50-60 Hz)
- Maximum power consumption: 350 W
- Dimensions (height/width/depth): 247 mm x 157 mm x 85 mm
- Weight: 1.5 kg
Package includes:
- Acoustic system - 2 pcs
- Amplifier
- Connection kit
- Manual
