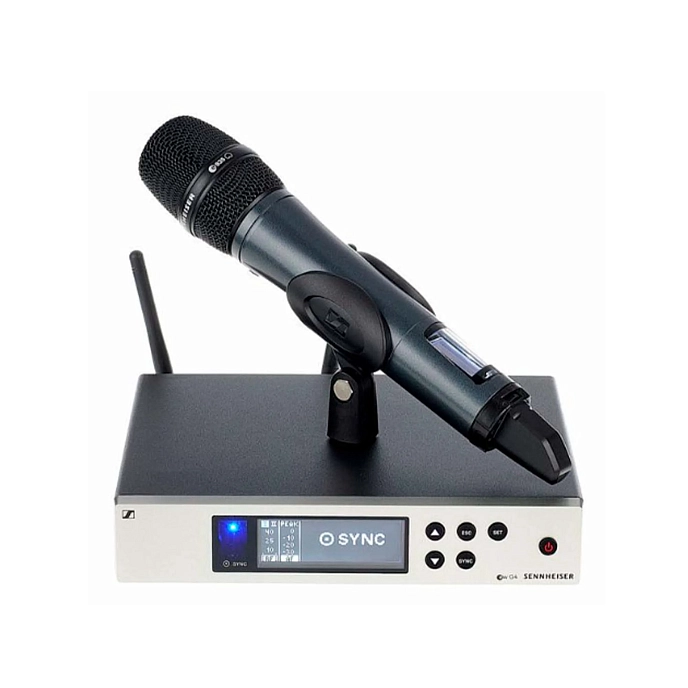

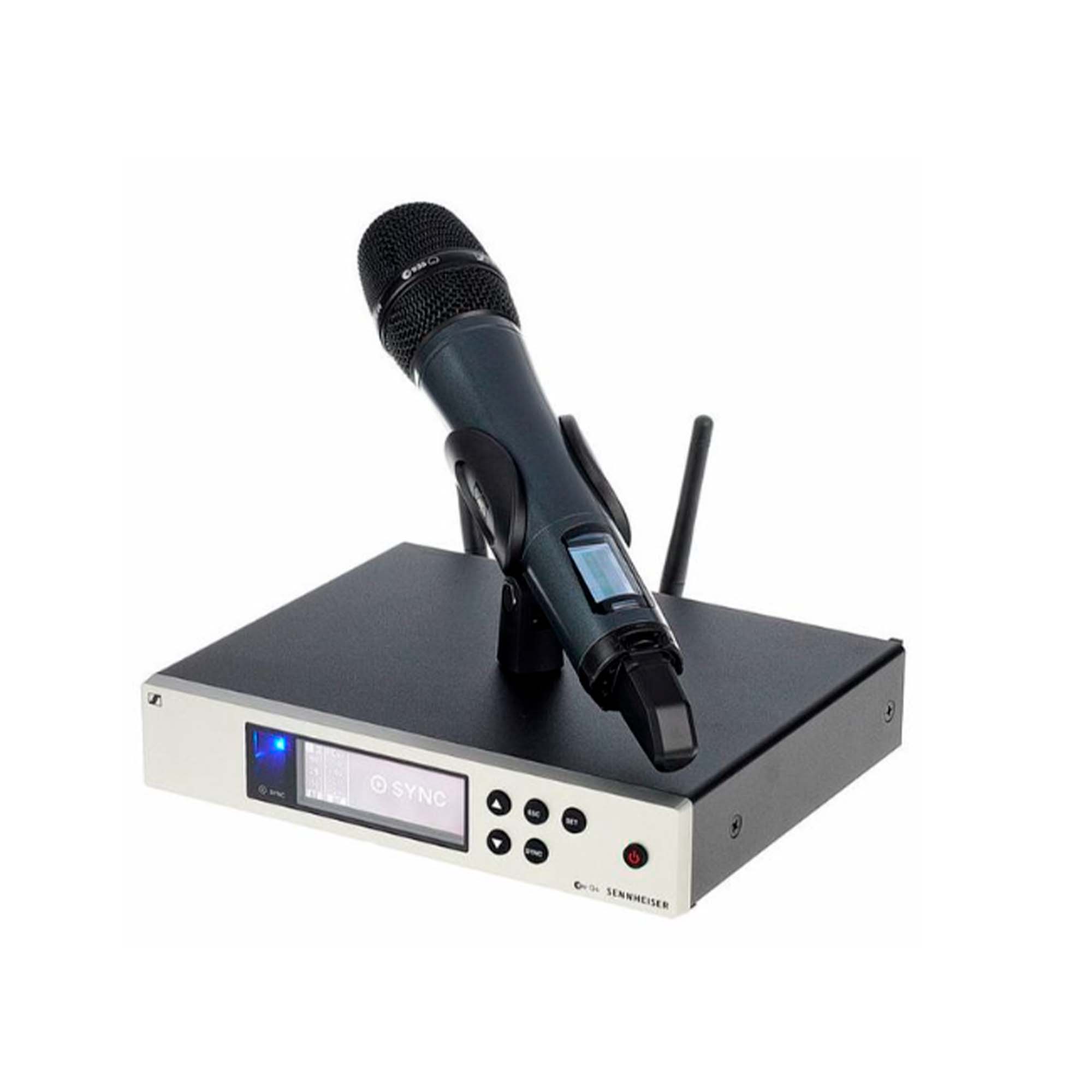

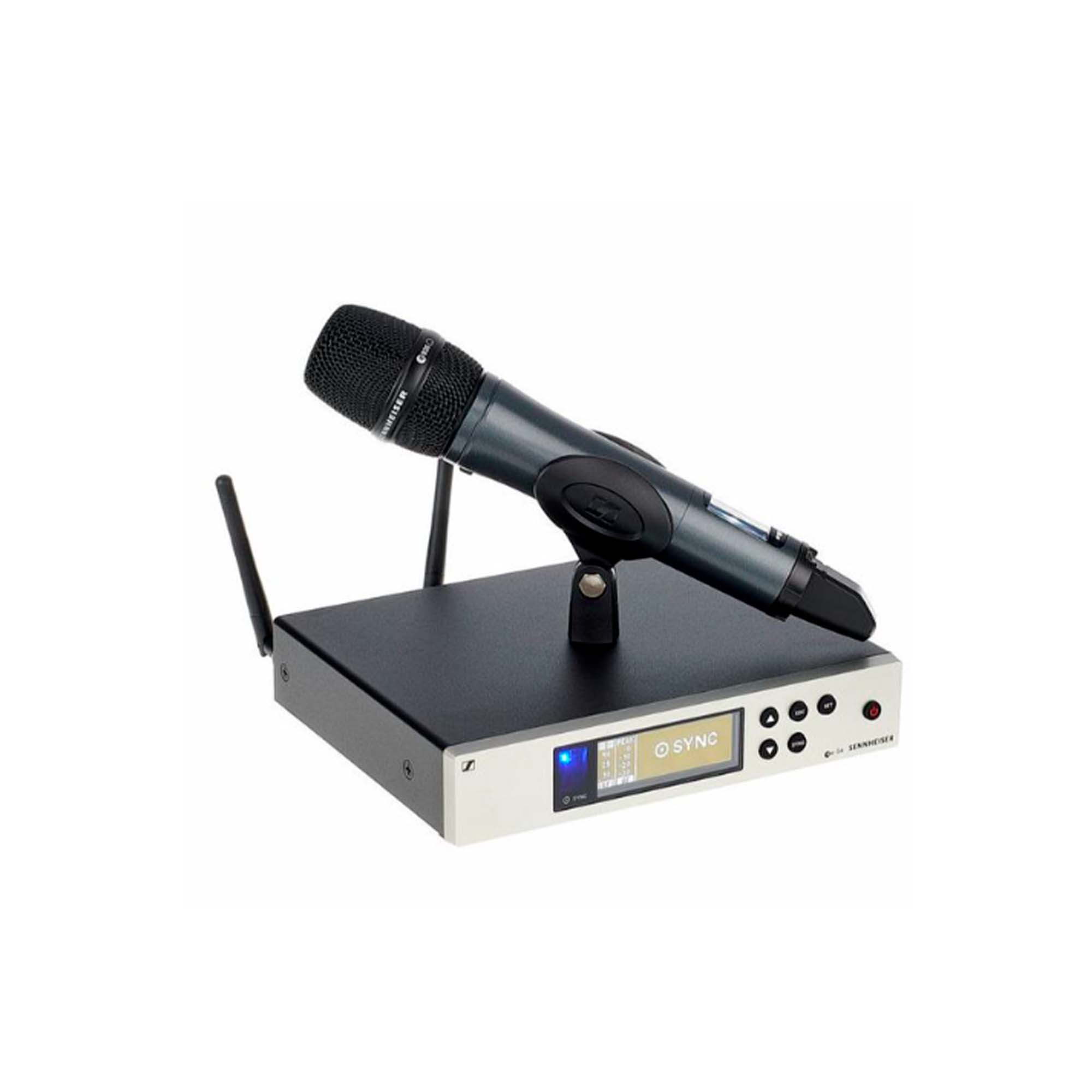

The EW 100 G4-935 radio microphone system is designed for singers, speakers, and musicians. The handheld transmitter with a built-in on/off switch and dynamic microphone head MMD 935 is ideal for professional live sound. The half-rack receiver in a full-metal housing with an intuitive LCD display has two audio outputs for connecting a sound system or audio recorder. The built-in IR interface allows for easy and simple synchronization between the transmitter and receiver. The transmitter has an output power of 30mW, providing a range of up to 100 meters.
Features:
- Half-rack receiver in a full-metal housing with an intuitive LCD display for full control.
- Easy and flexible wireless synchronization between the transmitter and receiver via IR interface.
- Quick frequency distribution between 12 receivers with the new linking feature.
- Up to 20 compatible channels.
- Frequency range up to 42 MHz, 1680 selectable frequencies, fully customizable in a stable UHF range.
- Transmission range: up to 100 meters.
Experience cutting-edge live sound with the acclaimed Sennheiser e 935 capsule on a lightweight aluminum transmitter with a built-in on/off switch.

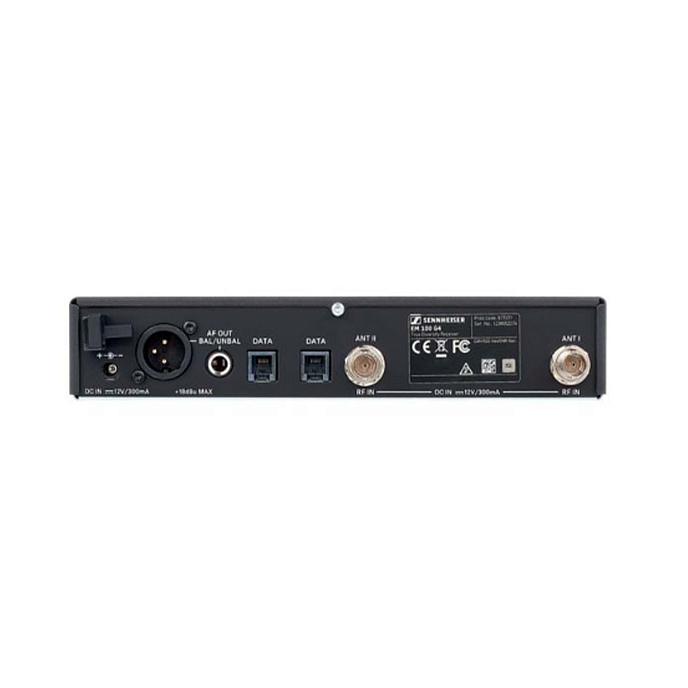

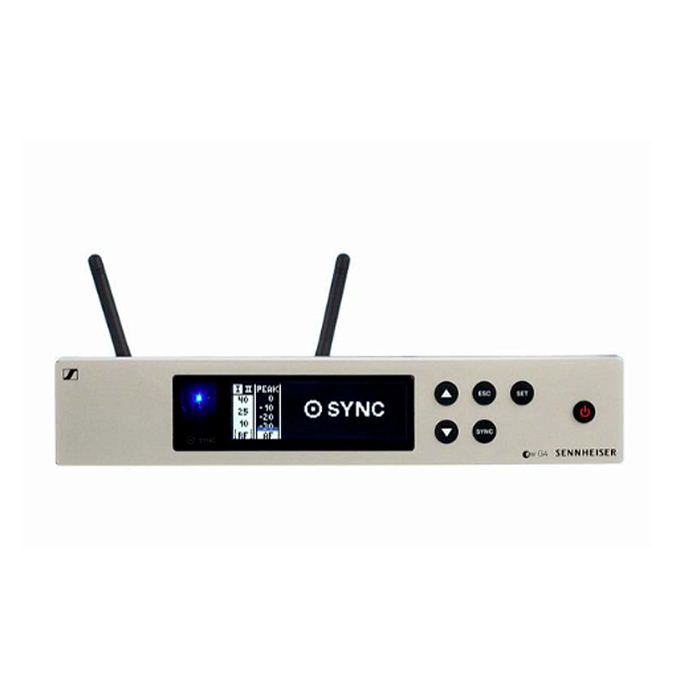

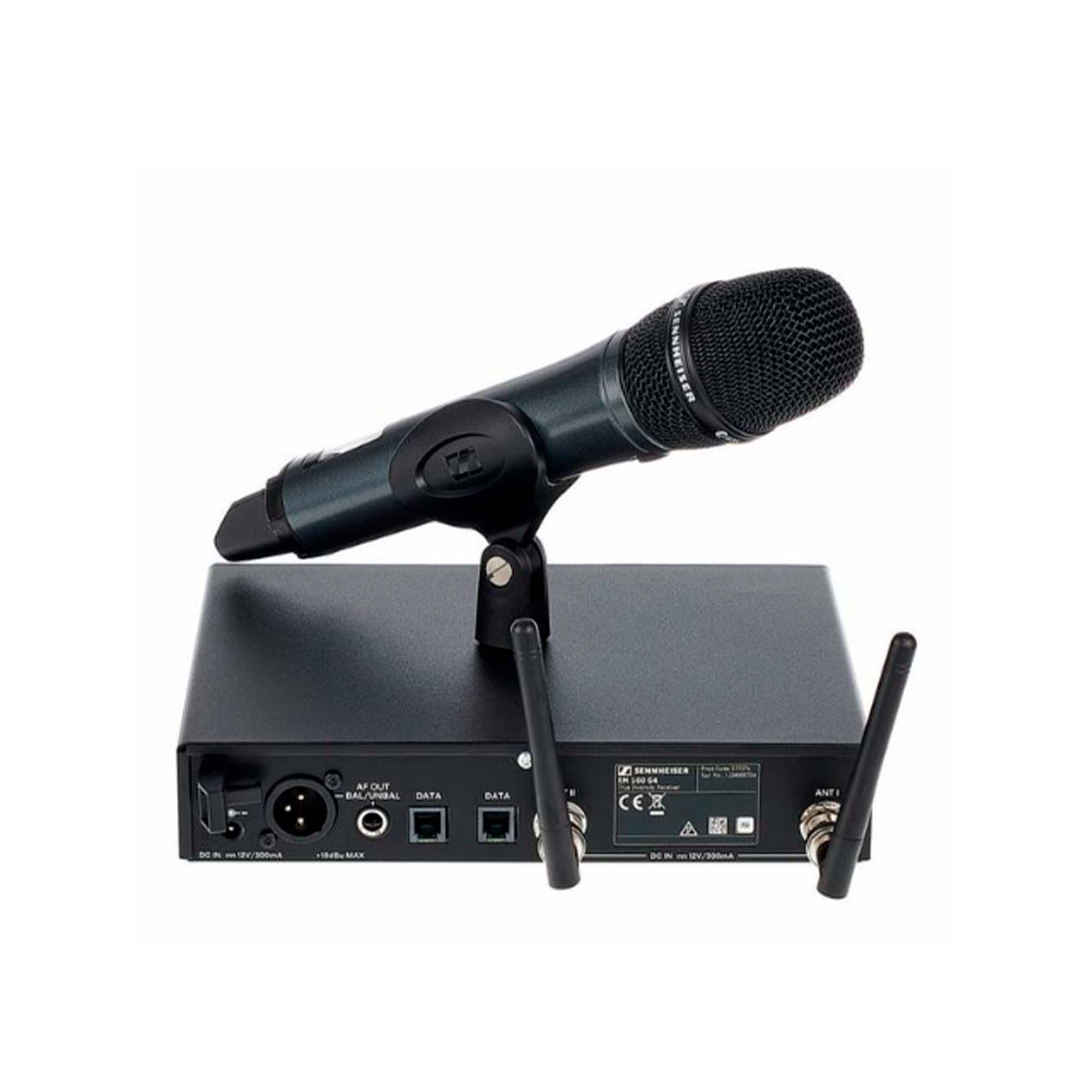

The EM 100 G4 receiver is presented in a compact half-rack housing, making it easy to mount in a rack module, as a pair of these devices only takes up the space of a standard 1U housing. The package includes mounting accessories for rack installation. There are two detachable antennas with BNC connectors, providing precise signal reception and a wide operating range. Connection to a mixing console or guitar amplifier is made through two outputs, balanced and unbalanced, with XLR and 1/4" Jack TS connectors, respectively. The system allows for flexible customization, offering up to 20 compatible channels, a frequency range up to 42 MHz, and a noise reduction function with three modes: low, medium, and high. The front panel features several buttons and a large LCD display reflecting all relevant parameters. It is possible to simultaneously connect up to 12 receivers in one system, with two RJ10 ports for synchronization on each of them. Power is supplied via a 12V DC adapter.

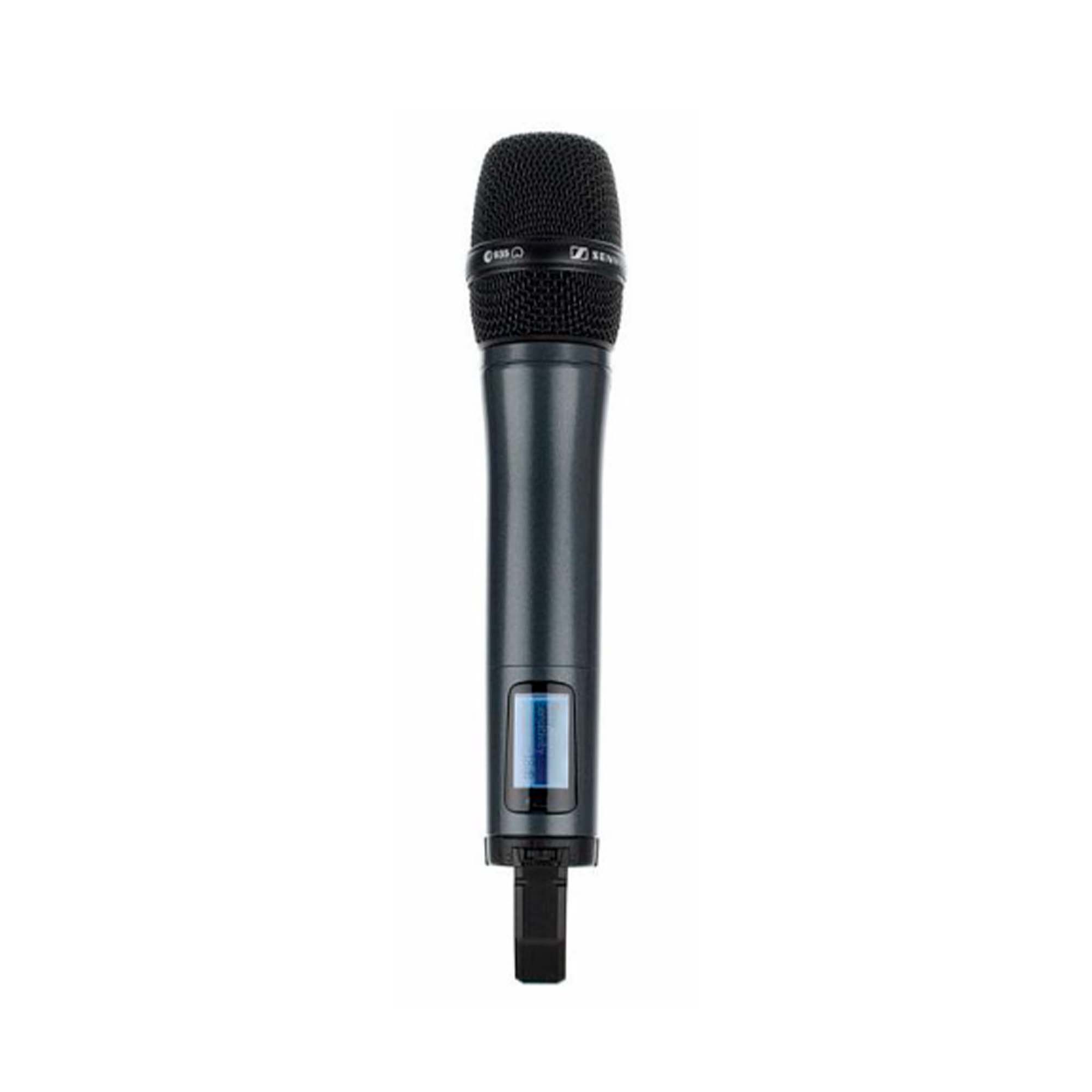

The handheld transmitter with an on/off button on the SKM 100 G4-S body is combined with the MMD 935-1 microphone capsule, which is dynamic and has a cardioid polar pattern. This microphone type has higher sensitivity, linear frequency response, and more natural sound than a dynamic microphone. The cardioid pattern provides effective feedback and ambient noise suppression from the sides of the capsule, as well as excellent signal sensitivity in front of it and to a lesser extent behind it. The maximum sound pressure level can reach 152 dB, and the frequency range extends from 80 Hz to 18 kHz. The transmitter has a power output of 30 mW. Power is provided by two AA batteries, and the continuous operation time will depend on their quality and can reach 8 hours. The package also includes the MZQ 1 microphone clamp for a stand.
The Sennheiser EW 100 G4-935 is a professional vocal radio system that allows for wireless microphone communication without the need for additional equipment. The system stands out with its wide operating range, convenient and easy operation, as well as versatile customization. The package includes the following accessories: MZQ 1 microphone clamp, power adapter, two antennas, rack mount, two AA batteries, and RJ10 cable.
Package includes:
- Handheld transmitter SKM 100 G4-S.
- Microphone head MMD 935-1.
- Stationary receiver EM 100 G4.
- Rack mount kit GA 3.
- Microphone clamp MZQ 1.
- Documentation.
