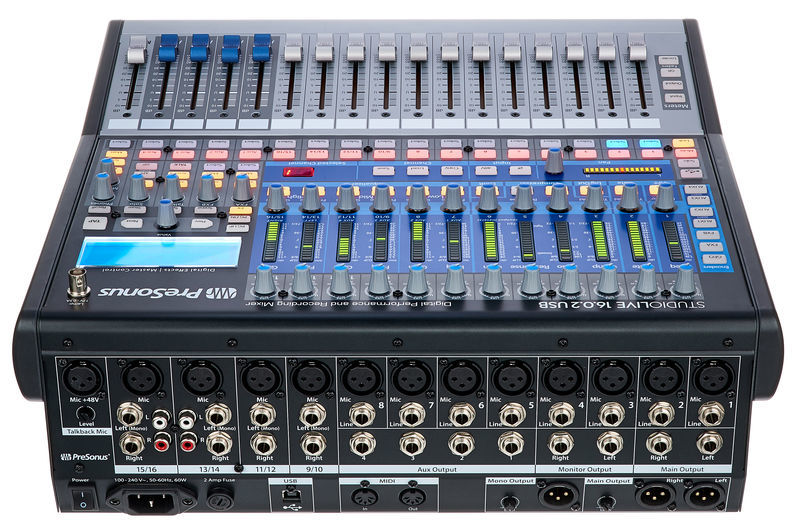

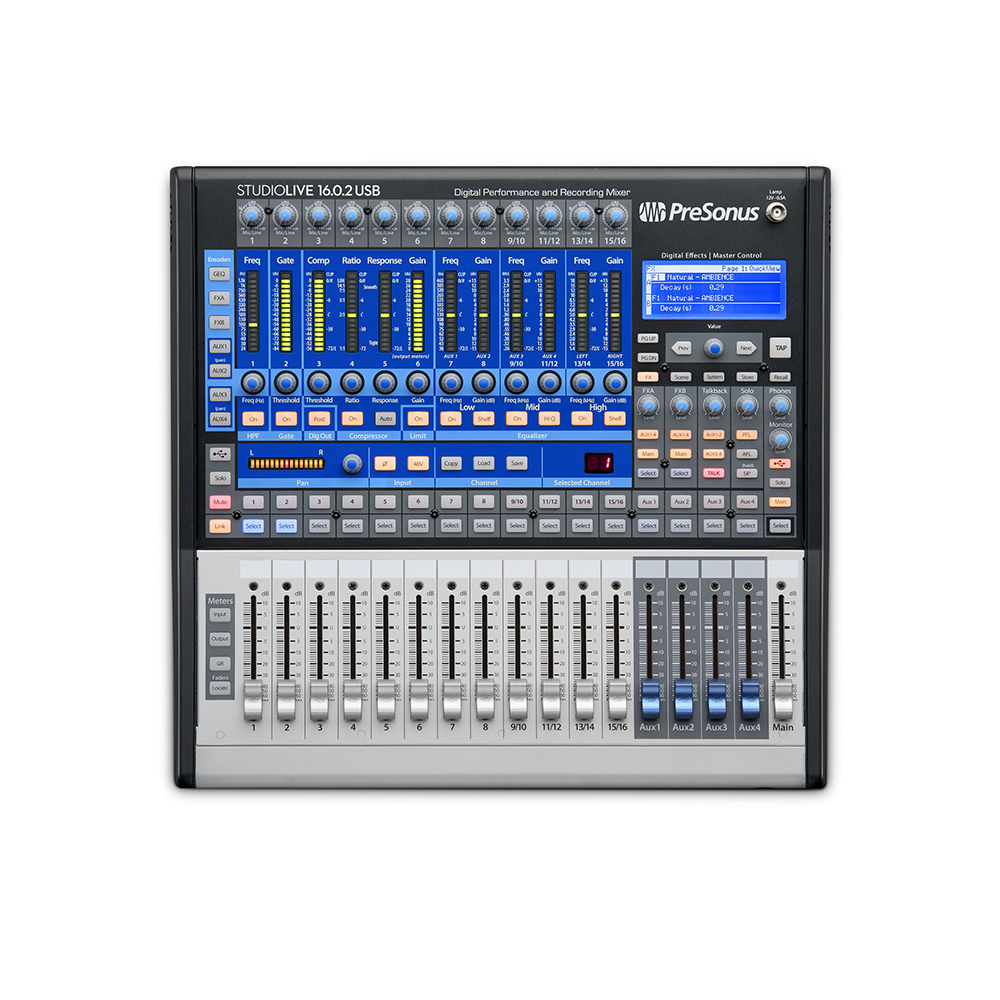

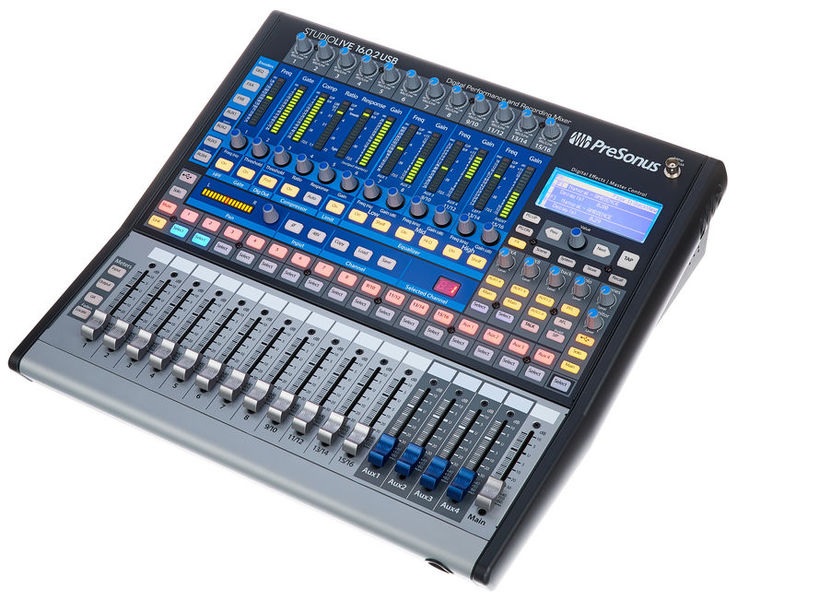

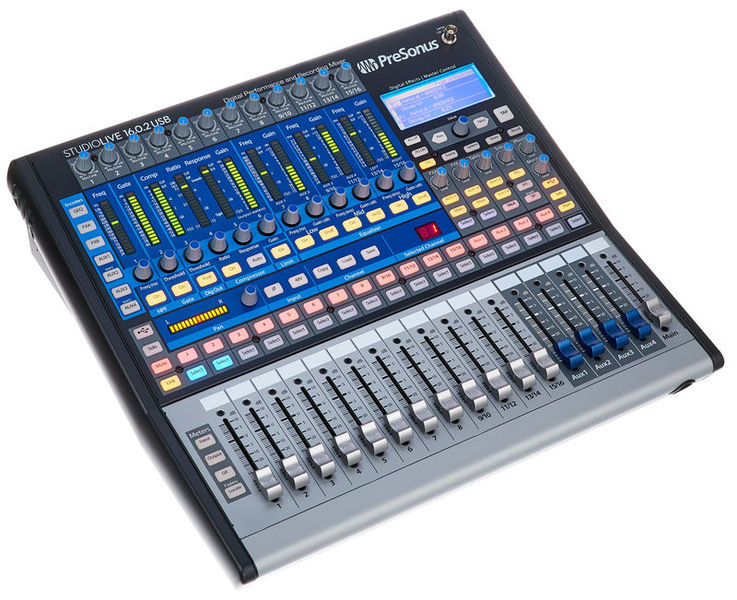

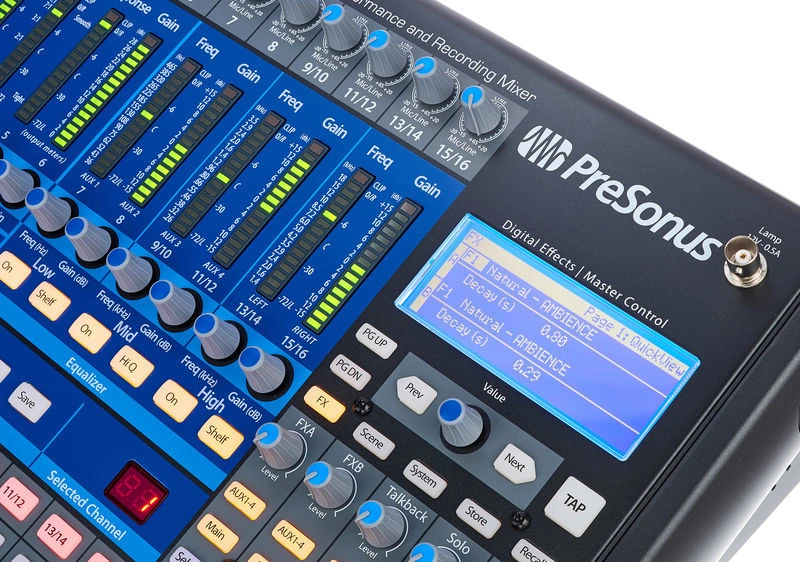

The PreSonus StudioLive 16.0.2 USB is a sixteen-channel digital mixer that will be the perfect choice for those who need a compact, high-quality mixing system with the ability for multi-track recording.
Features

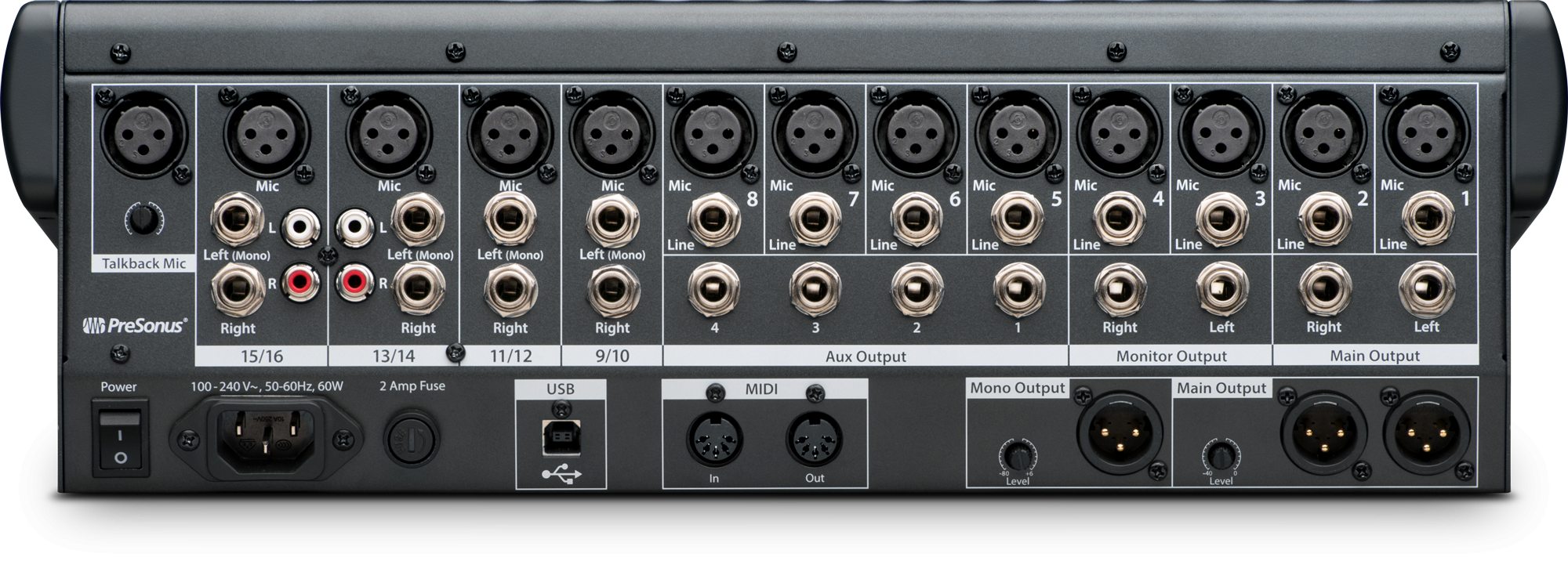

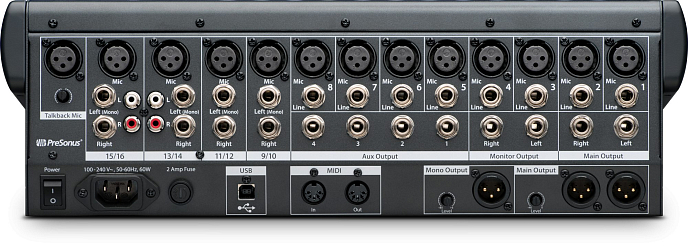

- 8 mono microphone/line inputs
- High-quality XMAX Class A microphone preamplifier
- XLR microphone and balanced ¼-inch line inputs

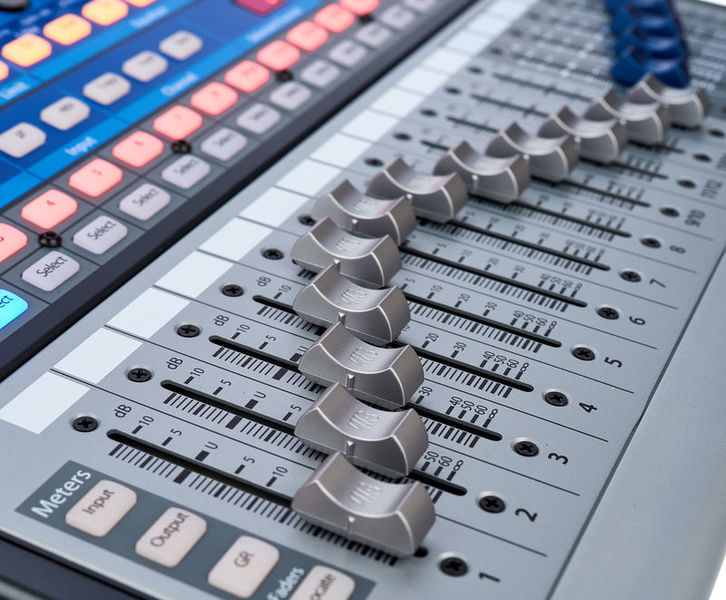

- 60 mm precision fader
- 4 stereo line inputs
- High-quality XMAX Class A microphone preamplifier (channels 9, 11, 13, and 15)
- XLR microphone inputs (channels 9, 11, 13, and 15)
- Balanced ¼-inch line inputs
- Unbalanced RCA line inputs

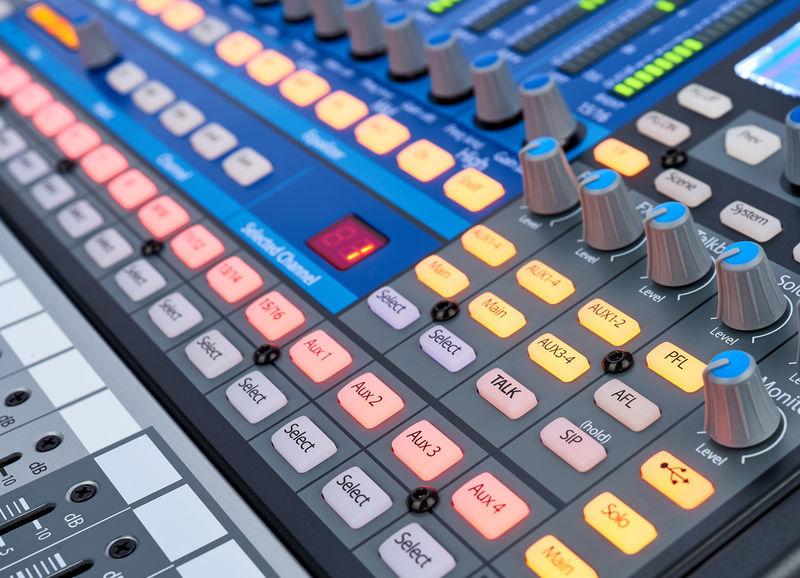

- 4 aux buses
- 2 internal FX buses
- 2 stereo 32-bit digital effects processors with customizable reverb and delay presets
- Fat Channel signal processing
- 31-band graphic equalizer
- 3-band semi-parametric equalizer (individual band on/off)
- Full-featured compressor
- Limiter
- Phase reverse (only for 12 microphone preamplifiers)
- Stereo channel for input channels and AUX buses
- High-pass filter
- USB recording interface with 18 inputs/16 outputs;
- Remote control of every mixing function from your computer, iPad, or Android tablet using UC Surface
- DAW Control
- QMix-UC for iOS or Android
- Multi-track Capture 3.0 software
- MIDI control
- Lock mode.
The main features of the PreSonus StudioLive 16.0.2 USB is based on the popular and award-winning model PreSonus StudioLive 16.0.2.
The updated model has the same number of channels: 8 mono and 4 stereo, as well as other features and advantages of its predecessor, including ease of use, a comprehensive functionality, wide signal processing capabilities, and high sound quality. Excellent sound quality is ensured by the use of proprietary XMAX microphone preamplifiers and 24-bit Burr-Brown converters with a dynamic range of 118 dB.
The new mixer differs from the 2011 model only in one aspect - it is equipped with a more current USB interface with 18 inputs and 16 outputs, instead of the FireWire 400.

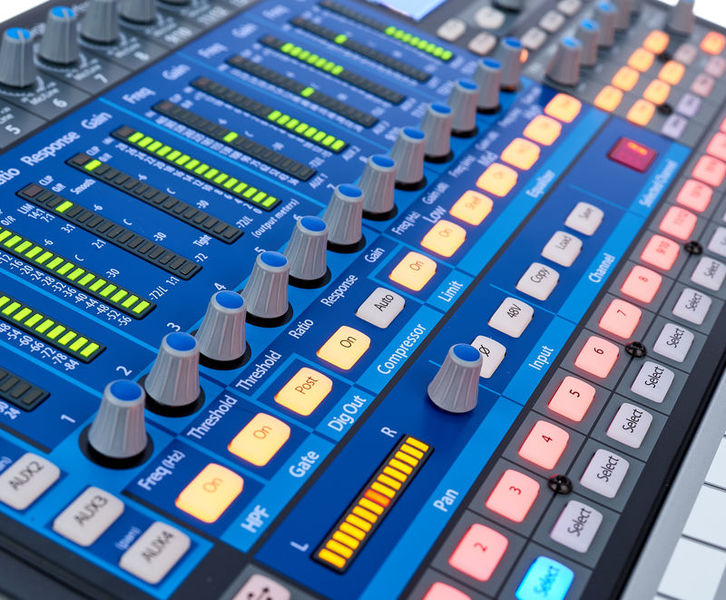

Fat Channel
The unique Fat Channel provides:
- Compressor, limiter, expander, and 3-band semi-parametric equalizer on each channel and bus
- High-pass filter on each channel
- Phase reverse for channel microphone preamplifiers
- A library of professionally created presets
- The ability to save and selectively recall processor settings.
Superior Sound
Connect the StudioLive 16.0.2 USB mixer via USB and you will instantly hear the detail and clarity that you would expect to find only on a much more expensive console.
High-quality Burr-Brown converters on each input and output provide a best-in-class dynamic range of 118 dB, allowing you to capture all high and low frequencies with great accuracy and without audible distortion.
The XMAX microphone preamplifiers provide incredibly high headroom, deep low frequencies, smooth high frequencies, and a rich overall sound.
PreSonus Capture Software
PreSonus Capture software is an intuitive multi-track recording application with fully integrated Virtual Soundcheck mode that runs directly on the StudioLive 16.0.2 USB digital mixer or on a Mac or Windows computer. The StudioLive 16.0.2 USB mixers and software work together to create a cohesive ecosystem that helps you realize your creative vision.
MIDI Control
The StudioLive 16.0.2 USB offers MIDI input and output. Use a MIDI pedal or DAW to:
- Recall scenes by changing MIDI program
- Control main output volume and effects level
- Bypass effects between songs
- Switch from a large amount of reverb to a small delay and change the mix for solos.
Remote Control
The digital mixer PreSonus StudioLive 16.0.2 USB is closely integrated with a full range of modern software. Perform wireless mixing with the UC Surface touch control software for macOS, Windows, iPad, and Android. Control monitor mixes with QMix-UC for iPhone, iPod touch, and Android devices.

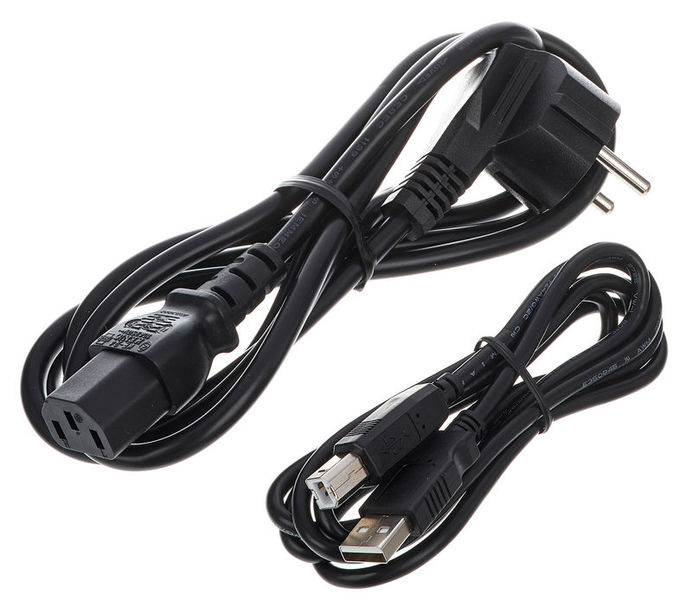

Package includes:
- PreSonus mixer console
- Power cable
- USB-B cable
- Manual.
