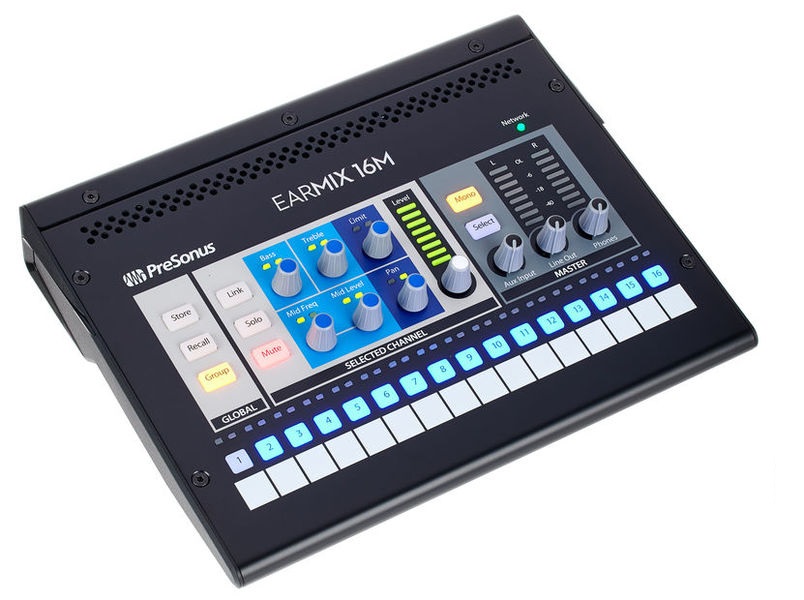

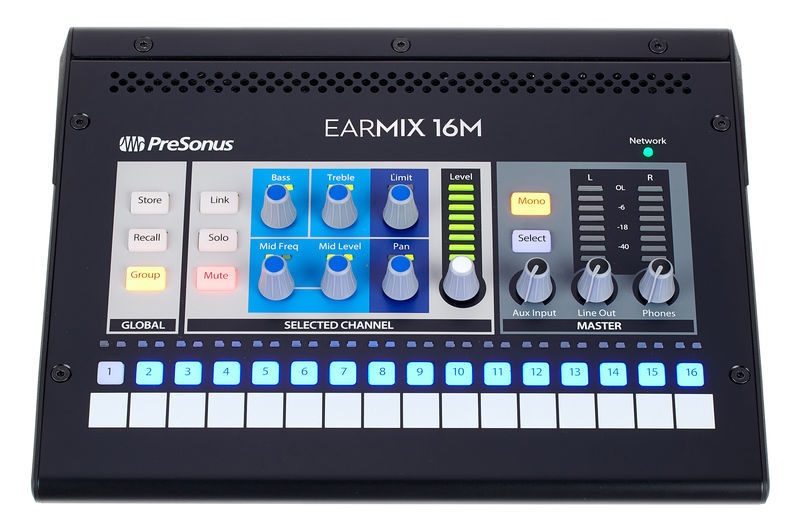

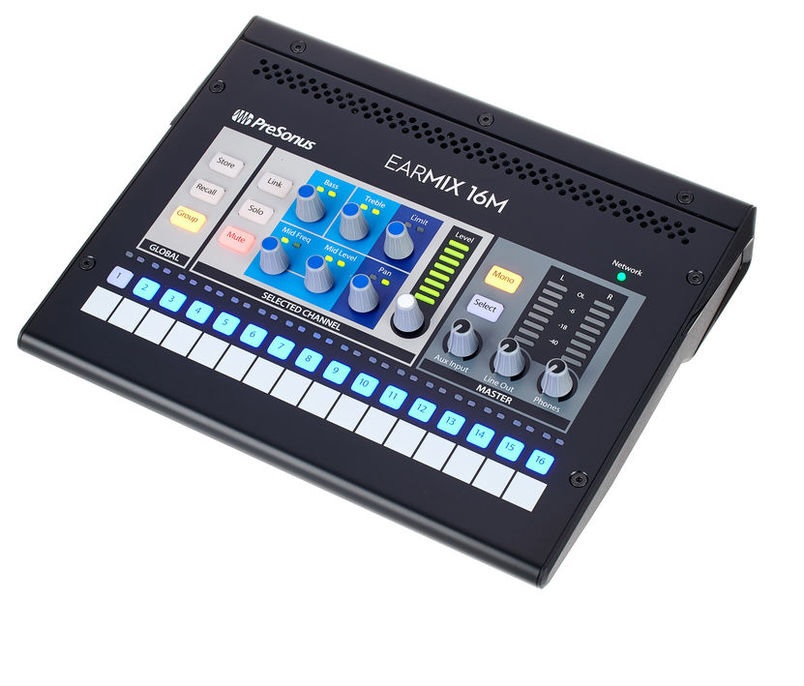

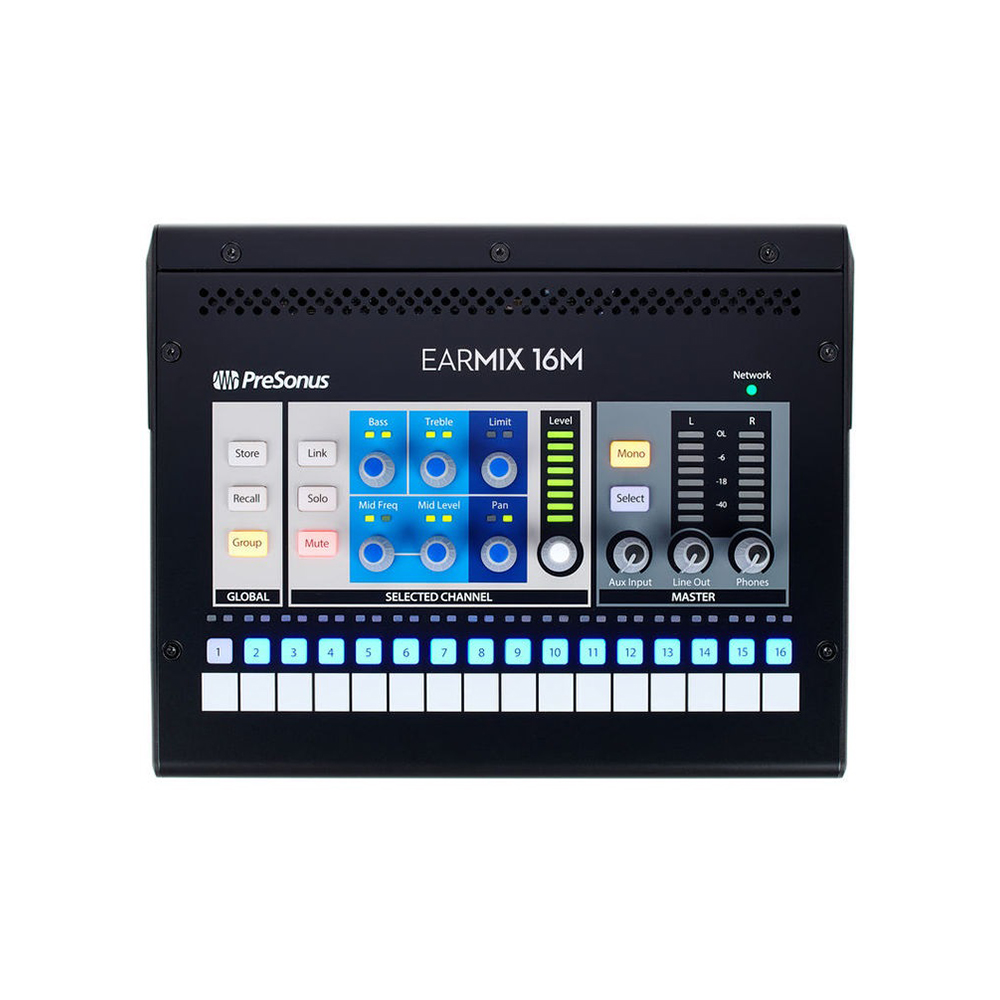

The PreSonus EarMix 16M is a 16-channel personal monitor mixer that provides high-quality, networked monitoring for stage, installed sound systems, and studio recording.
Developers have provided the EarMix 16M with professional sound quality, easy-to-use mixing features, and a high-performance headphone amplifier to give you the diverse tools necessary for monitoring.
Features:

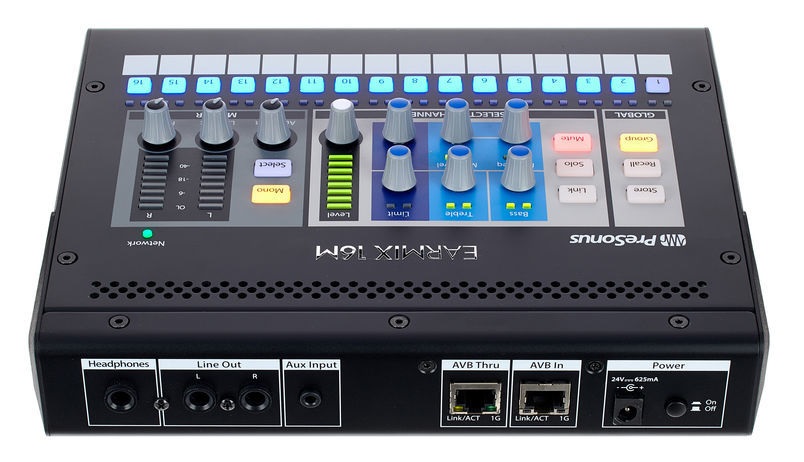

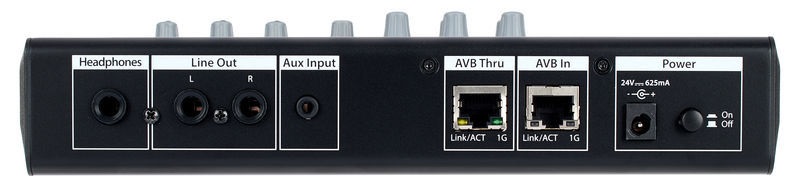

- Stereo AUX 3.5mm input;
- 2 balanced TRS line outputs;
- ¼-inch stereo TRS headphone output;
- Headphone amplifier;
- 3-band EQ with adjustable mid-frequency on all channels and the main mix;
- Stereo channel linking;
- Channel grouping;
- Store up to 16 mix scenes;
- 16 LED signal presence and limiting indicators;
- 8-segment stereo output meter;
- Channel level rotary control with 8-segment level indicator;
- AUX input level control;

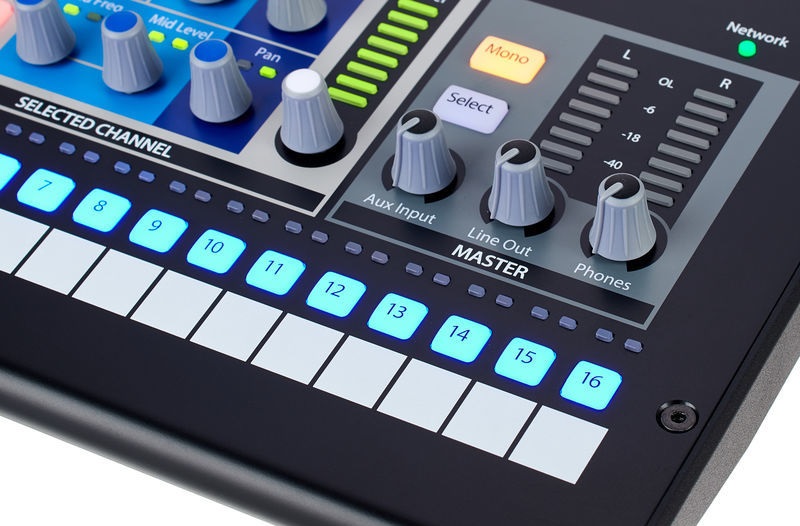

- Independent monitor (line output) and headphone level controls;
- Power over Ethernet (PoE) technology;
- 16 mono input channels via AVB network;
- 2 AVB Ethernet ports;

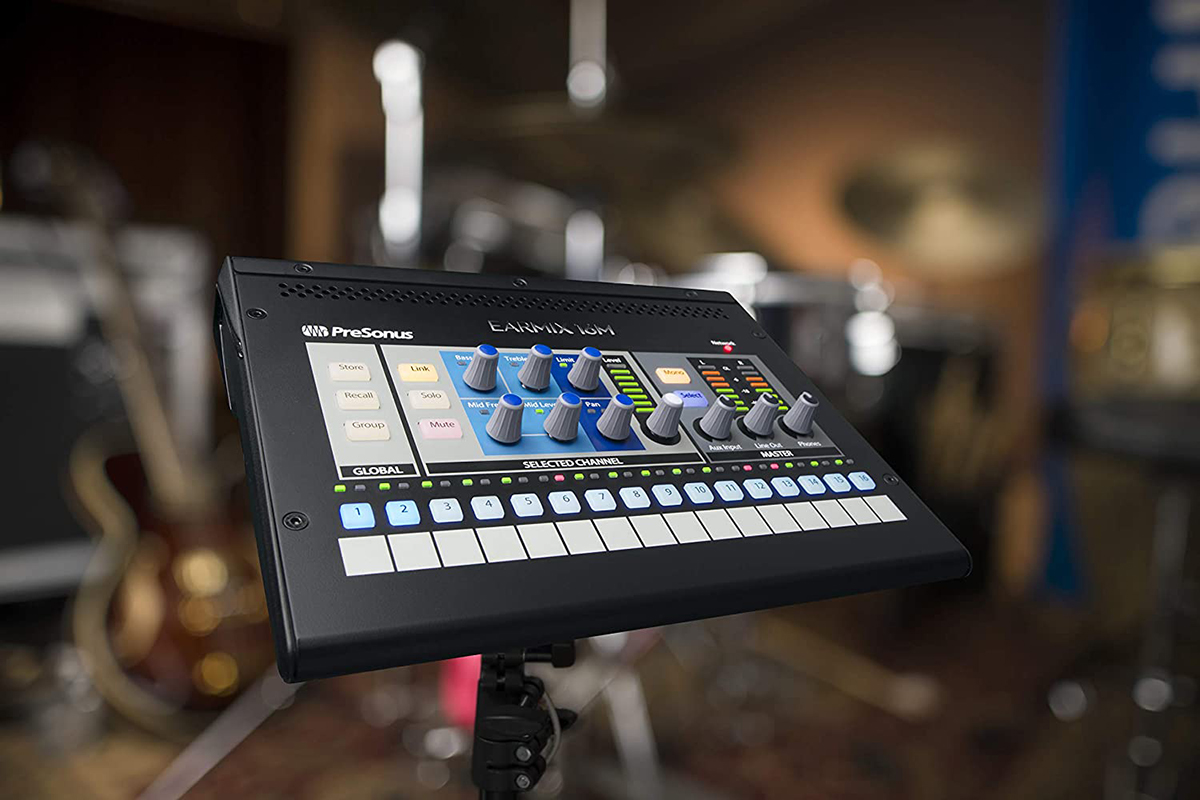

- Microphone stand mounting capability.

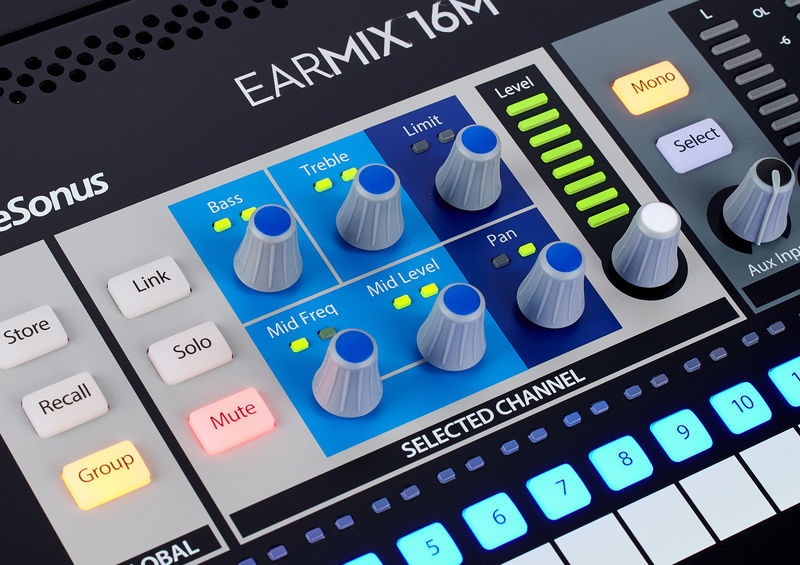

The EarMix 16M features all channels with 3-band equalizers and limiters. This sound processing is also available for the main bus. Channels can be easily grouped, simplifying complex mixes. Once you perfect your monitor mix, save the entire scene to internal memory; you can save and recall up to 16 mix scenes.
Headphone Amplifier
The EarMix 16M is equipped with a loud and clear headphone amplifier that can handle low-impedance devices such as professional in-ear monitors. It uses a digital-analog converter, providing a wide dynamic range and low signal-to-noise ratio. Special attention has been paid to the amplifier design to ensure superior sound quality, regardless of the type of headphones used.
Power over Ethernet (PoE) Technology
The EarMix 16M can receive power from the included external power supply or through the same Ethernet connection used for AVB networked audio, thanks to Power over Ethernet (PoE) technology.
With PoE, one cable provides both digital audio and electrical power. This allows you to place the EarMix 16M personal monitor mixer wherever it's needed.
The PreSonus SW5E AVB Five-Port Switch is compatible with any AVB switch, providing PoE and allowing multiple EarMix 16M headphones to be connected to the AVB network.
Universal Personal Monitoring
The EarMix 16M is suitable for personal monitoring mixers wherever you need them: on stage, in the studio, or in a reporter's booth. When combined with the StudioLive 16R, the EarMix 16M becomes a complete personal monitoring solution that can be added to any mixer system. Simply connect the outputs of your installed console to the StudioLive 16R and route them to the EarMix 16M personal monitoring mixers via AVB. The StudioLive 16R allows you to add independent reverb, compression, and more to your monitoring system. Need more than 16 inputs? Combine the EarMix 16M with the StudioLive 24R or StudioLive 32R, and you can create independent buses that can be routed to each EarMix 16M on the network.
Complete Network Solution
The StudioLive Series III network product ecosystem is at the forefront of AVB network technologies. It's easily expandable and quickly configurable. The EarMix 16M adds simple personal monitoring that can be placed anywhere in the network. As part of the StudioLive Series III system or independently, the PreSonus EarMix 16M mixer provides powerful personal monitoring features with an intuitive workflow.

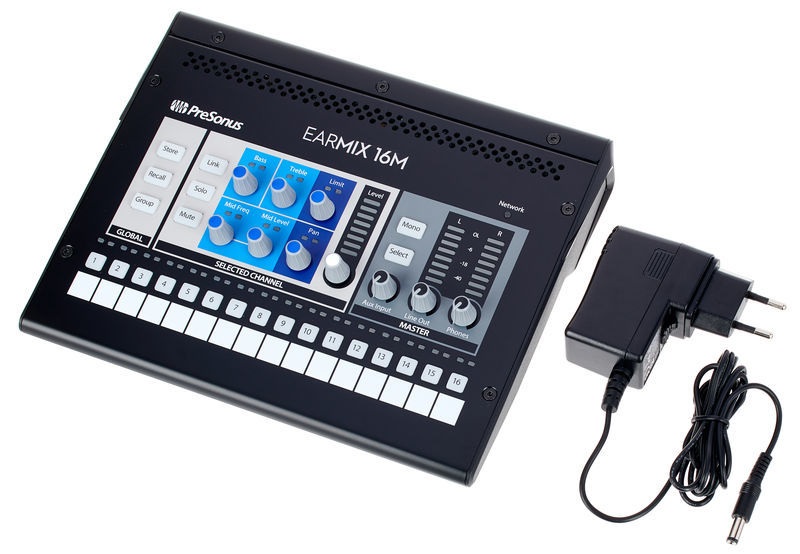

Package Includes:
- PreSonus EarMix 16M mixer;
- External 24V DC power supply;
- Manual.
