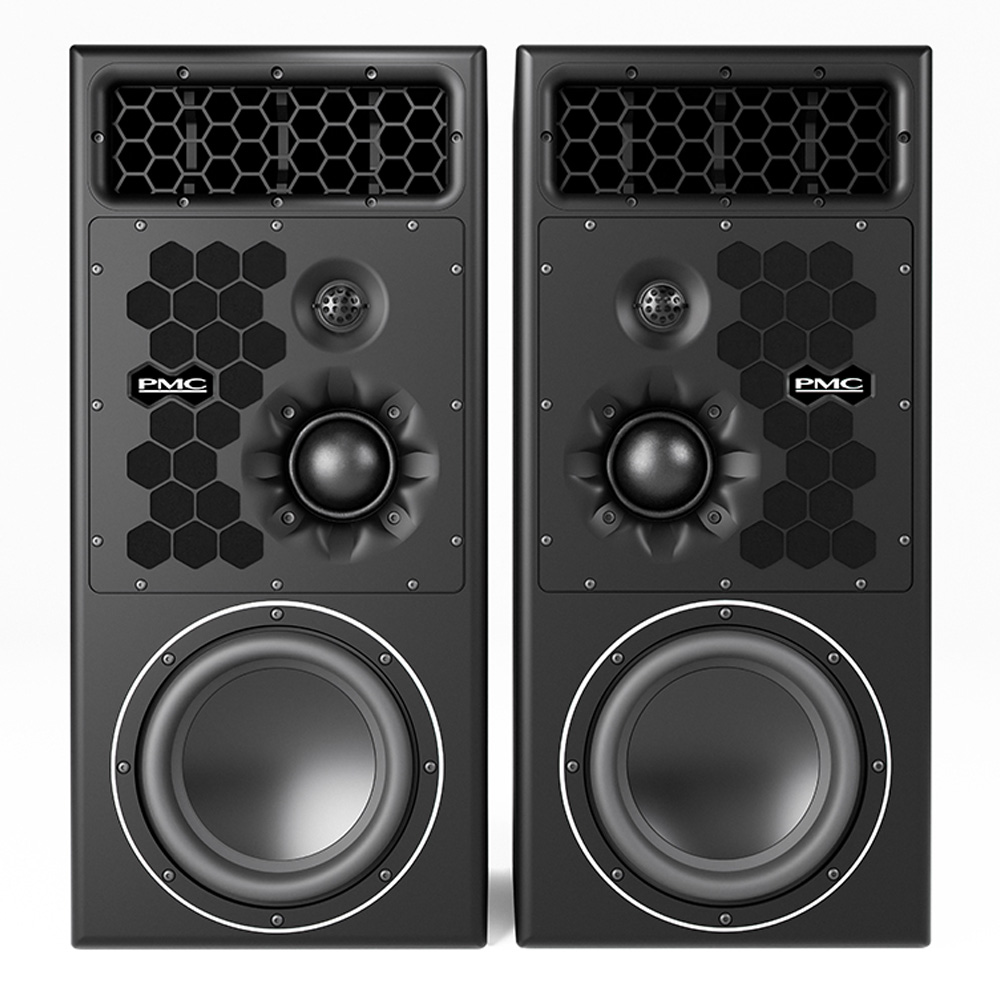

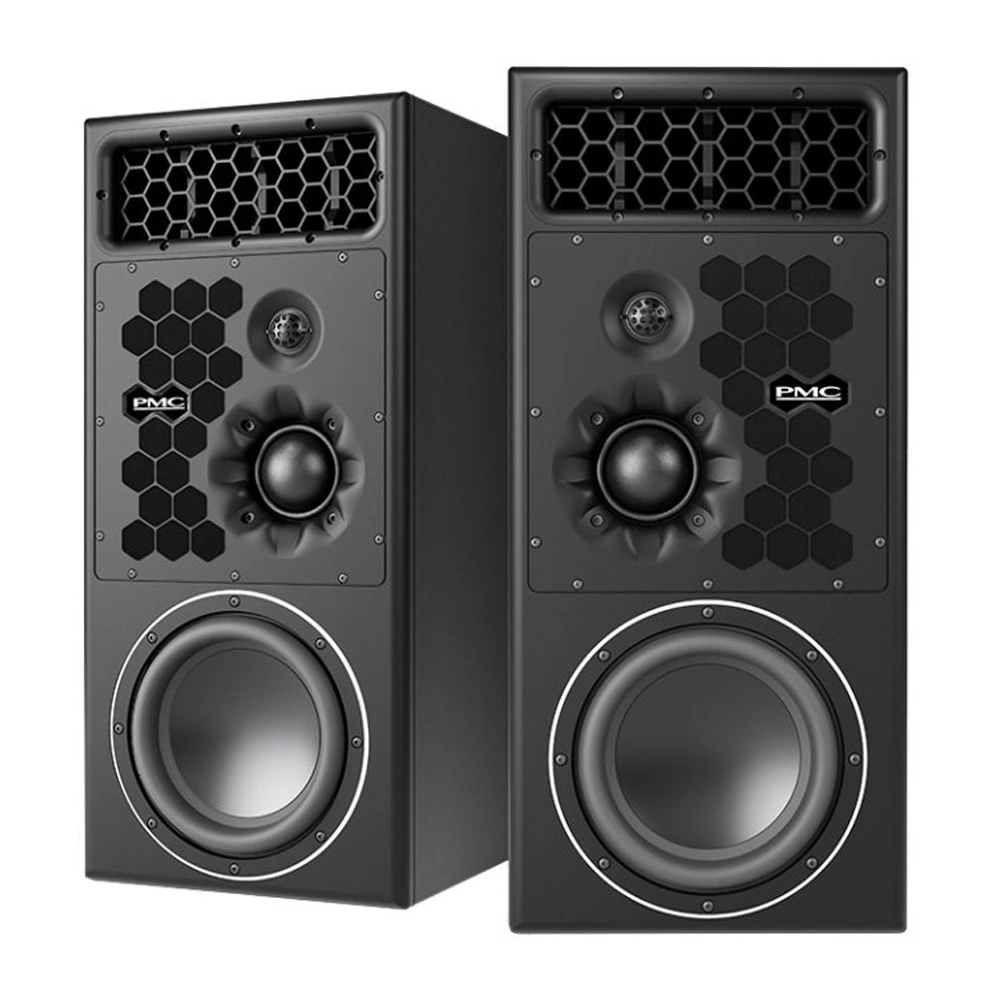

The PMC12 is a large-scale monitoring system in a compact form factor designed for small to medium music studios, mixing rooms, as well as film and television post-production, mastering, and broadcast streaming. Perfect for both stereo and immersive monitoring, the system can be configured in an XBD setup with two cabinets to increase system scale and enhance low-frequency extension.
The PMC12, constructed in the latest version of the ATL cabinet with LaminairX vents, features a 34mm soft-dome tweeter handcrafted, a new PMC75v3 mid-range driver with exclusive a-void damping, and an innovative 12-inch custom-designed low-frequency driver. This combination delivers improved low-frequency characteristics and control usually found in significantly larger cabinets and 15-inch systems.

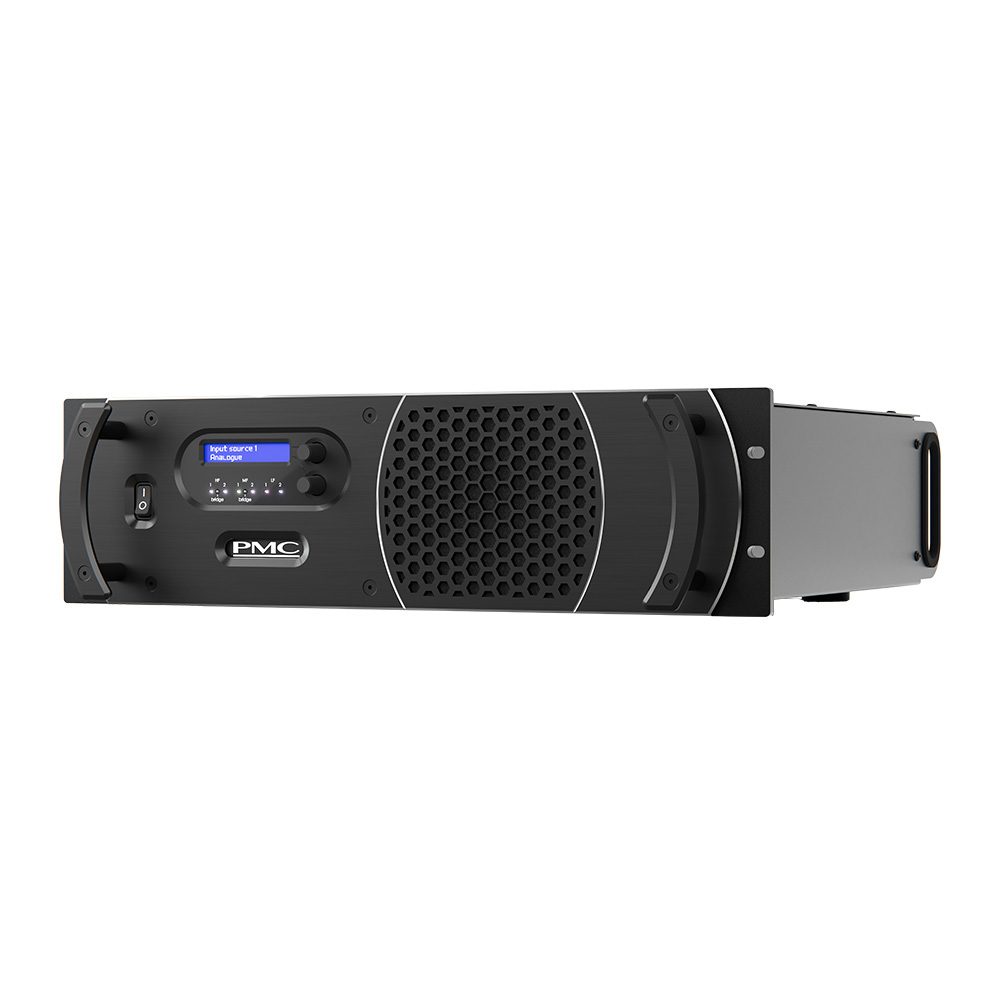

Power is provided by the rack-mountable DSP/amplifier PMC master36, utilizing ultra-transparent Class D amplification to deliver 800W to the tweeter and mid-range drivers, and 1000W to the bass driver. The integrated DSP ensures precise digital crossovers optimized for the individual PMC12 drivers, transparent excursion limiting for system protection, and a comprehensive room optimization equalizer. The system accepts both analog and digital inputs and can be controlled via a standard local network through the browser-based SoundAlign2 interface.
Package includes:
- Studio monitor - 2 units
- Manual
