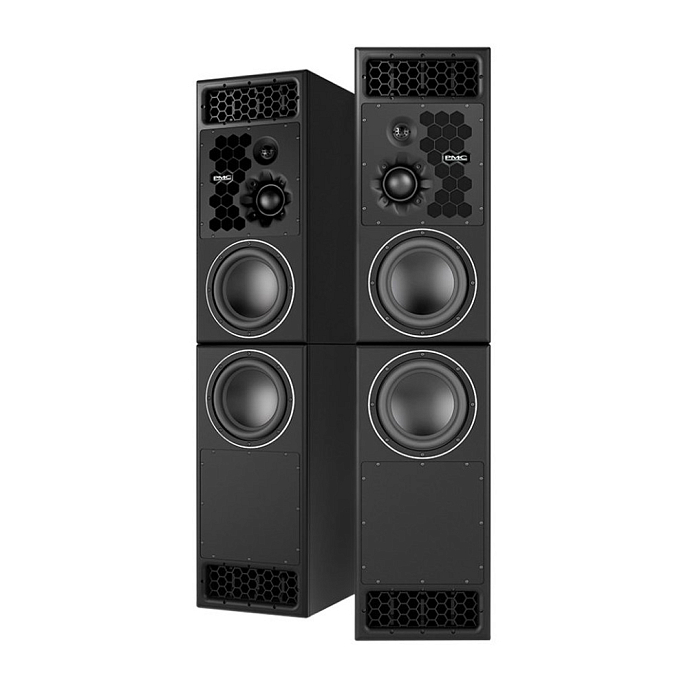

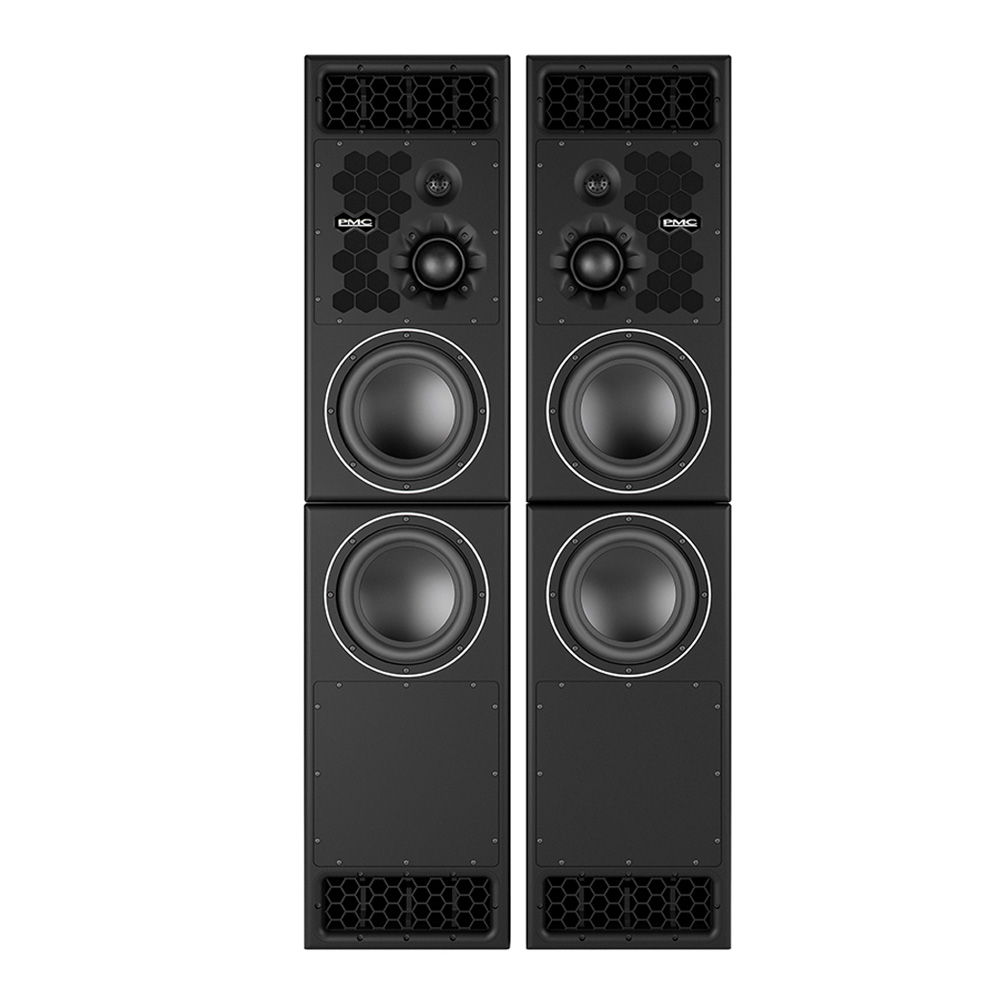

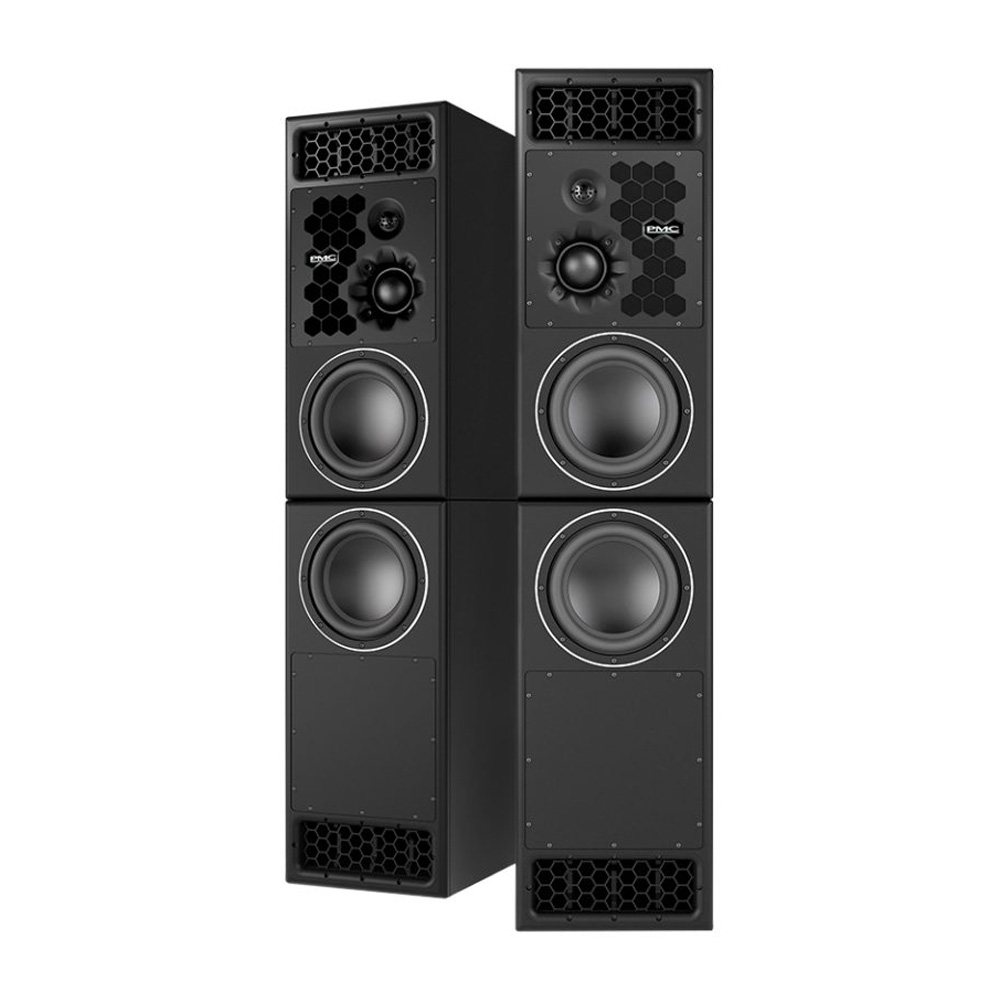

PMC10 XBD is the perfect embodiment of the PMC10 design. This two-cabinet system consists of the standard three-way PMC10 speaker, complemented by a second identical cabinet equipped with only a low-frequency driver. This combination increases power and low-frequency extension, providing greater scale and impact, making it ideal for both stereo monitoring and immersive monitoring in large-scale music tracking and mixing applications, as well as for film and TV post-production, mastering, and broadcast streaming.
The main cabinet features a 34mm soft dome handmade tweeter and PMC75v3 mid-frequency driver, equipped with exclusive a-void damping and proprietary n-compass waveguide. All of this is housed in a rotatable panel for vertical or horizontal placement. The glowing logo displays the system status.
Low frequencies are reproduced by an innovative 10-inch bass driver of proprietary design, specifically engineered to work with the latest version of our ATL cabinet with LaminairX vented openings. The XBD cabinet is equipped with the same 10-inch bass driver, connected in parallel to the main speaker, working to enhance the system's scale and impact. The primary and XBD cabinets can be placed on separate free-standing vertical or horizontal stands or installed side by side in a ceiling grid.
Power to both cabinets is provided by the rack-mountable PMC Master36 DSP/amplifier, utilizing ultra-transparent Class D amplification delivering 800W to the tweeter and midrange drivers, and 1000W to each of the two bass drivers, providing a total power of 3.6kW. The system's integrated DSP provides precise digital crossovers optimized for the individual combination of PMC10 drivers, as well as transparent excursion limiting for system protection and a comprehensive room optimization equalizer. The system accepts both analog and digital inputs and can be controlled over a standard local network via the browser-based SoundAlign2 interface.
Package includes:
- Studio monitor and subwoofer - 2 pcs
- Manual
