Cable

Nobunaga Labs Entry Mikasa MMCX - 4.4mm

no reviews

AED 389

Product code: 122207

CHAT WITH US

10:00-22:00

Available in stores

    Delivery from the supplier's remote warehouse.
    We will contact you within 48 hours to clarify the delivery time.

    Description

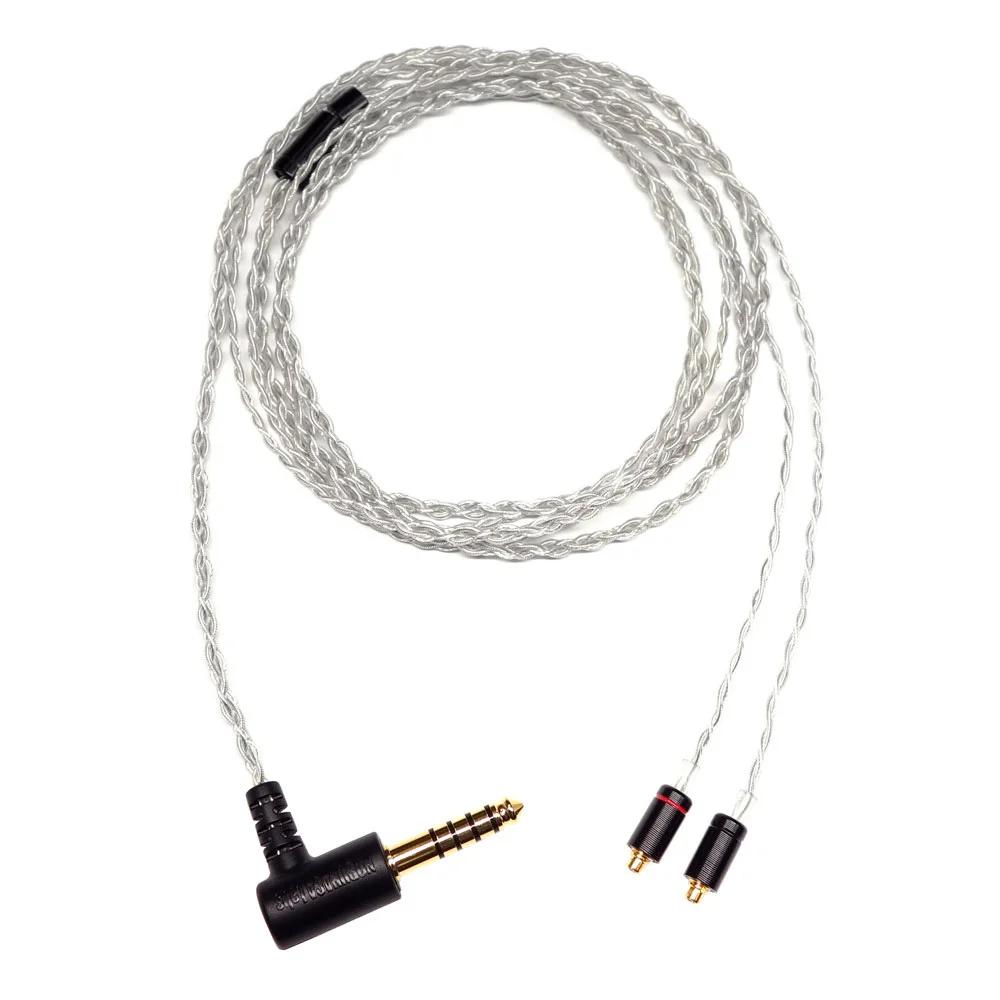

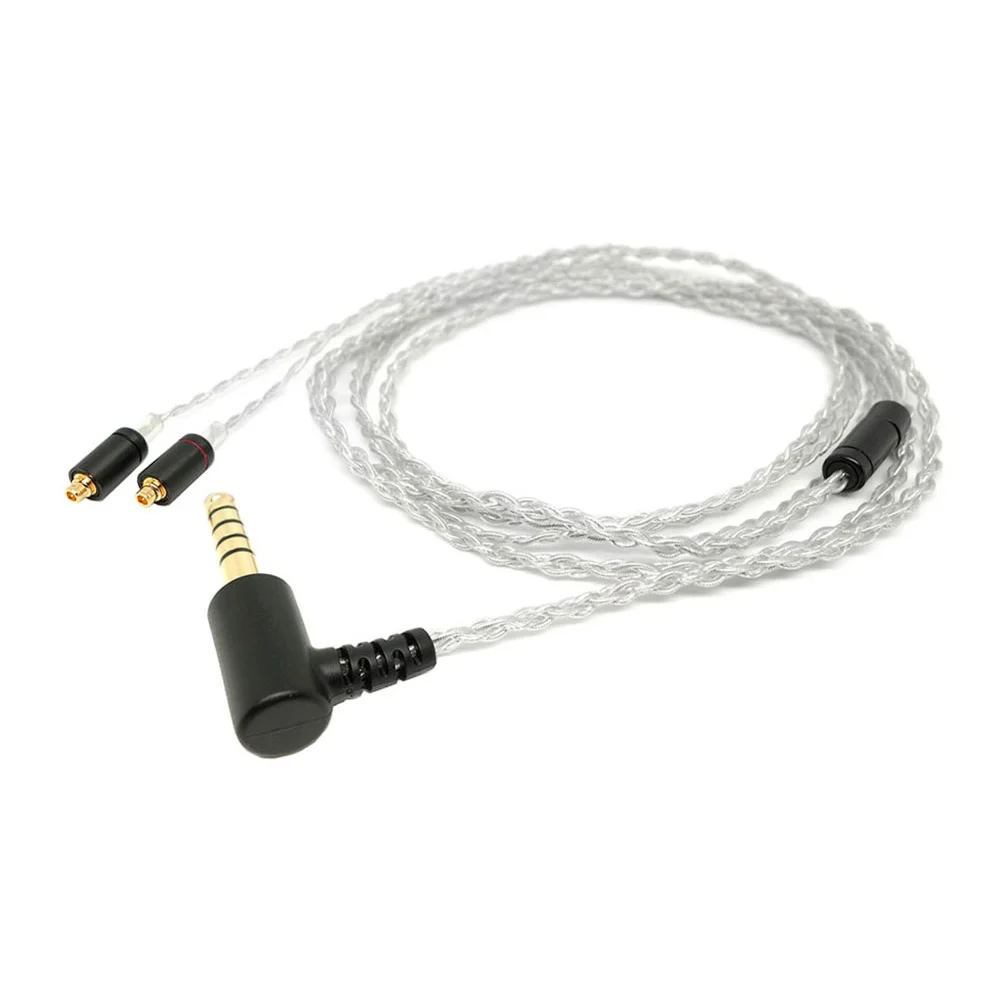

    The Nobunaga Labs Entry Mikasa cable is designed with a stylish appearance and features PVC fibers that directly cover the conductive wires. It is also enclosed in a PVC sheath, providing a soft touch and reducing noise caused by touching.

    The cable is equipped with gold-plated connectors at both ends, featuring an angled structure to ensure minimal signal loss. The braided conductor structure helps to minimize noise.

    Key Features:

    • Conductor: Tinned oxygen-free copper

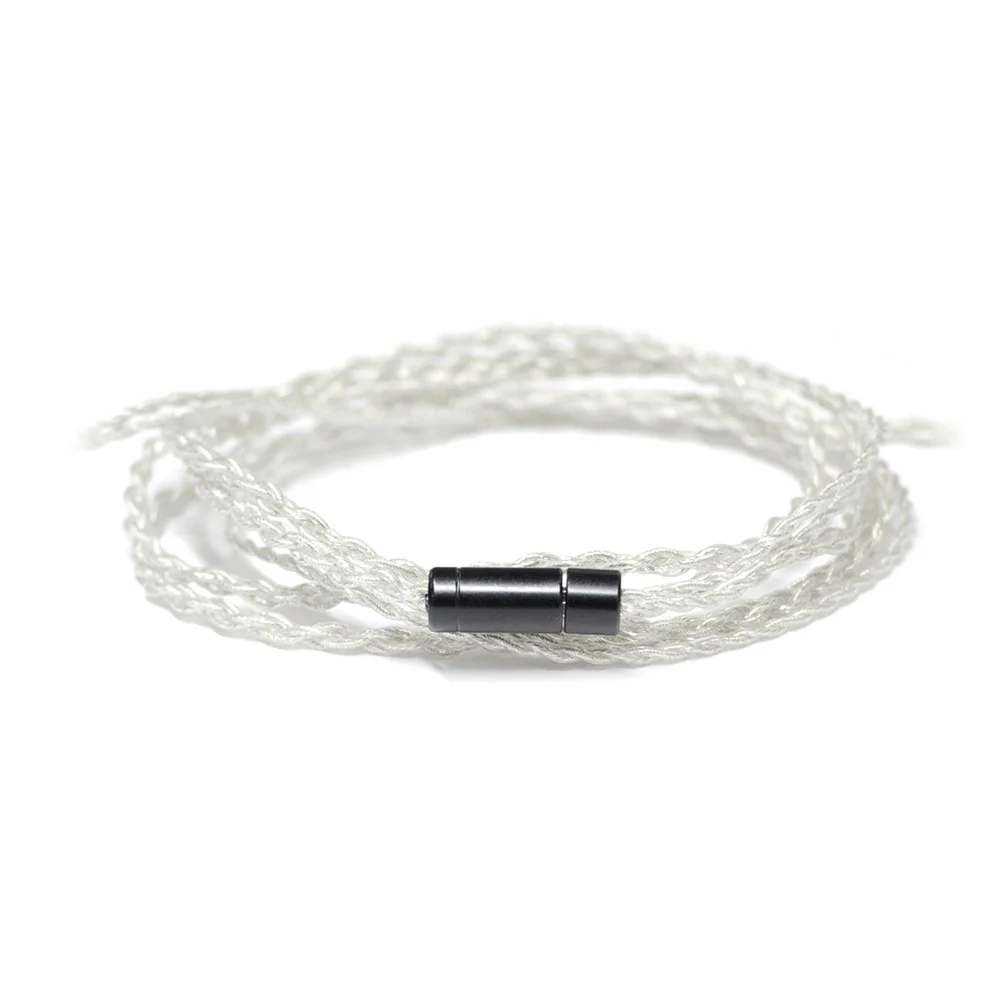

    • Braided structure with 4 multi-strand conductors

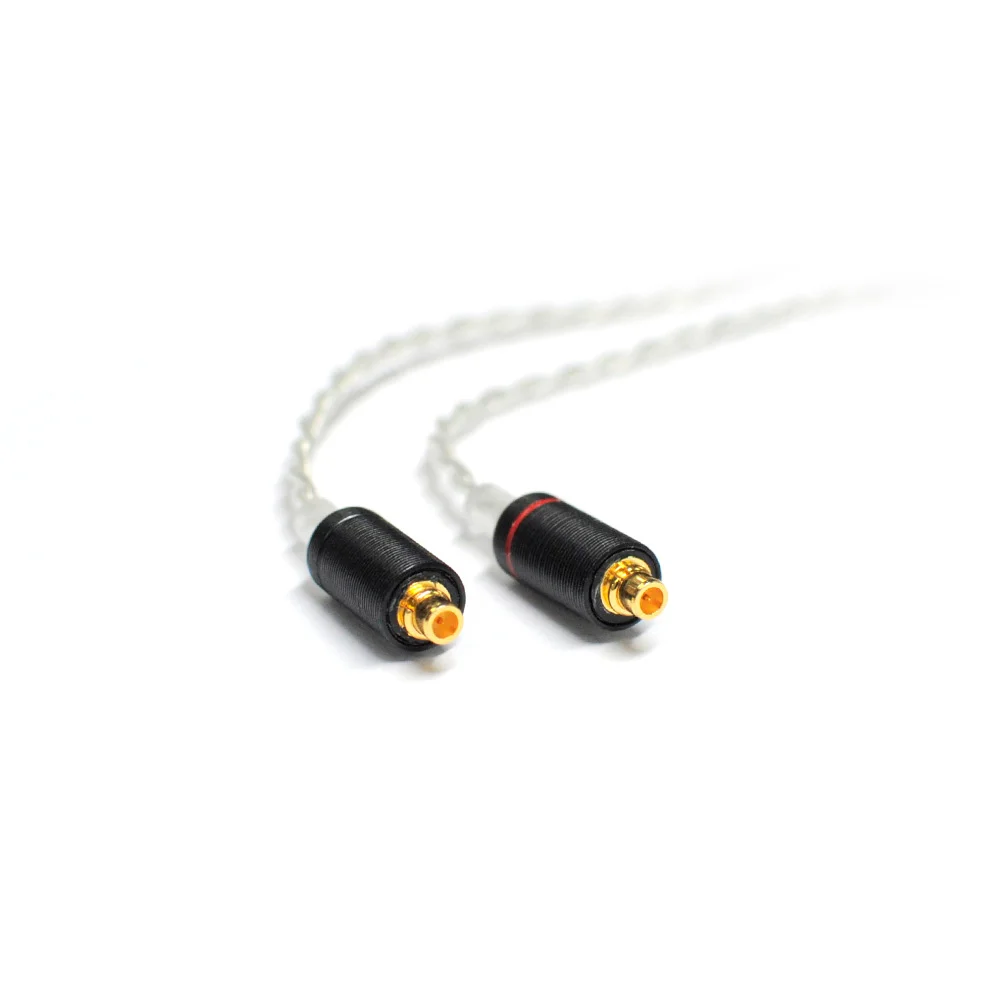

    • Gold-plated MMCX connectors

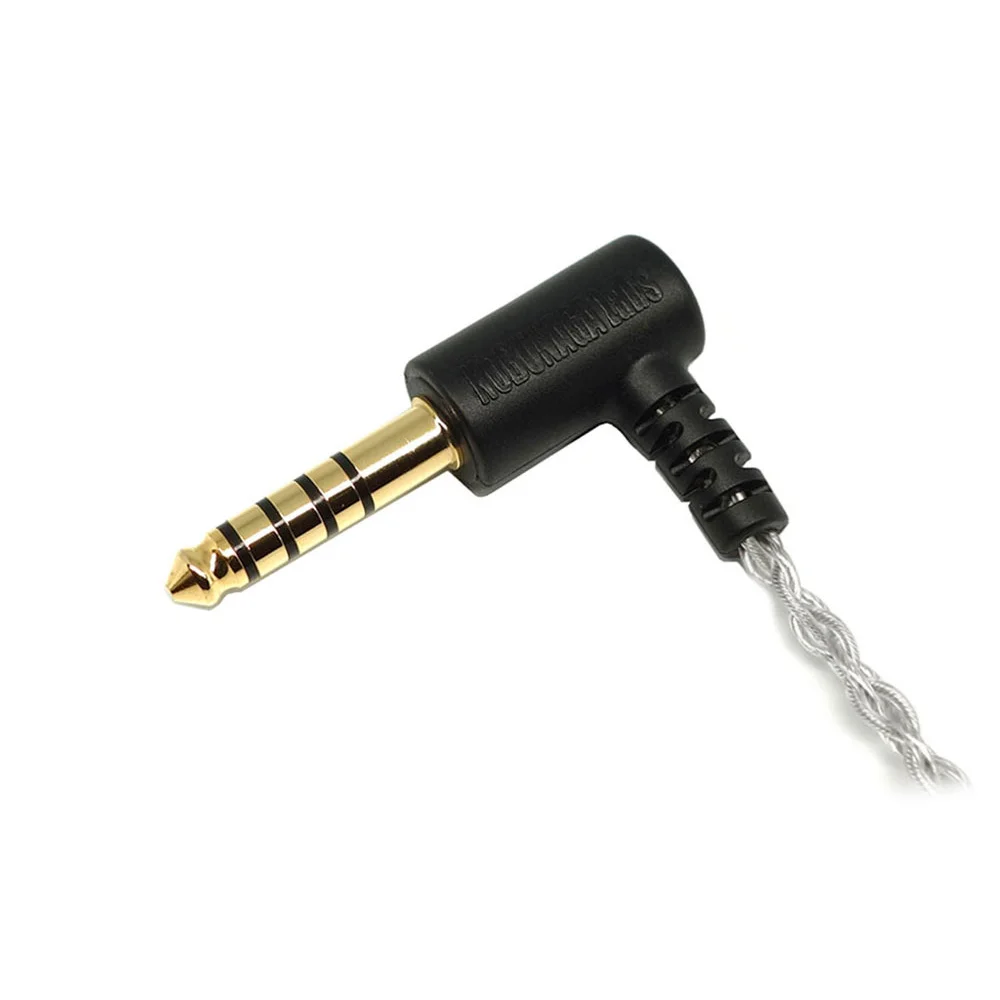

    • Plug: 4.4mm, gold-plated
    • Resistance: 0.09 Ω

    The cable utilizes tinned, oxygen-free copper (OFC) conductors. Each conductor consists of 19 strands of 0.08mm OFC, which lowers internal resistance and improves electrical conductivity. This results in a well-balanced and natural sound reproduction across all frequencies. The rounded conductor enhances flexibility and durability, ensuring stable signal transmission even in bending or with sudden temperature changes.

    The PVC fibers covering the conductive wires and the PVC sheath provide a stylish design, softness, and help reduce noise caused by touching.

    The cable construction employs soldering of parts to maintain the initial characteristics of the cable and minimize electrical resistance.

    The symmetric arrangement of the conductors utilizes braiding technology, ensuring a symmetrical twisting direction of the positive and negative sides of the conductor. This maximizes the flow of electrical signals, suppresses the increase in electrical resistance between the conductors, and allows for signal transmission without deterioration across a wide frequency range.

    The gold-plated connectors, including the stereo mini plug and MMCX connectors, reduce contact resistance and offer high electrical conductivity. The aluminum housing used makes them lightweight, luxurious, and of high quality. The plug housing is designed to be as short as possible, while the MMCX connector housing has thin slots for easy attachment and removal.

    Package:

    • Headphone cable

    Characteristics

    • Brand
    • Braid material
      PVC
    • Cable type
      twisted Y-shaped
    • Wire cross-section, mm
      0.08
    • Balanced cable
      yes
    • Connector (left)
      4.4mm jack male, MMCX male
    • Connector (right)
      4.4mm jack male, MMCX male
    • Conductor material
      copper
    • Number of cores
      76
    • Cable length, m
      1.2
    • Color
    • Compatible headphone model
      Shure SE215, Shure SE315, Shure SE535, Shure SE846, JVC HA-FX850, JVC HA-FX1100, Ultimate Ears UE 900, Ultimate Ears UE 900s, Astell & Kern AKT8iE, Astell & Kern AKT8iE MkII, Campfire Audio Jupiter, Campfire Audio Orion, Campfire Audio Nova, Campfire Audio Andromeda, Fender DXA1, Fender FXA2, Fender FXA5, Fender FXA6, Fender FXA7, DUNU Titan 5, DUNU Titan 3, Radius HP-TWF31K, Radius HP-TWF41R, ELECOM HH1000
    • Headphone jack
      2*MMCX
    • Connector to the device
      4.4mm jack male
    • Model
      Nobunaga Labs Entry Mikasa
    • Country of origin
      Japan
    • Service life, months
      24
    • Warranty, months
      12
