Neumann Monitor Alignment Kit 3
Introducing the Neumann Monitor Alignment Kit 3, a complete set of studio monitors that will revolutionize your audio experience. This kit includes the Neumann KH 750 DSP active subwoofer, two Neumann KH 80 DSP monitors, and the Neumann MA 1 microphone for monitor correction. With advanced features and cutting-edge technology, these monitors are a must-have for any professional studio setup.
Key Features:
- Studio monitors with built-in DSP for optimized sound.
- Enclosed subwoofer with DSP control for precise low-frequency reproduction.
- 24-bit signal processing at a sample rate of 48 kHz for high-fidelity audio.
- Equipped with a 4-inch low-frequency driver and a 1-inch tweeter for accurate sound reproduction.
- Calibration algorithms developed in partnership with Fraunhofer IIS.
- Individually calibrated measurement microphone for precise monitoring.
- Room-adaptive target curve for optimal sound reproduction in any environment.
- Phase and amplitude optimization for Neumann analog monitors.
- Compatible with stereo systems using KH 80 DSP, KH 120 II, KH 150, and all pairs of analog (non-DSP) Neumann monitors with the KH 750 DSP or KH 750 AES67 subwoofer.

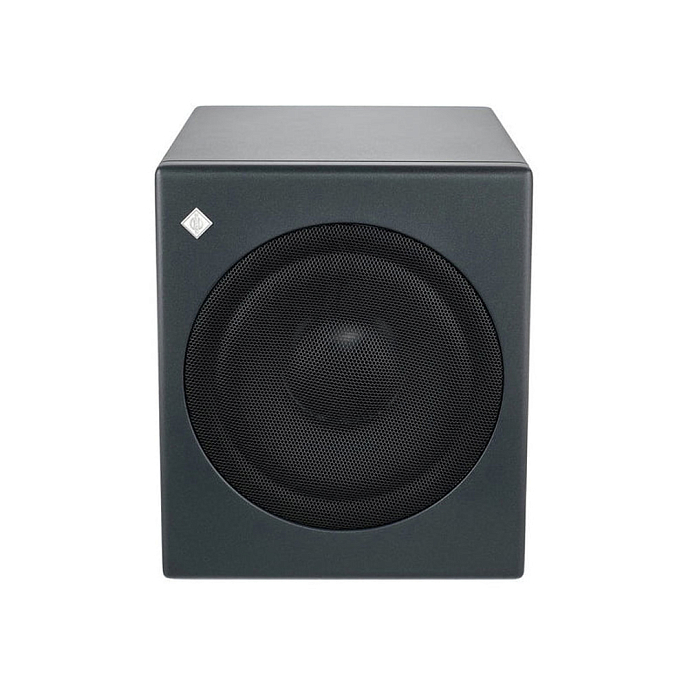

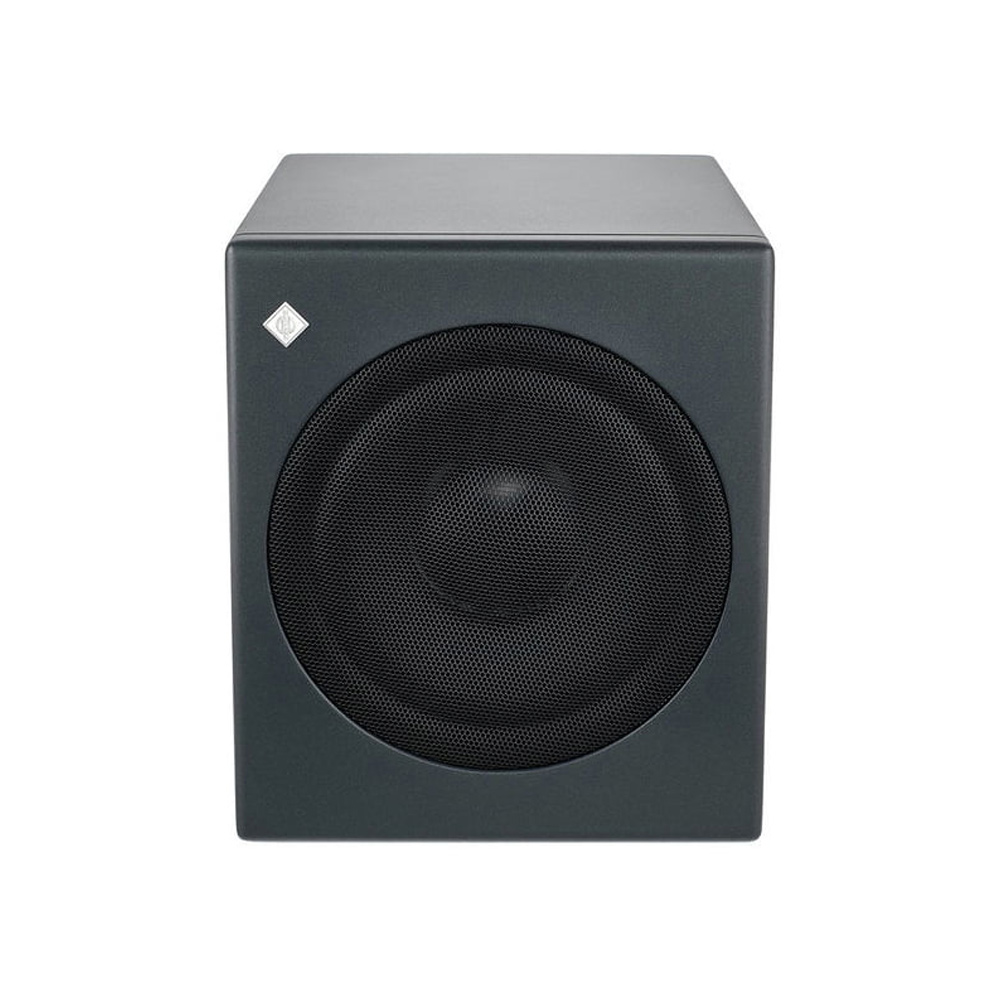

Neumann KH 750 DSP:

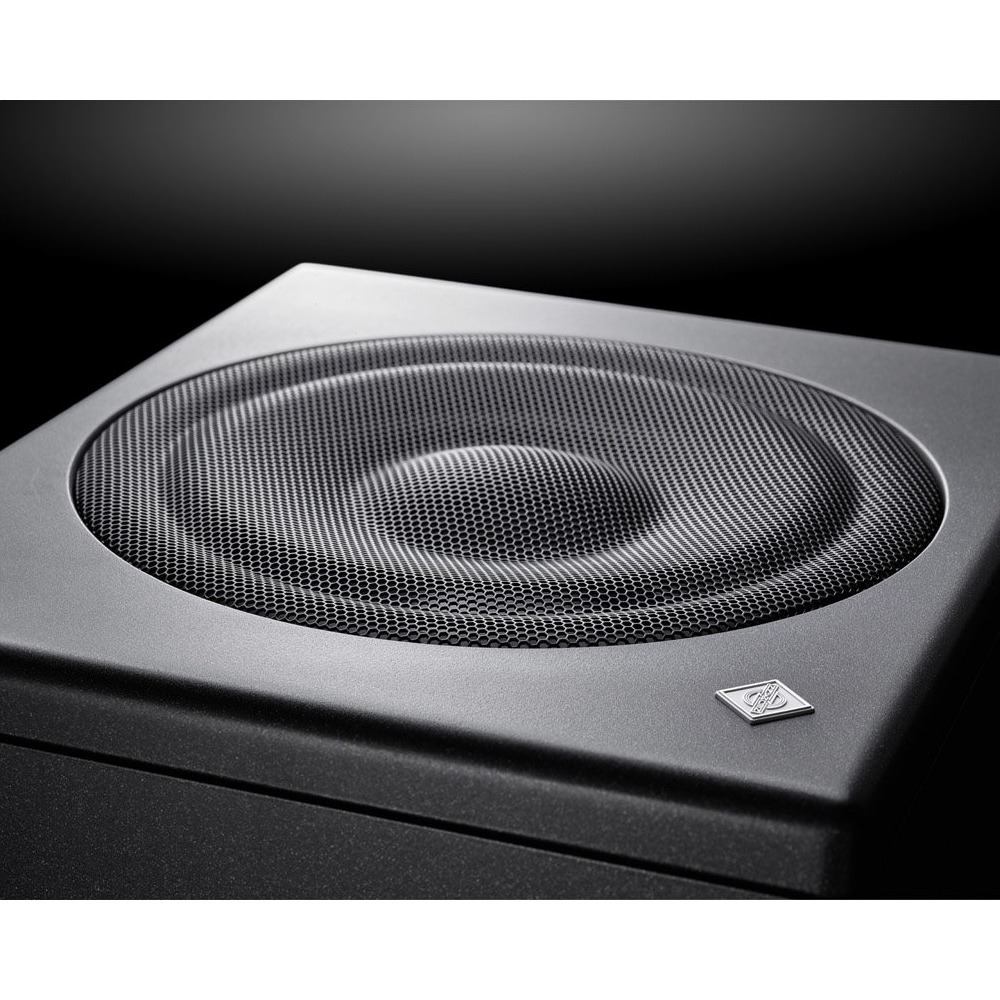

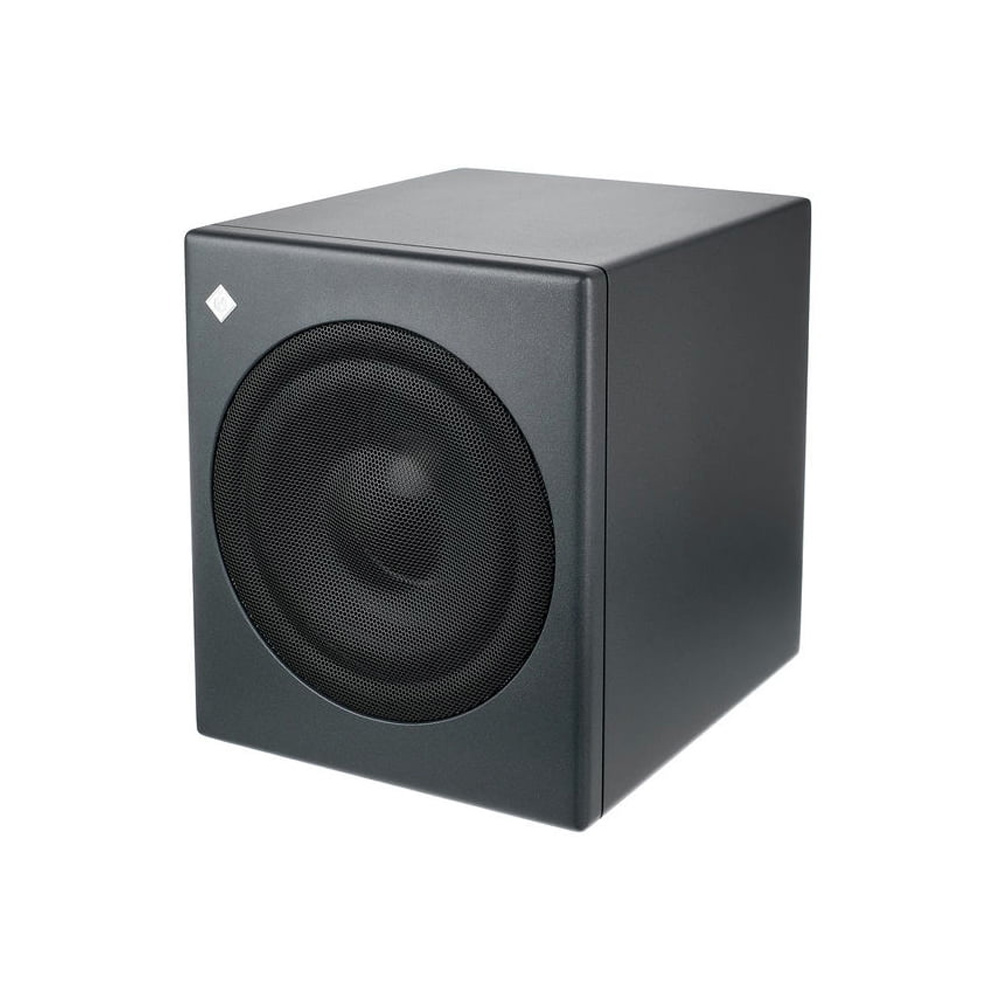

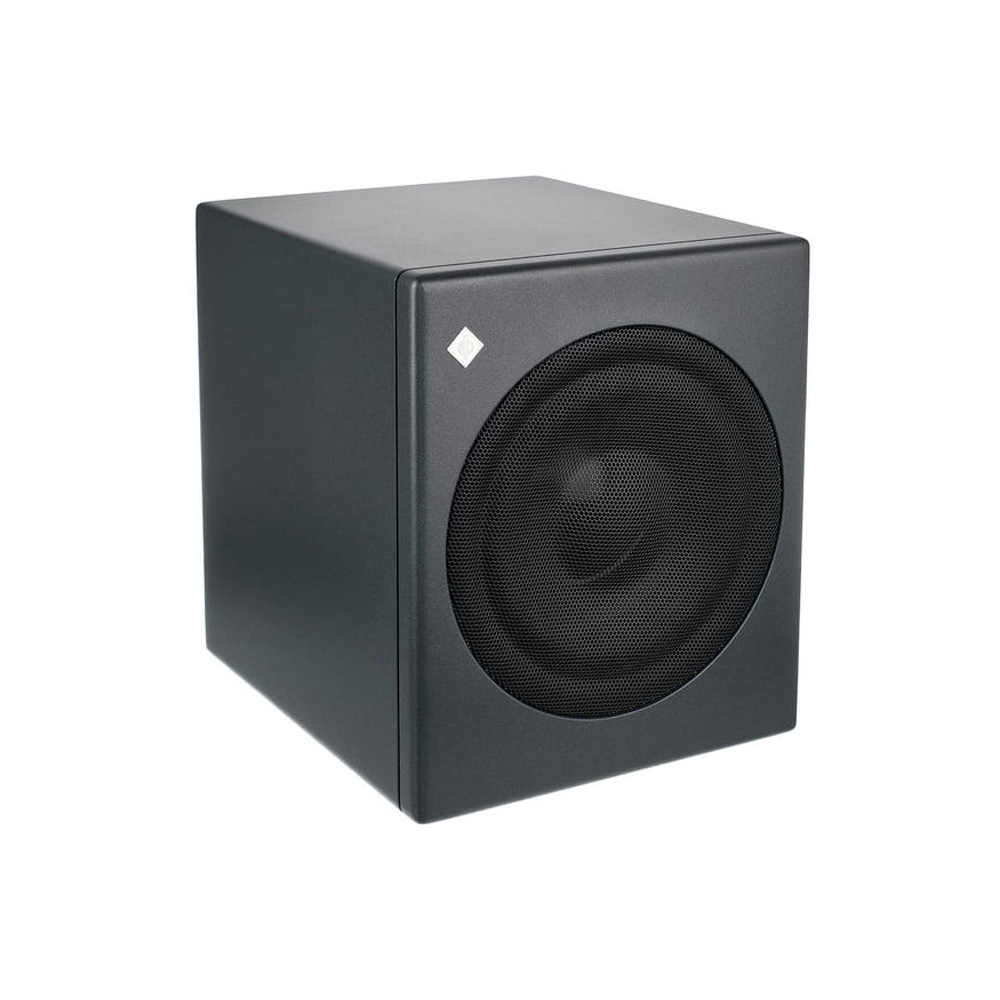

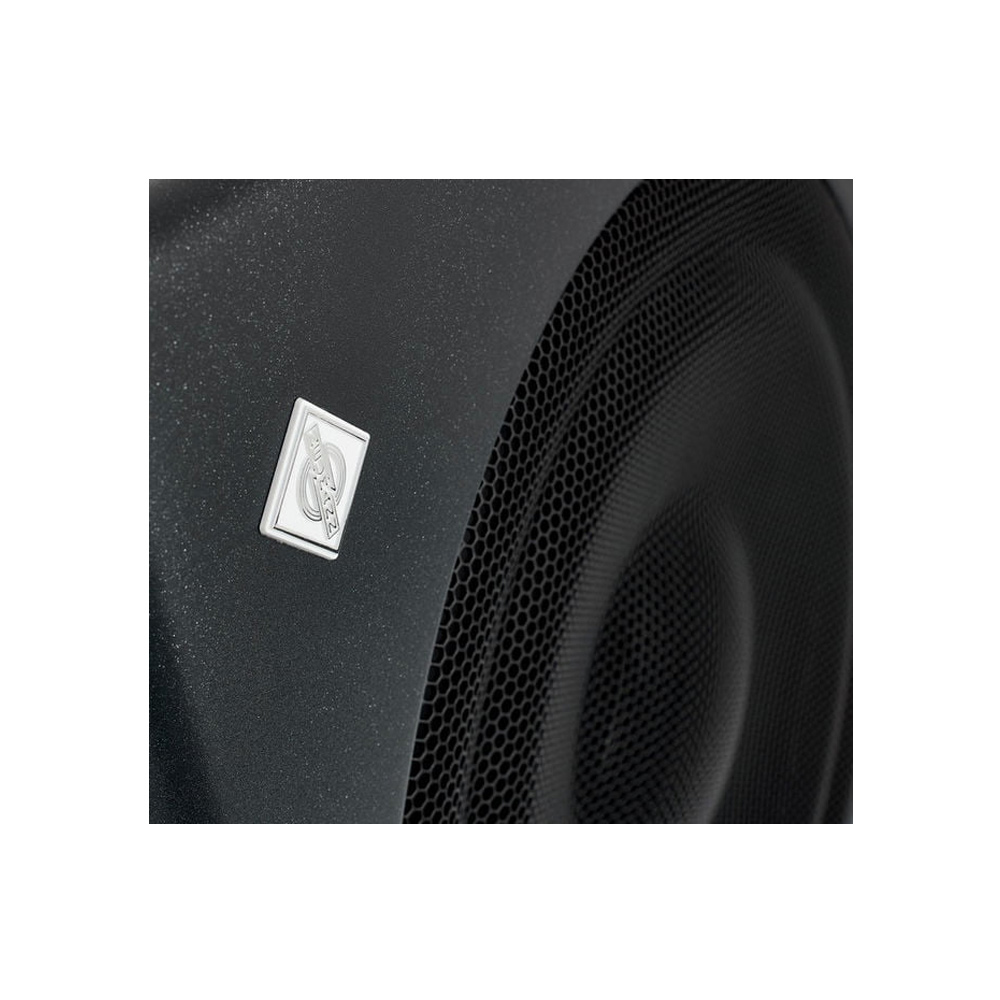

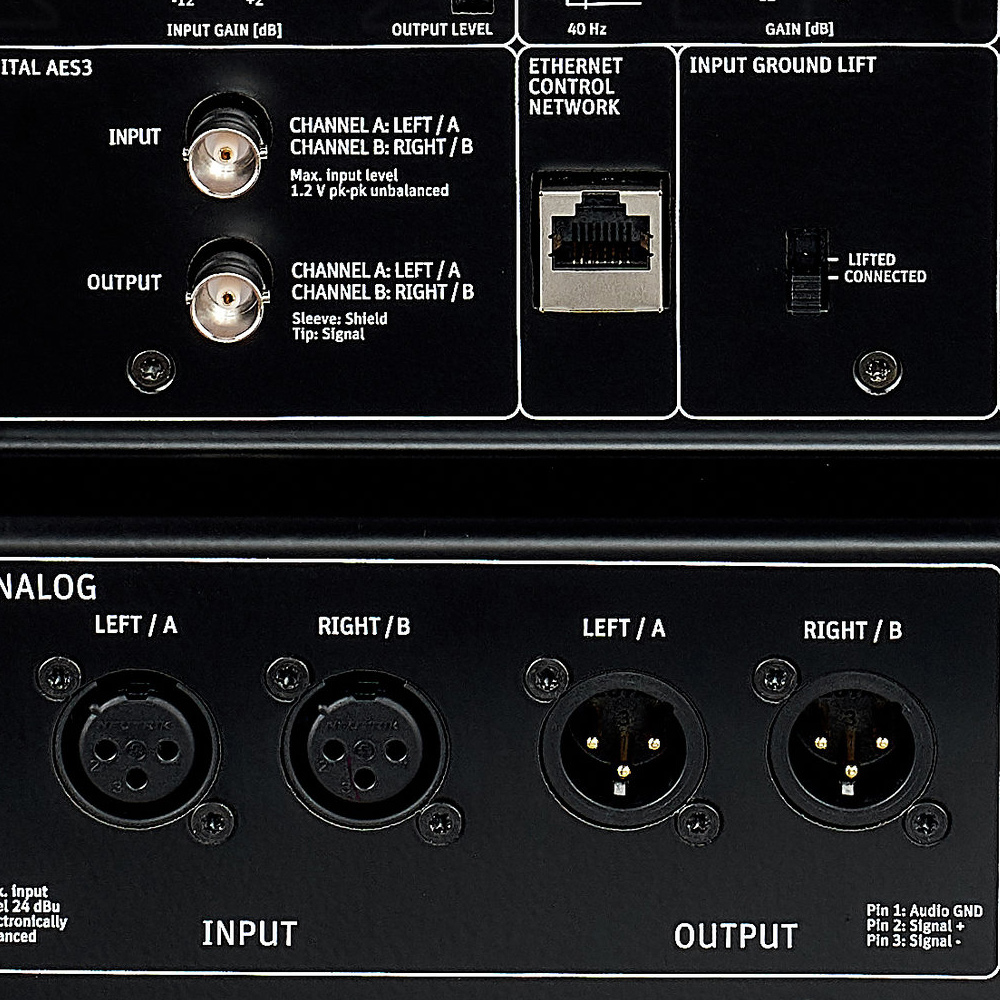

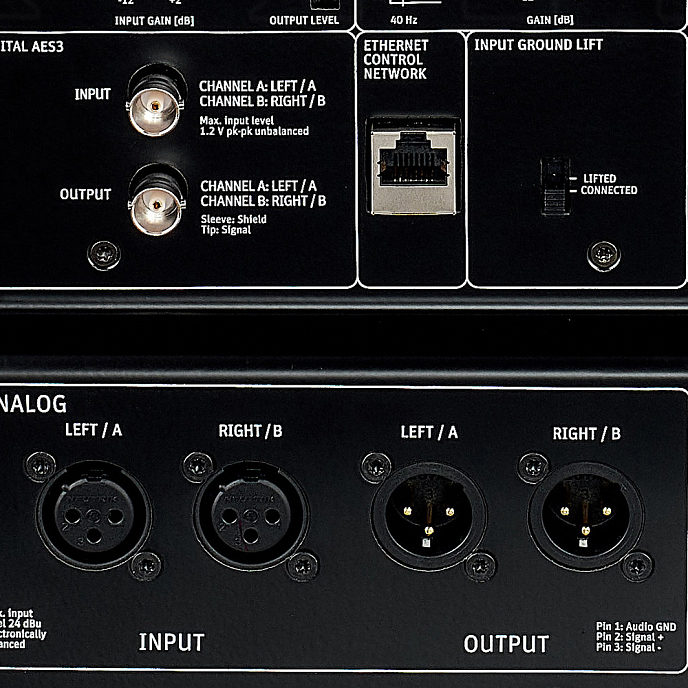

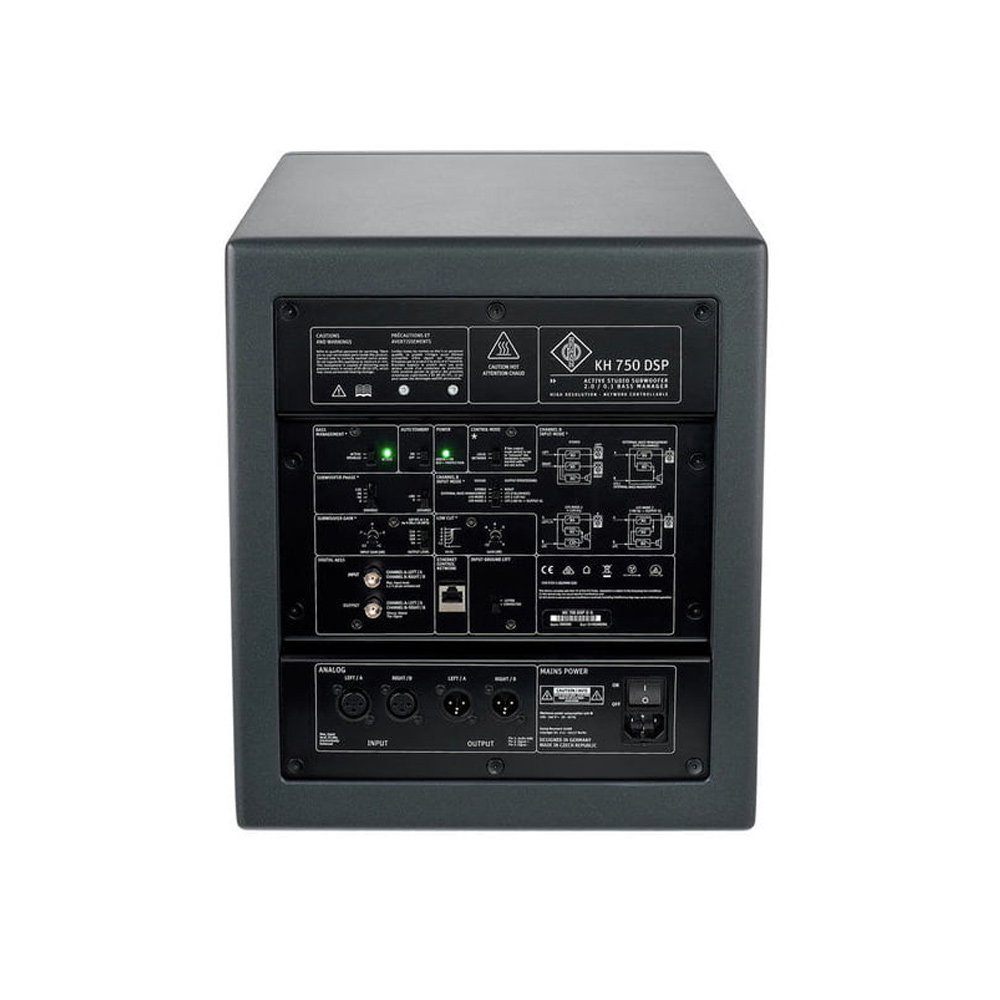

The Neumann KH 750 DSP is a compact closed-box subwoofer with built-in DSP control. Its compact size makes it ideal for use in small studios and with smaller studio monitors. Featuring a unique and flexible Bass Manager (2.0 / 0.1), analog and digital inputs, four routing modes, and customizable acoustic control elements, this subwoofer can be used in a variety of configurations to suit your specific needs.

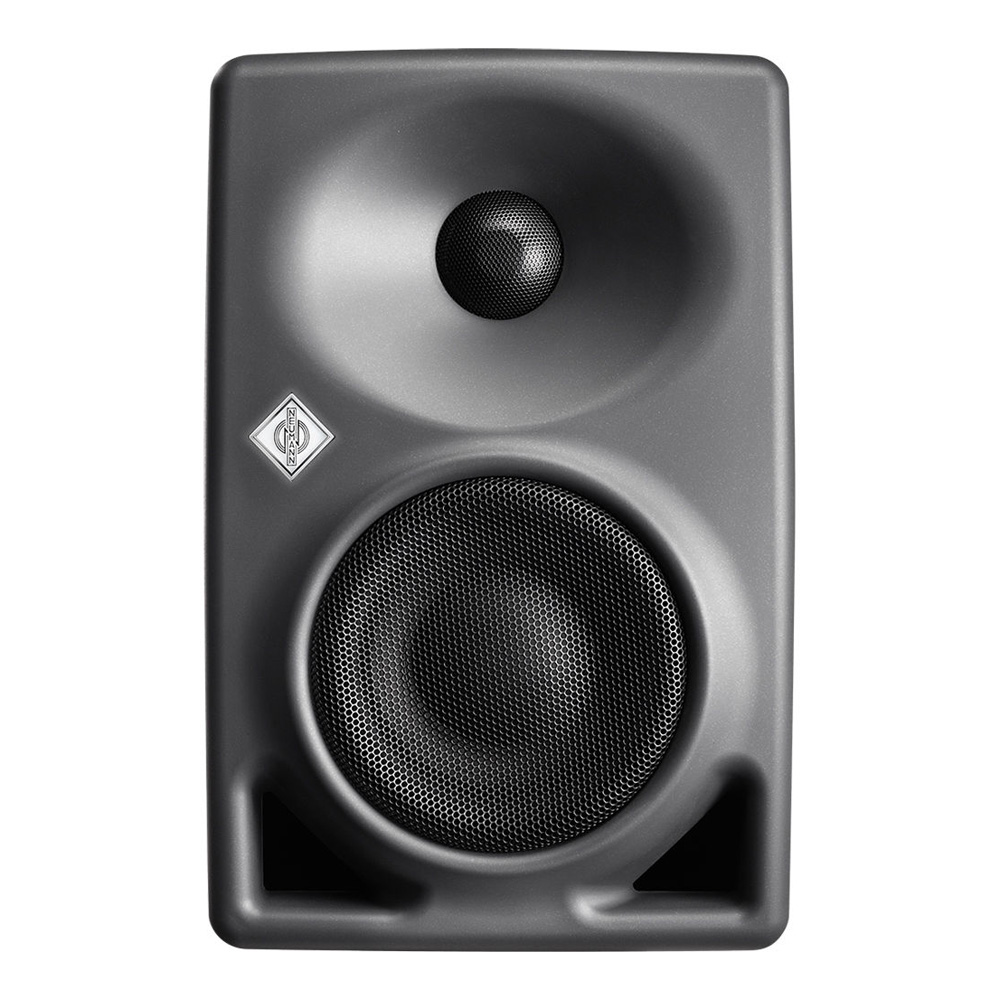

Neumann KH 80 DSP:

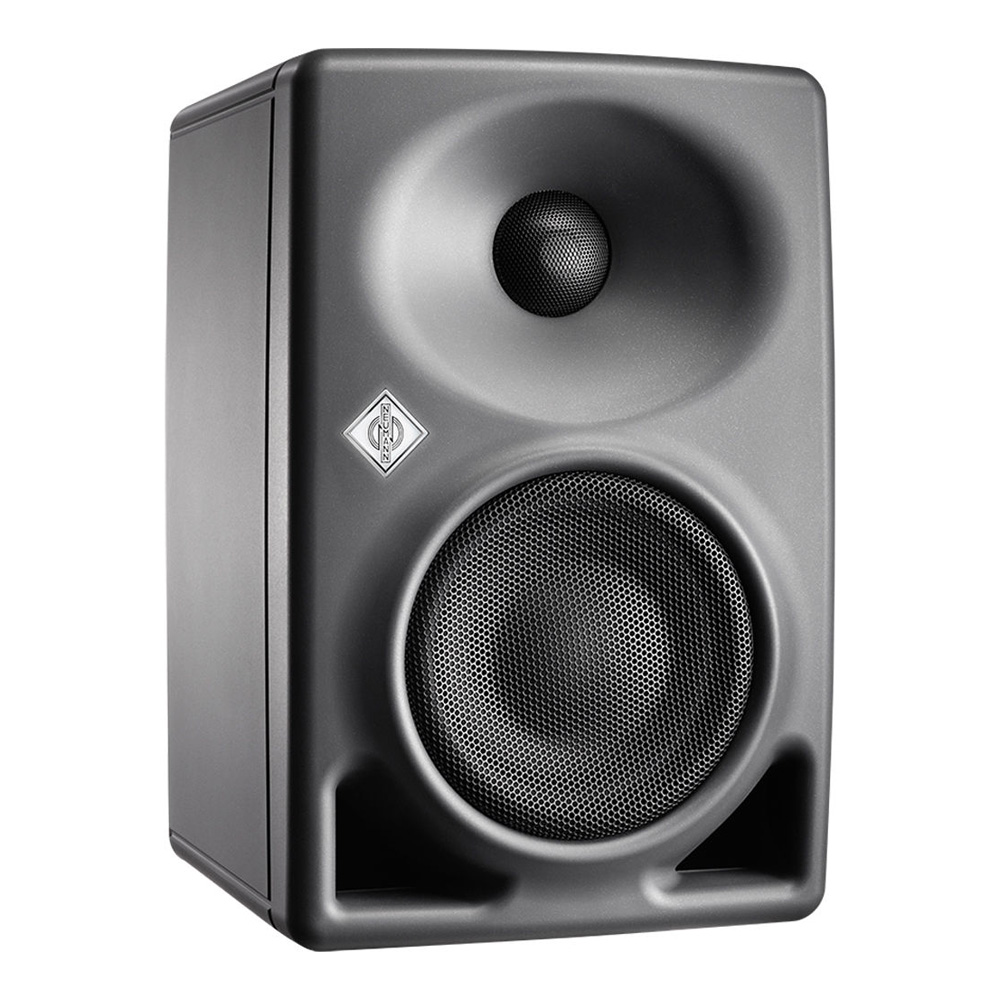

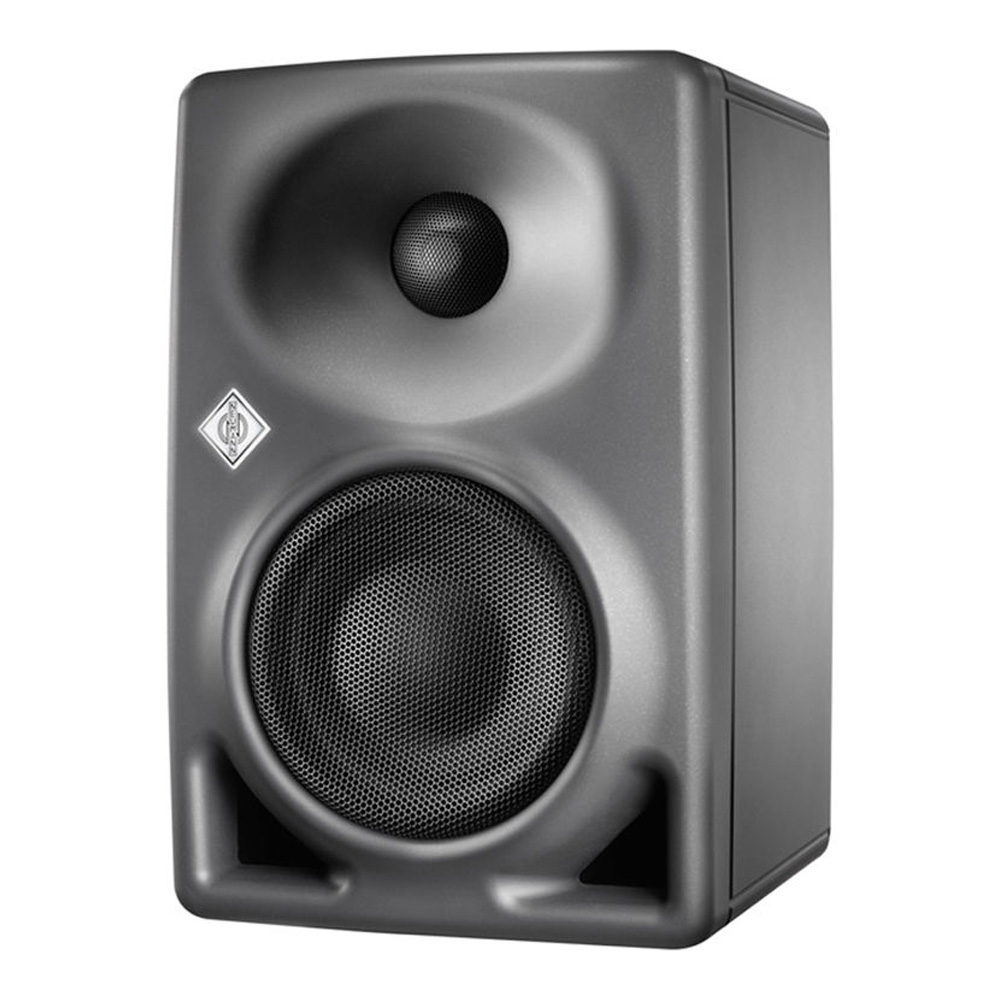

The Neumann KH 80 DSP is an active near-field studio monitor that delivers exceptional performance in a compact form factor. Designed for use in recording studios, video editing suites, radio stations, and even home setups, this monitor is perfect for music production, audio playback, and as a reference monitoring system. With its flat frequency response and various tuning options, the KH 80 DSP ensures accurate sound reproduction in any room.

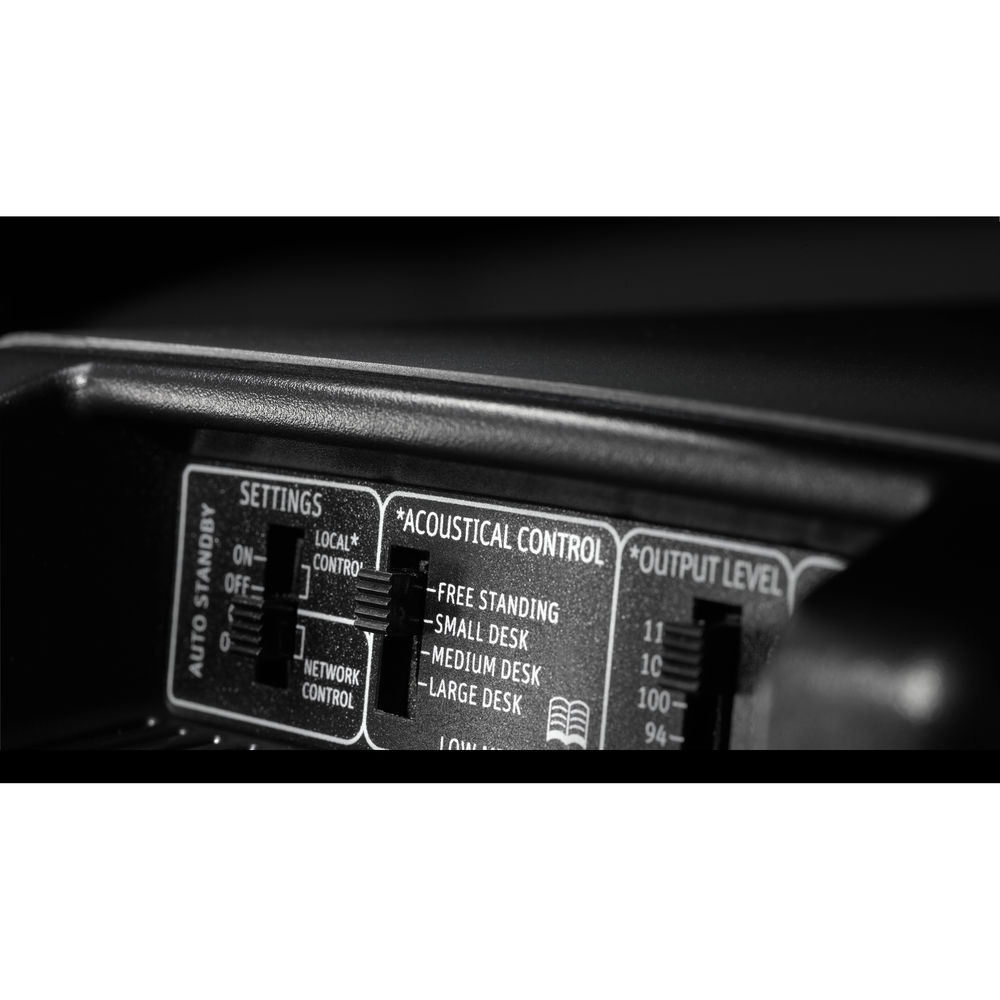

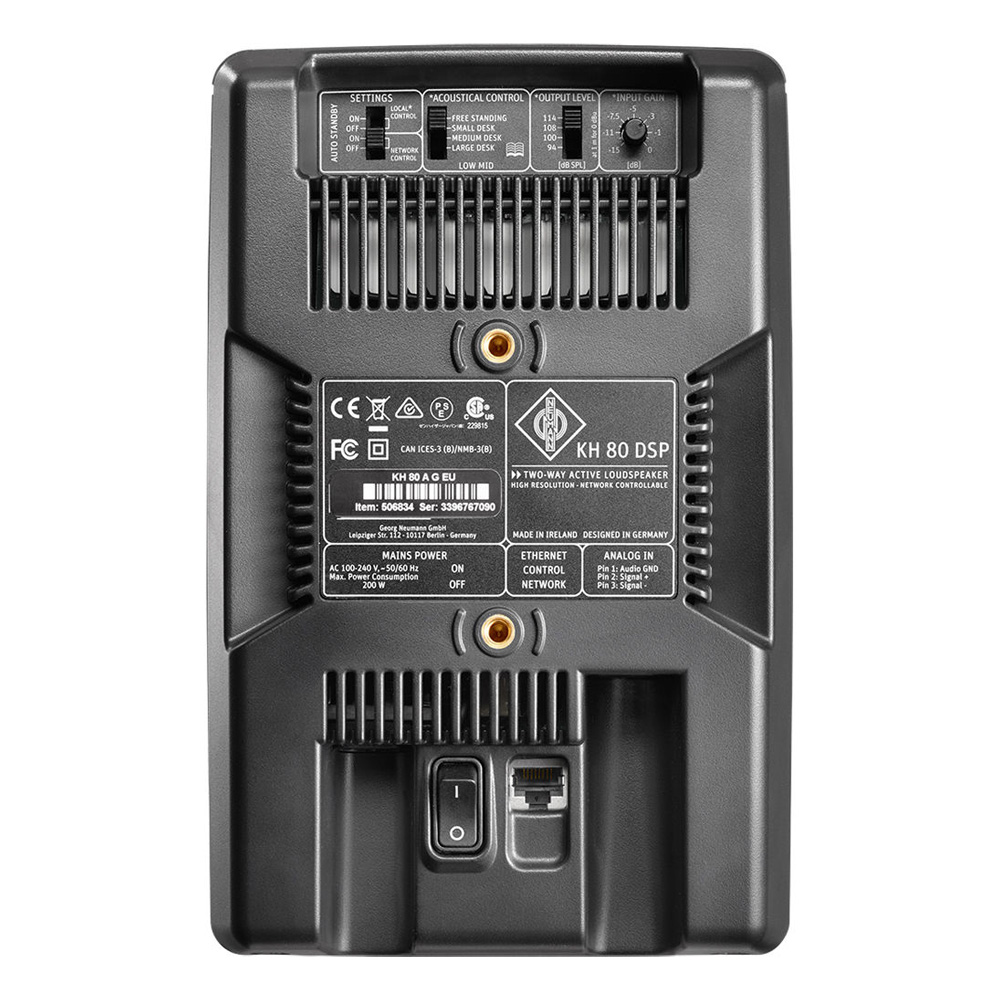

This monitor features two separate Class D amplifiers, delivering a maximum output power of 120W for the low-frequency range and 70W for the high-frequency spectrum. It is equipped with a 4-inch composite woofer with a long excursion and a magnetically shielded design, utilizing the Extremely Linear Force Factor (ELFF) technology for a linear frequency response. Additionally, it includes a 1-inch tweeter with a fabric dome and an elliptical waveguide using the Mathematically Modelled Dispersion (MMD) technology, providing a uniform and wide sound coverage area. These drivers can reproduce audio signals ranging from 57 Hz to 21 kHz with a +/-3 dB level accuracy. The crossover frequency is set at 1.8 kHz and uses 6th-order filters with a 48 dB per octave cutoff slope. The maximum sound pressure level can reach 108.8 dB, and the maximum output level can be set at 94, 100, 108, or 114 dB. The built-in DSP processor offers Acoustical Control technology with four presets for fine-tuning the low-midrange, eliminating excessive booming and muddiness. The input sensitivity can be adjusted from 0 to -15 dB.
Thanks to the Neumann.Control IP network standard, the Neumann Kh 80 DSP Studio Monitor can be fully controlled and customized, providing access to all features that are not accessible from the rear panel. Speaker arrays can be defined ranging from monophonic to 3D, optimized for room acoustics, and then centrally managed using the Setup, Align, Operate functions.

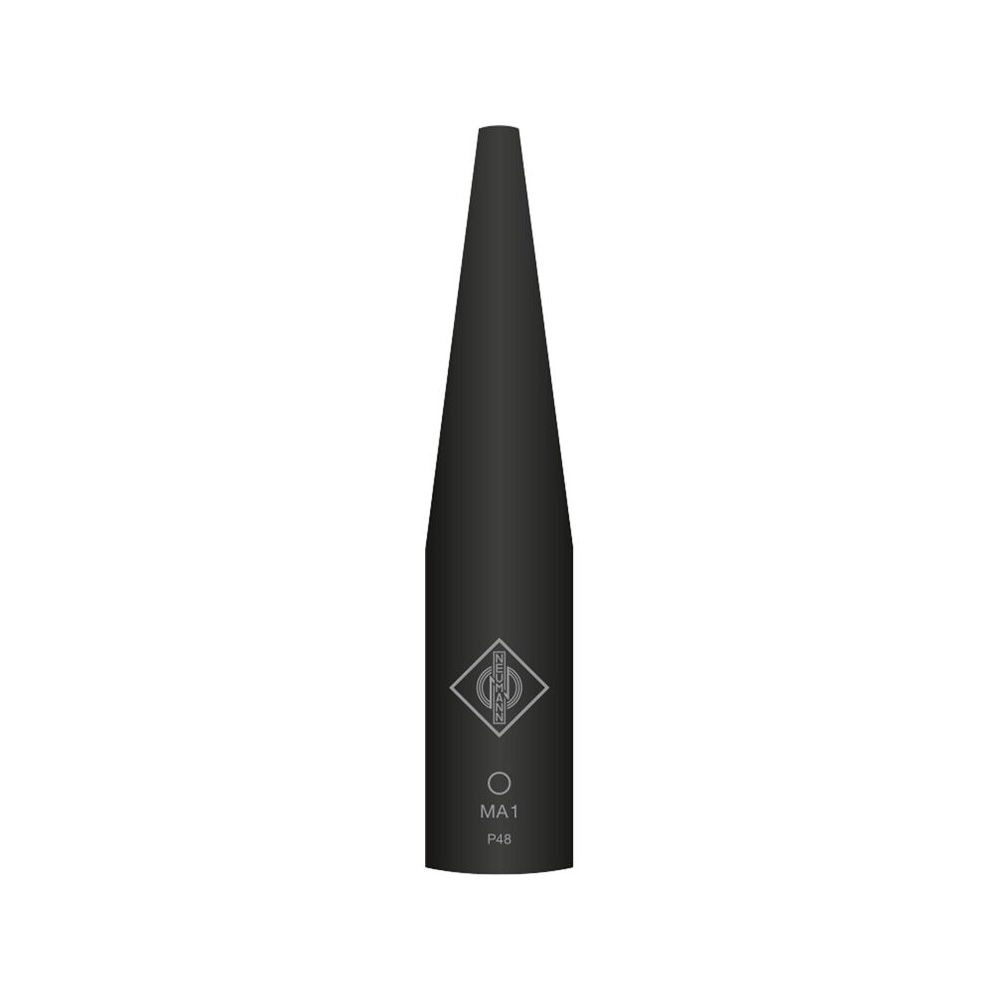

Neumann MA 1 Monitor Alignment Microphone:
The Neumann MA 1 is an automatic monitor alignment system that ensures the best sound quality in any room, from home studios to professional facilities. With the individually calibrated measurement microphone, your acoustic environment is analyzed within a controlled process. The enhanced calibration algorithms, developed in collaboration with the leading sound processing institute Fraunhofer IIS, guarantee precise amplitude and phase correction for accurate and reliable monitoring.
Package Includes:
- 2 x Studio monitors
- 1 x Subwoofer
- 1 x Calibration microphone
- Documentation
