Neumann Monitor Alignment Kit 3

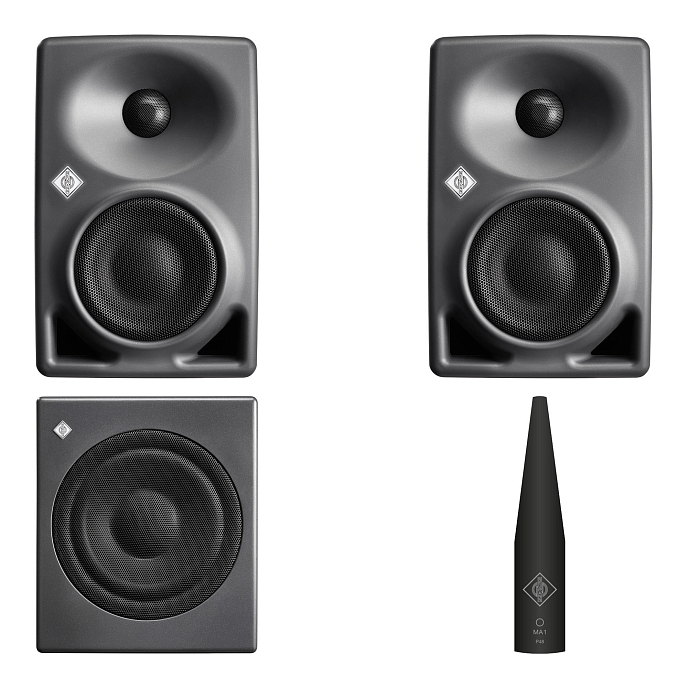

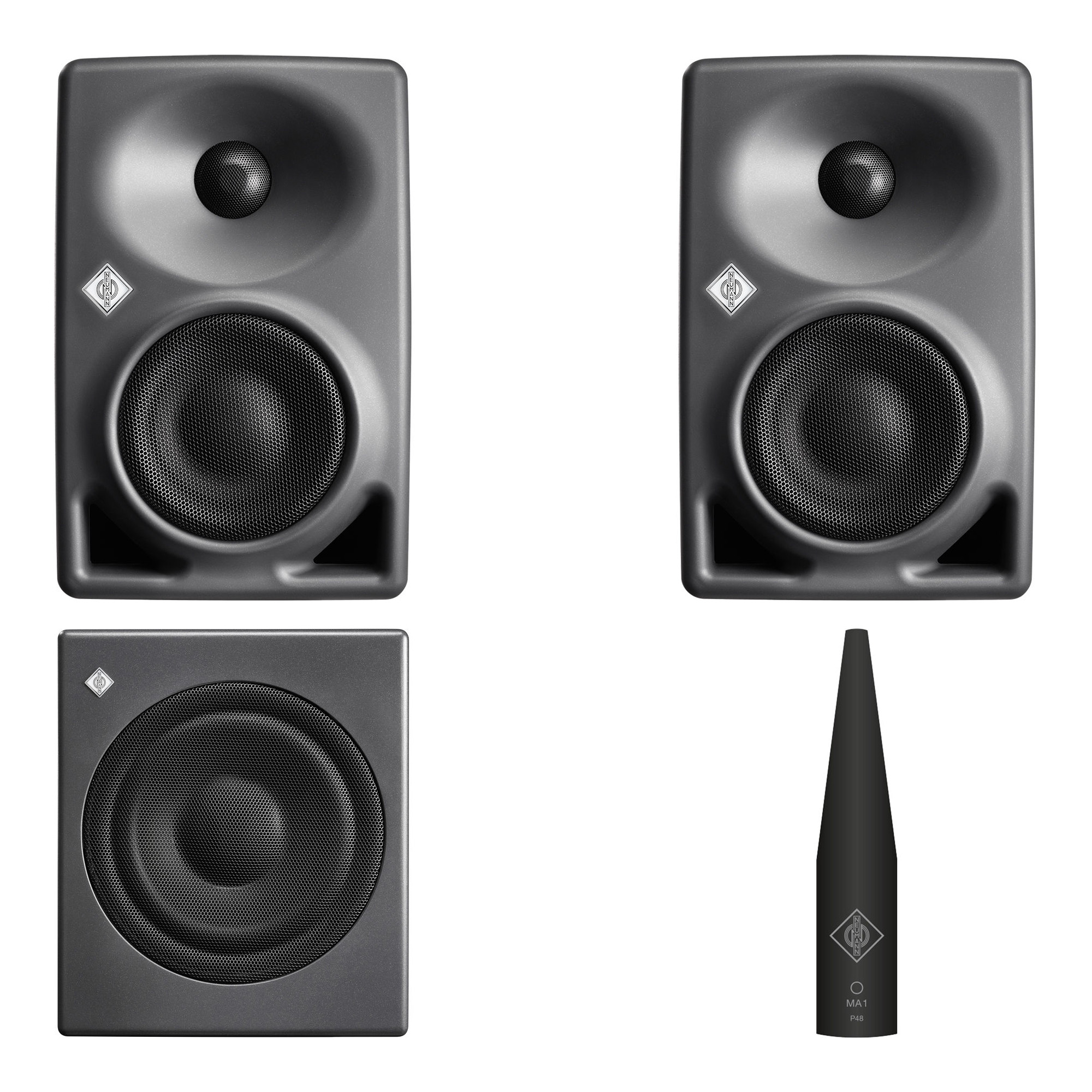

The Neumann Monitor Alignment Kit 3 is a complete set of studio monitors that includes the Neumann KH 750 DSP active subwoofer, two Neumann KH 80 DSP monitors, and the Neumann MA 1 microphone for monitor correction.
Features:
- Studio monitors with DSP technology
- Closed cabinet subwoofer with DSP control
- 24-bit signal processing at 48 kHz
- Equipped with a 4-inch woofer and a 1-inch tweeter
- Calibration algorithms developed in collaboration with Fraunhofer IIS
- Individually calibrated measurement microphone
- Room-adapting target curve
- Phase and amplitude optimization for analog Neumann monitors
- Compatible with stereo systems including KH 80 DSP, KH 120 II, KH 150, and all pairs of analog (non-DSP) Neumann monitors using KH 750 DSP or KH 750 AES67 subwoofers.

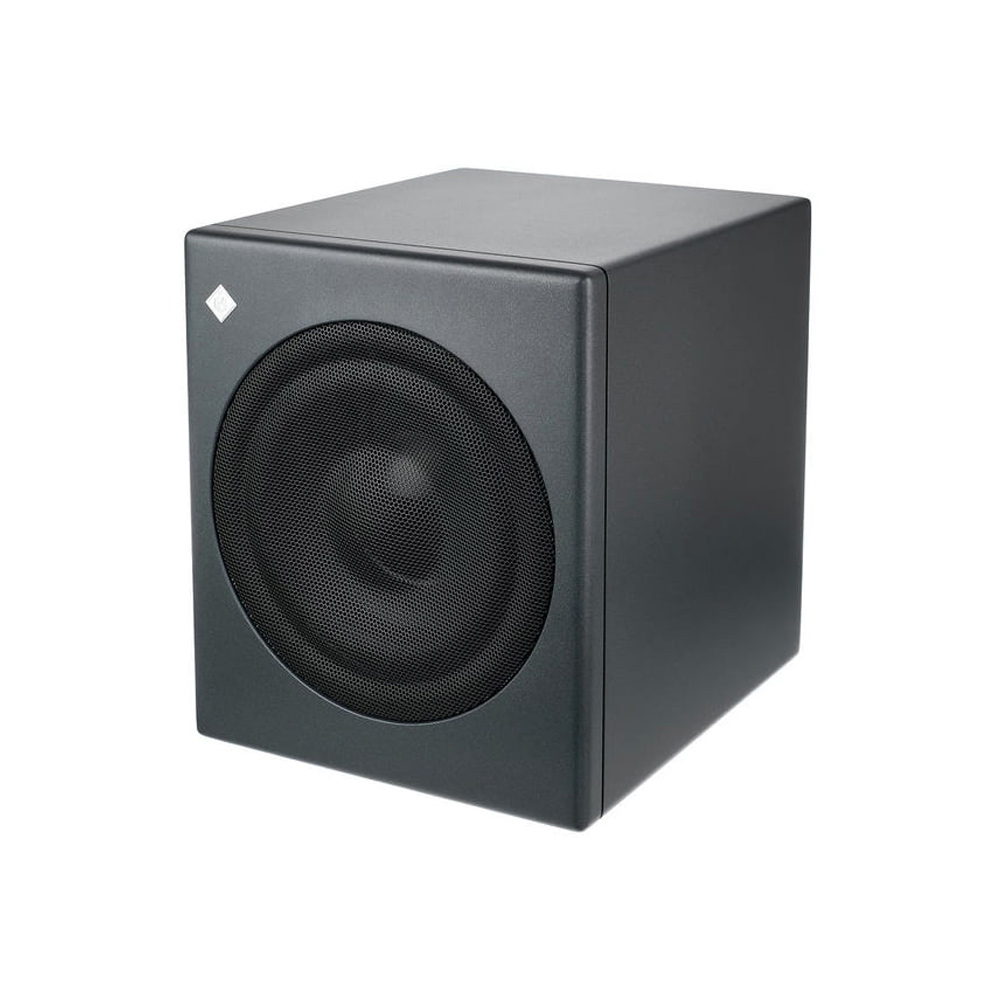

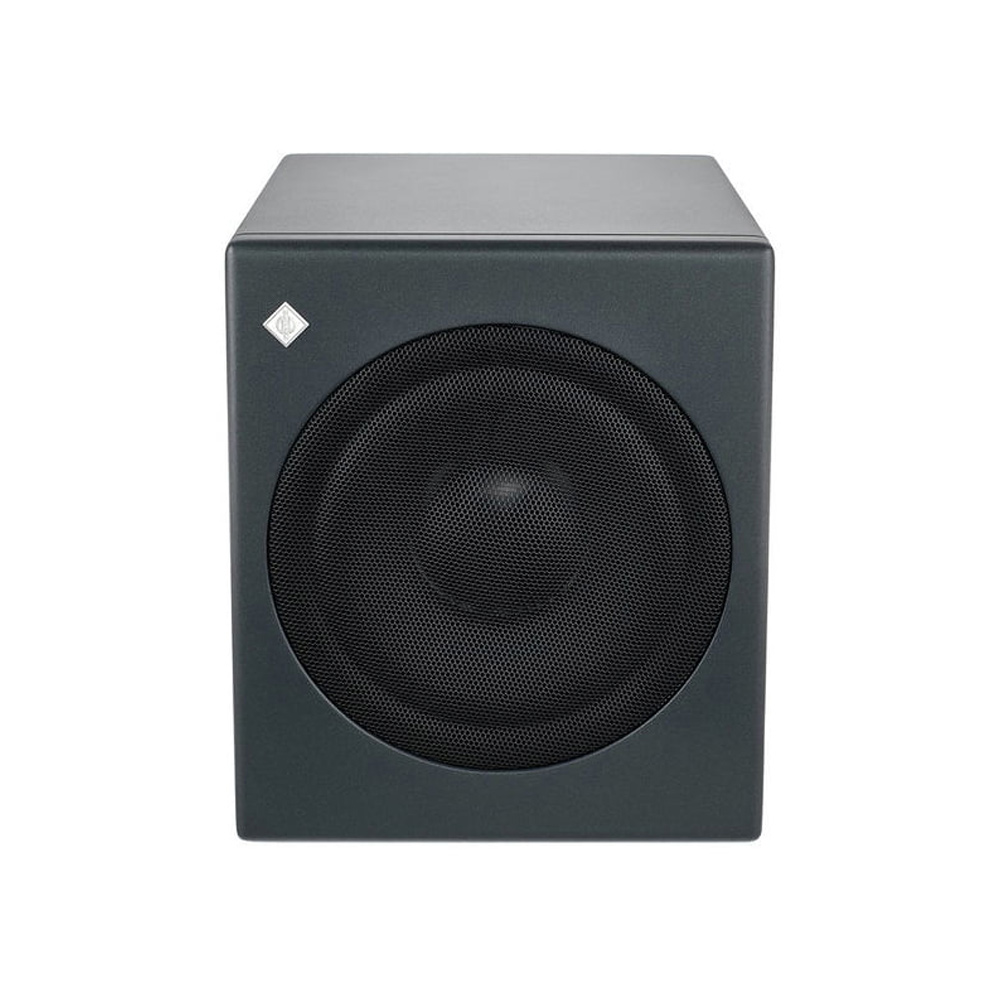

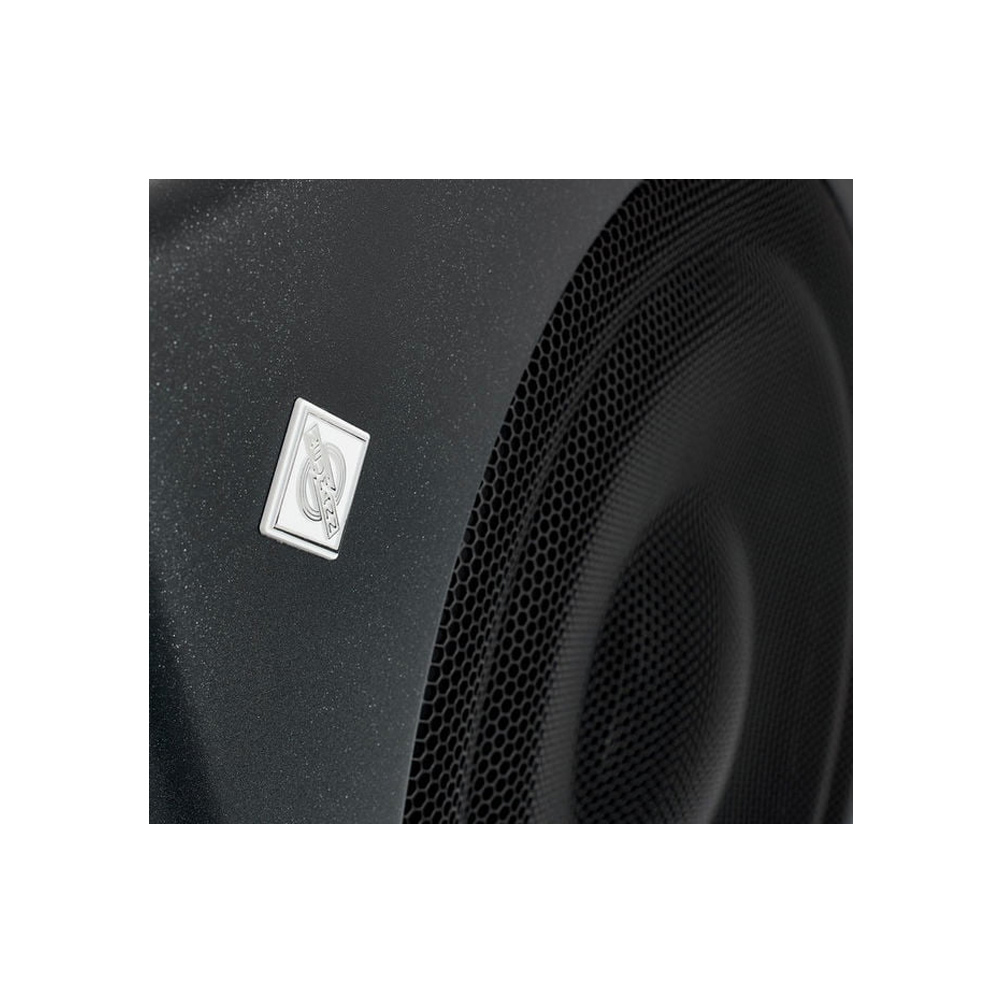

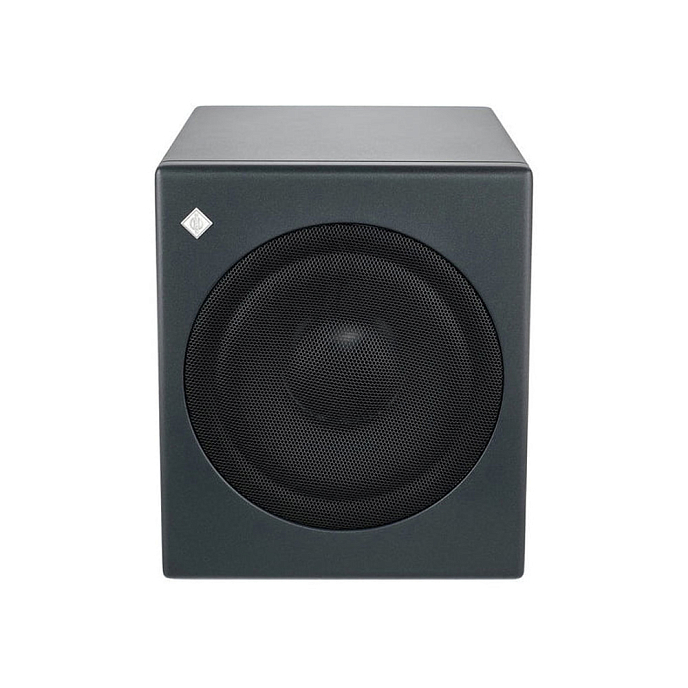

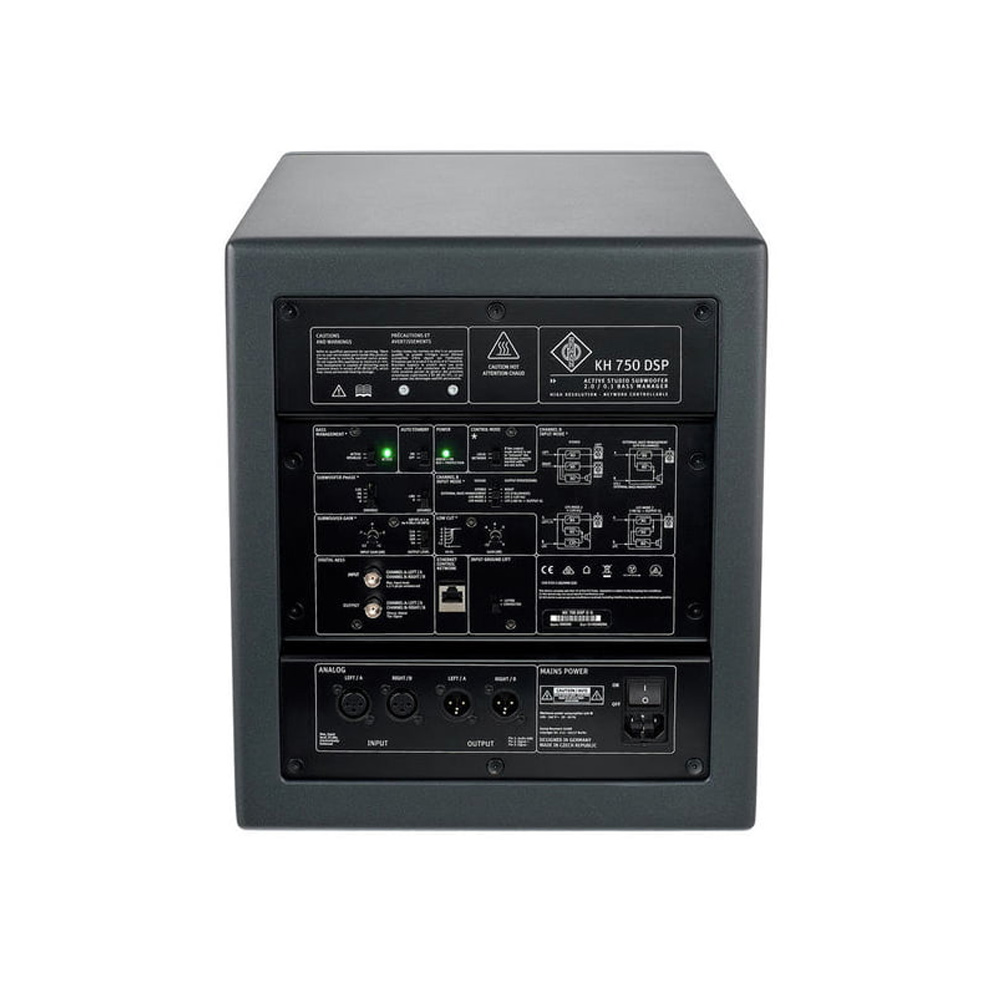

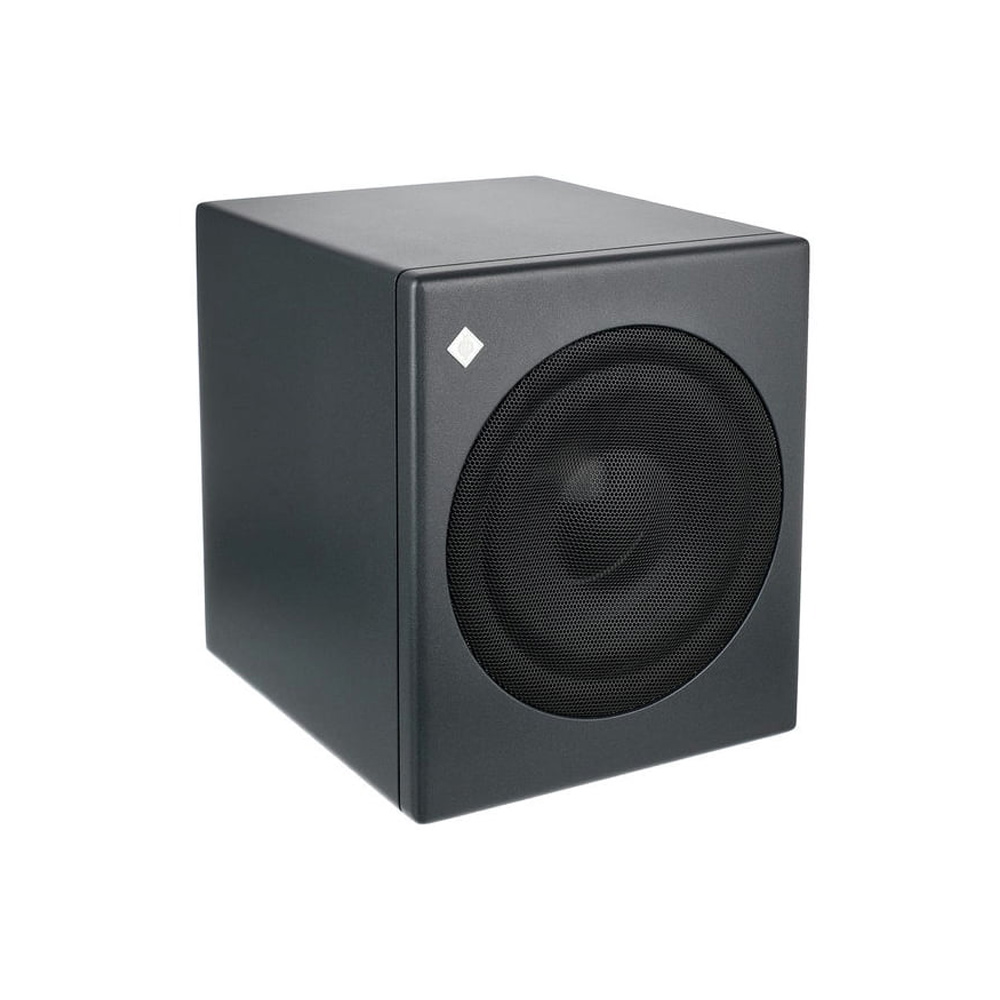

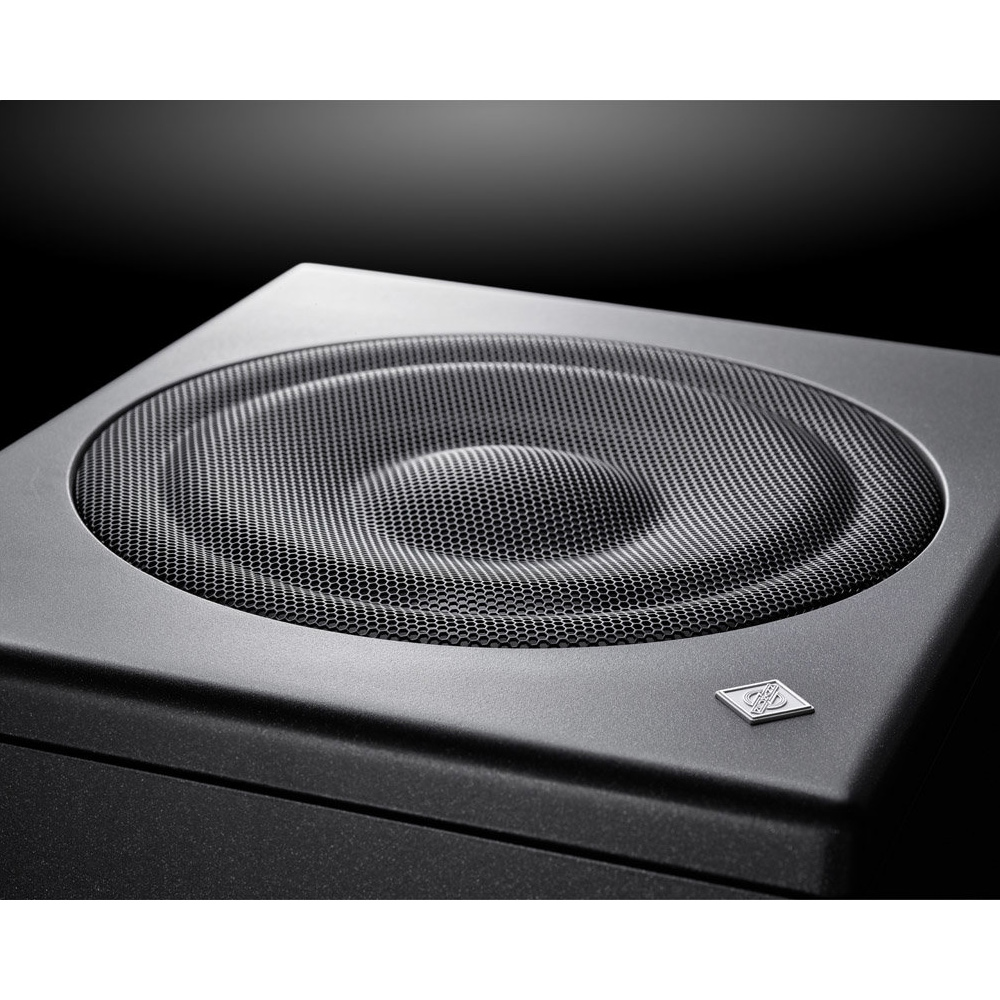

Neumann KH 750 DSP
The Neumann KH 750 DSP is a compact closed cabinet subwoofer with DSP control. It is the ideal choice for small rooms and small studio monitors. It features a unique and flexible Bass Manager (2.0 / 0.1), analog and digital inputs, four routing modes, and customizable acoustic control elements that can be used in various configurations.

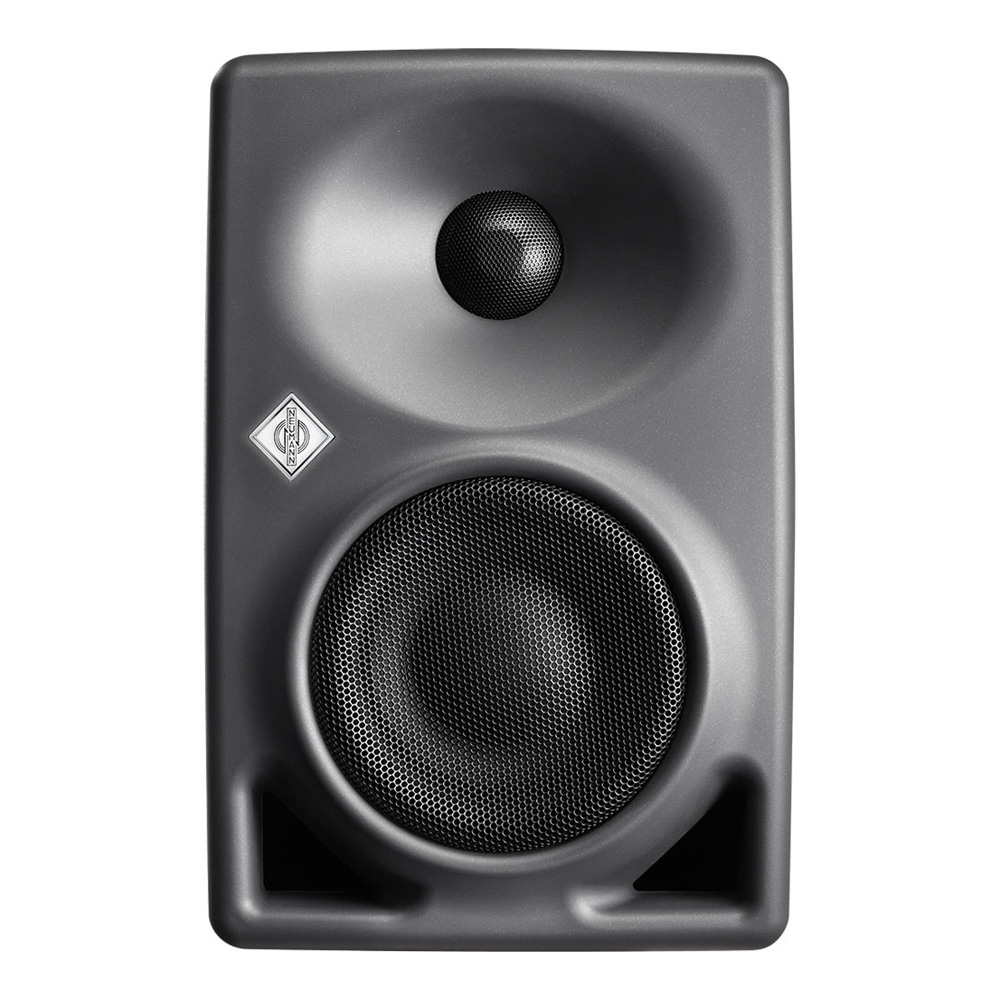

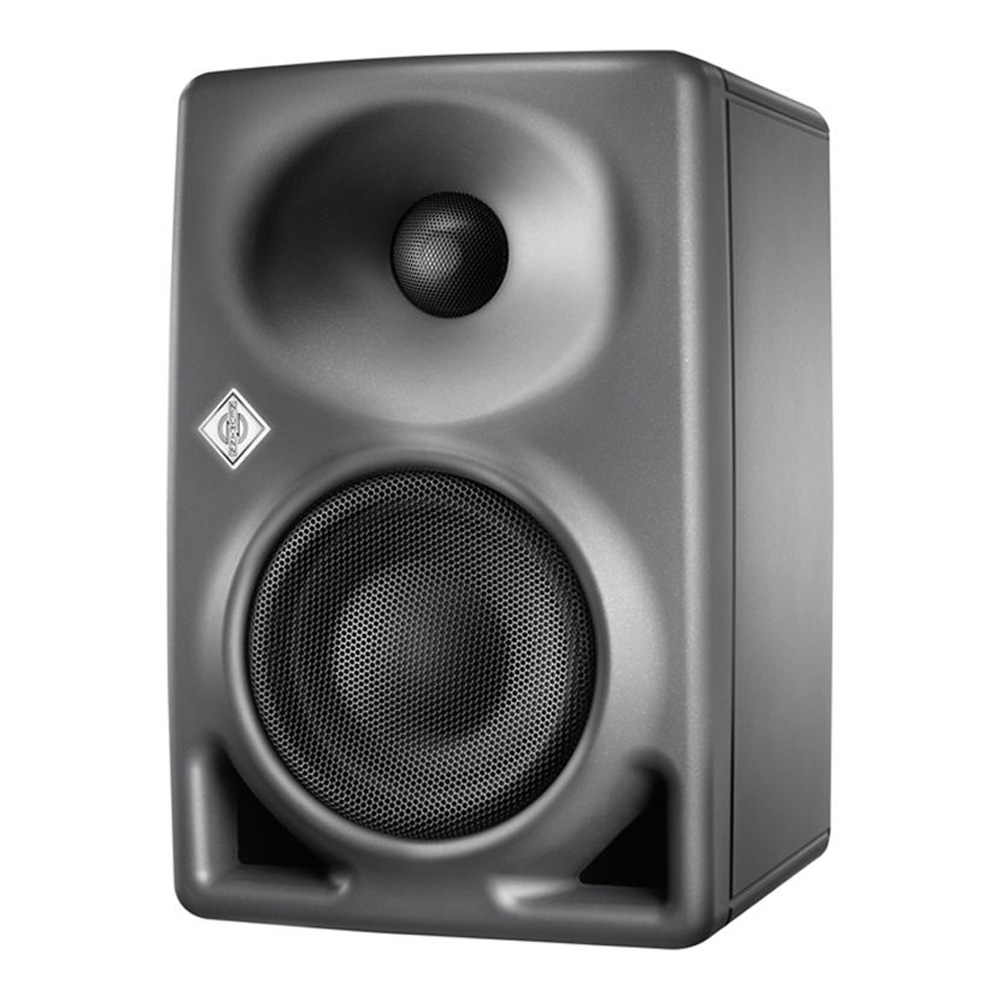

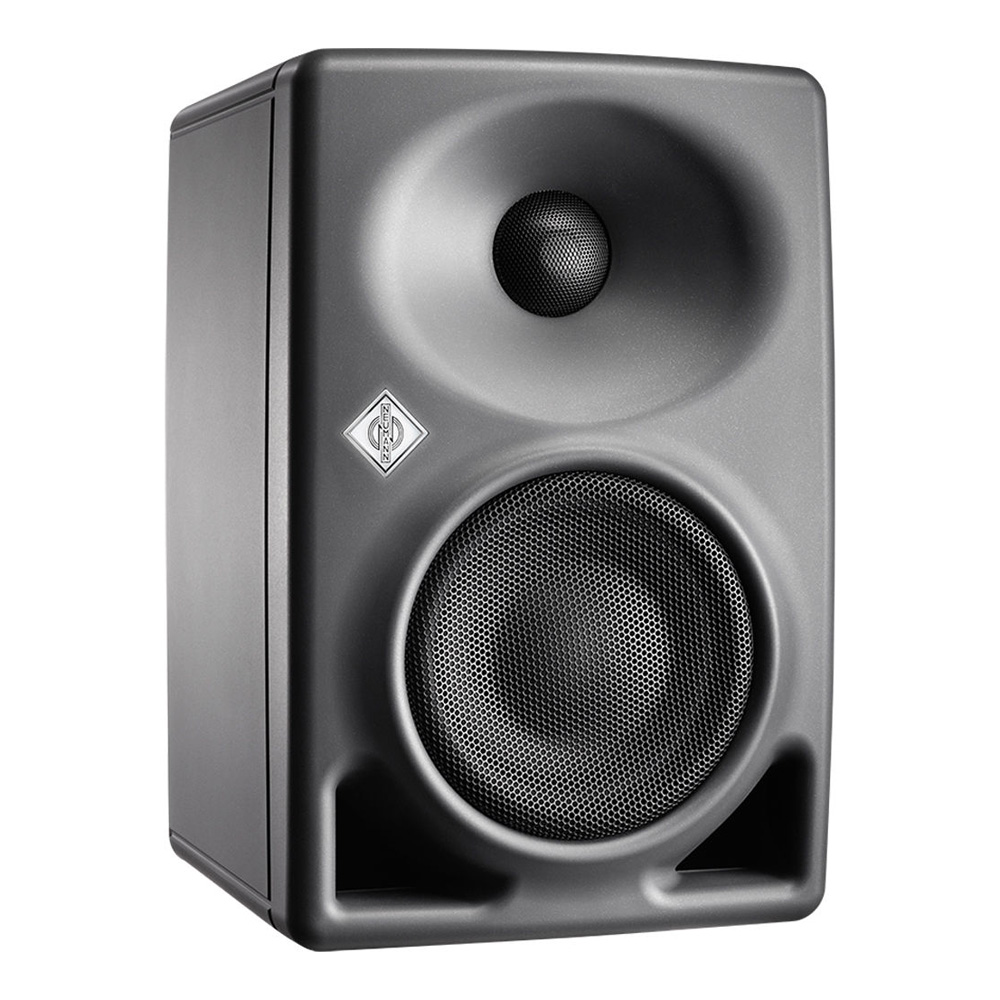

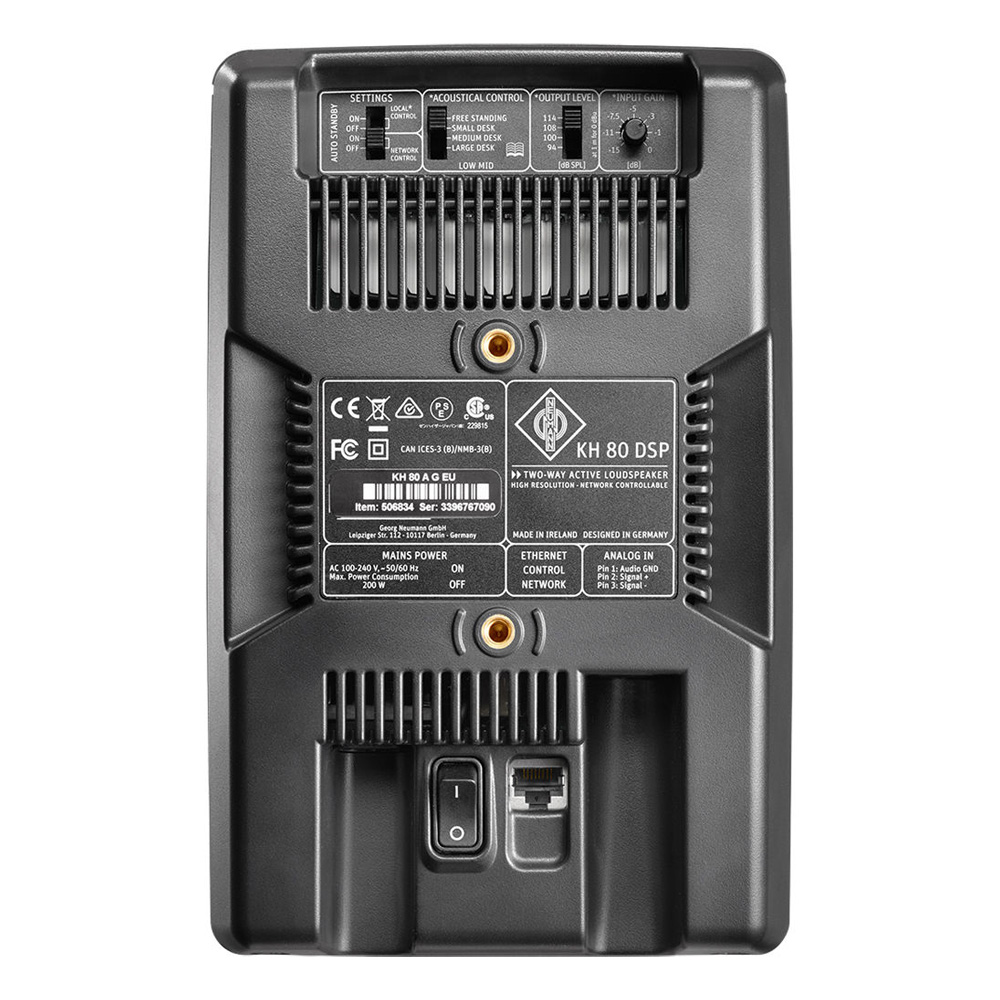

Neumann KH 80 DSP
The Neumann KH 80 DSP is an active near-field monitor. It is compact and designed for use in recording studios, video editing, radio stations, and also performs well in home environments. The monitor is excellent for music production and mixing, audio playback, and works as a reference monitoring system, providing a flat frequency response and several functions to optimize the sound for the room conditions.

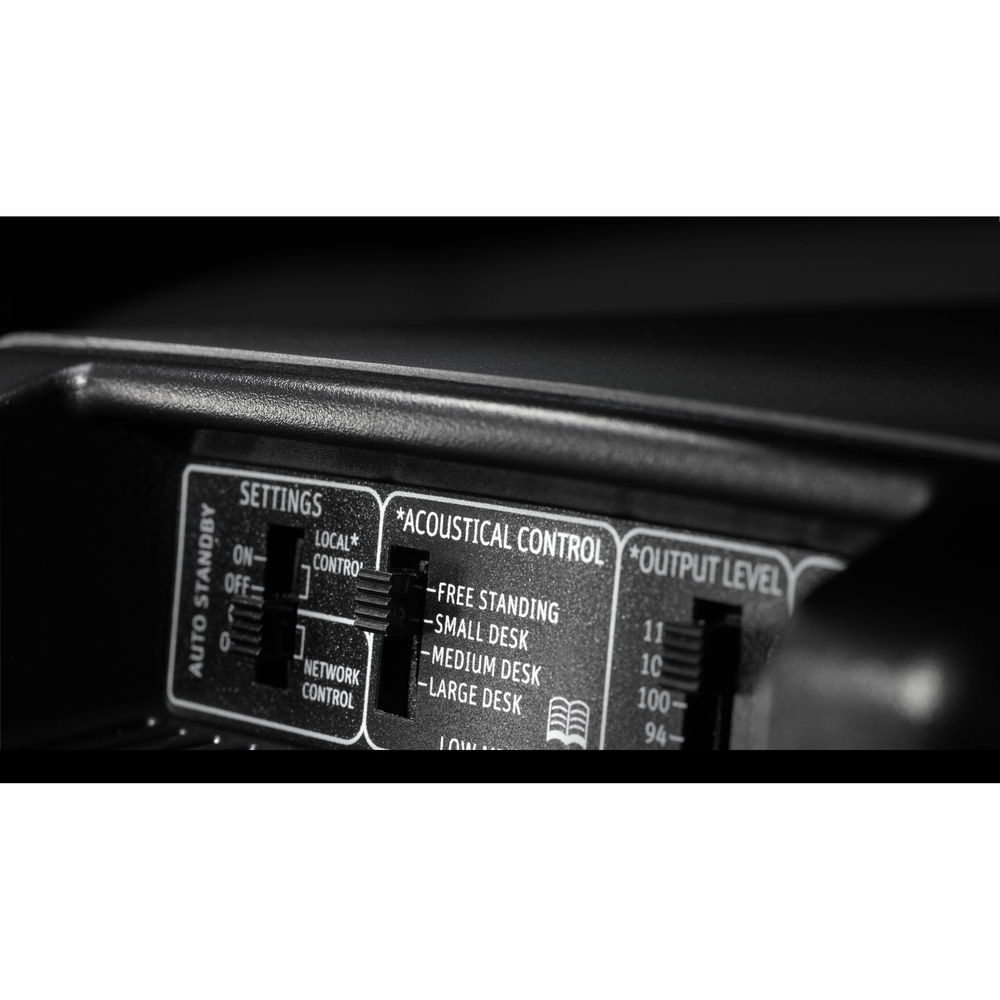

The device is equipped with two separate Class D amplifiers, providing a maximum output power of 120W for the low-frequency range and 70W for the high-frequency spectrum. Sound reproduction is handled by a 4-inch composite woofer with a long excursion and a magnetic shield, utilizing the Extremely Linear Force Factor (ELFF) technology for a linear frequency response, as well as a 1-inch tweeter with a fabric dome, loaded on an elliptical waveguide Mathematically Modelled Dispersion (MMD) that ensures a uniform and wide sound coverage zone. These drivers are capable of reproducing audio signals in a range from 57 Hz to 21 kHz with a +/-3 dB level. The crossover is set at 1.8 kHz, using 6th order filters with a cut-off frequency of 48 dB per octave. The maximum sound pressure can reach 108.8 dB, and the maximum output level can be set at 94, 100, 108, or 114 dB. The built-in DSP processor offers Acoustical Control technology with four presets to adjust the low midrange, eliminating excessive muddiness and unclear sound. The input sensitivity can be adjusted in the range of 0 to -15 dB.
Thanks to the standard IP network Neumann.Control, full access to all functions of the KH 80 DSP Studio Monitor is provided, which are not available on the rear panel. Speaker systems can be defined from monophonic to 3D, aligned for good sound in the room, and then centrally controlled: Setup, Align, Operate.

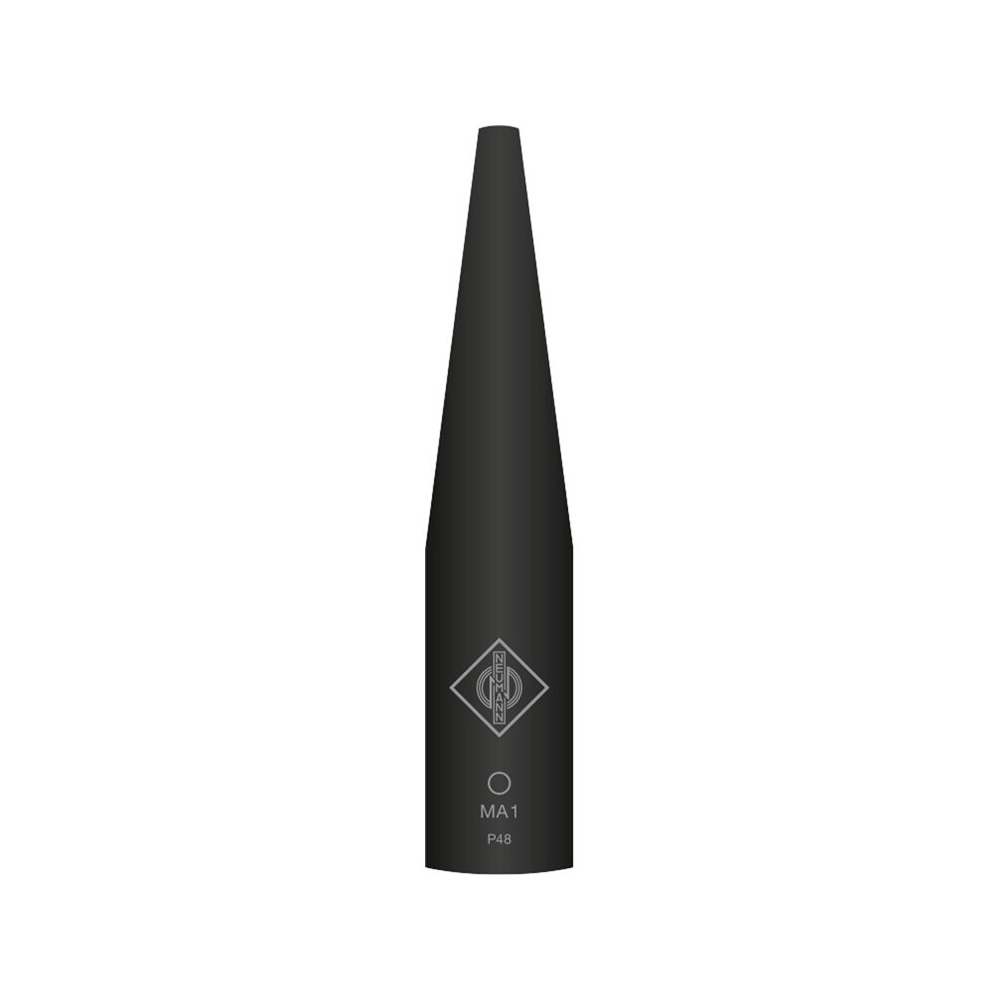

Neumann MA 1 Monitor Alignment System
The Neumann MA 1 monitor alignment system provides the best sound quality in any room, from home studios to professional setups. Using the individually calibrated measurement microphone, your acoustic environment is analyzed within a controlled process. Advanced calibration algorithms developed in collaboration with the leading sound processing institute, Fraunhofer IIS, ensure optimally adapted amplitude and phase correction for accurate and reliable monitoring.
What's Included:
- 2 studio monitors
- 1 subwoofer
- 1 microphone for calibration
- Documentation
