Integrated amplifier

NAD D3020 V2

no reviews

AED 2,125

Product code: 121413

CHAT WITH US

10:00-22:00

Available in stores

    Delivery from the supplier's remote warehouse.
    We will contact you within 48 hours to clarify the delivery time.

    Description

    The NAD D 3020 V2 is a compact integrated amplifier and is a replacement for the D 3020 model. The device's name is intentionally similar to the famous NAD 3020, which appeared on the market in the 70s. Externally, the NAD D 3020 V2 looks very similar to the previous version, but it has some interesting features in its specifications that reflect modern trends in the Hi-Fi market.

    The most noticeable change in the NAD D 3020 V2 compared to the previous model is the exclusion of the USB-B input and its replacement with inputs for connecting an MM phono cartridge. The NAD D 3020 V2 also has received some other connectivity options. The amplifier has a built-in Bluetooth module with aptX support, making signal transmission from various mobile devices hassle-free. Another useful feature is the presence of a 3.5mm headphone output on the front panel.

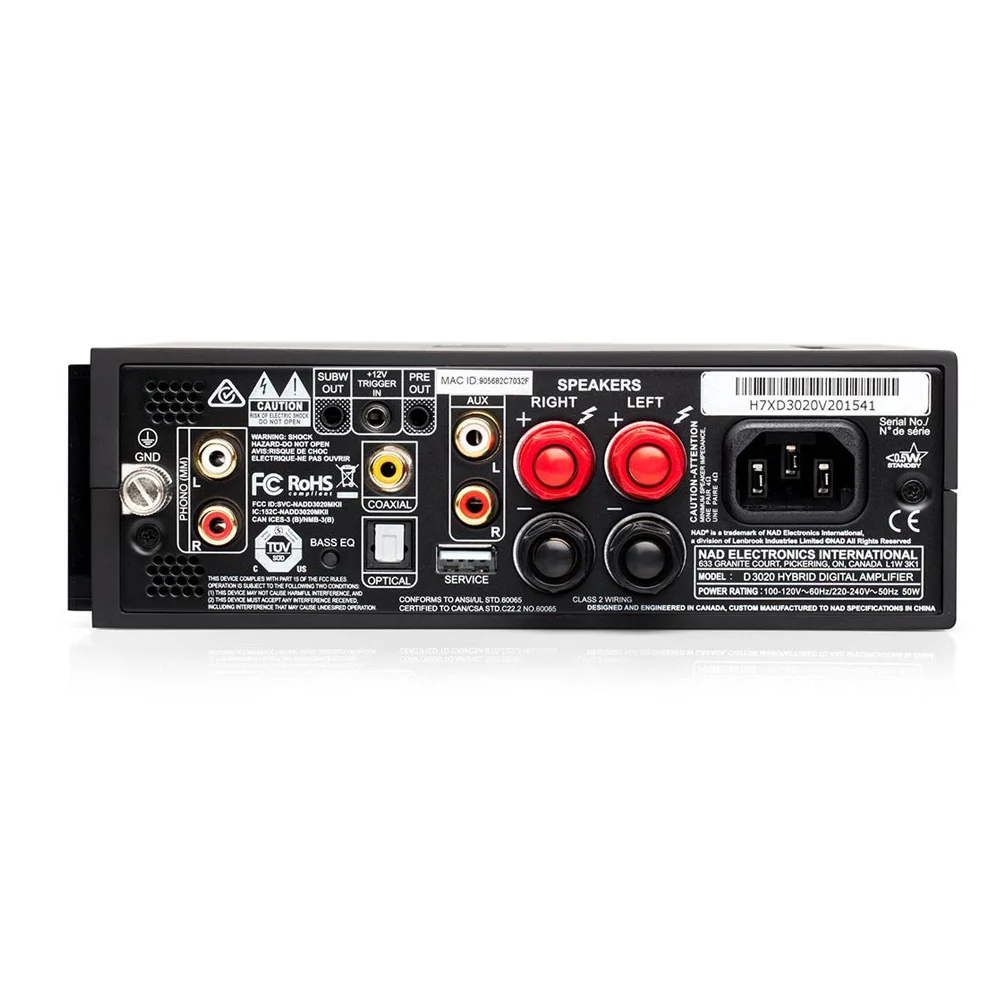

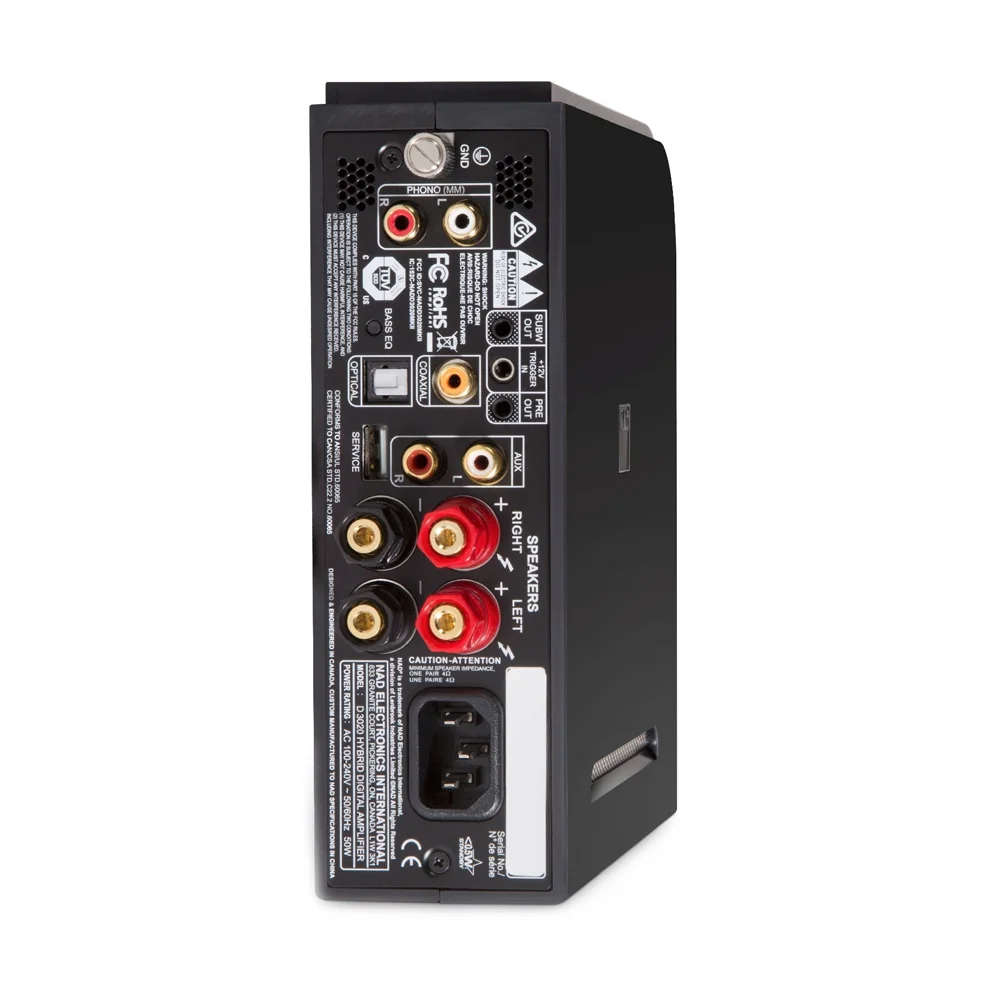

    There are some additions on the rear panel of the new amplifier. The D3020 V2 now has a preamp output and a connector for connecting a subwoofer (necessary adapters are included), as well as a 12-volt trigger input. In this model, NAD has installed Class D amplifiers, which have been favored recently. The NAD D 3020 V2 delivers 30 watts per channel at 4 or 8 ohm loads, and there are two pairs of screw terminals for speaker connections. Class D amplifiers traditionally outperform classic A/B schemes in terms of efficiency, so the NAD D 3020 V2 is quite compact and doesn't heat up during use. One of the amplifier's sound adjustment options is a bass equalization switch on the back panel, which helps enhance low-frequency sound richness.

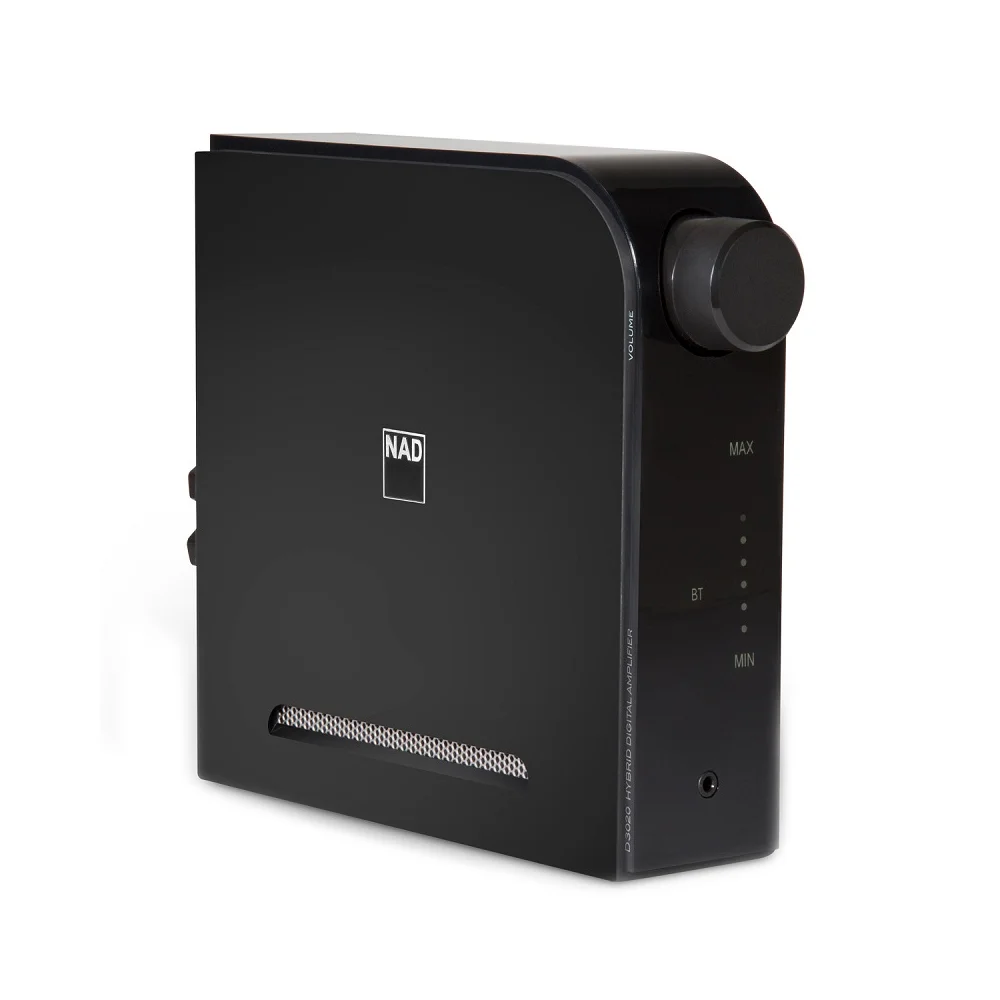

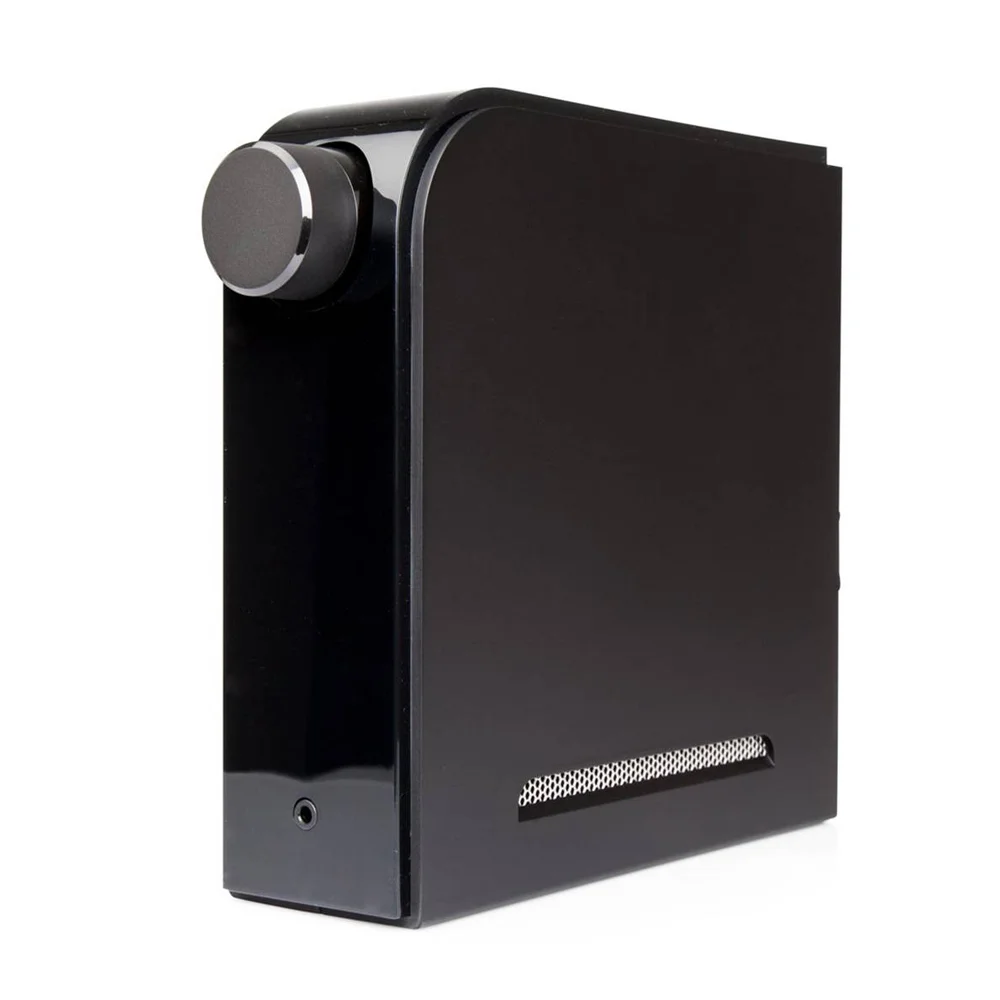

    The decision to make an amplifier that can be placed on its side is very successful for a model that looks more modern and stylish than many competitors. It features a light indicator for the volume level and selected input, and physical buttons have been replaced with a touch panel. The volume control knob has a smooth operation, and the device is characterized by high manufacturing quality. The amplifier also comes with a miniature remote control.

    Features:

    • Compact hybrid integrated amplifier
    • Bluetooth ADP4 support with aptX
    • Low-frequency adjustment with BassEQ mode
    • Analog line inputs
    • High-quality MM phono input
    • USB-B port for playing audio files from a PC
    • Coaxial and optical SPDIF inputs
    • Works with one pair of speakers
    • Subwoofer output
    • Headphone amplifier
    • IR remote control
    • 12V trigger input

    Package Contents:

    • Amplifier
    • Power cable
    • Remote control
    • 3.5mm - RCA cable
    • Four feet
    • Documentation

    Characteristics

    • Brand
    • Power per channel at 4 ohms, W
      30
    • Power per channel at 8 Ohm, W
      30
    • Internal DAC
      yes
    • Input connectors
      RCA, Toslink, S/PDIF, 3.5mm jack, USB-B
    • Output connectors
      3.5mm jack, terminals
    • Headphone output
      3.5mm jack
    • Phono stage type
      MM
    • Circuit design
      discrete
    • Preamplifier
      yes
    • The lowest frequency, Hz
      20
    • The highest frequency, kHz
      20
    • Bluetooth version
      5.0
    • Remote controller
      yes
    • Network standards
      Bluetooth
    • Form factor
      stationary
    • Color
    • DAC bit depth, bits
      24
    • Impedance, Ohms
      8
    • Material
      plastic
    • Number of channels
      2
    • Sampling rate, kHz
      192
    • Signal-to-noise ratio, dB
      90
    • Connecting to a computer via USB
      yes
    • Playback via USB
      yes
    • Depth, mm
      219
    • Height, mm
      186
    • Width, mm
      58
    • Weight, g
      2100
    • Service life, months
      24
    • Warranty, months
      12
    • Show all characteristicsShow fewer characteristics
