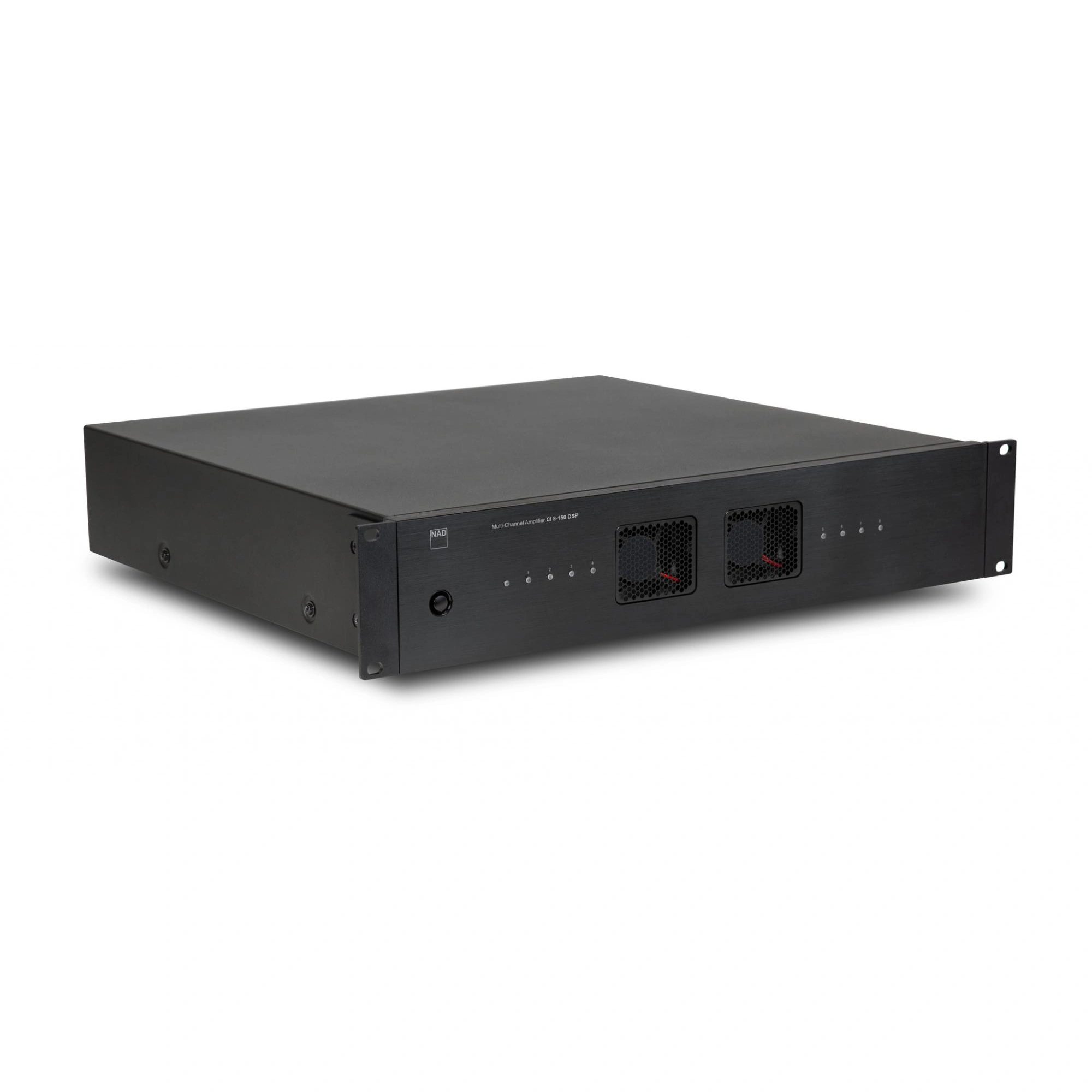

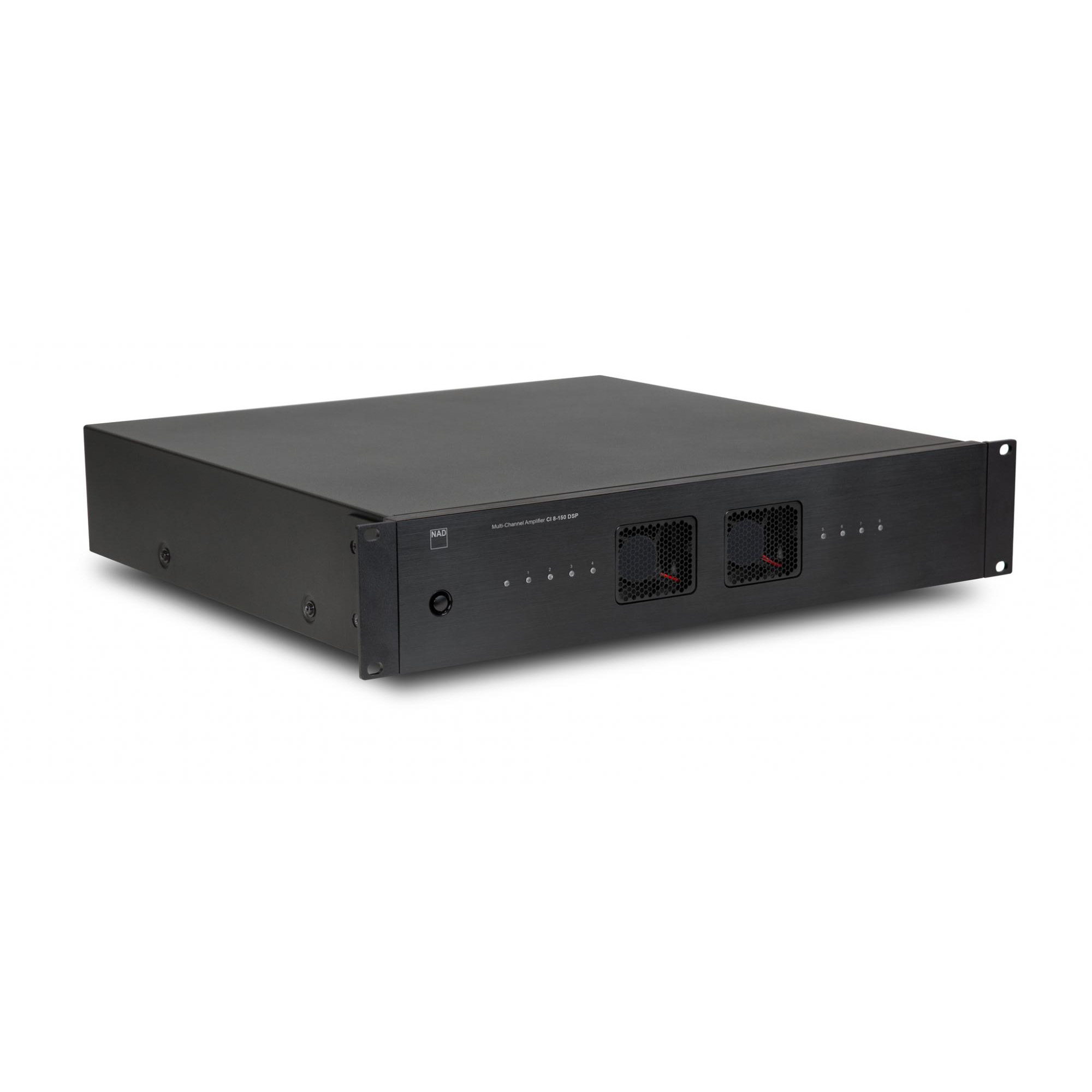

The CI8-150 is our flagship CI amplifier. Powerful and refined, with 150 watts per channel of audiophile grade amplification, this distribution amplifier will drive anything you need it to without breaking sweat, and it will do it with class leading performance. NAD CI amplifiers will redefine the way you view distributed audio systems.
Key Features:
- 8 Channels x 150 Watts @ 8 Ohms, Hybrid Digital with Hypex nCore;
- Bridgeable to 4 channels X 280 Watts @ 8 Ohms;
- Effectively handles long cable runs and difficult speaker loads;
- Ethernet port for IP control, custom web UI with virtual I/O panel and performance diagnostics;
- DSP with 5 band parametric EQ, plus high and low pass filters;
- 4 stereo RCA inputs;
- 2 x digital coax stereo inputs, 2 x optical stereo inputs;
- Dual global Inputs/Outputs;
- 2U Rack height;
- 5W Standby Mode, 3W Network Standby;
- 12V Trigger In; IR In/Out;
- Thermostatic fan cooling with front vents;
- Universal AC Power Supply;
- Multiple Power-up options including Auto Sense turn on, as well as Eco Mode.
Full Disclosure Power
The CI 8-150 DSP offers NAD’s Masters Series performance in the rack space. As per NAD’s Full Disclosure Power (FDP) ratings, this sophisticated amp is capable of delivering a conservative 150 watts per channel at 8 ohms into all channels simultaneously, bridgeable to 280 watts per channel. IHF Dynamic Power in bridged mode is 4 x 670 watts per channel at 4 ohms. No matter what you throw at the CI 8-150, it won’t flinch.
Hybrid Digital Amplification
The CI 8-150 DSP uses a customized version of the proven Hypex UcD output stage to deliver great load invariant power with extremely low distortion and noise floor. Every detail of this design has been carefully executed to bring out the best possible performance. Meticulously designed and built to deal with the demands of the custom installation market, the robust nature of Hybrid Digital amplification makes it ideal for installations. With a high current output and being load invariant, it handles 4 ohm loads as easily as it does 8 ohms and can effortlessly handle long cable runs and difficult speaker loads while maintaining audio quality.
Whether listening to background music at lower volumes or turning it up, NAD delivers a consistent, linear sound, which is clear, detailed and dynamic at all volume levels.
Rack Space Efficiency and Reliability
NAD is keenly aware that reliability is paramount for a professional installer, so all models will be based on tried and true amplification platforms delivering stable and reliable performance. Since rack real estate is always at a premium, NAD CI amps have been designed to take up as little as possible. Thermostatic fans draw in cool air from the front of the unit and out through the rear vents, meaning you don’t need to leave ventilation gaps between each unit for it to stay cool.
Web UI/DSP
The CI 8-150 is network ready for simple set up, via the custom WebUI. This allows fast set up, of inputs & outputs, setting gain, stereo/mono and bridging of channels, creation of DSP profiles using the 5 band Parametric EQ, plus high and low pass filters to allow the dialing in of the audio in each zone and optimize performance. A variety of power on methods are available as well as an Eco mode setting for minimal power consumption. I/O switching and routing can also be managed via compatible control systems with drivers available for Crestron, Control4, Elan, RTI and URC.
System suggestion
Combine the CI 8-150 DSP with the CI 580 V2 4- zone BluOS rack mount streamer or Bluesound NODE to create a complete hi res multi-room package of incredible value and quality. For a step- up in source performance, the NAD C 658 would also compliment the extra power of the CI 8-150 DSP perfectly.
In the Box:
- Network Amplifier;
- Power Cord;
- User manual.
