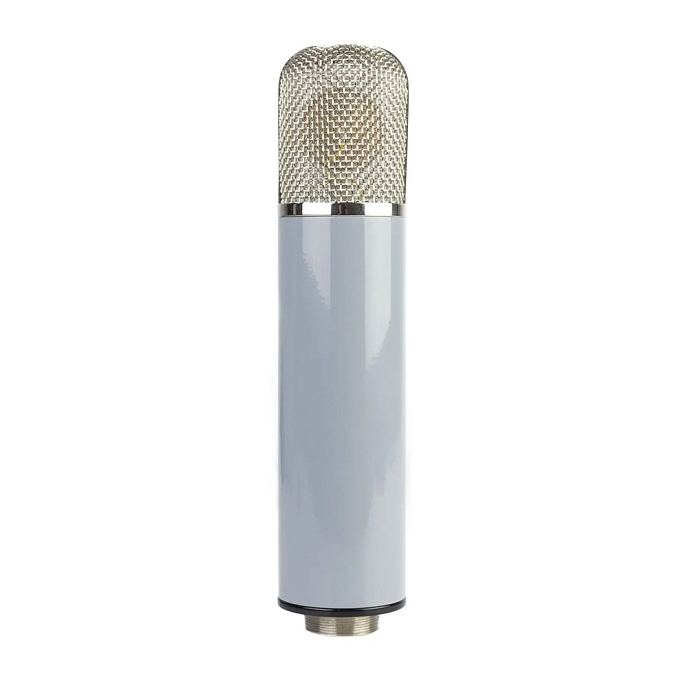

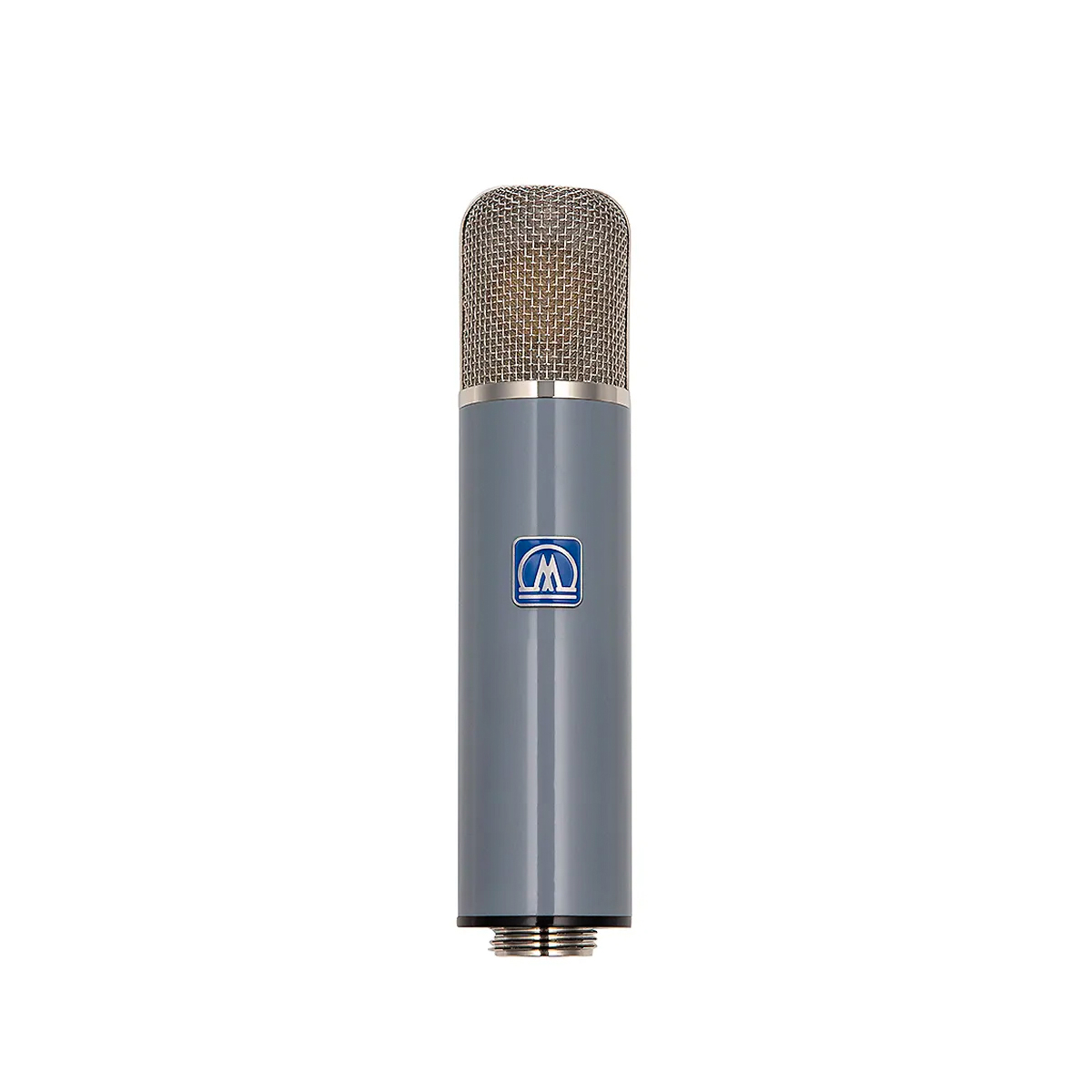

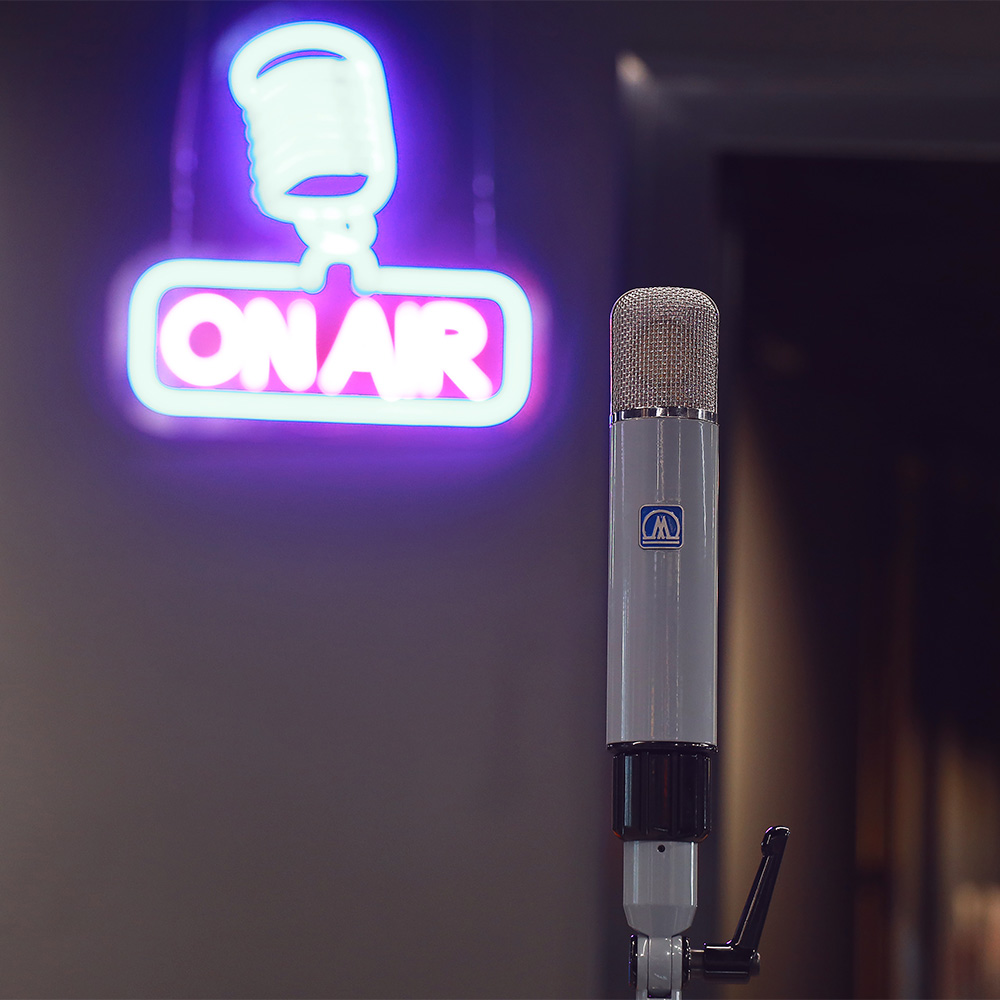

The Myburgh M1 wide-diaphragm condenser microphone was designed and manufactured in Germany. Over the course of several years, a team of engineers worked on it, who have long been well known in the field of microphone construction - Andreas Grosser, Eckehard Dux, and Andrew Mayburg.
Features:
- Variable polar pattern on a potentiometer with lock (omnidirectional, cardioid, bidirectional, 100% cardioid)
- Frequency response: 20 Hz - 20 kHz
- Internal preamplifier stage: linear 30 Hz - 20 kHz
- Sensitivity: 24 mV/Pa
- Equivalent noise level: 15 dB
- Maximum sound pressure level: 124 dB
- M7 capsule
- M1 and PSU transformers from Pikatron

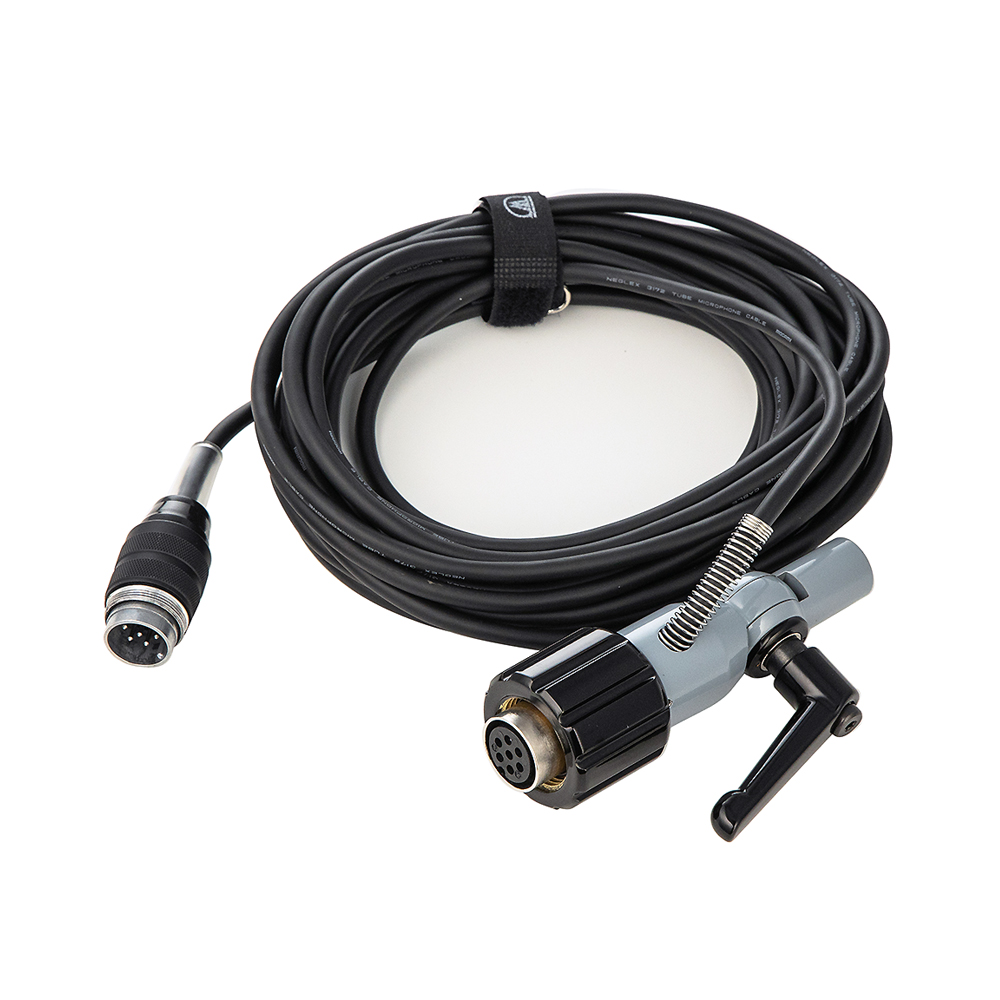

- Mogami Neglex 3172 tube microphone cable (7 m)
- Output impedance: 200 Ohms

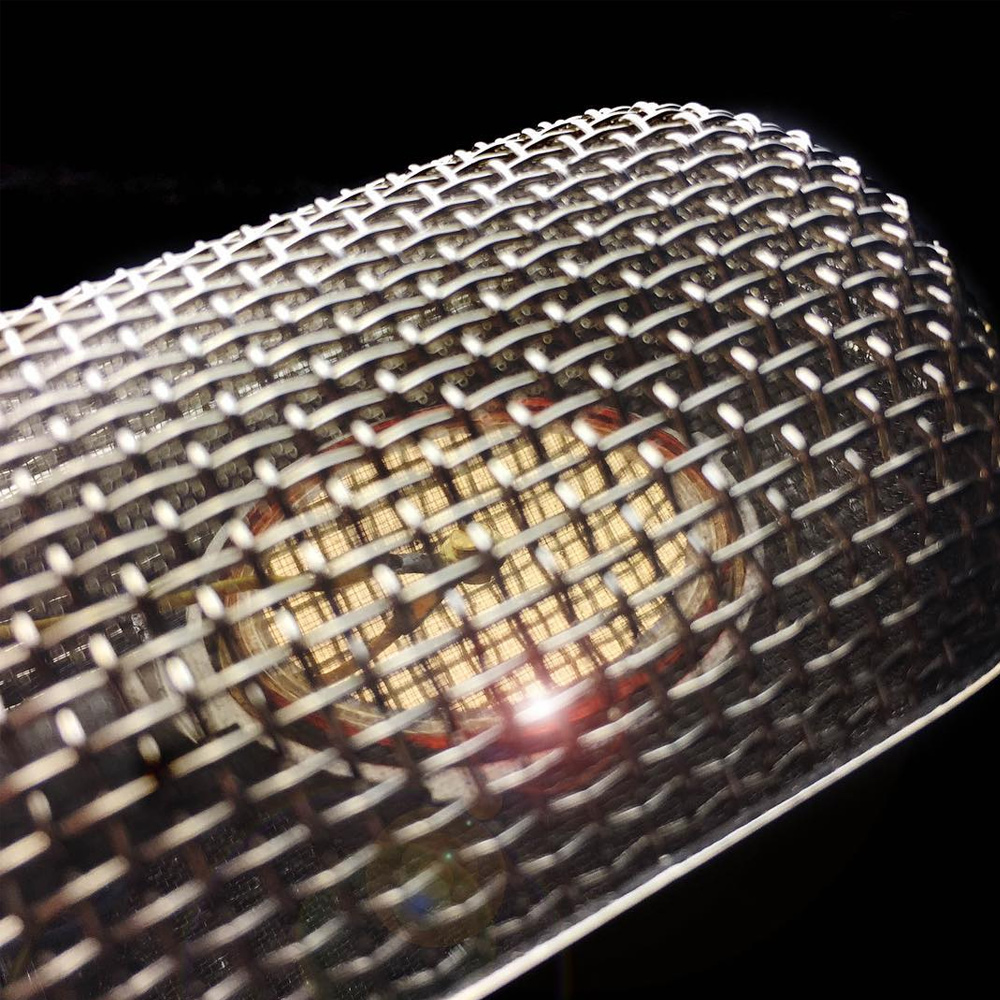

Capsule

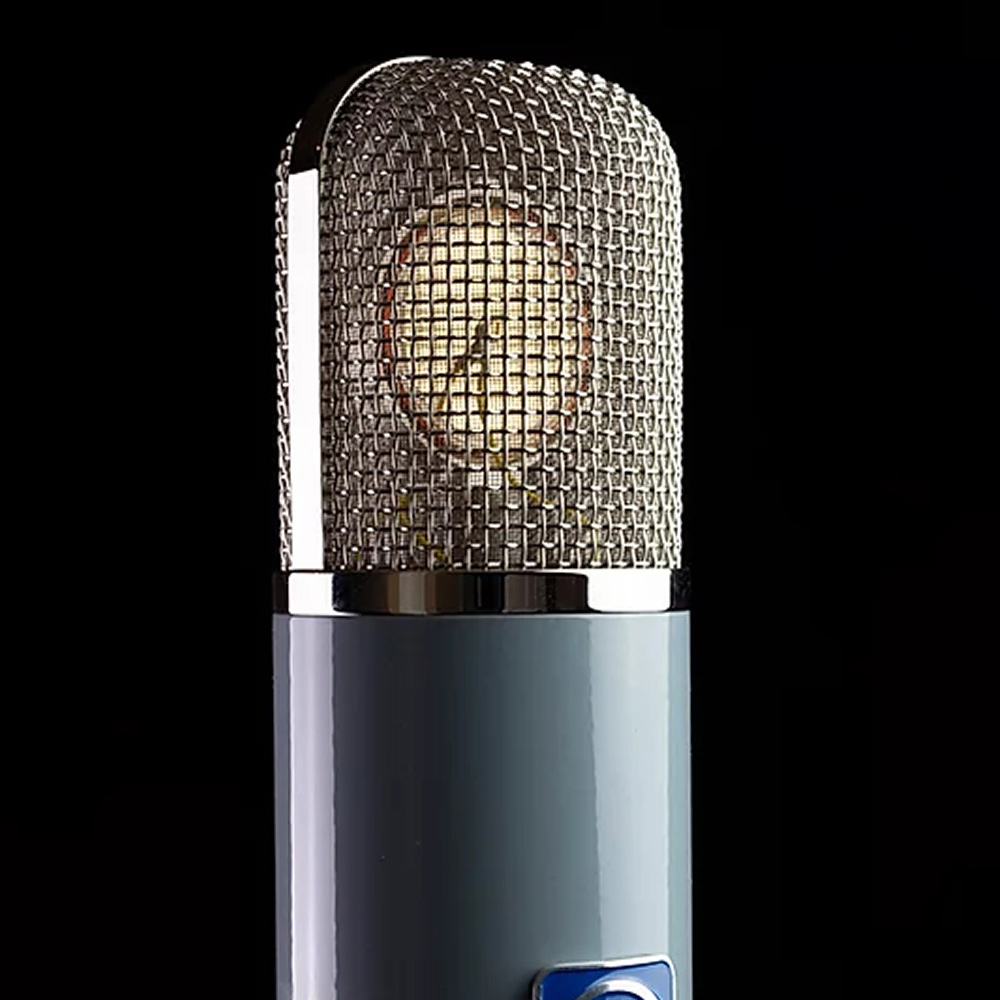

The Myburgh M1 features the M7 Red Line capsule with a bonded mylar membrane made from a material called polyester, originally released by DuPont. In the post-Soviet space, it is also known as lavsan. The material is known for its resistance to oxidation and other external factors.

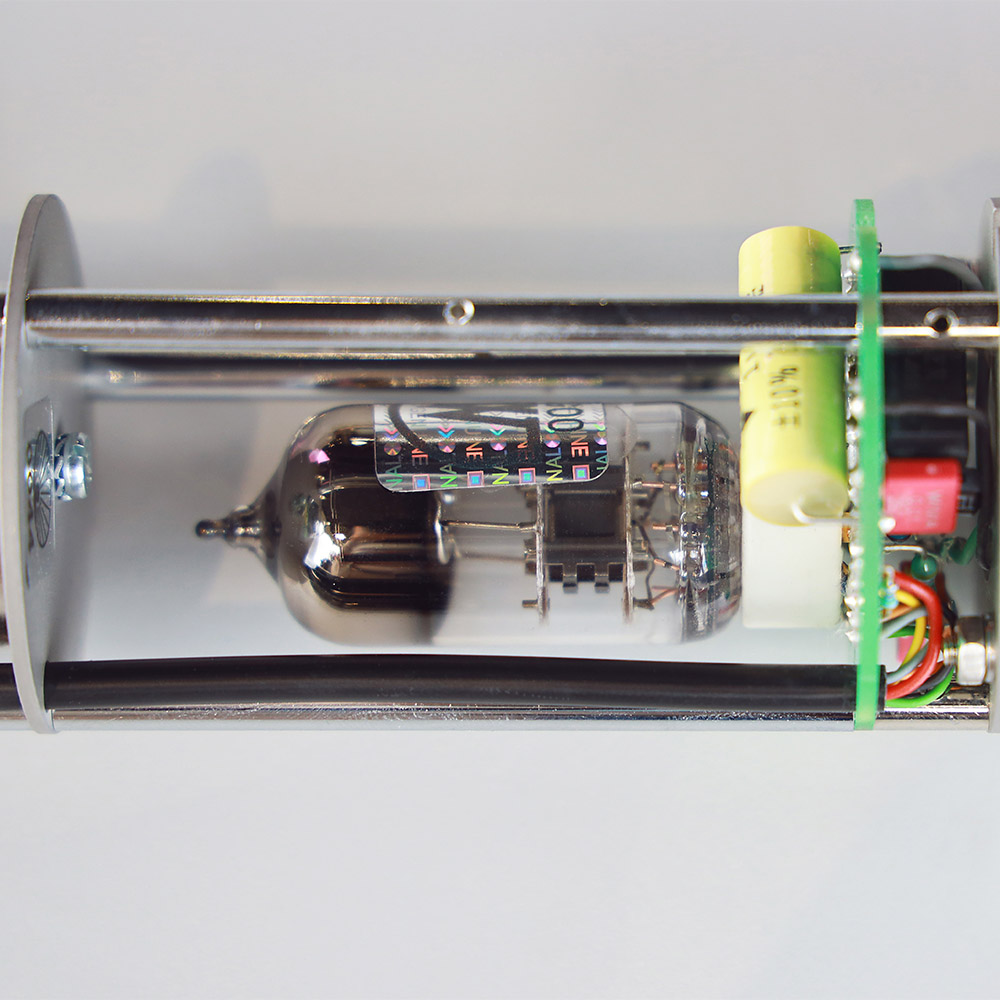

The capsule was developed by German audio engineer Siegfried Tirsh, who has long collaborated with Neumann. Tirsh is one of the most respected capsule manufacturers for condenser microphones in the world. The M1 is equipped with a Russian military-grade tube.

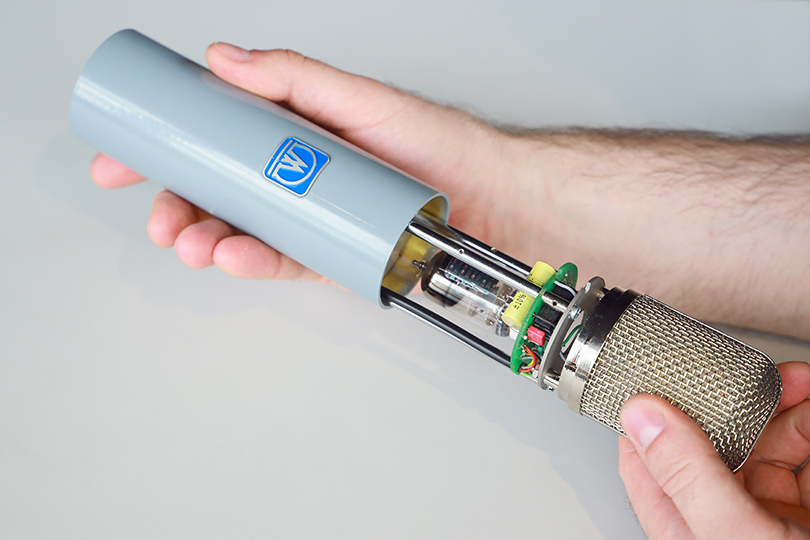

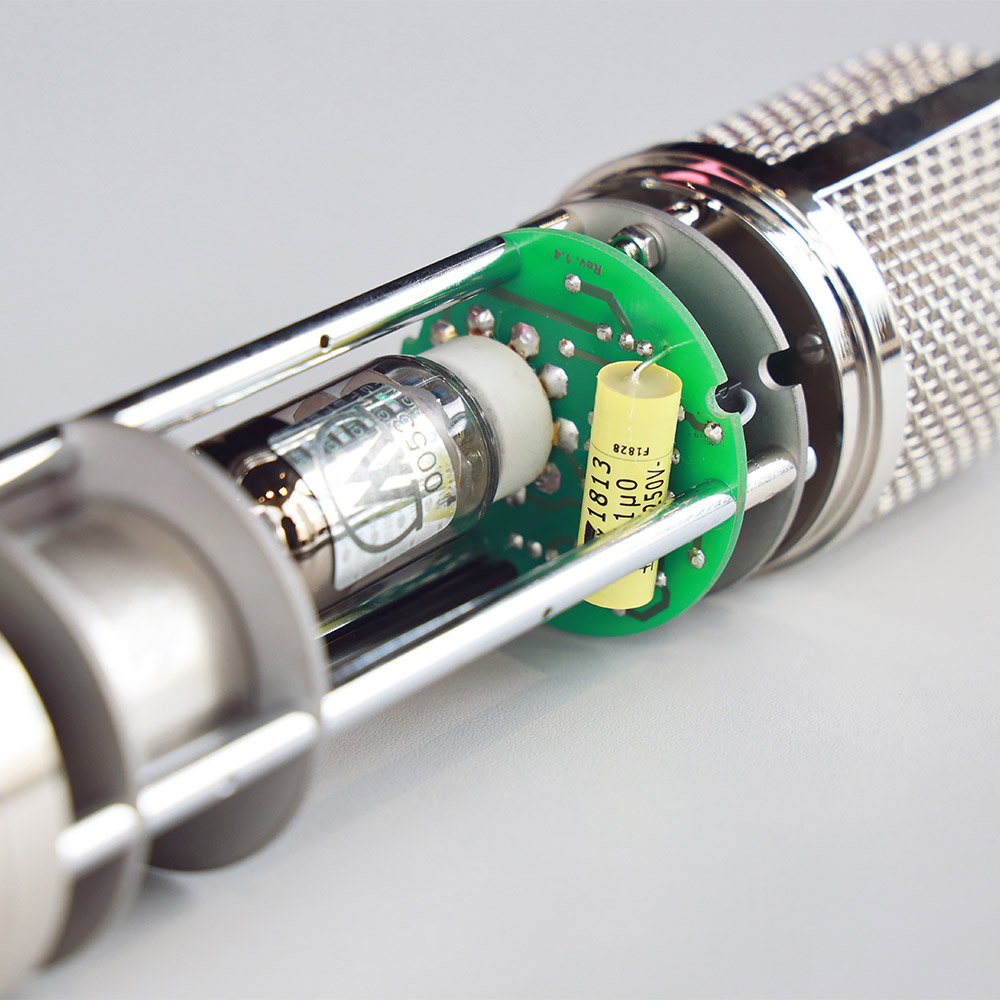

Amplifier and Transformers

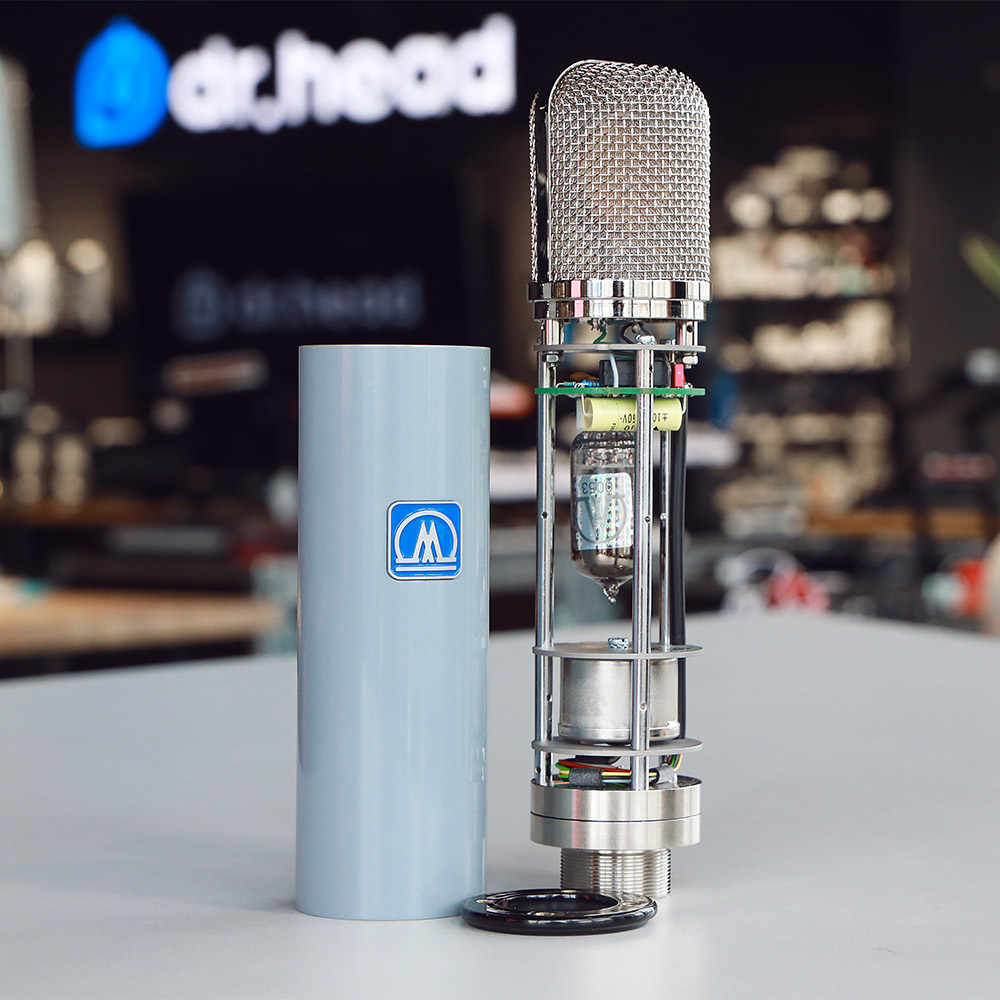

The M1 amplifier has an incredibly linear frequency response with a minimal cutoff below 30 Hz or above 20 kHz. Inside the microphone and power supply block, Pikatron transformers are installed, a German company that has been producing electronic components since 1974.

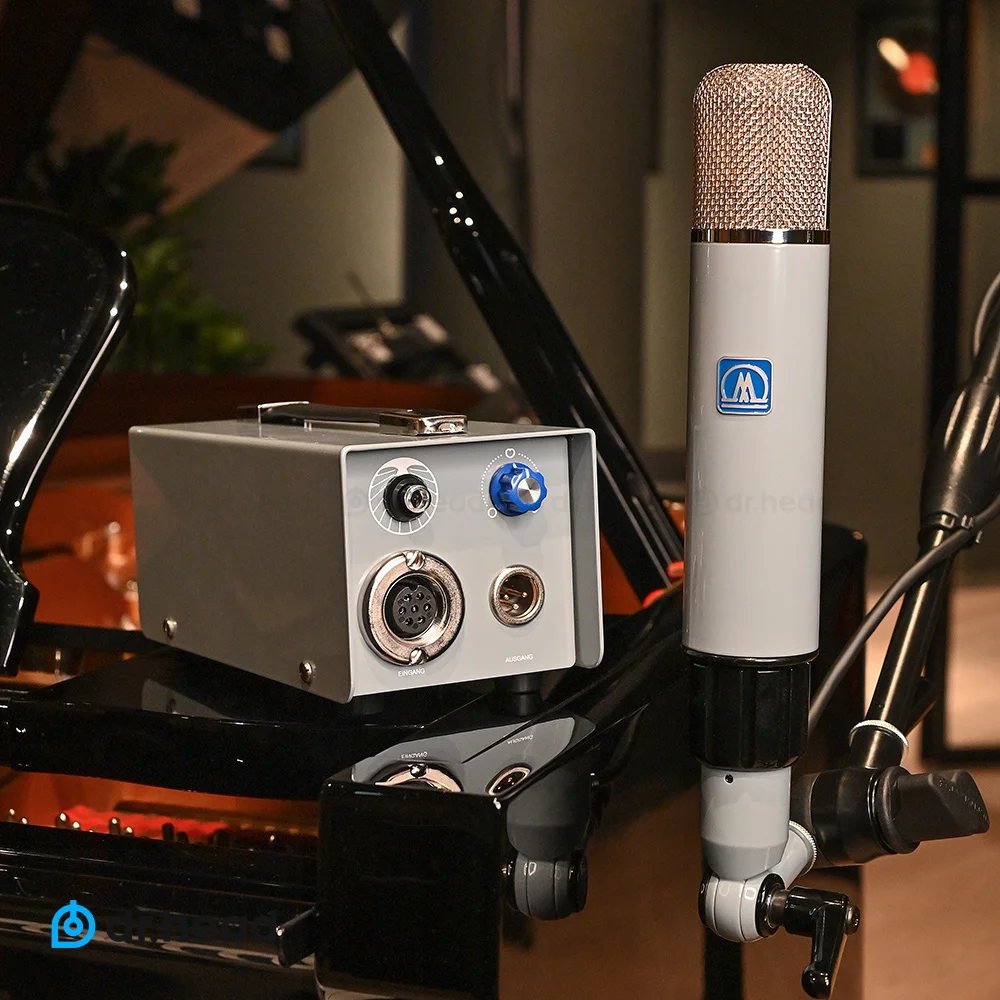

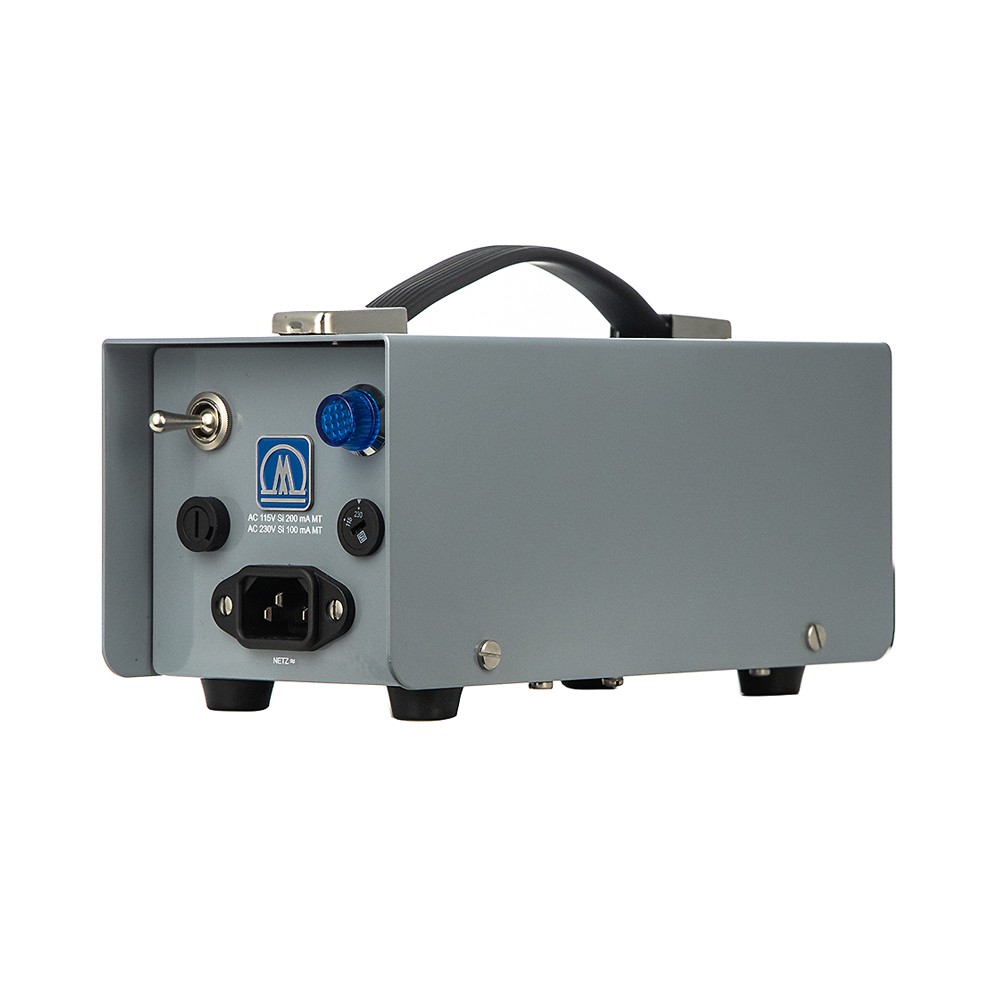

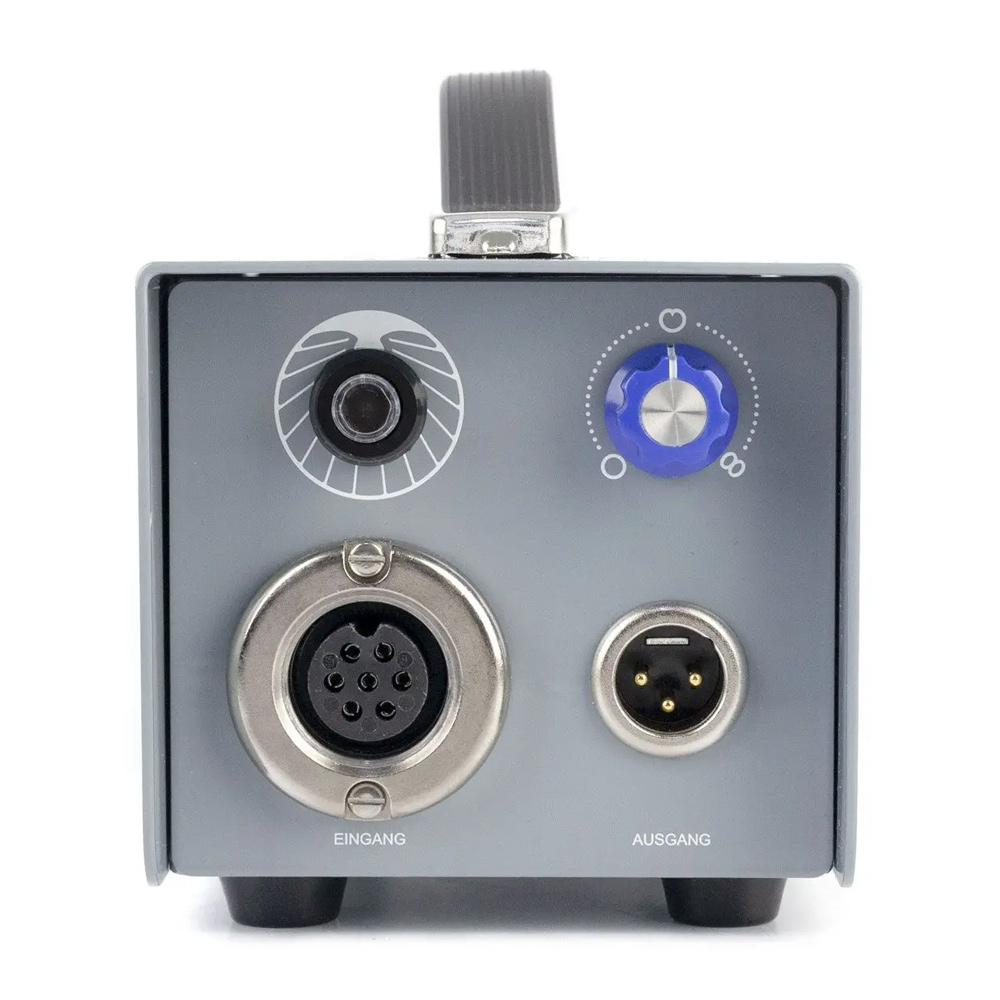

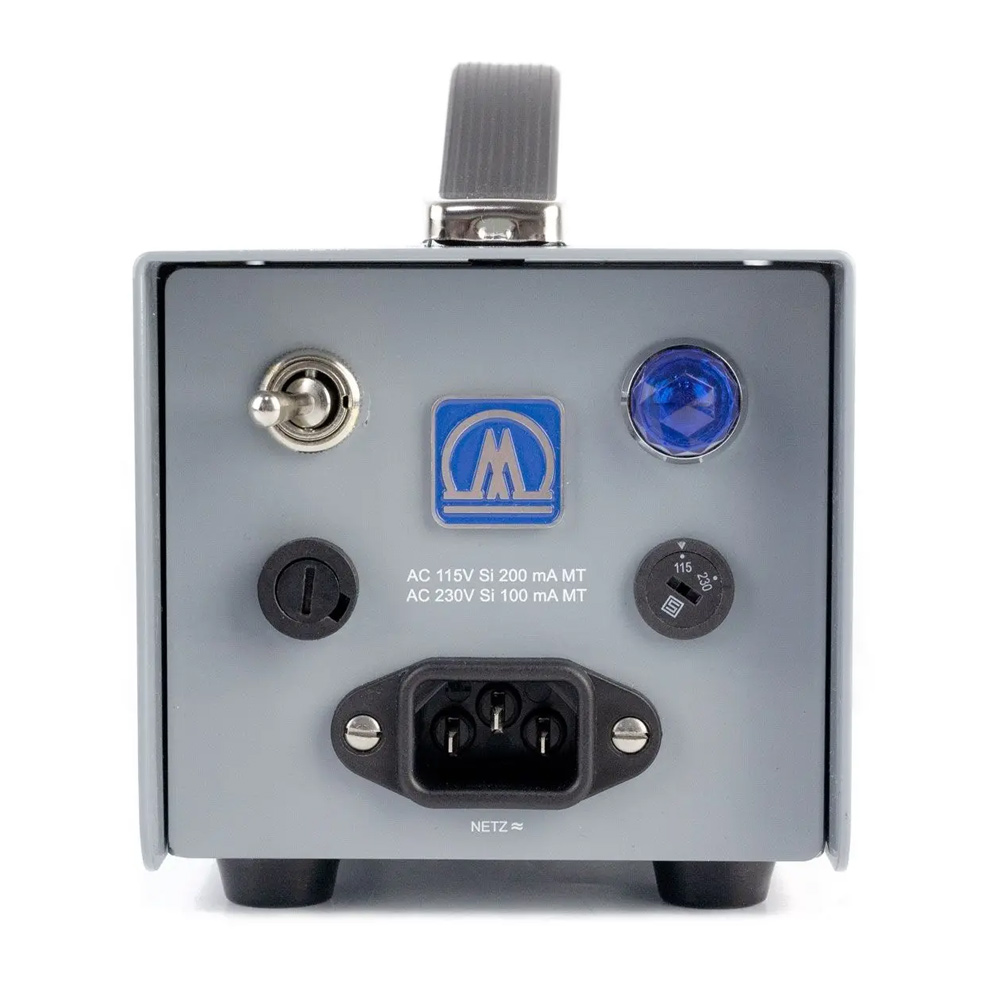

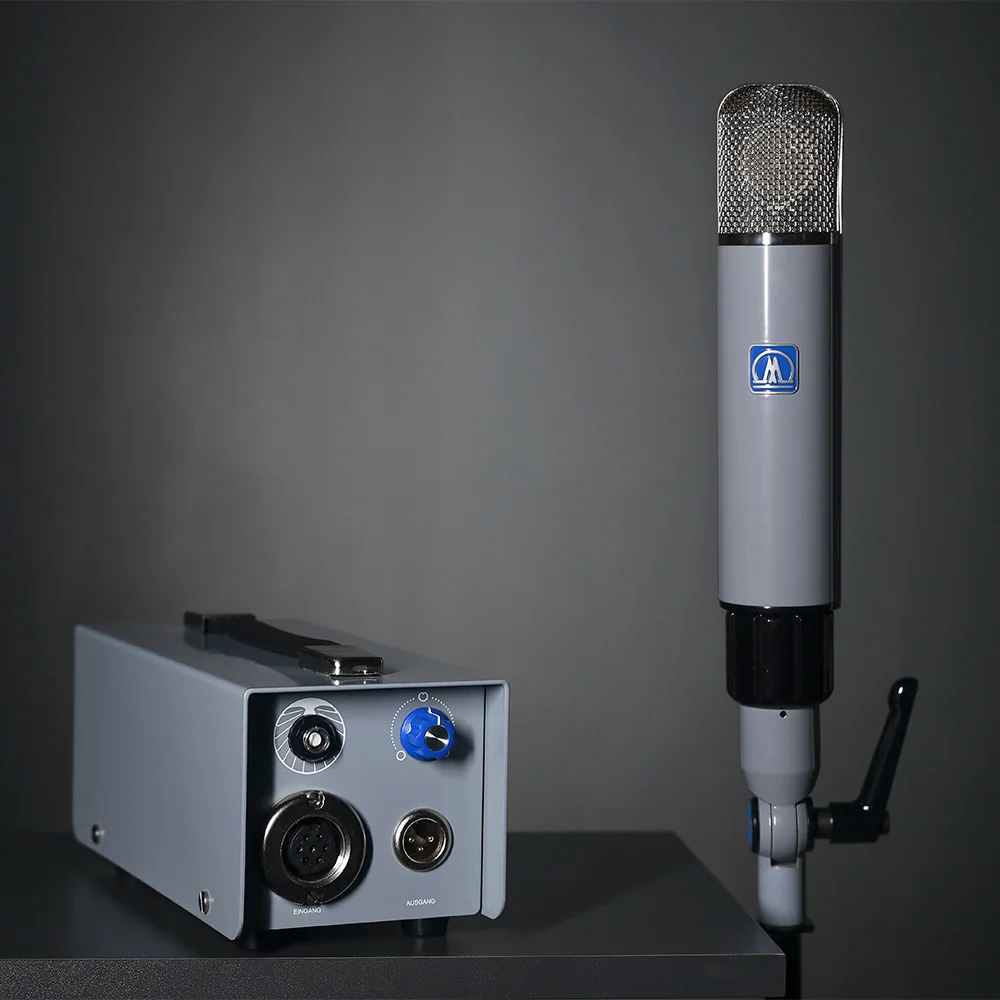

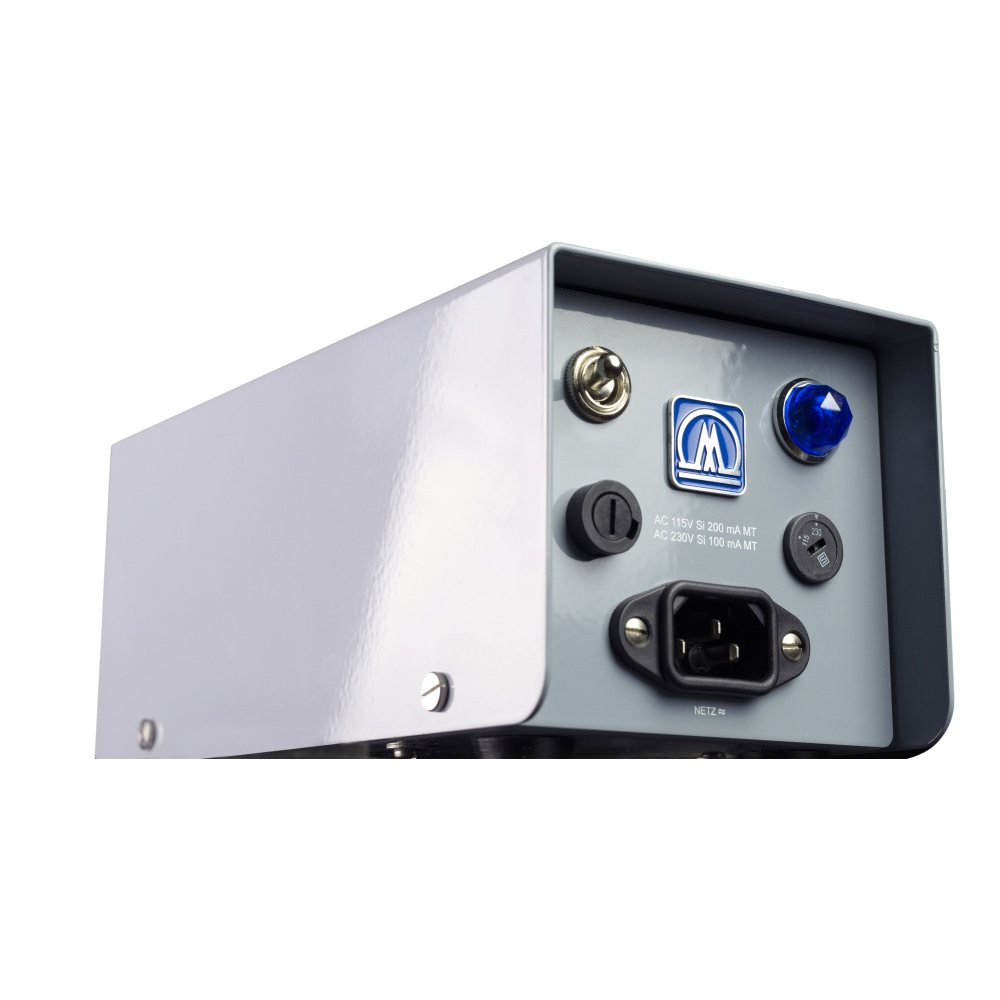

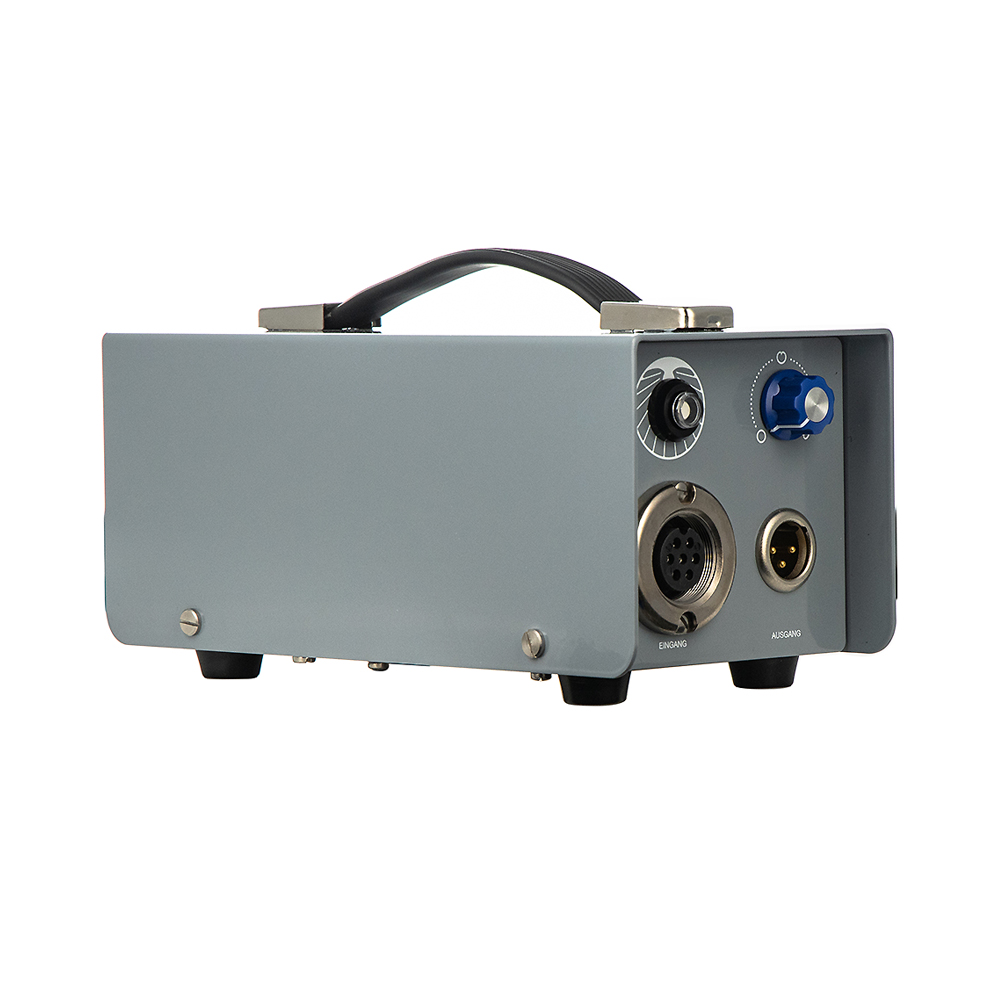

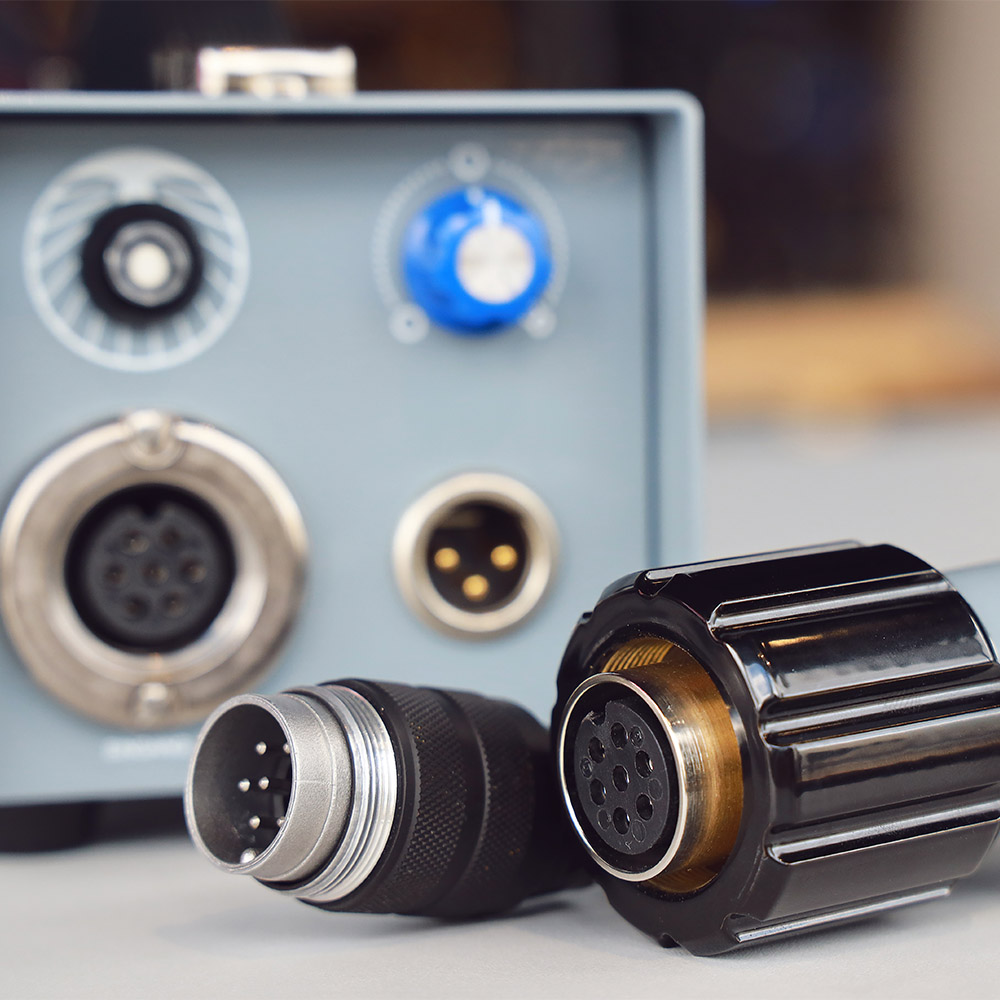

The amplifier design, combined with the German-made capsule and the new capsule head basket design, give the M1 a unique sound. The power supply block panel features an input and output, as well as a selector that allows you to choose the microphone's direction: omnidirectional, unidirectional (cardioid), and bidirectional (figure-eight).
Low Noise Level and High Sound Pressure Resistance
The Myburgh M1 can withstand SPL levels of 124 dB, similar to FET microphones often used for recording bass drums. The equivalent noise level is only 15 dB, which contributes to clear sound transmission.
Uncompromising Build Quality

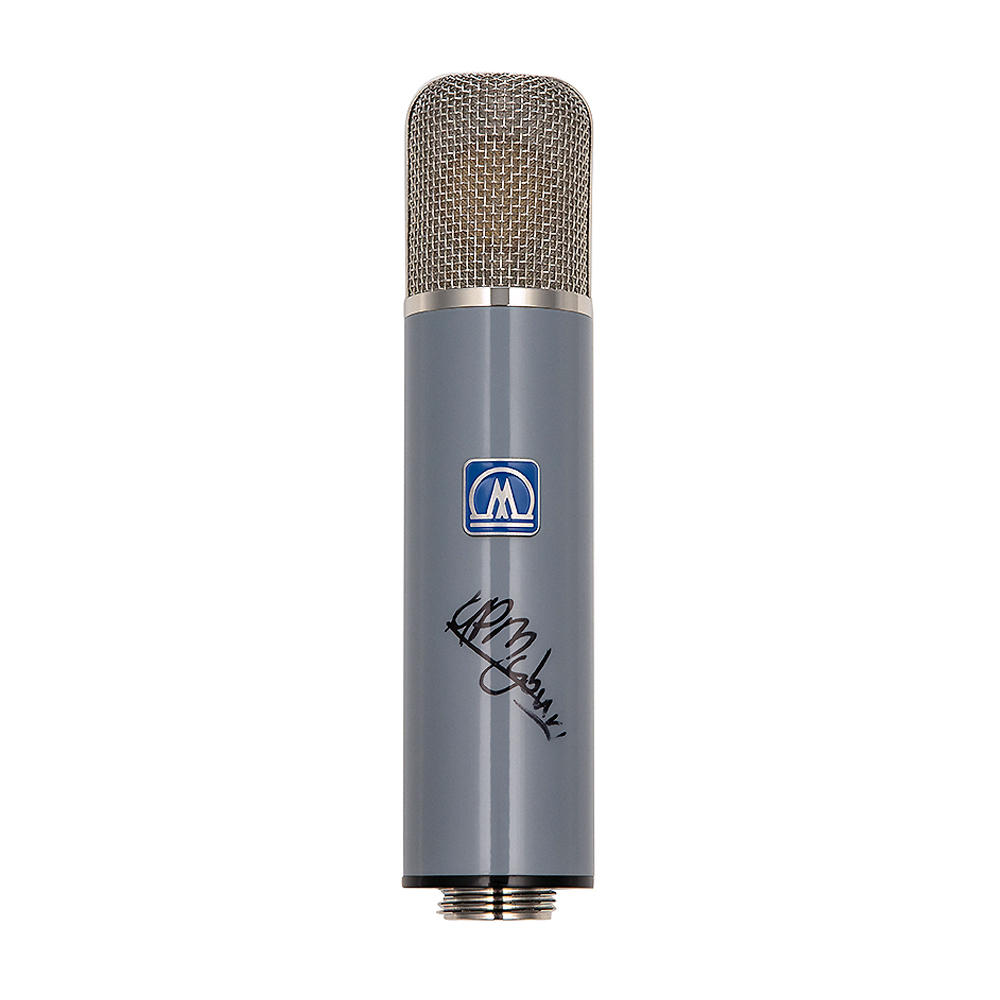

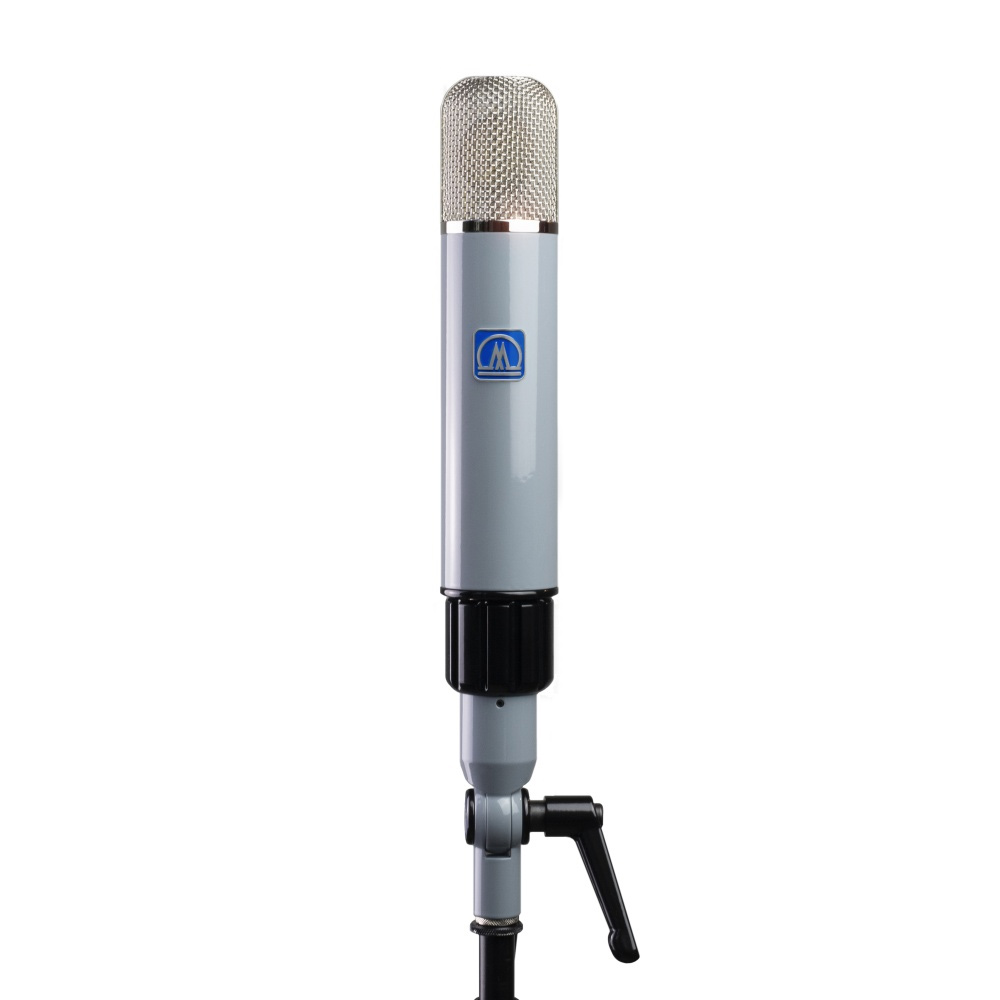

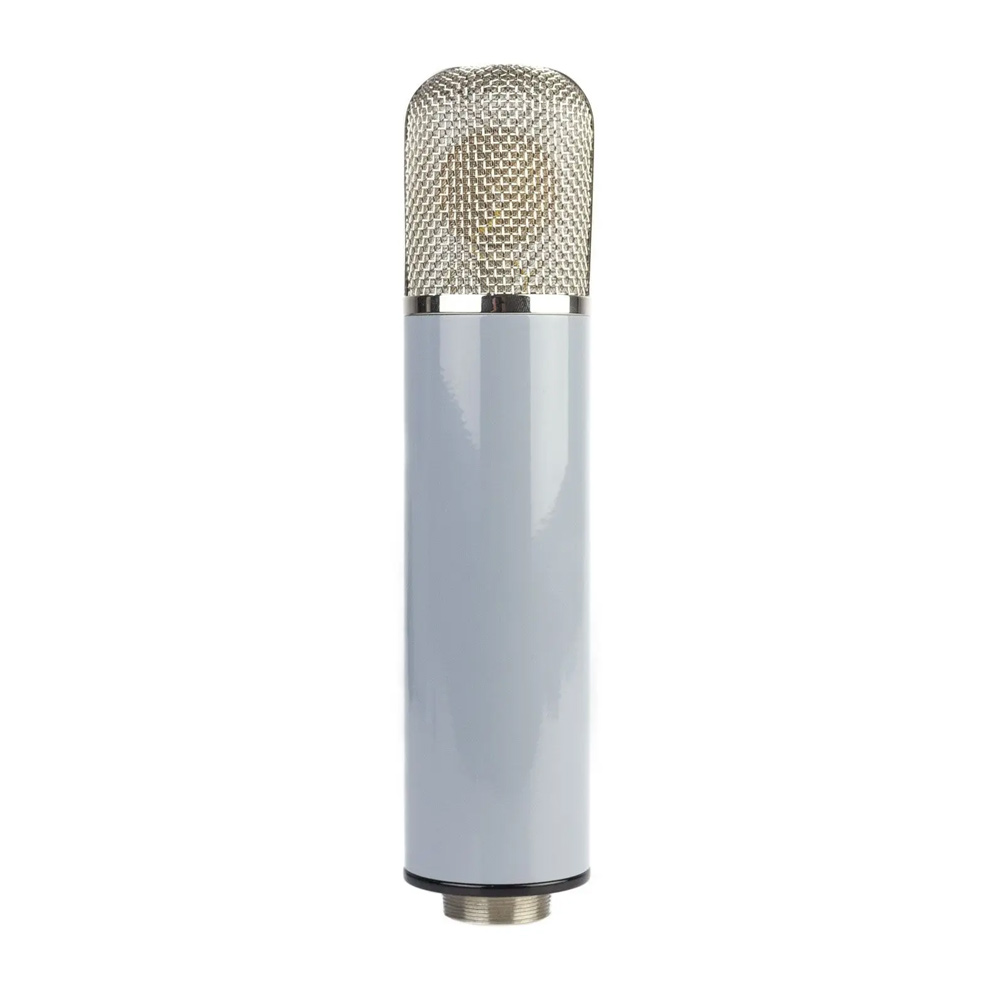

The microphone body is made of brass and has an unprecedented build quality. All metal structures are designed and manufactured to individual order. The mechanical lifespan of the M1 far exceeds that of a typical modern microphone. Myburgh - "created for several lifetimes".

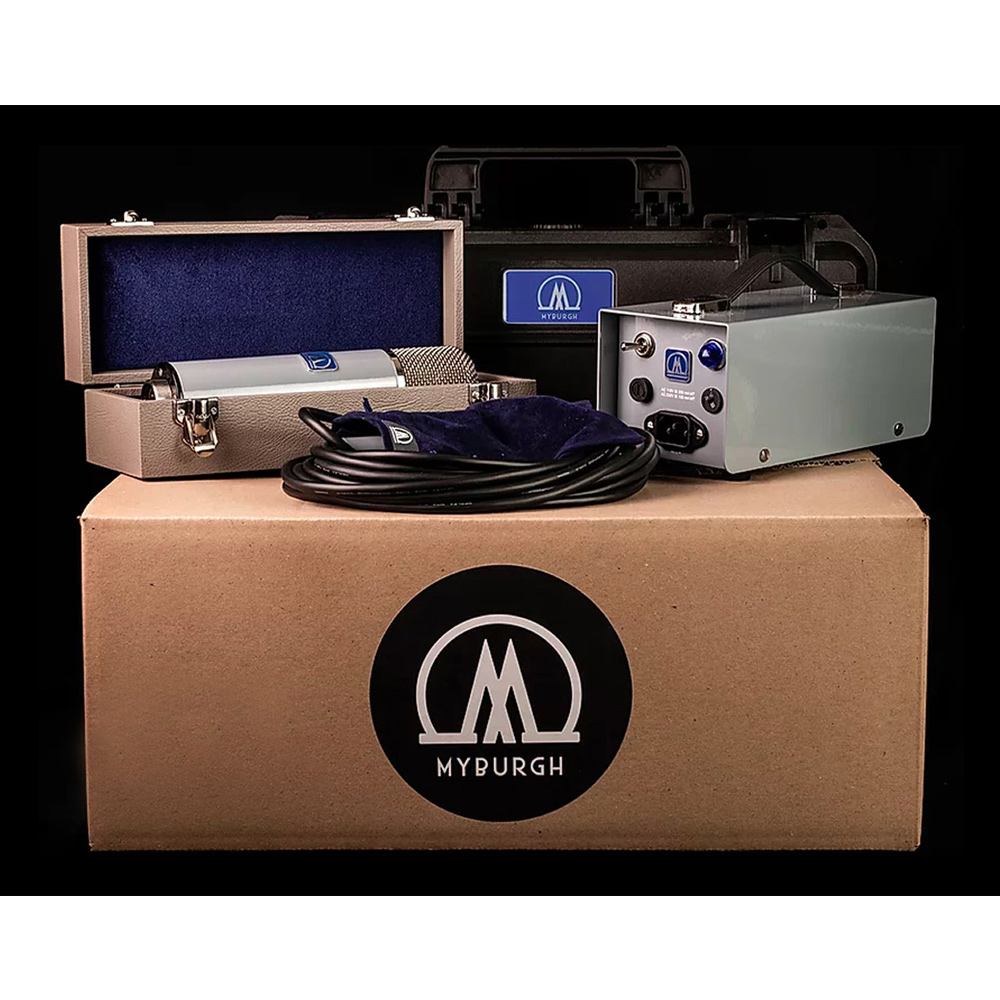

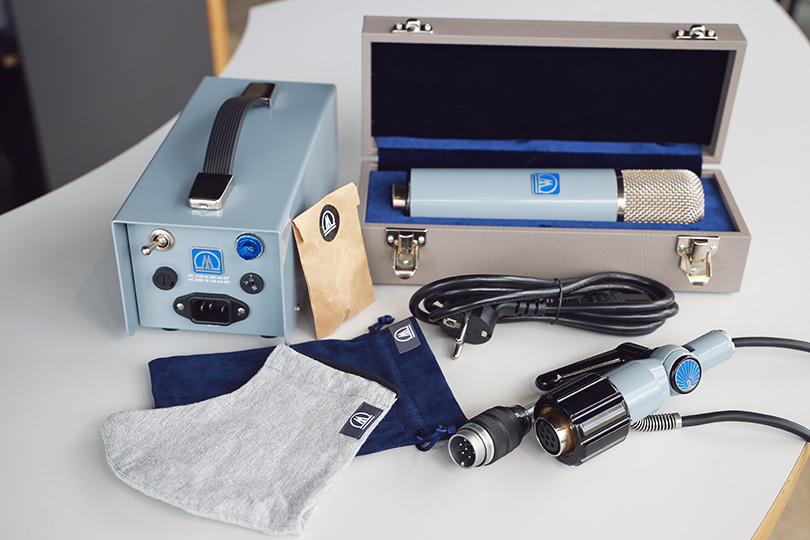

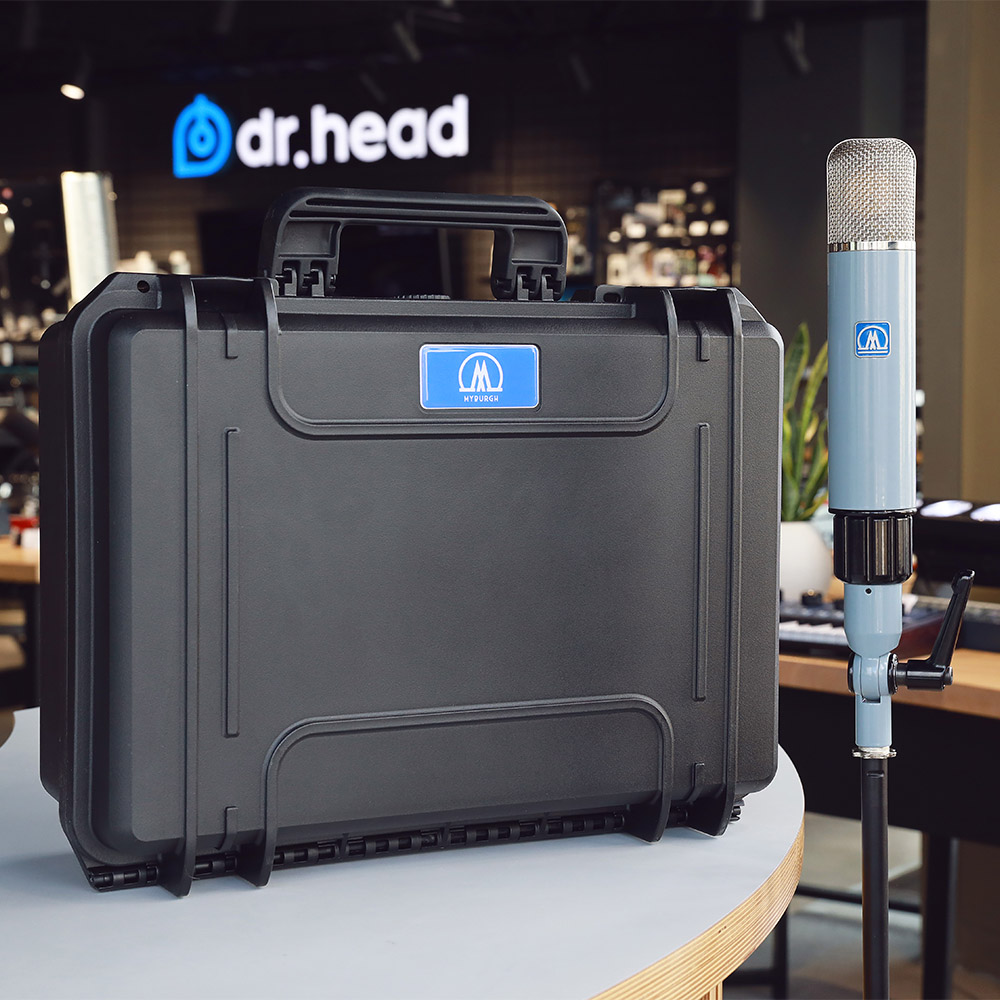

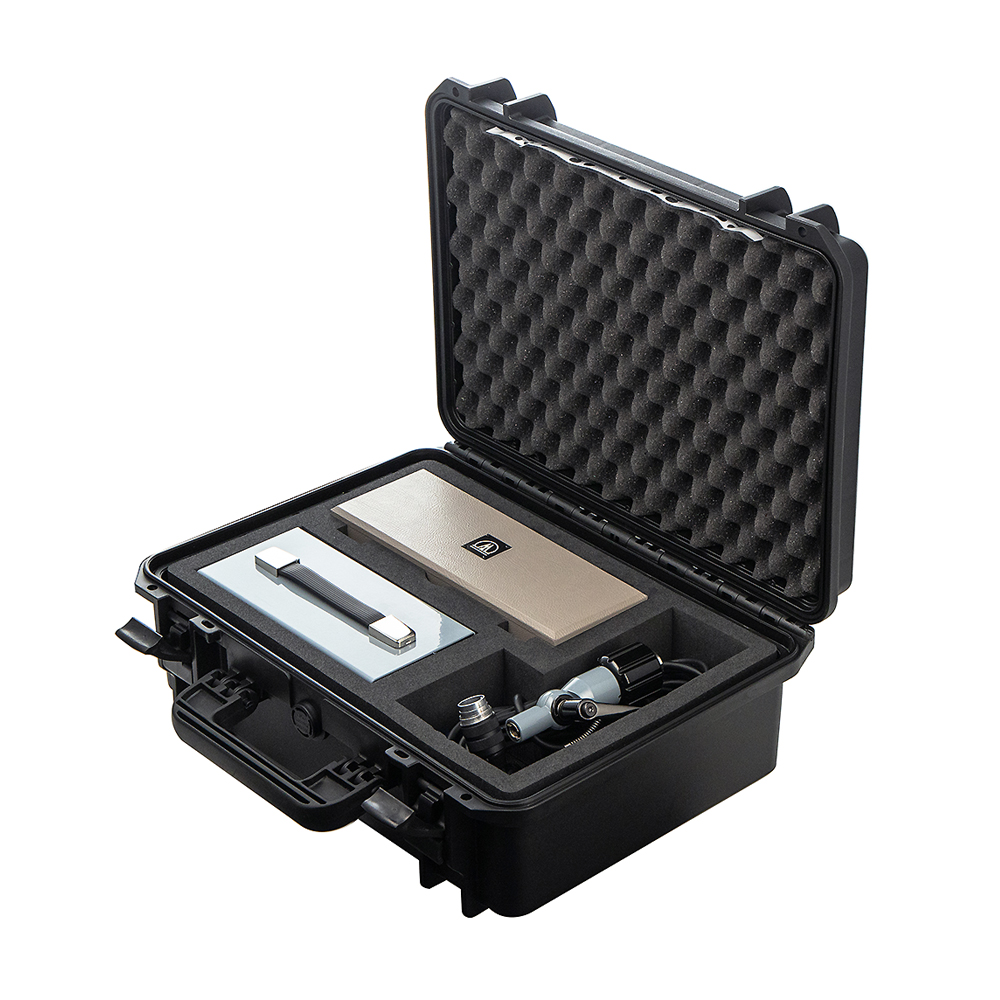

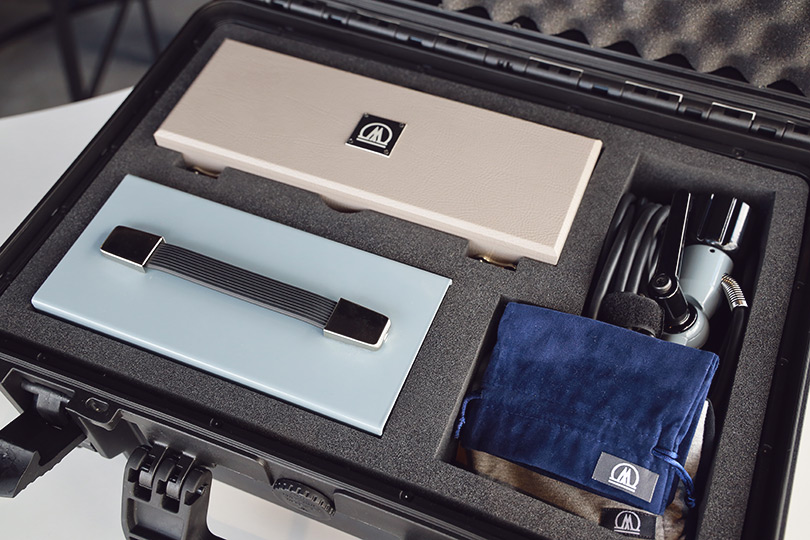

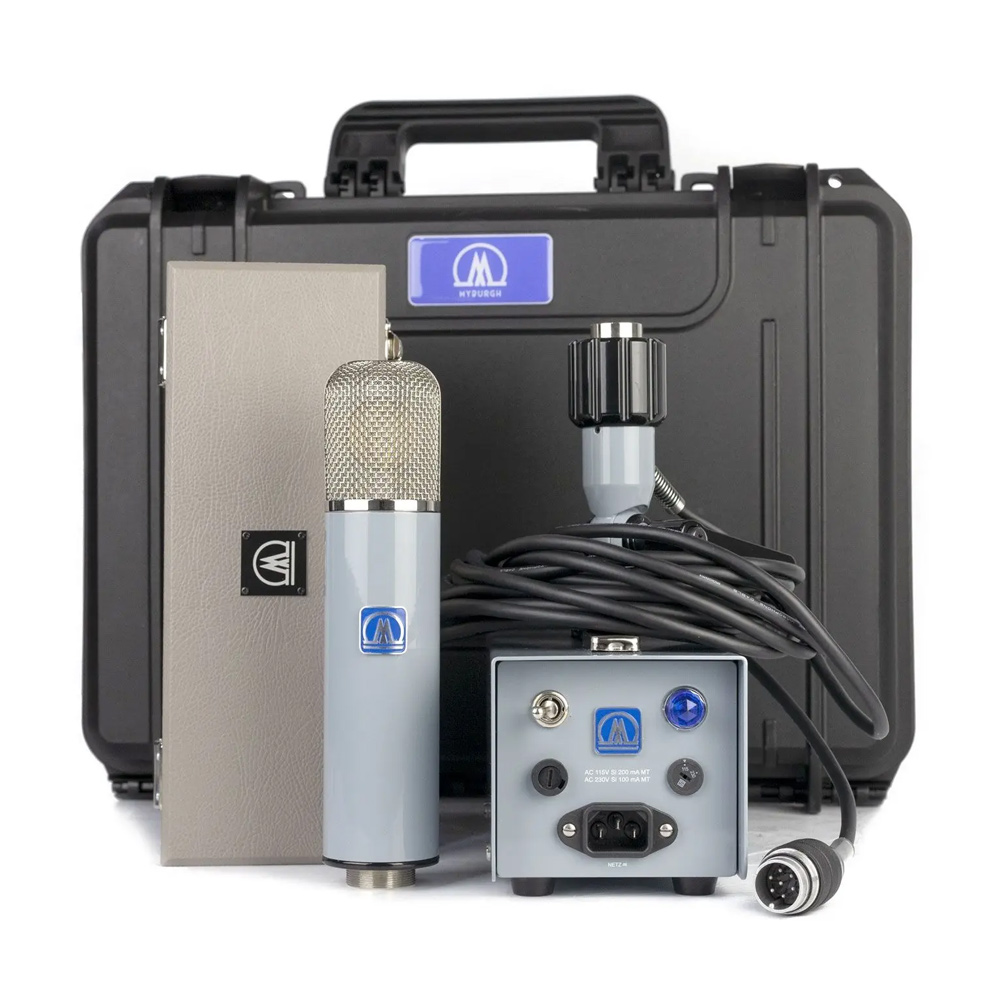

Package Includes:
- Microphone
- Power supply

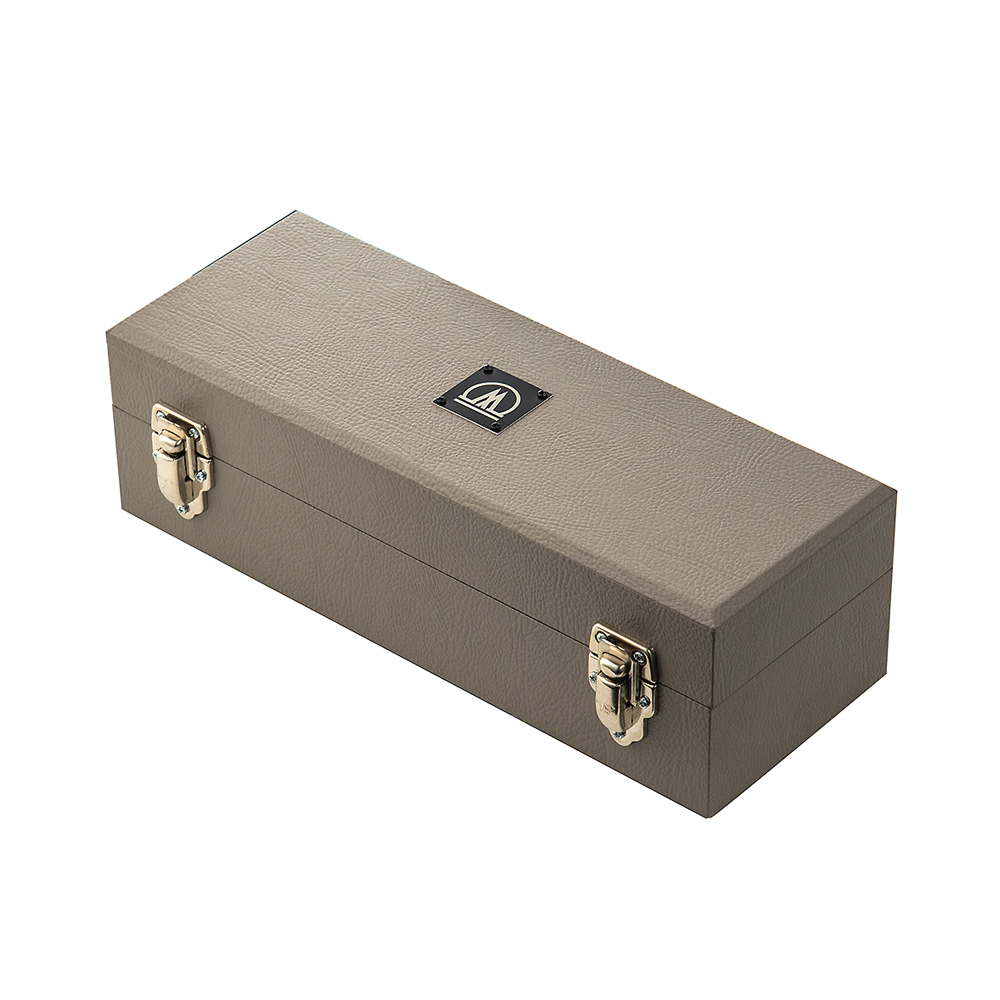

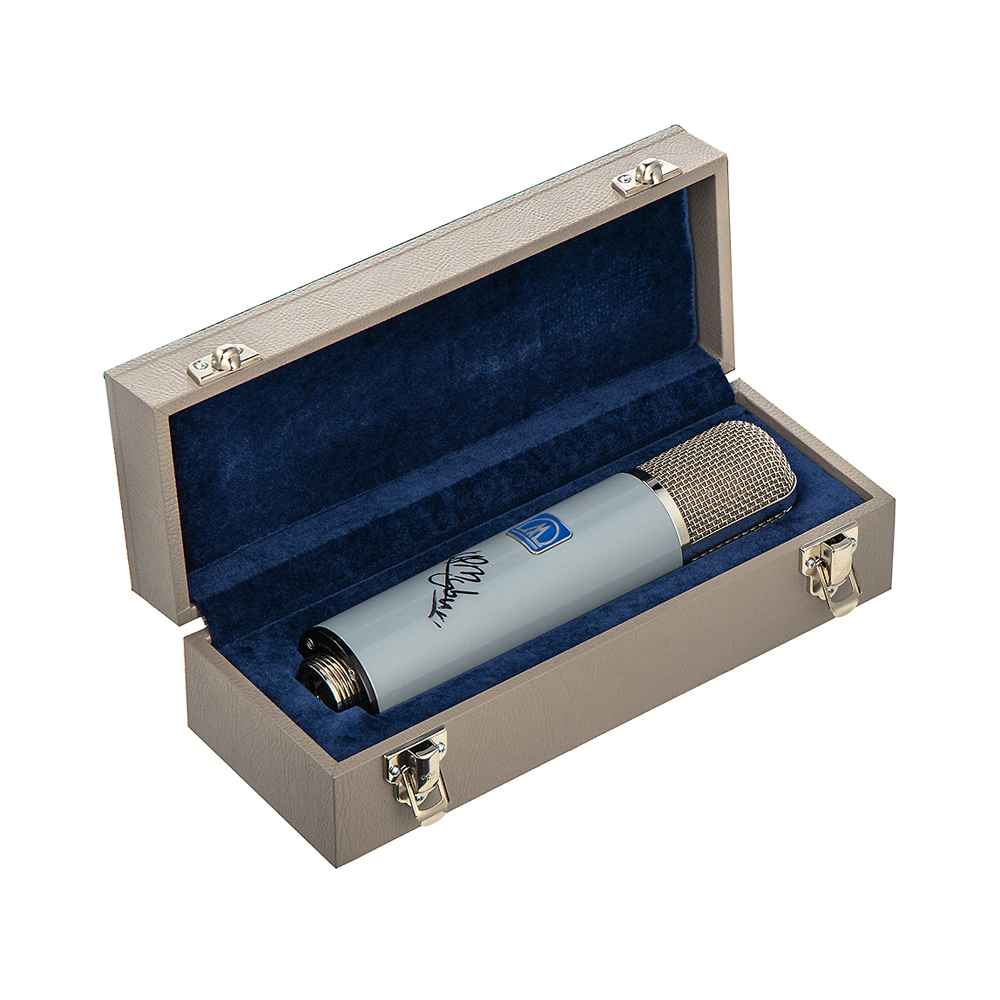

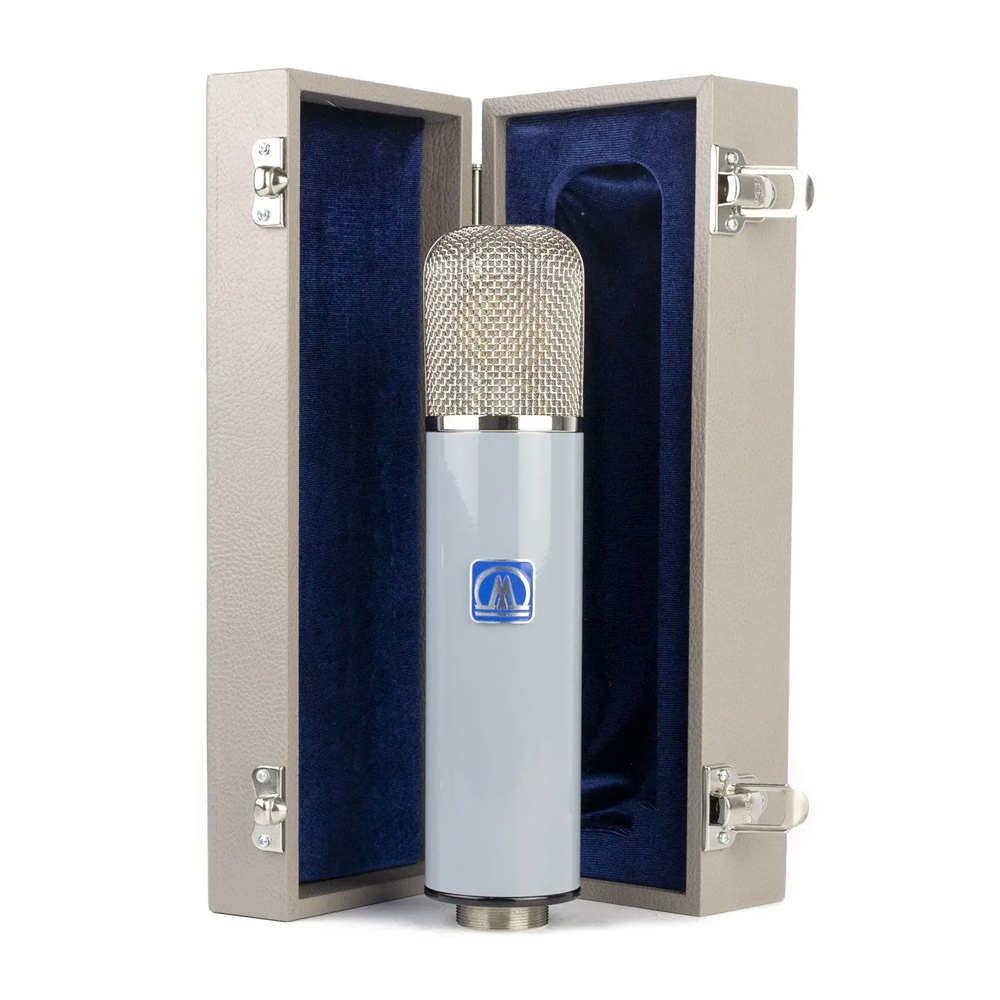

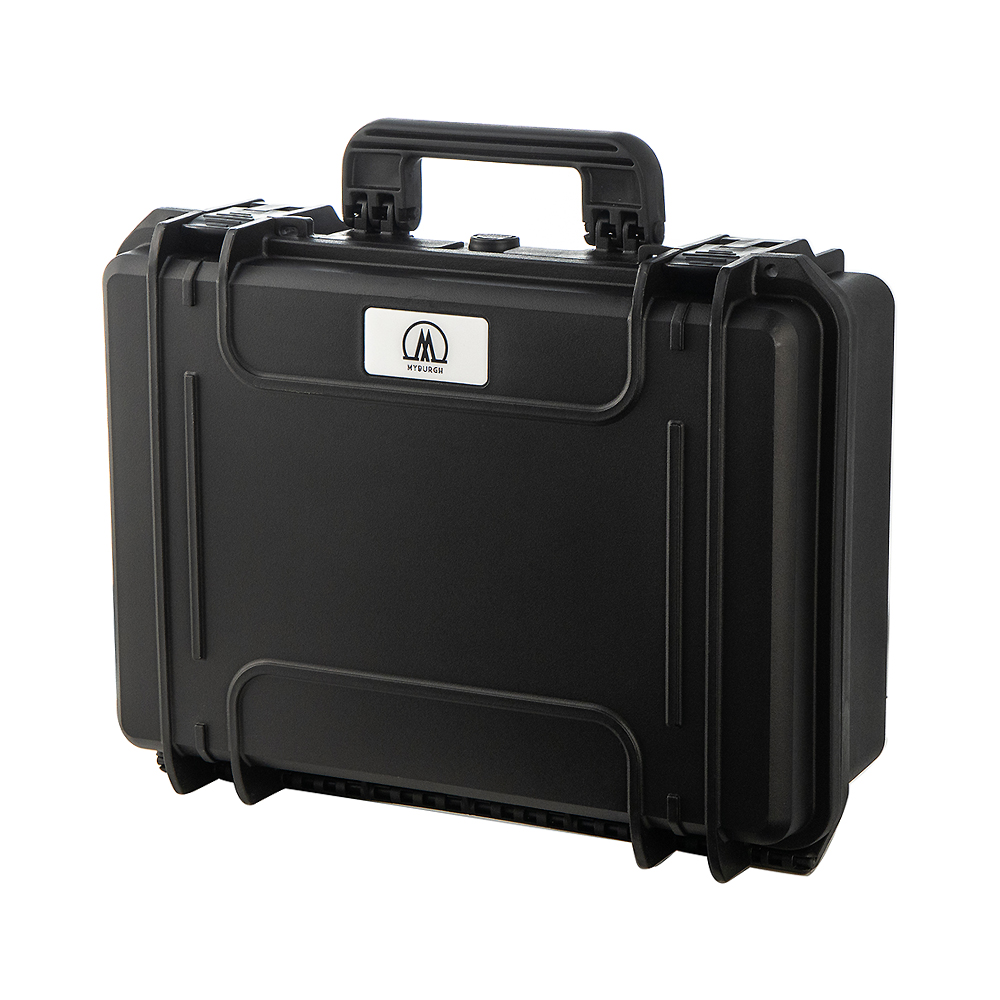

- Case
- Mogami microphone cable
- Documentation
