Headphone amplifier with DAC
MoonDrop Dawn white usb-c/4,4mm balanced

Product code: 141718
no reviews
AED 339
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

MOONDROP DAWN 4.4mm Dual CS43131 Portable USB DAC/AMP

Key Features:

  • Double chips configuration combines two CS43131 chips with excellent circuit design to achieve performance close to the theoretical value of the chip.
  • Maximum line output: 2Vrms (High), 1Vrms (Low).
  • Maximum output power: 230mW@32Ω, 54mW@300Ω.
  • An adapter can extend compatibility with mainstream devices.
  • Dual crystal oscillator ensures high-quality digital signals.
  • Maximum dynamic range reaches 132dB.
  • Noise floor as low as 1.1uVrms.
  • PCM decoding up to 32Bit/768kHz, DSD256.
  • Total harmonic distortion lower than 0.0002% and SNR as high as 114dB.
  • Utilizes a parallel arrangement of high-purity copper silver-plated digital signal transmission cable.

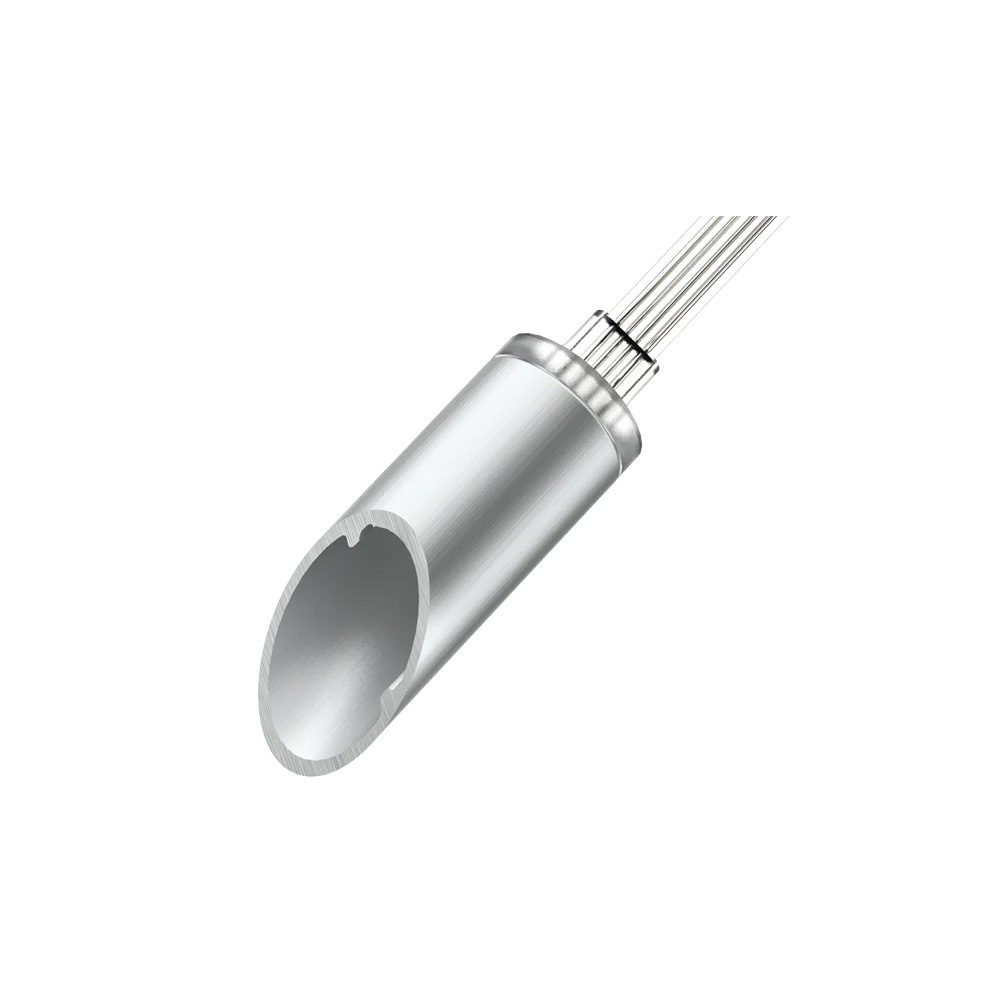

The shell is made of aviation aluminum alloy CNC cavity with white matte paint, providing a delicate surface texture and effectively shielding external electromagnetic interference.

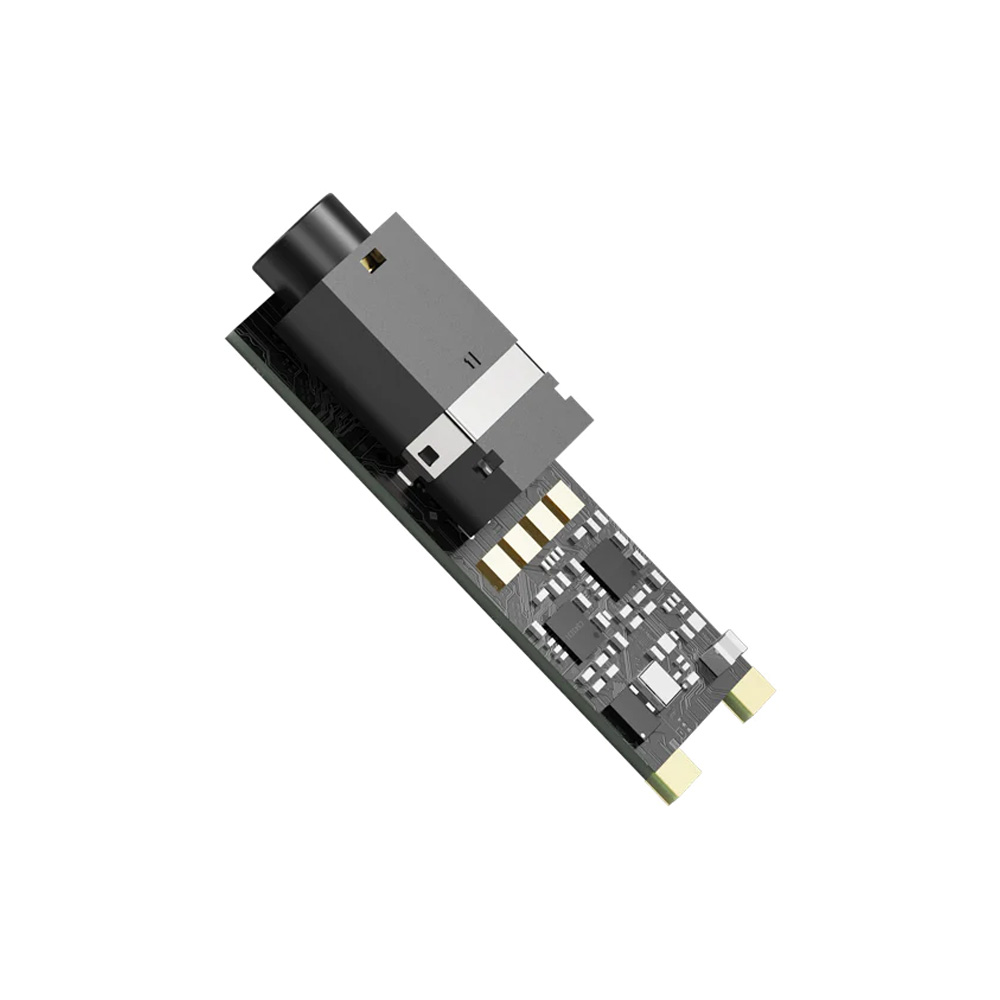

Adopting dual CS43131 high-performance decoding chip equipped with excellent circuit design, providing super high-performance close to the theoretical value of the chip.

In the Box:

  • USB DAC/AMP - 1;
  • Type-C to Type-A adapter - 1;
  • Certificate - 1;
  • Manual - 1;
  • Warranty Card - 1.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Cable length, m

The length should allow you to lay the cable with a small margin. The longer the cable, the more impact it can have on the sound.

Glossary of terms
0.1
Cable type
straight

Straight, non-twisted cable with one-way connection.

Словарь терминов
Connector (left)
4.4mm jack female, USB-C
Connector (right)
4.4mm jack female, USB-C
Headphone output
4.4mm jack
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
0.23
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
2 x CS43131
DAC bit depth, bits
32
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
768
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
132
Powered by USB
yes
Connecting to a computer via USB
yes
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
The lowest frequency, Hz
7
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
90
Color
Form factor
portable
Input connectors
4.4mm jack
Internal DAC
yes
Material
aluminum
Playback via USB
yes

Playing music files via USB

Circuit design
operational
Power, W
0.211
Weight, g
13
