Headphone amplifier with DAC
MoonDrop Dawn white usb-c/3,5mm

Product code: 141717
no reviews
AED 299
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

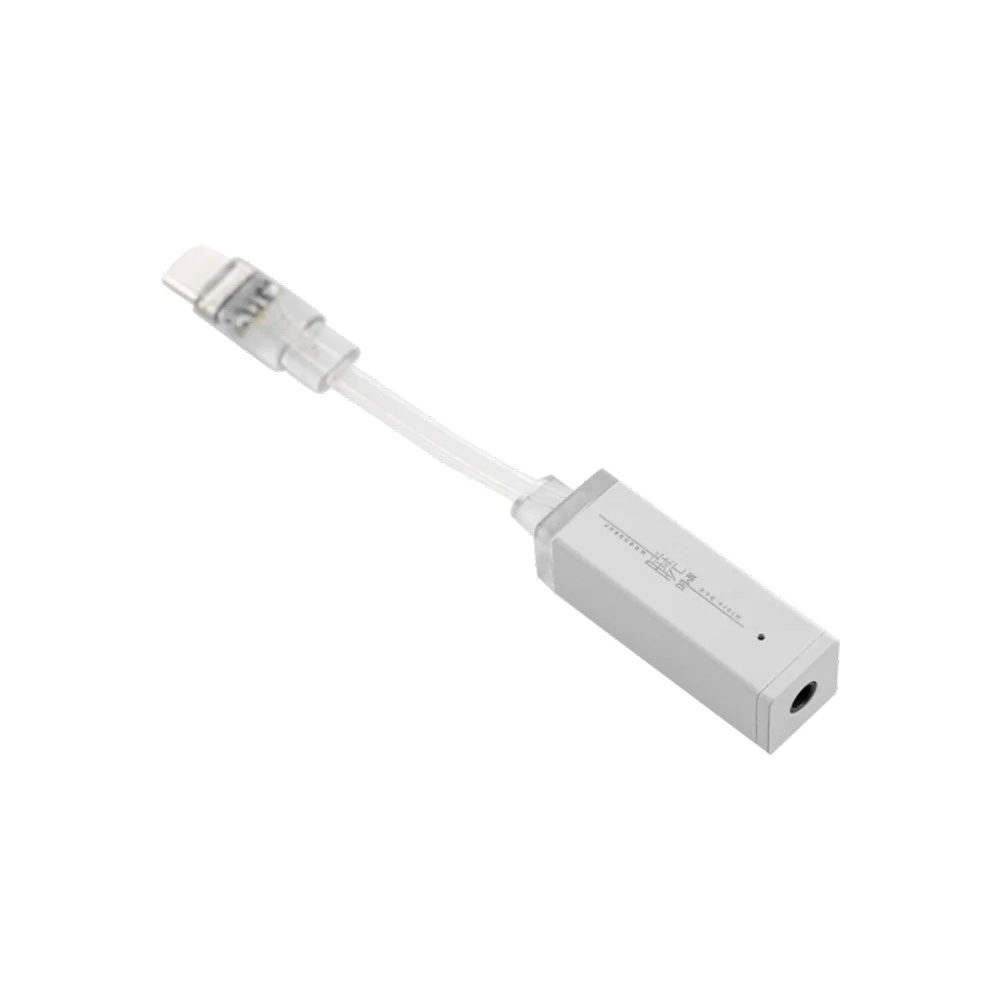

MOONDROP DAWN 3.5mm Dual CS43131 Portable USB DAC/AMP

Key Features

  • Double chips configuration, combining two CS43131 chips with excellent circuit design to achieve performance close to the theoretical value of the chip.
  • Maximum line output: 2Vrms (High), 1Vrms (Low).
  • An adapter can be used to extend compatibility with mainstream devices.
  • Dual crystal oscillator ensures high-quality digital signals.
  • Maximum dynamic range of 127dB.
  • Noise floor as low as 1.1uVrms.
  • PCM decoding up to 32Bit/768kHz, DSD256.
  • Total harmonic distortion lower than 0.0002% and SNR as high as 114dB.

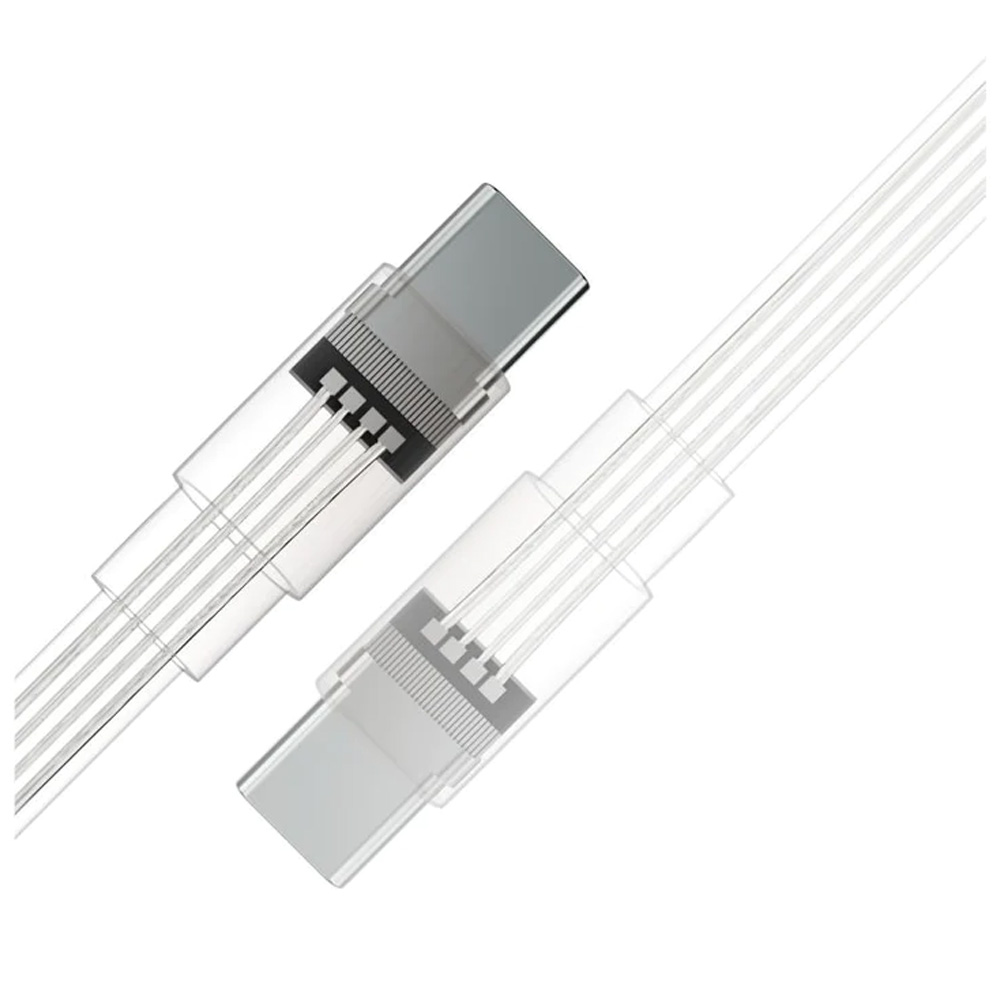

  • High purity copper silver-plated digital signal transmission cable in a parallel arrangement.

The shell is made of aviation aluminum alloy CNC cavity with white matte paint, providing a delicate surface texture and effective shielding from external electromagnetic interference.

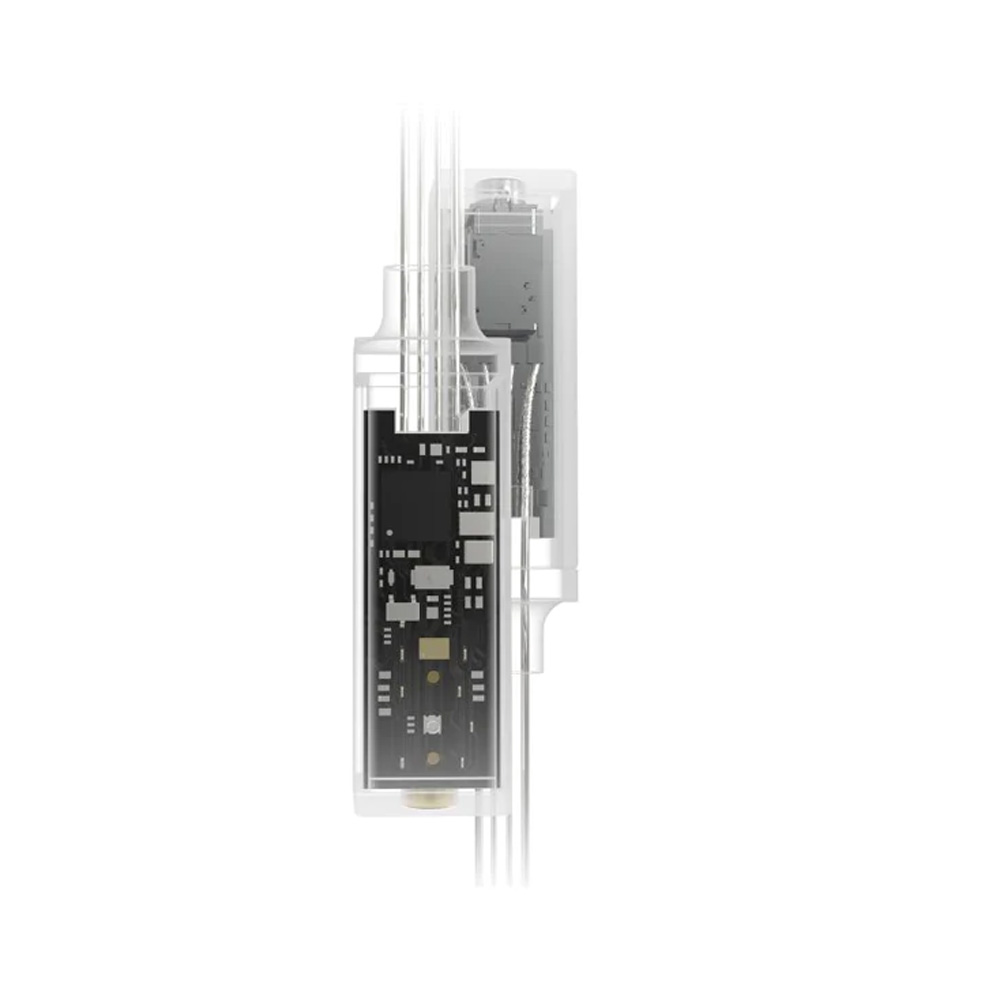

Adopting dual CS43131 high-performance decoding chip with excellent circuit design, bringing super high-performance close to the theoretical value of the chip.

In the Box

  • USB DAC/AMP: 1
  • Type-C to Type-A adapter: 1
  • Certificate: 1
  • Manual: 1
  • Warranty Card: 1
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Cable length, m

The length should allow you to lay the cable with a small margin. The longer the cable, the more impact it can have on the sound.

Glossary of terms
0.1
Cable type
straight

Straight, non-twisted cable with one-way connection.

Словарь терминов
Connector (left)
USB-C, 3.5mm jack female
Connector (right)
USB-C, 3.5mm jack female
Headphone output
3.5mm jack
Output connectors
3.5mm jack
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
2 x CS43131
DAC bit depth, bits
32
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
768
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
114
Powered by USB
yes
Connecting to a computer via USB
yes
The lowest frequency, Hz
5
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
85
Color
Form factor
portable
Input connectors
USB-C
Internal DAC
yes
Material
aluminum
Playback via USB
yes

Playing music files via USB

Circuit design
operational
Show all characteristicsShow fewer characteristics
