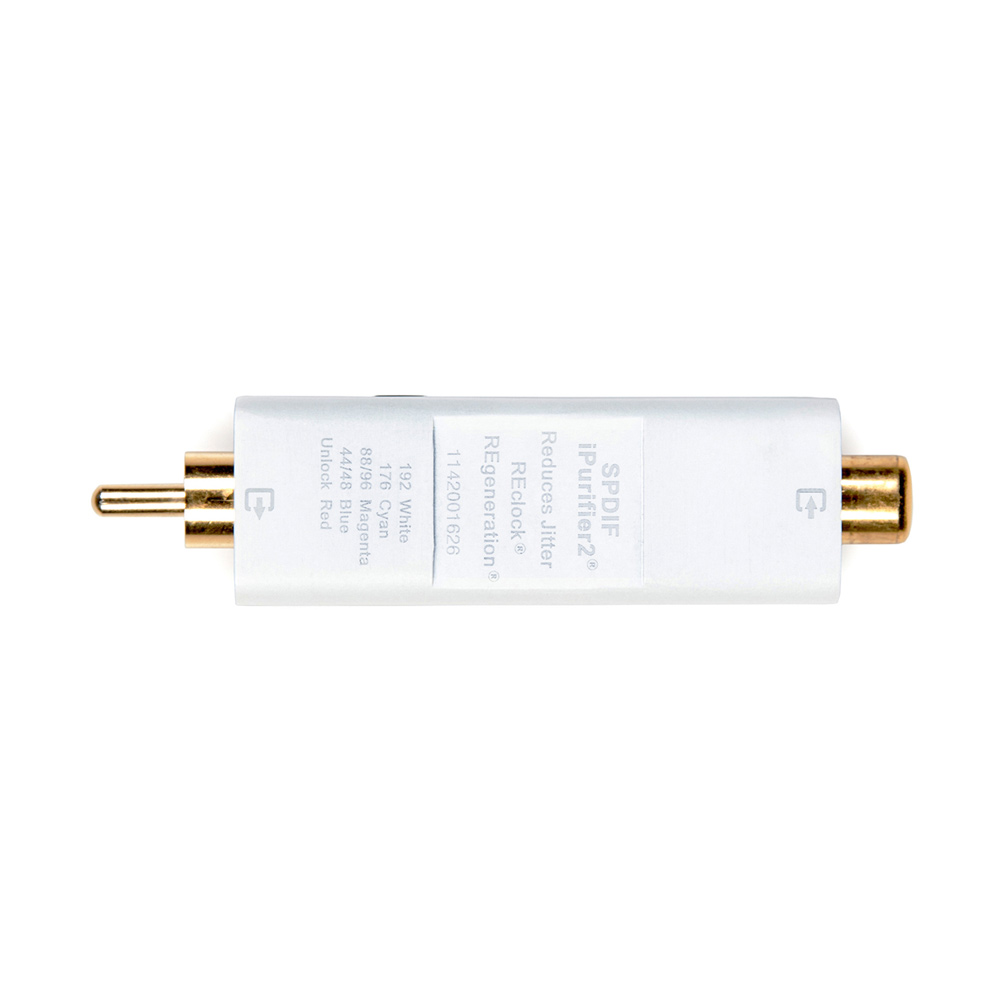

The SPDIF iPurifier 2 device is designed to restore signal integrity and eliminate jitter. It includes the Genesis Digital Lense processor. Using state-of-the-art AMR/iFi technologies, it is suitable for a range of SPDIF signal sources available on the market today. The iFi SPDIF iPurifier 2 tackles any barely discernible "square wave" and through the use of REclock/Regenerate technologies, returns the signal to its true form with perfect outlines.

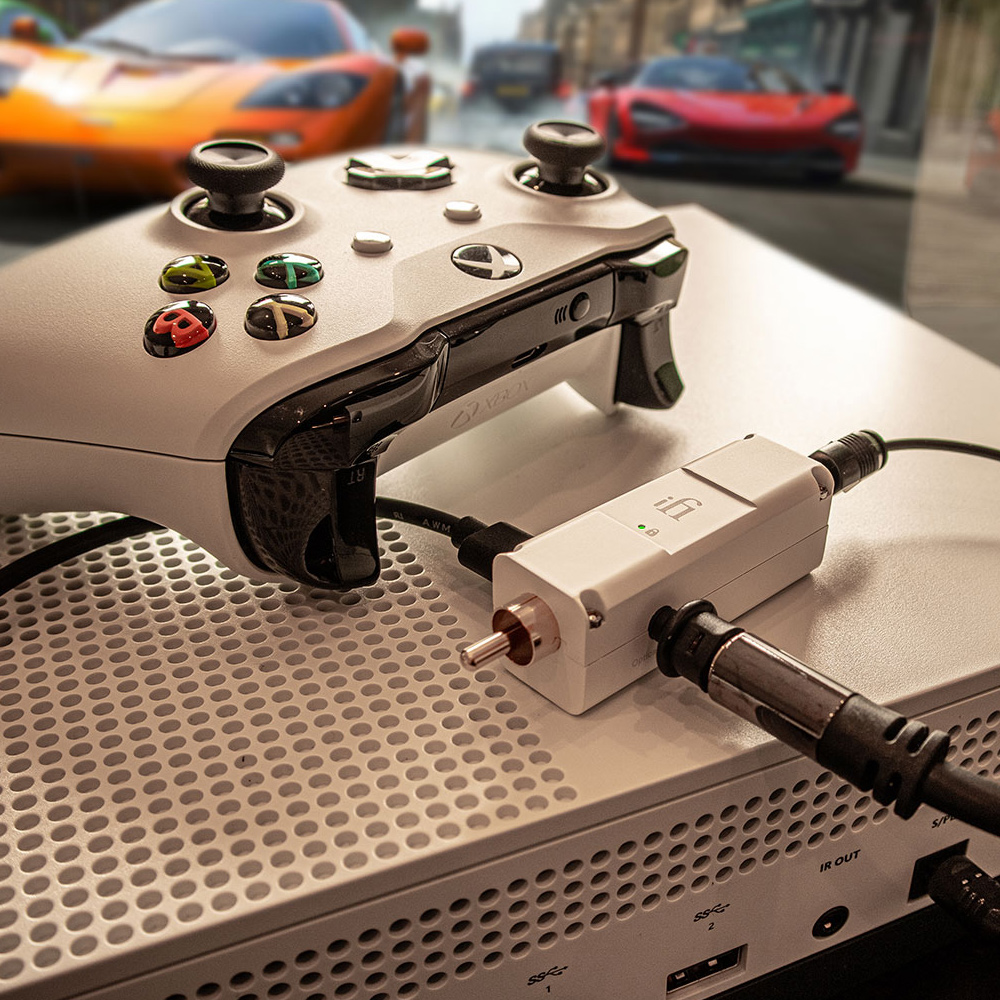

From Apple TV to Google Chromecast, from PS4/Xbox to 4K Smart TV, the SPDIF output is the main output for digital audio signals. The quality of the SPDIF signal significantly deteriorates during transmission. The SPDIF iPurifier 2 device conducts the SPDIF signal through four complex conversion stages, resulting in a fully restored SPDIF signal with suppressed jitter. The result is sound quality that possesses superior warmth, resolution, and dynamic contrast.
Restoration of signal integrity and complete elimination of jitter
The signal output by SPDIF devices is a digital signal. According to industry quality control standards for digital signals, it should appear as a "square wave" (on an oscilloscope screen). However, the signal can be anything but "square," more resembling a jagged wave.
Bit-Perfect sound on all fronts
AMR/iFi is proud of its achievements in delivering bit-perfect signal transmission. This means that the signal remains unchanged and in its original state. The SPDIF iPurifier 2 device ensures bit-perfect transmission of signals, which is highly uncommon for SPDIF devices. It can handle frequencies of 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz, depths ranging from 16 to 24 bits, DSD/DoP format, as well as Dolby Digital and DTS signals.

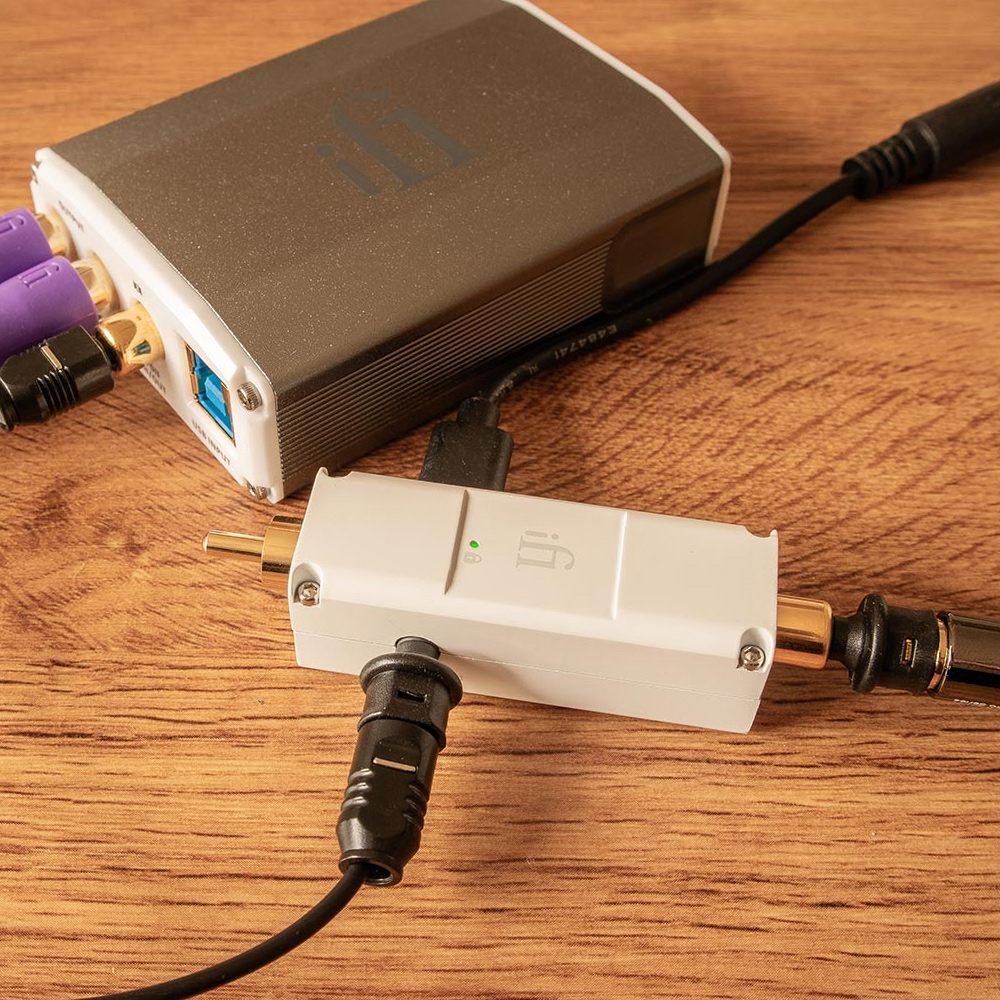

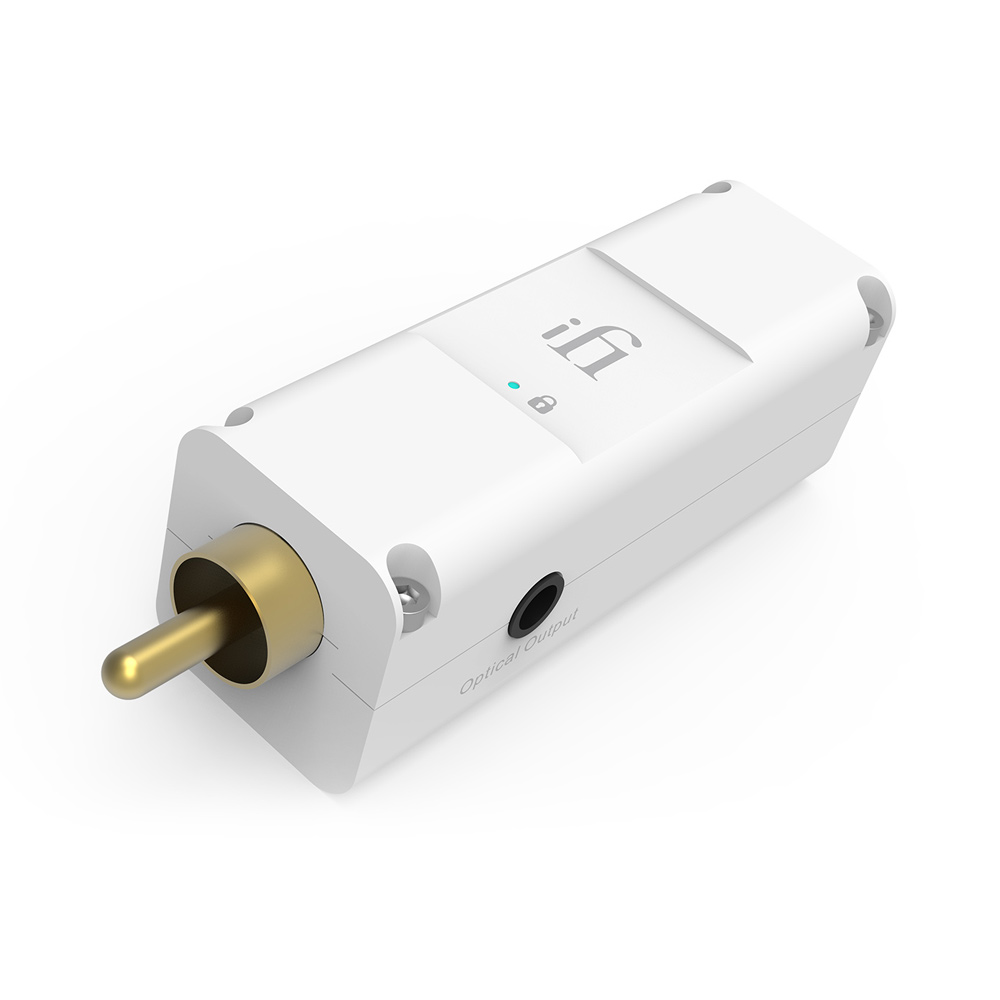

The SPDIF iPurifier 2 device is equipped with coaxial and optical inputs, as well as coaxial and optical outputs. It works with virtually any SPDIF component, from mass-market devices (such as Apple TV) to audiophile-grade transports and DACs.
Galvanic Isolation
The SPDIF iPurifier 2 device has no equals. One of its key aspects is its galvanic isolation. Galvanic isolation converts the signal from one form to another, eliminating random noise. This is the main factor that underlies the SPDIF iPurifier's ability to eliminate noise that contaminates the signal.
Global Master Timing and Memory Buffer
AMR's Global Master Timing synchronization technology and memory buffer system represent a highly sophisticated sequential digital solution that eliminates the jitter issue for SPDIF signals once and for all. The intelligent memory system stores a large number of complete audio samples, allowing it to fully neutralize extensive variations (jitter and drift) present in the incoming signal, while simultaneously transmitting data with a fixed and precisely set clock frequency - regardless of variations in the incoming sync signal.
The most important aspect of the GMT synchronization system is its extremely low level of jitter, a quartz-based clock system (pulse duration <300 femtoseconds) capable of generating millions of different frequencies with an accuracy of no worse than 0.001 Hz. Thus, if the frequency value shifts from 192000002 Hz to 192000003 Hz within a minute (drift), which is the minimum number that can have significance, the GMT clock generator will meaningfully and accurately track this change. This is the central technology of the SPDIF iPurifier device.
iPower technology "less noise than a battery"
Since the SPDIF iPurifier is powered by 5V, it is essential that it comes from a "noise-free" power source. Therefore, all SPDIF iPurifier devices come with their own iPower (5V) power supply. With its noise level of 1µV, iPower belongs to the family of practically noiseless DC power supplies. It has low power consumption and low noise level.
Features:
- Support for formats: 44.1/48/88.2/96/176.4/192kHz; 16 to 24 Bit, DSD/DoP, Dolby Digital, DTS;
- Input: optical mini, coaxial;
- Output: optical mini, coaxial;

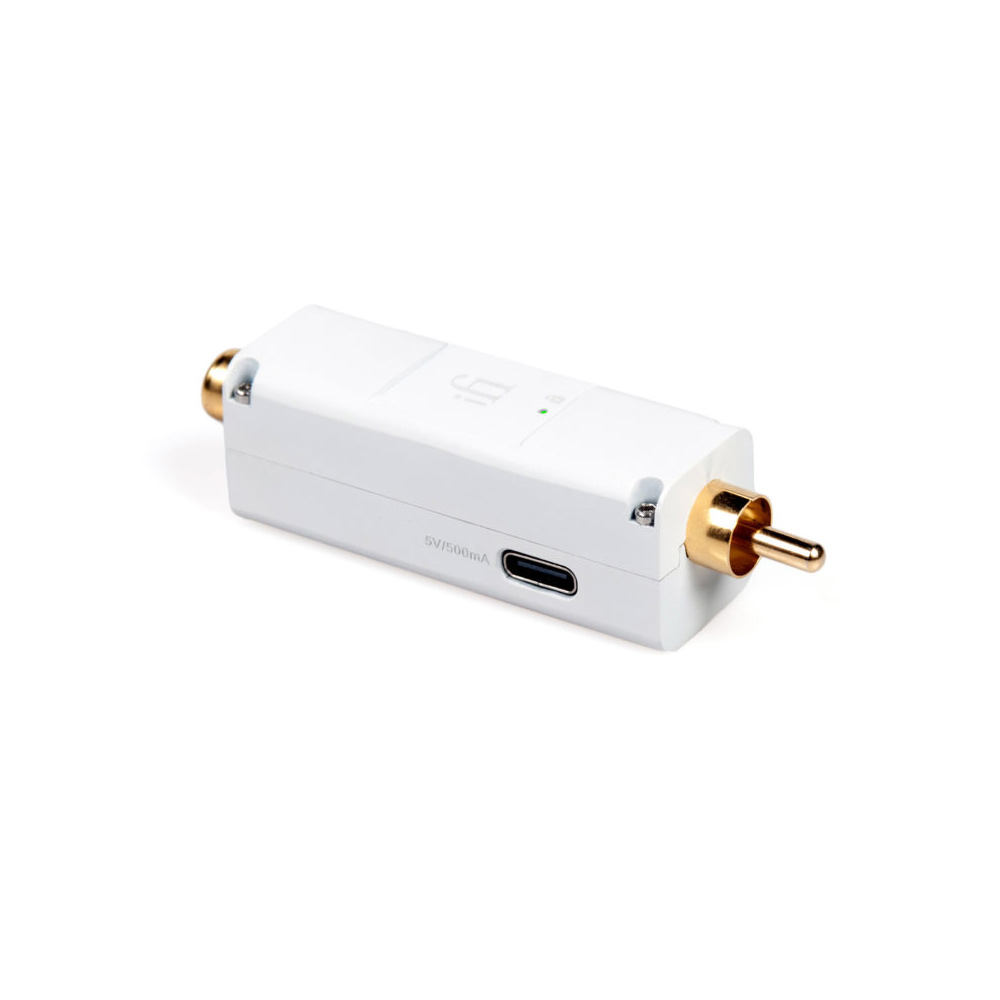

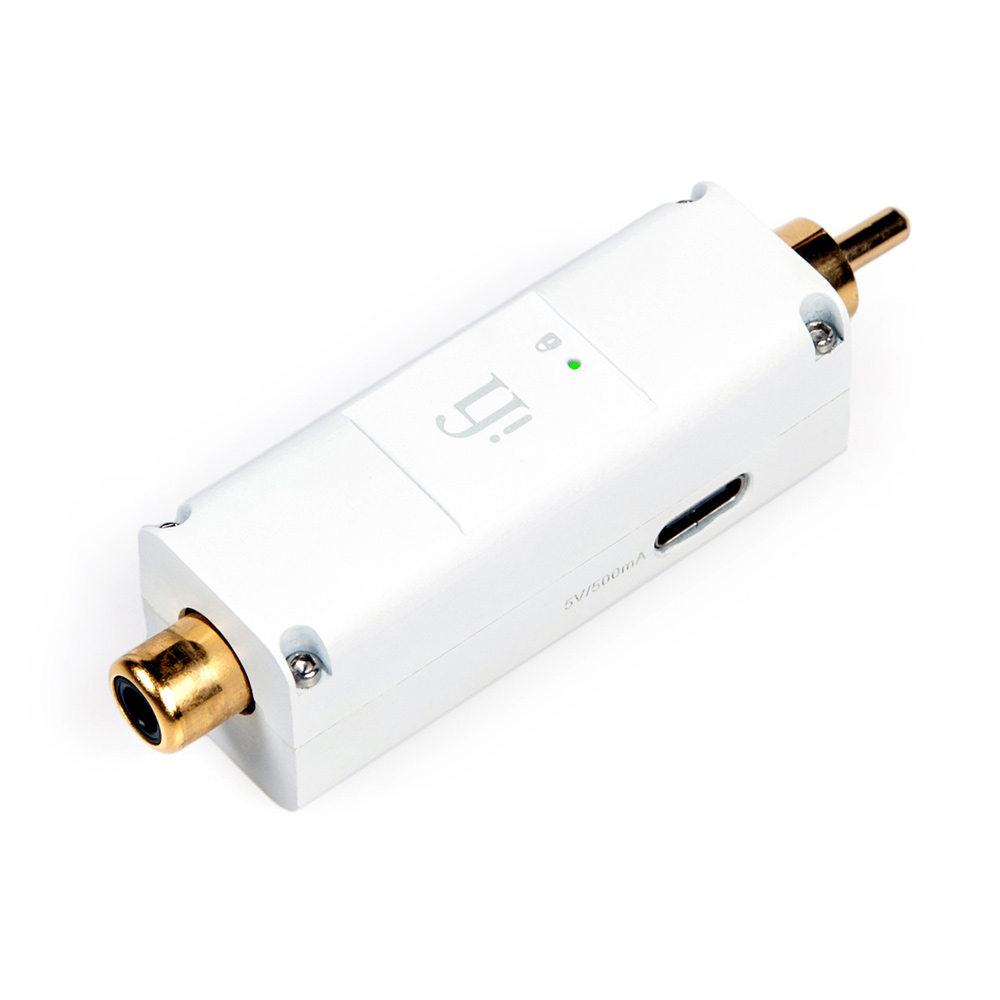

- Power: USB-C;
- Bit Perfect;
- Jitter suppression feature;
- Galvanic isolation.
Package includes:
- Filter;
- Power supply;
- Documentation.
