Headphone Amplifier
iFi iCan Phantom

Product code: 137702
no reviews
AED 14,599
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

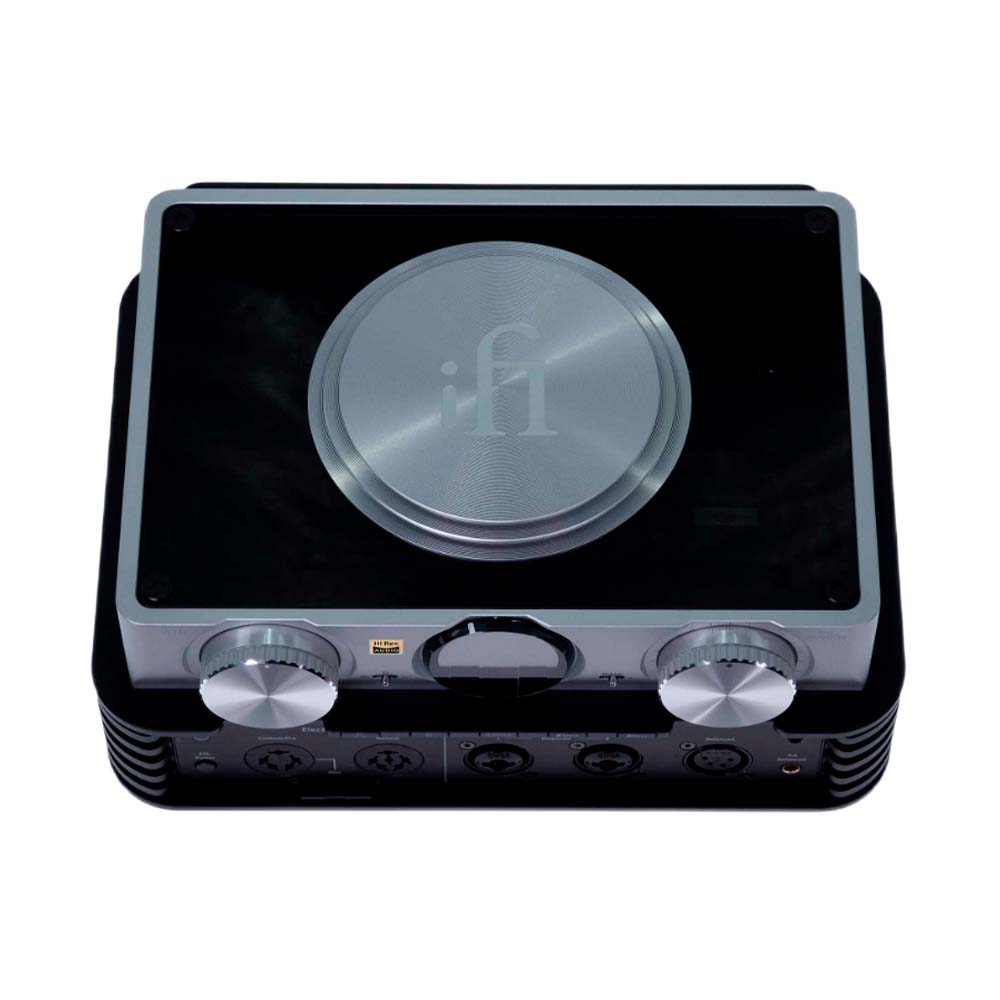

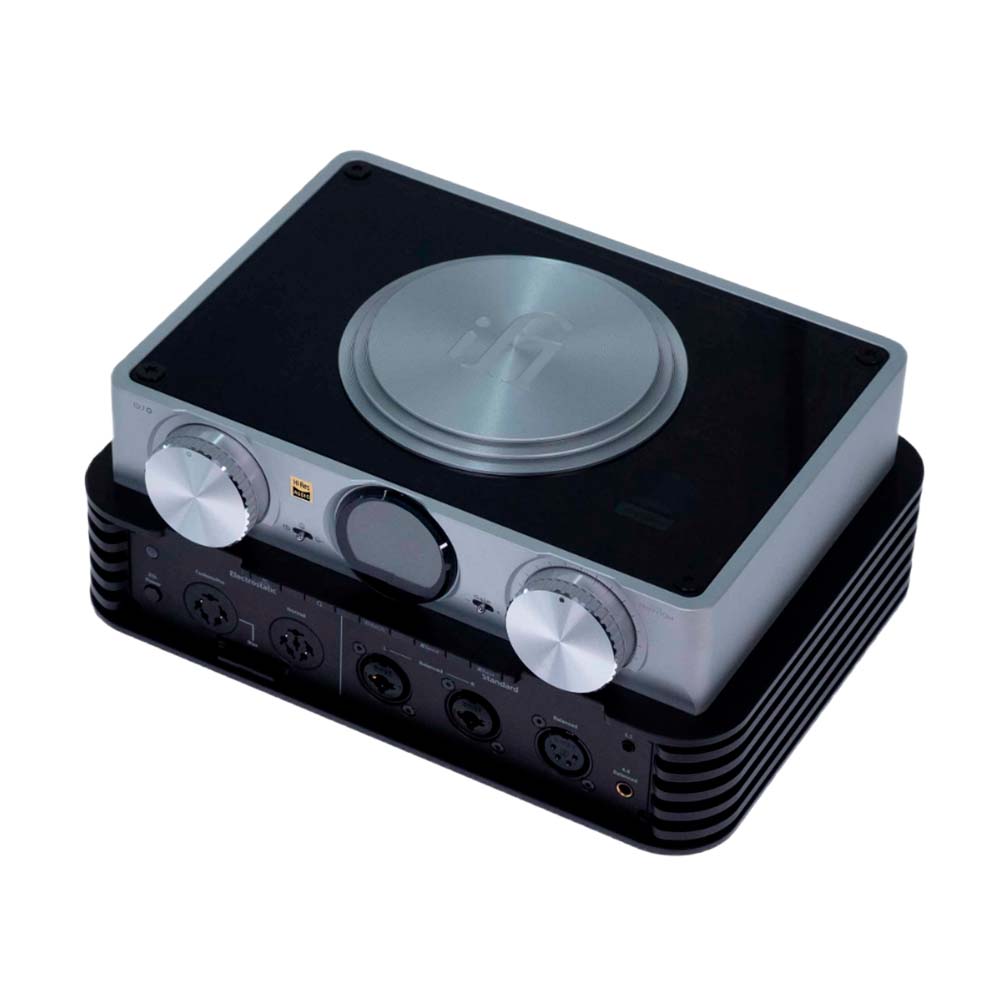

The iFi iCAN Phantom is a flagship headphone amplifier. As iFi acknowledges, the design is partially inspired by the legendary Rolls Royce Phantom model. The device features a smoky glass panel on the top, allowing for a view of the glowing output cascade tubes and the beautifully arranged components on the circuit board.

Features:

  • Hi-End level headphone amplifier + preamplifier
  • XBass+ function enhances low frequencies, providing headphones with more depth and volume
  • Updated circuitry includes even more high-class audiophile components
  • Upgraded power schemes to eliminate additional noise and distortion
  • Supports most audio formats, including DSD and MQA, allowing for high-resolution music enjoyment.

iFi developed the Phantom to unleash the full potential of various headphones, from sensitive IEMs to large planar headphones, dynamic headphones, and electrostatic devices from nearly all manufacturers.

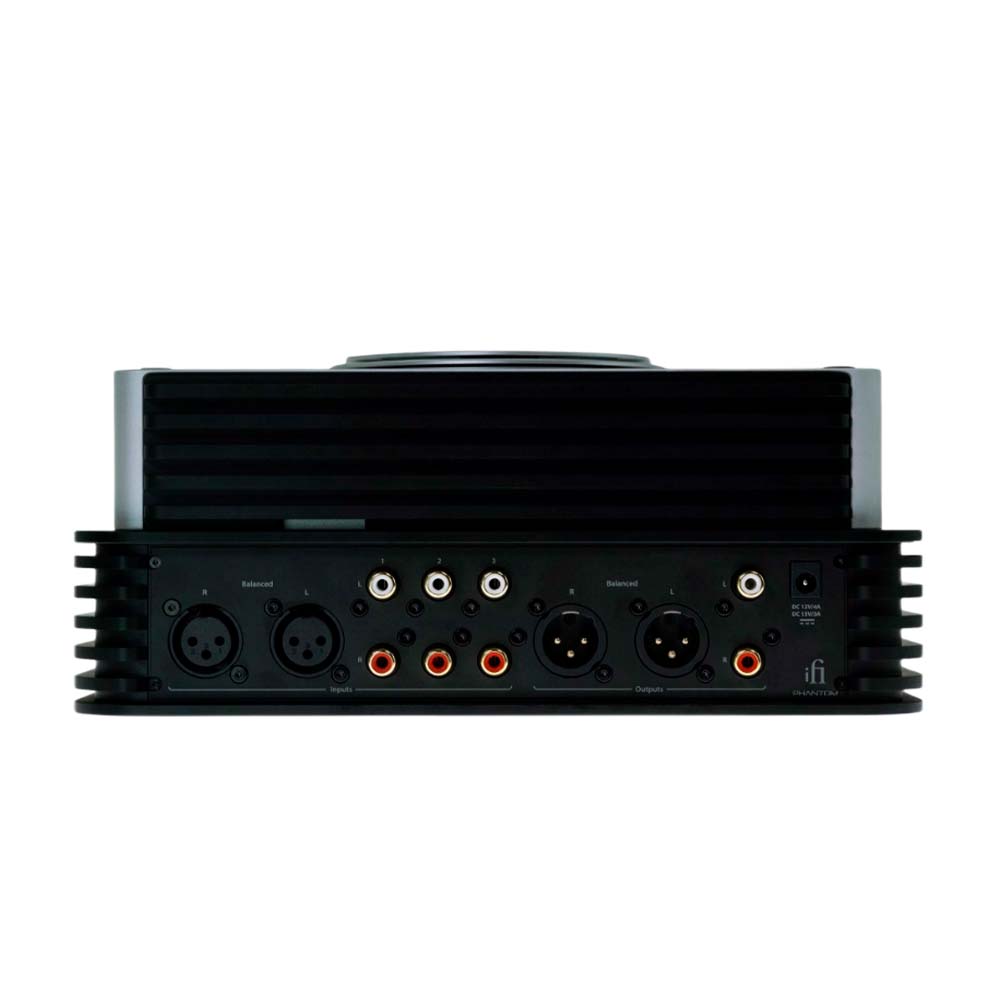

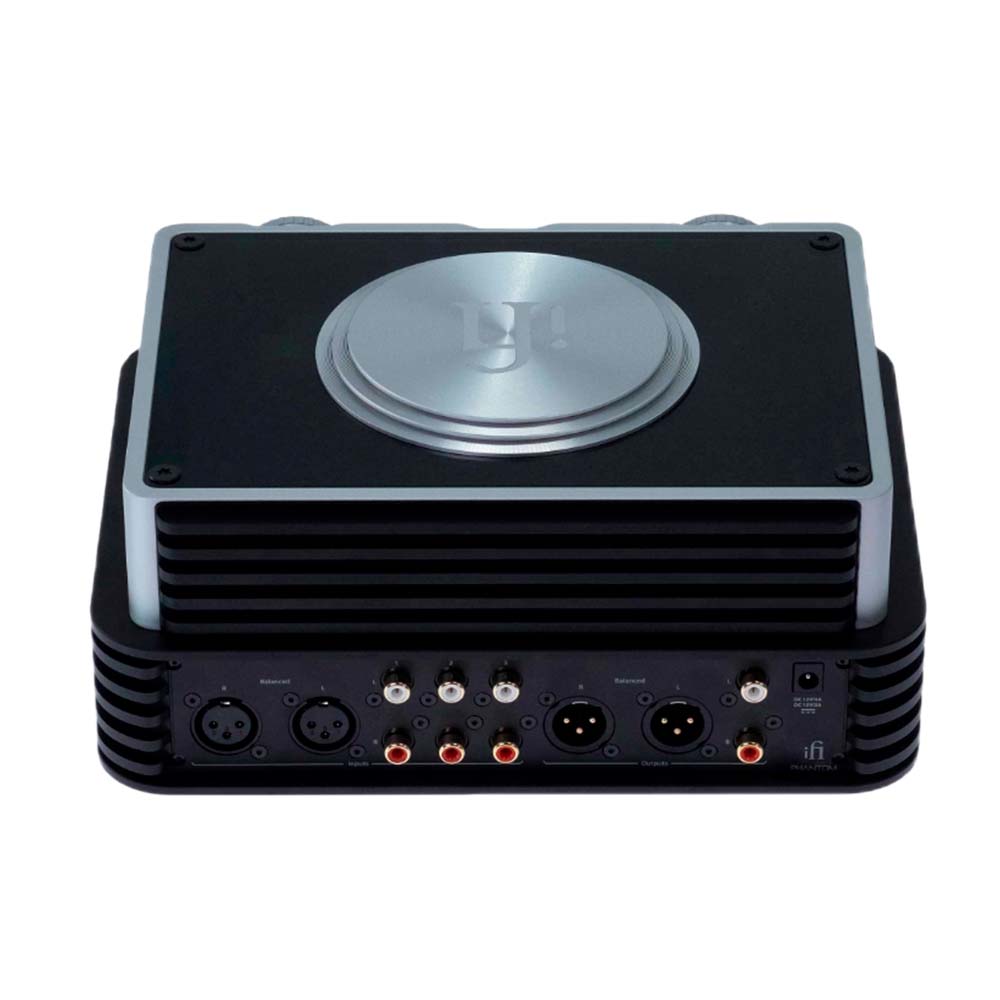

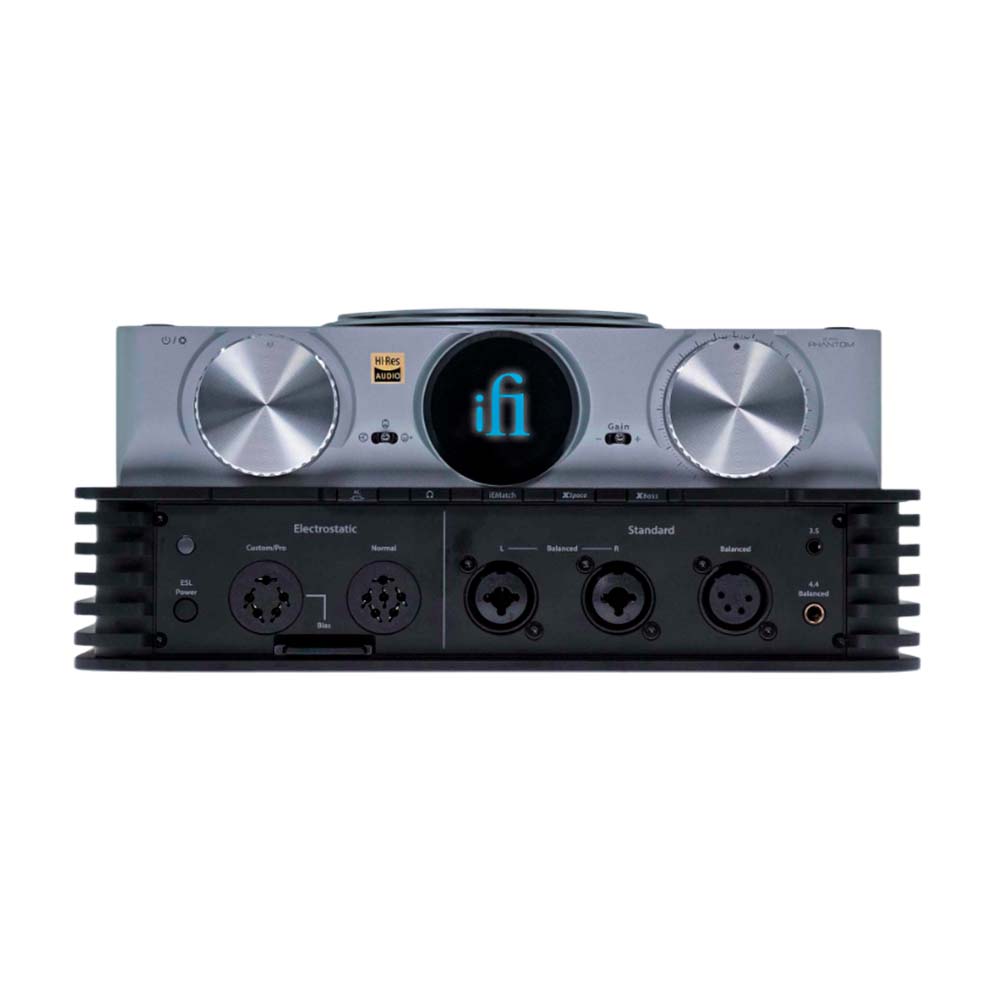

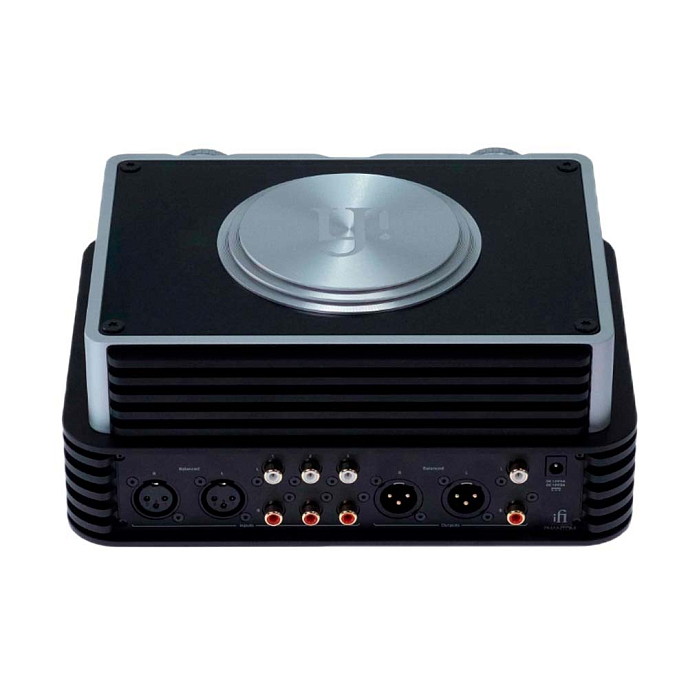

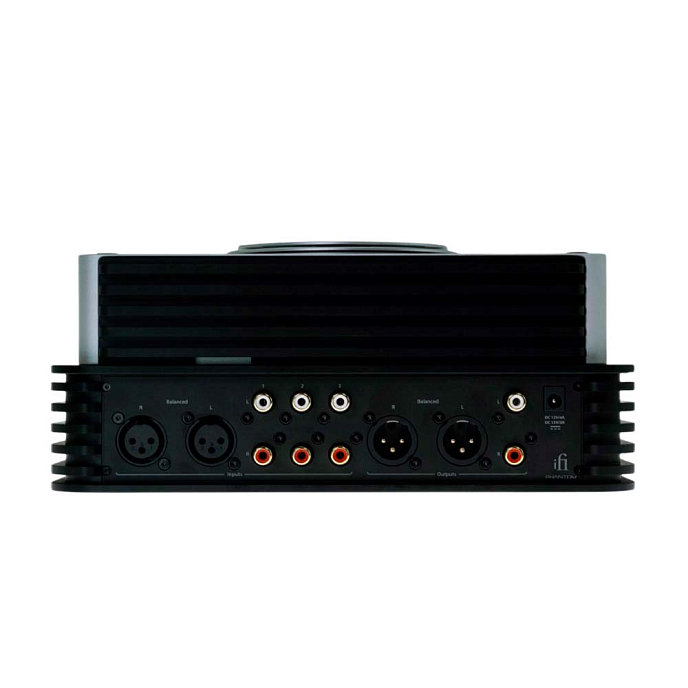

The device is housed in a "two-story" enclosure, with the top floor featuring controls and an OLED display, while the bottom floor contains the headphone outputs - seven in total. A dedicated toggle switch allows for selecting between tube or class A solid-state amplification. The special Tube+ option "emphasizes the influence of tubes on sound." The device uses General Electric 5670 tubes with a claimed operating lifespan of around 10,000 hours. It can also serve as a preamplifier.

The circuit employs a balanced differential topology with a "dual mono" configuration. The balanced outputs provide a power output of up to 15W, while the unbalanced outputs provide up to 5.76W (in both cases at 16 ohms). The amplifier offers gain settings (0dB, 9dB, and 18dB), IEMatch processing (for reducing background noise with high-sensitivity IEMs), XBass (an analog bass-enhancement system), and an analog processor called XSpace, which expands the soundstage.

The package includes six cards that allow for adjusting the bias current to better match the amplifier with the headphones being used, including electrostatic models.

The iCAN Phantom is the first model from the brand to utilize the proprietary Nexus module, which enables device control via a full-featured mobile app and provides status monitoring.

Package Contents:

  • Amplifier
  • iFi iPower Elite power supply
  • 2RCA - 2RCA audio cable
  • Power cable
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Headphone output
3.5mm jack, 4.4mm jack, XLR, 6.35mm jack
Output connectors
XLR, RCA
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
14
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
145
The lowest frequency, Hz
1
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
500
Circuit design
hybrid

A combination of tube and transistor technologies.

Словарь терминов
Color
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Input connectors
RCA, XLR
Material
aluminum, metal, plastic
Preamplifier

A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

Glossary of terms
yes
Depth, mm
185
Height, mm
120
Width, mm
256
Weight, g
1930
Service life, months
24
Warranty, months
12
