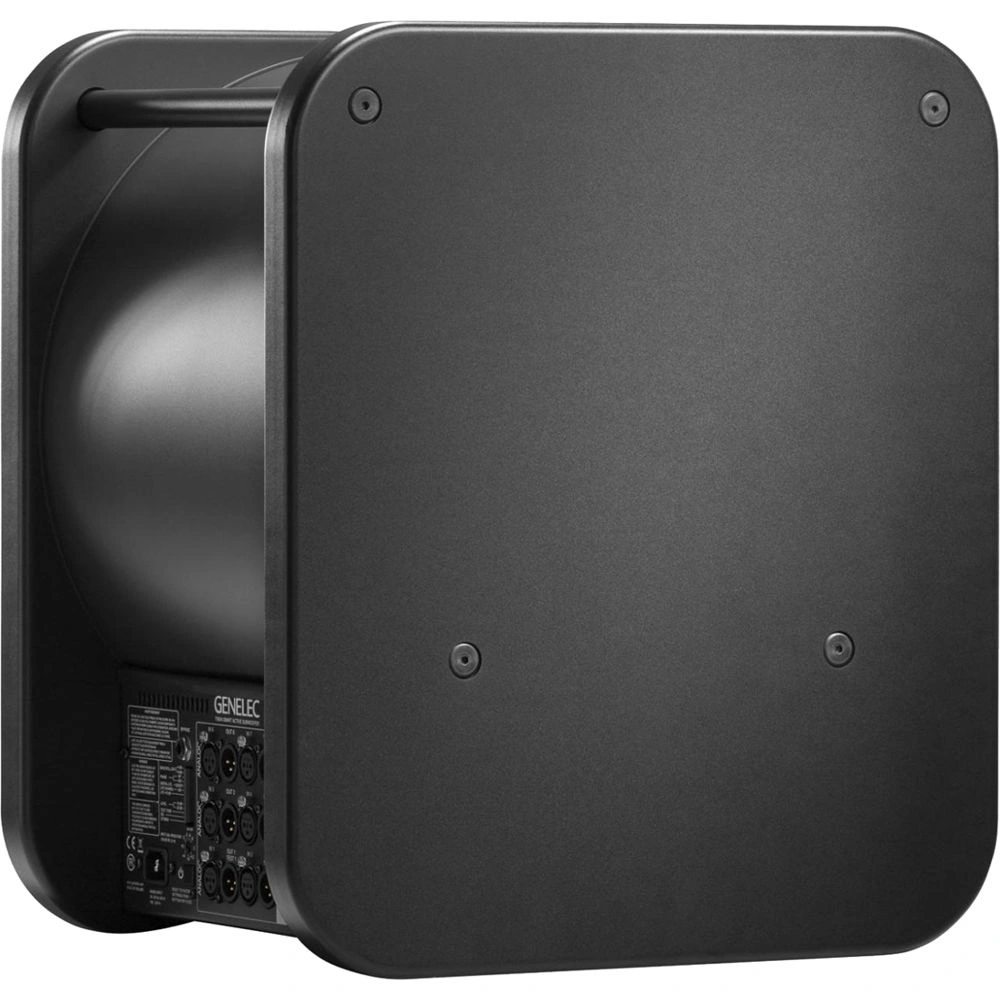

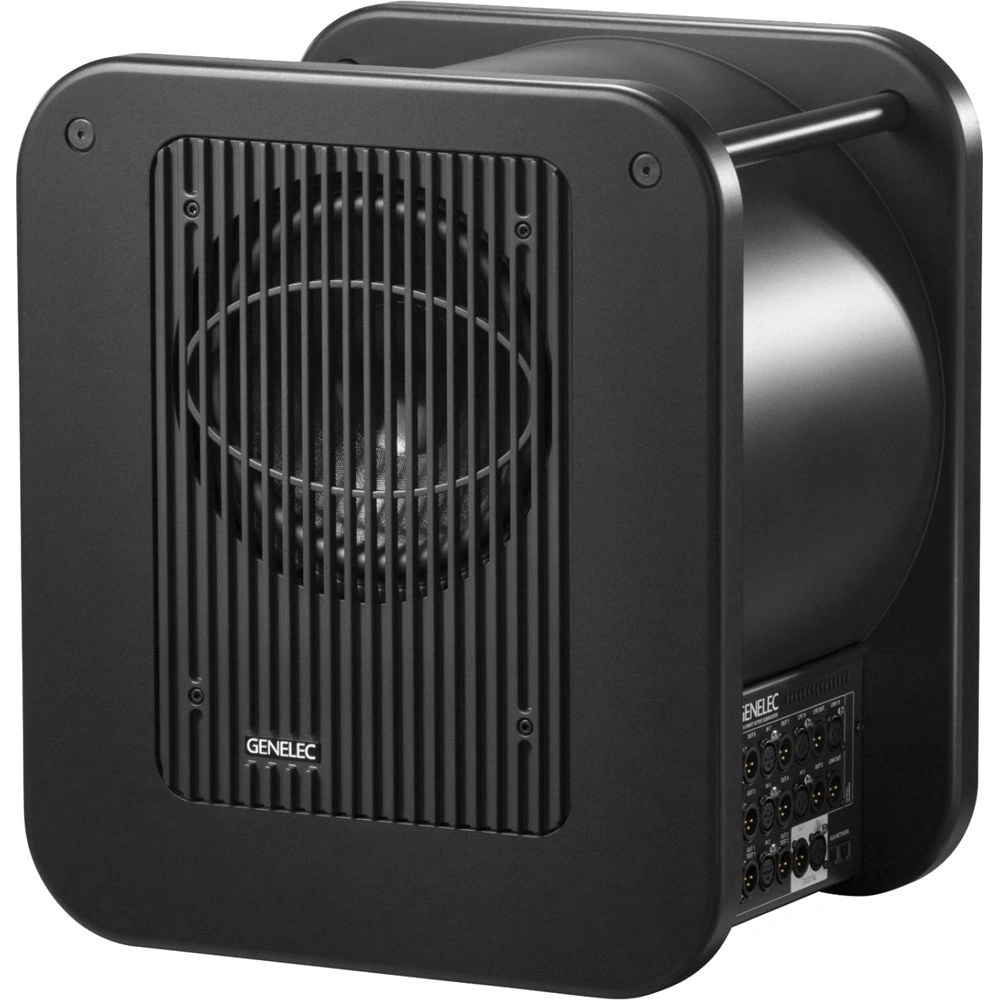

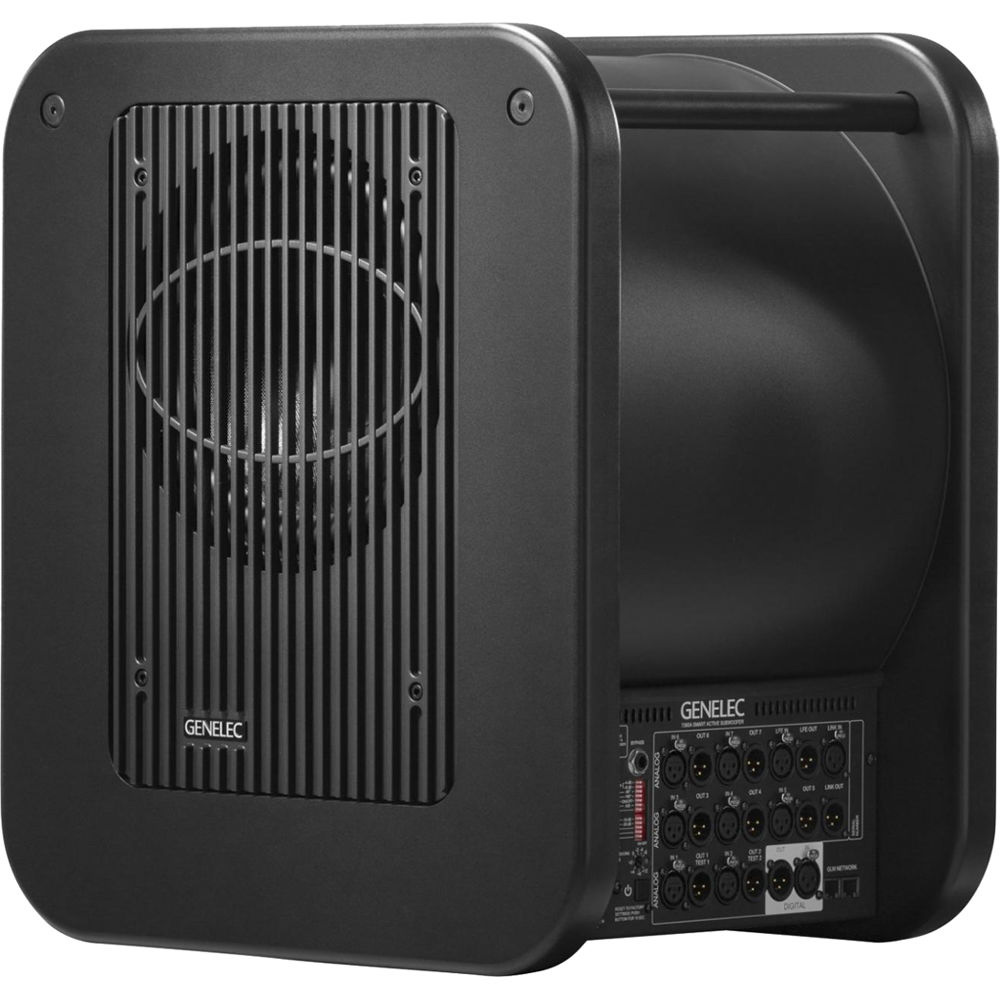

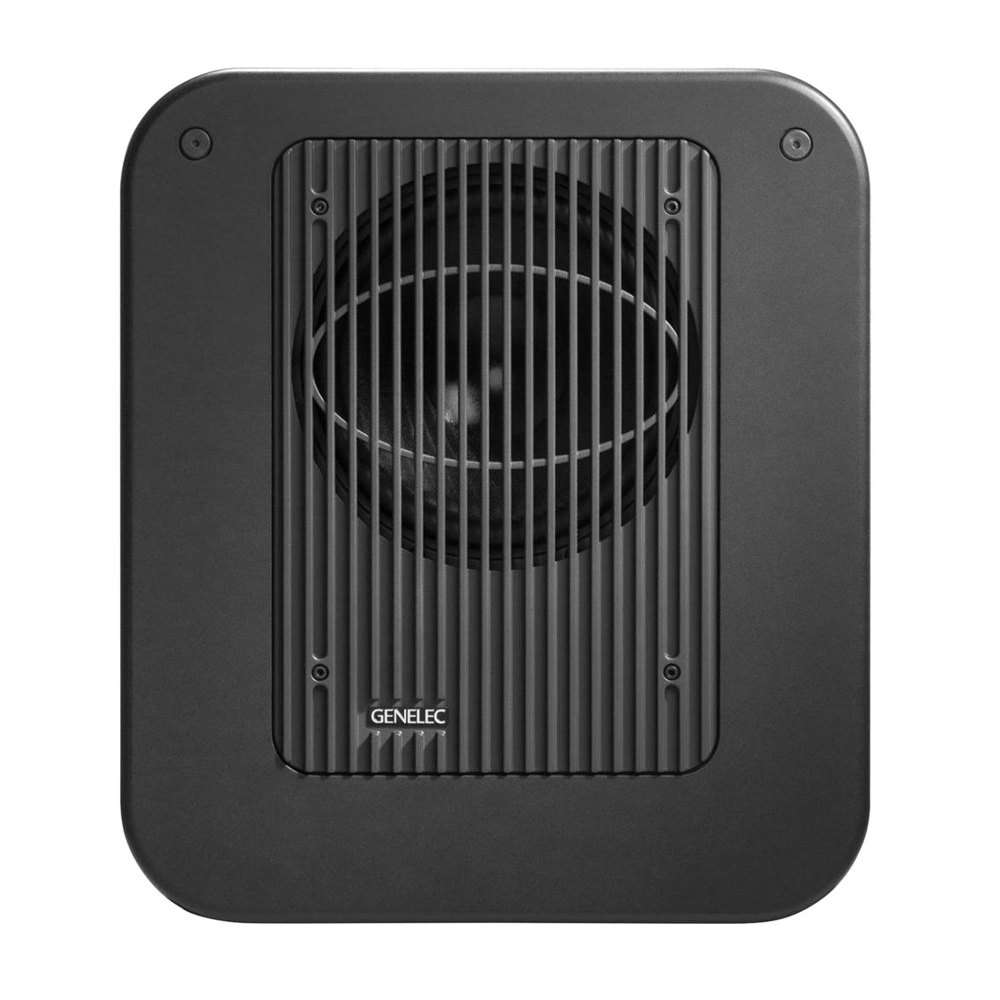

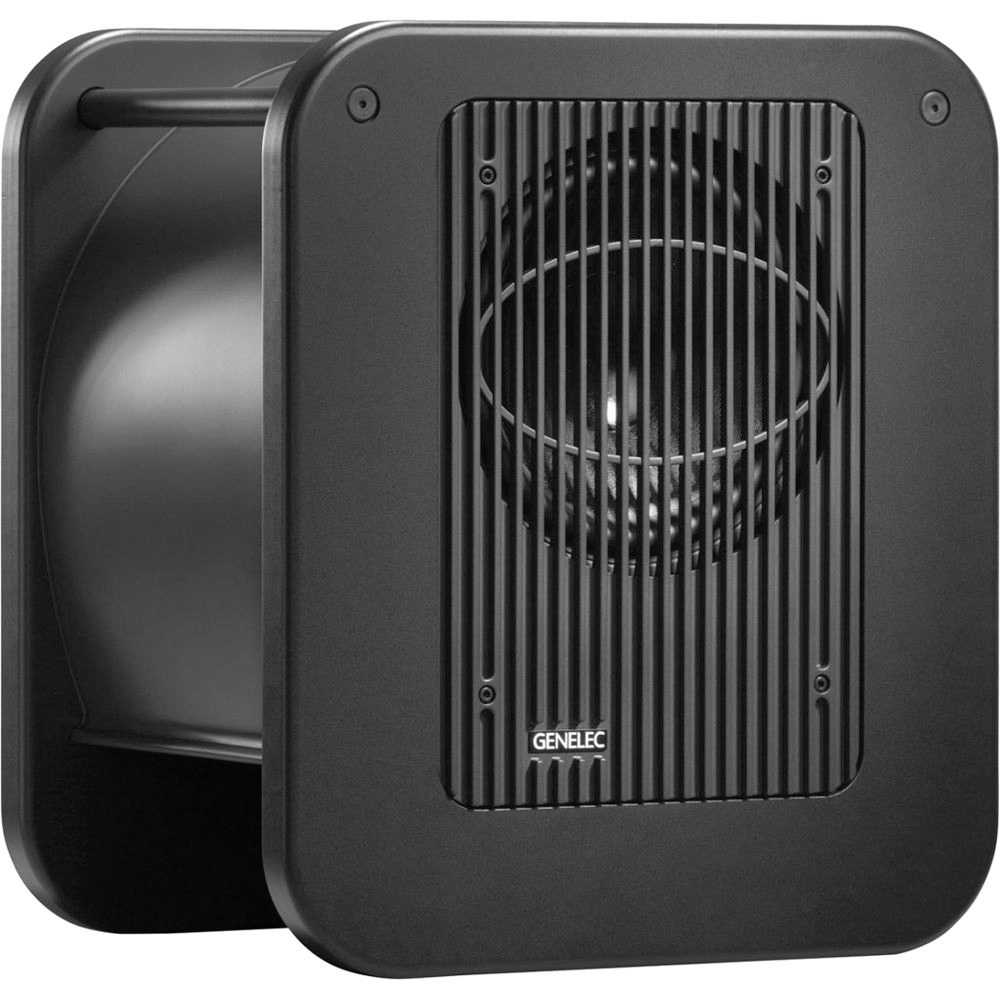

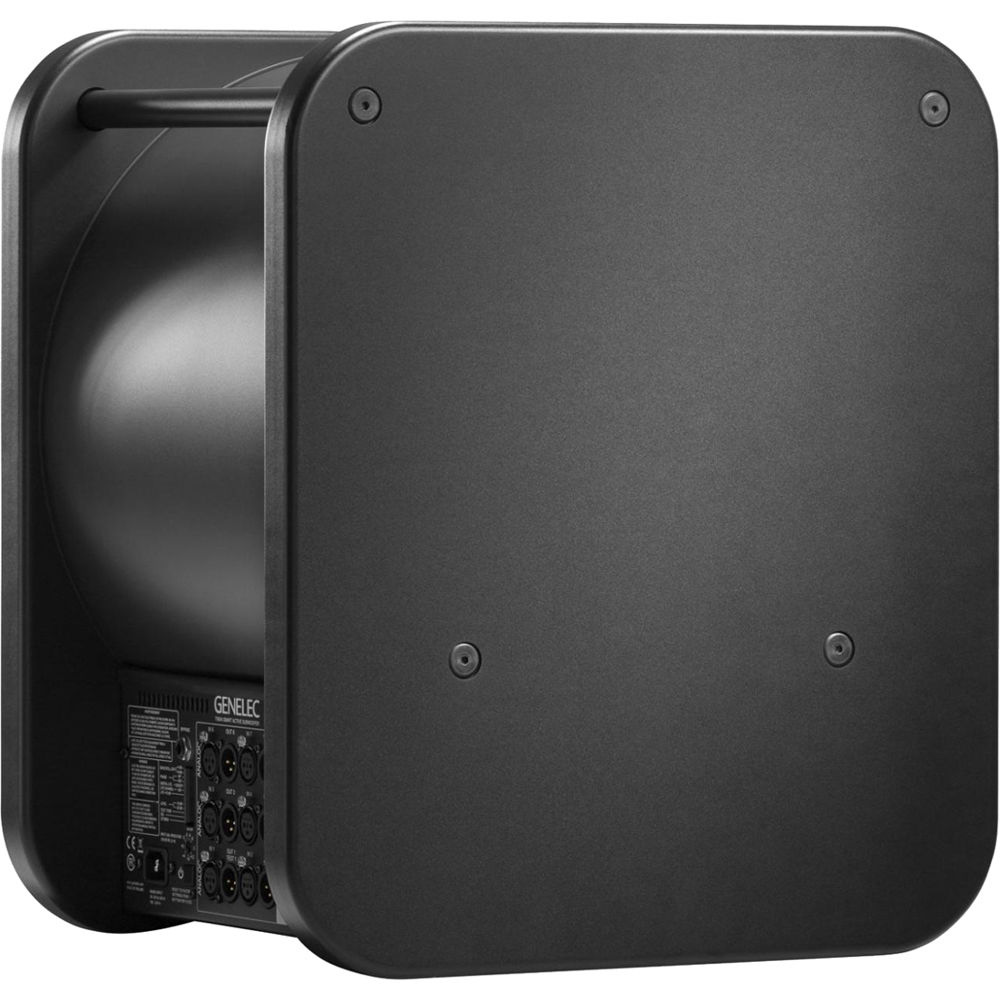

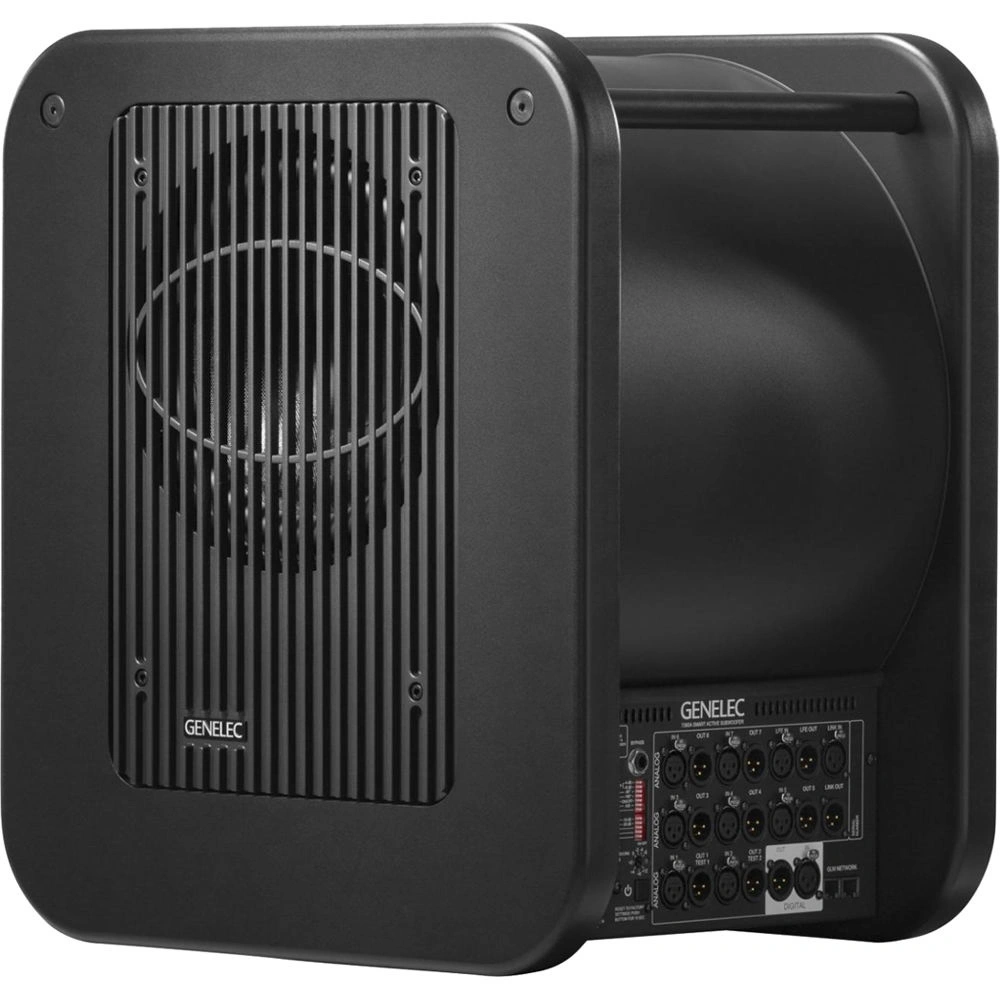

The compact active subwoofer Genelec 7360A is designed for equipping 7.1 surround sound audio systems built on the basis of Genelec active monitors. The subwoofer is equipped with a 10" (250mm) shielded low-frequency driver placed in a cabinet of patented Laminar Spiral Enclosure (LSE) design with a phase inverter. The LSE consists of a spiral metal sheet placed between two MDF panels. The side slot serves as a phase inverter which, considering the optimal geometry of the cabinet for sound wave propagation, works much more effectively than traditional designs. Furthermore, this type of cabinet has high rigidity and is almost free from resonances. The driver is powered by a 300W Class D amplifier: combined with precise matching of the woofer and cabinet, this allows the subwoofer to produce low frequencies starting from 19 Hz (-3 dB level). Protections against overload, short circuit, or overheating of the electronic circuit are provided, as well as magnetic shielding for the driver.
Features:
- DSP processor;
- 7.1 input and output;
- balanced LFE input and output;
- digital XLR input and output;
- Smart Active Monitoring (SAM) adaptive monitoring technology;
- AutoCal technology compensates for room geometry effects;
- optional GLM calibration with calibrator.

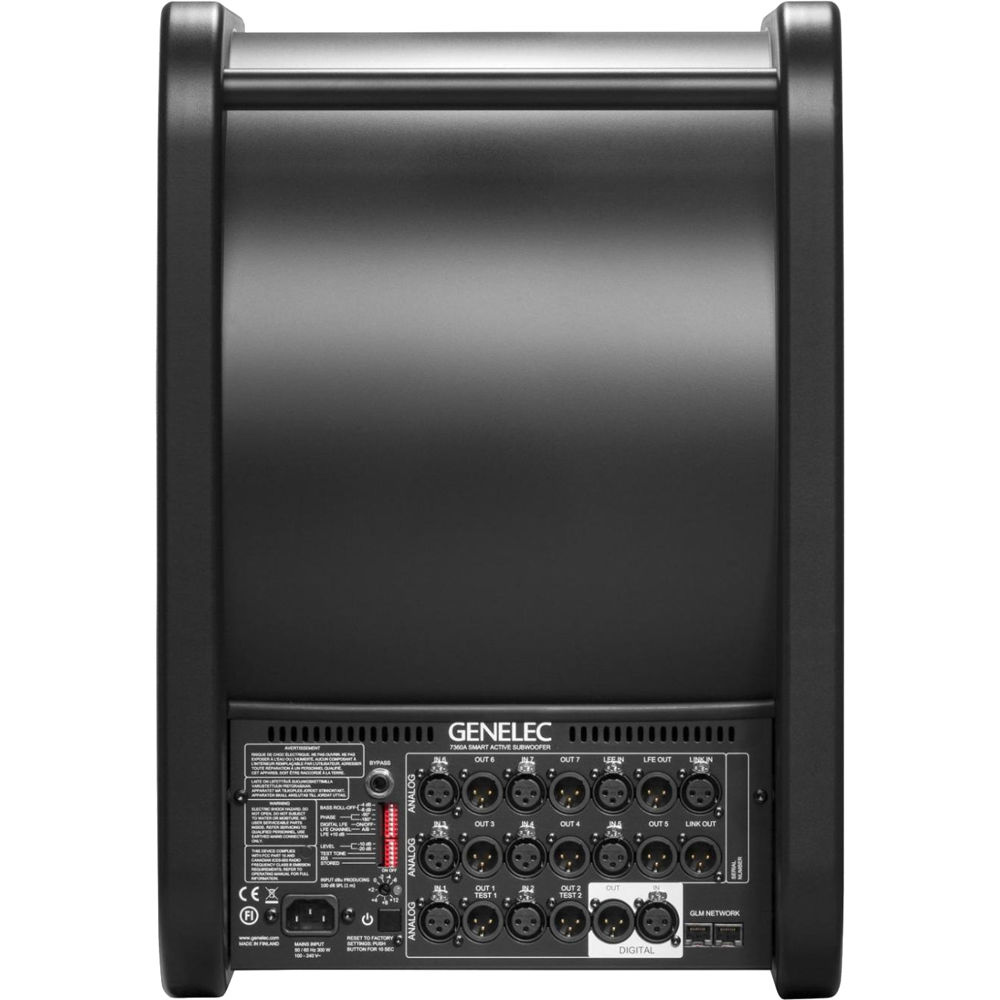

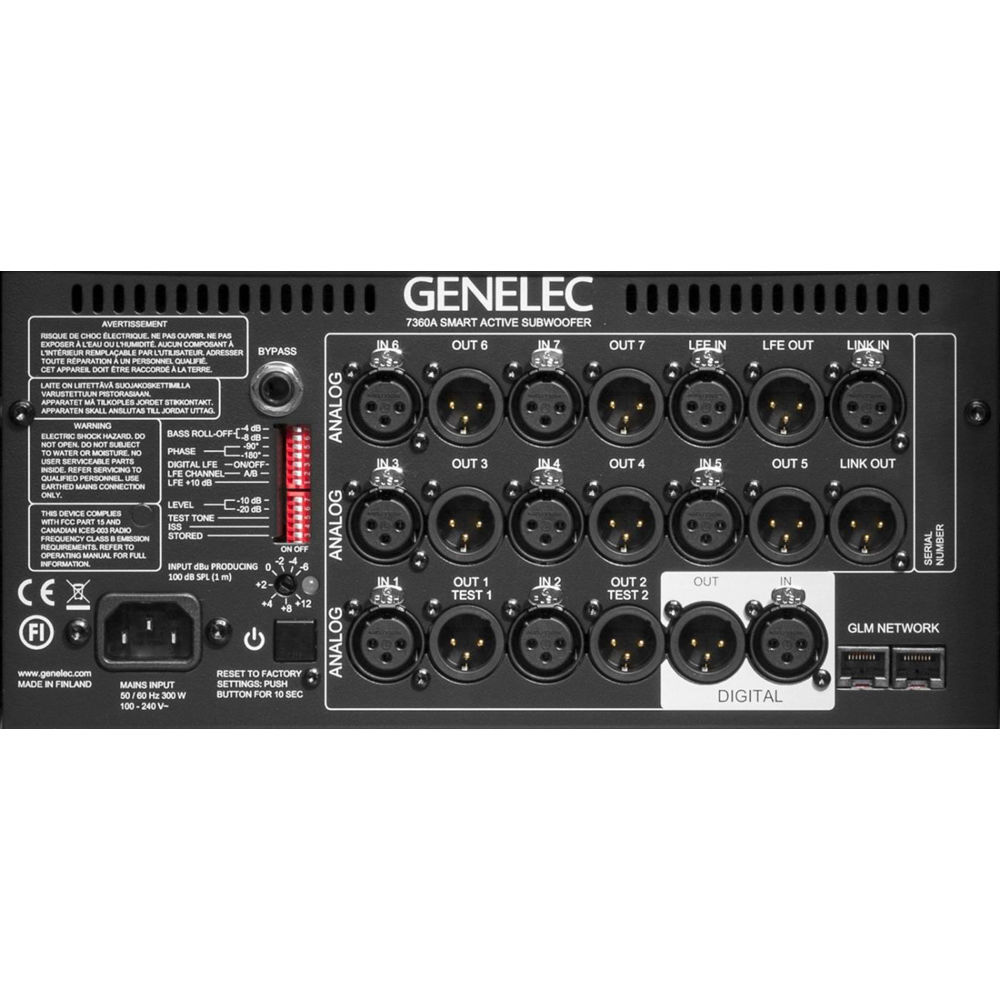

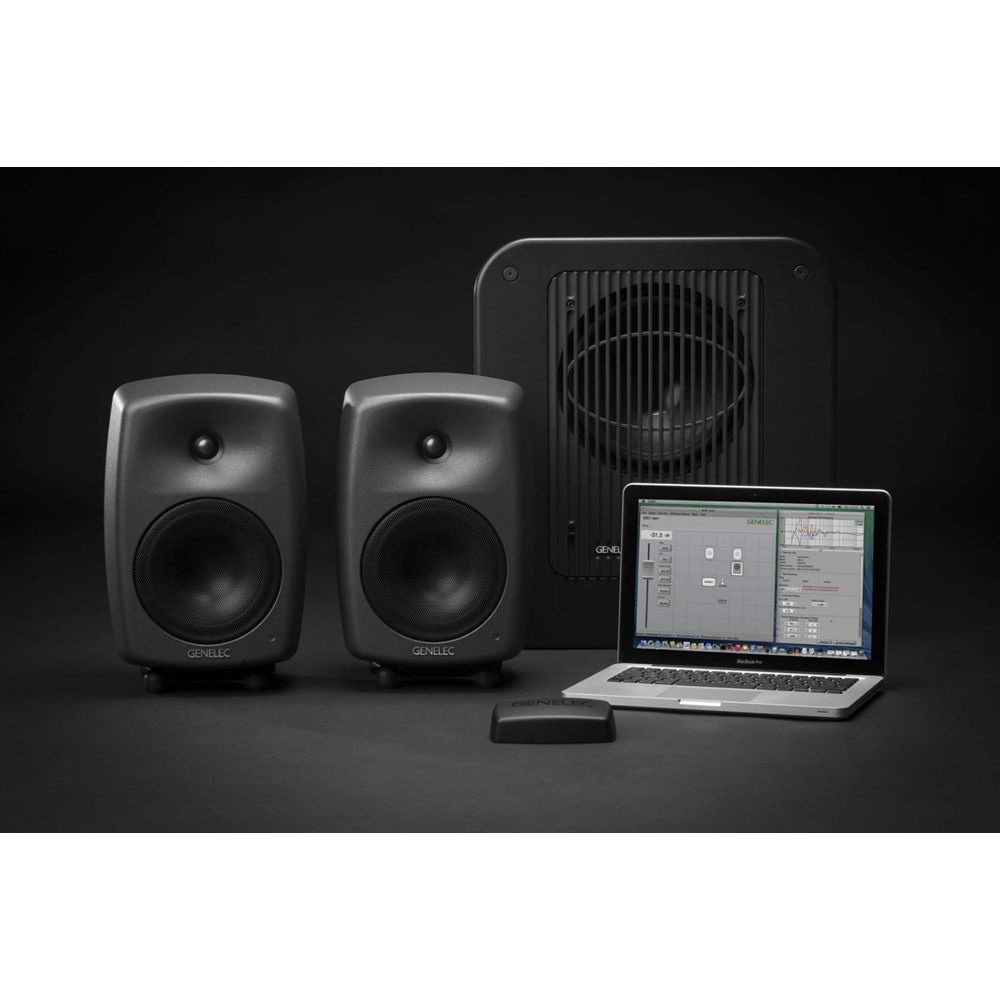

The Genelec 7360A subwoofer includes the most advanced Smart Active Monitoring (SAM) adaptive monitoring technology with AutoCal calibration technology. The Genelec Loudspeaker Manager 2.0 (GLM) software offers detailed individual adjustment for up to 30 intelligent monitors and smart subwoofers to facilitate multi-channel calibration. The AutoCal technology compensates for the room geometry effects, allowing for perfect calibration settings for your listening environment. The subwoofer is equipped with balanced XLR inputs and outputs for eight channels of surround sound. Additionally, the device offers separate balanced LFE input and output, the LFE crossover frequency can be set using SAM, as well as AES/EBU digital input and output. DIP switches on the rear panel control the main parameters. There is also a 1/4" TS Jack input for a bypass switch.
Since the subwoofer is inserted between the surround sound processor and the active satellites (if a separate LFE input/output is not used), it is equipped with necessary balanced transit outputs. A full-range signal is sent to them without filtering, so the corresponding schemes must be activated in the satellites themselves. This allows for optimal adjustment of the characteristics of each channel depending on the configuration of the specific system. An integrated standby mode with ISS (Intelligent Signal Sensing) switch ensures that the subwoofer consumes less than 0.5 W in standby mode. The Genelec 7360A is the ideal choice for all studios and spaces where both space and performance are equally important.
Package includes:
- subwoofer;
- power cable;
- network cable.
