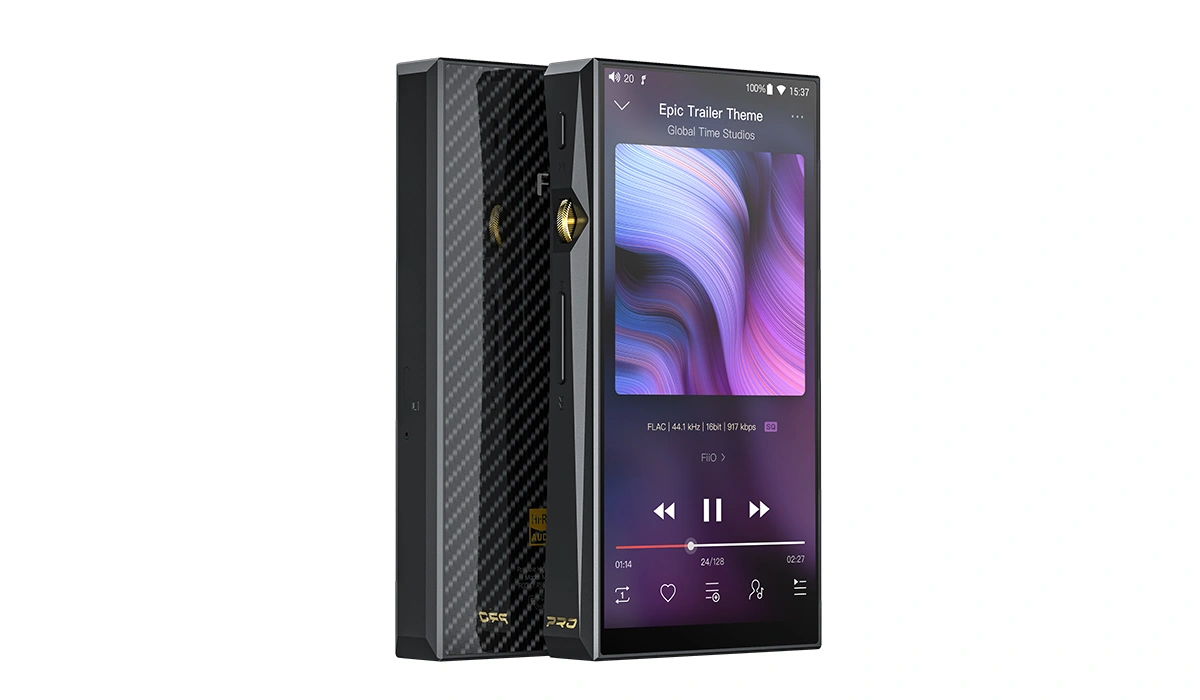

High-performance Samsung Exynos 7872 processor To ensure that the player's user does not experience any discomfort due to a lack of processing power when using the player's menu, services, and demanding audio formats, the company has incorporated a six-core Samsung Exynos 7872 processor into the M11 PRO. With excellent performance comparable to the Snapdragon 625 and Kirin 659, there is no need to worry about glitches and stutters anymore. The M11 PRO will play your music smoothly and flawlessly, providing an exceptionally smooth interface.

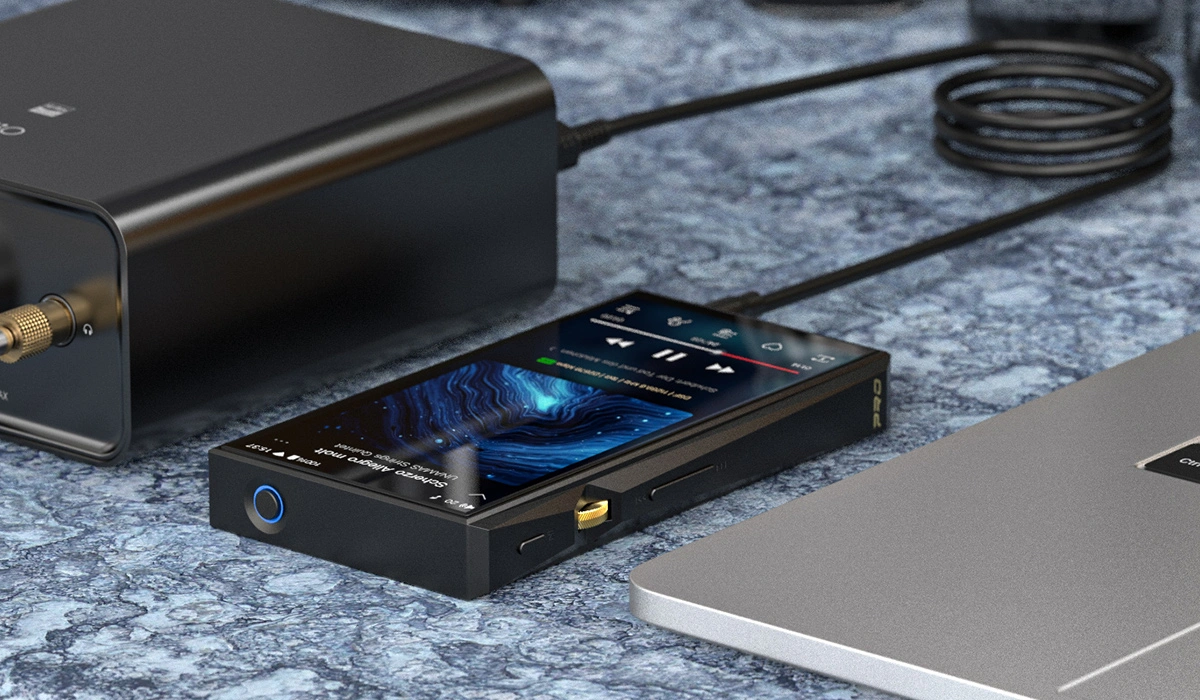

One AK4497 audiophile-grade DAC per channel Instead of the already well-regarded AK4493 DACs used in the predecessor, engineers have integrated new flagship AK4497EQ chips into the M11 Pro. This not only increased the signal-to-noise ratio but also reduced acoustic distortions by 3 dB. Changes were also made to the amplifier. The device features a high-performance THX AAA amplifier, which is also used in the AM3D modular amplifier in the Hi-Res Fiio X7-2 player. Like the M11, the M11 Pro can also be used as a Bluetooth amplifier. One of the key changes in the updated M11 Pro is the expansion of the built-in memory to 64 GB with the ability to use microSD cards up to 2 TB. The device boasts an impressive 3 GB of RAM. The battery capacity has been increased by 15% from 3800 to 4370 mAh. The M11 PRO offers over 13 hours of battery life. The device supports fast charging via Quick Charge 2.0 and MediaTek Pump Express.
Balanced audio design The M11 PRO features a THX AAA amplifier module with OPA1642+LMH6644 operational amplifiers, offering lower noise levels, reduced distortions, and overall clean power compared to the AD8397 and OPA926 operational amplifiers - just one high-quality component of the highly optimized audio architecture of the M11 PRO, designed to enhance sound quality achieved only through continuous iteration and refinement of the sound scheme.
Incredible sound that you expect Extensive work has been done to ensure that the M11 PRO delivers exceptionally good sound, especially with vocals and high frequencies. The low-frequency filter has been carefully adjusted, significant improvements have been made to the power supply section, and key components such as resistors and capacitors have been upgraded - all leading to the M11 PRO reaching new heights in sound quality. FiiO engineers have tirelessly worked to ensure that the M11 PRO sounds great no matter what headphones you use.

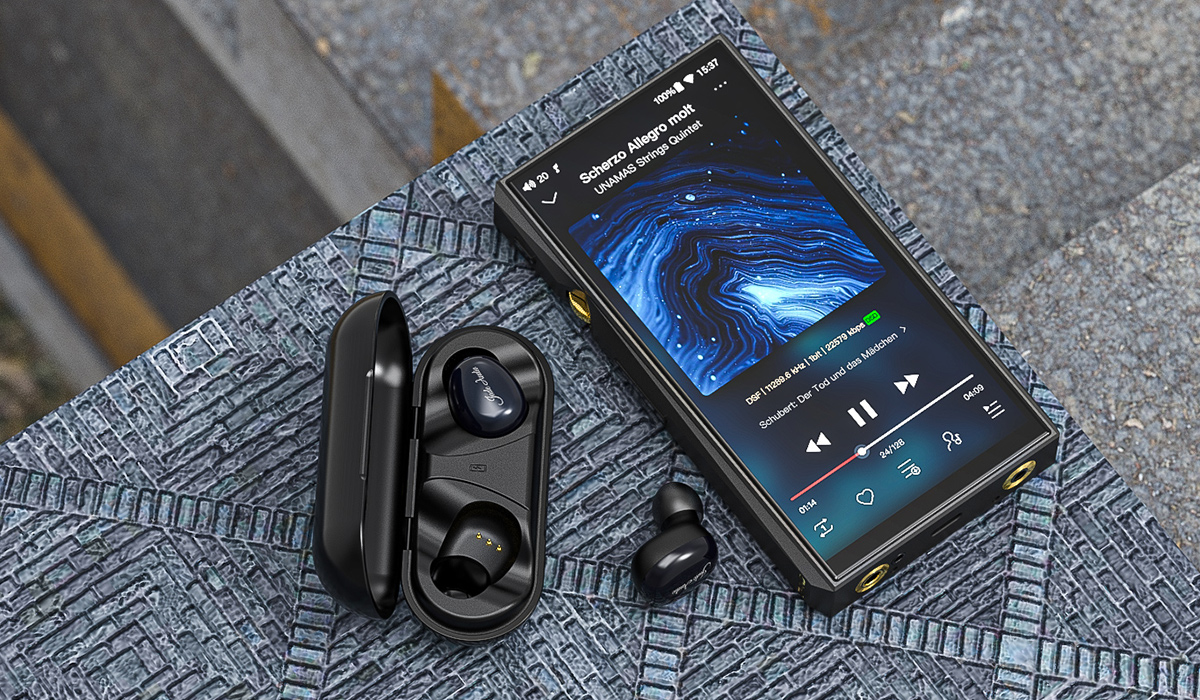

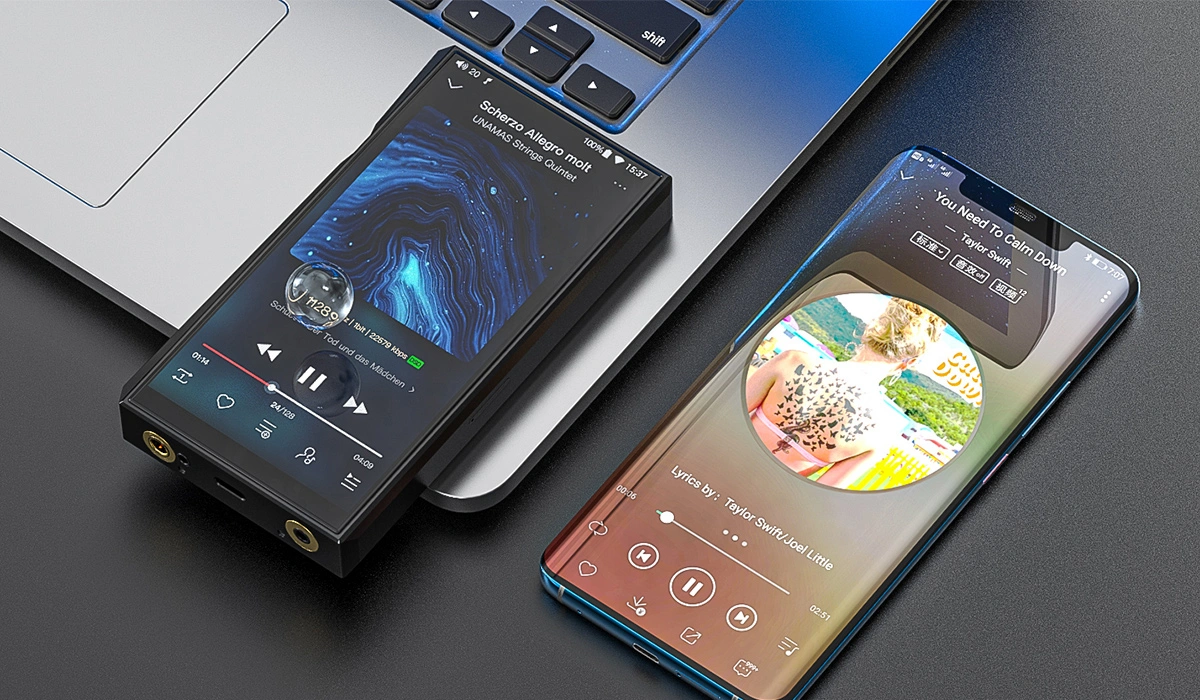

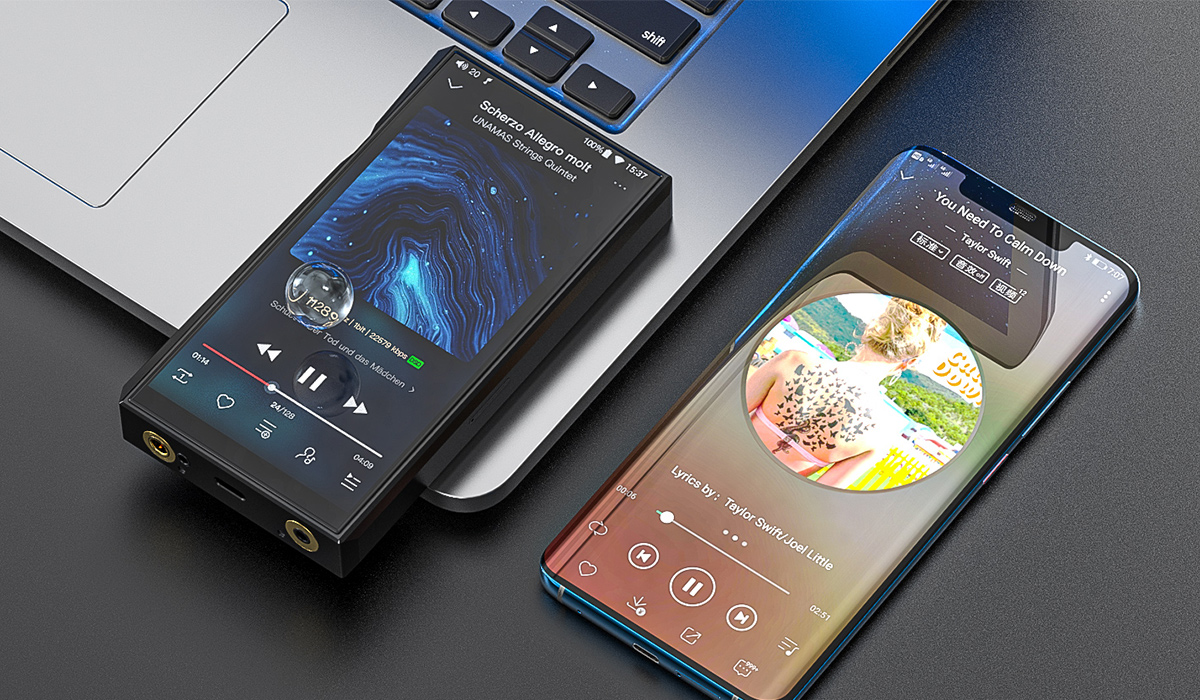

Expanding the boundaries of hi-fi wireless sound With Bluetooth 4.2 support, the M11 PRO can transmit data in SBC/aptX/aptX HD/LDAC/LHDC Bluetooth formats. The high-performance Bluetooth chip from Samsung guarantees that you can transmit signals with even higher bitrates, allowing you to enjoy high-quality wireless music without any interruptions.

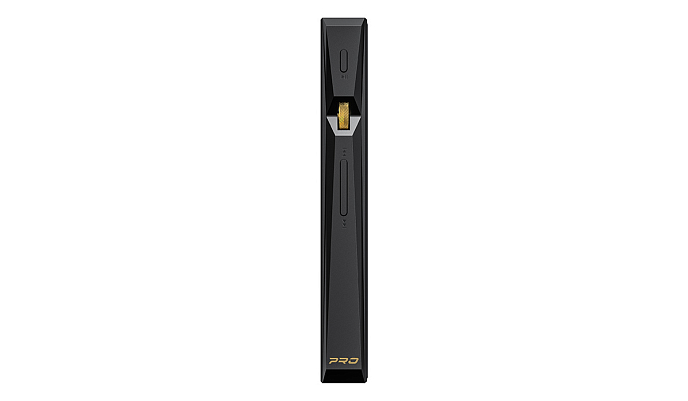

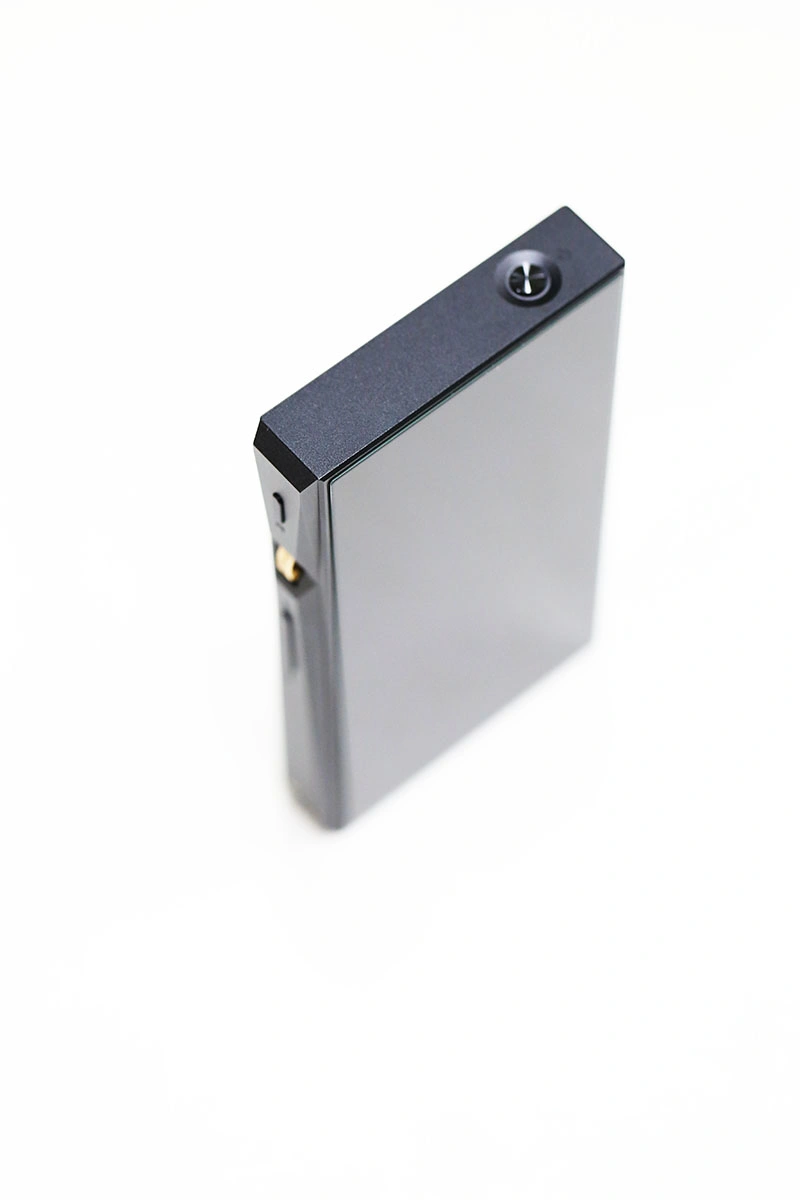

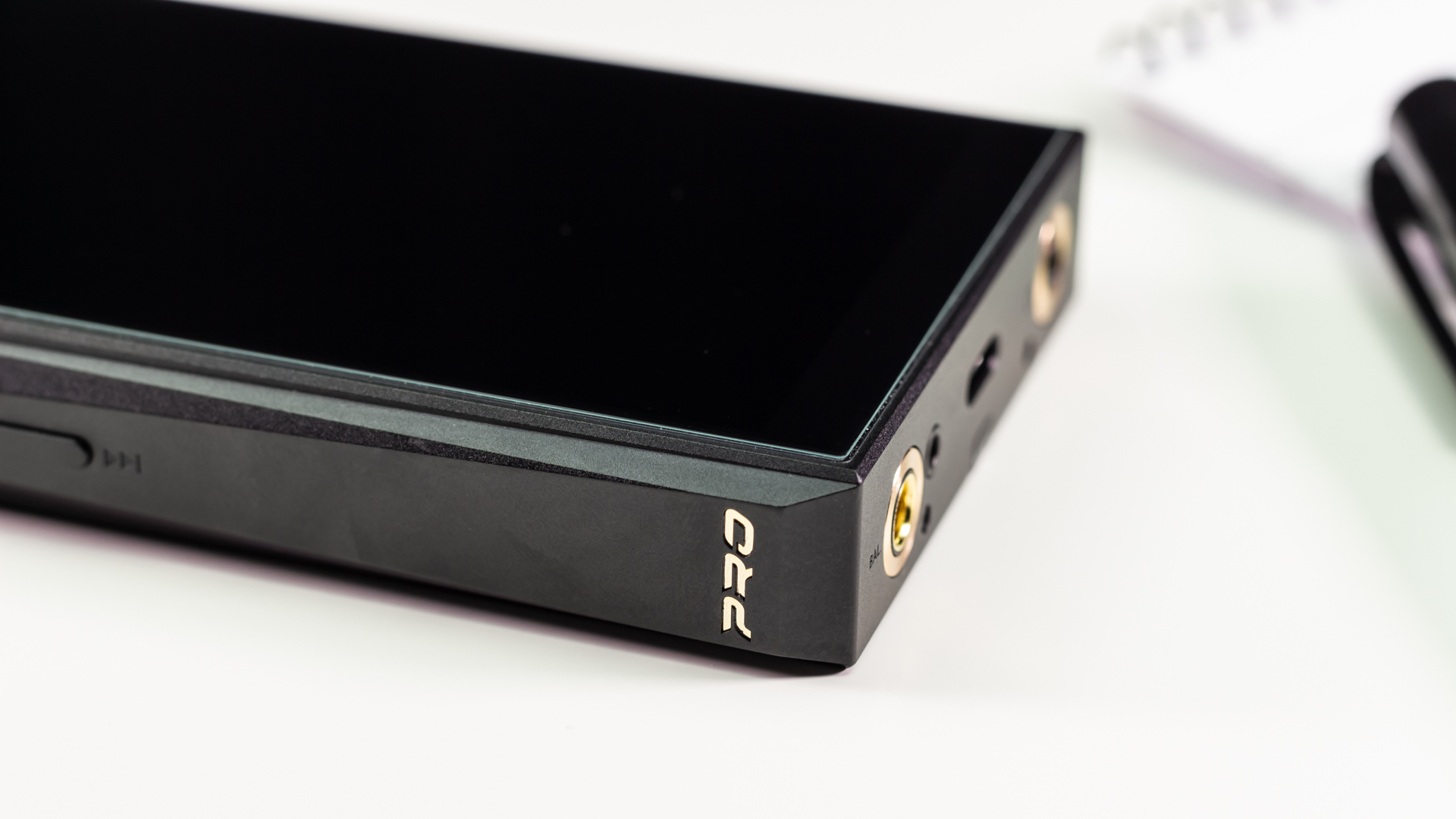

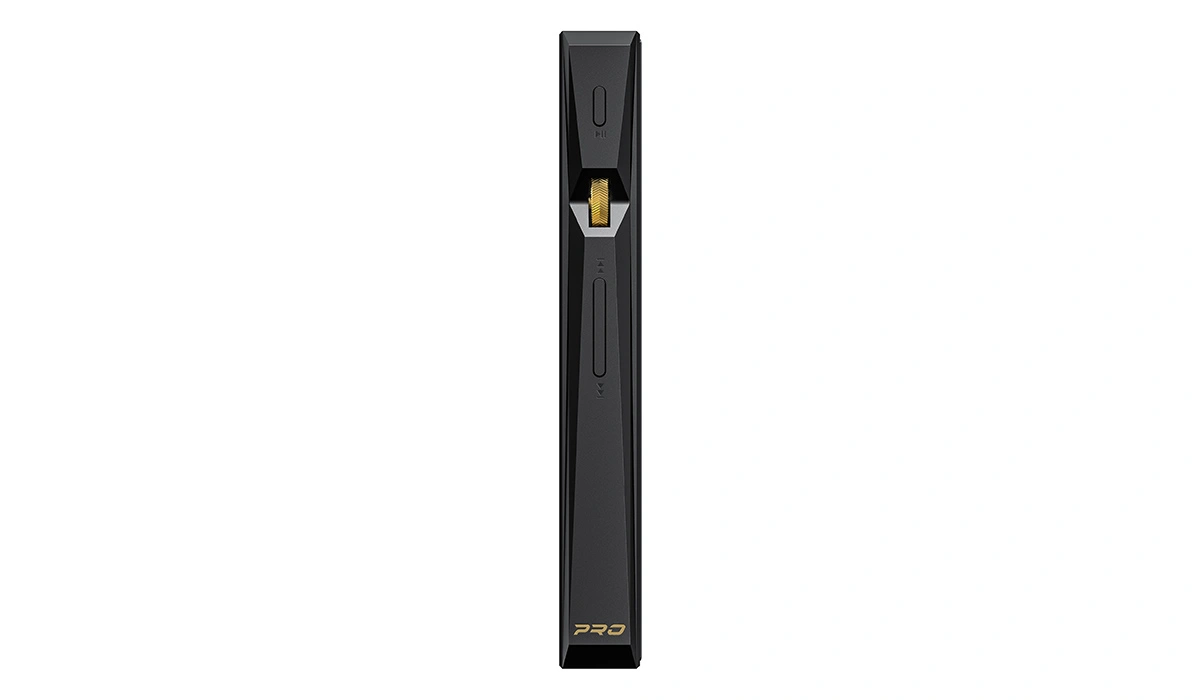

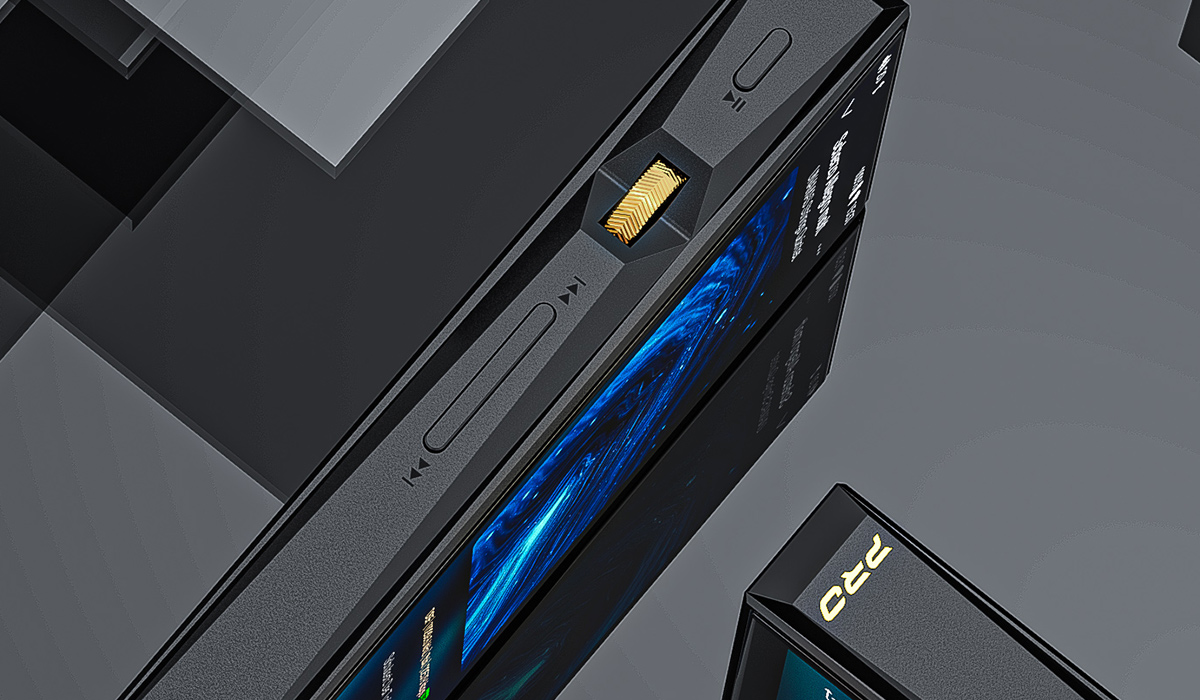

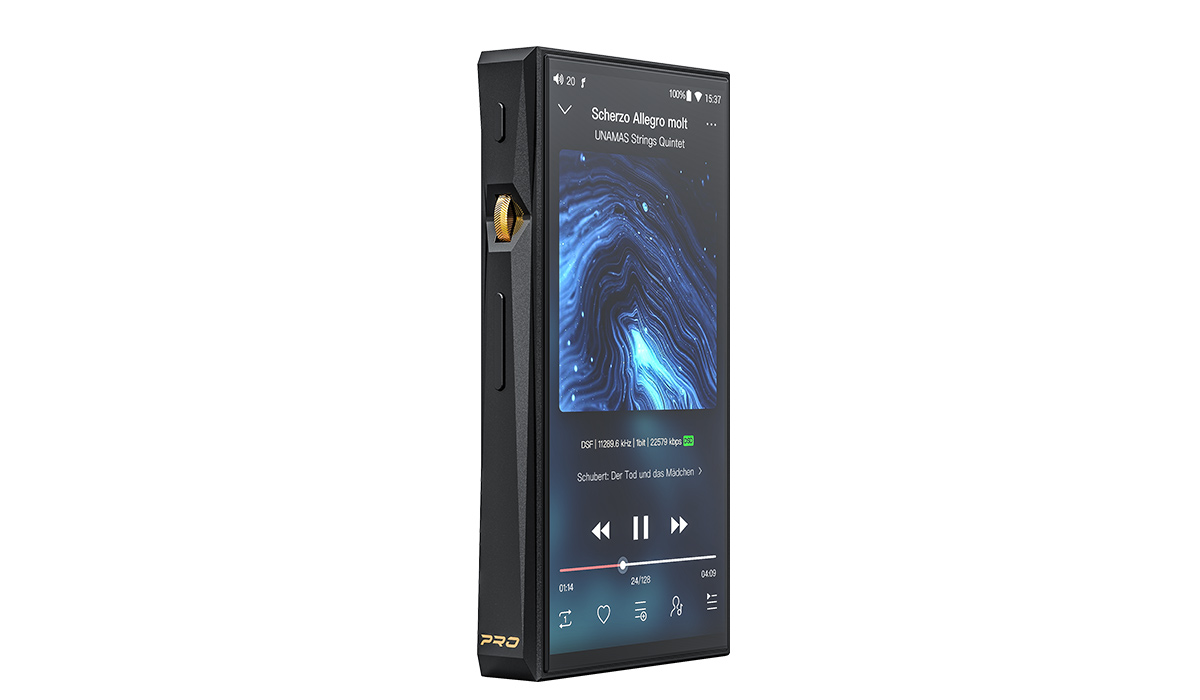

Straight lines, maximum ergonomics You won't find curves on the M11 - instead, its design consisting of straight edges is a perfect continuation of the polygonal style, giving it a striking yet visually appealing aggressive look.

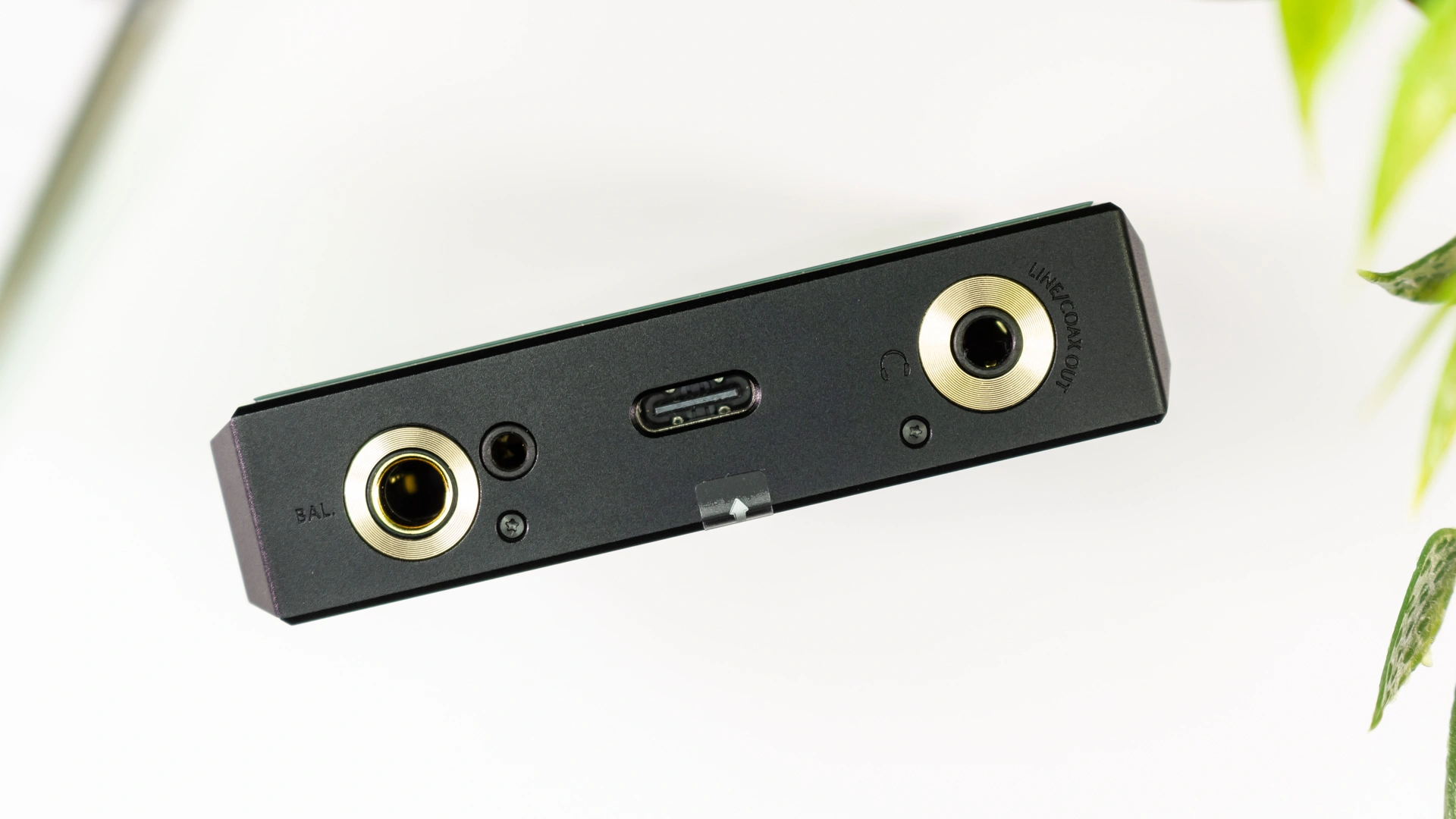

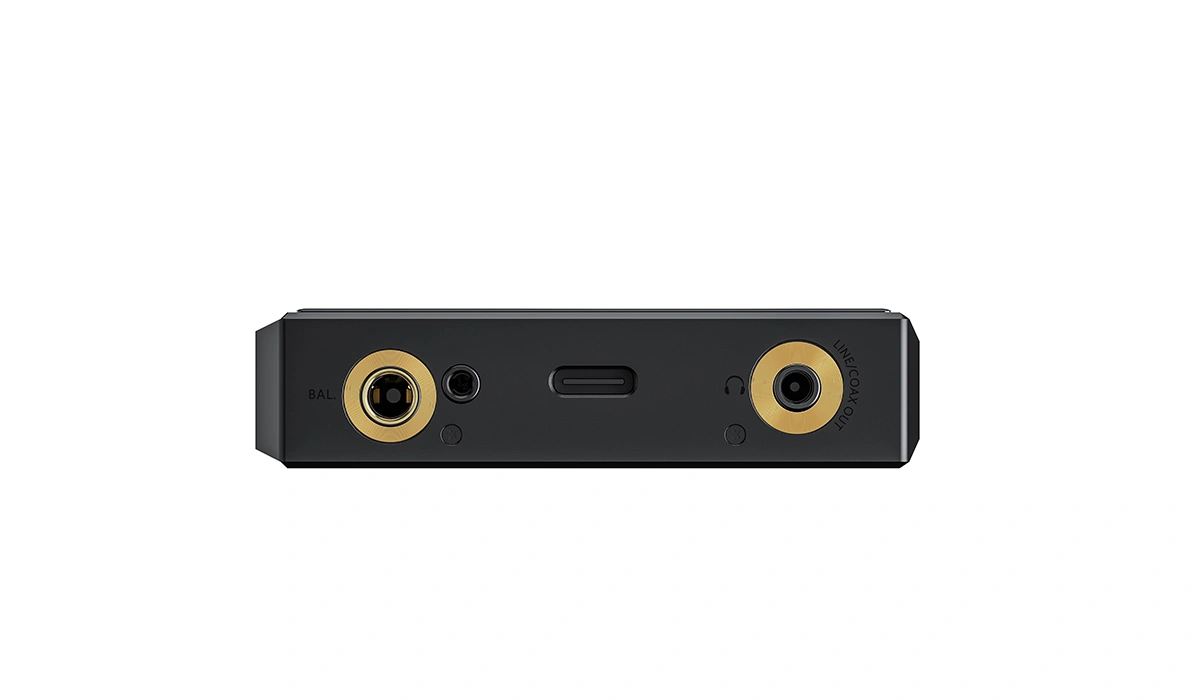

More possibilities - 2.5/3.5/4.4 mm headphone outputs Today, all high-end portable players come with balanced headphone outputs. However, the M11 PRO goes a step further by including 2.5 mm and 4.4 mm balanced outputs, while also retaining the 3.5 mm unbalanced output. With the M11 PRO, there is no need for bulky adapters - simply connect your headphones to the desired output socket!
Fast charging with qc2.0 and mediatek pe technologies No one wants to wait for their player to charge. That's why FiiO has implemented support for Quick Charge 2.0 and MediaTek Pump Express fast charging, allowing the battery to be fully charged in just 2.5 hours. With a significant 4370 mAh high-voltage battery, the M11 PRO can play music continuously for up to 9.5 hours and remain in deep sleep mode for up to 50 days.
Dual-band wi-fi The M11 PRO model supports dual-band Wi-Fi 2.4 and 5 GHz, providing a more stable network signal and faster audio data reception speed. It is recommended to use the 5 GHz band to avoid interference with the 2.4 GHz and Bluetooth frequencies.

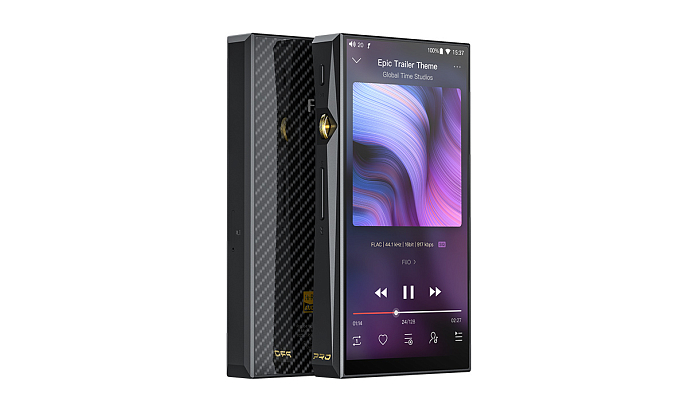

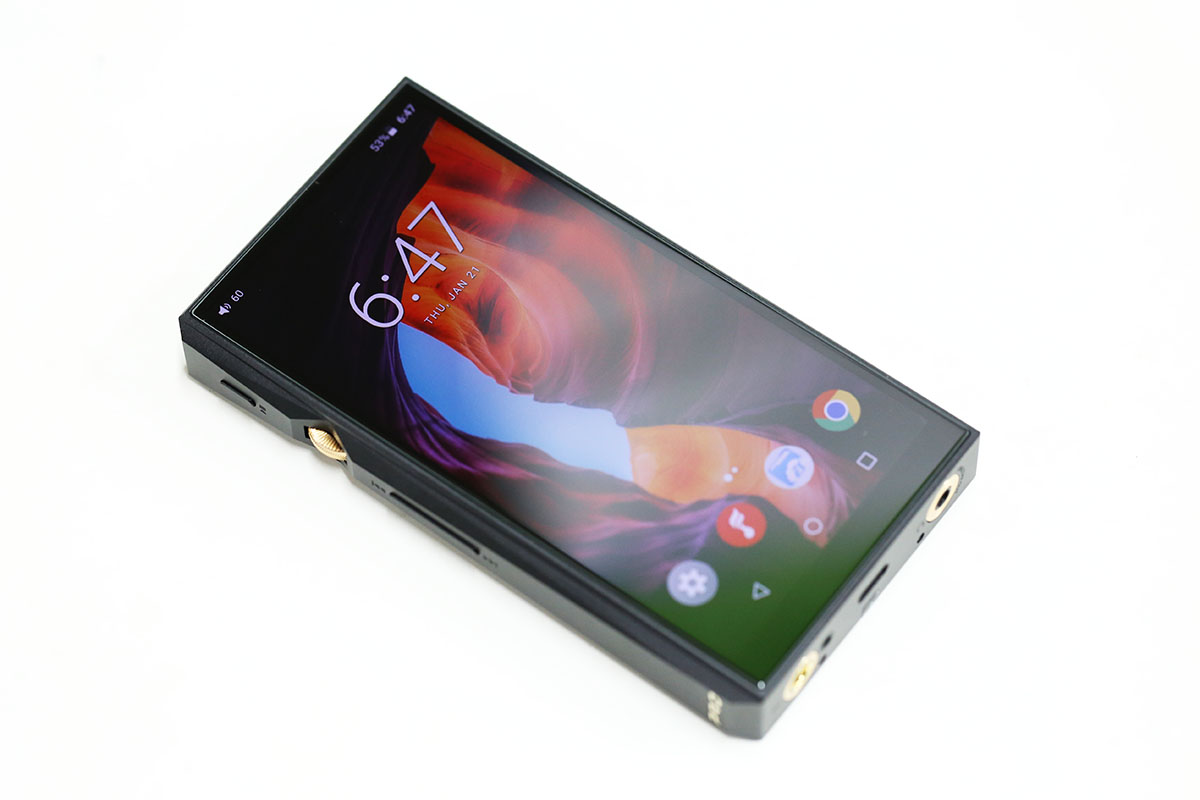

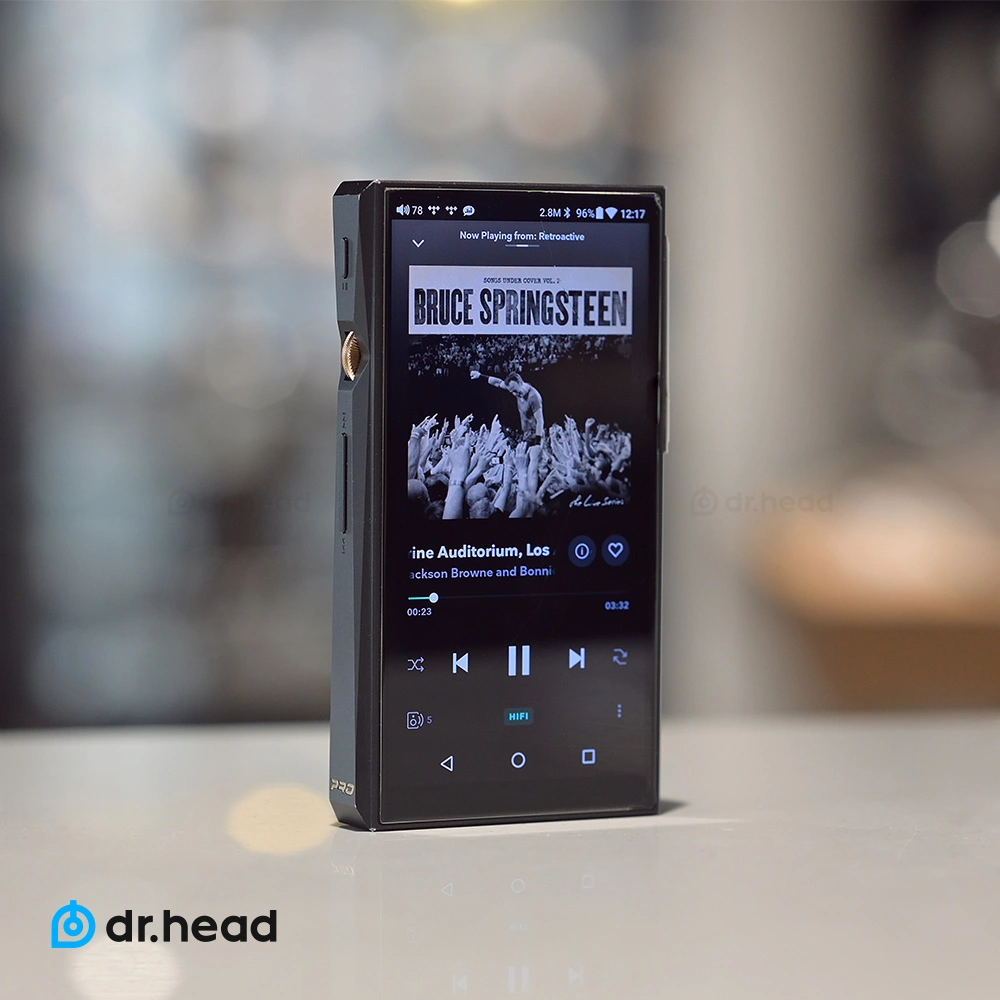

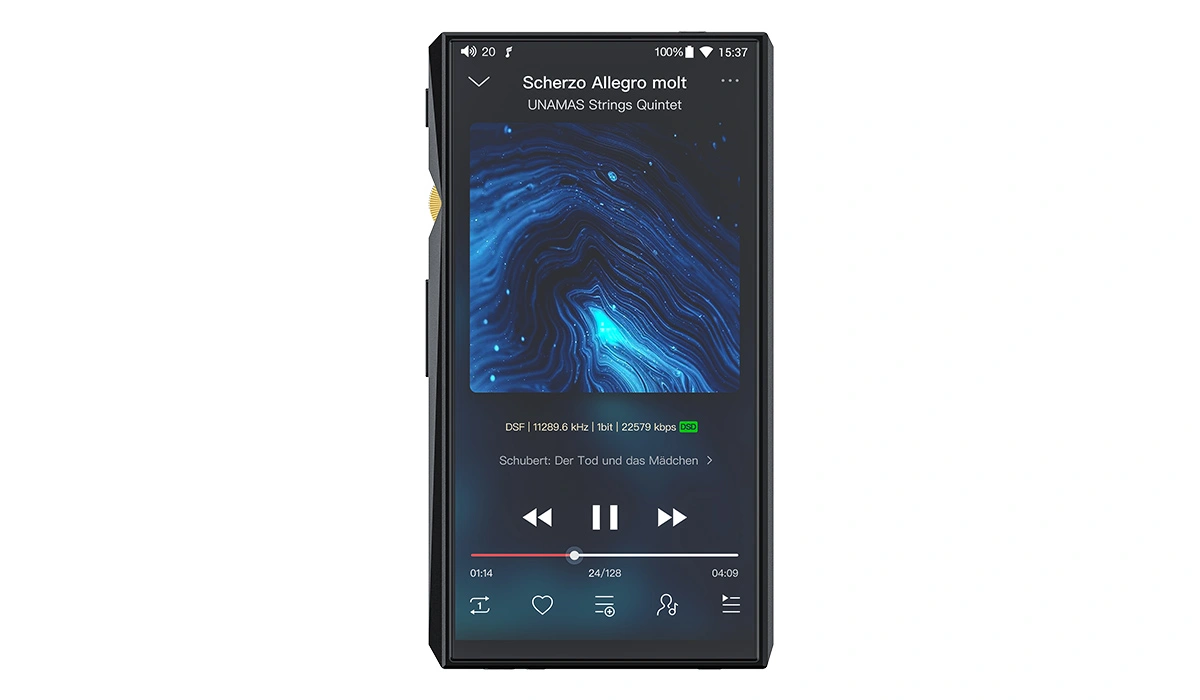

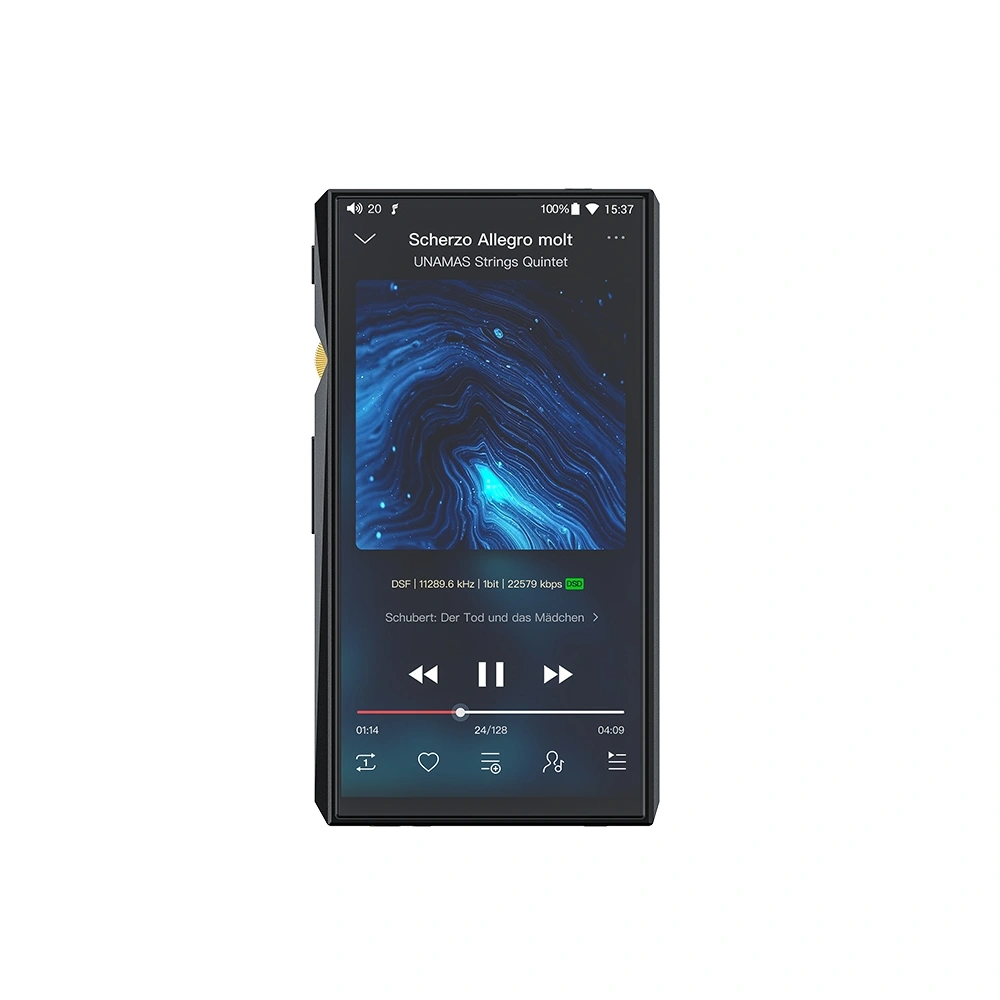

18:9 touchscreen display Perfect for fingertip control with simple swipes on the screen. The large and bright 5.15-inch display with a resolution of 1440x720 supports up to 10-finger multitouch, allowing for active gesture control and utilizing the entire screen for navigation.
The player has 3GB of RAM and multi-tasking capabilities FiiO allows for the simultaneous operation of multiple applications and switching between them. The internal storage of 32 GB can be expanded using a microSD card and supports swappable cards with capacities up to 2 TB. You can store hundreds of albums without worrying about running out of space.
DSD Native No limitations when working with the highest-quality audio format. DSD stream at 11.2 MHz (DSD256) is directly fed into the player's DAC or USB output, ensuring stunning sound quality without conversion to another format.
Specifications:
- Balanced 4.4 mm output: 550 mW into 32 ohms;
- Balanced 2.5mm output: 550 mW into 32 ohms;
- Unbalanced 3.5mm output: 200 mW into 32 ohms;
- Signal-to-noise ratio: 118 dB;
- Frequency range: 5 - 86 kHz.
Features:
- Processor: Exynos 7872 (6 cores);
- DAC: AK4497EQ×2 (384kHz/32bit);
- OS: Customized Android 7.0;
- RAM: 3 GB;
- Internal Memory: 64 GB;
- Micro SD support: Up to 2 TB;
- Bluetooth 4.2;
- Wi-Fi: 2.4 - 5 GHz;
- Battery: 4370 mAh;
- Battery life: 9.5 hours;
- Charging time: 2.5 hours;
- Quick Charge 2.0 support;
- Digital output: Coaxial;
- USB port: Type-C;
- USB output support: 32-bit / 384 kHz; DSD128;

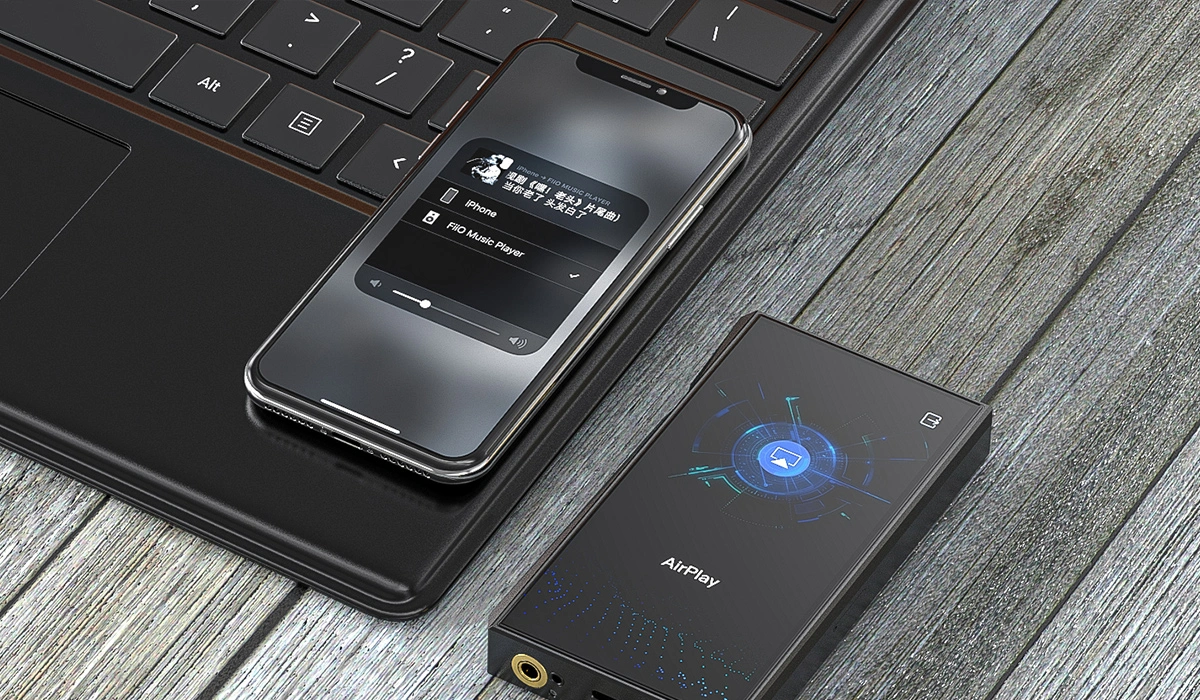

- AirPlay support;
- FiiO Link support;
- Display: 5.15-inch IPS, 1440×720 resolution, touchscreen;
- Recommended headphone impedance on 3.5 mm output: 16 - 150 ohms;
- Recommended headphone impedance on balanced outputs: 16 - 300 ohms;
- Equalizer: 10-band, 9 presets with the ability to save your own;
- Keyboard: Virtual QWERTY;
- Dimensions: 70.5 x 130 x 16.5 mm;
- Weight: 232 g.
Package includes:
- Player;
- USB charging cable;
- Coaxial cable;
- Documentation.
