Integrated amplifier
Chord Anni Black

Product code: 121436
no reviews

Description

Reviews (0)

Description

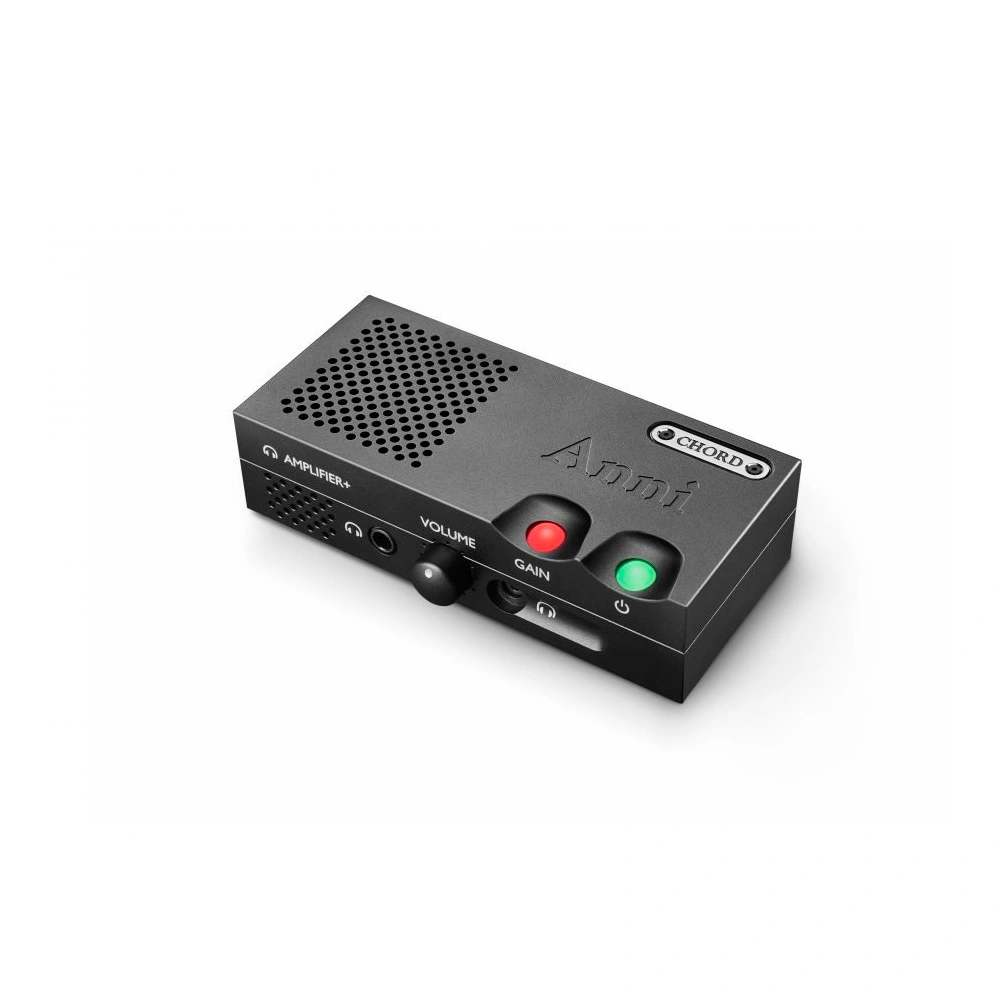

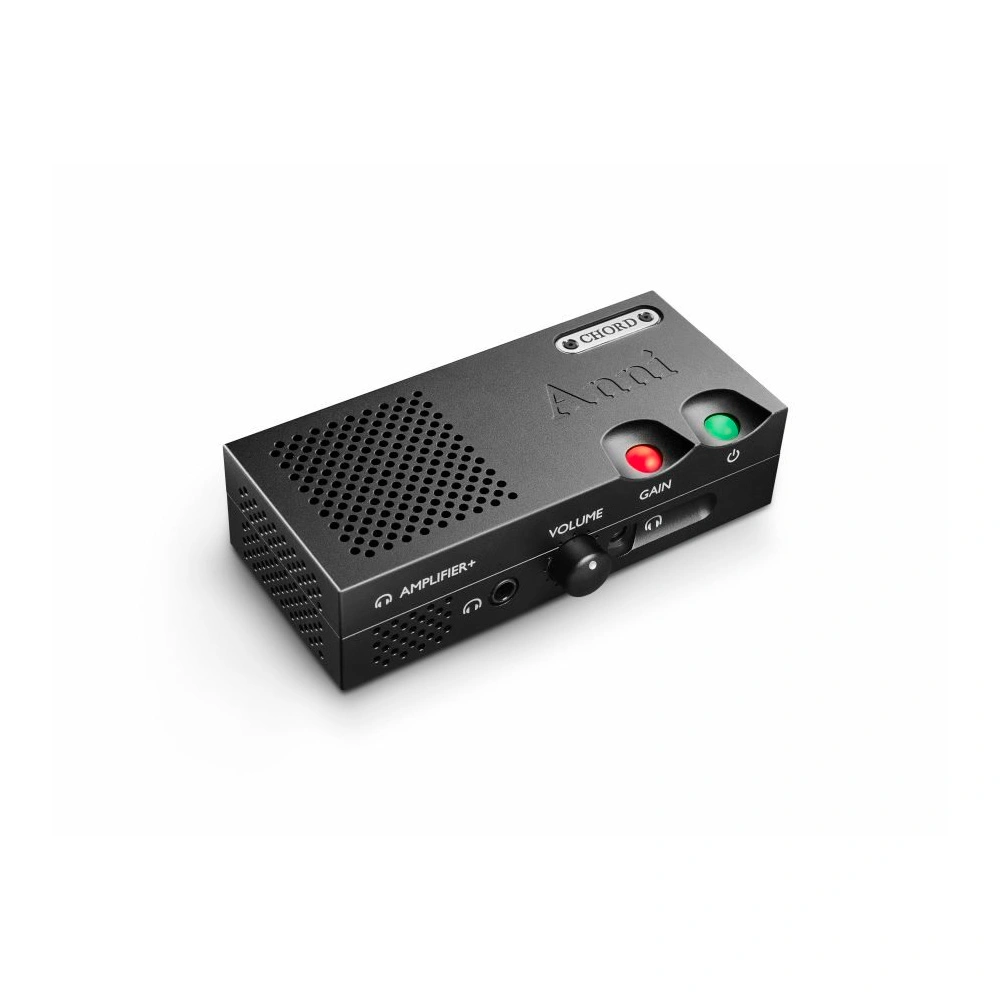

Chord Electronics Anni is a compact desktop amplifier that marks a significant milestone in the company's history as it is the first amplifier to incorporate the highly regarded Ultima circuitry in a compact form factor.

By introducing Anni to the market, Chord Electronics is venturing into new territory. This amplifier retains all the innovation and expertise of Chord Electronics' amplifier designs but in a miniature size, weighing only 625g. Anni is perfectly suited to complement other 16cm components in the Qutest series, such as the Qutest DAC and the Huei phono stage, and can be conveniently used in the specialized QSS rack.

Anni is not intended to replace the amplifier in your hi-fi setup. Instead, it is designed to bring High-End audio quality to your desktop when using a laptop or computer as your audio source, either with headphones or close-range speakers. Consequently, the functional features of this amplifier are tailored to its desktop application, eliminating the need for excessive power output, remote control capability, or multiple source connections.

Chord Electronics Anni delivers up to 10W per channel to speakers using a two-stage gain adjustment, and incorporates the trademark Ultima error correction circuitry with dual direct feedback. Whether used as a headphone amplifier or a compact speaker amplifier, Anni possesses the ability to drive any headphone load with error tracking and interference compensation. It provides both 3.5mm and 6.35mm outputs, allowing for the connection of multiple headphones, enabling the sharing of quality sound with another listener.

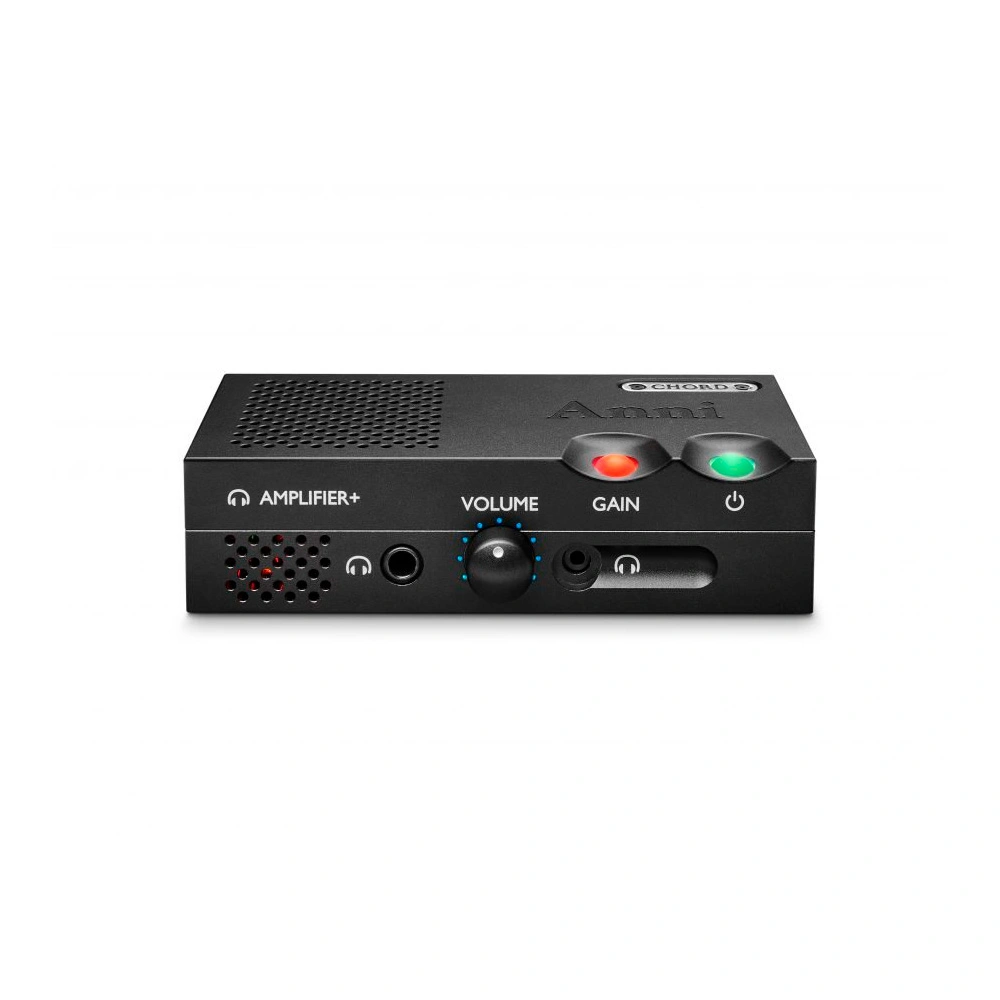

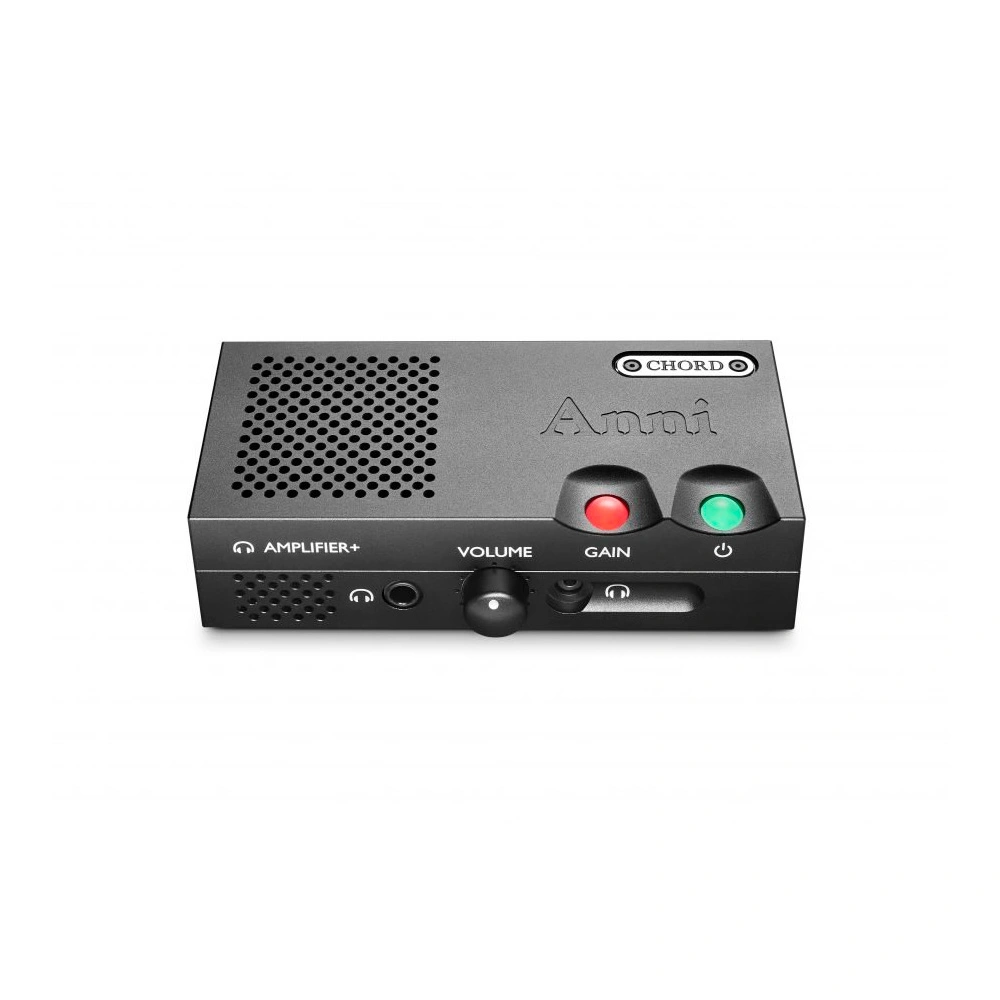

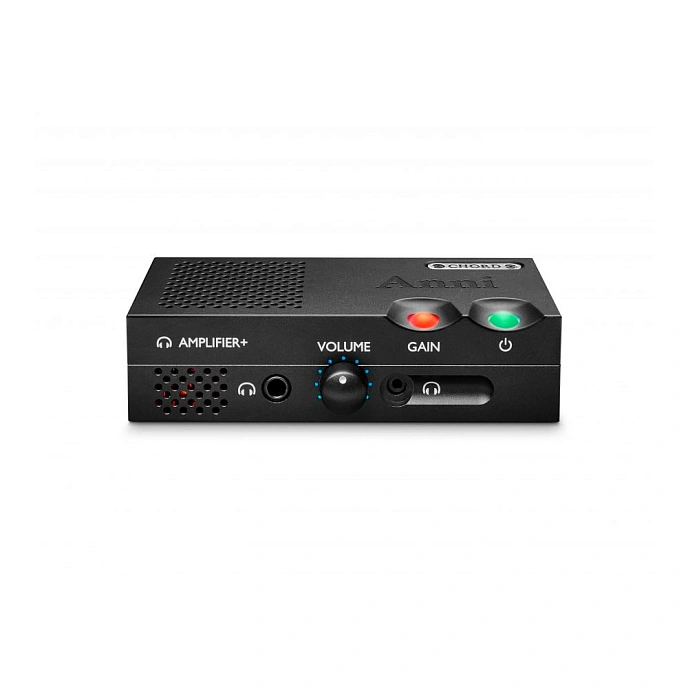

The front panel of the amplifier features colored input selection and gain coefficient buttons, along with a volume control. The housing of the amplifier is constructed from black aluminum and is meticulously crafted using CNC machines.

Features:

  • Two headphone outputs (3.5mm and 6.3mm) that can be used simultaneously
  • The Ultima circuitry ensures compatibility with headphones of all types and impedance
  • Output of 2 x 10W at 8 Ohms for speakers, operating in Class AB
  • Gain coefficient switch for optimal input sensitivity matching to the speakers in use
  • 12V DC constant current output for powering Qutest and Huei
  • Ventilation channel system and active cooling
  • Housing milled from a cast aluminum billet

The package includes:

  • Integrated amplifier
  • Power supply
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Power per channel at 8 Ohm, W
10
Power, W
10
Input connectors
RCA
Output connectors
terminals
Circuit design
discrete

The circuit with transistors used.

Словарь терминов
The lowest frequency, Hz
5
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
60
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Color
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
8
Material
aluminum
Number of channels
2
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
92
Depth, mm
96
Height, mm
42
Width, mm
160
Weight, g
625
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
UK
Service life, months
24
Warranty, months
12
Show all characteristicsShow fewer characteristics
