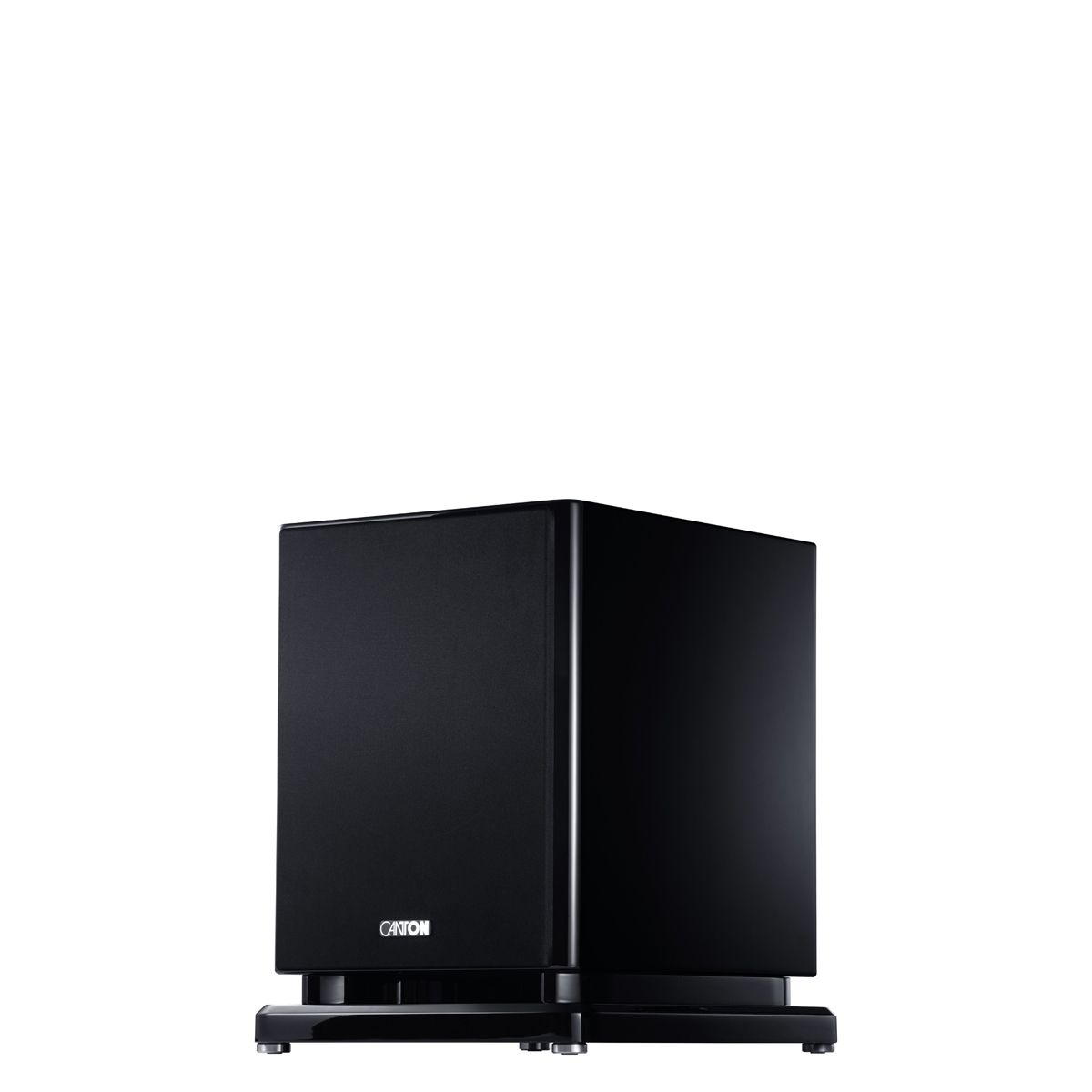

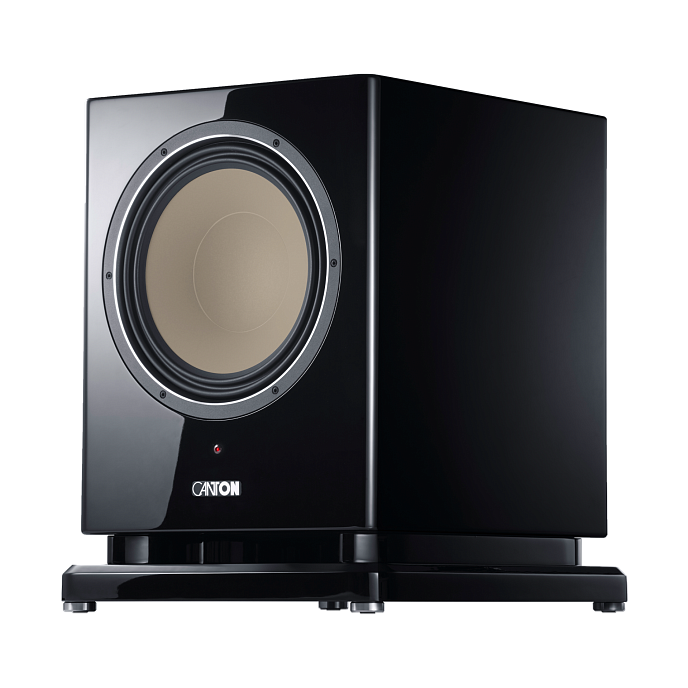

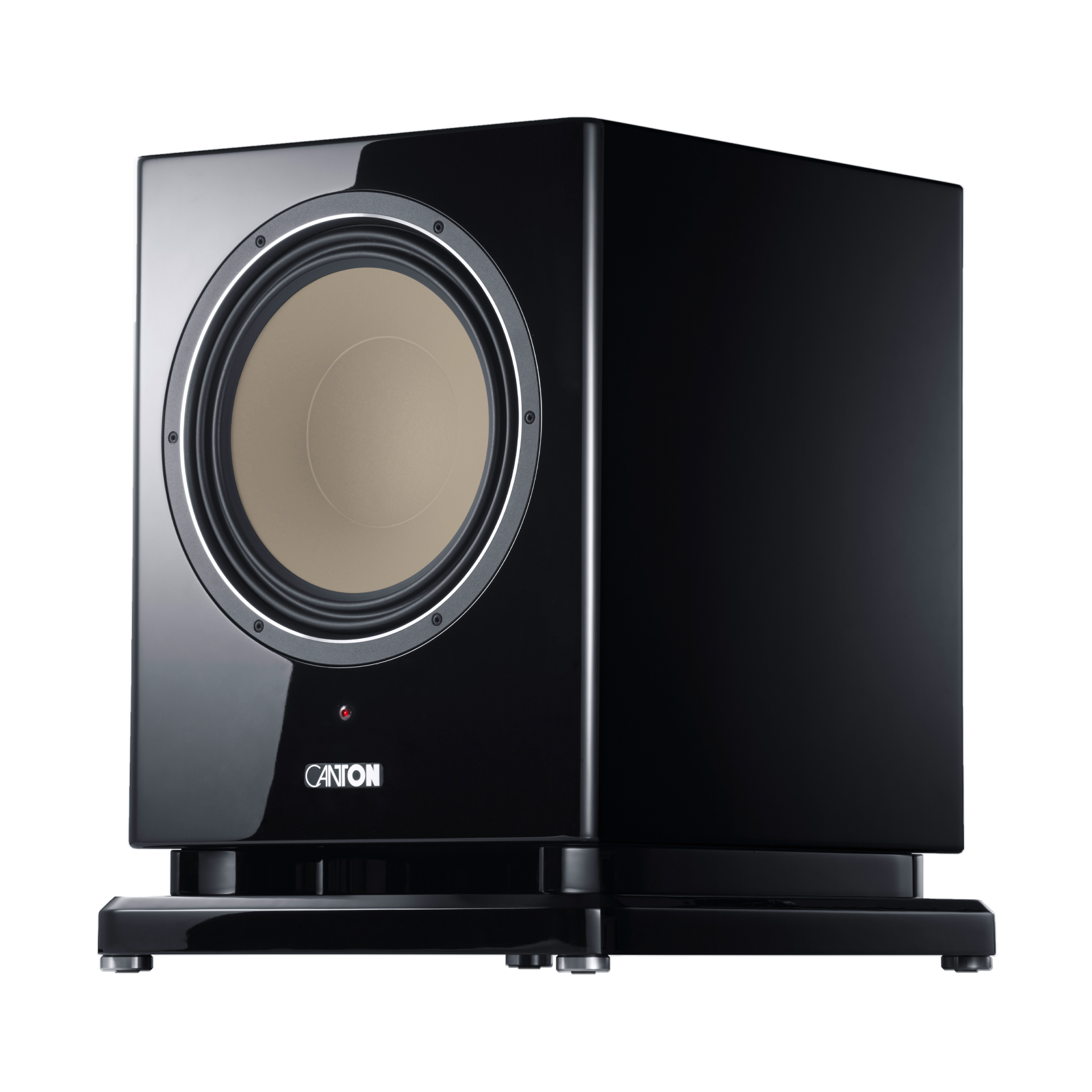

The Reference Sub, perfectly complementing the rest of the Reference series speakers, provides unmatched low-frequency dynamics thanks to its front-firing driver and built-in downward-firing passive radiator. Precisely tuned and compatible with both stereo systems and home theaters, it stands out with high output power and innovative Canton technologies for accurate and powerful low-frequency reproduction. With two finish options to choose from, it easily pairs with any other Reference speaker models.
Features:
- Phase inverter position: bottom
- Woofer size: 12"
- Woofer material: ceramic tungsten
- Minimum frequency: 18 Hz
- Number of drivers: 2
- Maximum frequency: 200 Hz
- Crossover frequency: 55-200 Hz
- Nominal power: 500W
Movies and Music
An ideal addition to stereo systems and home theaters, the Reference Sub uses a powerful 308mm BCT chassis and a large passive radiator for perfect low-frequency reproduction. Powered by a strong 750W digital power amplifier and equipped with built-in DSP and Room Compensation technology, it delivers precise reproduction down to 18 Hz, adapting to different room acoustics. Perfect for immersing in movies or listening to stereo.
Acoustic Optimization

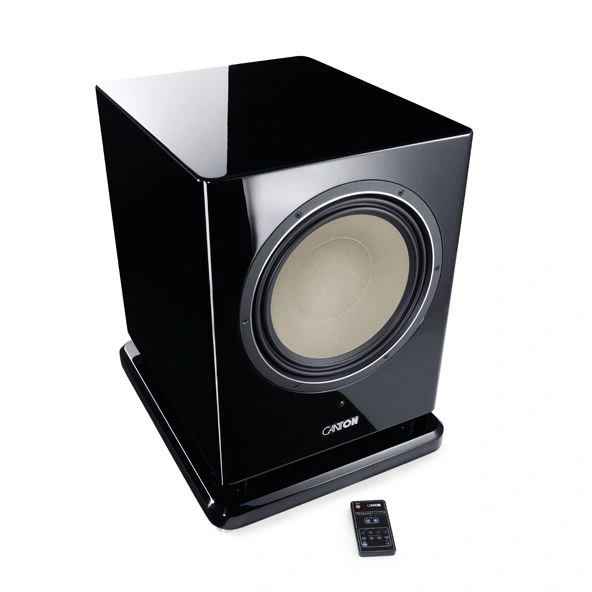

Combining a front-firing woofer and a passive radiator, the Reference Sub is designed to deliver accurate sound at all volume levels. Its 308mm drivers have triple-folded wave surrounds, providing greater amplitude and reducing sound distortion. High or low-level inputs allow adjusting volume, crossover frequency, and phase using the active module. Weighing 37 kg, the Subwoofer also features an automatic on/off switch.
Equipment and Technology
The Reference Sub is a front-firing woofer and downward-firing passive radiator subwoofer. For precise and confident operation at any volume level, the 308mm drivers are suspended in triple-folded wave surrounds of the latest generation.

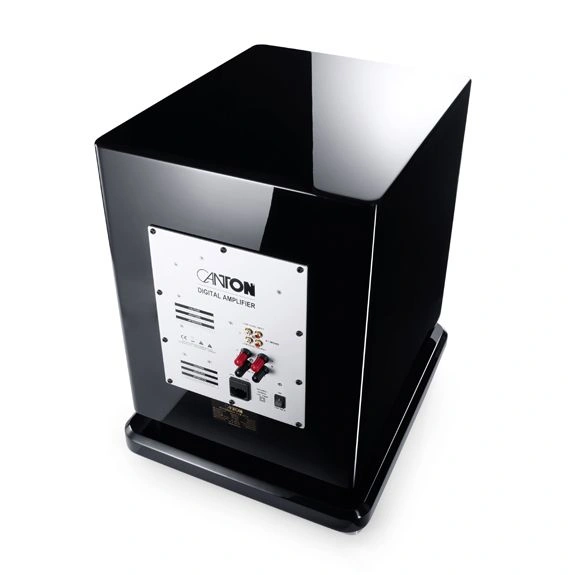

Compared to conventional surrounds, wave surrounds provide much greater amplitude and reduce sound distortion. Connect to an amplifier or AV receiver via high or low-level inputs. Volume level, crossover frequency, and phase can be smoothly adjusted on the powerful active module on the back panel of the subwoofer. Technical equipment of the 37-kg Reference Subwoofer is complemented by an automatic switch-off.
Package includes:
- Subwoofer
- Documentation
