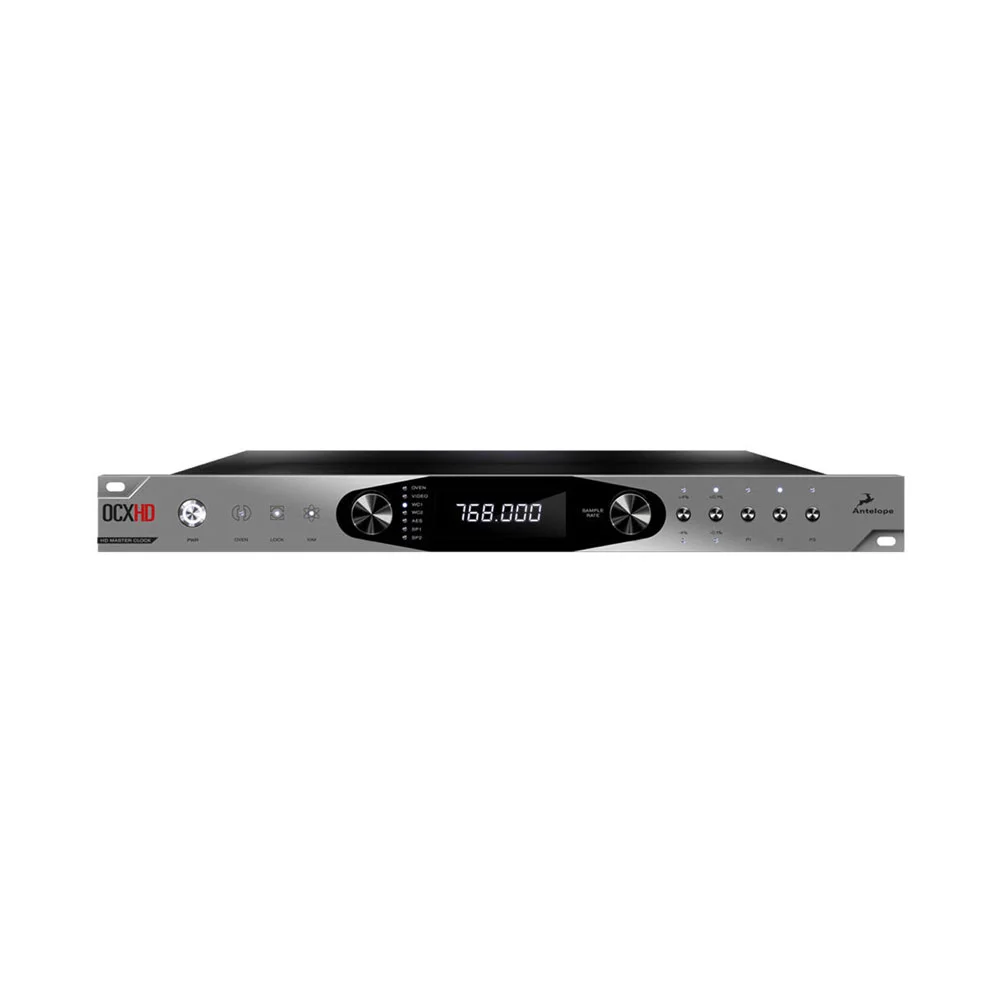

Antelope Audio Isochrone OCX HD Master Clock
For over a decade, the legendary OCX Master Clock from Antelope Audio has been a world leader in professional audio. This legacy continues with the latest synchronization device - Isochrone OCX HD, which raises the quality bar even higher. In a compact 1U device, technologies from Antelope Audio's famous products are combined: the atomic clock accuracy of the 10M master clock and high-resolution synchronization with acoustic orientation and low jitter, as featured in Trinity. The OCX-HD is designed for mastering, recording, studio mixing, or live sound work.
Features:
- 4th generation jitter control algorithm
- Sync frequency up to 768 kHz, above the cutoff frequency
- 4 additional AES/EBU and 2 S/PDIF synchronization outputs, up to 192 kHz
- Universal video input on BNC connectors
- Atomic clock input for increased accuracy and calibration
- Sync lock feature on the panel to avoid changes during sessions
- Convenient front panel lock function, ideal for live sound

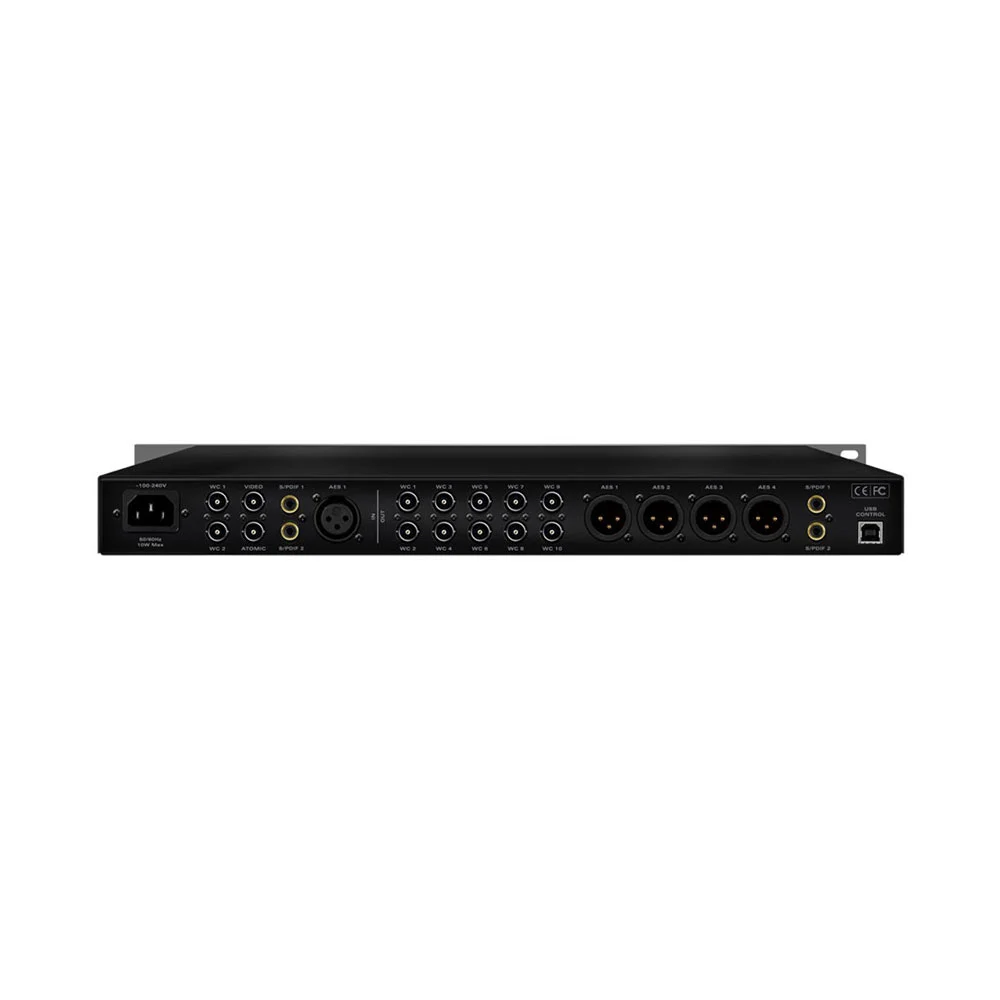

The OCX HD Master Clock offers a wide variety of synchronization options - 10 pair-configurable Word Clock outputs on BNC, four AES/EBU outputs, and two S/PDIF outputs. With such versatile connectivity options, the OCX HD is the most universal synchronization device on the market, while patented technology ensures the most reliable synchronization.
Furthermore, the OCX HD offers two Word Clock inputs and a synchronization video input that can be used for a wide variety of SD and HD formats. It also includes signal distribution with frequency multiplication and video signal upscaling (downscaling), similar to the Trinity synchronization device. The 10 MHz input allows synchronization with the latest 10MX atomic clock from Antelope Audio.
An important advantage of Antelope synchronization devices is the simplified firmware update procedure, easily done through a convenient control panel accessible for both OS X and Windows.
The software includes a user-friendly remote control panel to streamline project workflow. The device can also be easily configured from the front panel, adding a futuristic aesthetic to any equipment rack.
Includes:
- Master clock generator
- Power cable
- Documentation
