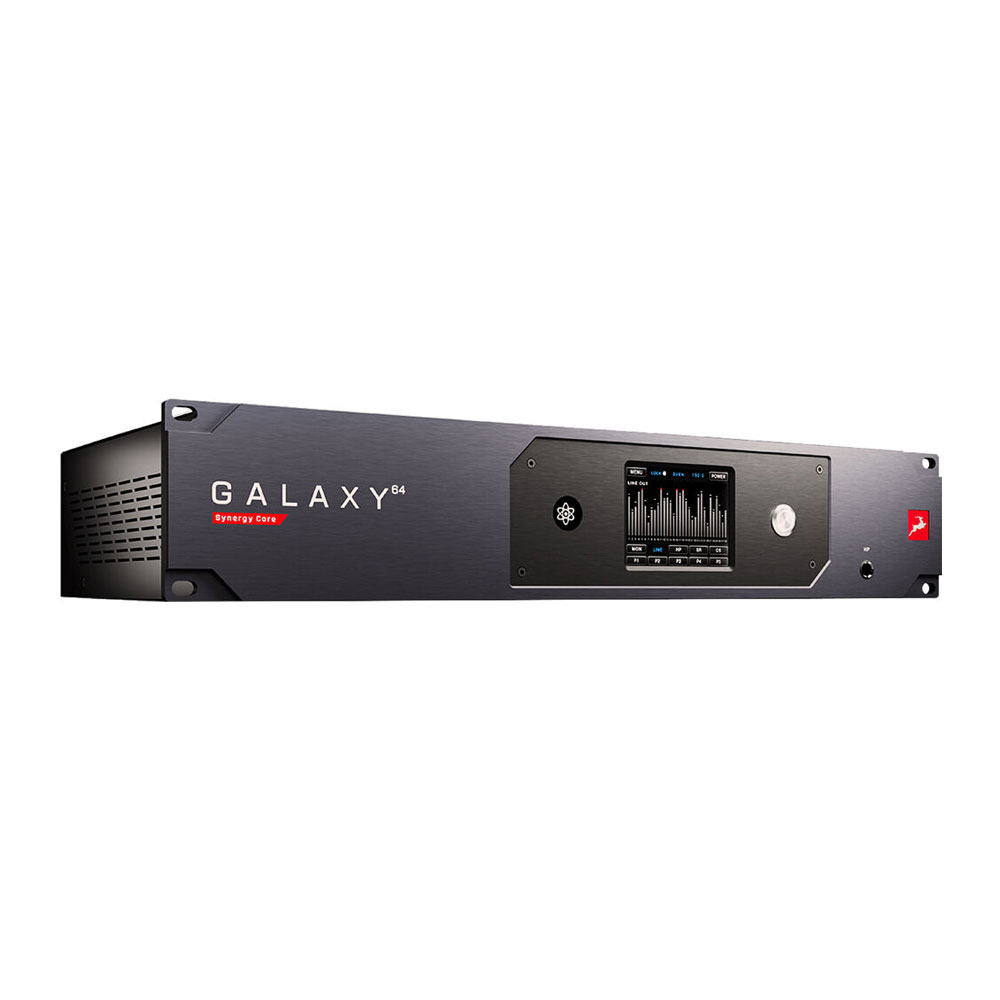

The Antelope Audio Galaxy 64 Synergy Core is a high-quality recording system that combines all your studio needs in a 2U rack space, providing top-notch sound processing and built-in effects for your most demanding projects.
Featuring Dante, HDX, and Thunderbolt connectivity, the world's first 64-channel analog-to-digital converter offers unparalleled flexibility when it comes to moving sound throughout your high-class production facility, live stage, broadcasting, or other corporate applications.
Features:
- Two Thunderbolt 3 ports and two Dante ports
- Signature 64-bit AFC technology provides a wide stereo image with high level of detail
- High-resolution ADC/DAC for artifact-free recordings with 130 dB of headroom without coloration or signal degradation
- Collection of 37 Synergy Core effects, modeled after classic and rare analog equipment
- Synergy Core based on six DSP and two FPGA chips for real-time effects processing with imperceptible latency
- Four built-in stereo mixers with low latency per 64 input channels each, with adjustable levels, panning, and reverb
- Customizable presets with signal routing, mixer settings, and effects

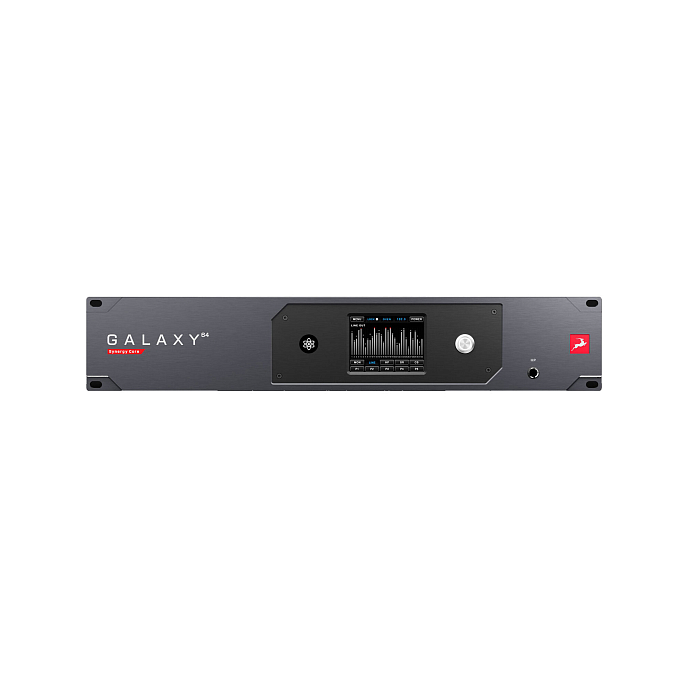

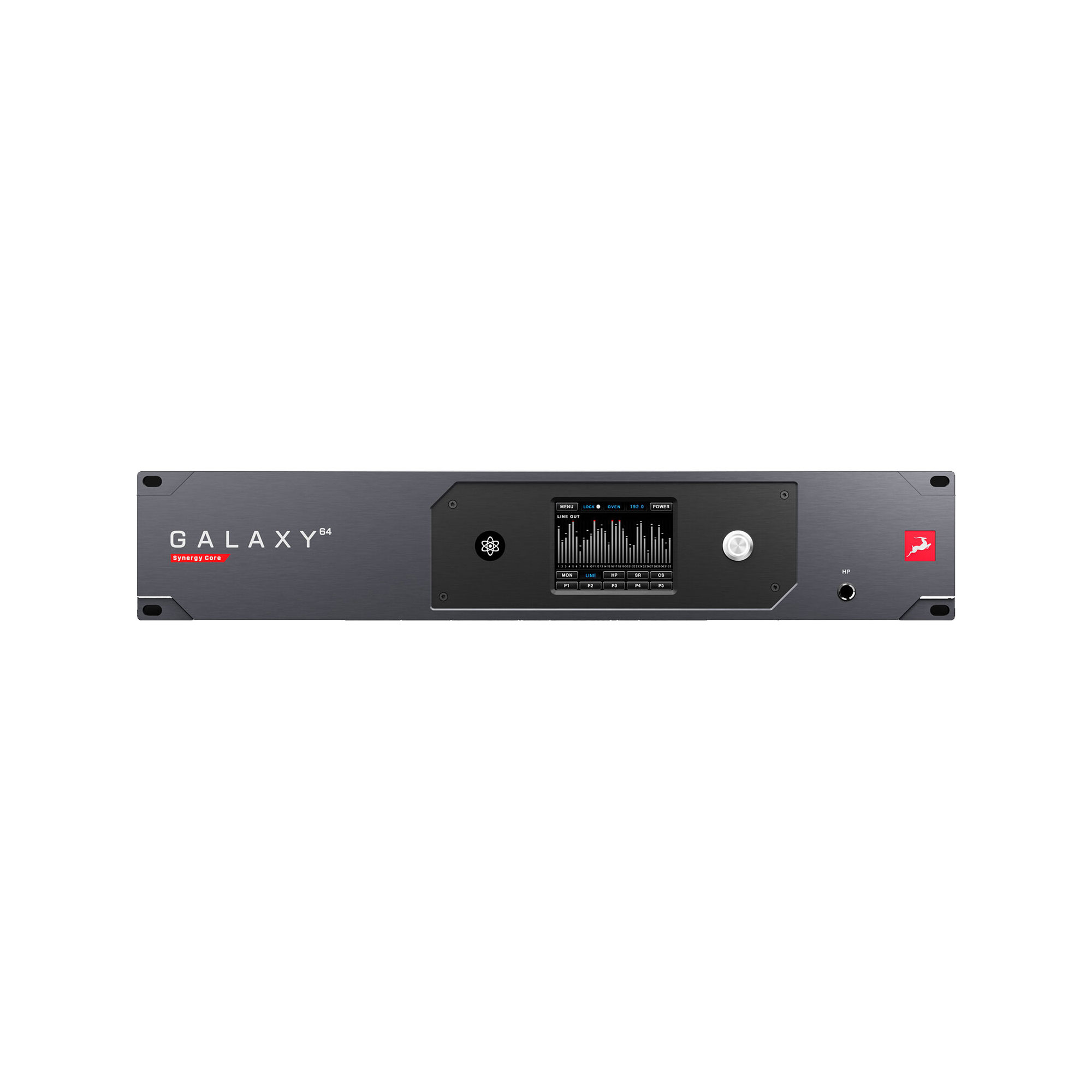

- Color touchscreen display for easy control
- Standalone operation capability without connection to a computer
- Wireless software function control from a separate computer on the same network
The interface connects to the computer via high-speed Thunderbolt port. Dante protocol support allows connection to IP audio networks or creation of custom digital networks with up to 64 input and output channels. Two HDX ports enable easy integration with Pro Tools and support up to 128 channels in/out at 192 kHz.

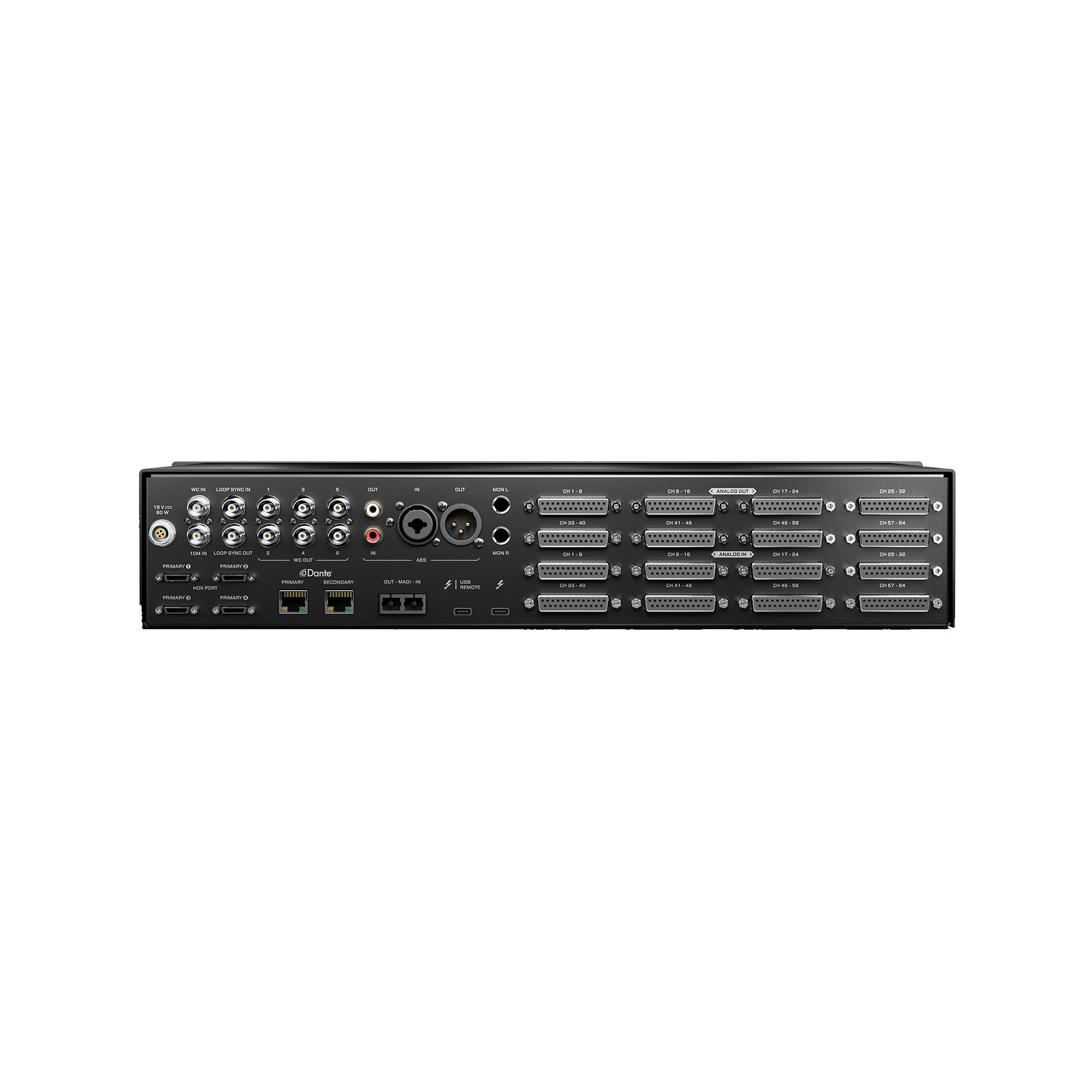

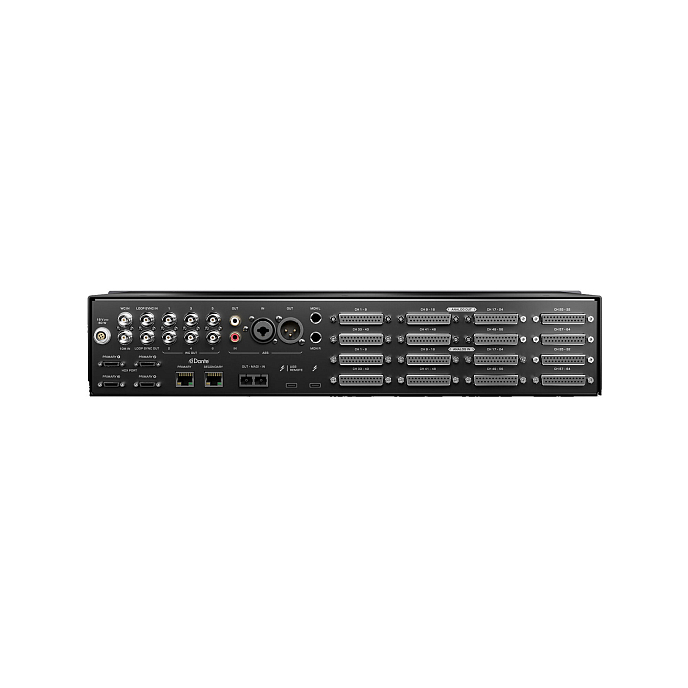

The interface is equipped with digital inputs/outputs MADI, ADAT, and S/PDIF. 6.3 mm monitor outputs allow connection to a pair of active monitors. Galaxy 32 Synergy Core functions as the master clock, ensuring jitter processing accuracy and clarity based on 64-bit AFC technology. Two Wordclock outputs, Wordclock input, and 10M input provide proper synchronization with various equipment.
Customizable presets enable instant optimization of the interface for different purposes. Galaxy 64 Synergy Core includes a set of 37 Antelope effects that model famous equipment: preamps, input channels, EQs, compressors. With six DSP and two FPGA processors, accessing effects for recording and mixing with minimal latency and without overloading the computer processor is easy.
The highest quality converters ensure the lowest THD and the best signal-to-noise ratio for devices of this kind. Galaxy 64 offers a large dynamic range and ensures transparent conversion with precise transient reproduction. The interface is designed for highest level studio recording, including recording large orchestras. It is ideal for use in large concert halls, post-production, and broadcasting.
Package includes:
- Audio interface
- Power supply
- Power cable
- Documentation
