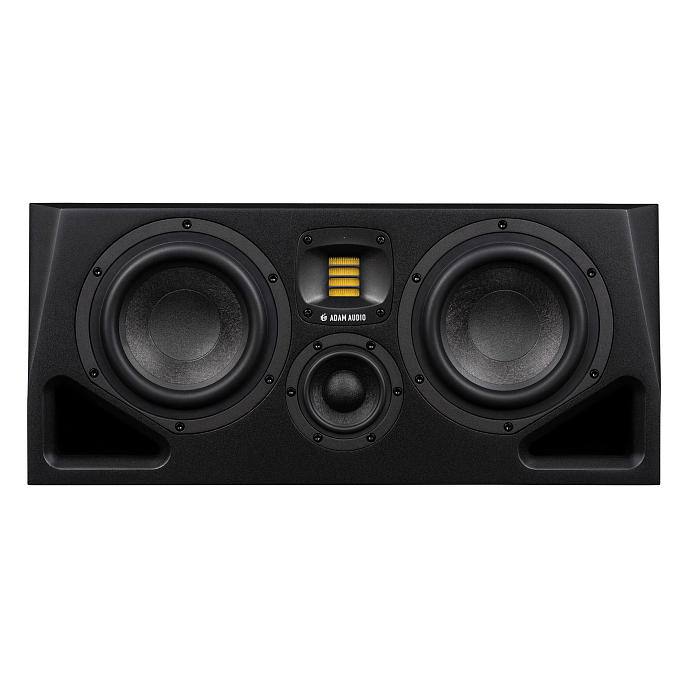

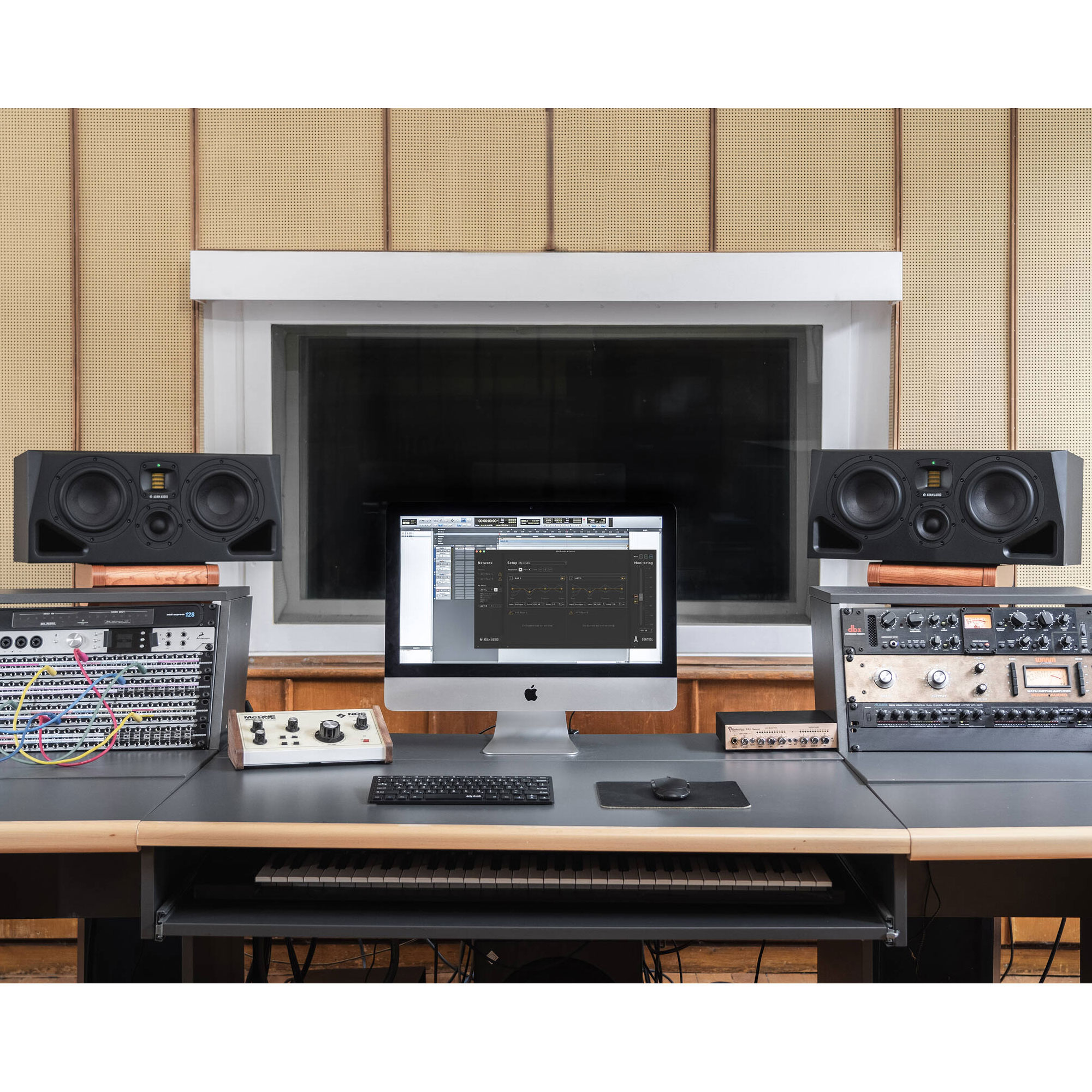

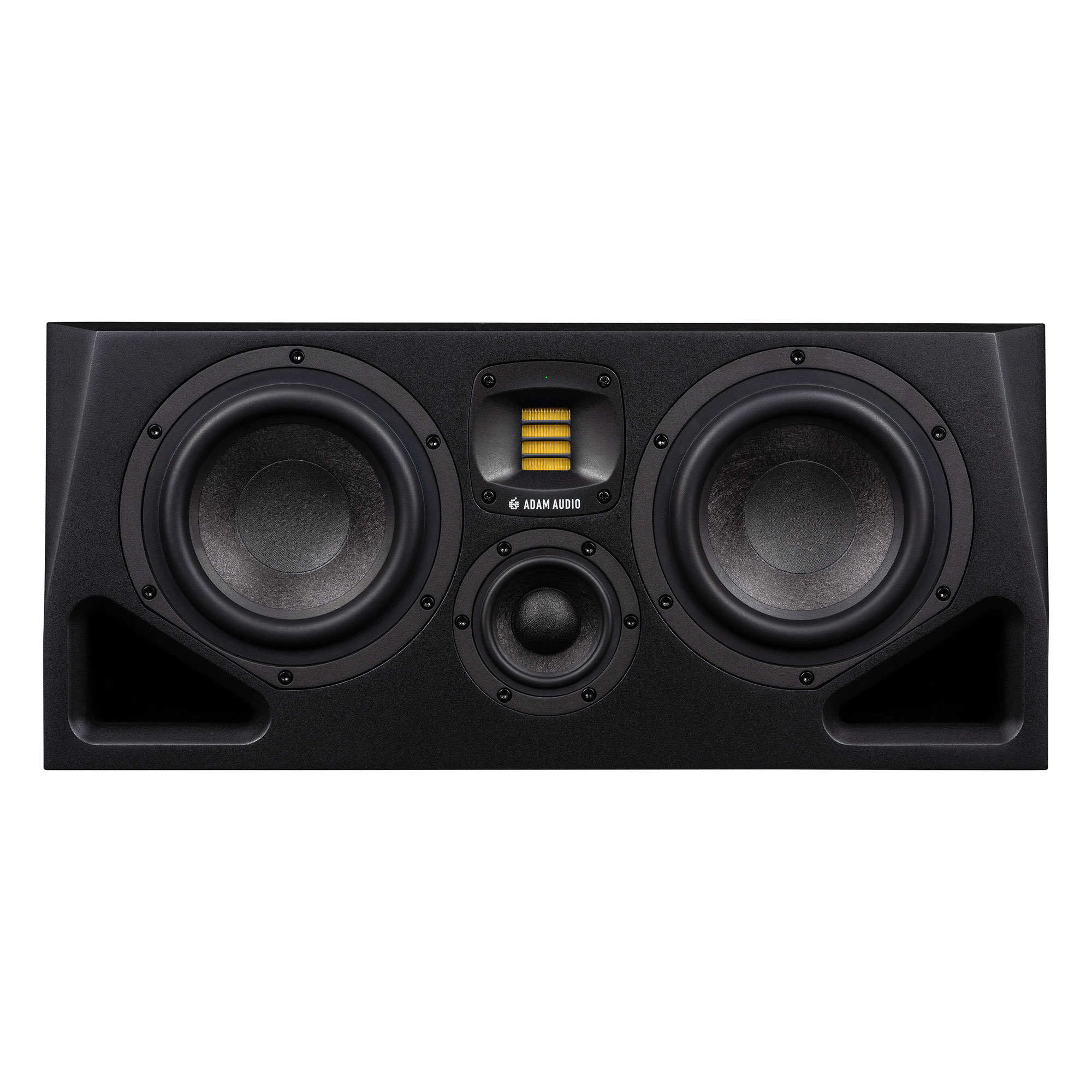

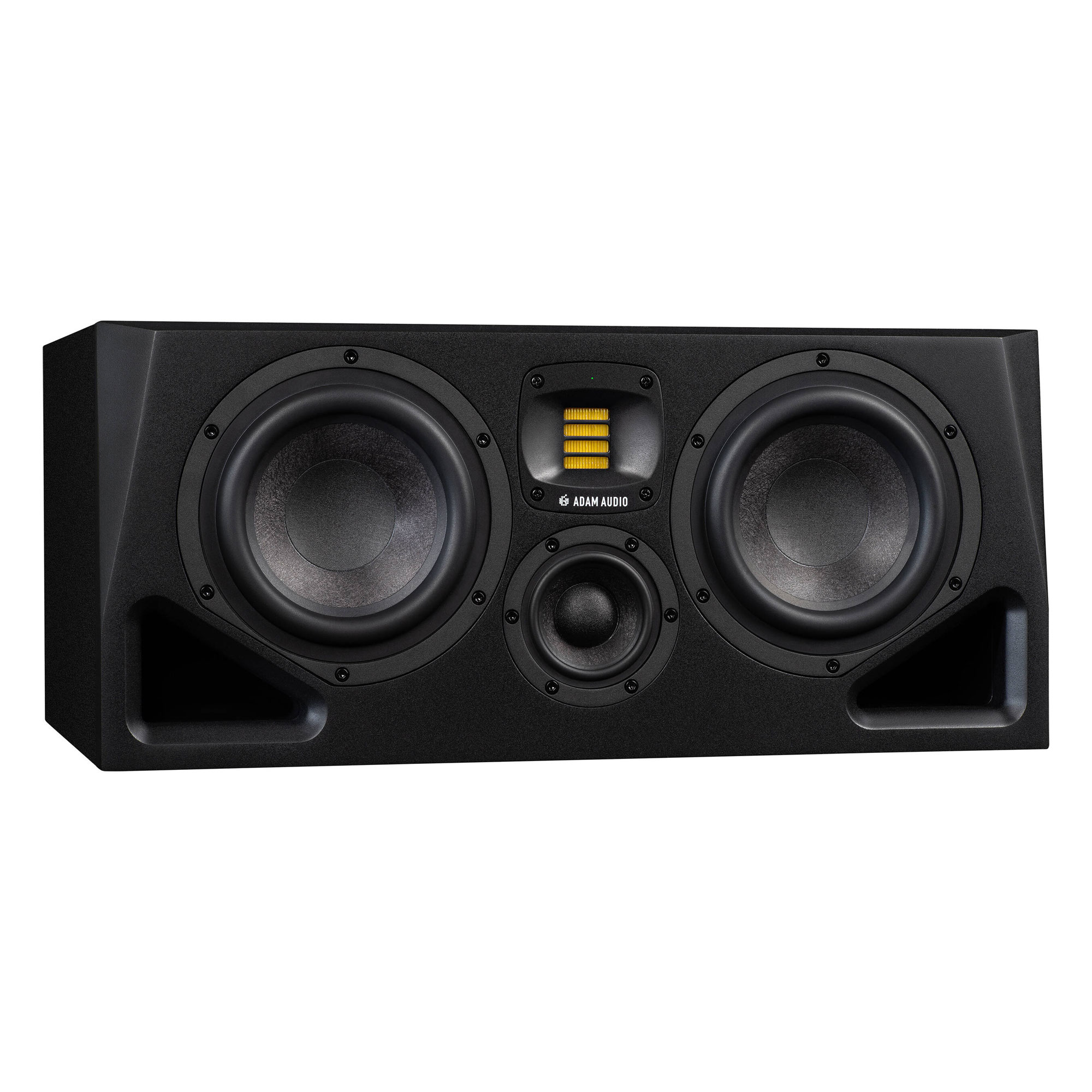

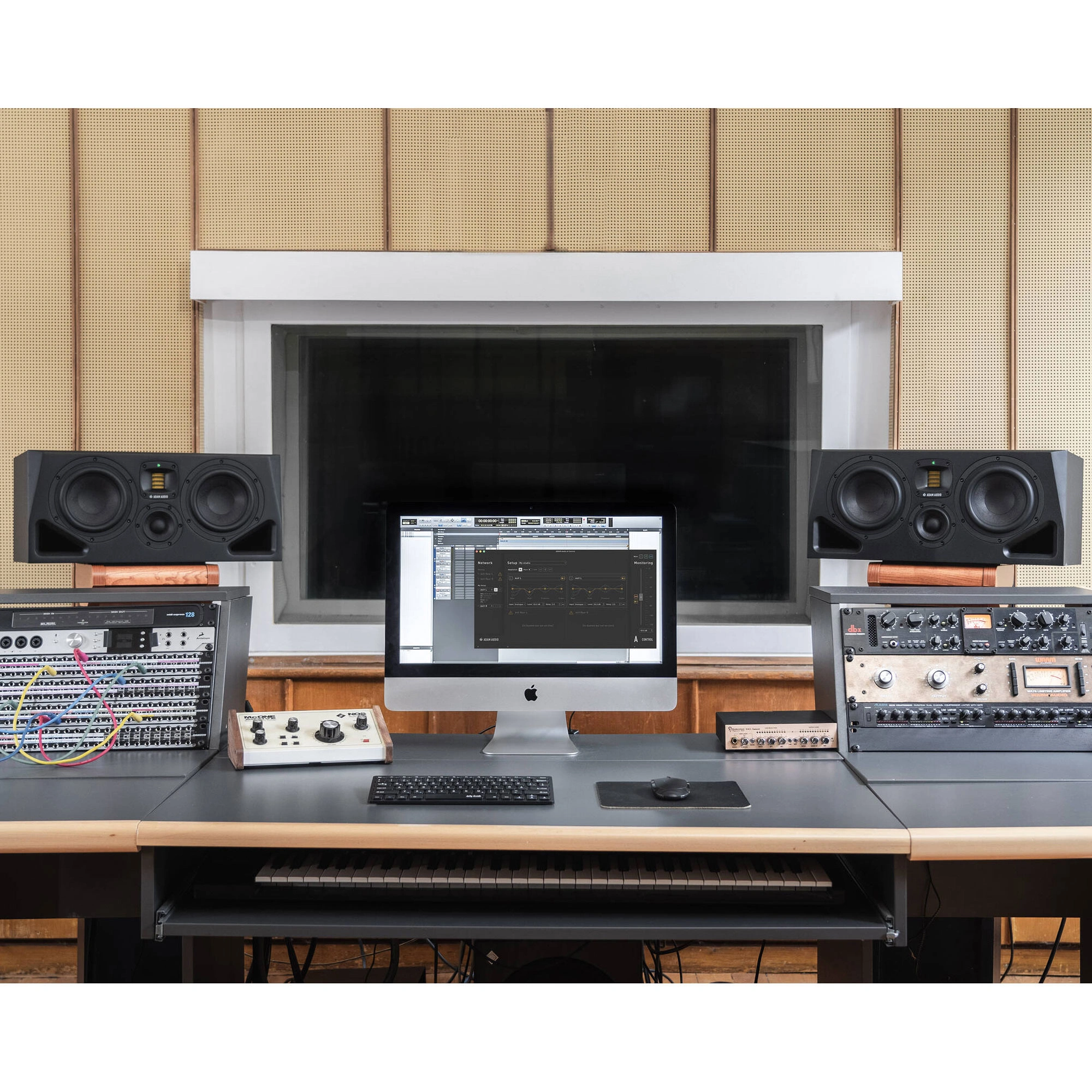

The ADAM A77H is an active nearfield 3-way monitor with a front-firing bass reflex port and horizontally oriented drivers. Thanks to its 19-inch width, the A77H can stand on a standard shelf in a rack or be mounted above or below a display.
Features:
- Horizontal orientation
- Suitable for immersive and 3D configurations
- Dual 7-inch woofers
- 3.5" DCH midrange driver for extra clarity
- X-ART tweeter
- Built-in DSP and remote control
- Internal 96 kHz sampling frequency for clear sound
- Voice control feature with preset sound profiles
- 4-band equalizer with room adaptation parameters
- Crossover frequency: 400 Hz, 3.0 kHz
Updated Design

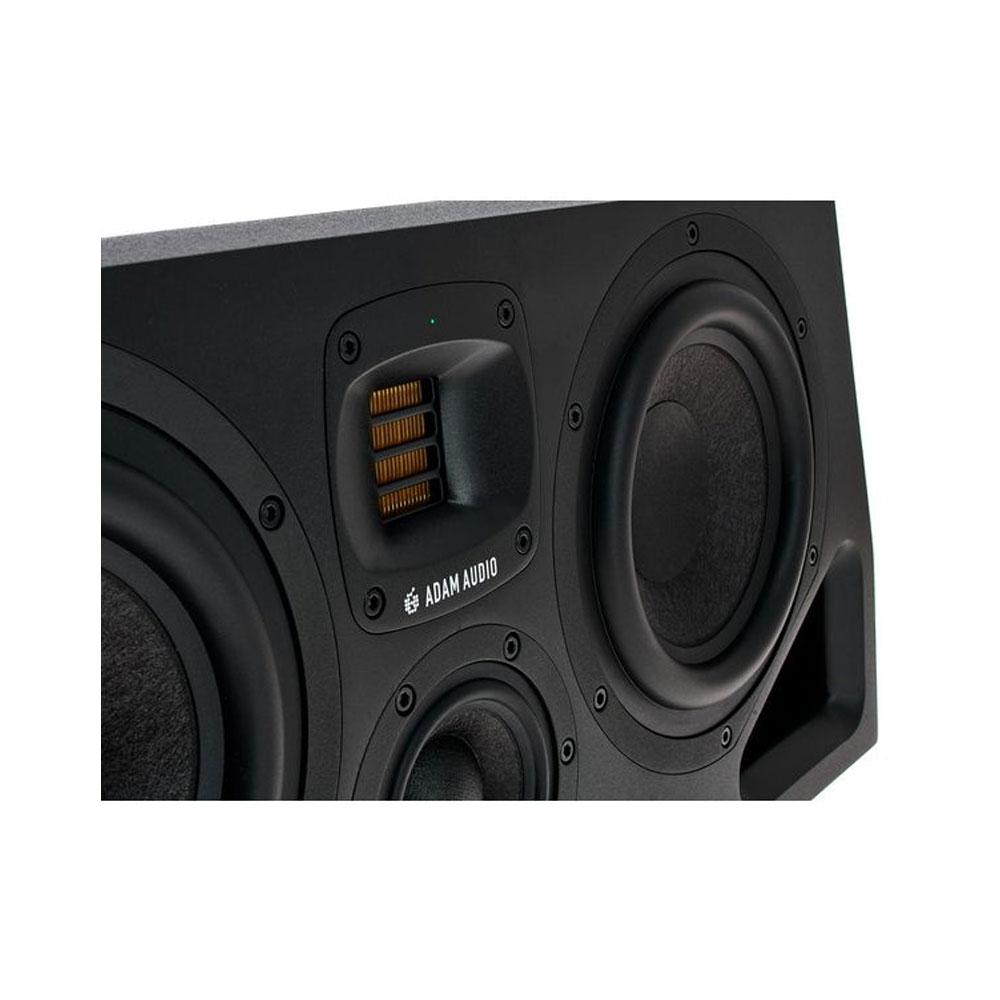

The new design allows the A77H to be used as a center speaker in immersive and 3D configurations. Dual 7-inch woofers and X-ART tweeter provide a wide frequency range, while built-in DSP tuning capabilities make sound adjustments easy. The high-precision X-ART tweeter from German hand-crafted production features a rotating HPS waveguide and a peak power of 500 watts. Mineral material woofers deliver high output power with low distortion, and the midrange driver enhances sound in a sensitive frequency range.
Functionality

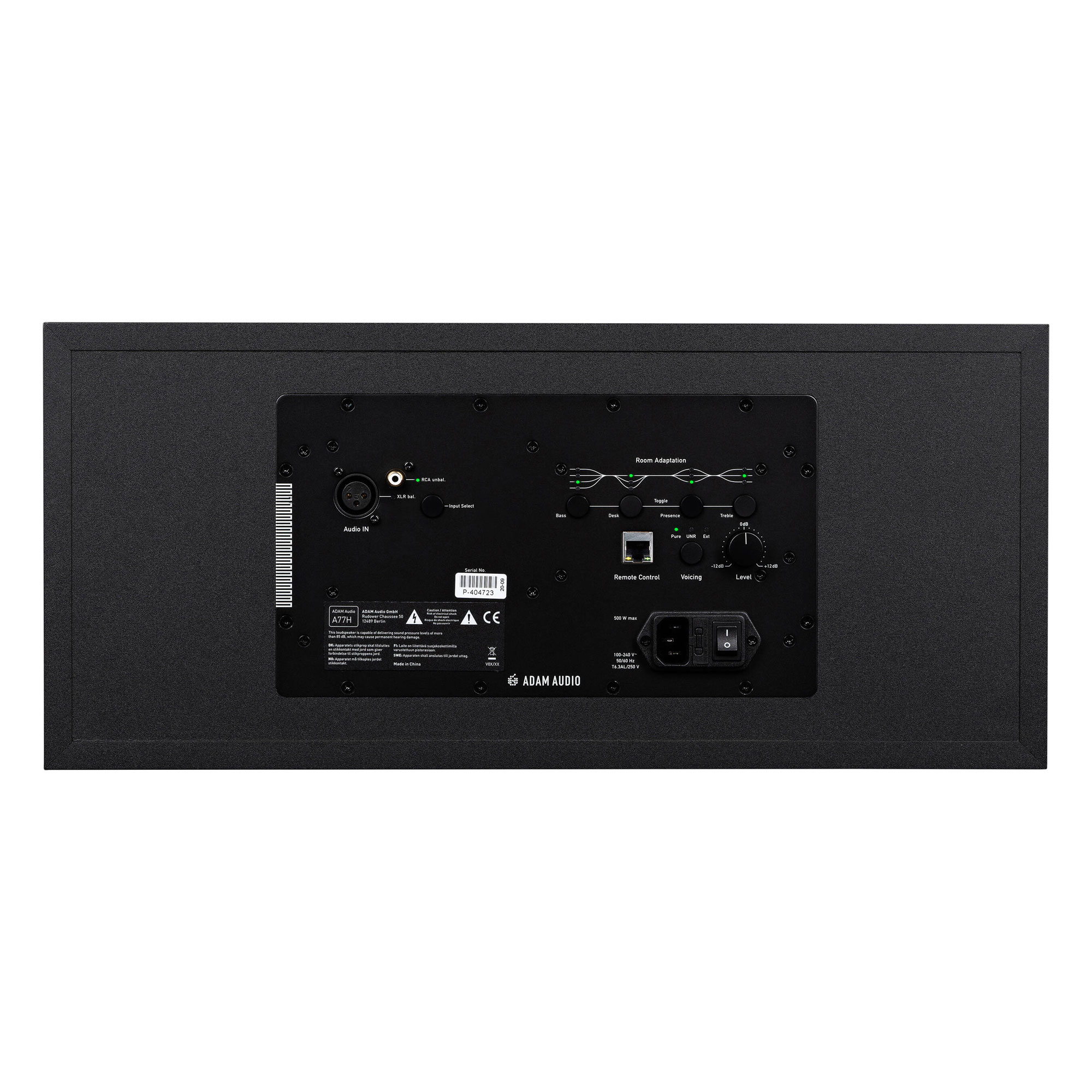

All A Series monitors feature DSP control via Ethernet in real time using A Control. The HPS waveguide made of a new polymeric fiber compound allows the X-ART tweeter to distribute sound with controlled consistency. The new A Series cabinets are based on ADAM Audio's heritage, particularly the AX series. On the back panel, you'll find four equalization ranges for room adaptation: bass, desk, presence, and high frequencies, each with pre-defined steps for over 100 setting options to help compensate for typical acoustic problems.
AB + D Amplifiers
A Series monitors come with both analog and digital amplifiers, providing the best of both technologies. In the A77H, the woofers are powered by a 250-watt Class D amplifier, extremely efficient to reduce distortion. The tweeter has a 20-watt Class AB amplifier for smoother and more natural sound.
Bass-Reflex System, Cabinet, and Assembly

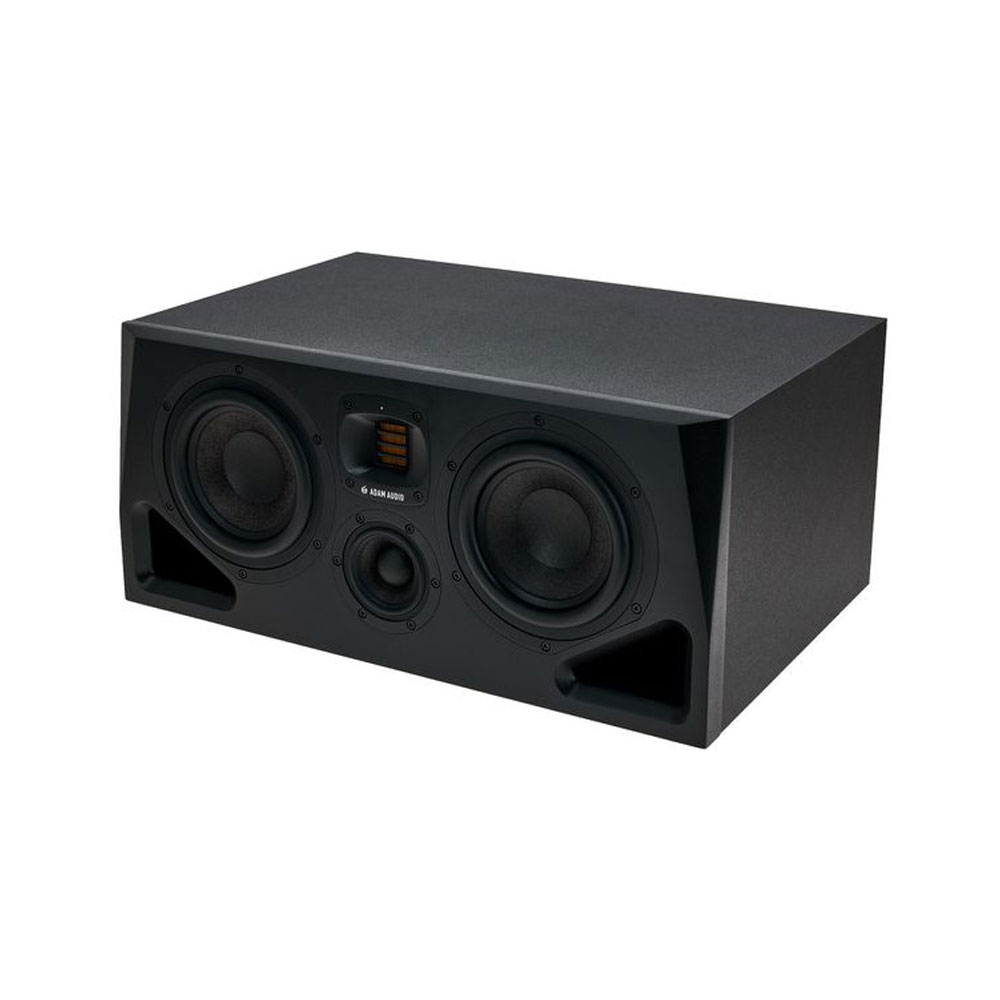

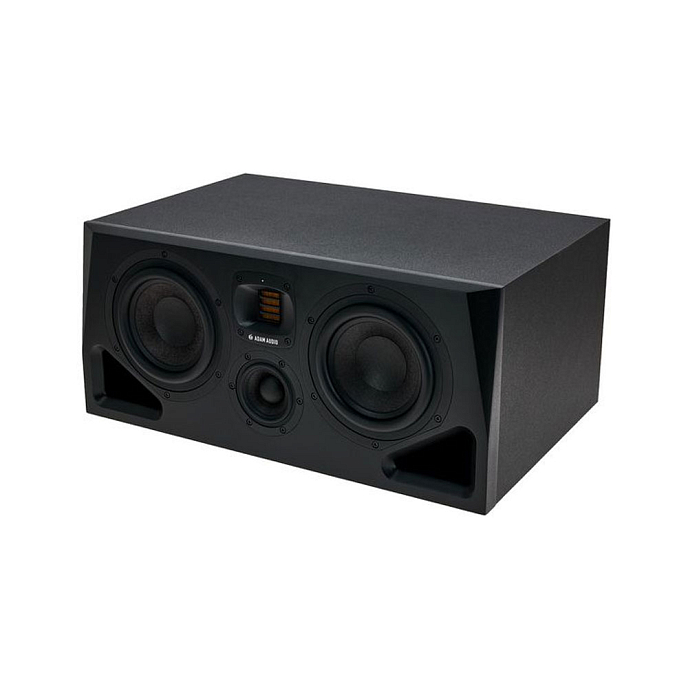

The A Series cabinets, based on ADAM Audio's heritage and the AX series, have an evolutionary design with deeper chamfers to reduce diffraction. Thicker partitions strengthen the cabinet and reduce internal vibrations, while the expanding aperture design optimizes airflow and reduces noise. All A Series drivers feature a mounting interface on the bottom for flexible placement.
Package includes:
- Studio monitor
- Power cable
- Manual
