Receiver
Yamaha R-N800A Black

Product code: 143774
no reviews

Description

Reviews (0)

Description

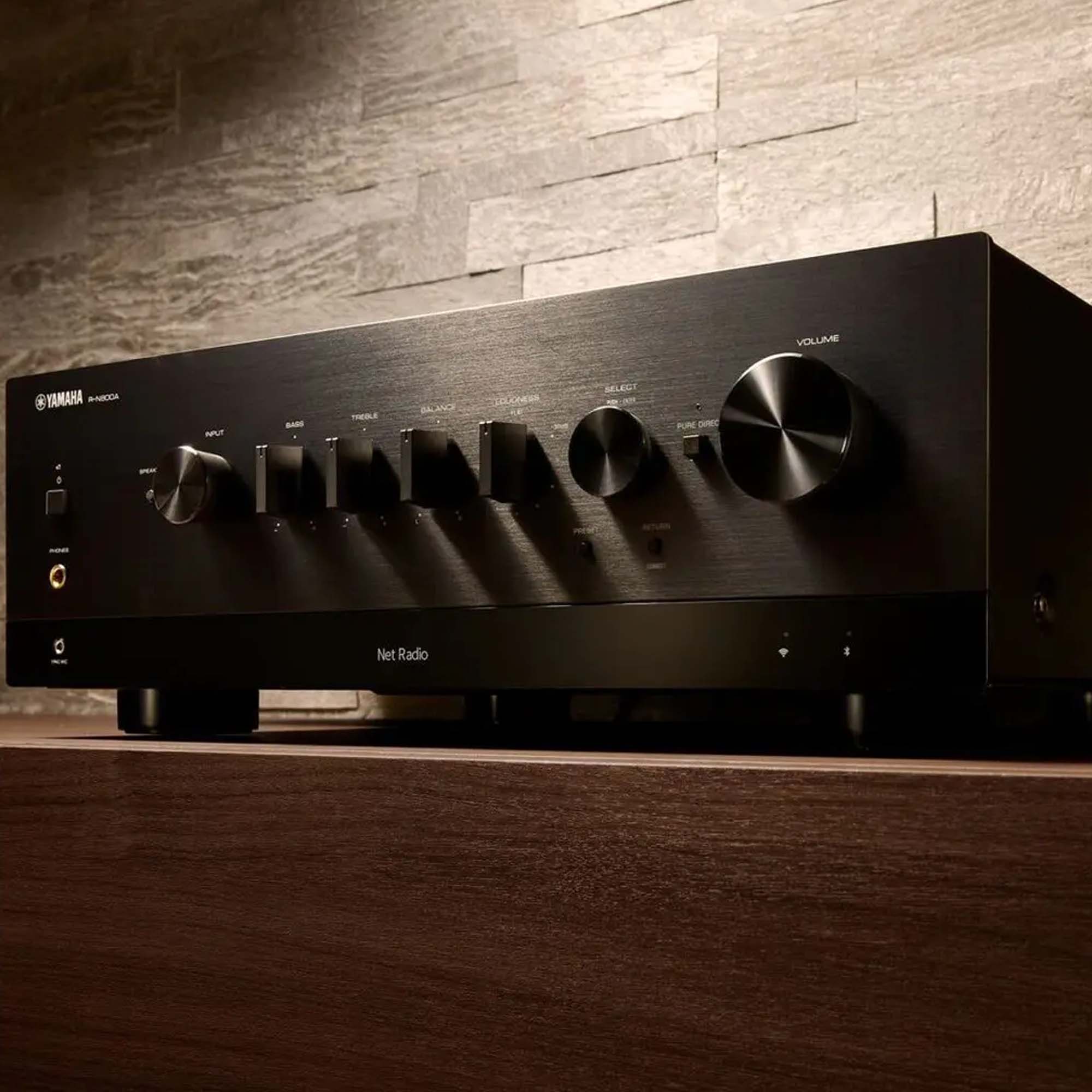

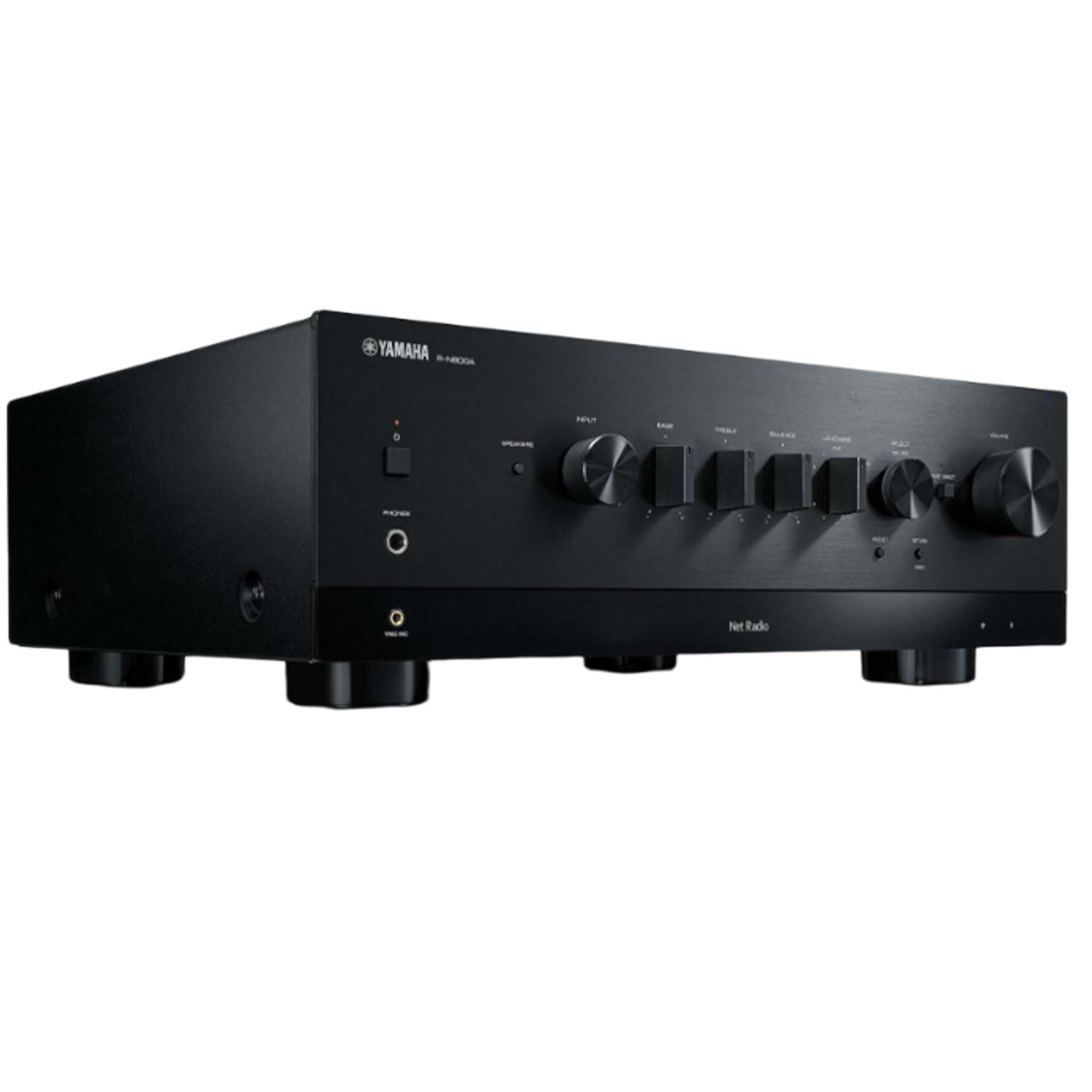

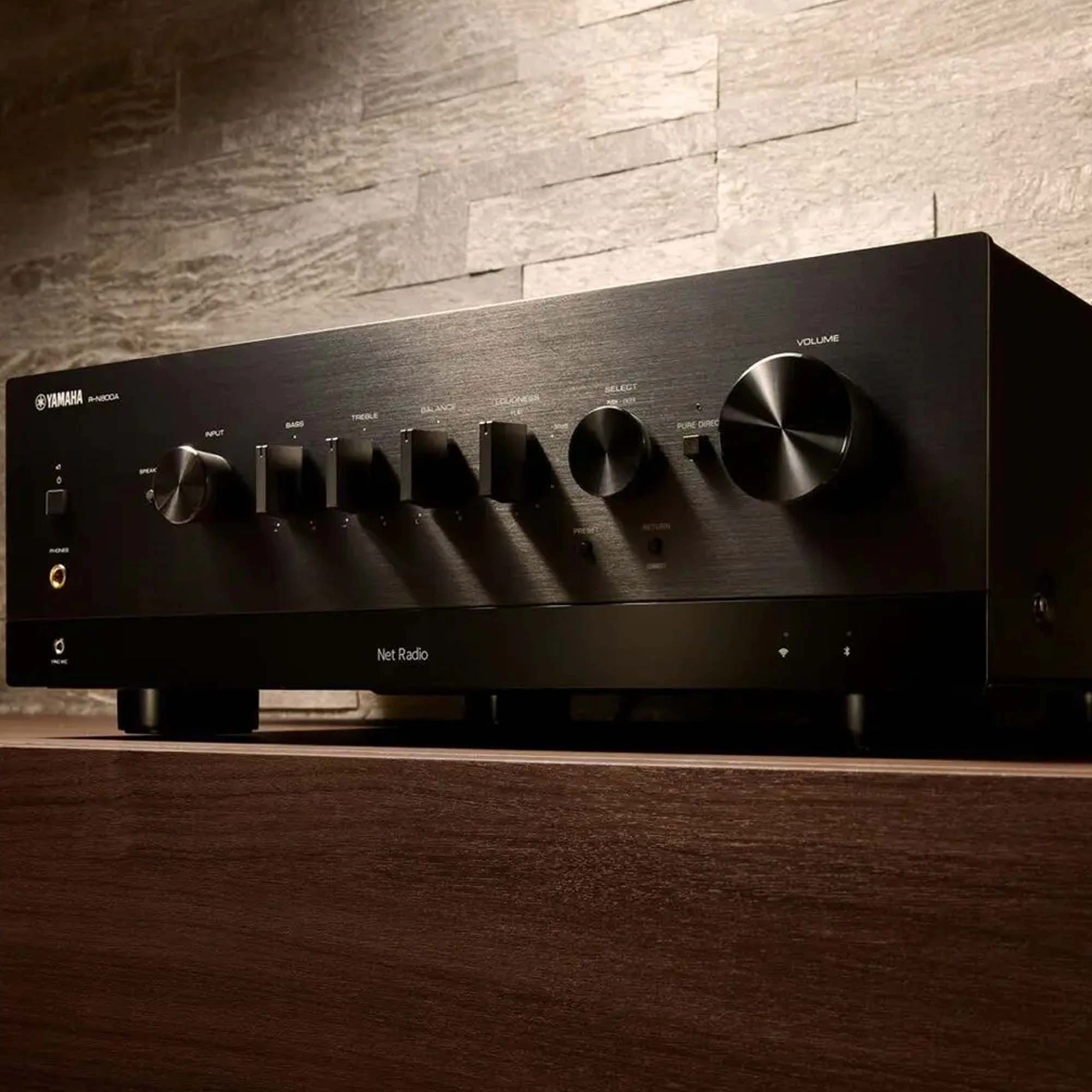

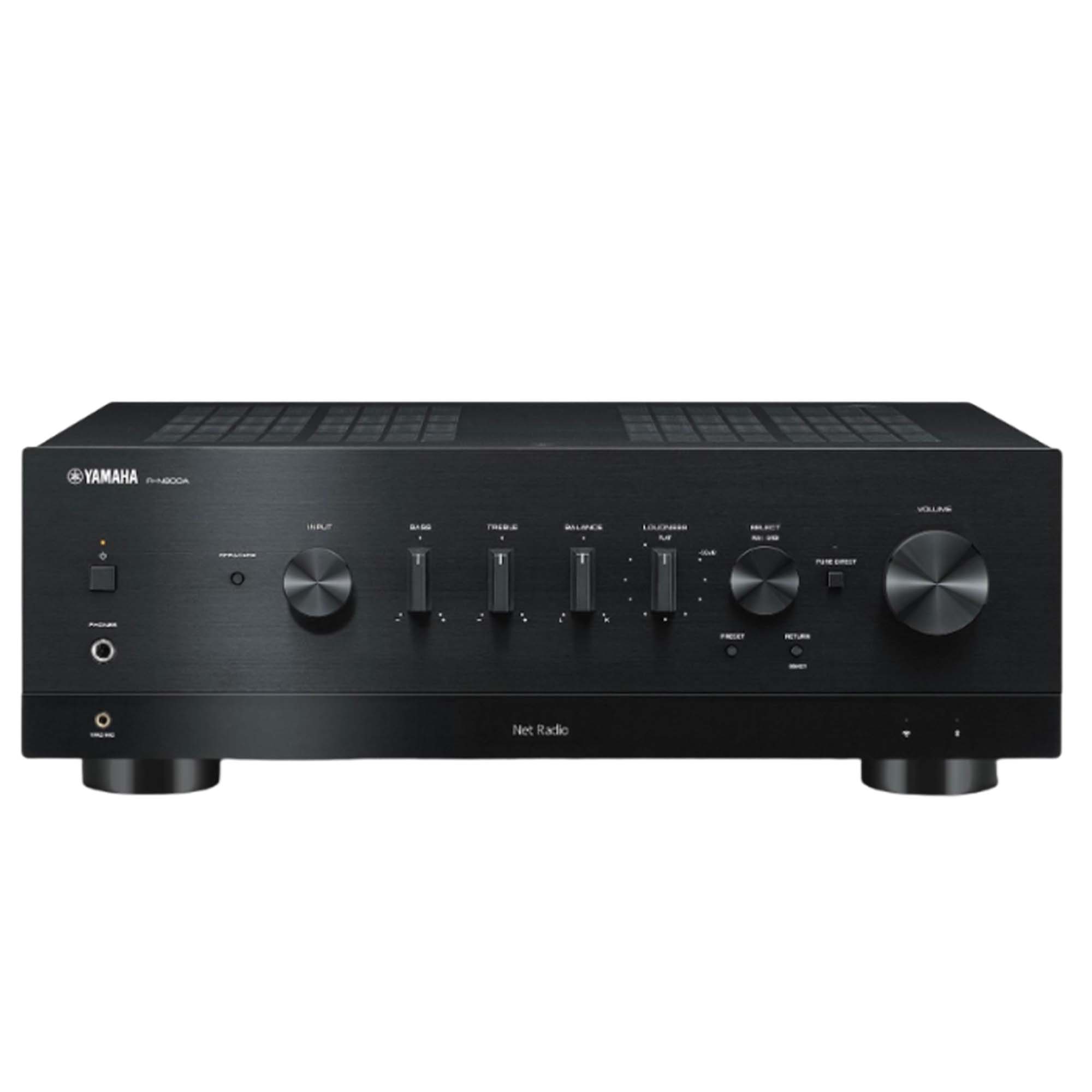

The Yamaha R-N800A network stereo receiver boasts a wide range of features and powerful sound, making it an excellent choice for creating a modern audio system. The device is designed in accordance with the proprietary ToP-ART concept, which involves the most precise sound reproduction through the use of select components and special technical solutions. The Yamaha R-N800A is housed in a sleek design with all the main controls located on the front panel. A display at the bottom shows the receiver's operating modes.

Features:

  • Authentic HiFi quality with Top-ART mechanical structure and low impedance concept;
  • ESS SABRE ES9080Q Ultra DAC for superior signal-to-noise ratio;
  • YPAO-RSC (Reflected Sound Control) and precision equalizer for the perfect listening environment;
  • MusicCast allows music streaming from favorite music services;
  • High-performance USB DAC function supports playback of DSD 11.2 MHz in native format and 384 kHz playback;
  • Original speaker terminals made from pure brass for a secure connection;
  • Special Phono input jacks for listening to vinyl records;
  • Optical terminal for high-quality sound from your TV.

The model is built on an anti-resonance chassis and equipped with damping feet to protect its circuits from external vibrations. The power amplifiers in the Yamaha R-N800A are made with discrete components and feature high-current transistors in the output stages. They deliver 2 x 100W (8 ohms) and have a high damping factor, ensuring compatibility with even "difficult" speakers. Both channels are mounted on separate boards to eliminate crosstalk. The Yamaha R-N800A is equipped with two optical and two coaxial inputs, as well as a USB-C port for signal transmission from a PC. The ESS SABRE ES9080Q DAC processes digital data up to 32-bit / 384 kHz and DSD 11.2 MHz.

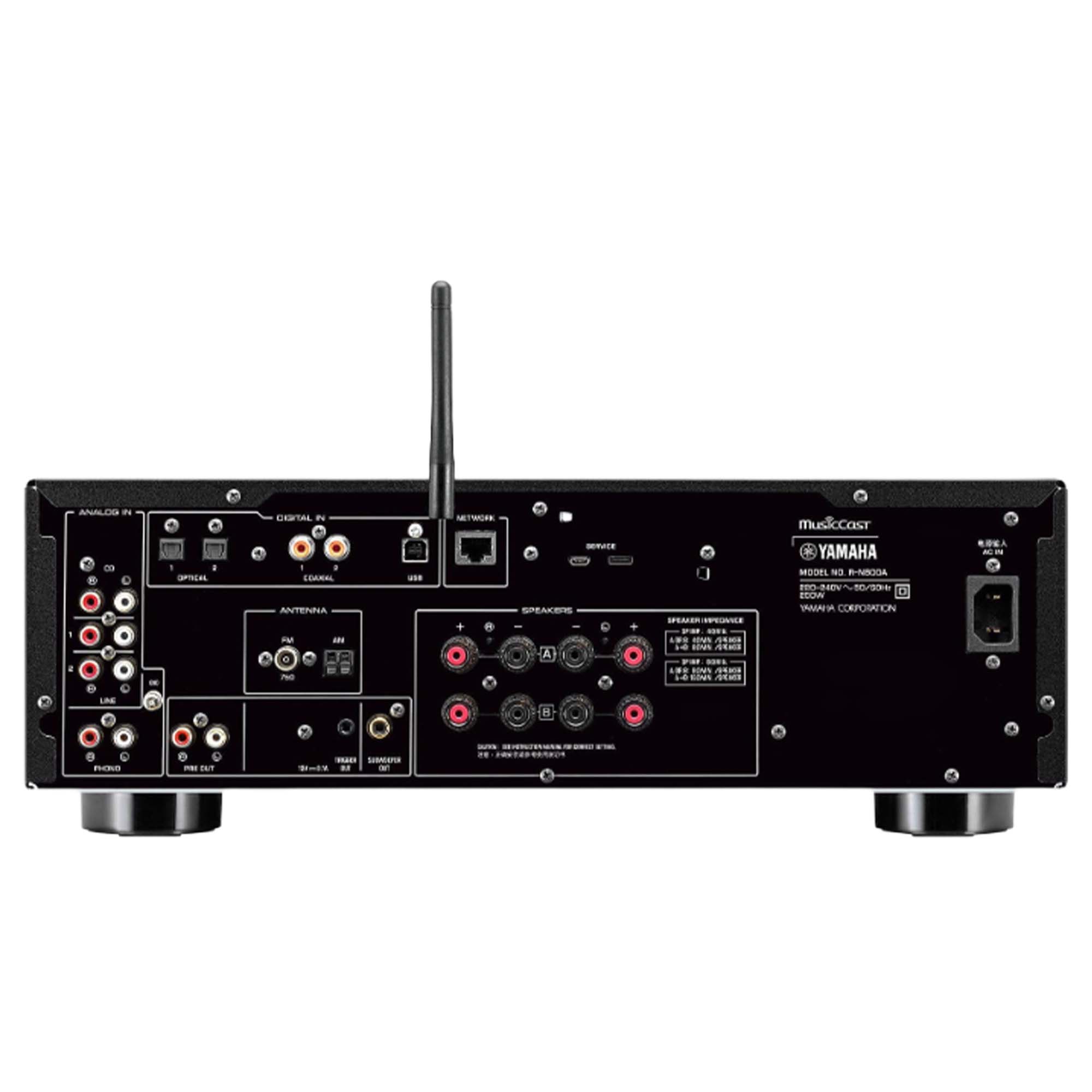

The analog section in the Yamaha R-N800A includes three line inputs and a MM phono input for a turntable. On the back panel, there are preamp and active subwoofer outputs. Two pairs of switchable speaker outputs allow for sound in two rooms, and music can also be enjoyed using headphones.

The network functionality in the Yamaha R-N800A includes DLNA content playback, as well as compatibility with MusicCast and AirPlay technologies. Connection to the network can be done via Wi-Fi or Ethernet. There is also a built-in Bluetooth receiver that can work for both receiving and transmitting signals.

For precise sound tuning depending on listening conditions, the proprietary YPAO auto-calibration system (measurement microphone included) can be used.

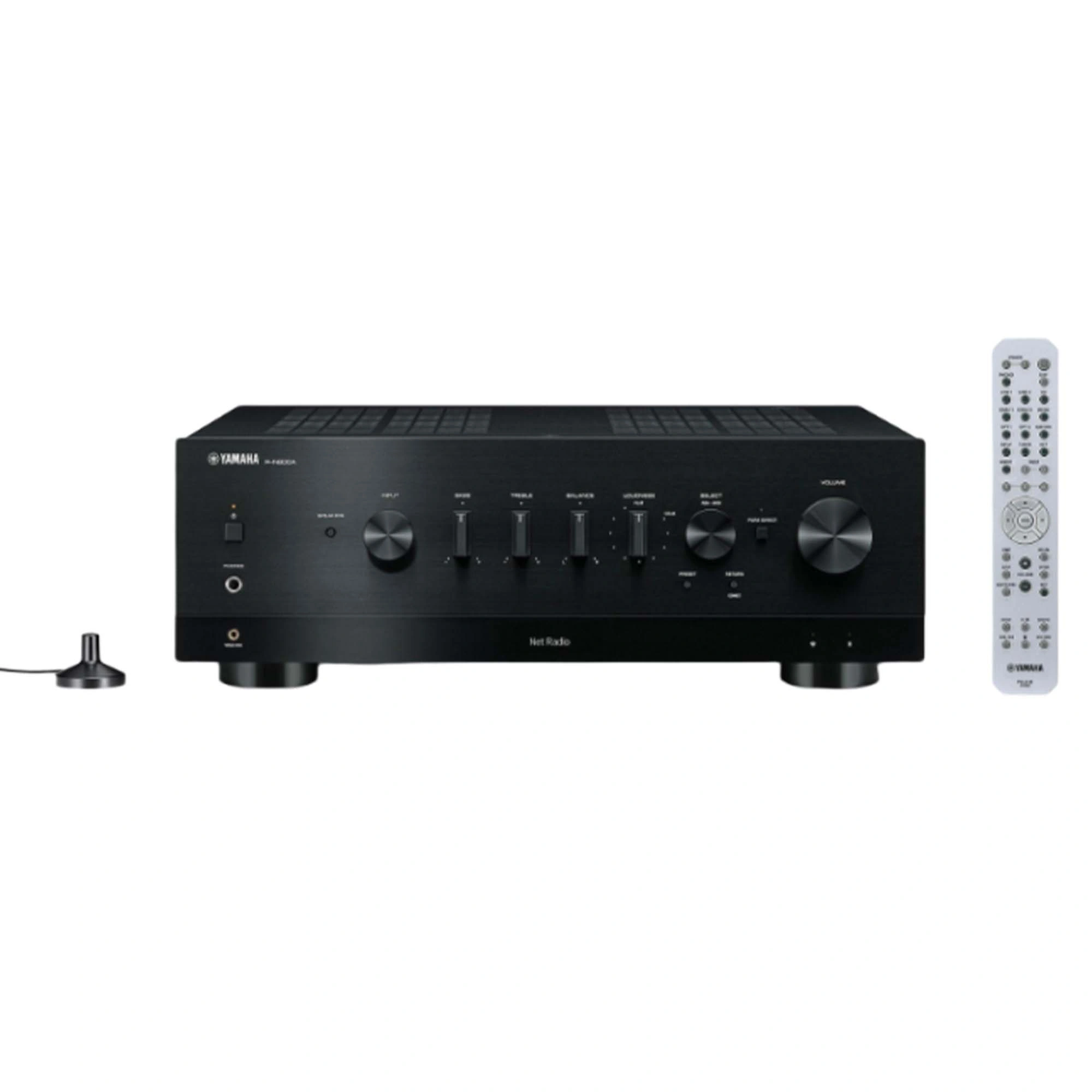

Package includes:

  • Receiver;
  • Remote control;
  • Measurement microphone;
  • Power cable;
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
AirPlay support

Apple AirPlay technology provides wireless streaming of media data between devices

Glossary of terms
yes
Bluetooth version

Bluetooth is a short-range wireless technology that allows you to connect headphones or portable speakers, a stereo system or a soundbar to your smartphone or laptop. For a certain version to work, both devices must support it. The versions differ in data transfer speed, power consumption, securing data transfer, anti-interference ability and range of connection.

Glossary of terms
4.2
Color
DAC bit depth, bits
32
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
ESS9080Q
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Headphone output
6.35mm jack
Input connectors
Optical, Coaxial, Phono, RCA, RJ45, USB-B
Internal DAC
yes
Internet radio

Support for radio stations using Internet data transmission technology for broadcasting

Glossary of terms
yes

A separate or embedded application with radio broadcast on the Internet.

Словарь терминов
Material
aluminum
Multi-channel audio output capability
yes
Network standards
Bluetooth, AirPlay, WiFi
Output connectors
6.35mm jack
Phono stage type
MM
Playback via USB
yes

Playing music files via USB

Словарь терминов
Preamplifier

A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

Glossary of terms
yes
Remote controller

The remote controller simplifies the use of the device

Glossary of terms
yes
RJ45 input

The Ethernet input is one of the options for connecting to the network

Glossary of terms
yes
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

384
Supported audio file formats
MP3, WMA, WAV, AAC, ALAC, FLAC
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

100
The lowest frequency, Hz
10
Wi-Fi

Support Wi-Fi technology

yes
Depth, mm
395
Height, mm
152
Width, mm
435
Weight, g
11400
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

China
Service life, months
24
Warranty, months
12
