Floorstanding Speakers
Yamaha NS-777

Product code: 125841
no reviews

Description

Reviews (0)

Description

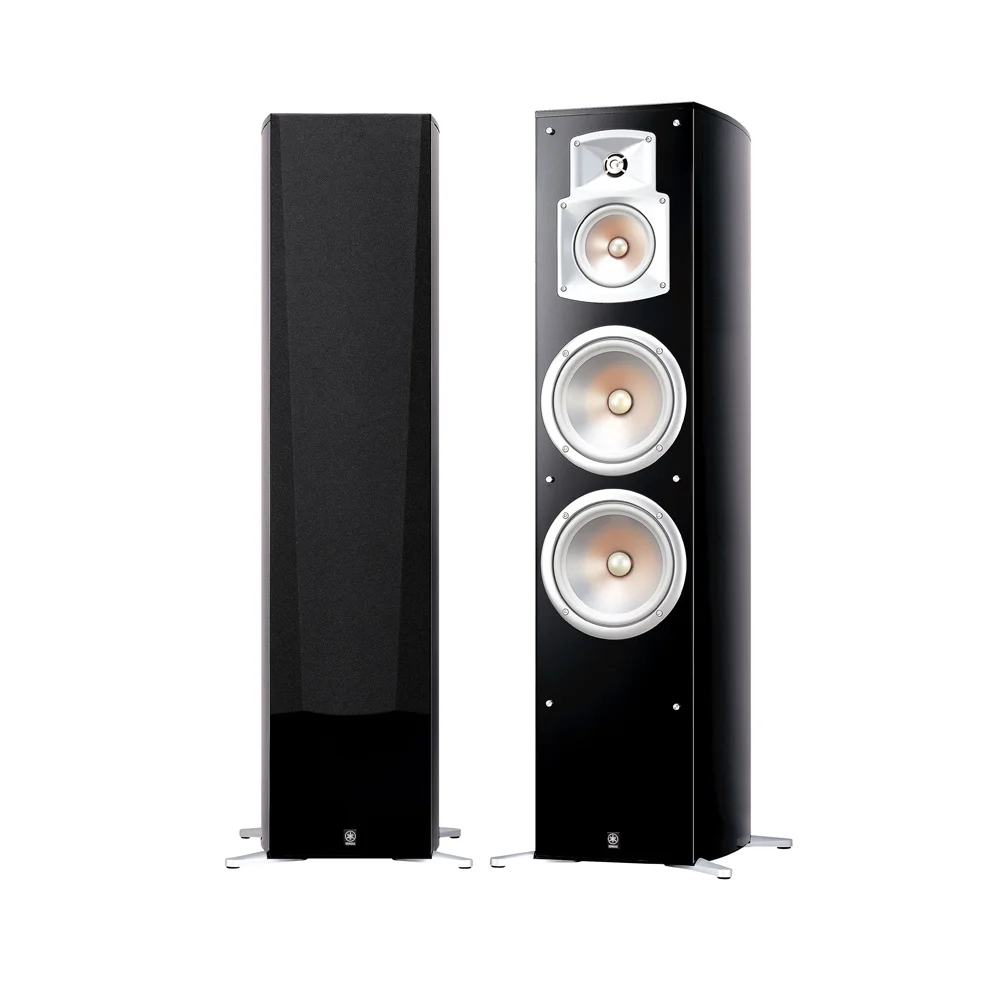

Yamaha NS-777 is a floor-standing speaker with a 3-way Bass-Reflex Tower acoustic system. The EF series (Elliptical Form) features Waveguide high/midrange horns, midrange and low-frequency drivers with Yamaha PMD (Polymer-injected Mica Diaphragm) Technology. The internal wiring uses Monster Cable speaker cables for maximum enjoyment of digital sound in a home theater or stereo system. The elegant cabinets have a traditional grand piano finish in Piano Black.

The Black, lacquered Yamaha NS-777 with slightly convex side panels stands out in a home theater due to its record dimensions and weight. The speaker walls are made of 12mm MDF panels, reinforced by horizontal braces. Inside, there is minimal absorbent material. The semi-transparent membranes of both woofers and midrange drivers are made of the signature composite polymer PMD (Polymer Injected Mica Diaphragm).

The voice coils of the drivers are wound with rectangular wire. The midrange driver is blocked by a damped plastic cap inside. The high frequencies are produced by a tweeter with an aluminum dome membrane and a diffusing lens. The crossover filters are built using non-polar electrolytic capacitors and inductors with ferrite cores. The large bass reflex port is located on the rear panel. The speakers are mounted on "spike" outrigger supports.

Features:

  • high sensitivity and wide dynamic range for modern digital sources;

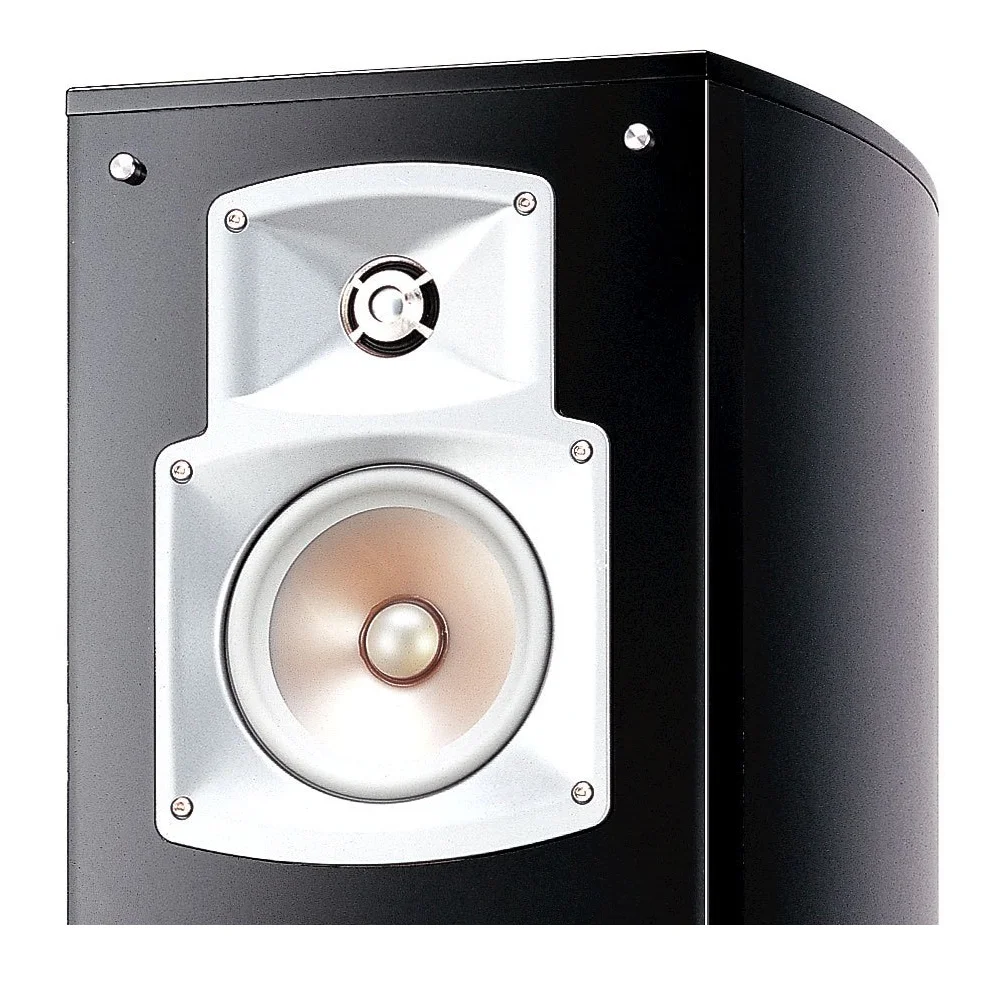

  • the high-frequency driver with a profiled horn allows for shaping and controlling the sound field for accurate spatial depth;
  • the low-frequency driver with PMD (Polymer-injected Mica Diaphragm) Technology combines highly efficient materials and construction for exceptional sound accuracy;
  • internal wiring is done with high-quality "Monster Cable" speaker cables;
  • the dome tweeter with a flat frequency response ensures clear and natural reproduction of the high-frequency range;

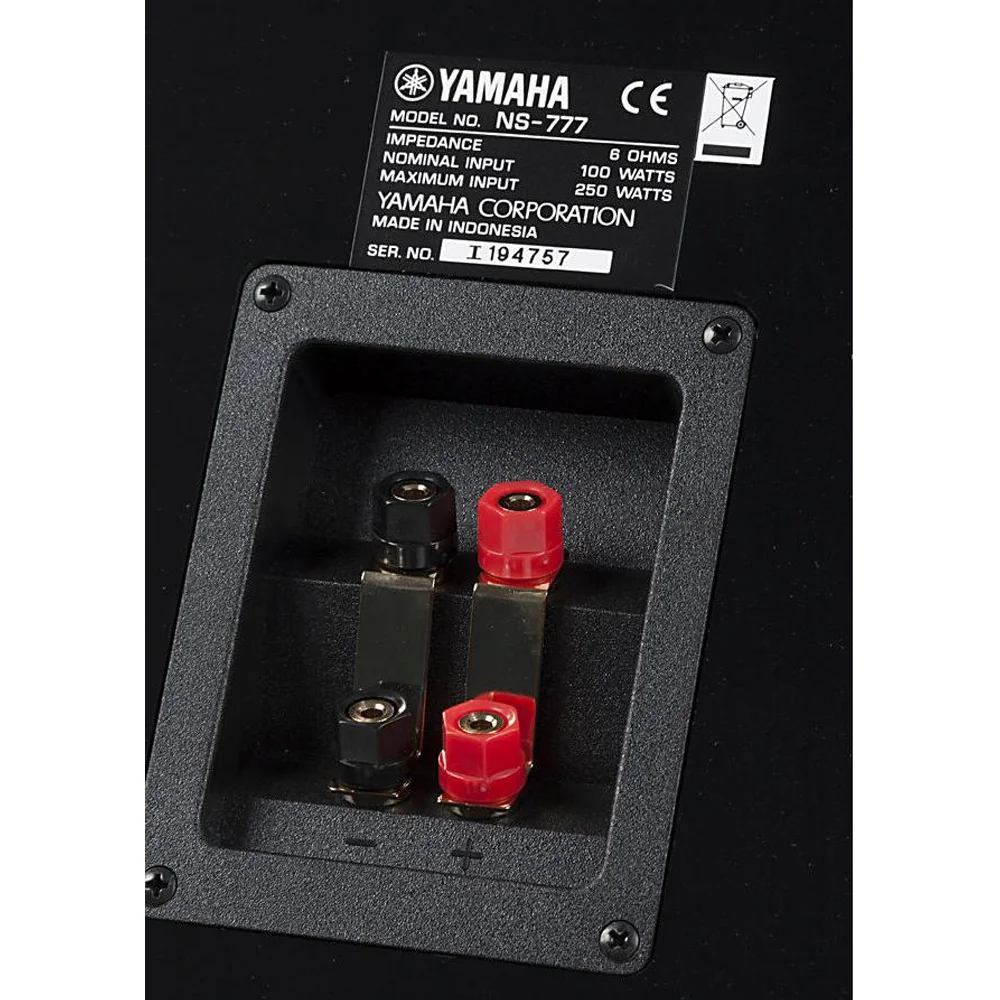

  • Bi-Wiring connection method;
  • elegant elliptical shape with Piano Craft finish.

Package includes:

  • floor-standing speakers - 2 pcs;
  • documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Color
Connection method
bi-wiring
Diameter of the woofer, mm
200
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
6
Material
wood
Midrange speaker size, mm
130
Number of lanes
three-lane

A classic connection of two channel terminals and a screen.

Словарь терминов
Phase Inverter location
behind
Power, W
250
Removable panels
yes
Sensitivity, dB

A value describing the volume of the device in relation to the level of power supplied

Glossary of terms
89
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
25
The lowest frequency, Hz
30
Tweeter size, mm
25
Type of speakers
passive floorstanding
Depth, mm
390
Height, mm
1100
Width, mm
276
Weight, g
24400
Service life, months
24
Warranty, months
12
